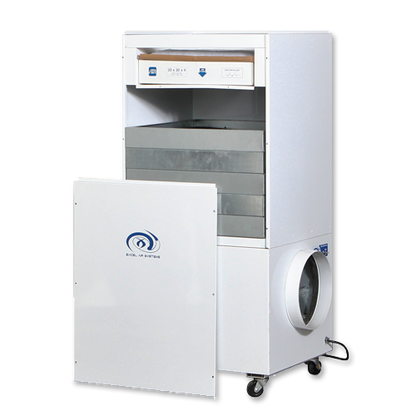

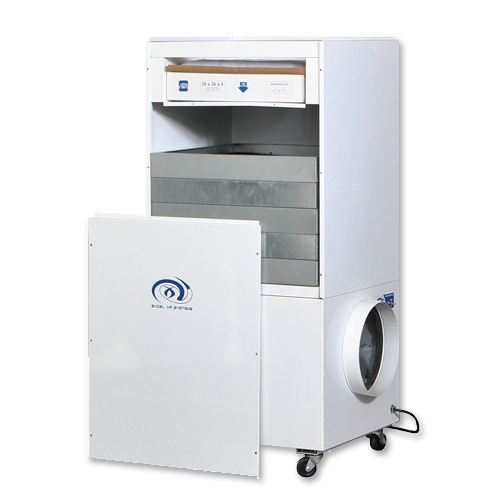

The Excel Odor Eliminator is perfect for any area where extreme smell is an issue. Unlike other filters this multistage filter will remove the harshest smells, giving you peace of mind. Either place the two piece unit inside your area or easily duct to and from your room, ensuring thorough air circulation past the primary and secondary filters, then through the 5 trays of Custom coconut shale Charcoal specially designed for organic odors. Plug the bottom box blower into any 120V plug and it will start eliminating odor instantly.
Dimensions - 50" h x 25" w x 22" d
Add a plenum to the top of the Charcoal Chassis to allow for easy ducting if not directly placing Excel Odor Eliminator in room.
Excel Air Odor Eliminator Installation Instructions & Diagram
Specification Sheet PDF
Dimensions - 50" h x 25" w x 22" d
Package Contains
- Bottom box blower with fan
- Top charcoal chassis

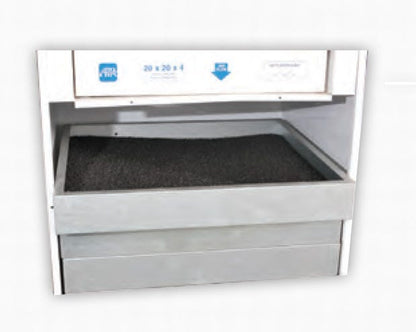

- 5 x Charcoal trays
- 1 x Large Pleated Filter
- 1 x Throwaway Pre-Filter
- 55lbs of Custom Charcoal
- Industries best support!
Key Benefits
- Removes very harsh smells
- Easy access; 5 charcoal tray
- 2 piece unit (box blower & filters)
- Quiet, insulated blower box
- Will clean areas up to 800sqft
- Can be ducted into desired area
Specifications
- Dimensions: 50 in H x 25 in W x 22 in D
- Weight without Charcoal: 175lbs
- Charcoal: Custom Shaled Coconut (55lbs)
- Filter 1: 1in High-Strength Dual-Ply Card board Frame, 0.17in W.G., Synthetic Media Composition, 88% Air Arrestance
- Filter 2: 4in Pleated Panel High-Strength Beverage Board Frame, 1in W.G., MERV 11, Synthetic Media Composition, 95-98% Air Arrestance
- Blower: Fasco D701, 115V 60Hz, 1/5-1/2 HP, 1075 RPM 2 Speed, 3.3A Low Speed - 7.7A High Speed
Recommended Add-Ons
TOP PLENUMAdd a plenum to the top of the Charcoal Chassis to allow for easy ducting if not directly placing Excel Odor Eliminator in room.
Excel Air Odor Eliminator Installation Instructions & Diagram
Documents
Installation Guide PDFSpecification Sheet PDF
