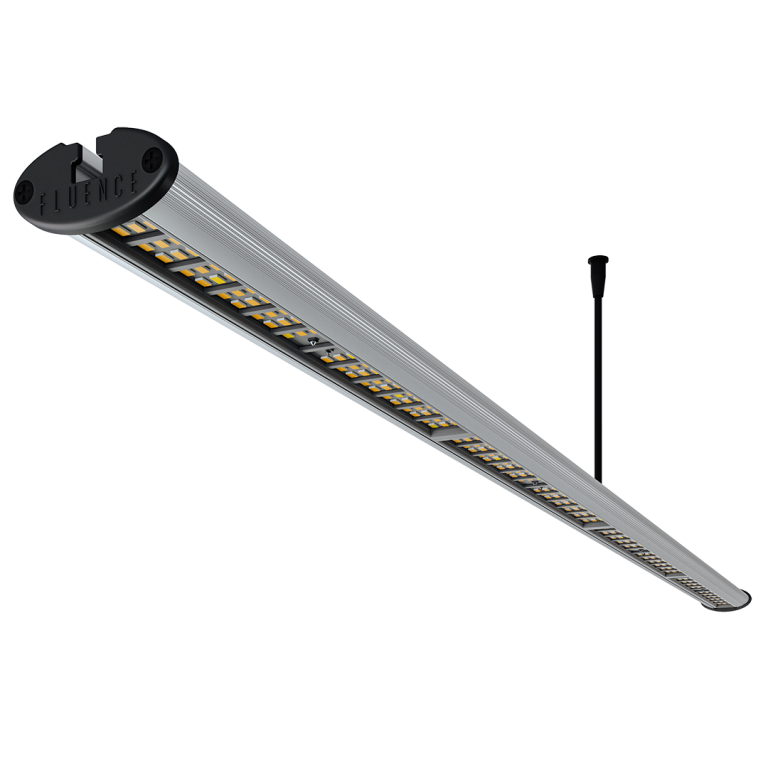

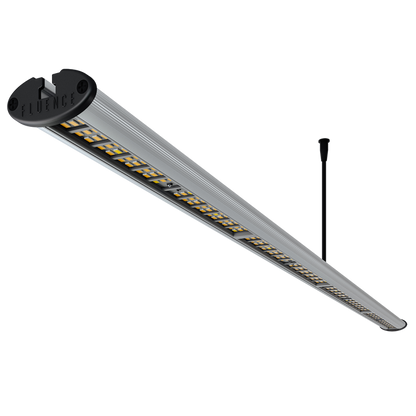

The Fluence RAY22 Slim Multipurpose LED Grow Light Bar is all about options. With six different spectral compositions to choose from, the RAY22 Multipurpose LED Grow Light Bar is a versatile tool. Use it to encourage full-cycle growth or as supplemental lighting to induce photomorphogenic responses.
The RAY22 Slim Multipurpose LED Grow Light Bar comes with a 120-degree beam angle for close-proximity cultivation, which minimizes the amount of light on the floor, concentrating it on your plants alone. The lack of wasted light from the RAY22 Slim Multipurpose LED Grow Light Bar maximizes both your growth rate, leading to greater harvests, and your return on investment.
The RAY22 Slim Multipurpose LED Grow Light Bar Bars are UL-rated for wet locations and are 0-10V dimmable, so you can achieve the amount of PAR your plants need at each stage of their lifecycle (dimmer sold separately). Each fixture comes with the power supply and everything you need to immediately use the lighting system over your crop.
Whatever your specific lighting needs, be they in research, vertical farm, side-canopy, or intracanopy growth, the RAY22 Slim Multipurpose LED Grow Light Bar is made for you.
RAY22 Slim Multipurpose LED Grow Light Bar Overview:
- Available in 6 spectral options (see below for details):
- PhysioSpec Indoor, PPF = 90 μmol/s
- PhysioSpec Greenhouse, PPF = 90 μmol/s
- AnthoSpec, PPF = 90 μmol/s
- PfrSpec, PPF = 65 μmol/s
- PrSpec, PPF = 85 μmol/s
- UVSpec, PPF = 55 μmol/s
- Spectra useful for full-cycle growth or targeted supplemental lighting

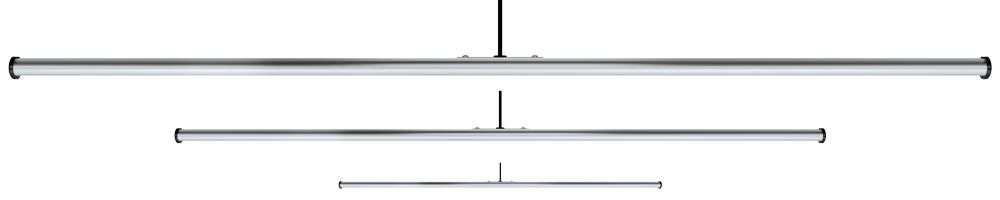

- Slim form: Only 22" long for tight grow environments
- Well-suited for use in:
- Research
- Vertical farms
- Side-canopy
- Intracanopy
- Comes w/ 120-degree beam angle for close-proximity cultivation
- Close-proximity mounting minimizes light spilled on floor

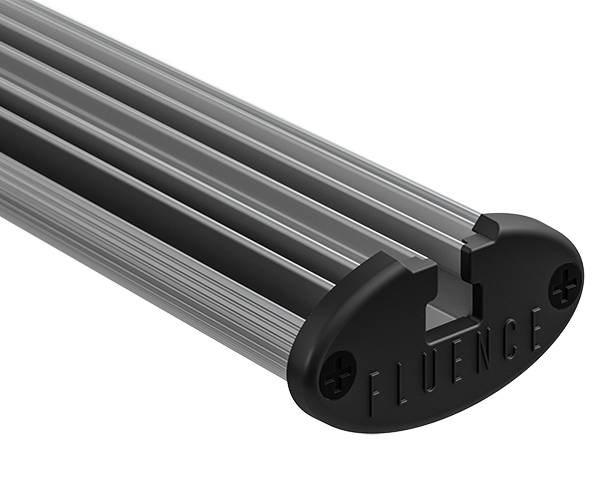

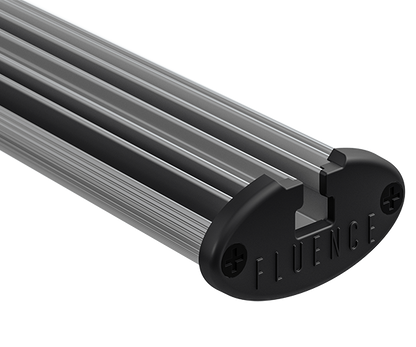

- Specially designed RAY bracket enables full rotation of the RAY22 LED Light Bar
- Anodized, extruded aluminum alloy chassis
- Integrated heatsink
- Passive, natural convection thermal management (no fans or moving components).
- Suitable in still air ambient temperatures from -40 °C (-40 °F) to 35 °C (95 °F) when suspended
- Suitable in still air ambient temperatures up to 30 °C (86 °F) when surface mounted
- Operating temperature: 25 °C (77 °F) to 30 °C (86 °F) above ambient
Note: We recommend at least one ft3/S of airflow to ensure efficient cooling. Proper air flow will also increase the maximum suitable operating temperature and extend lifetime of RAY22 system.
- Designed and built in Austin, TX
RAY22 Slim Multipurpose LED Grow Light Bar Specifications
- 3 year guarantee
- Lifetime = 100,000 operating hours
- UL listed for wet locations: Yes
- Weight = 1 lb
- Dimensions = 22" x 2" x 1.5"
- 2 Cord Length Options:
- 6 Feet
- 15 Feet

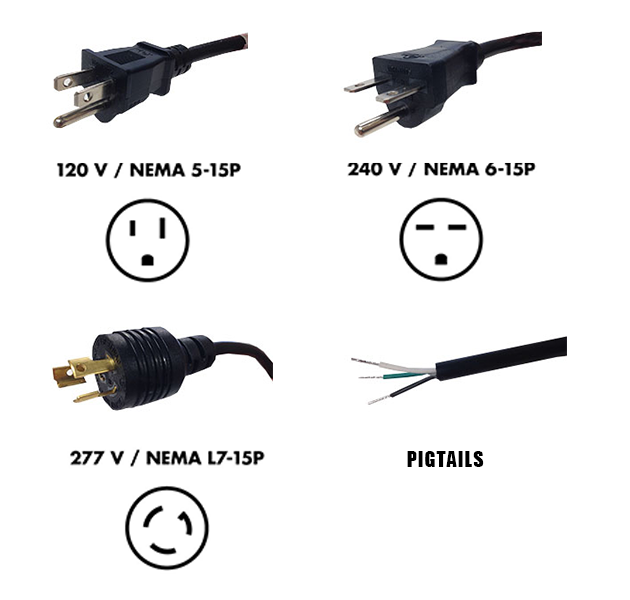

- 4 Plug Type Options:
- NEMA 5-15P
- NEMA 6-15P
- NEMA L7-15P
- Pigtails
- Input voltage = 100-277v.
- Amps depend on fixture wattage and input voltage. Below are general estimates:
- PhysioSpec Indoor (45W), PhysioSpec Greenhouse (45W), AnthoSpec (45W):
- @ 120V: 0.4 A
- @ 208V: 0.2A
- @ 240V: 0.2A
- @ 277V: .2A
- PrSpec (35W) & PfrSpec (35W):
- @ 120V: 0.3A
- @ 208V: 0.2A
- @ 240V: 0.1A
- @ 277V: 0.1A
- UVSpec (45W)
- @ 120V: 0.4 A
- @ 208V: 0.2A
- @ 240V: 0.2A
- @ 277V: .2A
- PhysioSpec Indoor (45W), PhysioSpec Greenhouse (45W), AnthoSpec (45W):
RAY22 Slim Multipurpose LED Grow Light Bar Spectrum Options:
PhysioSpec Indoor
To create the most advanced spectrum for complete physiological plant growth, we had to challenge every assumption. Not only did this make the spectra better, it made it beautiful. Previously, 660nm (red) and 450nm (blue) were the most efficient LED packages, and coincided with peak Chl A and Chl B absorption areas. This led to a negligence of key photoreceptors and pigments outside this range.
PhysioSpec Indoor is a full-cycle spectrum optimized for rapid growth and complete plant development. Tailored for growing plants from initiation to senescence (germination, clones/cuttings, mothers, vegetative and flowering applications) in indoor environments. With a CRI rating of 85, PhysioSpec Indoor offers a beautiful work and research environment with vivid colors and greater contrast to study the health of your crop.
PhysioSpec Greenhouse
Compared to PhysioSpec Indoor, PhysioSpec Greenhouse is enriched with a higher amount of blue photons in the 400-500nm range, which are used to offset plant stretch induced by the sun's far red radiation. As an added bonus, PhysioSpec Greenhouse offers a world-class work and research environment with vivid colors and greater contrast to study the health of your crop.
AnthoSpec
With dual-peak spectrum at 450nm and 660nm, AnthoSpec is designed to provide rapid anthocyanin accumulation in plant tissue (i.e. purple lettuce coloration). Based on the latest academic research, AnthoSpec is the most efficient spectrum for increasing anthocyanin production in plants.
UVSpec
With a peak wavelength of 400nm, UVSpec™ is designed to provide beneficial photomorphogenic responses by creating a mild stress response in plants. As an example, when applied correctly, research shows increased THC content in plants. When applied incorrectly, research shows UV stress causes photoinhibition of chloroplasts, resulting in lower biomass production, photobleaching and death of leaves.
PrSpec
With a peak spectrum at 660nm, PrSpec™ is designed to exclusively target phytochrome red photoreceptors. This spectrum is widely used to target Phytochrome Red (Pr) in photomorphogenic lighting applications, and it is used to delay flowering in short-day plants.
PfrSpec
With a peak spectrum at 730nm, PfrSpec™ is designed to exclusively target phytochrome far red photoreceptors. This spectrum is widely used to target Phytochrome Far Red (Pfr) in photomorphogenic lighting applications, and it is used to lengthen the dark period to encourage the flowering process in Short Day Plants.
