Light Rail 3.5 -- Complete Kit -- 10 RPM

Light Rail 3.5 IntelliDrive Expanding Coverage to 4 x 8 ft from a Single Fixture

The Light Rail 3.5 IntelliDrive moves a grow light along a 6.5 ft rail at 10 RPM (approximately 4 ft per minute), effectively doubling a 4 x 4 ft fixture footprint to 4 x 8 ft with a single light source. The motor draws just 5W and runs on 120V, with a 0 to 60 second adjustable time delay at each end of travel to promote even growth across the full run length. Rated to 35 lbs, the system handles LED panels, reflectors, and HID fixtures within its weight capacity.

Self-Propelled Lamp Mover with 5W Motor and Adjustable End Delay

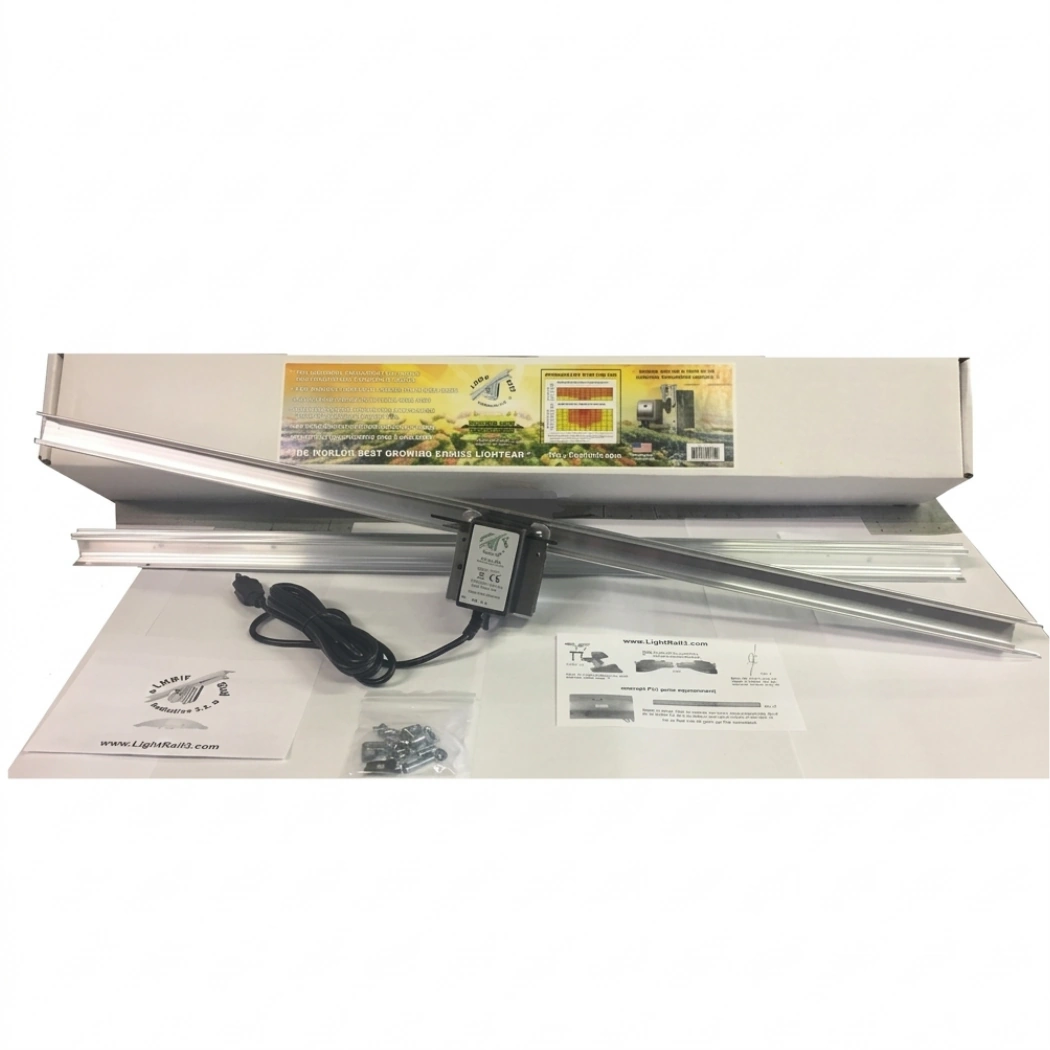

Built by Gualala Robotics Inc. in the USA, the IntelliDrive motor uses a self-clutch design with automatic traction control and extreme-duty trolley wheels rated to 60 lbs (sealed precision bearing carrier wheels). The 10 RPM speed is optimized for longer runs and higher-intensity lights where faster travel prevents localized heat buildup. The kit includes the motor, two-piece rail, and all necessary hardware for a complete DIY installation.

Key Features

• 6.5 ft Rail at 10 RPM: Moves fixtures at 4 ft per minute across a full-length grow space for doubled canopy coverage
• 0-60 Second Adjustable Time Delay: Pauses the lamp at each end of travel to equalize light exposure and promote uniform edge growth
• 5W Motor on 120V: Negligible power consumption keeps operating costs minimal even under continuous 24-hour use
• 35 lbs Weight Capacity: Supports LEDs, reflectors, and HID fixtures within the rated load for versatile lamp-mover applications
• Self-Clutch Drive with Traction Control: Sealed precision bearing trolley wheels rated to 60 lbs ensure smooth, consistent travel along the rail

Technical Specifications
