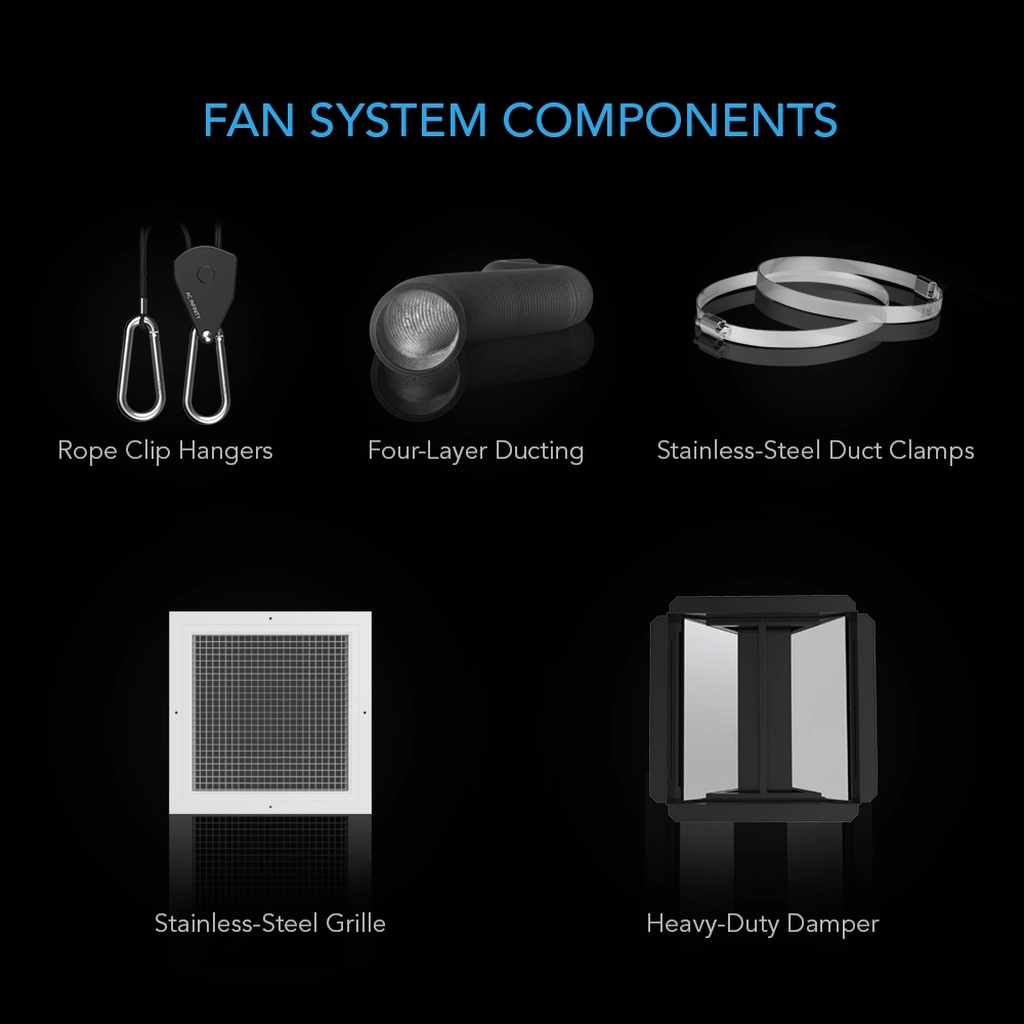

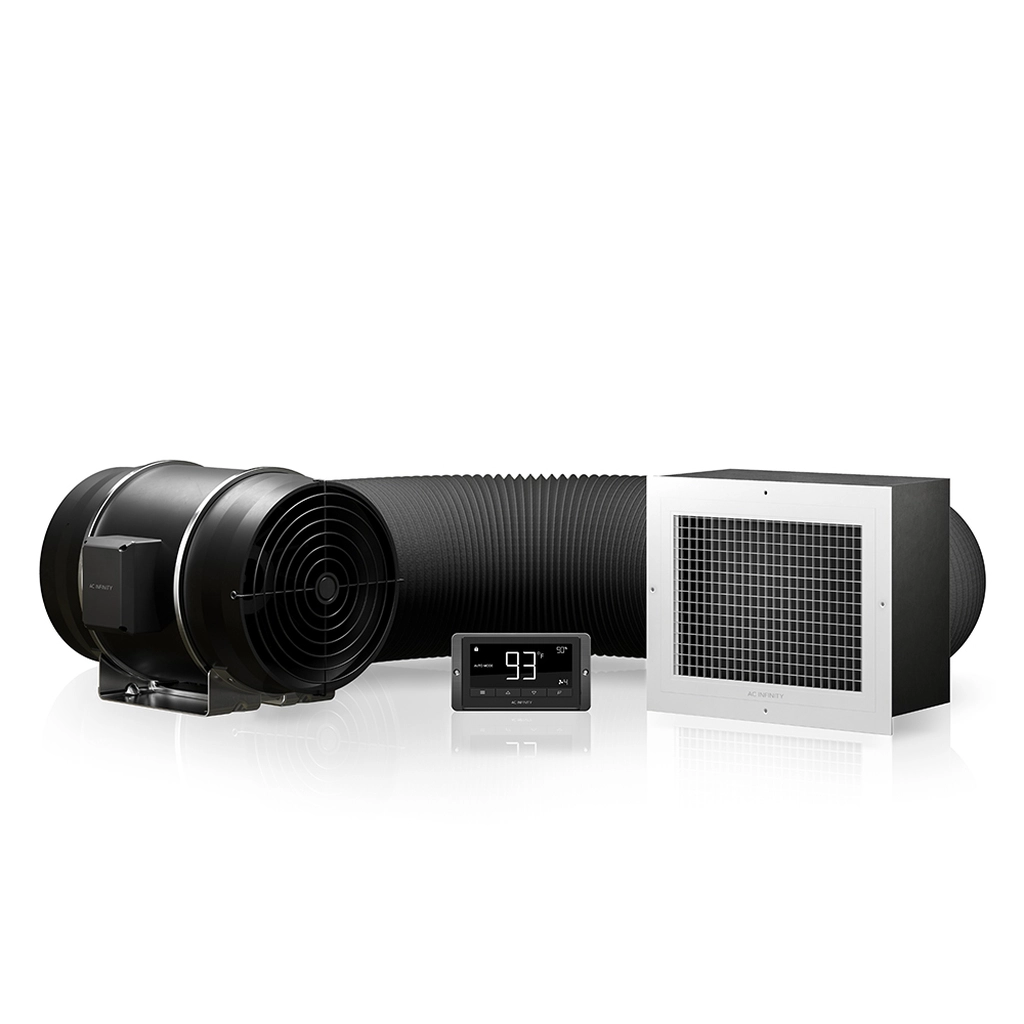

The Infinity CLOUDWAY T-Series is a whole house fan system designed to be installed in attics to keep homes cool. It exhausts hot air from indoor spaces while creating a passive intake to pull in the fresh air. Each fan includes an LCD digital controller with a smart thermostat, fan speed control, and status alerts. This fan is powered by an EC motor that allows it to run efficiently and quietly at a maximum of 48 dBA. In addition, it includes all the necessary ducting, stainless steel duct clamps, grille, and 2-door shutter that block attic air from flowing into your home when the fan isn't in use.
INTELLIGENT CONTROLLER

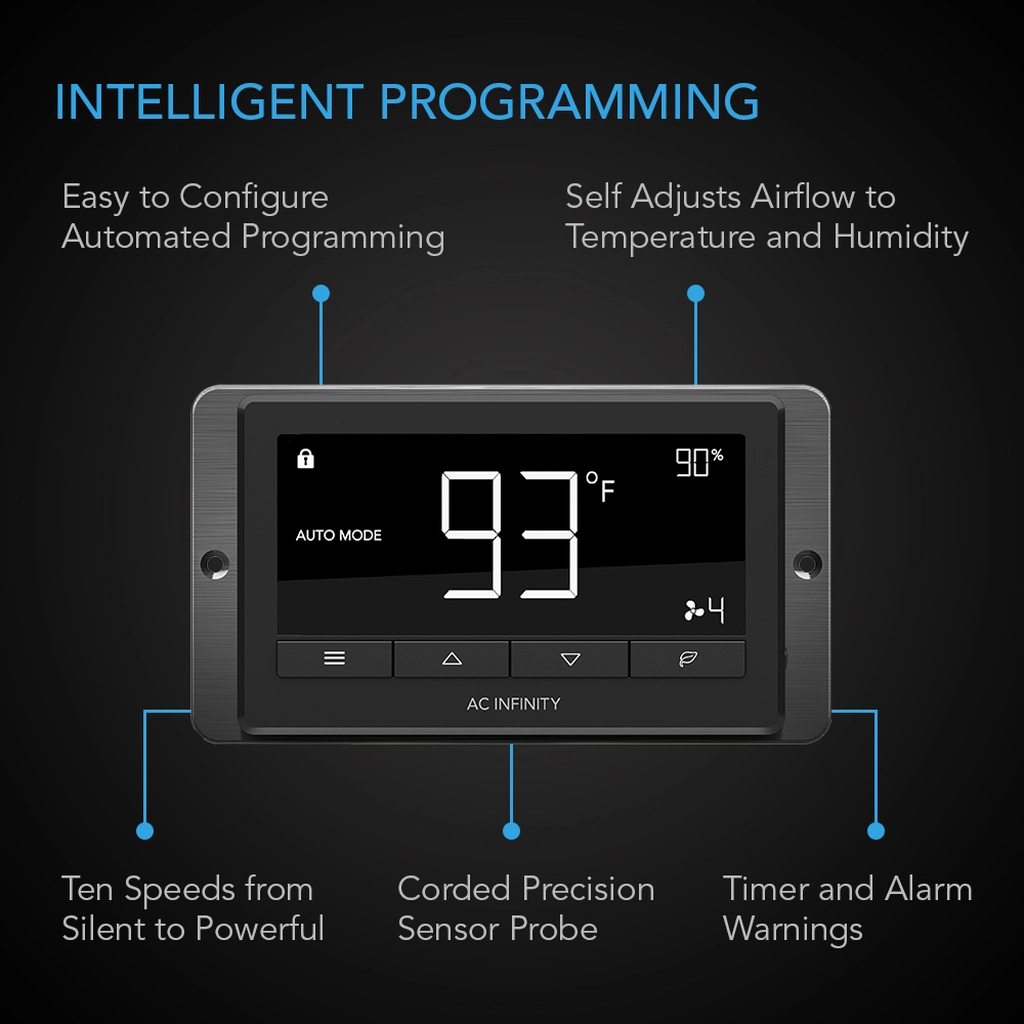

The CLOUDWAY T-Series Digital Controller features a sleek and compact design that fits in any home. Featuring active temperature and humidity monitoring, the digital controller has programmable triggers that activate the attic fan when your house gets too hot or humid. The fan can run continuously or on a timer to start and stop when you need it to. Set the whole house fan to custom speeds between 0 and 10 to optimize your desired cooling and noise level. Each smart controller includes a 12 ft. corded sensor probe that detects temperature and humidity in your home.
EFFICIENT PERFORMANCE
The CLOUDWAY T-Series whole house fan is designed to keep your attic space cool while you're away, so your home stays comfortable and costs less to run. The PWM (Pulse Width Modulation) controlled motor not only spins the fan quietly, but also consumes up to 95% less power than air conditioner units. The attic fan has a 50,000-hour continuous run lifespan, using dual ball bearings that allow omnidirectional mounting. It is also IP-44 rated to resist dust and moisture while performing in most humid environments. The insulated damper uses gravity-fed shutters that close the opening when the whole house fan is not in use, keeping attic air from entering your home
T-Series models include an intelligent controller with temperature and humidity programming, adjustable fan speed control, timer, and alarm system.
Product Details
Product Performance And Technical Specs
1201 CFM
| Total Airflow | 1201 CFM |
| Total Noise | 48 dBA |
| Static Pressure | 352 Pa |
| Operating Voltage | 100-240V AC |
| Power | 255 W |
| Current | 2.7 A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 140 °F |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
Product Performance And Technical Specs
| Total Airflow | 1604 CFM |
| Total Noise | 62 dBA |
| Static Pressure | 818 Pa |
| Operating Voltage | 100-240V AC |
| Power | 250 W |
| Current | 2.5 A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 140 °F |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |

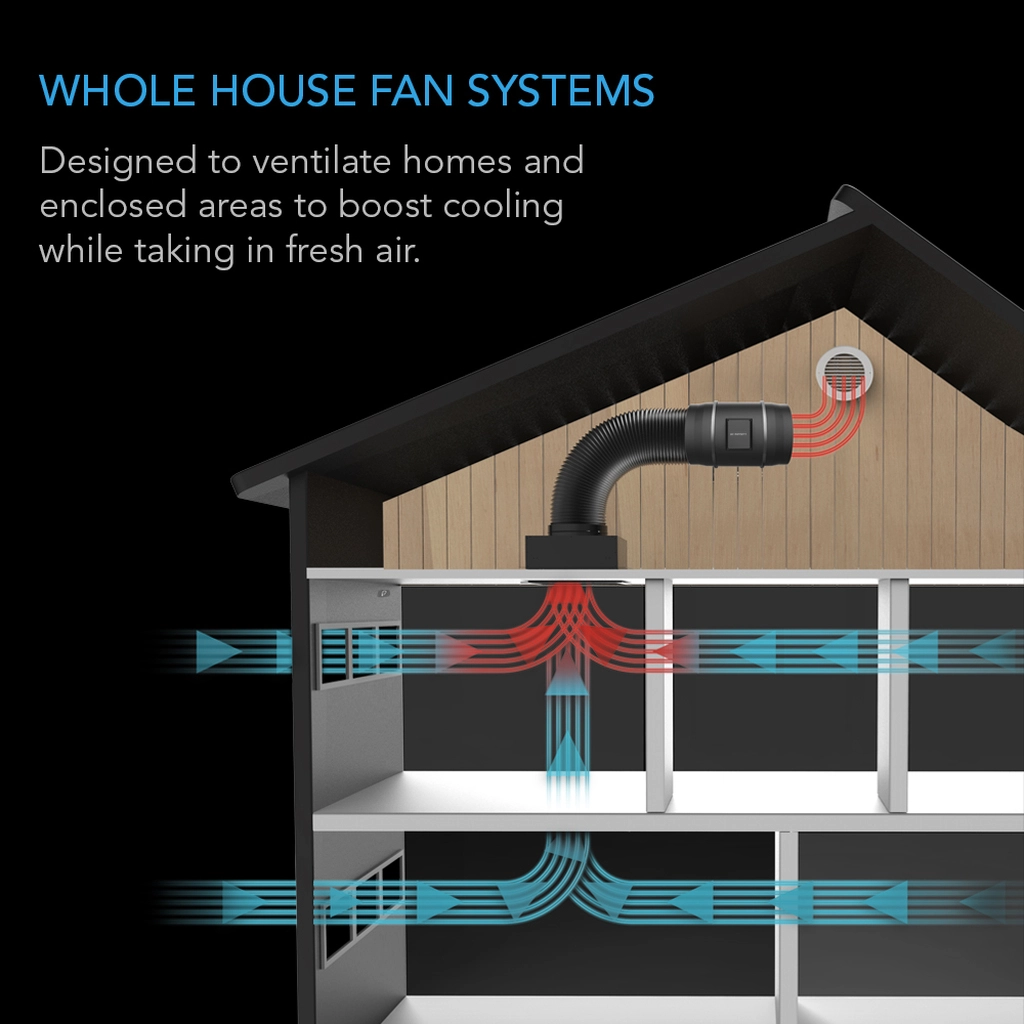

- A whole house attic fan is designed to cool and ventilate entire homes by exhausting hot air from indoor spaces.
- Smart digital controller with temperature and humidity trigger programming, fan speed control, timers, and alarms.

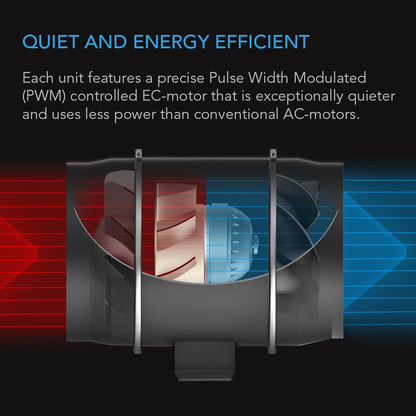

- Utilizes a PWM-controlled EC motor that results in quieter and more energy-efficient fans than most others.
- Features 2-door shutters with a damper that blocks attic air from entering living spaces when the fan is not in use.

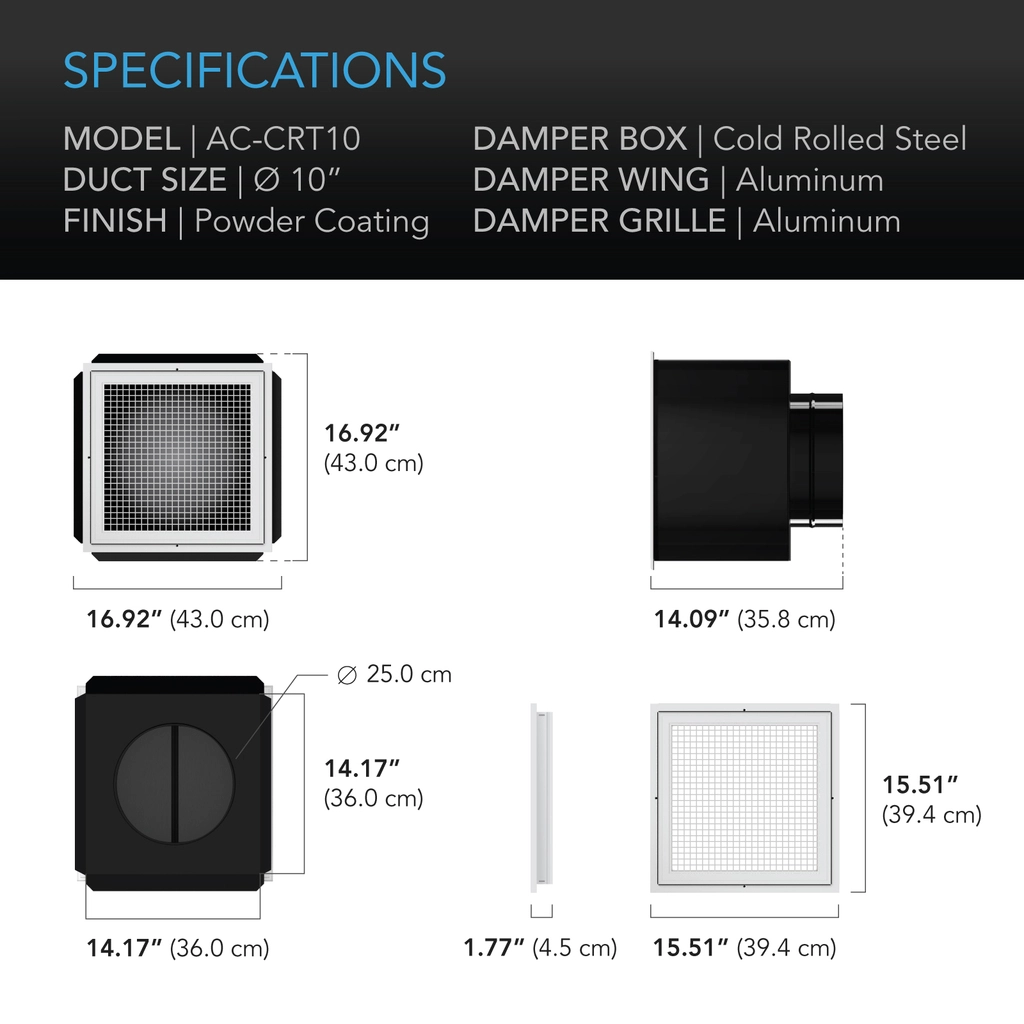

- Duct Size: 10” | Dimensions: 9.8 x 15.1 x 11.3 in. | Airflow: 1201 CFM | Noise: 48 dBA | Bearings: Dual Ball

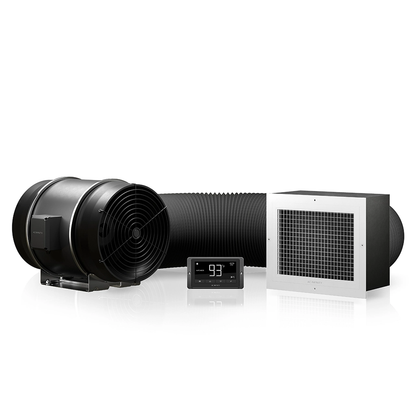

- Duct Size: 12” | Dimensions: 12.3 x 17.7 x 14.1 in. | Airflow: 1604 CFM | Noise: 62 dBA | Bearings: Dual Ball
