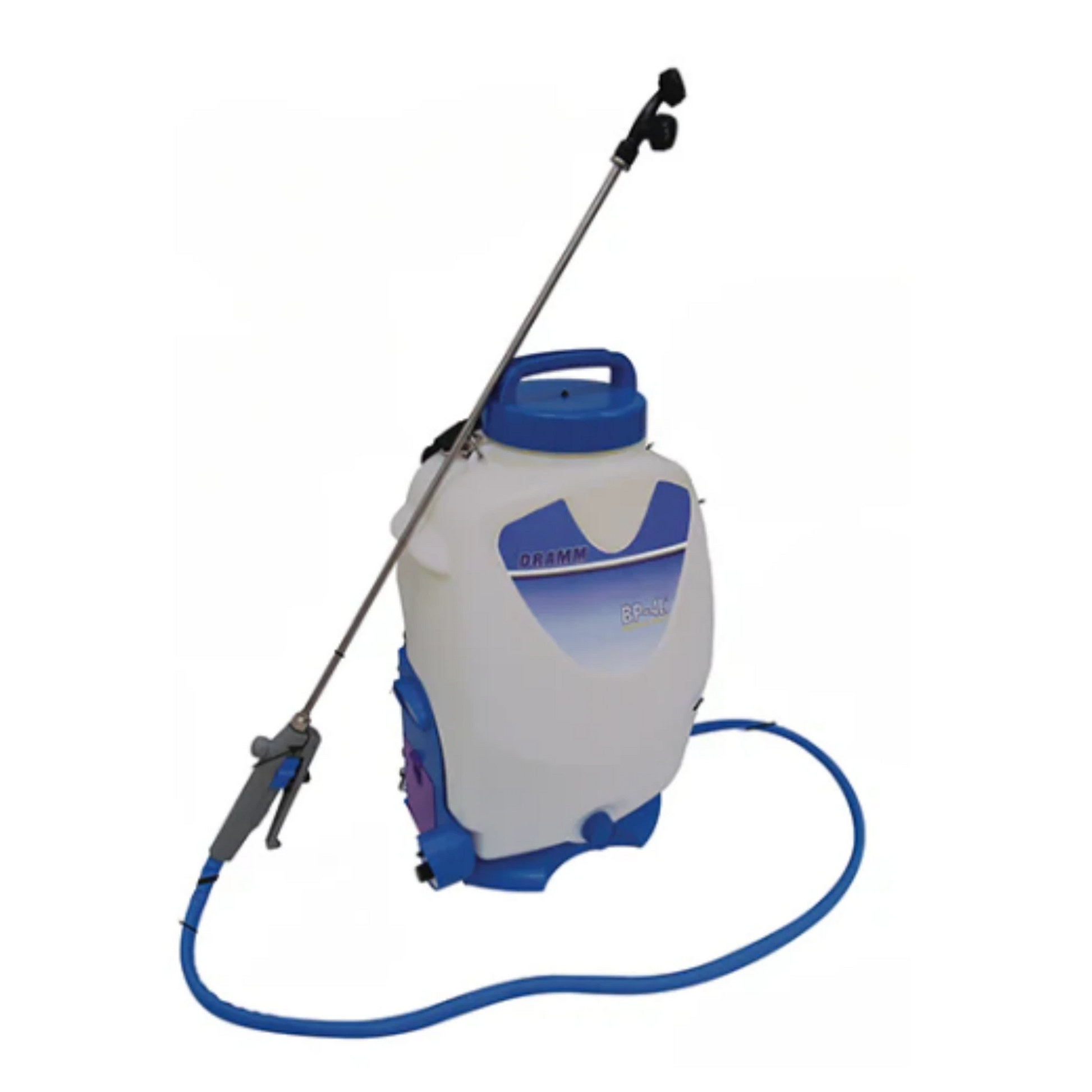

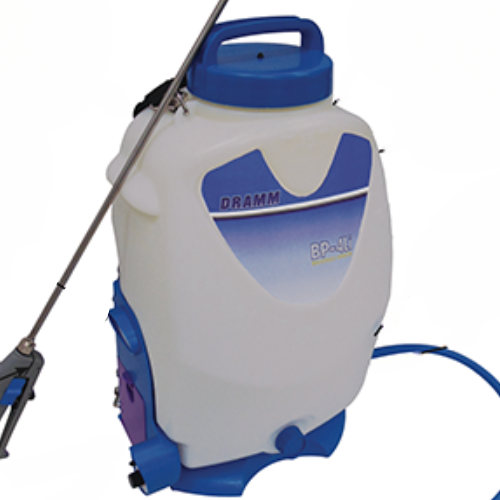

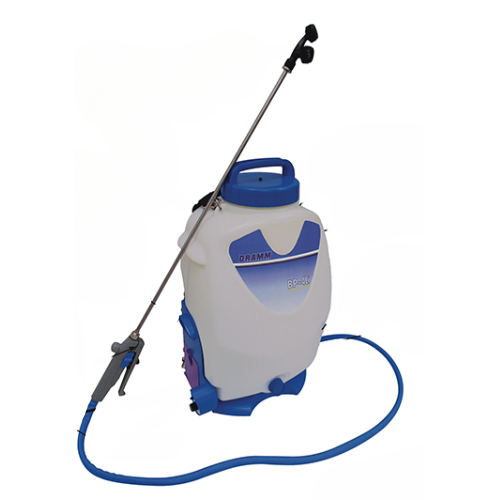

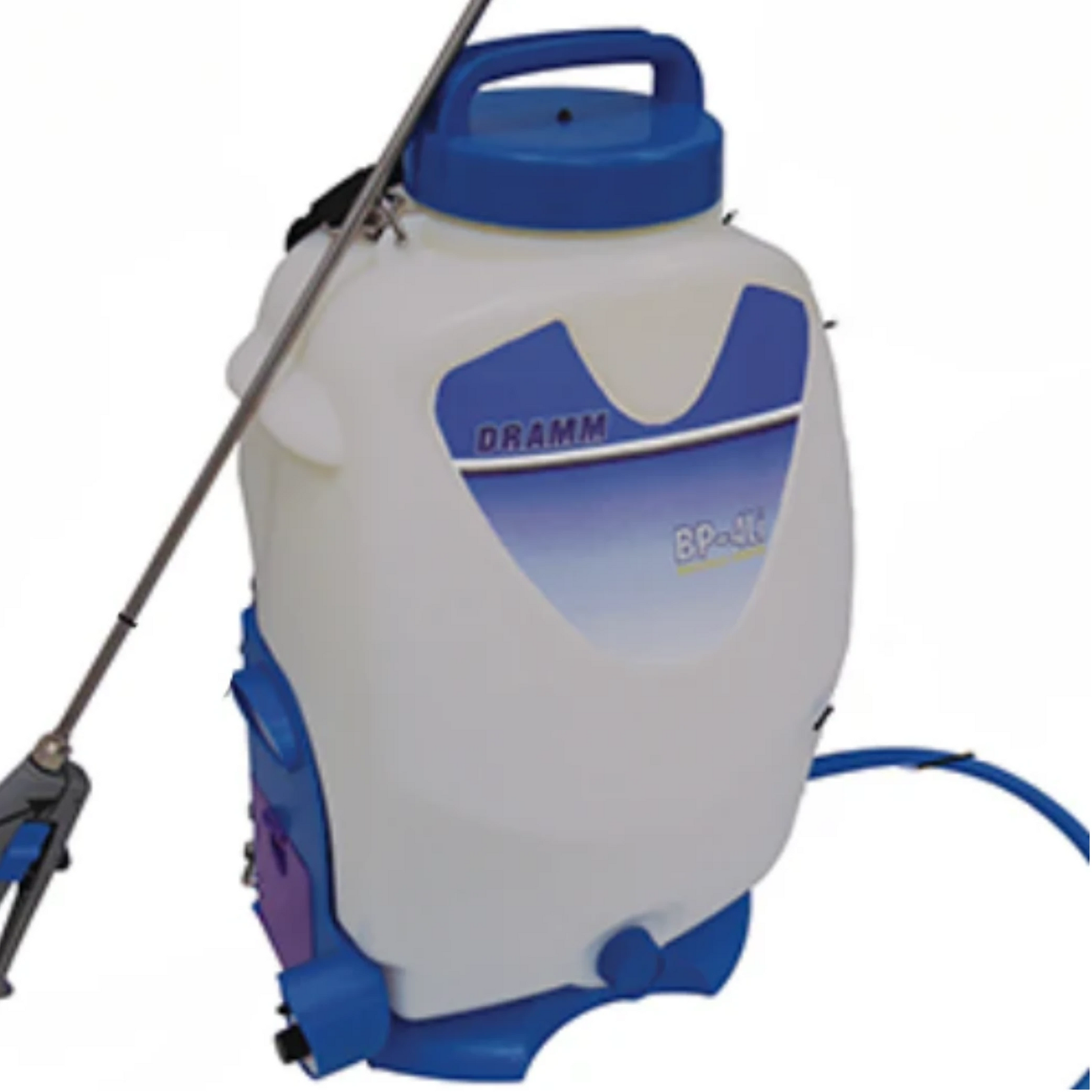

Dramm Backpack Sprayer BP-4Li, 4 Gallon
Hand pump sprayers lose pressure with every step, and the spray pattern changes with it. This Dramm sprayer replaces the pumping arm with a battery-driven uniflow pump. Pressure stays even from the first nozzle pass to the last drop in the tank. That steady flow makes it a dependable greenhouse sprayer for plant growth regulators, insecticides and fungicides. On its highest setting, the pump atomizes solution into a fine mist for close canopy coverage. A single knob dials pressure down to about 10 to 15 psi for coarse, low-drift spraying. The tank holds 4 gallons, or 15 liters, which is enough for spot work without wearing out the operator. Power comes from a swappable 18 V, 3.0 Ah Makita lithium-ion battery. One charge runs about 45 minutes on high pressure or about 120 minutes on medium. A depleted battery recharges in roughly 22 minutes, and spare batteries can keep the work moving. A battery indicator shows how much spray time is left. Padded backing and wide straps carry the 11.7 lb empty unit comfortably.
Working with a Battery Powered Backpack Sprayer

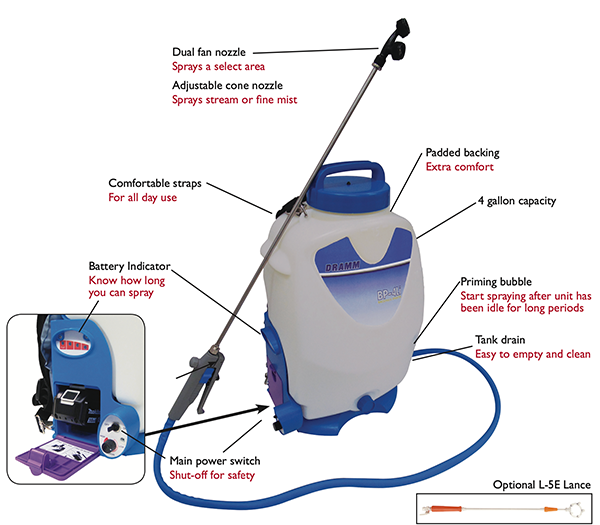

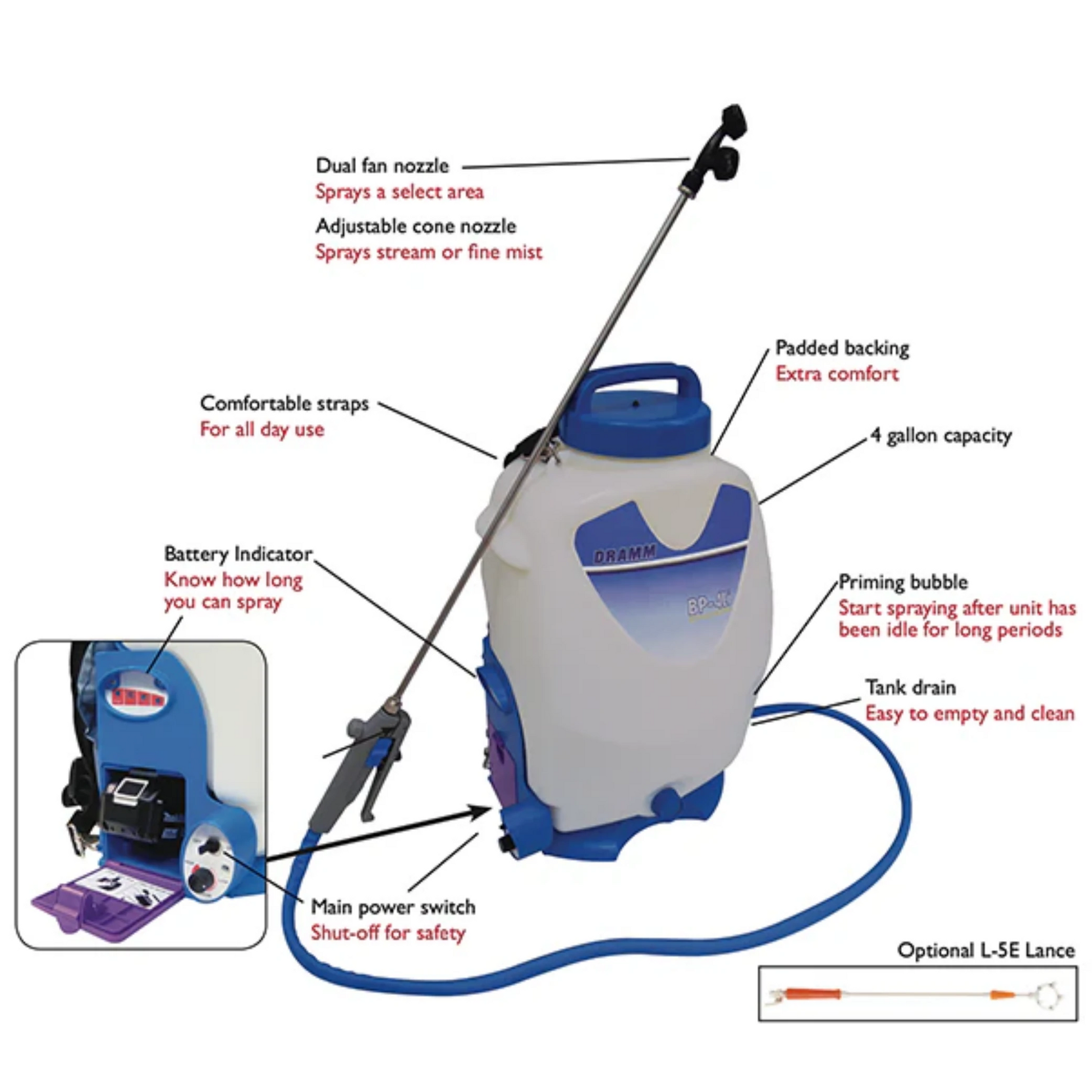

Two nozzles come with the sprayer, a twin fan nozzle and an adjustable cone nozzle. The twin fan covers a defined band along benches and rows. The cone nozzle switches between a straight stream and a fine mist. Dramm also offers a single fan nozzle and the optional L-5 extension lance with five cone jets. Fill the tank using the 15 liter gauge and close the lid tightly. Use the priming bubble to restart flow after the unit has sat idle for a long time. Flip the main power switch on, then set pressure with the knob before spraying. Start low on tender seedlings and raise pressure for dense foliage. Work from the outside of the canopy inward and cover leaf undersides. Always follow the label of the product being applied and wear the protection it calls for. After spraying, drain the tank, rinse it and run clean water through the pump and nozzles. Remove the battery and store it charged in a cool, dry place between uses.
Key Features
- 4 Gallon Tank: 15 liter capacity with a fill gauge and drain.
- Variable Pressure: Knob control from about 10 to 15 psi up to fine atomization.
- Swappable 18 V Battery: Makita 3.0 Ah lithium-ion, 22 minute recharge.
- Long Run Time: About 45 minutes on high and 120 minutes on medium.
- Two Nozzles Included: Twin fan and adjustable cone.
- Comfortable Carry: Padded backing and straps for long sessions.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Dramm |
| Model | BP-4Li |
| Tank Capacity | 4 gal (15 L) |
| Pump | Uniflow, differential type |
| Rated Pressure | 145 psi (1.0 MPa) |
| Pressure Adjustment | Variable, down to about 10 to 15 psi |
| Suction | 0.39 gal/min (1.5 L/min) |
| Battery | Makita 18 V, 3.0 Ah lithium-ion, swappable |
| Run Time | About 45 min (high pressure), 120 min (medium) |
| Recharge Time | About 22 minutes |
| Nozzles Included | Twin fan and adjustable cone |
| Dimensions | 9.8 x 14.6 x 22 in (250 x 370 x 550 mm) |
| Weight (empty) | 11.7 lb (5.3 kg) |
