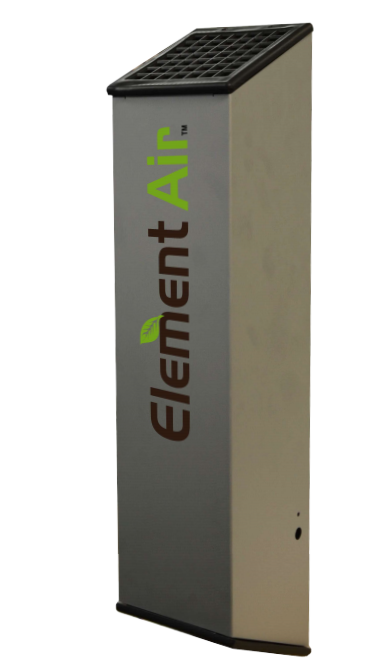

RGF Element Air Wall Mount EA-D9-WM
Drying and trim rooms stay healthier when the air gets treated around the clock. Mold spores and bacteria can linger there long after the plants come down. Most facilities never test their air for them, so they can build up on surfaces and on the crop. This RGF unit keeps treating that air continuously. A fan draws room air through an oxidation chamber at 138 CFM. Inside, high-intensity UV light shines on a quad-metallic compound. RGF calls this REME and PHI technology. The reaction produces hydroxyl radicals, hydro-peroxides and super oxide ions. Those oxidizers go after airborne microbes, mold, bacteria, pathogens, odors and VOCs. RGF states that no chemical residue is emitted from the system. RGF rates the unit for a treatment area of 2,400 cubic feet. The tall, slim body is anodized aluminum and mounts on a wall, off the floor and out of the way. A 12 VDC switching power supply accepts 100 to 240 VAC and draws 0.64 A at 120 V. Two replacement cells, part EAWM-9-RC, renew the oxidation chamber.
Sizing and Running This Air Purification System Safely
Read the room size warning before choosing a spot. RGF recommends placing this unit in a room no smaller than 12,000 cubic feet, measured as floor area times ceiling height. The unit can create high levels of ozone. Ozone levels depend on how much microbial load is in the space. Ozone reverts to oxygen when it meets a contaminant, so levels drop when contamination is high. In a clean room, the same unit can push ozone higher. For that reason, RGF recommends running an ozone monitor alongside it. Mount the unit where its airflow can reach the whole room rather than a corner. Check the ozone reading again after any change to room size or airflow. The unit does not meet California air cleaner regulation requirements. Register the one year warranty with RGF after installation.
Key Features
- REME/PHI Oxidation: UV light on a quad-metallic compound inside the chamber.
- Targets Microbes and Odors: Mold, bacteria, pathogens, odors and VOCs.
- Wall-Mounted: Slim anodized aluminum body stays off the floor.
- 138 CFM Fan: Moves room air through the oxidation chamber.
- Low Power Draw: 37 watts on a 12 VDC switching supply.
- Replaceable Cells: Two EAWM-9-RC cells renew the chamber.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | RGF |
| Model | EA-D9-WM |
| Technology | REME/PHI oxidation chamber |
| Material | Anodized aluminum |
| Dimensions | 6.5 x 6.5 x 29 in (W x D x H) |
| Weight | 10 lb |
| Electrical | 12 VDC, 100-240 VAC switching power supply |
| Current | 0.64 A at 120 V |
| Power | 37 W |
| Airflow | 138 CFM |
| Treatment Area | 2,400 cu ft |
| Recommended Minimum Room | 12,000 cu ft |
| Replacement Cells | EAWM-9-RC (2) |
| Warranty | 1 year |
