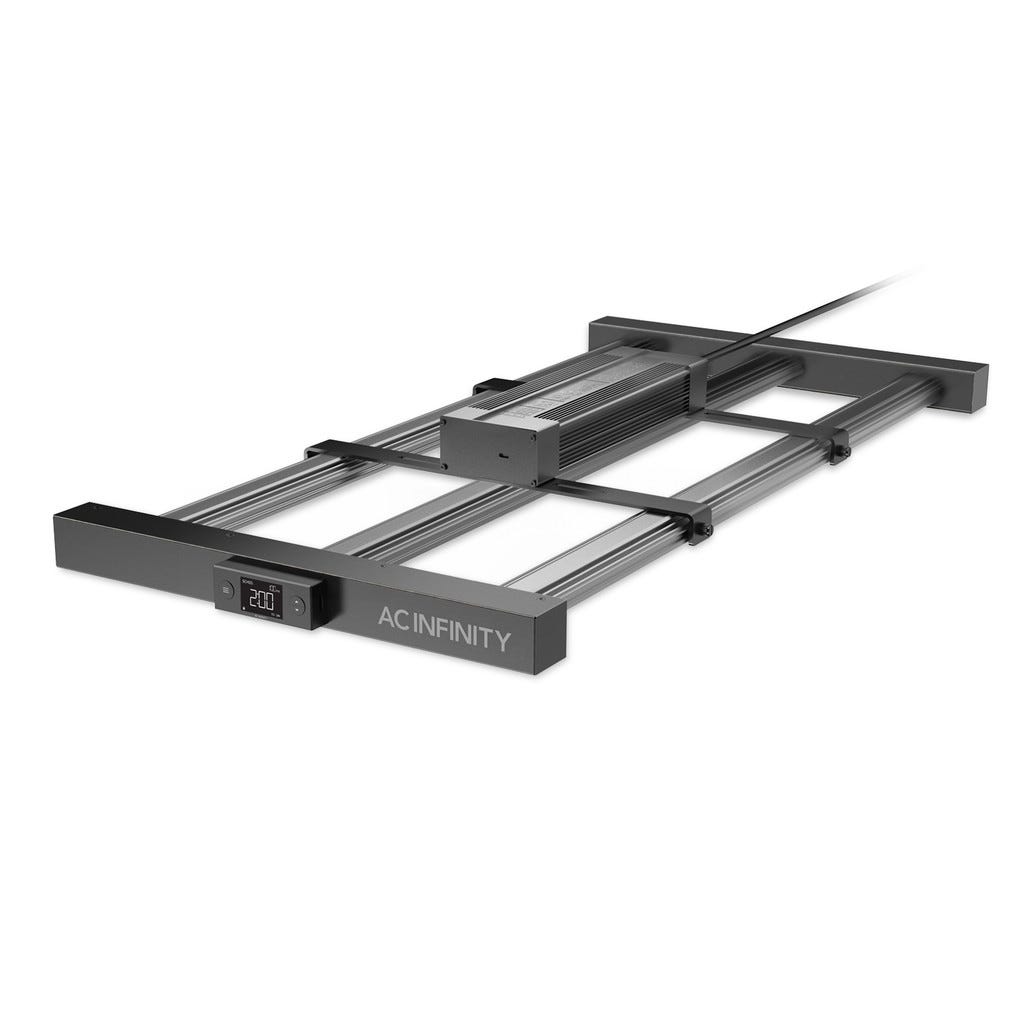

AC Infinity IONFRAME EVO3, Samsung LM301H EVO Commercial LED Grow Light, 280W, 2x4 ft.

AC Infinity IONFRAME EVO3, Samsung LM301H EVO Commercial LED Grow Light, 280W, 2x4 ft.

The AC Infinity IONFRAME EVO3, Samsung LM301H EVO Commercial LED Grow Light is a high-performance lighting solution tailored for indoor grow tents and expansive grow spaces. This 280W grow light integrates cutting-edge Samsung LM301H EVO diodes, offering an exceptional efficiency of 3.14 µmol/J PPE, making it a prime choice for professional horticulturists seeking to maximize plant growth and yield.

Key Features:

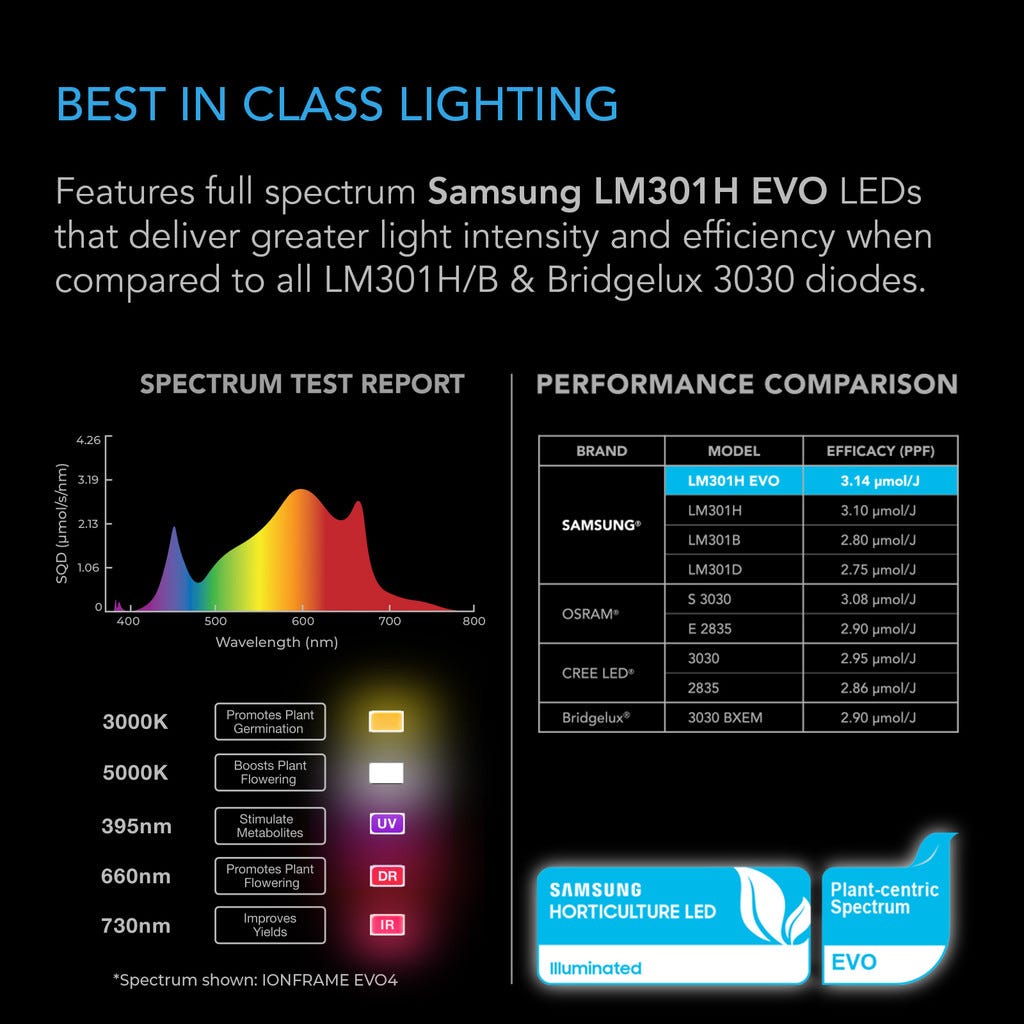

1. Samsung LM301H EVO Diodes:
   • Efficiency: The latest in horticulture lighting, these diodes surpass the performance of LM301B, LM301H, and Bridgelux 3030 chips.
   • Spectrum: Delivers a full light spectrum with added 395 nm UV, 660 nm red, and 730 nm far-red diodes, perfect for all growth stages.

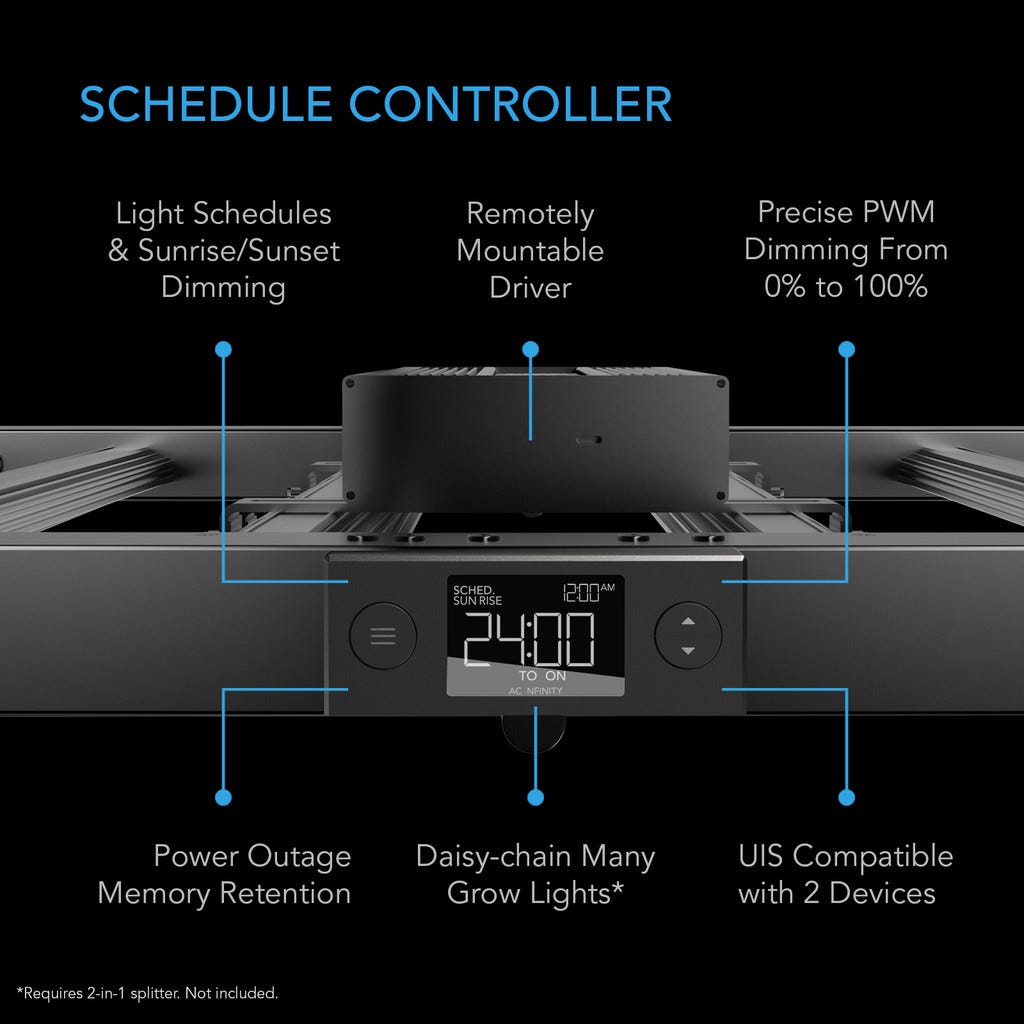

2. Smart Controls:
   • Schedule Programming: The included controller enables custom light schedules, automatically adjusting based on the time of day.
   • Brightness Levels: Offers 10 intensity levels to optimize light exposure.

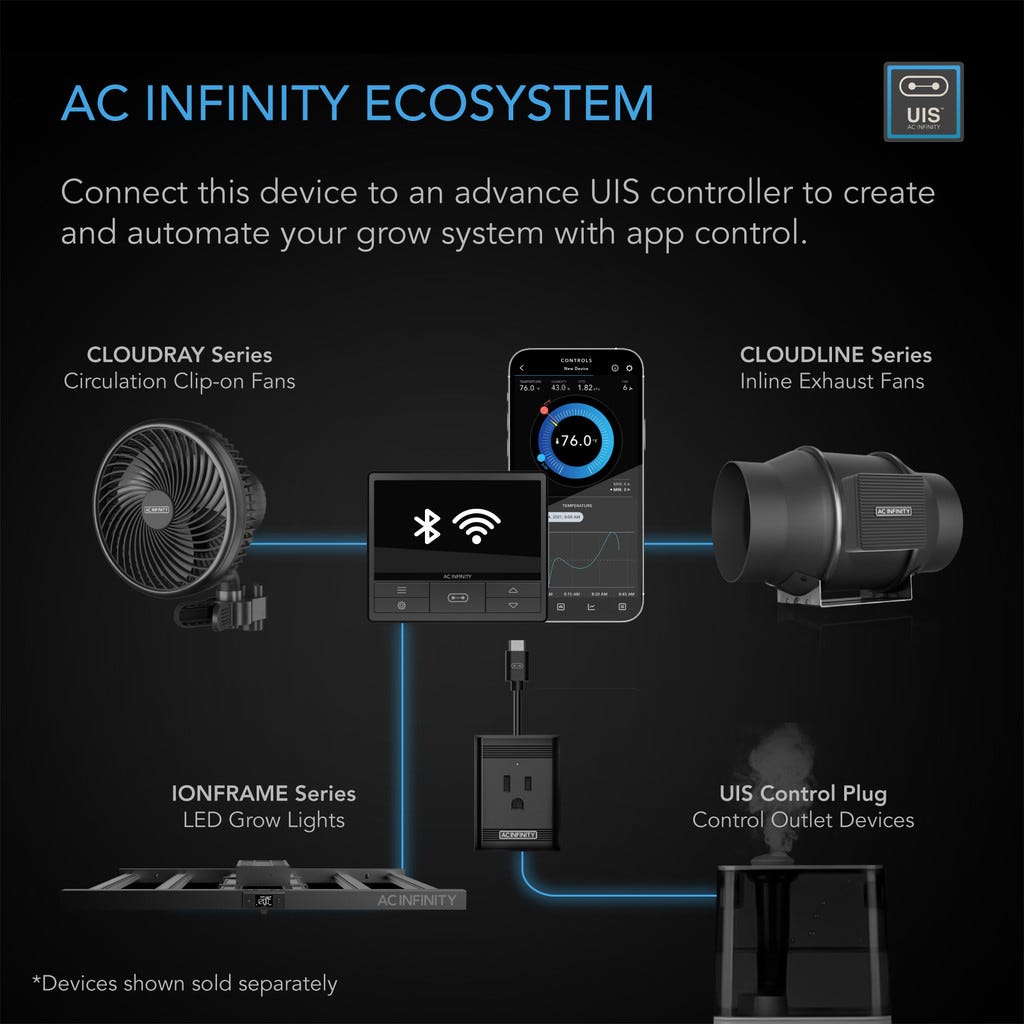

   • UIS™ Platform Compatibility: Integrate with the UIS platform for advanced automation and remote control via the AC Infinity app.

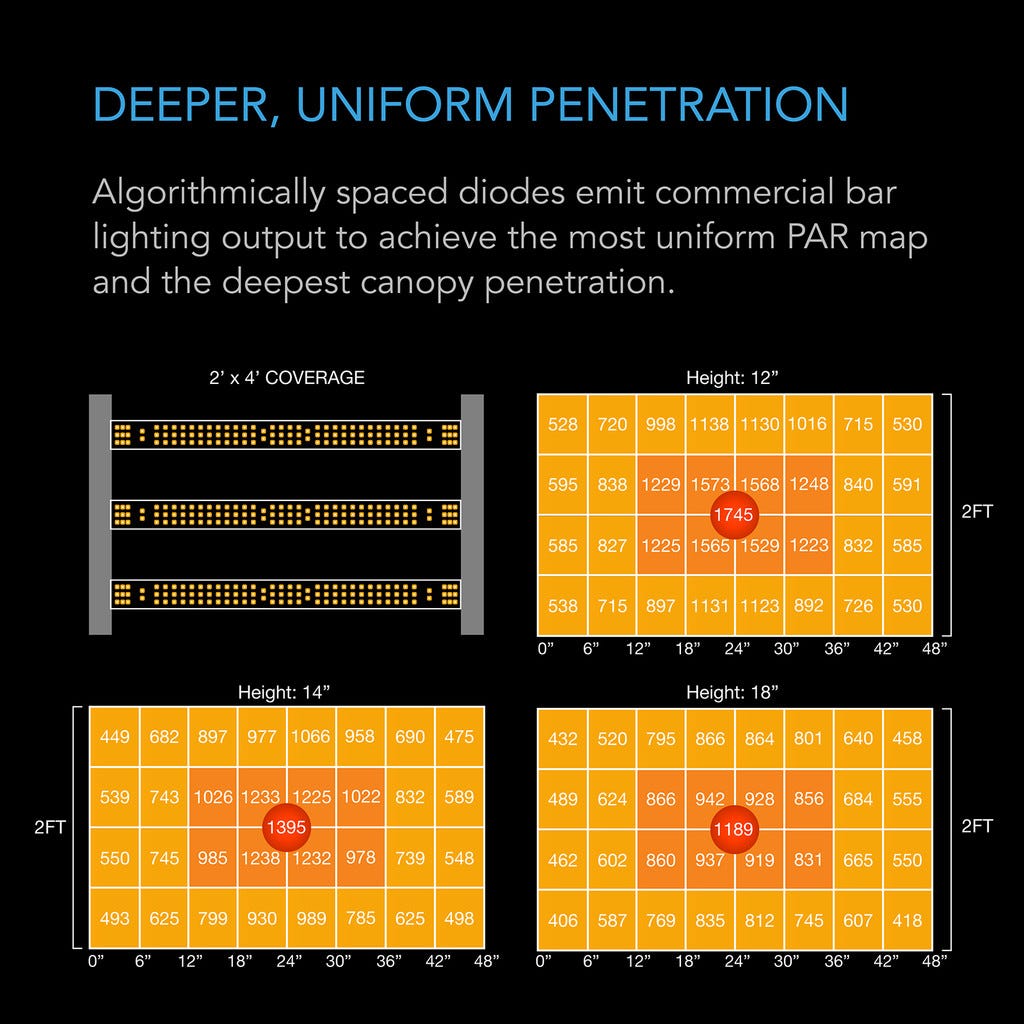

3. Optimal Light Distribution:
   • Algorithmic Spacing: Diodes are precisely spaced to ensure even light coverage and deep canopy penetration, reducing hotspots.
   • Bar-Style Fixture: Designed to enhance light distribution, ideal for vegetative (3x5 ft.) and flowering (2x4 ft.) stages.
4. Heat Management:
   • Passive Cooling: The detachable LED driver aids in heat dissipation and allows remote mounting for the balanced thermal load.
   • Durable Construction: Built with robust steel and aluminum, the fixture is IP-65-rated for humidity resistance and features magnetic mounting.
5. Daisy-Chaining Capability:
   • Expandability: Supports daisy-chaining up to 80 grow lights, enabling scalable grow setups.

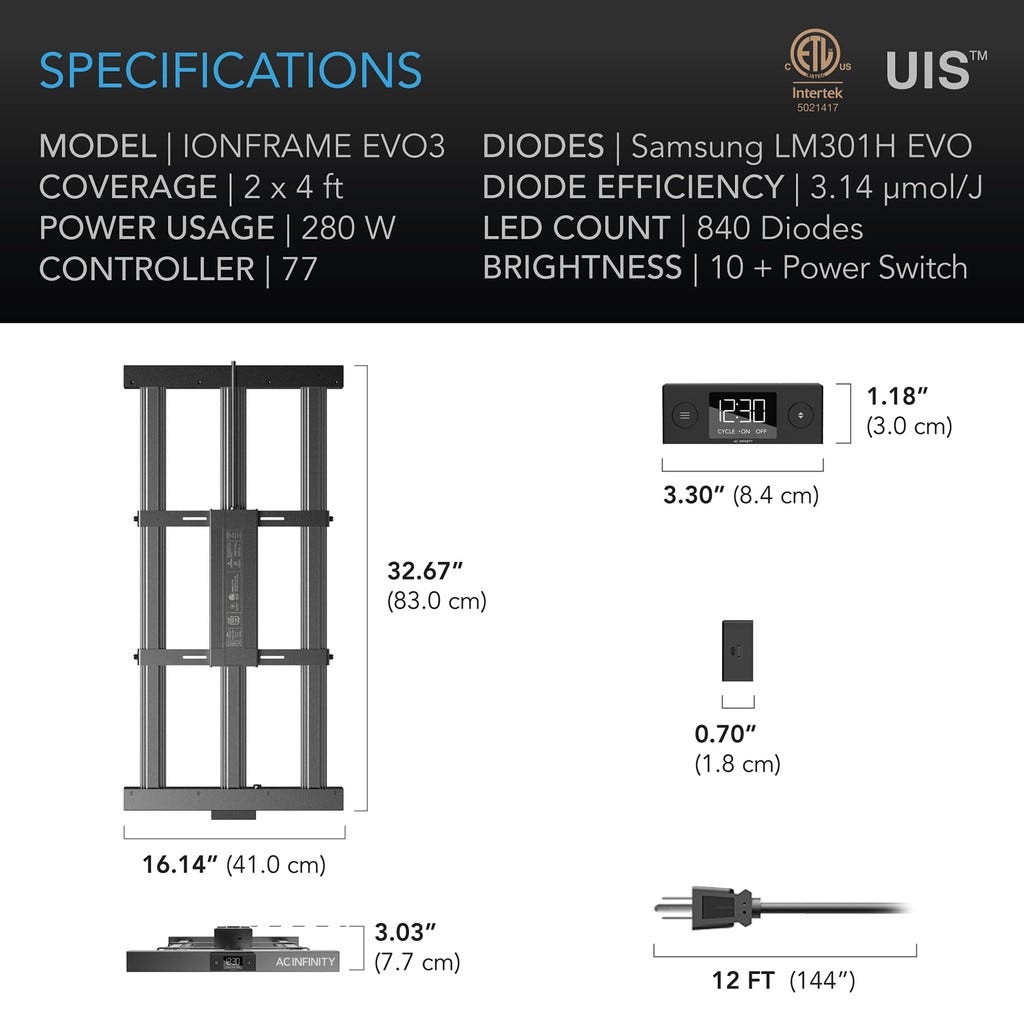

Product and Mounting Dimensions:

• Light Dimensions: 16.14 x 32.67 x 3.03 in. (41.0 x 83.0 x 7.7 cm)
• Driver Dimensions: 7.16 x 1.57 in. (18.2 x 4.0 cm)

Performance and Technical Specifications:

• Coverage: 2 x 4 ft.
• Diodes: Samsung LM301H EVO
• Spectrum: 395nm, 660nm, 730nm, 3000K, 5000K
• Total Chip Count: 840 (including 537 EVO 3000K, 270 EVO 5000K, 3 Seoul 395 nm, 27 OSRAM 660 nm, 3 OSRAM 730 nm)
• LED Driver: SOSEN-320W
• Efficiency: 3.14 µmol/J
• PPFD: 1745 PPFD
• Wattage: 280W
• Voltage: 100-277V AC
• Frequency: 50/60 Hz
• Amps: 2.8 A
• Controller: Schedule Controller
• Power Connector Type: US Plug (NEMA 1-15 Type-A)
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140 °F
• Waterproof Rating: IP-65
• Life Expectancy: 50,000 Hours

Elevate your grow space with the IONFRAME EVO3, providing exceptional efficiency, smart control features, and superior plant growth performance.

Product and Mounting Dimensions

• Light Dimensions
  16.14 x 32.67 x 3.03 in. (41.0 x 83.0 x 7.7 cm)

• Driver Dimensions
  7.16 x 1.57 in. (18.2 x 4.0 cm)

Product Performance and Technical Specs

• Coverage
  2 x 4 ft.

• Diodes
  Samsung LM301H EVO

• Spectrum
  395nm, 660nm, 730nm, 3000K, 5000K

• Chip Count (Total)
  840

• Chip Count (EVO 3000K)
  537

• Chip Count (EVO 5000K)
  270

• Chip Count (Seoul 395 nm)
  3

• Chip Count (OSRAM 660 nm)
  27

• Chip Count (OSRAM 730 nm)
  3

• LED Driver
  SOSEN-320W

• Efficiency (Single Diode)
  3.14 µmol/J

• PPFD
  1745 PPFD

• Wattage
  280 W

• Voltage
  100-277V AC

• Frequency
  50/60 Hz

• Amps
  2.8 A

• Controller
  Schedule Controller

• Power Connector Type
  US Plug (NEMA 1-15 Type-A)

• Operating Humidity
  35 to 85% RH

• Operating Temperature
  32 to 140 °F

• Waterproof Rating
  IP-65

• Life Expectancy
  50,000 Hours
