Additional Information
Cord Lengths: 6 Feet, 15 Feet
Plug Types: NEMA 5-15P, NEMA 6-15P, NEMA L7-15P, Pigtails
DC Cord Extension: 3 feet or 6 feet DC extension cords available for mounting the Power Supply Enclosure away from fixture.
Mounting Hardware: Pipe Bracket, Square Bracket, or Unistrut Bracket Wireform Hangers
Spectrum: PhysioSpec Indoor, PhysioSpec Greenhouse

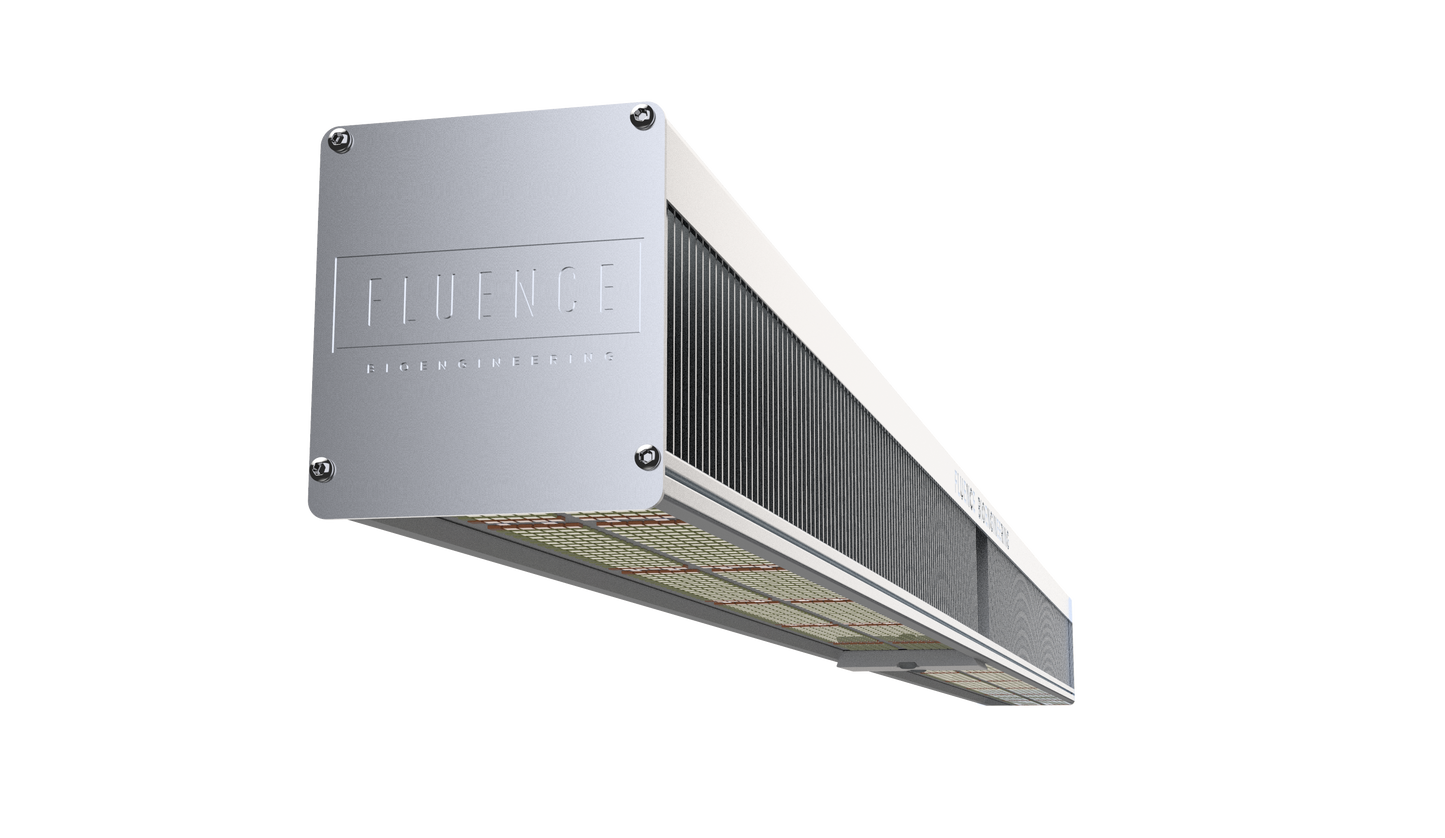

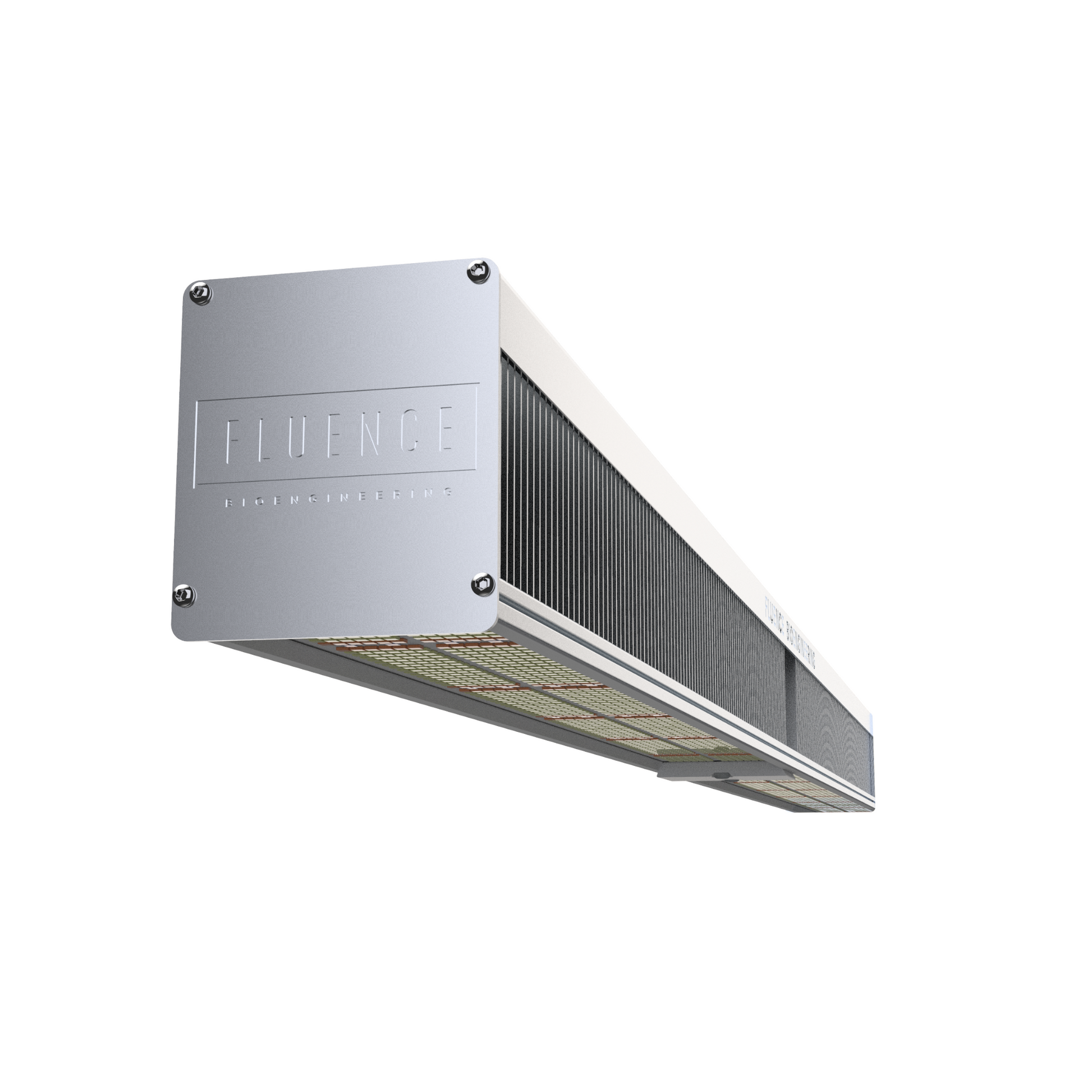

VYPR 2x is comparable to VYPRx with a 20% increase in output and a shorter form factor, now just 24” long, VYPR 2x is an ideal greenhouse grow light or indoor high ceiling grow light for low DLI crops and operations looking to extend their photoperiod.
For indoor environments, VYPR 2x has a minimum recommended mounting height at 36” for optimal uniformity and PPFD. Please contact Fluence for greenhouse deployment recommendations.
VYPR is a passively cooled device, relying solely on ambient conditions (and breakthrough engineering) for heat dissipation. VYPR is suitable for operation in still ambient temperatures from -40 °C (-40 °F) to 40 °C (104 °F); however, we recommend at least one ft3/s of airflow to ensure efficient cooling. VYPR 2x has an operating temperature of 50 °C (122 °F) above ambient.
VYPR is designed as a greenhouse grow light or a sole-source indoor light, it should not be deployed outdoors or in direct sunlight.

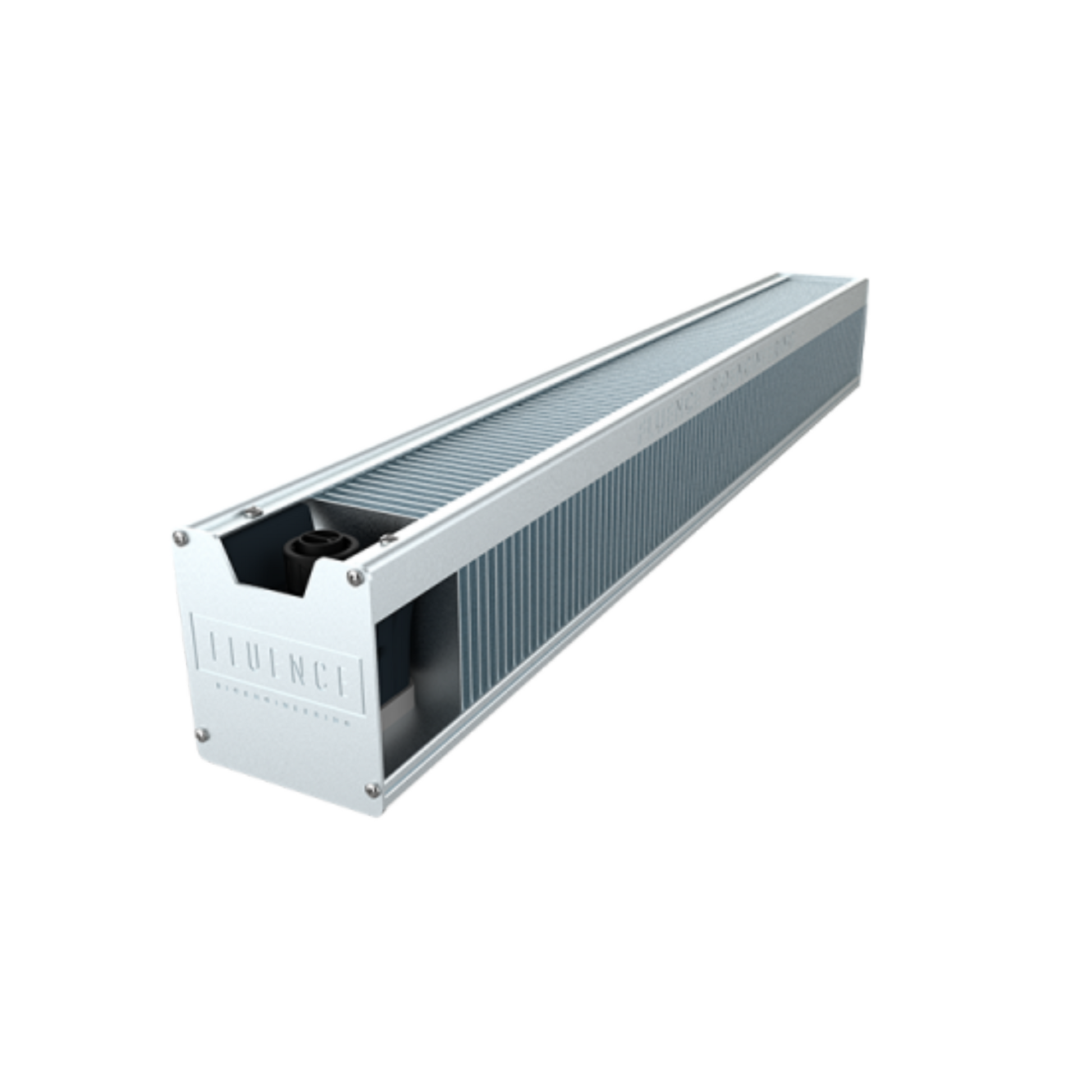

Designed and built in Austin, TX. Anodized, extruded aluminum alloy chassis with integrated heatsink for longevity and passive, natural convection thermal management (no fans or moving components).
VYPRx PLUS is available with PhysioSpec Indoor or PhysioSpec Greenhouse. For more information: www.fluence.science/physiospec
Input voltage is 100-277v. Amperage depends on fixture wattage (342W for VYPR 2x) and input voltage. Below is a general estimate. Actual figures may vary.
- Amps @ 120V: 2.85A
- Amps @ 208V: 1.64A
- Amps @ 240V: 1.43A
- Amps @ 277V: 1.23A
VYPR Pipe Bracket: Ideal for hanging VYPR series fixtures below pipes.
VYPR Square Bracket: Ideal for hanging VYPR series fixtures from structural channel.
Short "V" Mounting Brackets: Ideal for hanging VYPR series fixtures from Unistrut.
All VYPR 2 systems are guaranteed against manufacturing defects for five years with projected lifetime of 50,000 operating hours to 90 percent of initial flux. www.fluence.science/warranty
