Self-Priming Centrifugal Pump for Hydroponics & Irrigation

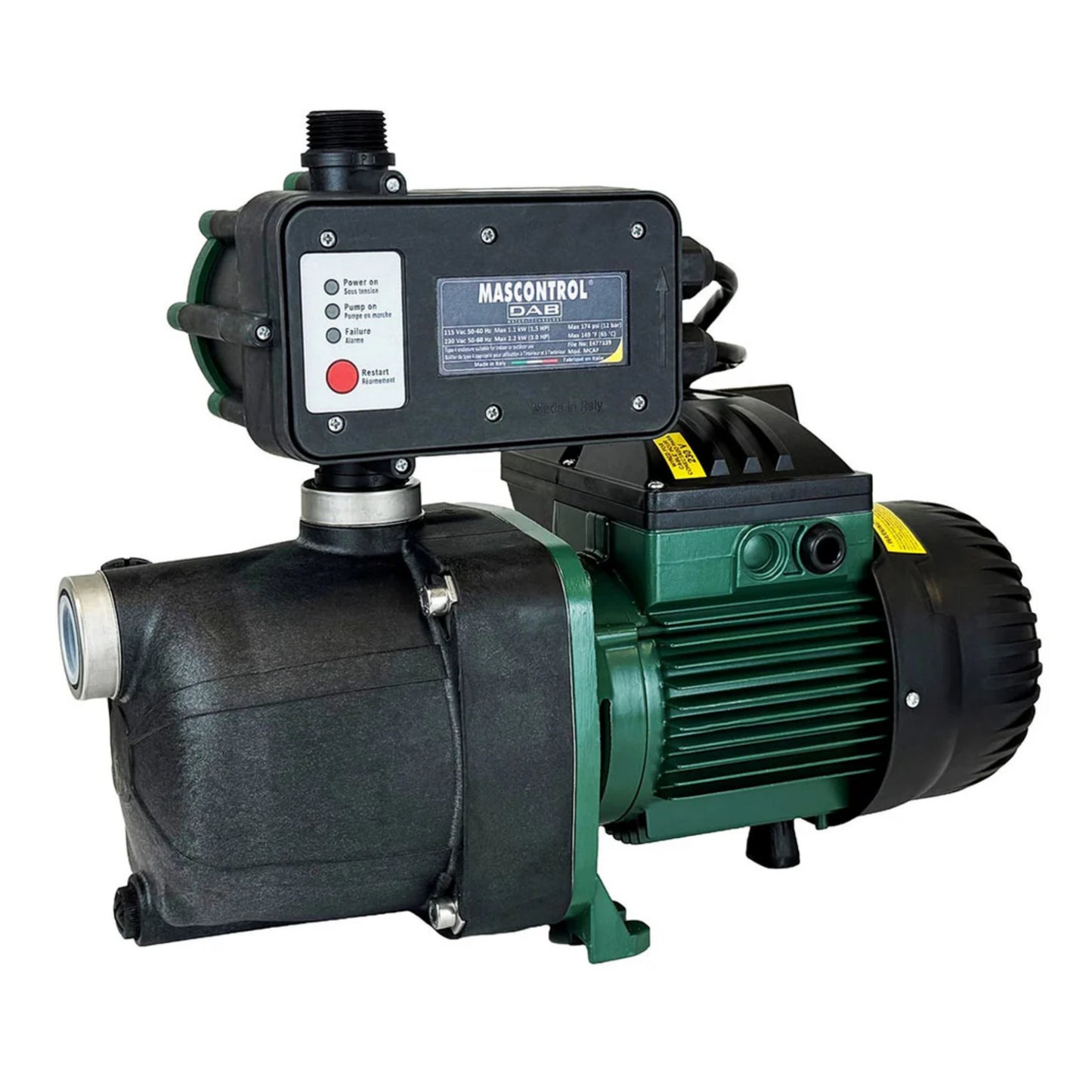

The DAB JETCOM 132 Self-Priming Centrifugal Pump with Mascontrol combines strong suction, fast priming, and stable pressure to keep your reservoirs, lines, and emitters running smoothly. Its dual-voltage 115/230V motor and integrated Mascontrol provide automatic start/stop, dry-run protection, and consistent flow without large pressure tanks. Built with a technopolymer pump body, stainless-steel wear ring, and carbon/ceramic mechanical seal, it’s engineered for long service in demanding water applications.
Benefits Growers Count On
Exceptional priming makes startup easy—even with air in the line—while the wide operating range (1.8–46.2 gpm; head up to ~54 m) supports everything from drip manifolds to multi-zone irrigation. Quiet operation and oversized, sealed bearings reduce noise and maintenance. The controller maintains steady pressure for uniform distribution, helping prevent emitter clogging and uneven watering.
Composition & Use Cases
Technopolymer impeller, diffuser, Venturi, and sand guard handle clean water with low sandy impurities; IP44 motor protection and Class F insulation add durability. Ideal for hydroponic reservoirs, garden irrigation, domestic water boosting, small farms, and light industrial service where dependable self-priming is required.
Key features:
-
Fast, reliable self-priming to ~8–9 m suction for quick startup after tank swaps or line maintenance.
-
Mascontrol automation: steady pressure, auto restart, and dry-run protection—no large pressure tank needed.
-
Wide operating range (approx. 1.8–46.2 gpm; head to ~54 m) suits drip, spray, and multi-zone layouts.
-
Quiet, low-maintenance design with oversized sealed bearings for long service life.
-
Durable build: technopolymer hydraulics, stainless wear ring, carbon/ceramic mechanical seal.
Specifications:

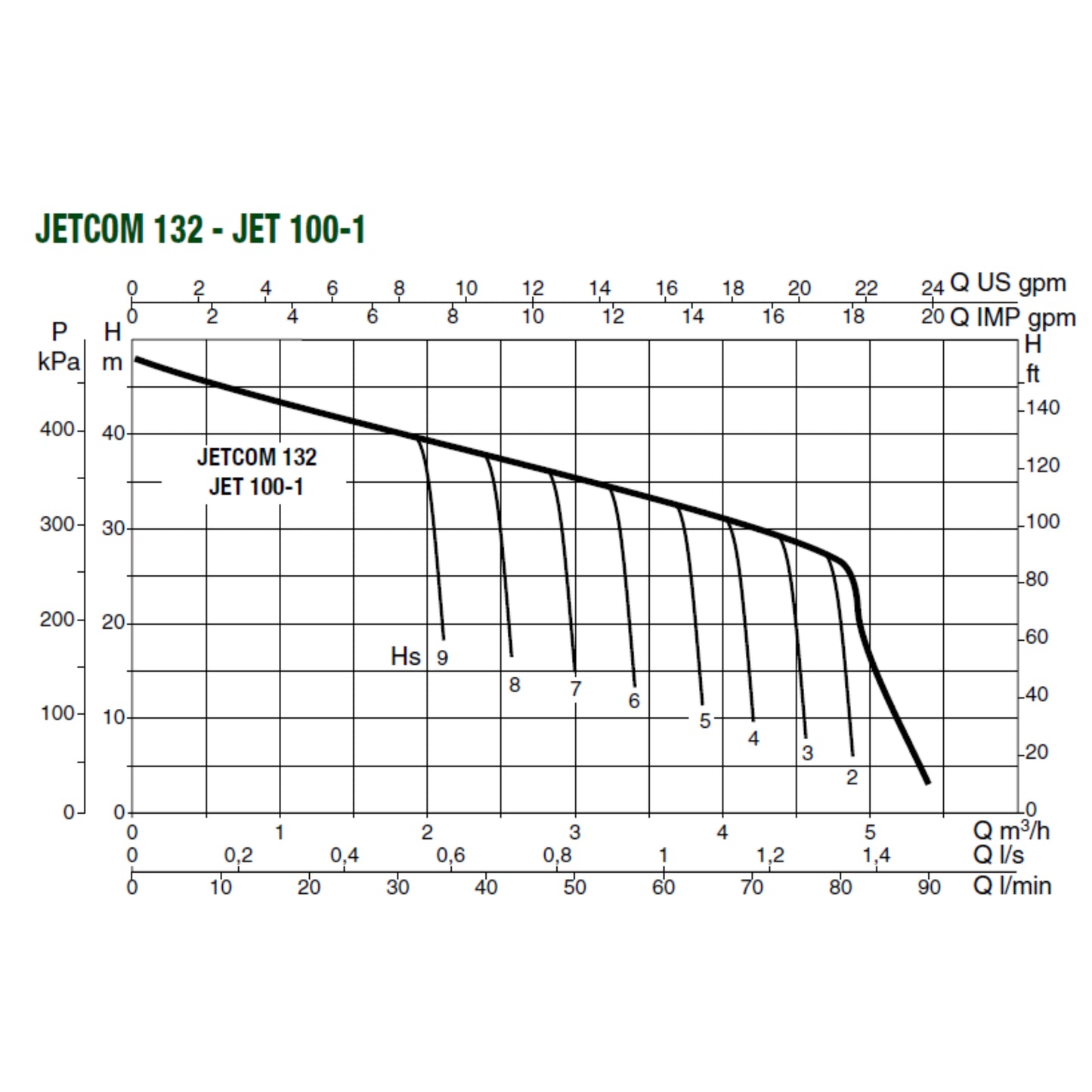

- Operating Range: from 0.6 to 5.4 m3 /h with head up to 54 metres.
- Liquid Quality Requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.
- Liquid Temperature Range: from 0°C to +35°C for domestic use (EN 60335-2-41)
- Maximum Ambient Temperature: +40°C
- Maximum Operating Pressure: 6 bar (600 kPa)
- Maximum Suction Depth: 8 metres.
- Installation: fixed in a horizontal position.
- Special executions on Request: alternative voltages and/or frequencies.
- Motor Protection Rating: IP 44
- Terminal Block Protection Rating: IP 55
- Insulation Class: F
- Standard Input Voltage:
- Single phase 220/240 V / 50 Hz
- Three phase 230/400 V - 50 Hz
