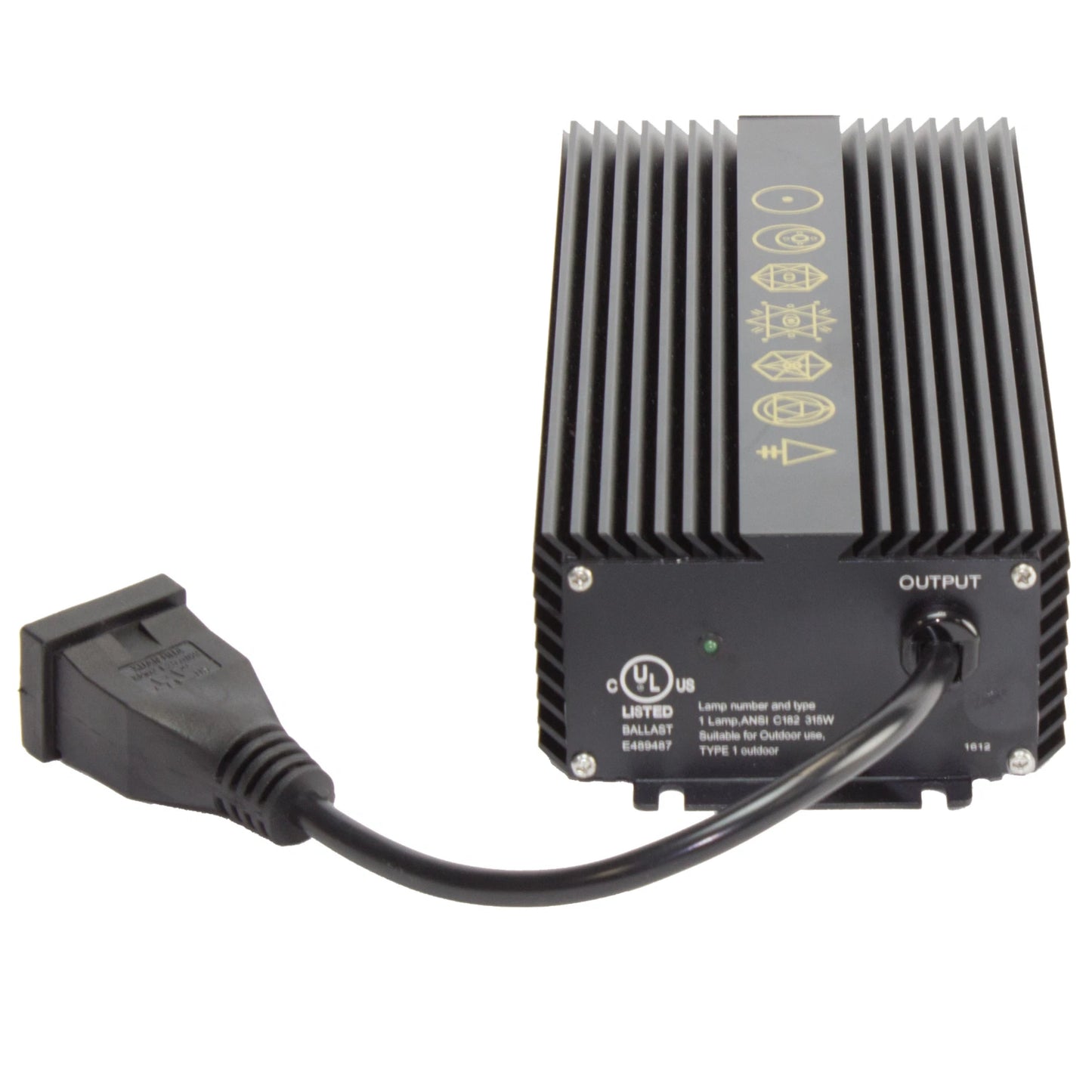

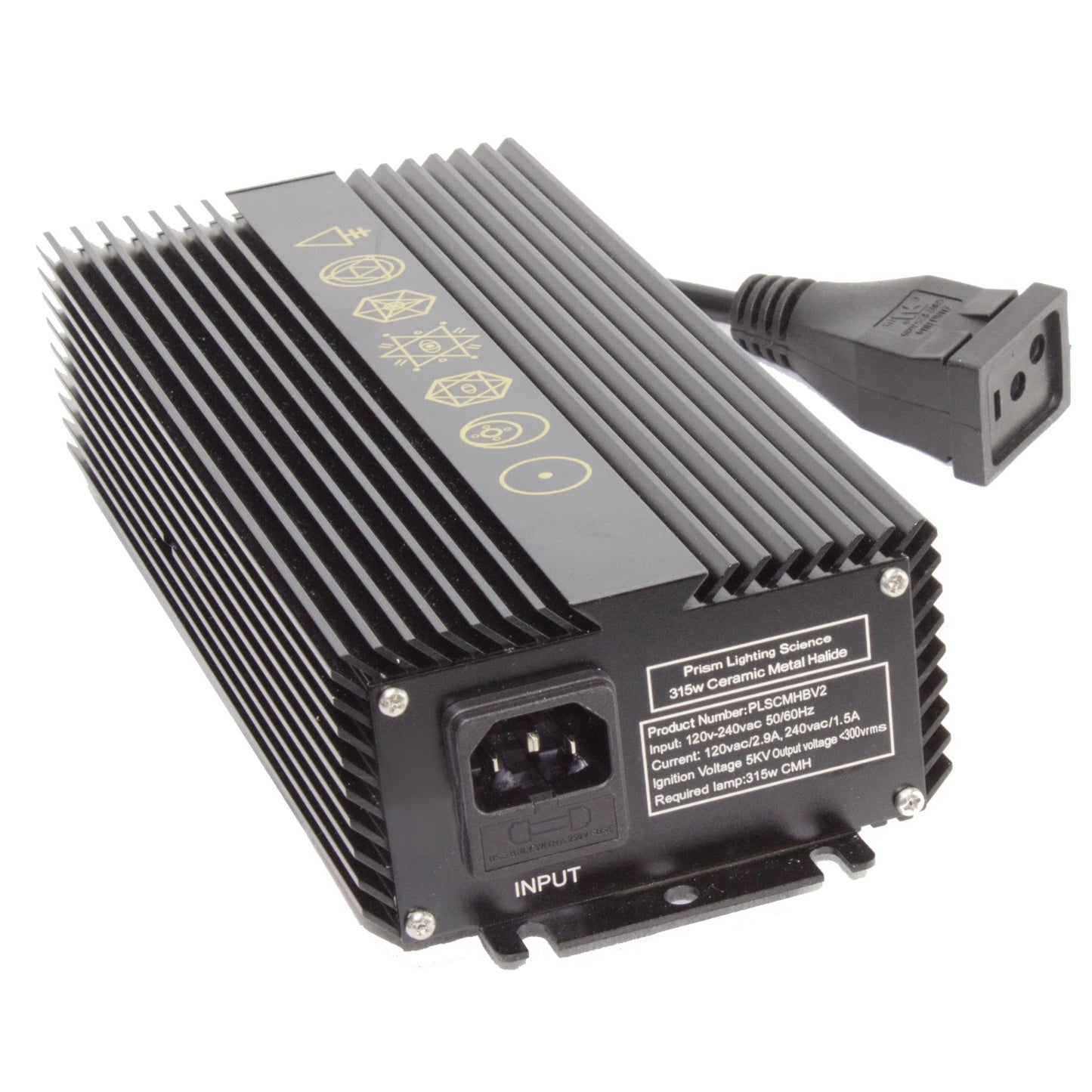

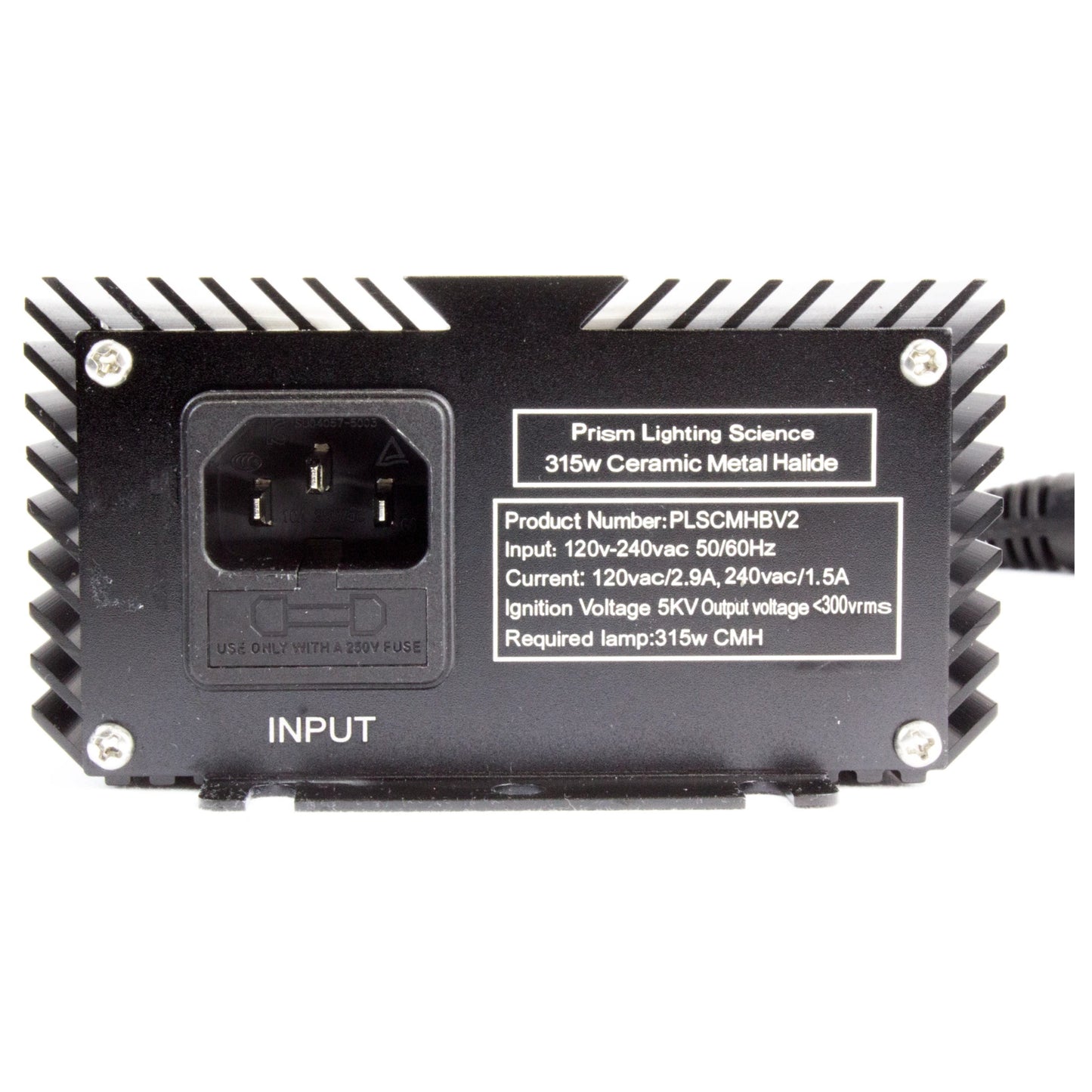

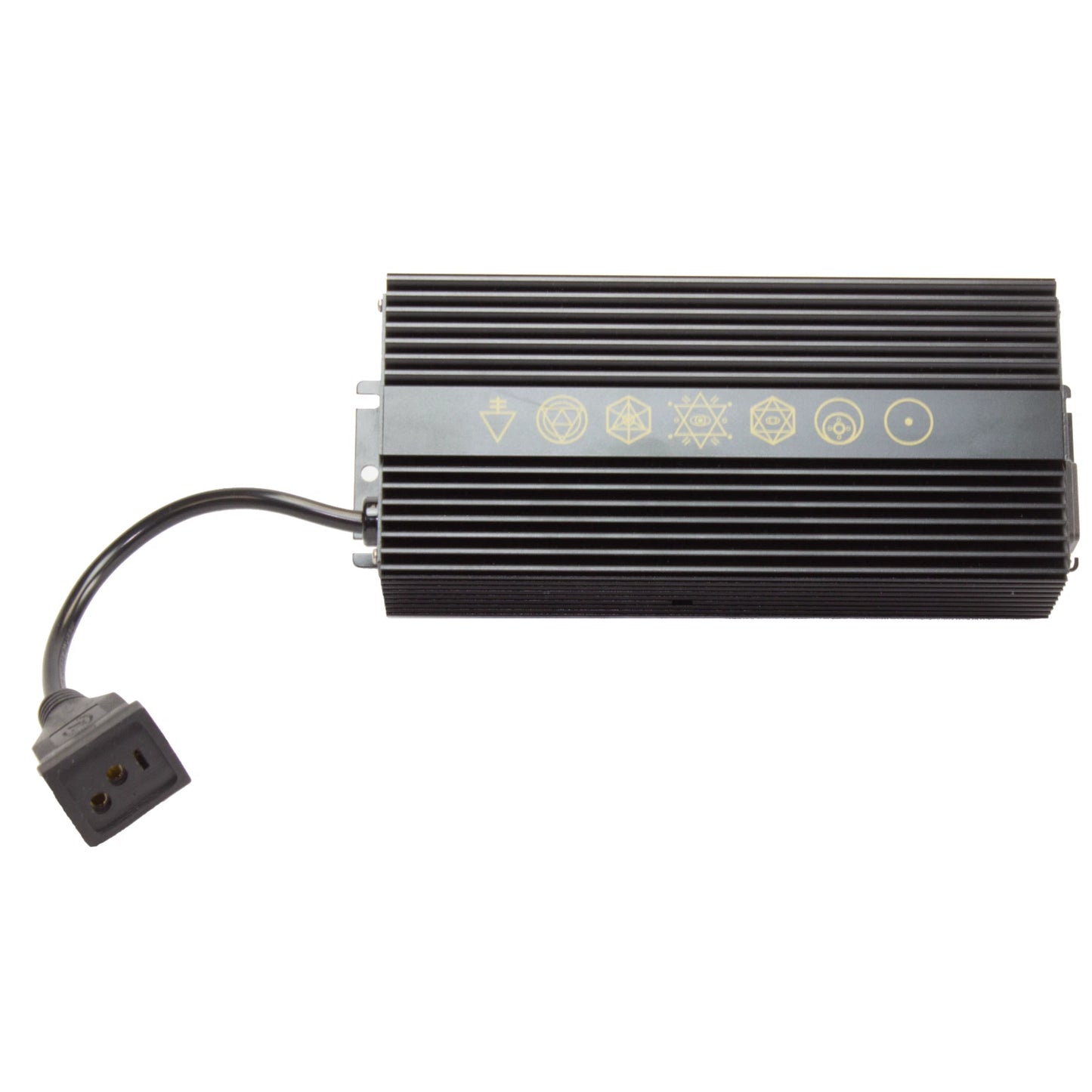

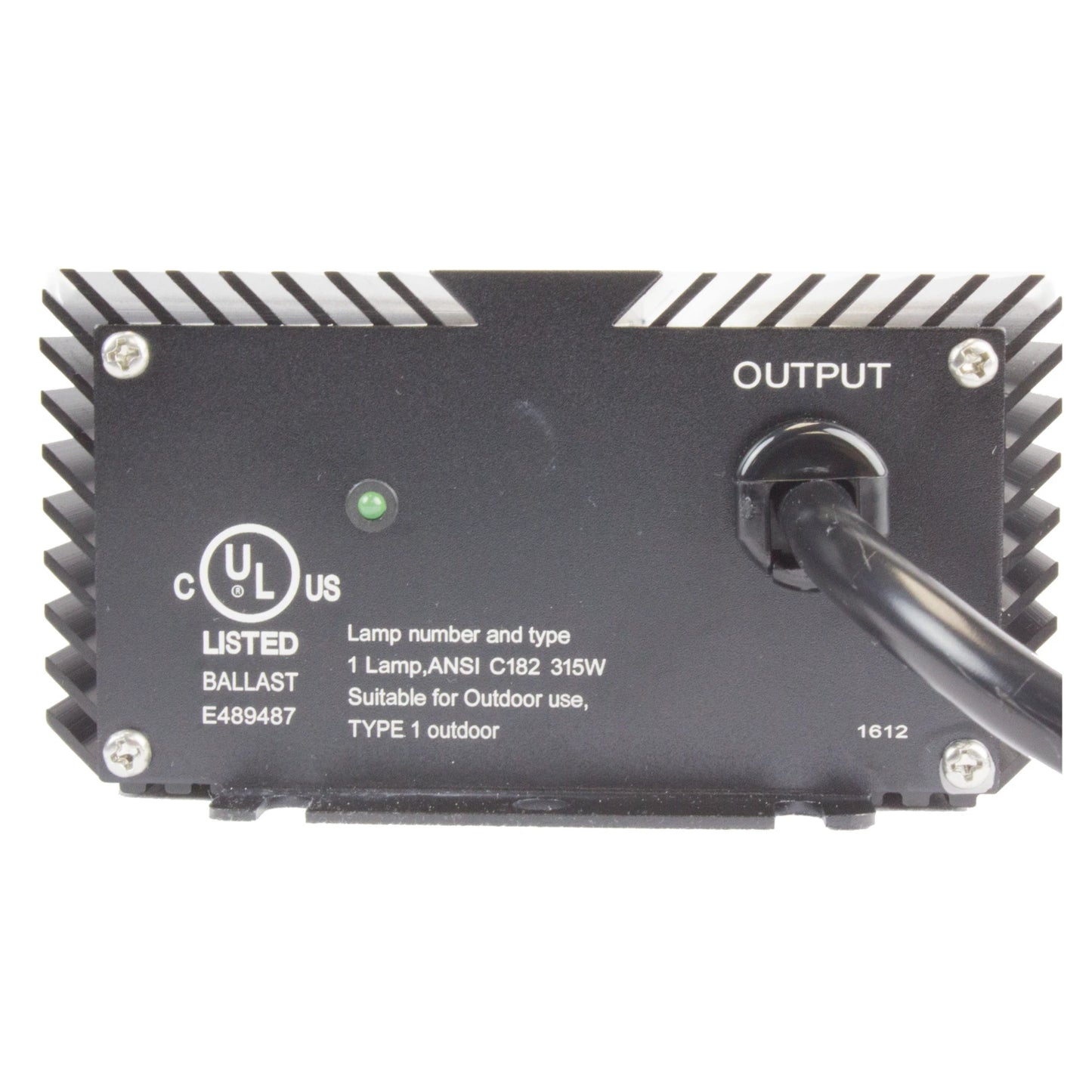

Prism Lighting Science 315w Ceramic Metal Halide CMH Remote Ballast 120/240v

Prism Lighting Science 315w Ceramic Metal Halide CM 120/240V Ballast Ballast safely and efficiently drives 315W ceramic metal halide lamps. Variable voltage 120/240V. Low Mains frequency 50/60 Hz, and square wave type. End of Lamp life, short circuit, open circuit, ignition failure and thermal protections for safety. Compare to Philips CMH/CDM ballast, with all the same functionality and 3 year warranty, at a fraction of the price. 120v cord included.
$129.23
$129.23
Frequently bought together

Additional Information

Name Prism Lighting Science 315w Ceramic Metal Halide CMH Remote Ballast 120/240v
Brand Prism Lighting Science
SKU PLSCMHB
Weight (lbs) 6.62
Warranty 3 Year
Dimensions 8.46 L x 7.01 x w 3.64 h (8.01 L x 3.94 w mounting)
Watts 315w
Voltage 120-240v
Color: Black
Amps 2.89 @ 120v / 1.42 @ 240v
UL Listed Yes
MSRP $215.99
Financing Available- Apply Now!

Price Beat Guarantee - We BEAT Competitors!

Commercial Discounts Available

Details
Prism Lighting Science Ceramic Metal Halid Ballasts are designed to run 315W CMH lamps safely and effectively. UL listing and multiple ballast protections such as ignition failure protection offer safe usage for your indoor environment as well maximizing the PAR output of your Ceramic Metal Halide lamps. Compare to Philips CMH/CDM ballast, with all the same functionality and 3 year warranty, at a fraction of the price.

The Prism Lighting Science CMH Ballast was made to have all the features and technology needed for optimal performance with none of the expensive frills in order to keep it priced as competitively as possible. Comes with a 120v power cord.

Ballast Specifications:

Wattage: 315W
Input Volt: 120V/240V
Input Current: 2.89A / 1.42A
Input Power: 343W
Min Power Factor: .95
THD: <15%
Crest Factor: <1.7

Ballast Physical

Length 215mm / 8.46 in
Width 178mm / 7.01 in
Height 92.5mm / 3.64 in
Weight 3.0kg / 6.62lb lb

Ballast Protections

1. End of Life (EOL) Protection
2. Short circuit protection
3. Open circuit protection
4. Ignition failure protection
5. Thermal protection

Ballast Installation & Application Notes

1. Max allowable case temperature: 75 Degrees C / 167 Degrees F
2. Ambient Temperature: -20, +55 Deg. C / -4, +131 Deg. F
3. Max. Humidity: 95%
4. Ignition voltage is 5kV

Ballast Performance Requirements:

  • Rated mains voltage: 120-240V
  • Voltage range: (+/-10%): 108-264V
  • Mains frequency: 50/60 hz
  • Operation Frequency: 140-220kHz
  • Wave Type: Square
