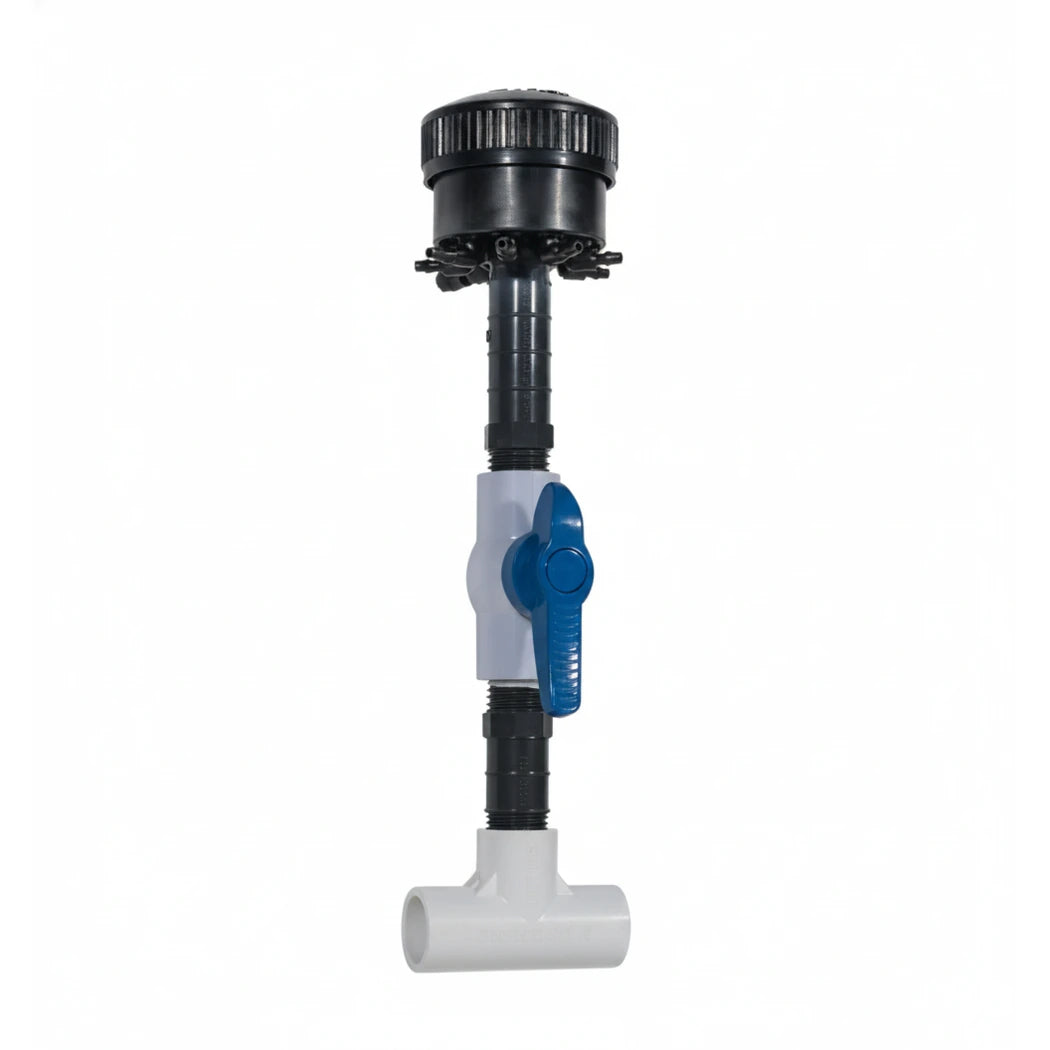

1/2 in Octa-Bubbler Riser Assembly for Container Drip Stations
The 1/2 in Octa-Bubbler riser assembly ties an 8-outlet bubbler to a 1/2 in lateral and lifts it 8 in off the ground. From there the bubbler fans one feed out to eight microtubes, one per pot. Its ball valve closes the station on its own, so you can service a group without draining the line. The bubbler head is picked separately by flow rate.
Matching a 1/2 in Bubbler Riser to Your Lateral Line
This size drops onto 1/2 in poly line, the common lateral for smaller container runs where a 3/4 in riser would be oversized. Growers set the riser beside eight pots, seat the Octa-Bubbler on top, and thread the eight spaghetti lines down into the medium. The 8 in stand keeps the manifold clear of splashback and standing water. Shut the ball valve to pull a station offline while the rest keep feeding.
Key Features
- 1/2 in inlet: Matches 1/2 in poly lateral used on smaller container runs.
- 8 in riser height: Holds the bubbler above the medium and off the floor.
- Ball valve shutoff: Isolate a single 8-pot station on demand.
- Octa-Bubbler mount: Top fitting seats Jain's 8-outlet manifold.
- Pre-built assembly: Riser, valve, and fittings come ready to tee into the line.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 22020080 |
| Type | Riser / ball valve assembly (bubbler sold separately) |
| Riser Size | 1/2 in |
| Riser Height | 8 in |
| Valve | Ball valve shutoff |
| Mounts | JAIN Octa-Bubbler (8-outlet) |
