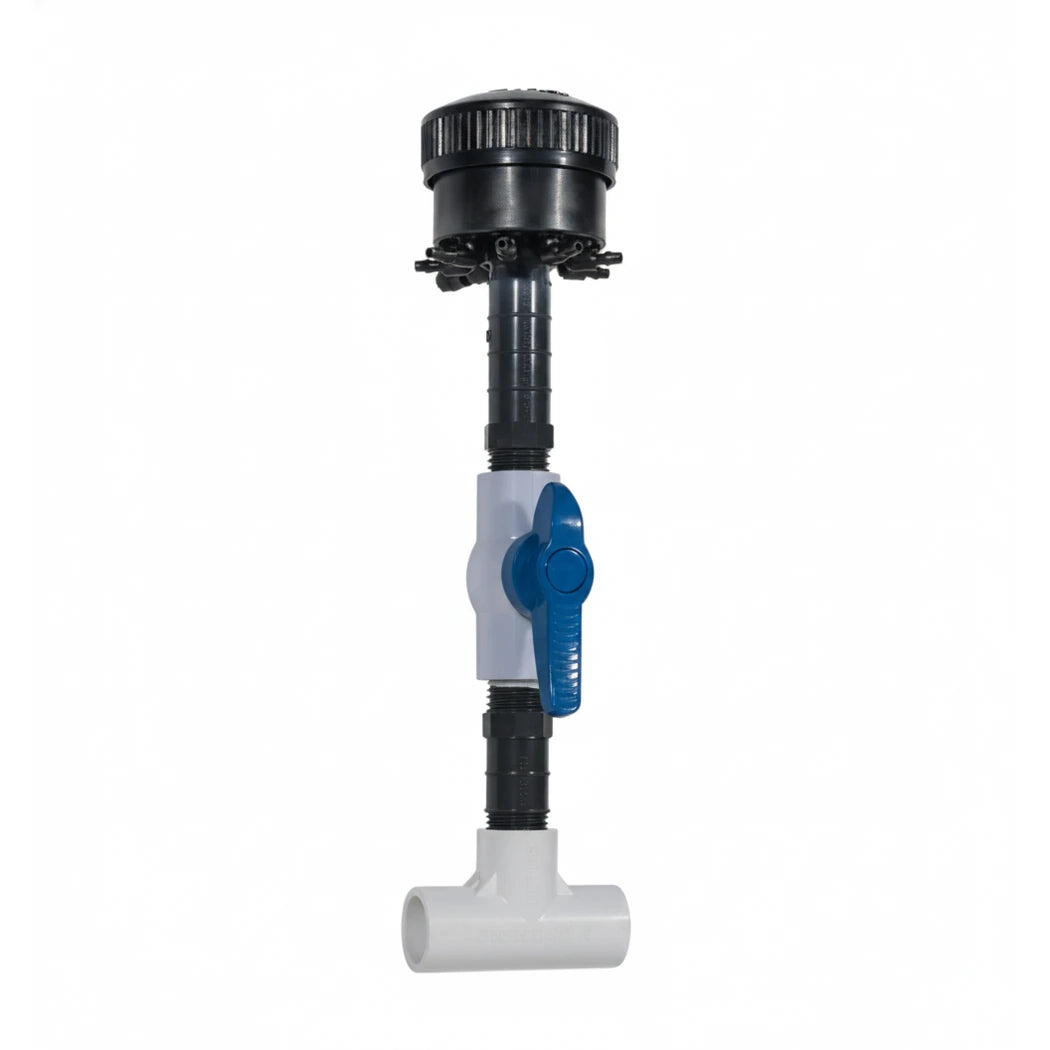

JAIN Octa-Bubbler Riser Assembly for Multi-Pot Drip Stations
The JAIN Octa-Bubbler riser assembly lifts an 8-outlet Octa-Bubbler up off the floor on a 3/4 in riser that stands 8 in tall. Mounted on top, the bubbler splits one feed into eight microtube runs, each dripping into its own container. A built-in ball valve lets you shut the whole station without touching the rest of the zone. The Octa-Bubbler head itself is chosen separately by flow rate.
Setting Up a 3/4 in Bubbler Riser with Ball Valve
Growers tee this riser off a 3/4 in lateral next to a cluster of eight pots, then press the Octa-Bubbler onto the top fitting. The 8 in height keeps the manifold above the medium so the spaghetti lines fall down into each container. Flip the ball valve to isolate that group for transplanting or repairs while neighboring stations keep running. It threads onto standard 3/4 in fittings, so it drops into an existing manifold.
Key Features
- 8 in riser height: Lifts the Octa-Bubbler above the medium so outlets drop cleanly into pots.
- 3/4 in riser and tee: Threads onto standard 3/4 in lateral line without adapters.
- Ball valve shutoff: Isolate one 8-pot station without stopping the rest of the zone.
- Octa-Bubbler mount: Top fitting accepts Jain's 8-outlet bubbler manifold.
- Pre-built assembly: Riser, valve, and fittings come ready to tee into the line.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 22020081 |
| Type | Riser / ball valve assembly (bubbler sold separately) |
| Riser Size | 3/4 in |
| Riser Height | 8 in |
| Valve | Ball valve shutoff |
| Mounts | JAIN Octa-Bubbler (8-outlet) |
