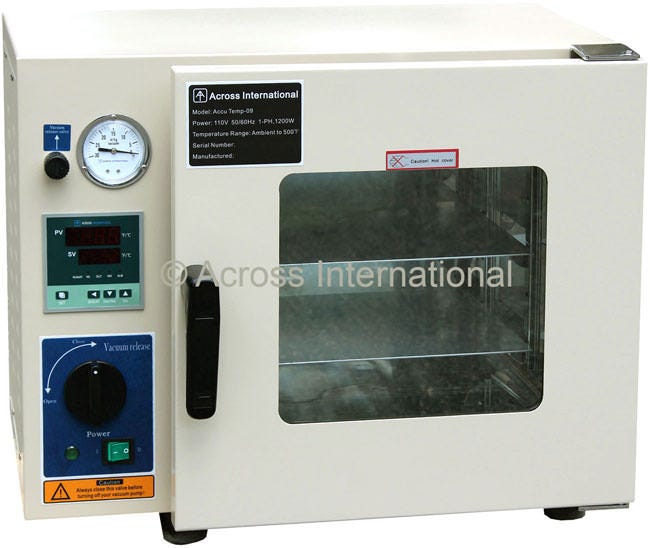

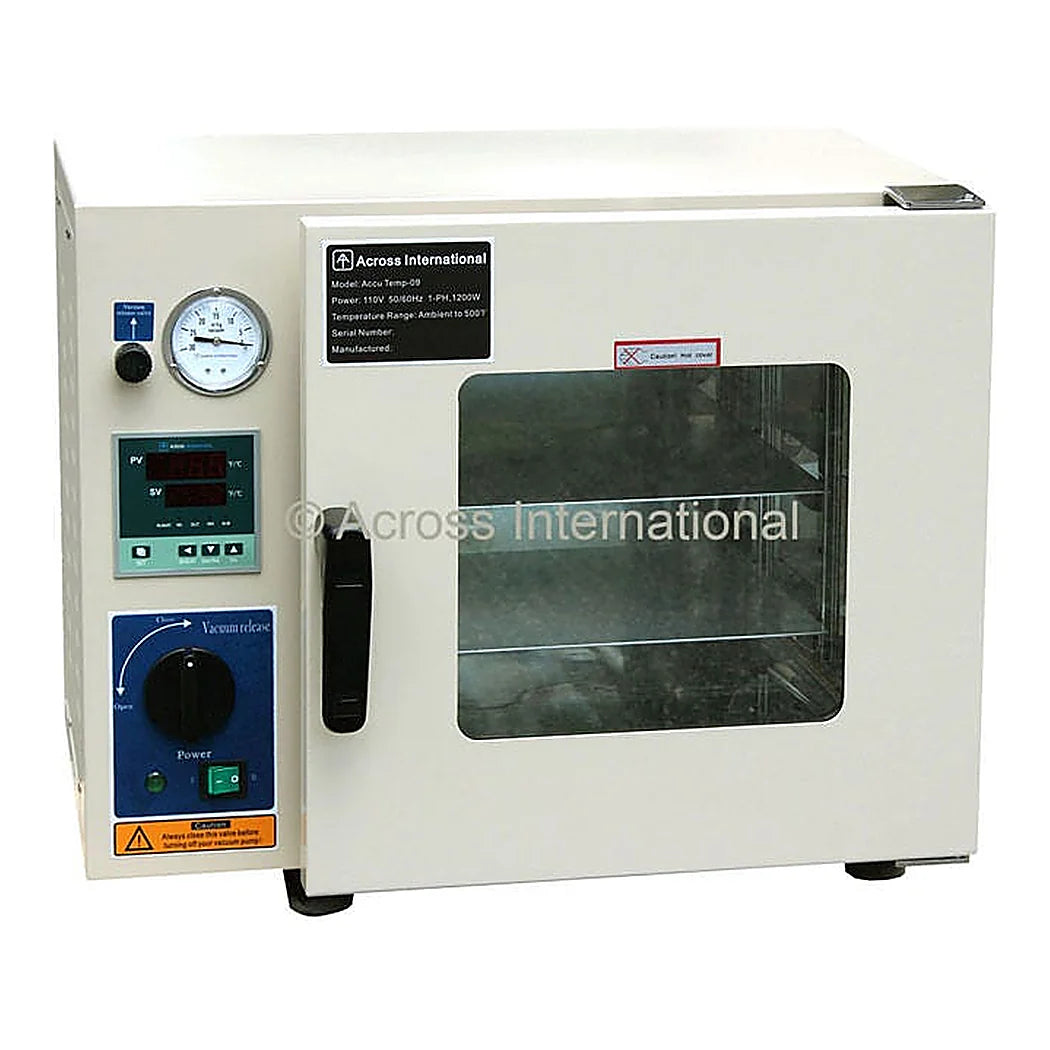

Where a Small AccuTemp Vacuum Oven Fits
Twelve inches square and eleven deep is the whole chamber. That is 0.9 cubic feet of stainless, which is a bench footprint rather than a floor unit. Heat comes from five sides: 350W left, 350W right, 220W top, 480W bottom and 100W at the back. Earlier units in this series heated from three sides, and the difference shows up as uniformity within 5% of setpoint. Total draw is 1,500 W at 13.6 A on a 110V supply. Range runs from ambient to 480 F with accuracy held to 1 F. It reaches 100 F in about forty minutes. Four aluminium pan shelves ship with it and the chamber takes up to eight. Shelf surfaces are 11.5 by 11.25 in with an inch between them at full load. Each shelf carries under 10 kg.
What a 0.9 Cu Ft Vacuum Oven Is Actually For
Purging and degassing are what most of these ovens do all day. Pulling a vacuum drops the boiling point, so solvent leaves at a temperature that does not cook what is left behind. Ultimate vacuum here is better than 500 microns with a pump that can hold it. The gauge reads zero to thirty inches of mercury, and both ports are KF25 flanges. A needle valve and vent port give you adjustable gas backfill when an inert atmosphere matters. Three inches of insulation keep the outside of the case cool enough to stand next to. The dual-layer window is half-inch tempered safety glass, so you can watch a run without breaking vacuum. It is UL and CSA listed under file E482564 and CE compliant. Warranty is two years, with lifetime US parts and service support.
Key Features
- Heating: Five sided at 350W, 350W, 220W, 480W and 100W
- Chamber: 12 x 12 x 11 in of stainless steel, 0.9 cubic feet
- Shelves: Four aluminium shelves included, eight maximum, under 10 kg each
- Temperature: Ambient to 480 F, held within 1 F of setpoint
- Vacuum: Better than 500 microns through KF25 vacuum and vent ports
- Break-in: Run at 400 F without vacuum for 15 minutes before first use
- Certification: UL and CSA listed under E482564, and CE compliant
- Warranty: Two years with lifetime US-based parts and service support
Technical Specifications
| Specification | Value |
|---|---|
| Model | AT09 series |
| Chamber capacity | 0.9 cu ft |
| Chamber size | 12 x 12 x 11 in |
| Chamber material | Stainless steel |
| Heating | 5 sided: 350W left, 350W right, 220W top, 480W bottom, 100W back |
| Shelves included | 4 aluminium pan shelves |
| Maximum shelves | 8 |
| Shelf size | 11.5 x 11.25 in |
| Shelf spacing | 1 in at maximum shelf count |
| Shelf load | Under 10 kg per shelf |
| Temperature range | Ambient to 480 F (250 C) |
| Accuracy | Within 1 F |
| Uniformity | Within 5% of setpoint |
| Warm-up to 100 F | 40 minutes |
| Timer | 1 to 9,999 minutes |
| Electrical | 110V, 60 Hz, 13.6 A, 1,500 W |
| Ultimate vacuum | Better than 500 microns |
| Vacuum gauge | 0 to 30 in mercury |
| Ports | KF25 flange, vacuum and vent |
| Window | Dual layer, 1/2 in tempered safety glass |
| Insulation | 3 in |
| Door gasket | Silicone |
| Unit dimensions | 23.4 x 17.25 x 19 in |
| Unit weight | 90 lb |
| Shipping weight | 165 lb |
| Certifications | UL/CSA E482564, CE |
| Warranty | 2 years |

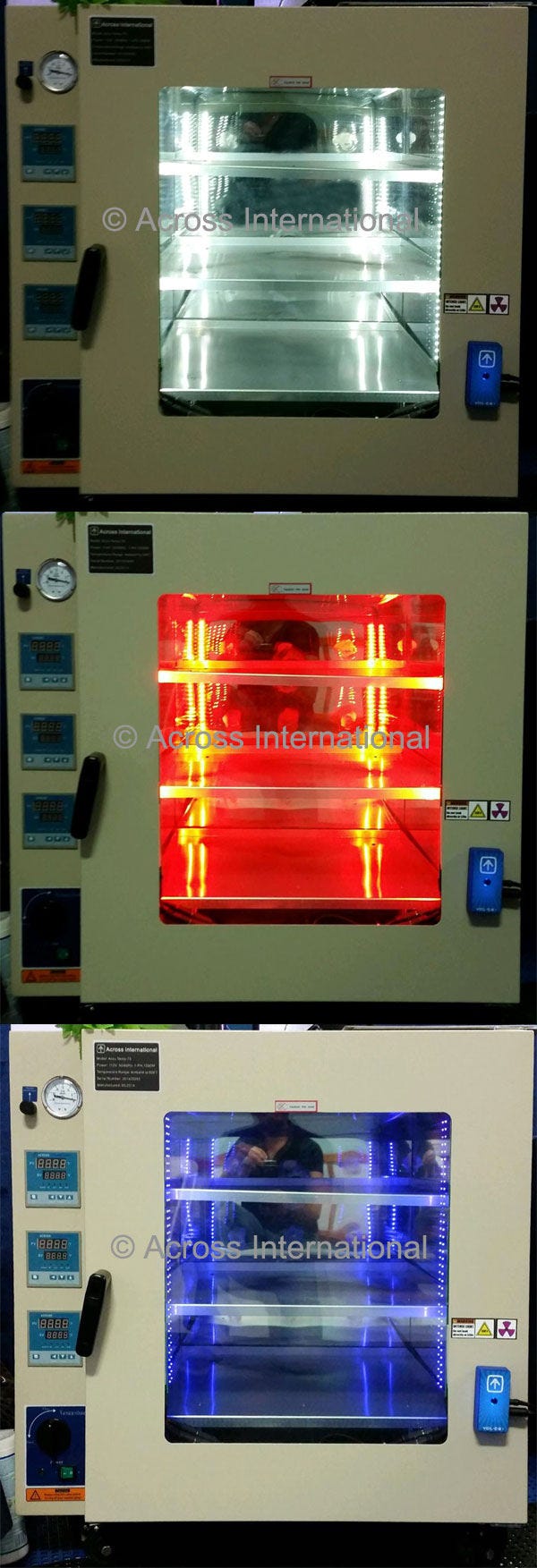

| Standard package | Oven, 4 shelves, KF25 clamp set, LED light cable, manual |
