How the TrolMaster AMP-3 Sensor Board Fits a Reservoir

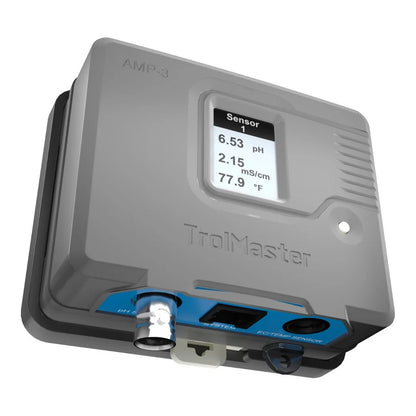

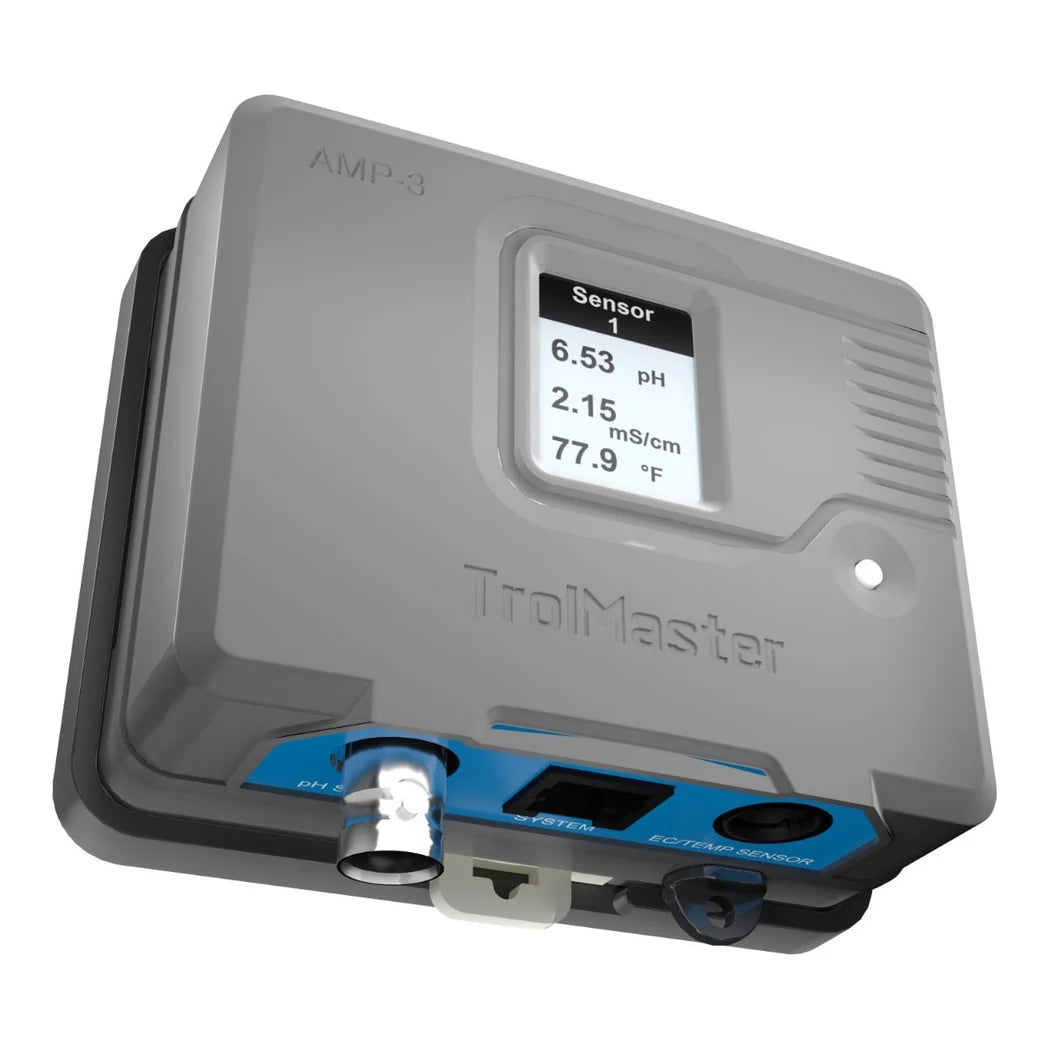

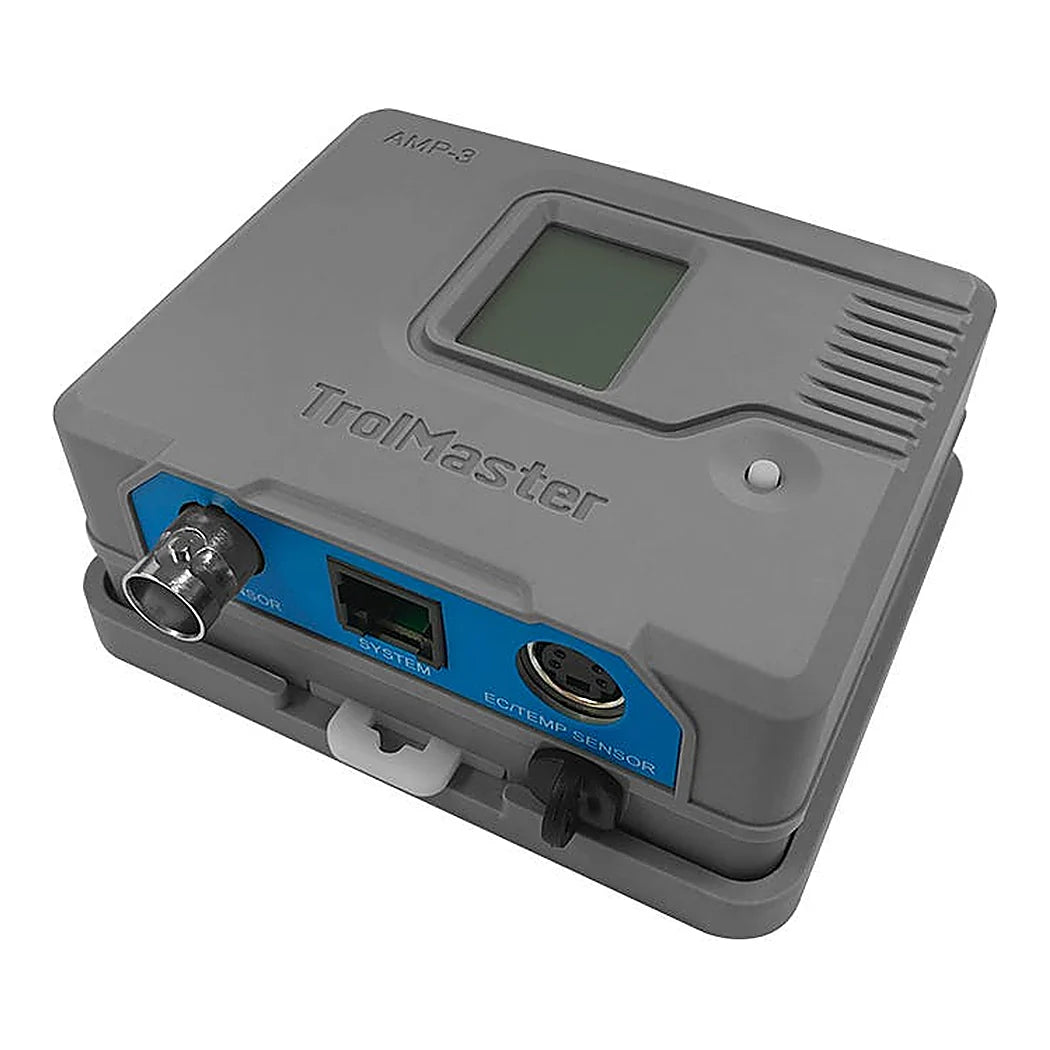

The AMP-3 is a bridge board that turns two reservoir probes into live pH, EC and water temperature readings on a TrolMaster controller. TrolMaster lists it for the Aqua-X Pro (NFS-2), the Aqua-X Plus (NFS-3) and the Tent-X (TCS-1). A BNC terminal takes the pH probe and a Mini DIN terminal takes the EC and temperature probe. An RJ12 terminal marked SYSTEM carries the signal back to the controller. On the Aqua-X it plugs into the Nutrient terminal, and on the Tent-X it uses the Sensor terminal. A 1 in LCD on the face of the board shows the readings beside the tank. One Aqua-X Pro can address up to 50 of these boards, so each reservoir in a room can report on its own. The box holds the board, a 16 ft RJ12 cable, a 4 ft RJ12 cable and a T-splitter. The board is rated for 32 to 122 °F at up to 90 percent relative humidity. The distributor part number is TRCAMP3, and the board carries CE and ETL marks and a three year warranty. The retail box measures 6.30 by 3.39 by 3.39 in and ships at 0.86 lb.
Setting Up an Aqua-X Pro Sensor Board for Steady Readings
An Aqua-X Pro sensor board earns its place when the numbers on the controller match what is in the tank. Mount it on a wall close to the probes with two screws. Keep it above splash height and away from heaters, pumps and chiller exhaust. Short probe leads carry less noise, so route them straight to the board without coiling the slack on a motor cord. Push the BNC on and turn it until it locks, then seat the Mini DIN fully. A loose plug is the usual cause of a reading that drops out. Rooms with several tanks run each board through the SPH-1 Splitter Hub and give every board its own address. Label each board with its reservoir so an alert points to the right tank. Calibrate both probes through the controller before trusting the first alarm. Holding the addressing key down resets the board's calibration, which helps when a probe is swapped. Set a pH window and an EC window on the controller the same day. The board reports values and the controller acts on them, so a dosing response still needs pumps on the Aqua-X side. The probes are not in the box.
Key Features
- Three terminals: BNC for pH, Mini DIN for EC and temperature, RJ12 SYSTEM to the controller.
- Controller fit: Aqua-X Pro (NFS-2), Aqua-X Plus (NFS-3) and Tent-X (TCS-1).
- Onboard 1 in LCD: Readings shown at the reservoir as well as on the controller.
- Multi-reservoir monitoring: Up to 50 boards on one Aqua-X Pro, each with its own address.
- Cables in the box: 16 ft and 4 ft RJ12 cables plus a T-splitter.
- Addressing key: Sets the board address; a long press resets calibration.
- Wall mount: Two screws, close to the probes.
- CE and ETL: Three year warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TrolMaster |
| Model | AMP-3 |
| Distributor part number | TRCAMP3 |
| EAN | 6970207971622 |
| Compatible controllers | Aqua-X Pro (NFS-2), Aqua-X Plus (NFS-3), Tent-X (TCS-1) |
| pH input | BNC |
| EC/Temp input | Mini DIN |
| Controller connection | RJ12 SYSTEM terminal |
| Compatible probes | TrolMaster PPH pH probes, PCT EC/Temp probes |
| Display | 1 in LCD, 64 x 64 |
| Boards per Aqua-X Pro | Up to 50 |
| Multiple boards | Via SPH-1 Splitter Hub |
| Mounting | Wall, 2 screws |
| Operating range | 32 - 122 °F, up to 90% RH |
| Certifications | CE, ETL |
| In the box | Sensor board, 16 ft RJ12 cable, 4 ft RJ12 cable, T-splitter |
| Package size | 6.30 x 3.39 x 3.39 in |
| Shipping weight | 0.86 lb |
| Warranty | 3 years |
