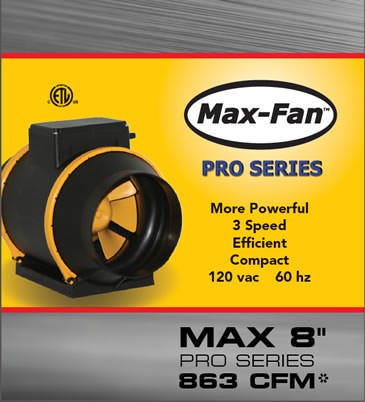

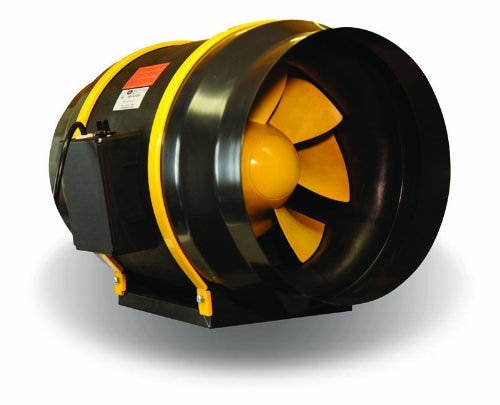

The Max-Fan family has been designed to be the smallest, lightest and most energy efficient fan of its kind. With the current cost of electricity the Max-Fan can save hundreds of dollars every year. Even more efficient and stronger than the original Max-Fan design, the Max-Fan Pro Series has a much more robust housing due to the fiberglass reinforced plastic compounds that meet all of the UL and CSA requirements.
Quieter, Stronger, 3 Speed Control and True Performance.
Rpm: 3288
Max Watts: 186
Amps: 1.58
Duct Size: 8 inch
Max Height: 11.125 inch
Length: 12.8125 inch
Blade Design: Diagonal / Mix Flow
Housing: Plastic
Weight: 9.8 lbs
Inlet/Outlet: 8 inch
Power: 120 vac
Hertz: 60 hz
*Never set speed or motor control below 40% operating speed to avoid overheating this, or any fan.
Quieter, Stronger, 3 Speed Control and True Performance.
Specifications:
CFM @ Og: 863 High, 726 Medium, 530 LowRpm: 3288
Max Watts: 186
Amps: 1.58
Duct Size: 8 inch
Max Height: 11.125 inch
Length: 12.8125 inch
Blade Design: Diagonal / Mix Flow
Housing: Plastic
Weight: 9.8 lbs
Inlet/Outlet: 8 inch
Power: 120 vac
Hertz: 60 hz
*Never set speed or motor control below 40% operating speed to avoid overheating this, or any fan.
