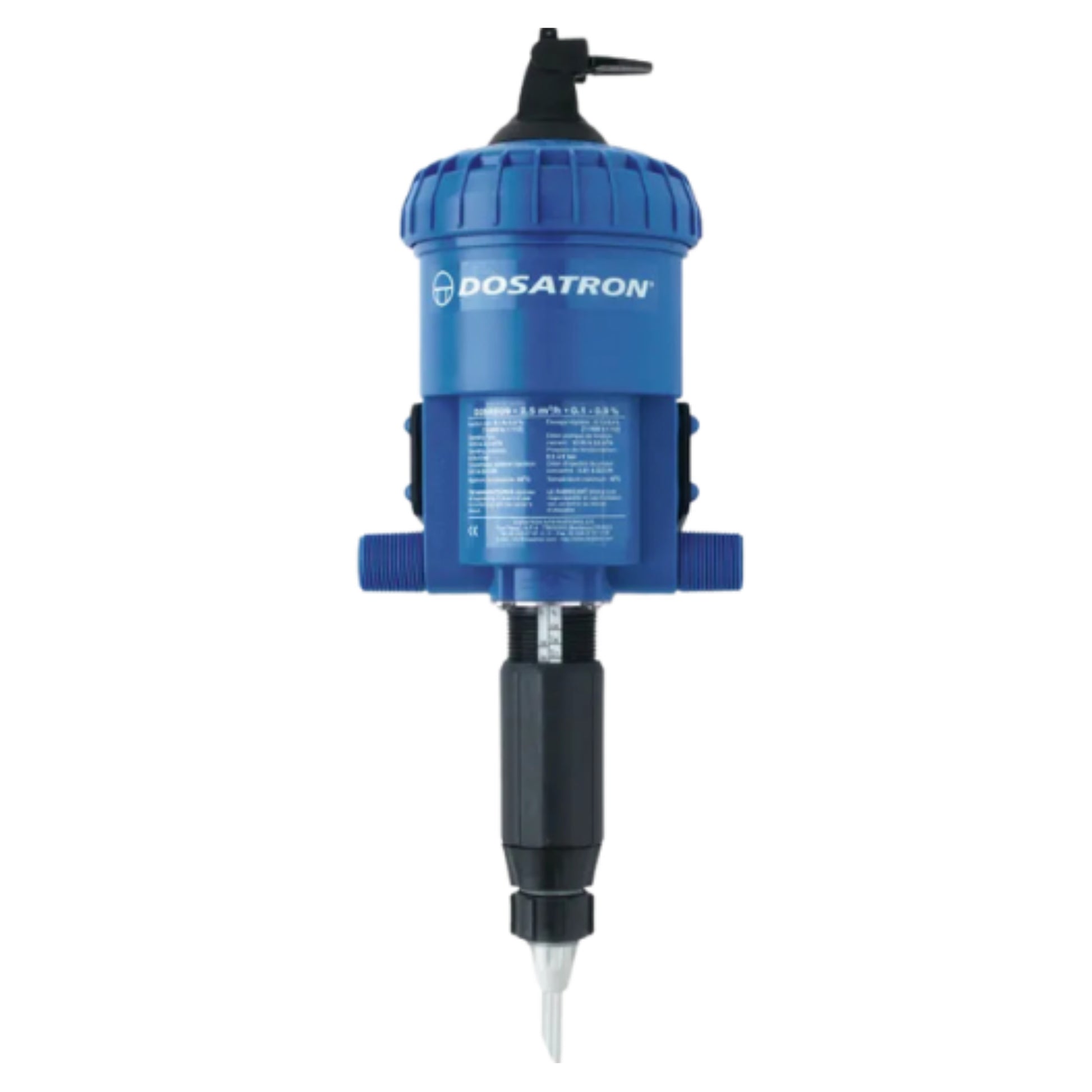

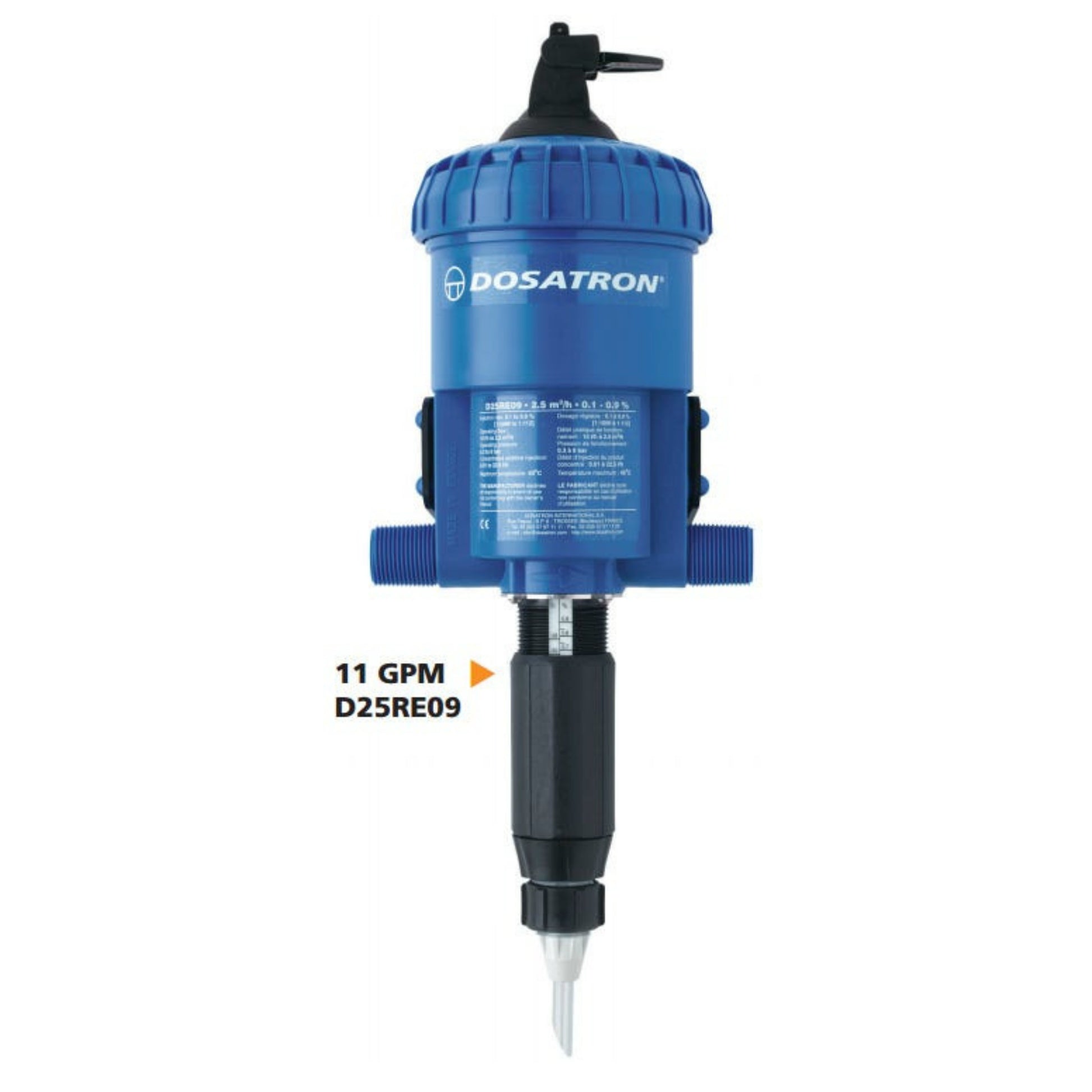

Dosatron Water Powered Nutrient Doser D25RE09 - 11 GPM 1:1000 to 1:112

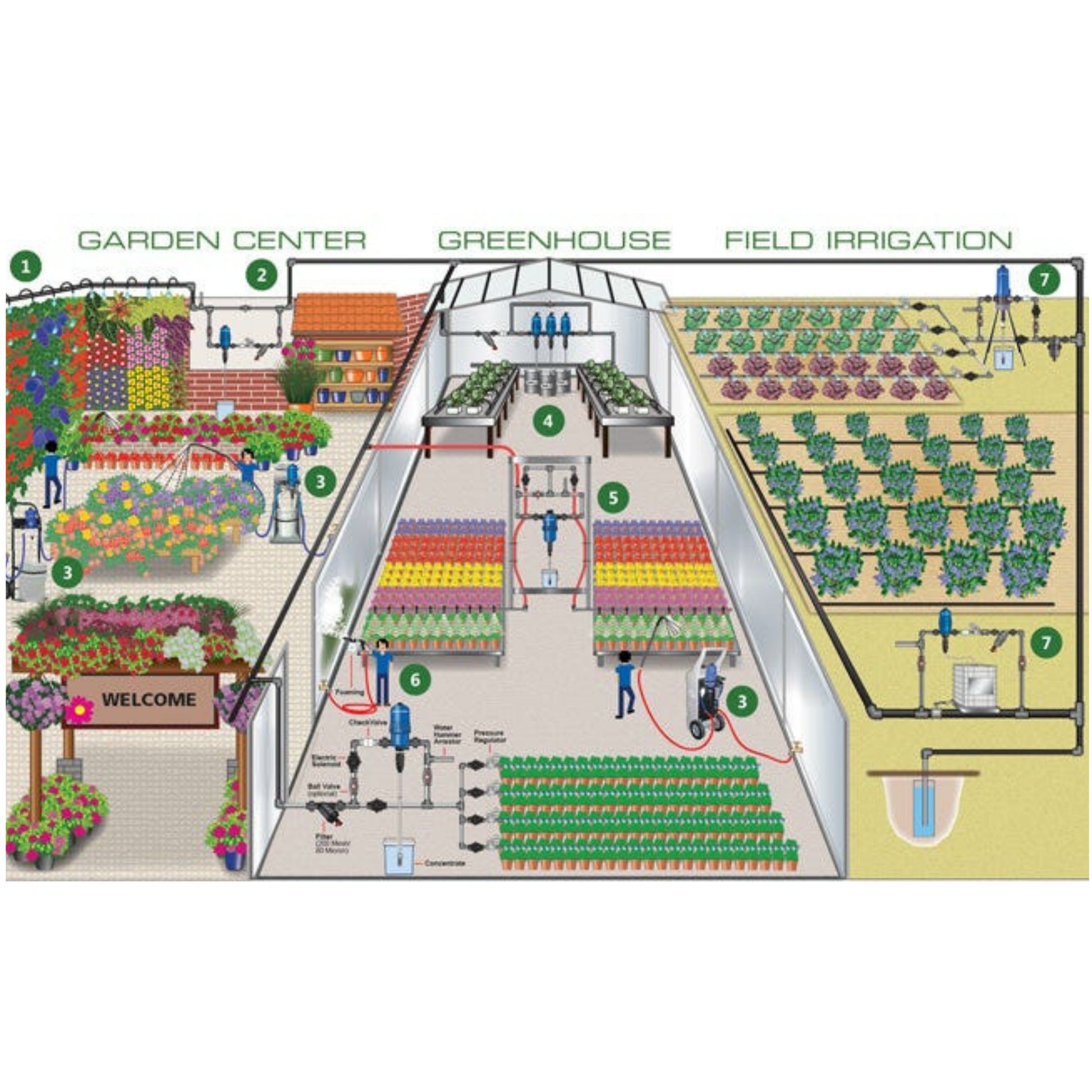

Sustainable fertilizer injection solutions for greenhouses, garden centers, and nurseries

Creating the right nutrient mix for your hydroponic growing operations is a delicate science. With Dosatron's full line of injectors, you can automate your process to create fine-tuned, multi-chemical mixes with repeatable results, every time!

Dosatron fertilizer injectors are water-powered so no electricity is necessary. They are simple to use and easy to adjust allowing for flexible dosage rates, and they are easy to maintain saving you time and effort.

Dosatron injectors can also be used with:
• Micro • Bloom • Grow • Multiple supplements • Fertigation • Substrates • Aquaponics • Indoor Farming and Agriculture • Stacked Farming • Urban Gardening and Farming
• Drain-to-Waste • And Many More

Also for use with:
• Fertilizers • Nutrients • Beneficials • Organics • Fish Emulsion • Teas • Chlorine • Sanitizers (special model) • Insecticides • Fungicides • Herbicides • Plant Growth Regulators (PGRs for drenching) • Wetting Agents • Algicides • Acids

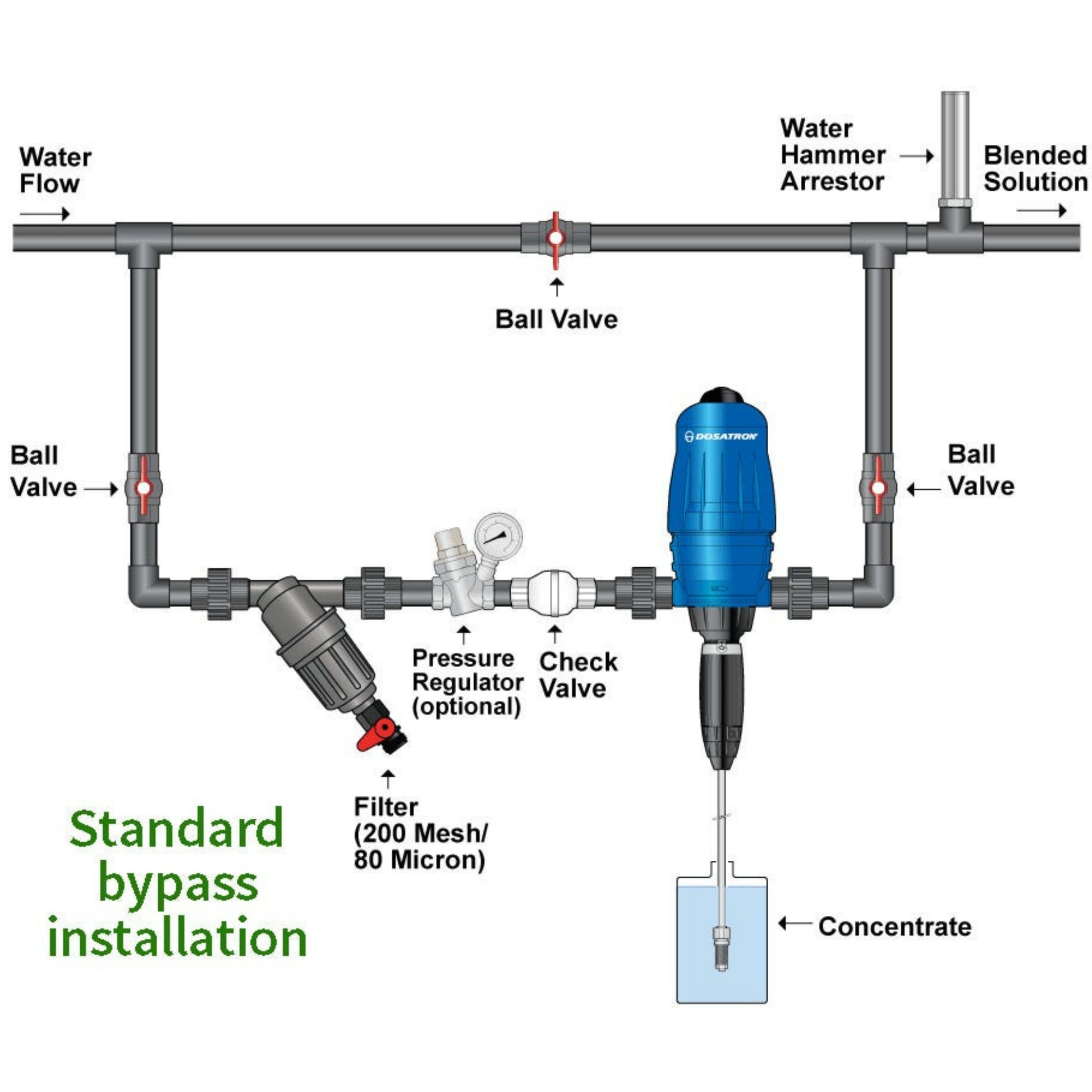

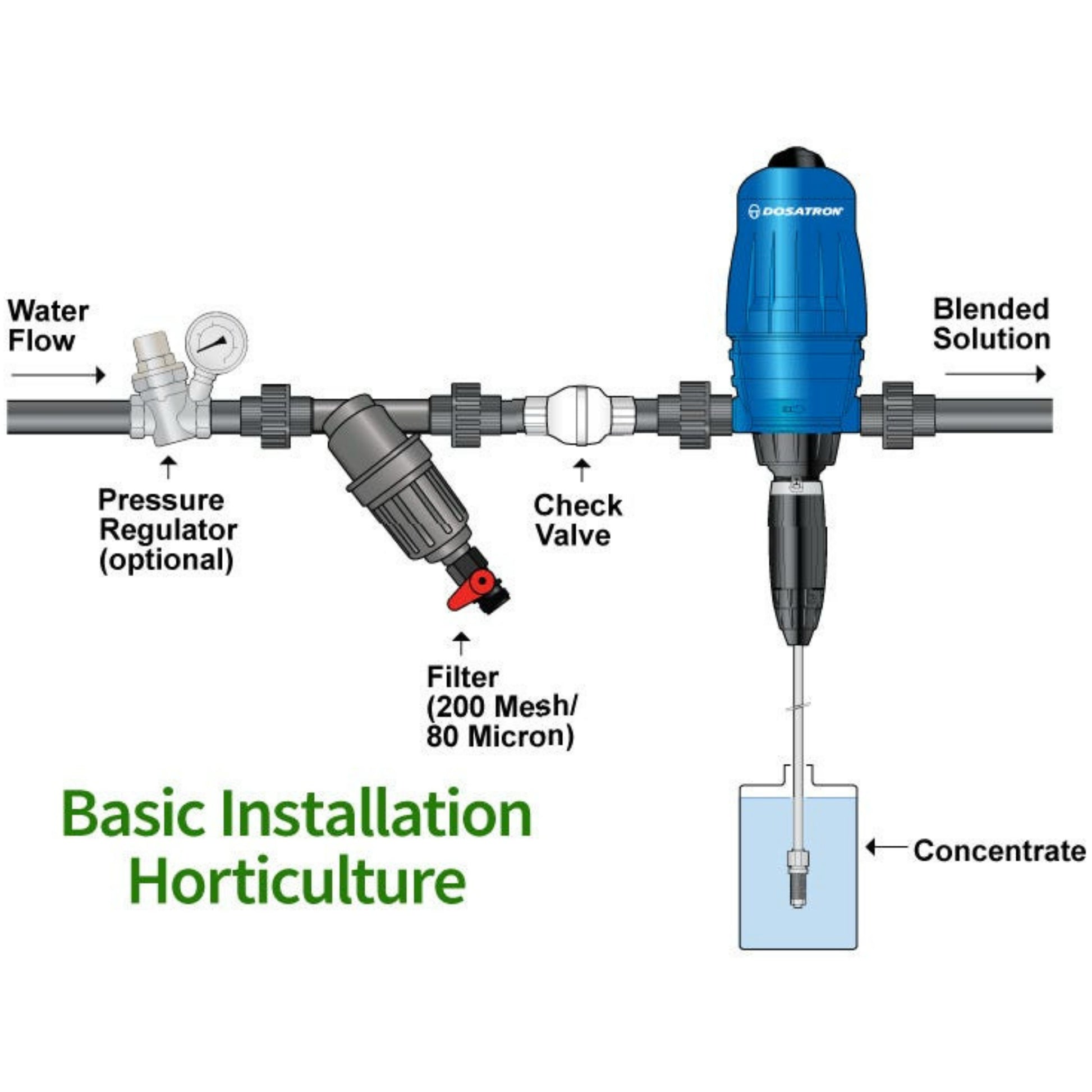

All units include: mounting bracket, suction hose, weighted strainer, and operating manual. Please review the basic installation drawing for recommended accessories.

Specifications:

Part Number: D25RE09
Dilution Range: 1:1000 to 1:112 (.1 to .9%)
Connection Size: 3/4" NPT
Weight: 4 lbs
Dimensions: 14" x 6 1/4"
GPM: 0.05 to 11 GPM (0.19 to 42 LPM)
Pressure: 4.3 to 85 PSI
Ratio Range: 1:1000 to 1:112
Percentage Range: 0.1 to 0.9%
Ounces Per Gallon Range: 0.128 to 1.280
MAXIMUM TEMPERATURE: 104 °F

Operating pressure range is 4.3 -85 PSI and water flow range is 0.05 - 11 GPM. Injection capabilities of 1:1000 to 1:112 (0.1 - 0.9%) [3.5 ml to 35 ml per gallon]. The unit has 3/4 in NPT connections and comes 6 ft suction hose complete with strainer.
