iLuminar iLogic6 Output, Electrical Load and Build

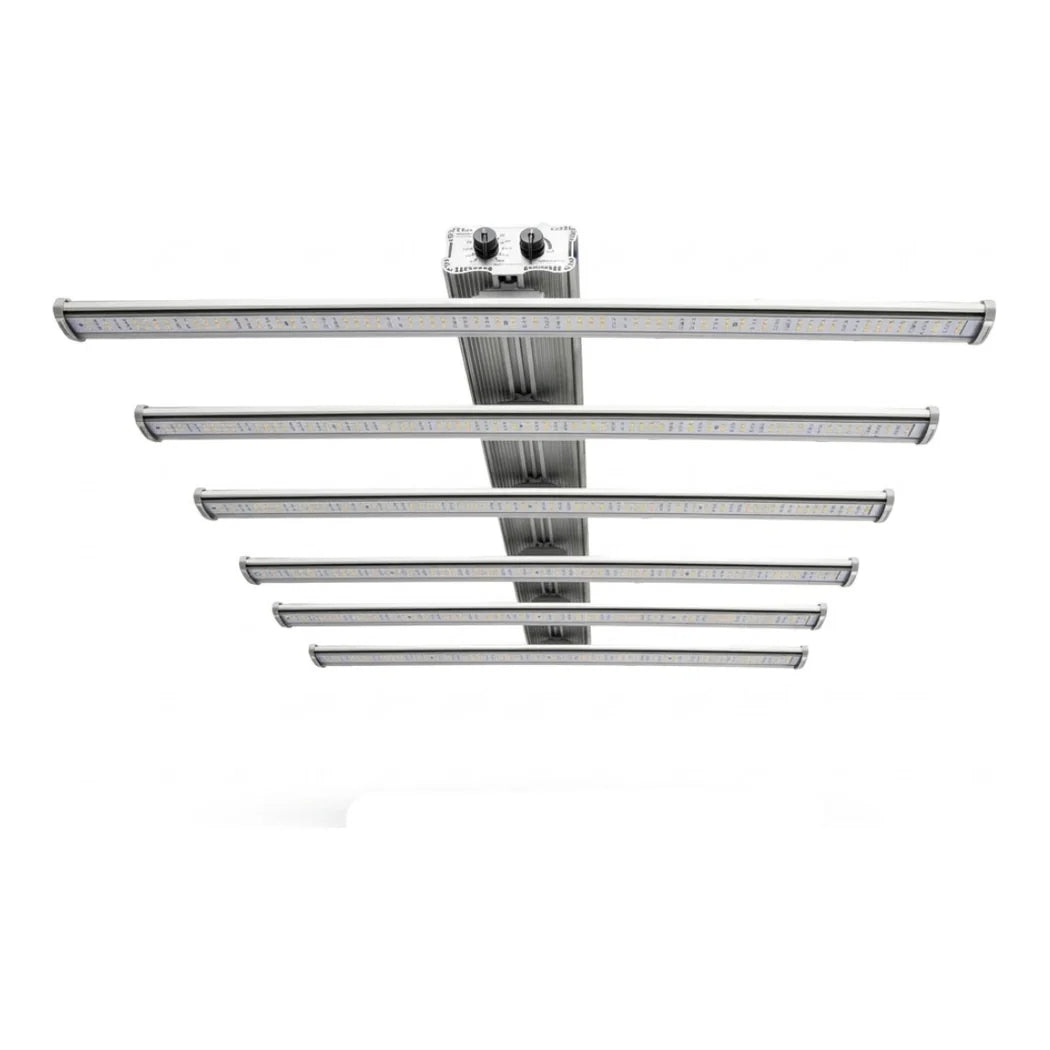

iLuminar rates this fixture at 924 µmol/s, or 2.8 µmol/J, from a modest draw for a frame this wide. The spectrum is a 4000K full-spectrum white with a blue-rich balance. Input autosenses from 120V to 277V. Draw is about 3.1A at 120V, 1.53A at 208V, 1.32A at 240V and 1.25A at 277V. The power cord is sold separately, so pick one that matches your outlet. The aluminum frame measures 41.9 x 39.4 x 4.9 in and weighs 45.6 lb, with cooling fins and no fans. It hangs from four points, which keeps a wide frame level. The housing is IP66 rated for damp and wet rooms, and the diodes sit inset so they wipe clean. At full power it adds about 1,126 BTU/hr of heat. It carries ETL, DLC, FCC and CE listings, with 50,000+ hour diodes and a 5-year warranty.
Running a 330W LED Grow Light Over a 4x4 Canopy
A 330w led grow light this wide spreads modest wattage over a full 4x4 footprint. That makes it a good fit for veg rooms, mother rooms and lower-intensity flower where power budgets are tight. iLuminar rates coverage at 4 x 4 ft with the fixture only 8 to 12 inches above the tops. The low hang height suits short tents and rooms with little headroom. The blue-rich white keeps veg plants compact and still carries a crop through flower. Dim it on 0–10V with iLuminar's Touch+ controller, its dimmer switch or any standard room controller. Start low for young plants and raise output as the canopy fills. Individual bars release with clips, so one bar can be swapped without taking the fixture down. Heavy-feeding flower crops may want more light than this model gives. For those rooms, the 630W iLogic8 or 1000W iLogic9 on the same frame is the step up.
Key Features
- 924 µmol/s at 2.8 µmol/J: Efficient output from 330W for veg and light flower.
- 4000K full spectrum: Blue-rich white for compact veg that still flowers.
- 4x4 ft from 8–12 in: Low hang height for short tents and rooms.
- IP66 with inset diodes: Handles damp rooms and wipes clean between runs.
- Clip-release bars: Swap one bar without taking the fixture out of service.
- ETL, DLC, FCC, CE: 5-year warranty; power cord sold separately.
Technical Specifications
| Specification | Value |
|---|---|
| Model | iLogic6 Full Spectrum (IL-iLOGIC6) |
| Power | 330W |
| PPF | 924 µmol/s |
| Efficacy | 2.8 µmol/J |
| Color Temperature | 4000K |
| Growth Phase | Full-cycle, veg-leaning |
| Coverage | 4 x 4 ft |
| Mounting Height | 8–12 in above canopy |
| Input Voltage | 120–277V autosensing |
| Current | 3.1A @ 120V, 1.53A @ 208V, 1.32A @ 240V, 1.25A @ 277V |
| Power Cord | Sold separately |
| Dimming | 0–10V |
| Dimensions | 41.9 x 39.4 x 4.9 in |
| Weight | 45.6 lb |
| IP Rating | IP66 |
| Heat Output | About 1,126 BTU/hr |
| Cooling | Passive, finned aluminum |
| Diode Life | 50,000+ hours |
| Certifications | ETL, DLC, FCC, CE |
| Warranty | 5 years |
