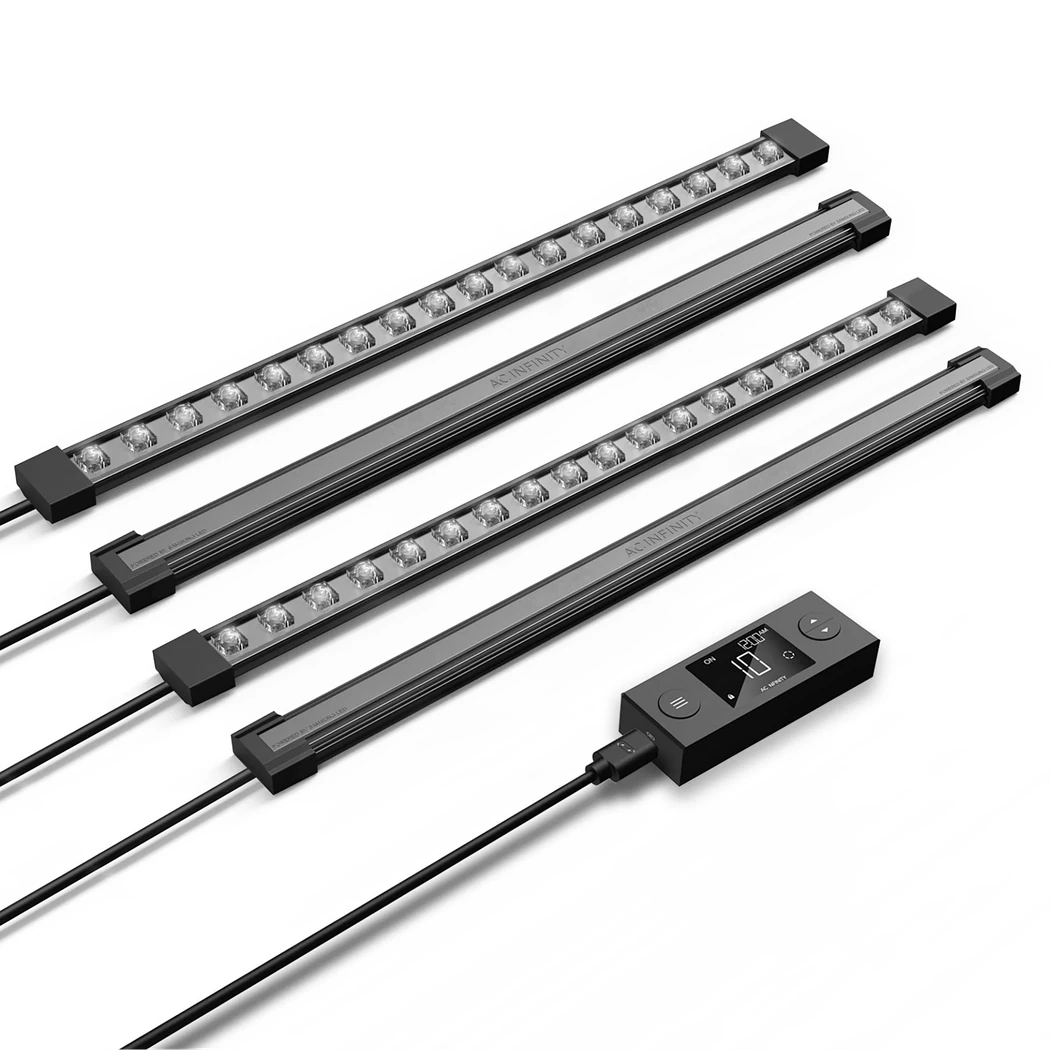

AC Infinity IONBEAM S16 Full-Spectrum LED Grow Light Bars
The AC Infinity IONBEAM S16 is a four-bar 16-inch kit built on Samsung LM301H EVO diodes rated at 3.14 µmol/J PPE, drawing 42W on 100–240V AC input. The full-spectrum tune blends 3000K and 5000K output for inter-canopy, supplemental, or primary lighting in compact spaces and propagation setups.
Magnetic Mounting and UIS Controller Integration for Supplemental LED Bars

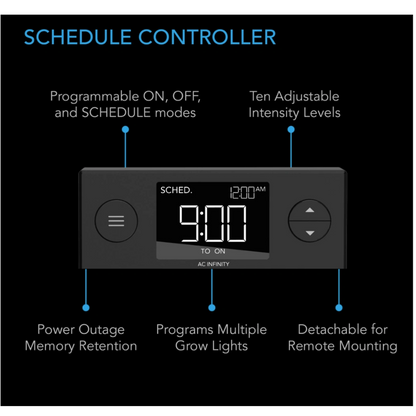

Each 16.02 × 1.08 in. bar carries 18 LED chips in a unibody aluminum housing rated IP65 for humid environments. The included digital controller offers ten brightness levels with OFF, ON, and SCHEDULE modes; UIS controller compatibility extends scheduling to dynamic climate triggers, grow cycles, and CSV data export through the AC Infinity app.
Key Features

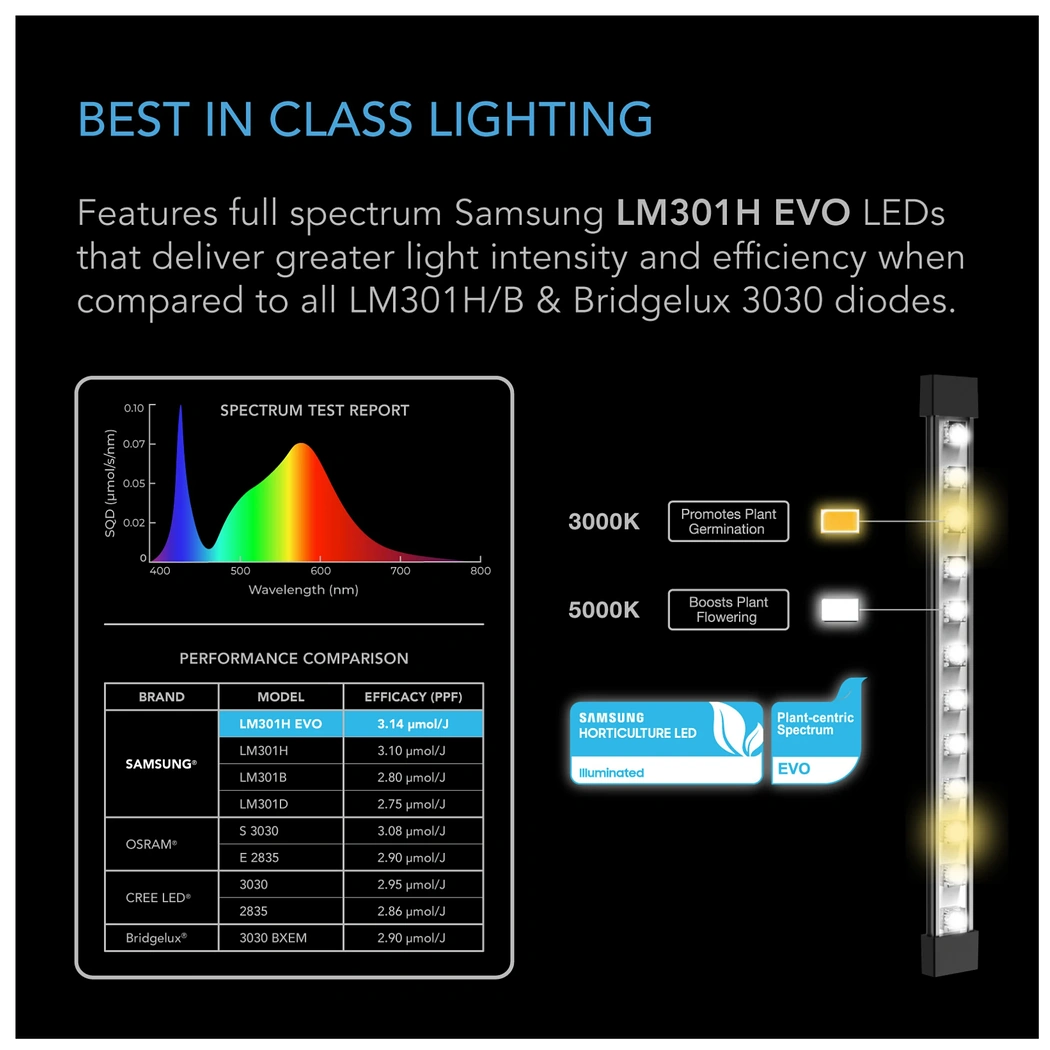

- Samsung LM301H EVO Diodes: Higher blue spectrum and 3.14 µmol/J efficiency over previous LM301H, LM301B, and Bridgelux 3030 generations.
- 42W Total Across Four Bars: Low-draw 100–240V AC input fits residential and commercial circuits.

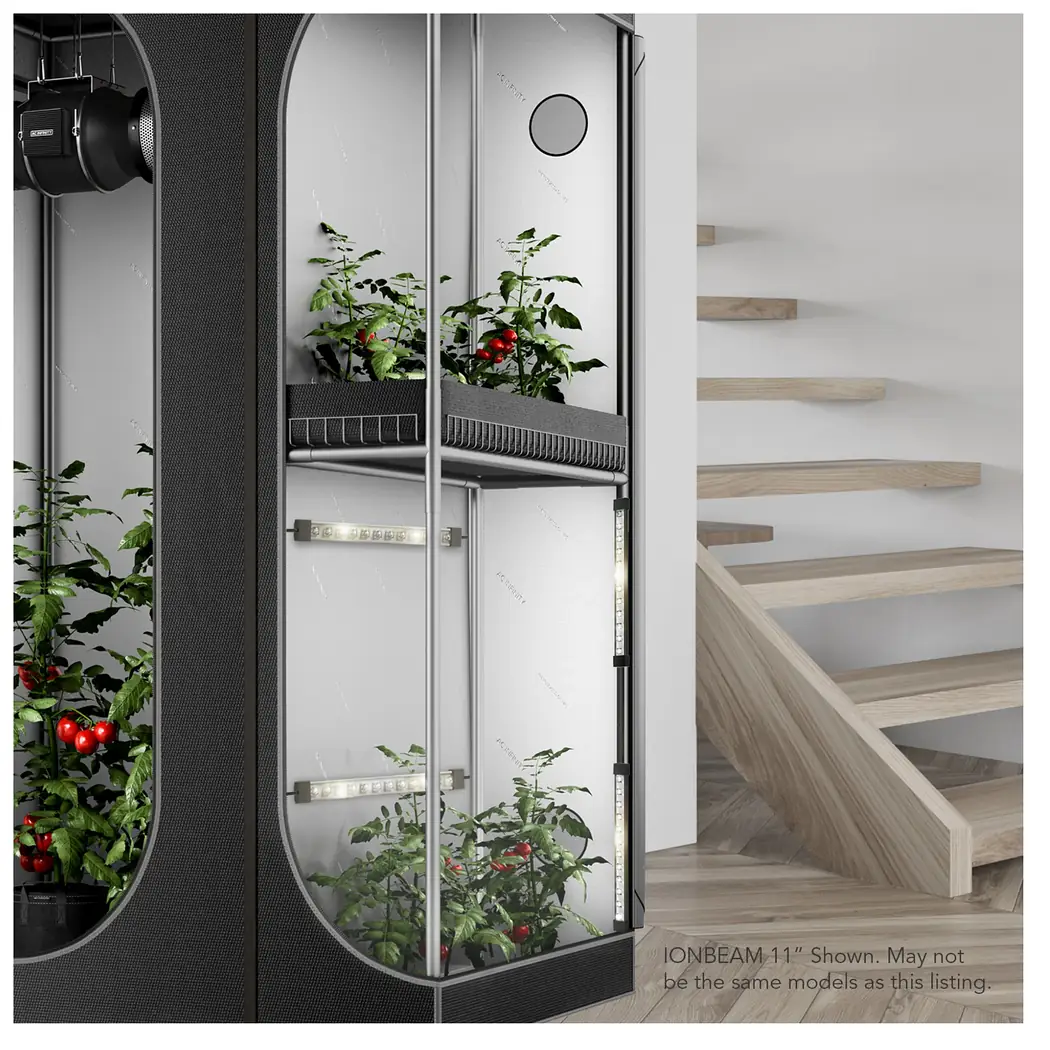

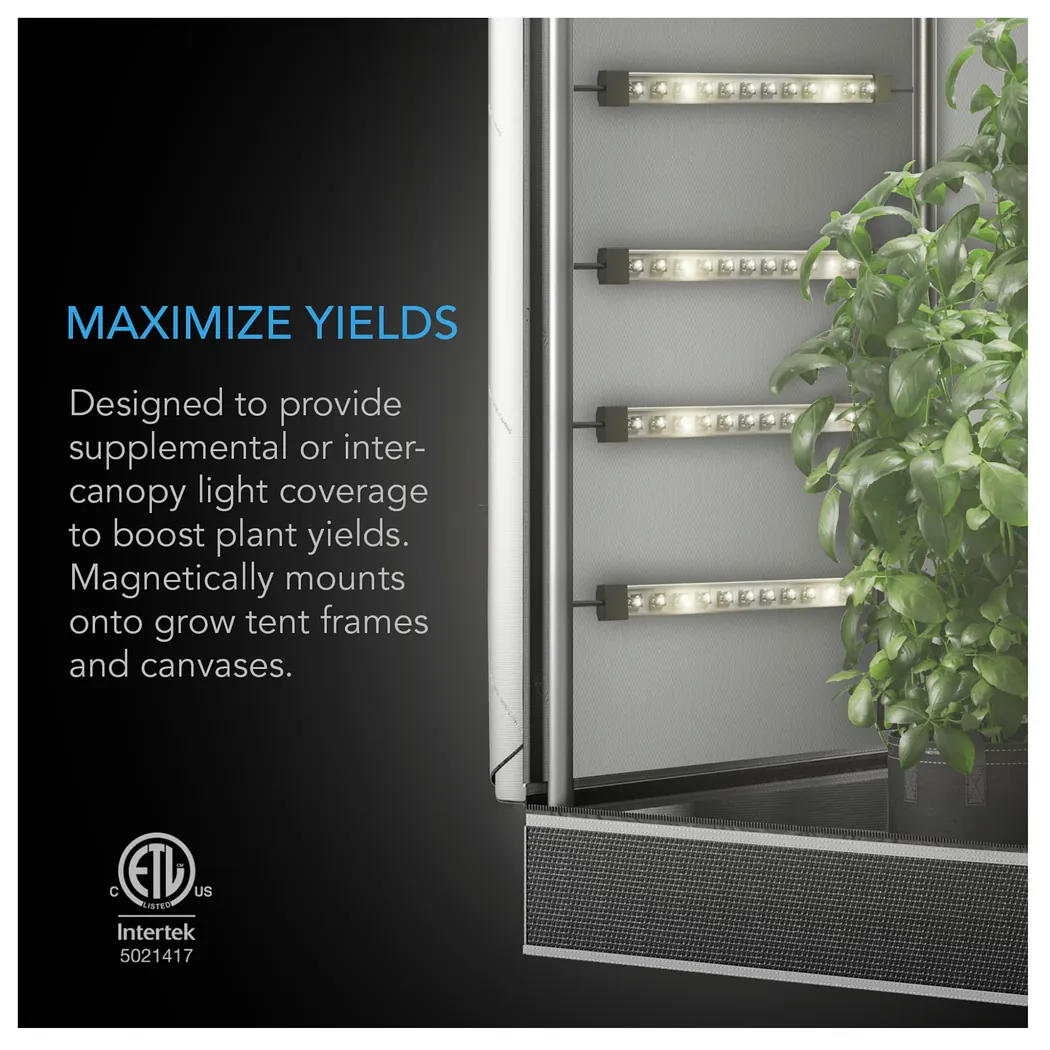

- Magnetic Steel-Bar Mounting: Bars snap onto tent frames or canvases for inter-canopy, supplemental, or primary placement.
- IP65 Unibody Aluminum: Sealed against water and dust with passive heat dissipation through the aluminum board.
- UIS Controller and App Ready: Connects to UIS controllers and the AC Infinity app for schedules, climate triggers, and CSV export.

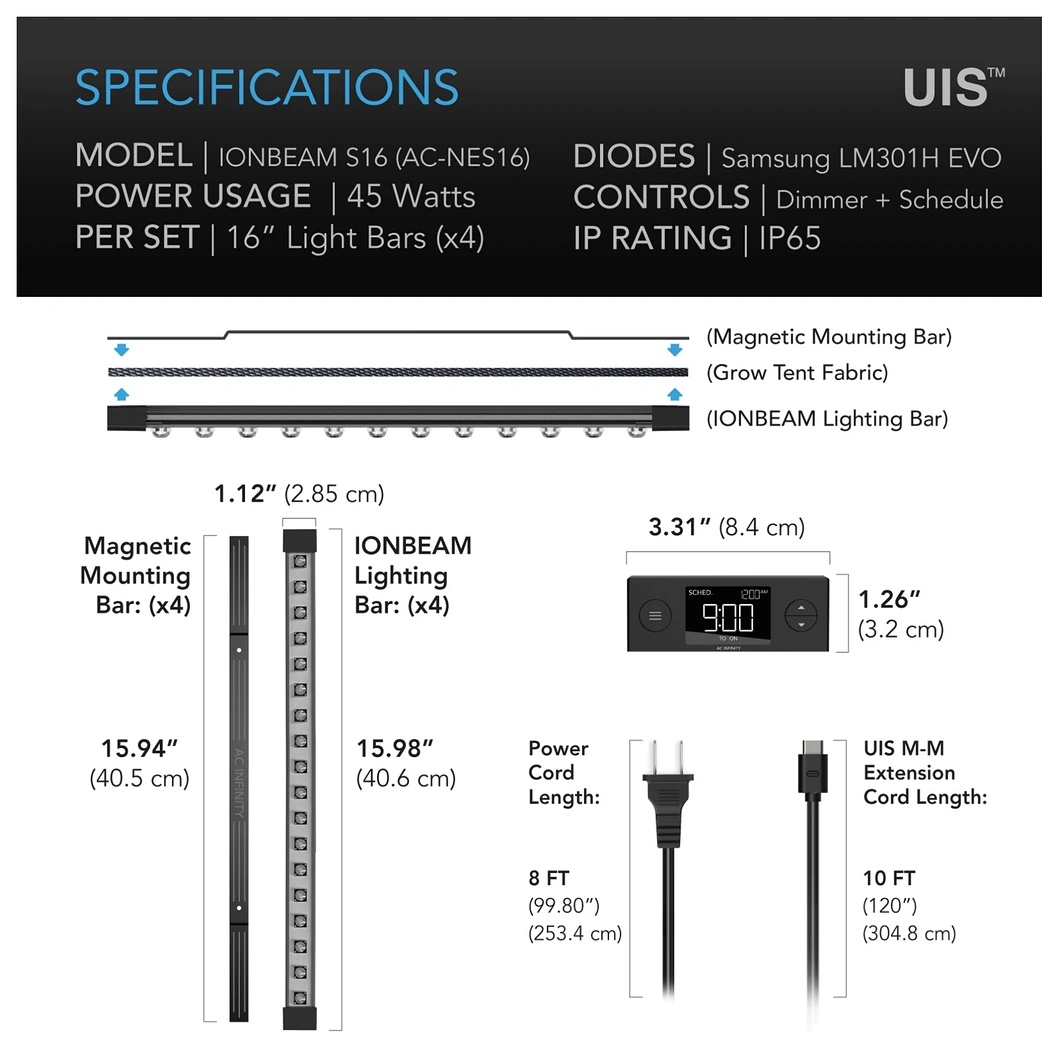

Technical Specifications
| Specification | Value |
|---|---|
| Power | 42W (four-bar kit) |
| Voltage | 100–240V AC |
| Frequency | 50/60 Hz |
| Amperage | 0.06A |
| PPE | 3.14 µmol/J |
| LED Diodes | Samsung LM301H EVO, 18 chips per bar (72 total) |
| Spectrum | Full Spectrum (3000K + 5000K) |
| Bar Dimensions | 16.02 x 1.08 in. (40.7 x 2.75 cm) |
| Controller Dimensions | 3.31 x 1.26 in. (8.4 x 3.2 cm) |
| Power Cord Length | 99.8 in. (253.4 cm) |
| Connector Cord Length | 9.1 in. (23.2 cm) |
| IP Rating | IP65 |
| Operating Humidity | 35–85% |
| Power Connector | US Plug (NEMA 1-15 Type-A) |

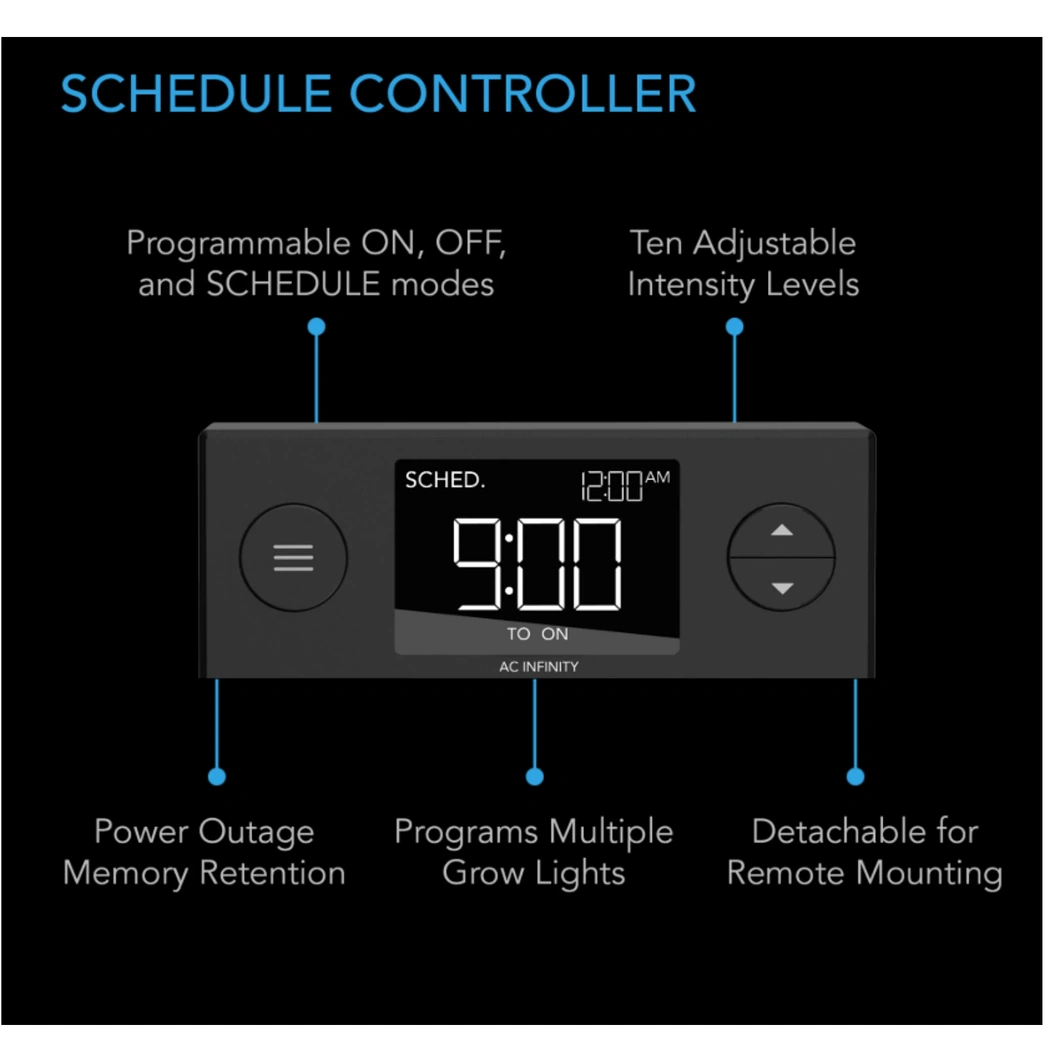

| Controller | Dimming Schedule Controller (10 brightness levels) |
| Compatibility | UIS Platform, AC Infinity App |
