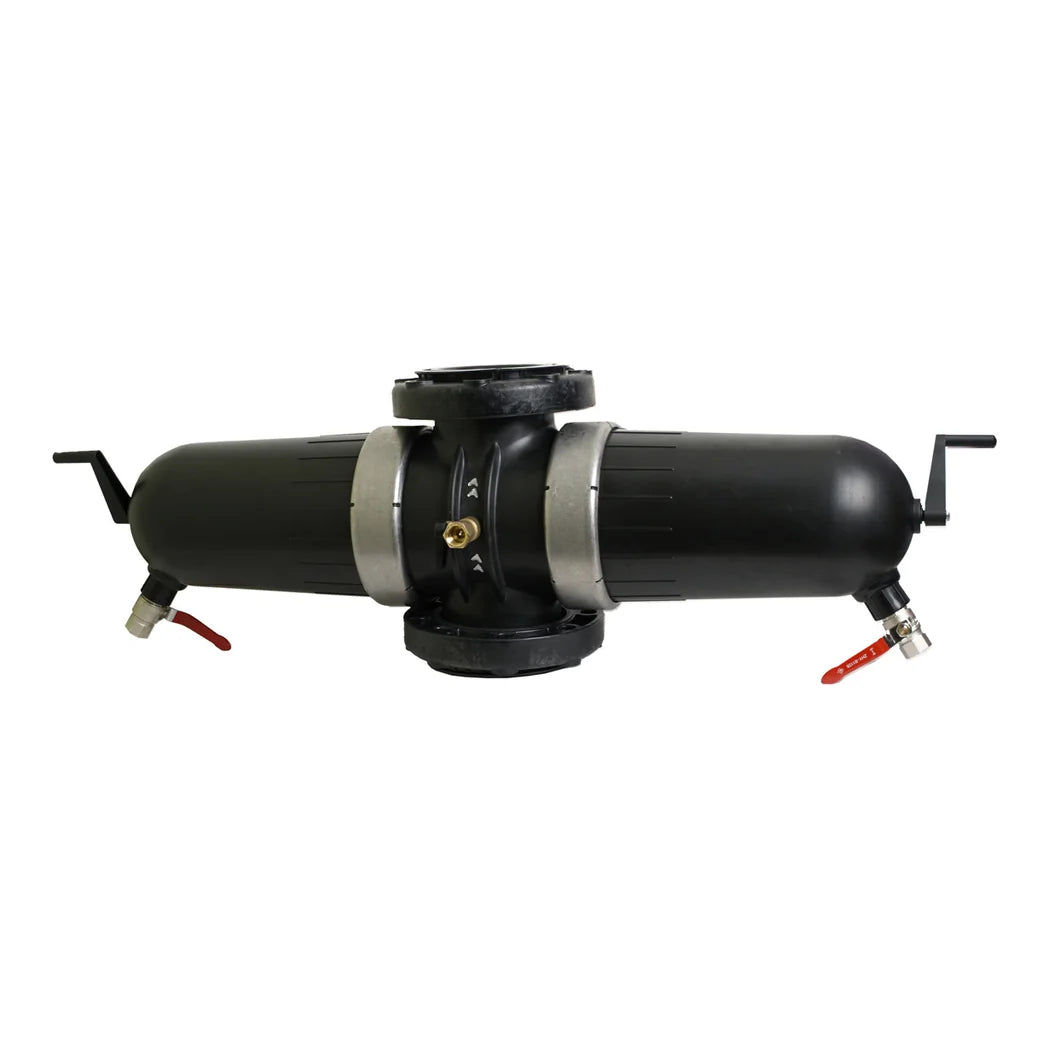

Netafim 4in Twin Scan-Kleen Screen Filter 120 Mesh | 500 GPM, 130 Micron

The Netafim Twin Scan-Kleen Screen Filter Doubles the Element

Model 27ASCAN4T-120 puts two screens where the angle body carries one. That takes screen area from 194 to 388 sq in and flow capacity from 300 to 500 GPM, on the same 130 micron cut. Filtration time is really a surface area question. More screen means more debris held before pressure differential climbs and you have to stop and flush. On dirty well water that is the difference between flushing daily and flushing weekly. Body is corrosion-proof high density polypropylene, element is stainless steel, and the whole assembly runs to 120 psi with flanged connections at both ends.

Flushing a Self-Cleaning Screen Filter 120 Mesh Without Stopping the Set

Open the flush valve, turn the handle, and a rotating dirt collector drags suction nozzles across the full face of both screens. Water keeps flowing to the block the entire time, so nothing downstream sees a pressure drop and no set gets cut short. The cycle takes about 10 seconds and wants 20 psi minimum at the flush outlet, with 30 psi giving a cleaner sweep. Netafim sizes it as a primary filter for well water with small amounts of sand, for center pivots, and for reservoir water carrying light algae. Plan the space before it ships. The twin body runs 54 in long by 18 in tall and weighs 58 lbs, nearly twice the angle version. One filter at the pump station protects every block downstream, which is the usual reason growers size up to the twin.

Key Features

• 388 sq in of screen across twin elements: Double the surface area of the angle body, which stretches the interval between flush cycles.
• 500 GPM maximum flow: Sized for a main feeding several blocks rather than a single zone, at up to 120 psi operating pressure.
• 120 mesh at 130 microns: Standard protection for drip emitters and micro-sprinklers fed from a well carrying fine sand.
• Scan-and-flush cleaning in about 10 seconds: Turning the handle sweeps both screens with suction nozzles while irrigation continues uninterrupted.
• Polypropylene body with stainless steel screens: Corrosion-proof at an outdoor filter station, with elements that hold their geometry through repeated scanning.
