What the TrolMaster IRE-1 Does in the Control Chain

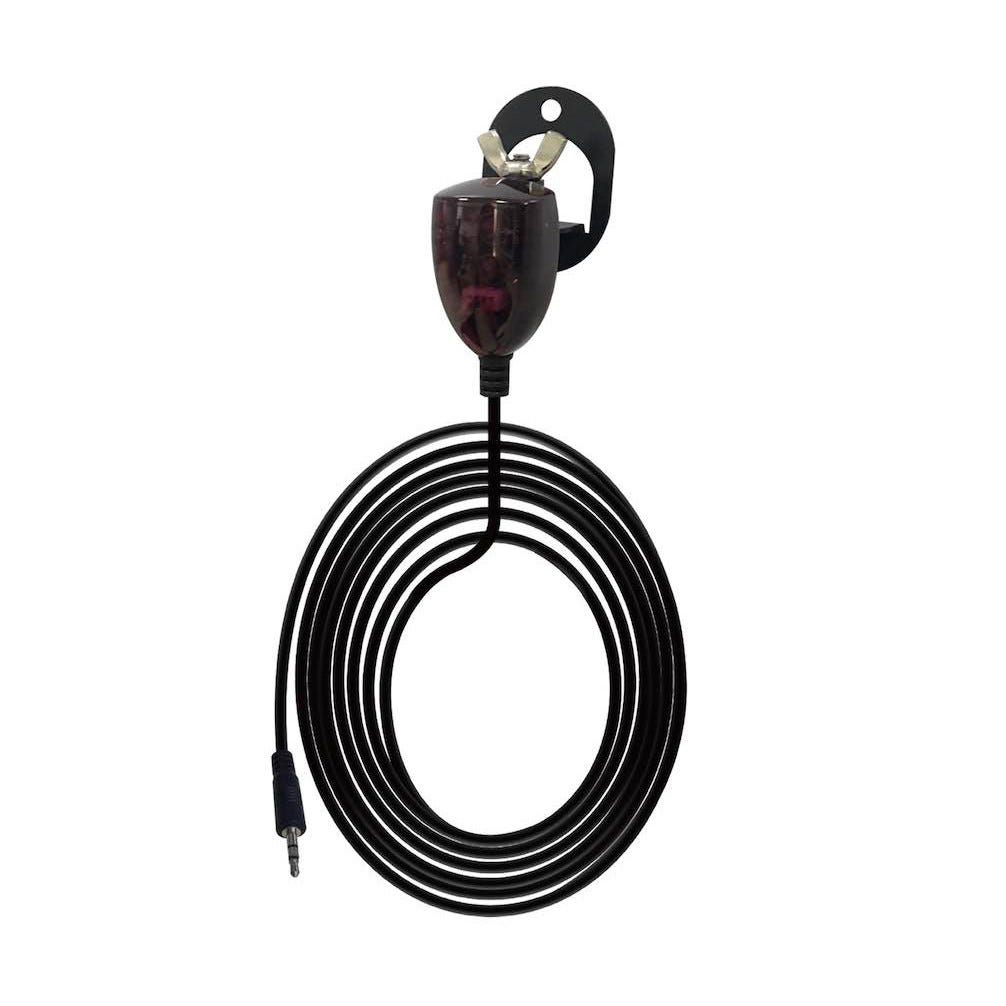

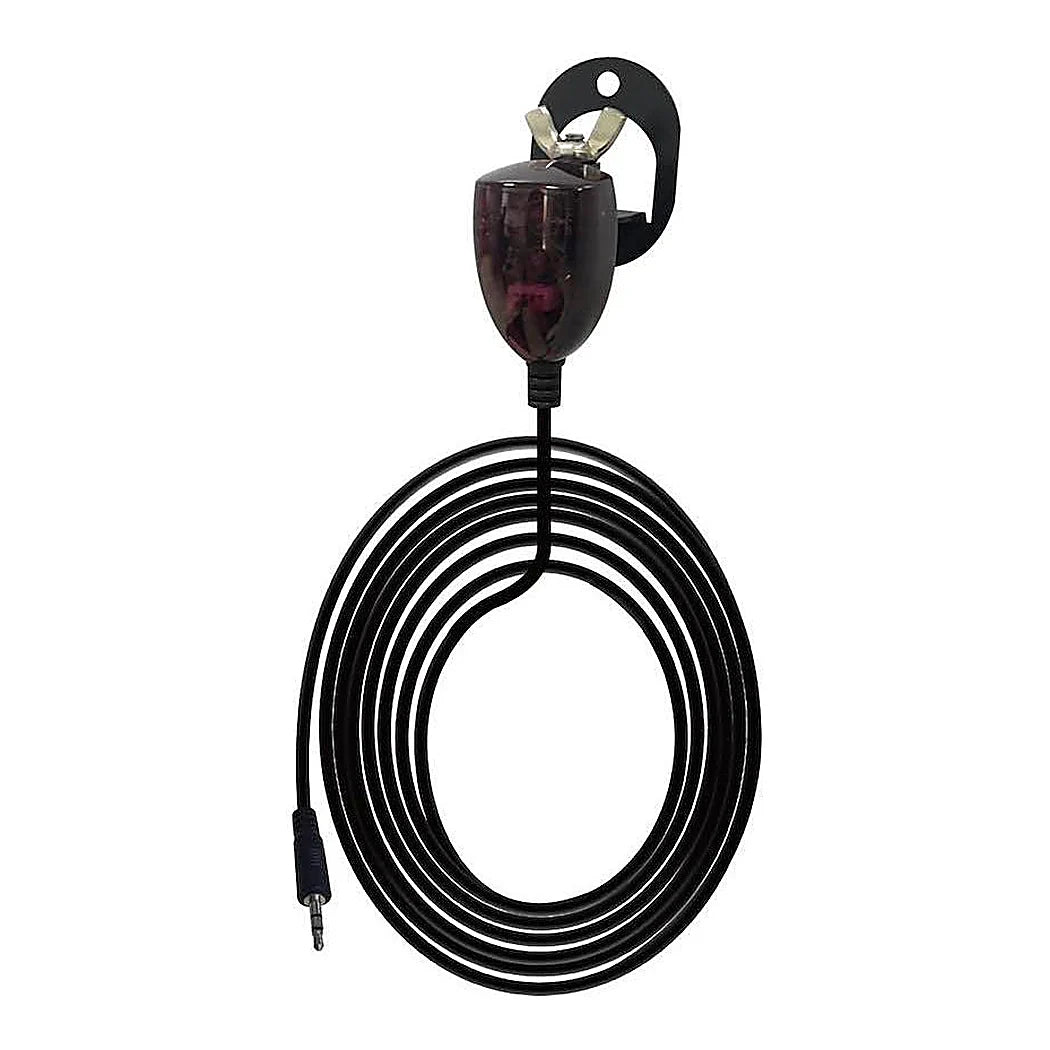

This part is the last link between a controller and an air conditioner. A Beta-1 or an ARS-1 does not speak to a split unit over a wire. It learns the codes from the original handset instead. Those codes are then replayed through an infrared head taped in front of the receiver window on the indoor unit. The IRE-1 is that head on its lead. Without it the controller still reads temperature and still makes decisions, and the air conditioner never hears any of them. That is the failure mode worth recognising. A room that drifts while the controller display looks entirely normal usually has an emitter fault rather than a controller fault. Two checks find it quickly. Look at whether the head is still aimed at the receiver window, since a knocked or drooping emitter stops working while looking fine. Then check the lead where it leaves the controller, because a cable run across a floor eventually gets pulled. Both are ordinary wear on a consumable part.
Placing an IR Emitter So It Actually Gets Heard
Position decides whether this works, and the tolerance is smaller than most people expect. The head wants to sit directly in front of the infrared receiver on the indoor unit. Keep it close and square to that window rather than off at an angle from across the room. Tape it down properly instead of resting it on a ledge. A unit that responds intermittently is nearly always an aiming problem and almost never a code problem. Keep the lead out of the traffic route and secure it along its run so nothing snags it. Where the controller cannot sit near the air conditioner, a thirty-two foot extension is available under the code ECS-8. Test after any move by sending a command and listening for the unit to acknowledge it.
Key Features
- Function: The infrared head that relays controller commands to a split unit
- Compatible with: The Beta-1 day and night controller and the ARS-1 station
- Part type: A service part, not a controller in its own right
- Failure mode: A room drifts while the controller display still reads normal
- Placement: Square and close to the receiver window, taped rather than rested
- Cable care: Secure the lead along its run so foot traffic cannot pull it
- Longer runs: A thirty-two foot extension, the ECS-8
Technical Specifications
| Specification | Value |
|---|---|
| SKU | IRE-1 |
| Brand | TrolMaster |
| Type | Replacement infrared emitter |
| Compatible controllers | Beta-1 and ARS-1 |
| Extension option | ECS-8, a thirty-two foot extension cable |
| Packed carton | 11 x 4 x 4 in and 1 lb |
