What the TrolMaster Touch Spot Set Adds

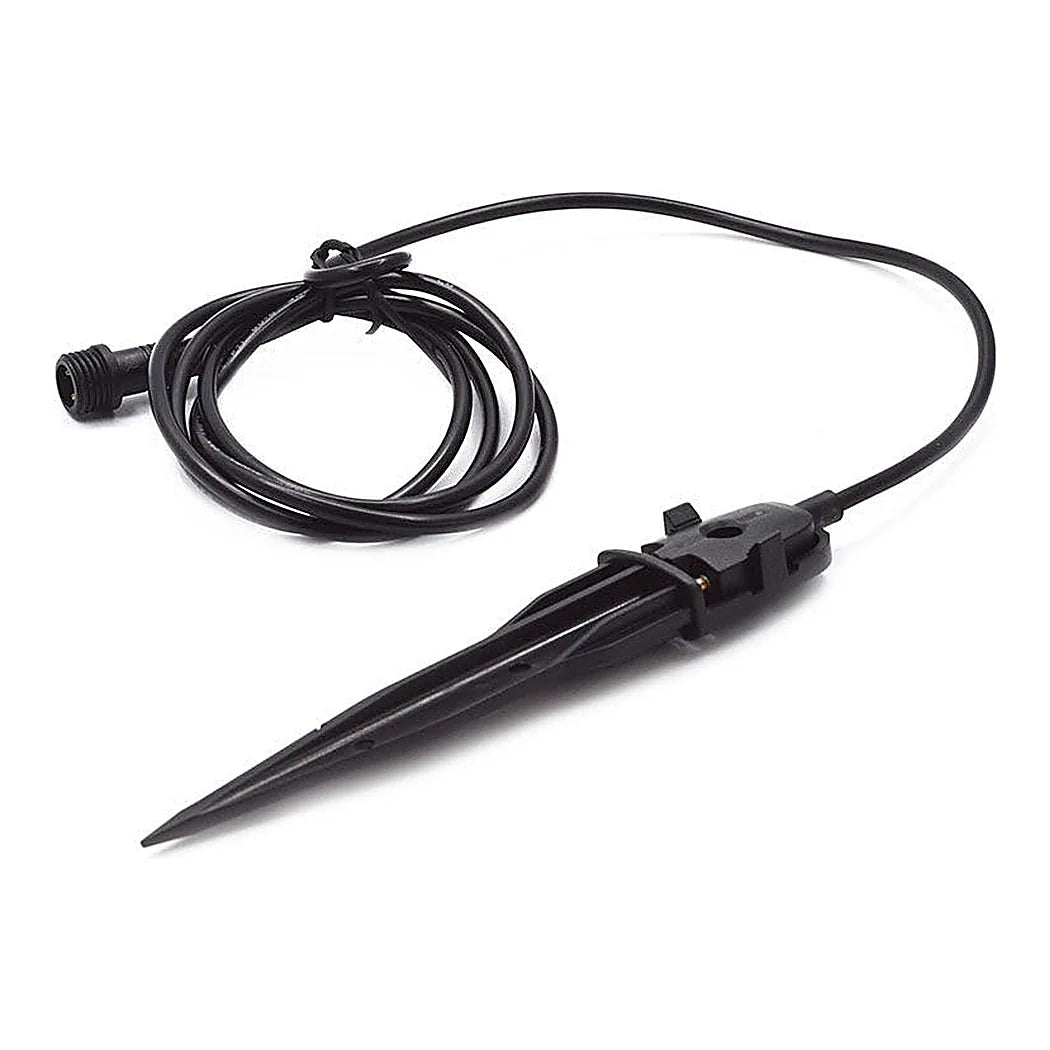

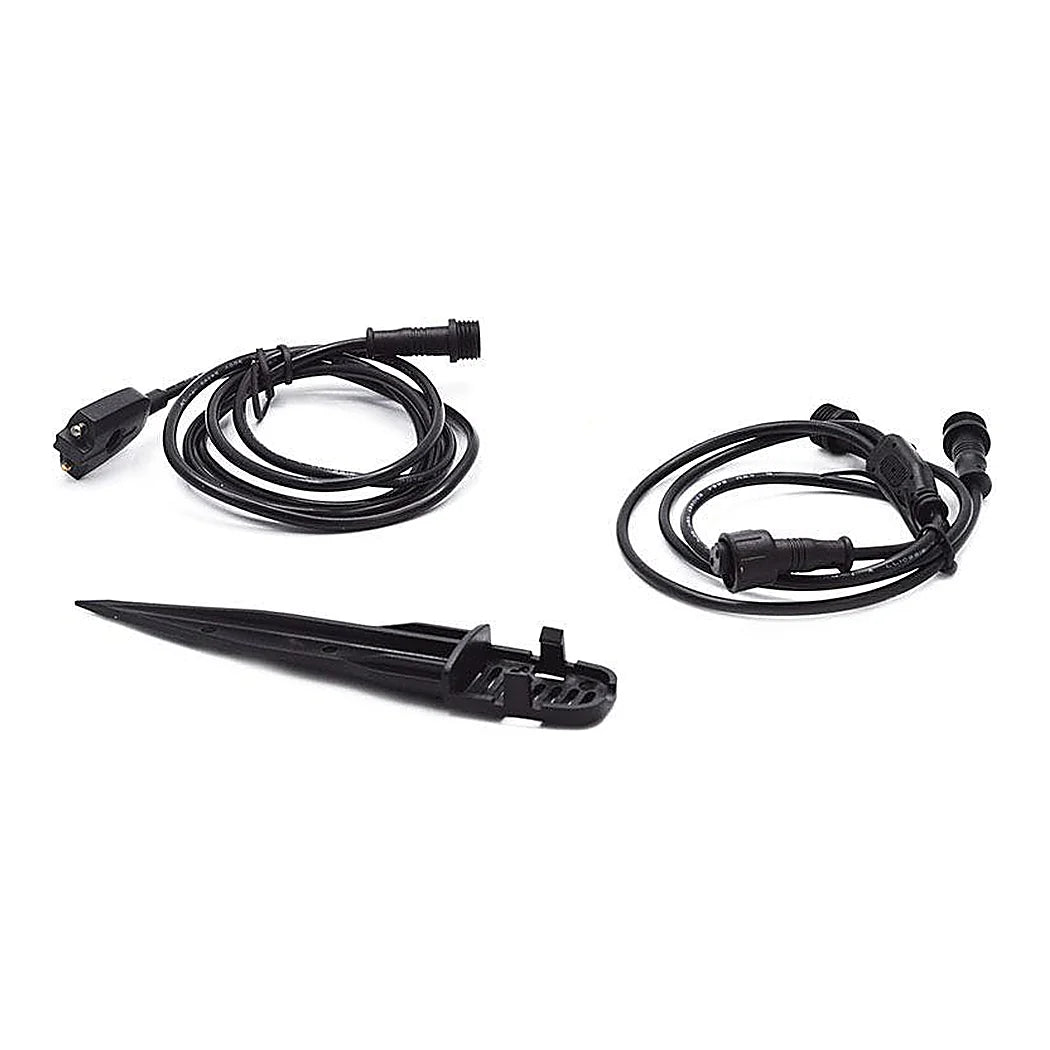

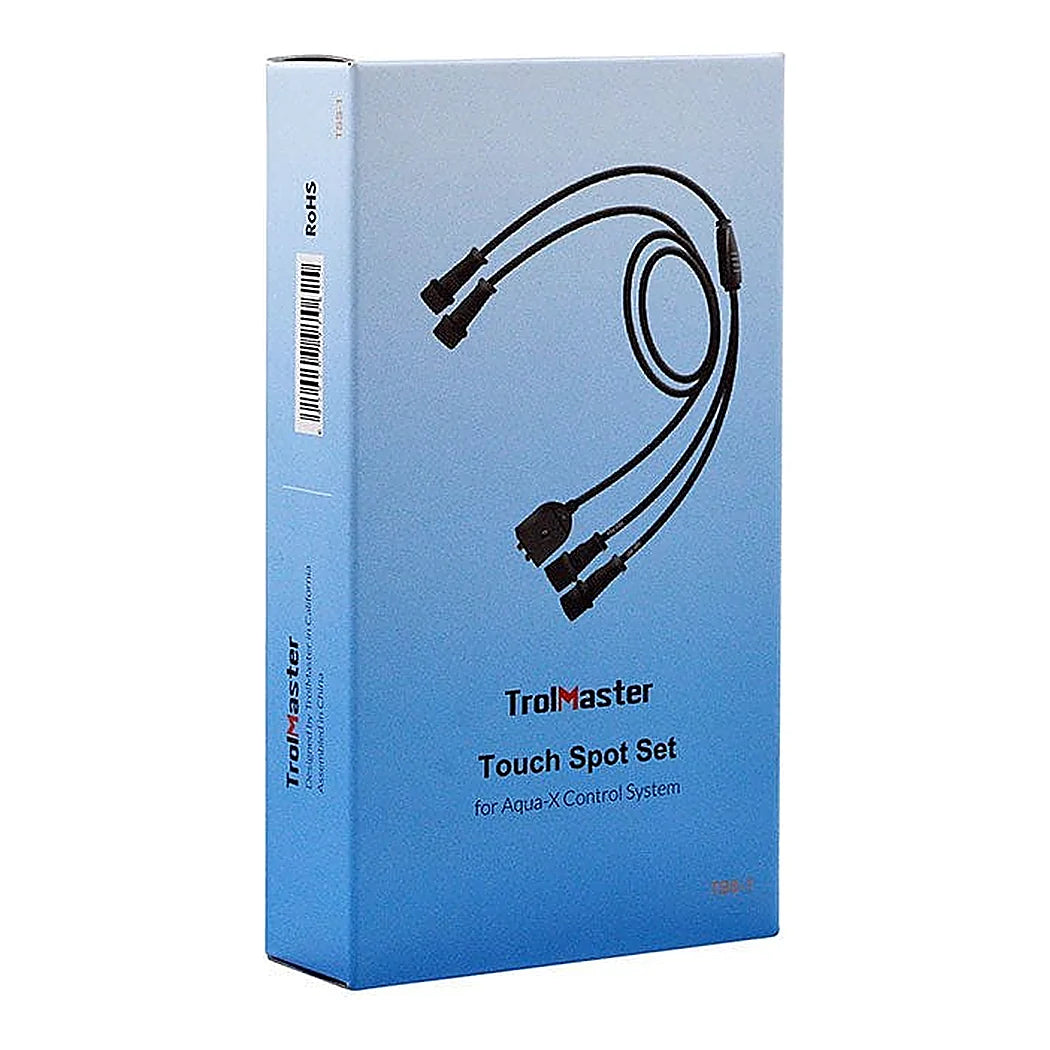

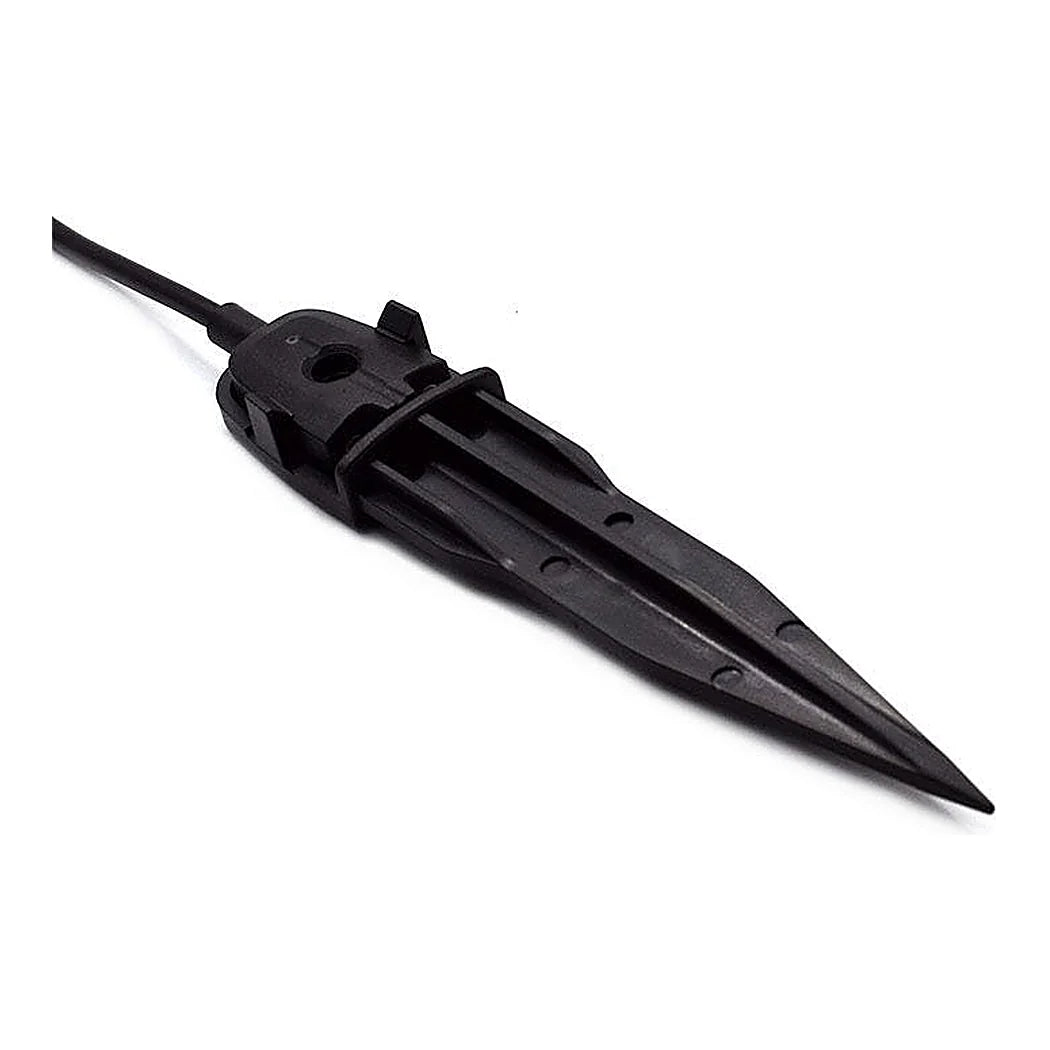

A WD-1 water detector module ships with a single Touch Spot, which is the sensing pad itself. One pad watches one place, and a room usually has more than one place worth watching. This set is the second pad plus the splitter that lets both run from the same module. Two parts come in the box, one Touch Spot and one T-Splitter Touch Spot. The splitter is what makes it work, because the module itself has one port. Connection is plug and play, so no addressing or configuration is involved. The set sits in the Aqua-X Irrigation Control System family. Working range is 32 to 122 degrees Fahrenheit at ninety percent humidity or below. Packed dimensions are 156 by 83 by 30 mm, which TrolMaster also give as 6.1 by 3.3 by 1.2 inches. Its barcode is 6970207970625.
Choosing Where the Second Detection Point Goes
A second detection point is only worth adding where a leak would go unnoticed. The obvious first pad sits under the reservoir, because that is the biggest single volume. The second one earns its place at the lowest point of the room instead. Water finds the floor drain or the lowest corner, whichever comes first. A pad there catches a slow leak from anywhere in the system, not only from the tank. Pump manifolds and filter housings are the other candidates. Both fail at a joint and both fail slowly, which is the kind of leak a pad is good at. Lay the pad flat on a hard floor rather than on matting. Matting wicks and holds water away from the contacts, so an alarm comes late or not at all. Test it with a splash after installation and after any room wash-down. A pad that has sat dry for months is worth proving rather than trusting. That test takes a minute and it is the only way to know the alarm path works.
Key Features
- A second Touch Spot: One WD-1 module comes with one pad, and this adds another.
- T-Splitter included: The module has one port, so the splitter is what makes two pads possible.
- Plug and play: No addressing or configuration on either part of the set.
- For the Aqua-X system: Specifically for the WD-1 water detector within it.
- 32 to 122 F at 90 percent RH or below: The working range for the set.
- Packed 156 x 83 x 30 mm: Or 6.1 by 3.3 by 1.2 inches.
- Barcode: 6970207970625
- Lay the pad on a hard floor: Matting wicks water away from the contacts and delays the alarm.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TrolMaster |
| Product | Touch Spot Set |
| SKU | TSS-1 |
| System | Aqua-X Irrigation Control System |
| Works with | The WD-1 water detector module |
| Contents | 1 Touch Spot and 1 T-Splitter Touch Spot |
| Purpose | Adds a second water detection point to one WD-1 module |
| Setup | Plug and play |
| Working temperature | 32 to 122 F |
| Working humidity | 90 percent or below |
| Packed dimensions | 156 x 83 x 30 mm, or 6.1 x 3.3 x 1.2 in |
| Barcode | 6970207970625 |
