Sustainable fertilizer injection solutions for greenhouses, garden centers, and nurseries
Creating the right nutrient mix for your hydroponic growing operations is a delicate science. With Dosatron's full line of injectors, you can automate your process to create fine-tuned, multi-chemical mixes with repeatable results, every time!Dosatron fertilizer injectors are water-powered so no electricity is necessary. They are simple to use and easy to adjust allowing for flexible dosage rates, and they are easy to maintain saving you time and effort.
Dosatron injectors can also be used with:
• Micro • Bloom • Grow • Multiple supplements • Fertigation • Substrates • Aquaponics • Indoor Farming and Agriculture • Stacked Farming • Urban Gardening and Farming
• Drain-to-Waste • And Many More
Also for use with:
• Fertilizers • Nutrients • Beneficials • Organics • Fish Emulsion • Teas • Chlorine • Sanitizers (special model) • Insecticides • Fungicides • Herbicides • Plant Growth Regulators (PGRs for drenching) • Wetting Agents • Algicides • Acids

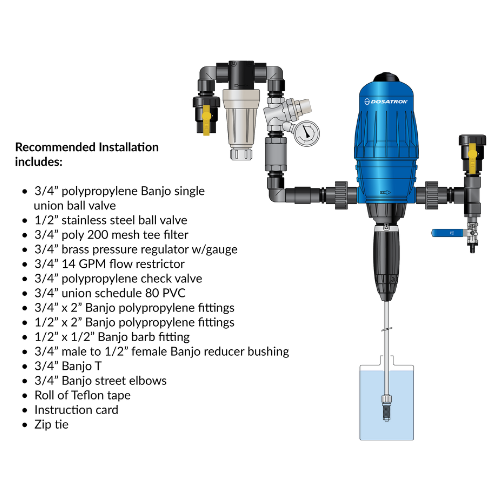

All units include: mounting bracket, suction hose, weighted strainer, and operating manual. Please review the basic installation drawing for recommended accessories.
Specifications:

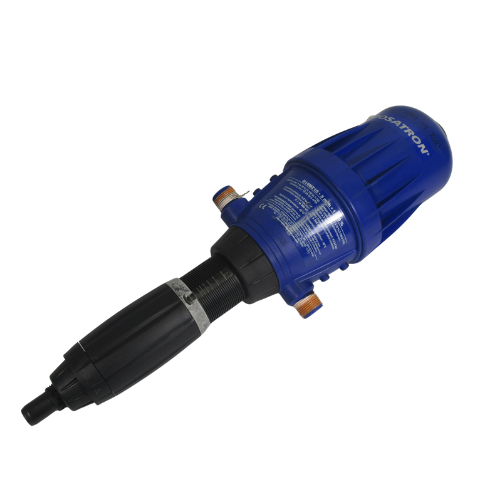

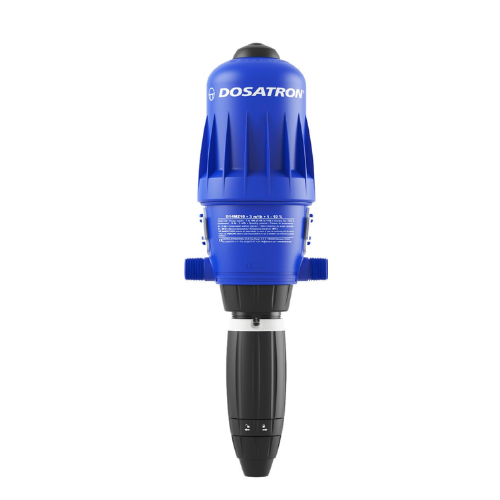

Model: D14MZ10 Dilution Range: 1:100 to 1:10 (1% to 10%)Water Flow Range: 0.05 to 14 GPM
Operating Pressure Range: 7 to 85 PSI
Available Housing Materials: • Polypropylene (Standard Blue) • PVDF
Other Options: Viscous
Dimensions: 19 1/18" x 6 5/16"
Weight: 6 lbs
Connection Size: 3/4" NPT
Maximum Temperature: 104o F
GPM: 0.05 to 14 GPM (0.19 to 50 LPM)
Pressure: 7 to 85 PSI
Ratio Range: 1:100 to 1:10
Percentage Range: 1 to 10%
Ounces Per Gallon Range: 1.280 to 12.800
Included Accessories:Mounting bracket, suction hose, bypass, union, weighted strainer, and quick start guide.
Recommended Accessories: IPK34, Bypass - part #: MPDI196
