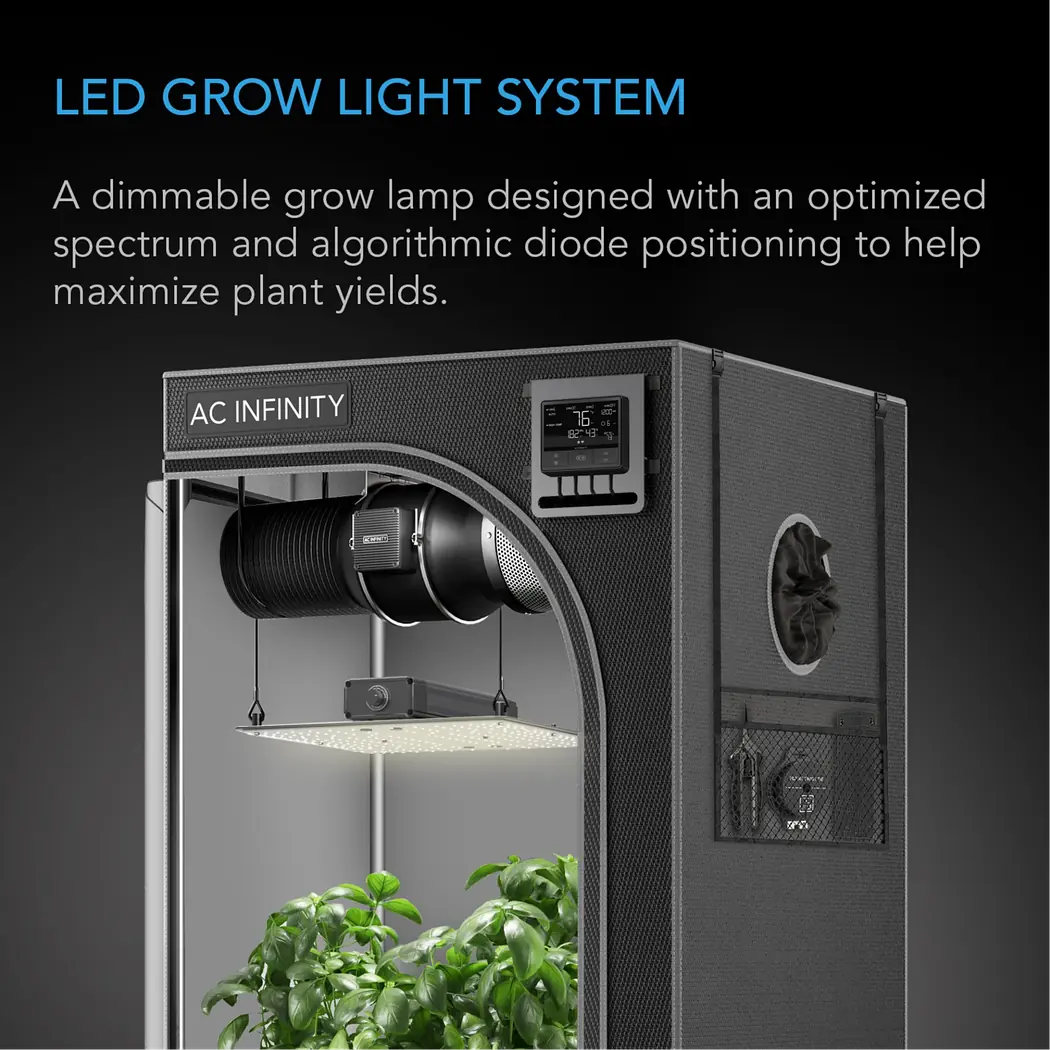

The AC Infinity IONBOARD S44 Full Spectrum LED Grow Light is a high-efficiency lighting solution engineered to maximize plant yields across all growth stages. This 400W grow light is equipped with Samsung LM301H diodes, algorithmically positioned to ensure uniform PAR map coverage and deep canopy penetration, essential for achieving robust plant growth.

Key Features:

1. Samsung LM301H Diodes:

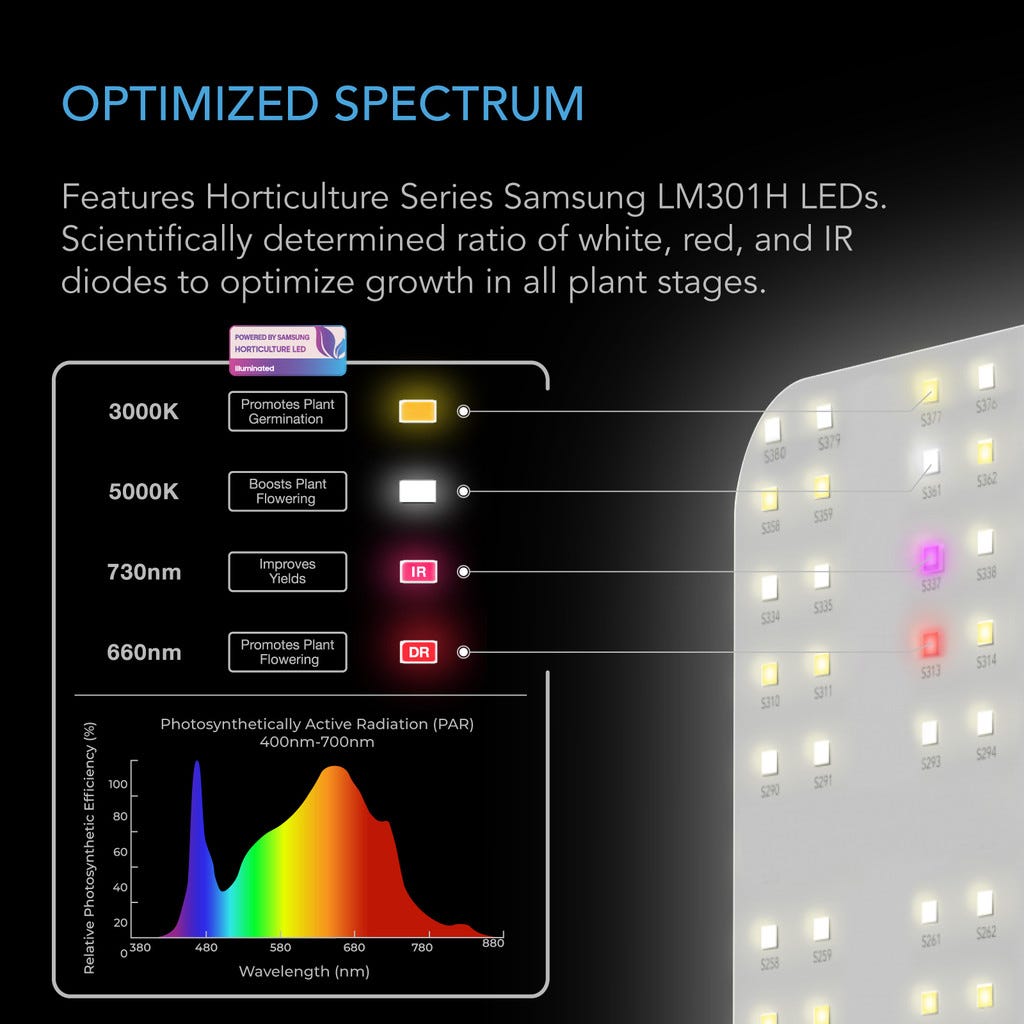

   • Full Spectrum: Incorporates 3000K and 5000K white diodes, along with 660nm and 730nm wavelengths, to deliver a full spectrum suitable for all stages of plant growth, from germination to flowering.

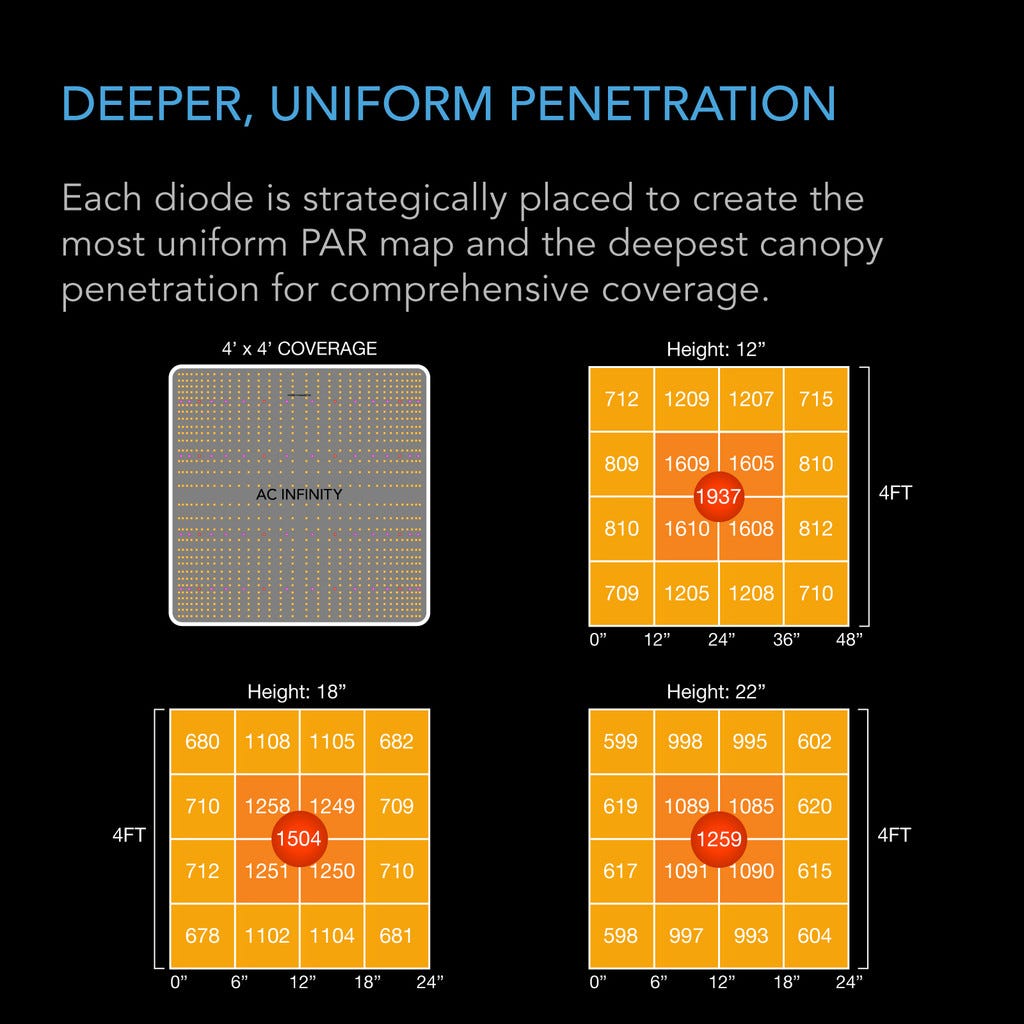

   • Optimized Positioning: Diodes are algorithmically arranged to provide the most uniform PAR map and deep light penetration, reducing hotspots and promoting even growth.
2. Advanced Controls:

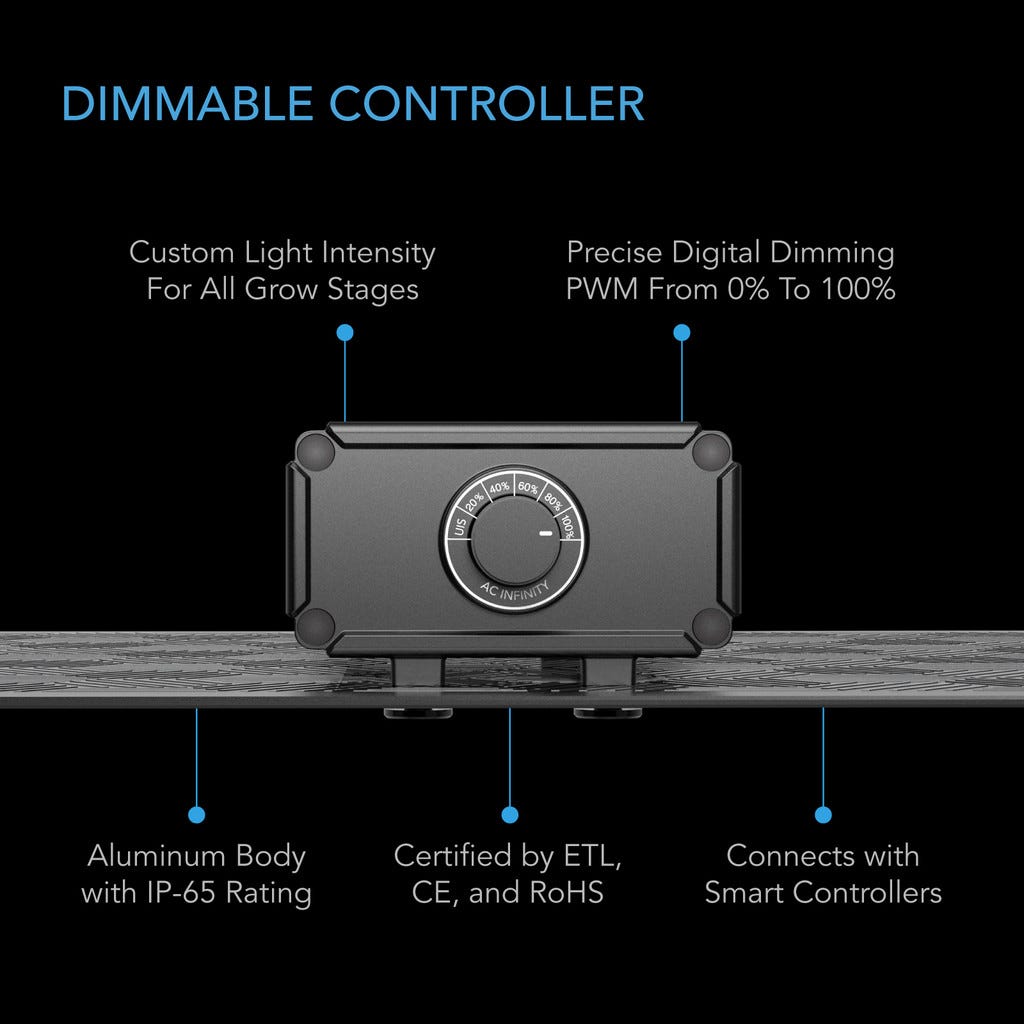

   • Dimming Functionality: Features a proprietary LED driver with 0-100% dimming capability, adjustable in 20% increments using a convenient control knob.
   • Smart Compatibility: The driver includes a port for daisy-chaining multiple lights and can connect with AC Infinity's smart controllers for enhanced grow cycles, scheduling, and remote app control through the UIS™ platform.
3. Robust Construction:

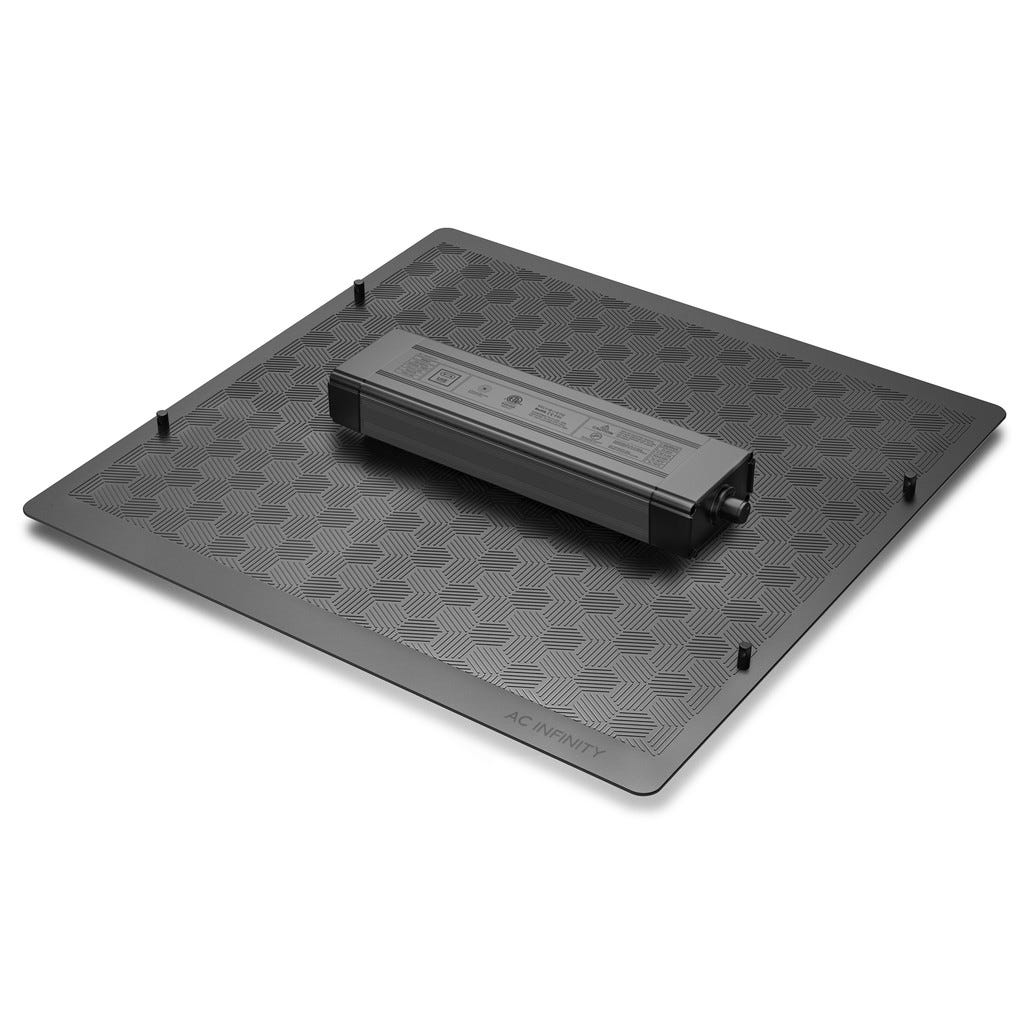

   • Durable Design: Built on a fanless, unibody aluminum board that effectively dissipates heat, extending the lifespan of the diodes.
   • IP-65 Rating: Sealed to IP-65 standards, the IONBOARD S44 is designed to withstand high humidity and temperature conditions typical of growing environments.
4. Easy Installation:

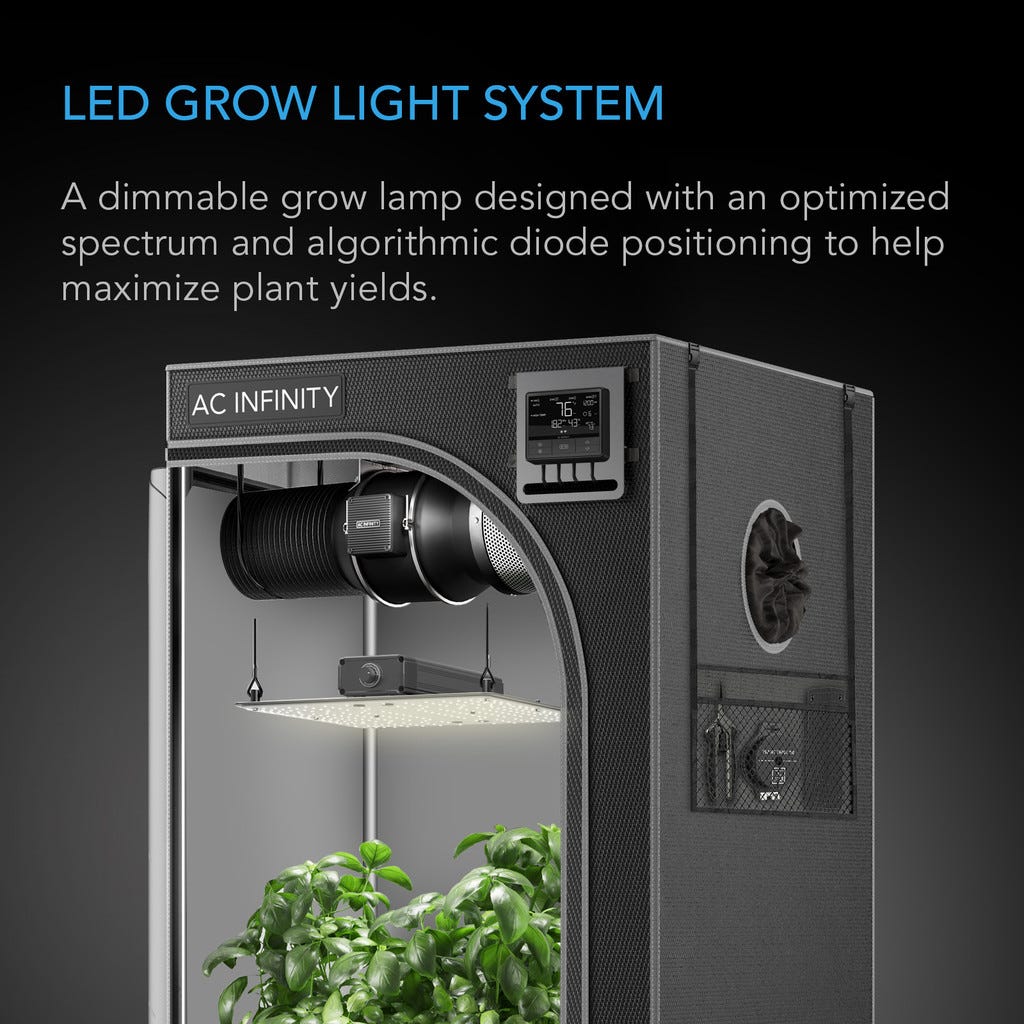

   • Complete Kit: Comes with metal bar hangers and rope hangers, making it easy to install in grow tents with reflective Mylar linings.

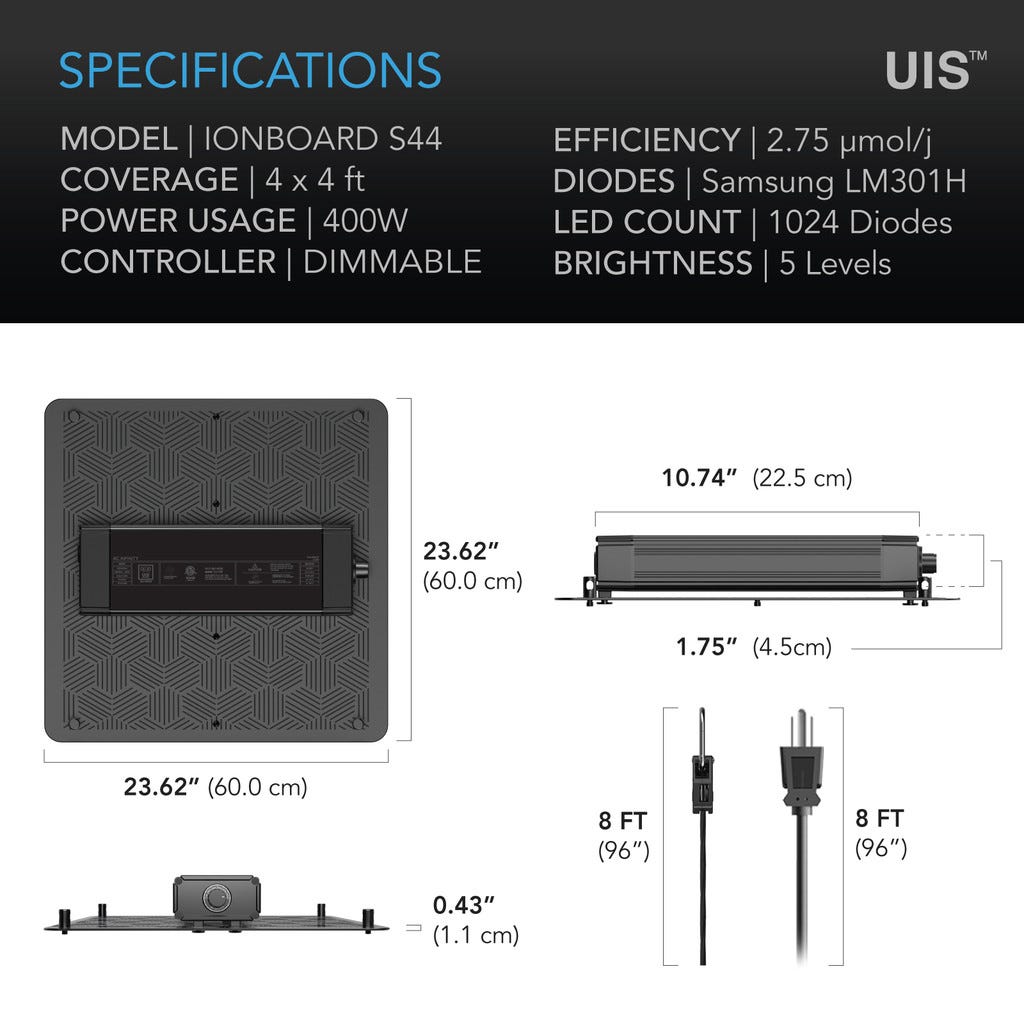

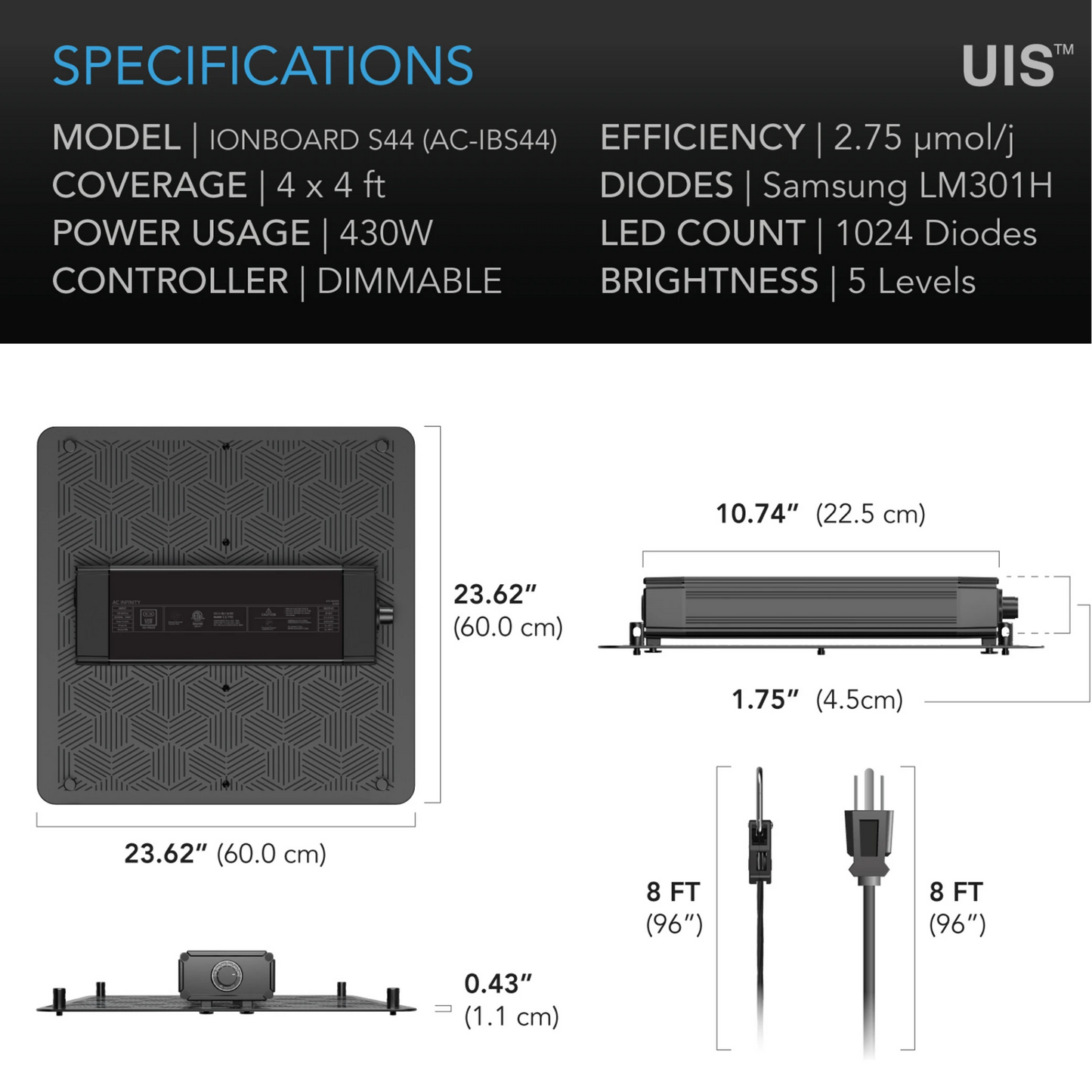

Product and Mounting Dimensions:

• Light Dimensions: 23.62 x 23.62 in. (60.0 x 60.0 cm)
• LED Board Thickness: 0.43 in. (1.1 cm)
• Driver Dimensions: 10.74 x 1.75 in. (22.5 x 4.5 cm)

Performance and Technical Specifications:

• Coverage: 4 x 4 ft.
• Diodes: Samsung LM301H
• LED Chip Count: 1024
• LED Driver: AC Infinity Proprietary Driver, Model GTS-100
• Efficiency: 2.75 µmol/j
• PPFD: 1937 PPFD
• Spectrum: 660nm, 730nm, 3000K, 5000K
• Wattage: 400W
• Voltage: 100-277V AC
• Frequency: 50/60 Hz
• Amps: 3.60 A @ 120V | 1.80 A @ 240V | 1.56 A @ 277V
• Controller: Digital Dimming Timer
• Power Connector Type: US Plug (NEMA 1-15 Type-A)
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140 °F
• Life Expectancy: 50,000 Hours

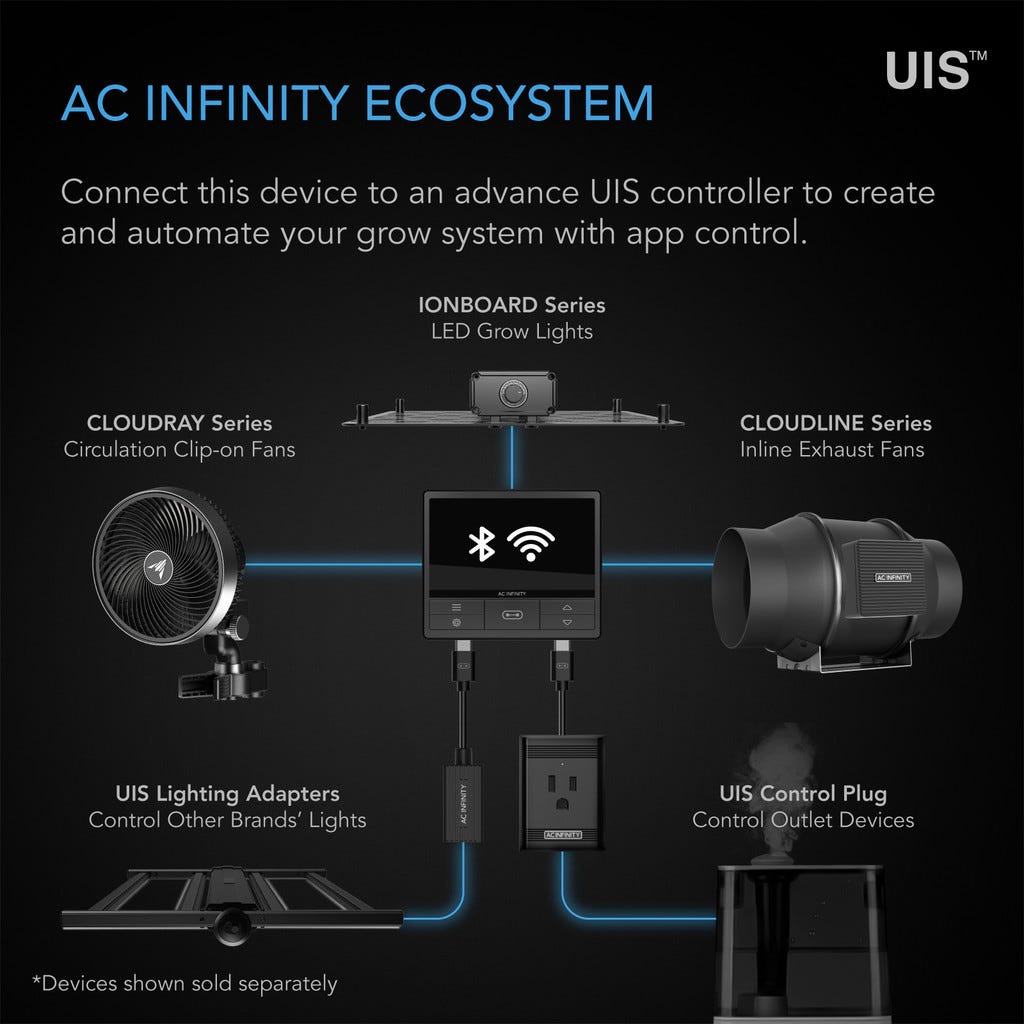

The AC Infinity IONBOARD S44 is part of the UIS™ platform, integrating seamlessly with AC Infinity's ecosystem of smart controllers and grow devices. Elevate your grow operations with this powerful and intelligent grow light solution, designed to deliver exceptional performance and maximize plant yields.

Product and Mounting Dimensions

• Light Dimensions
  23.62 x 23.62 in. (60.0 x 60.0 cm)

• LED Board Thickness
  0.43 in. (1.1 cm)

• Driver Dimensions
  10.74 x 1.75 in. (22.5 x 4.5 cm)

Product Performance and Technical Specs

• Coverage
  4 x 4 ft.

• Diodes
  Samsung LM301H

• LED Chip Count
  1024

• LED Driver
  AC Infinity Proprietary Driver, Model GTS-100

• Efficiency
  2.75 µmol/j

• PPFD
  1937 PPFD

• Spectrum
  660nm, 730nm, 3000K, 5000K

• Wattage
  400 W

• Voltage
  100-277V AC

• Frequency
  50/60 Hz

• Amps
  3.60 A @ 120V | 1.80 A @ 240V | 1.56 A @ 277V

• Controller
  Digital Dimming Timer

• Power Connector Type
  US Plug (NEMA 1-15 Type-A)

• Operating Humidity
  35 to 85% RH

• Operating Temperature
  32 to 140 °F

• Life Expectancy
  50,000 Hours
