Ovens offer:
- The guaranteed industry standards ability to lose less than 1” Hg over a 24-hour period.
- The reliable deep vacuum that reaches below 0.1 torr. with stainless steel compression-fit tubing and stainless steel instrumentation valves.
- Uniform heat is key to an effective oven. Our ovens offer 7% temperature uniformity across all shelves with offering ±1â° stability in temperature.
- Comes standard with the maximum number of shelves and a well-lit LED interior.
- Items Included: 5' 37â° female flared HVAC hose; USA power cord; and oven operation manual. You'll get the complete package only with Best Value Vacs.
Key Oven Features:
-

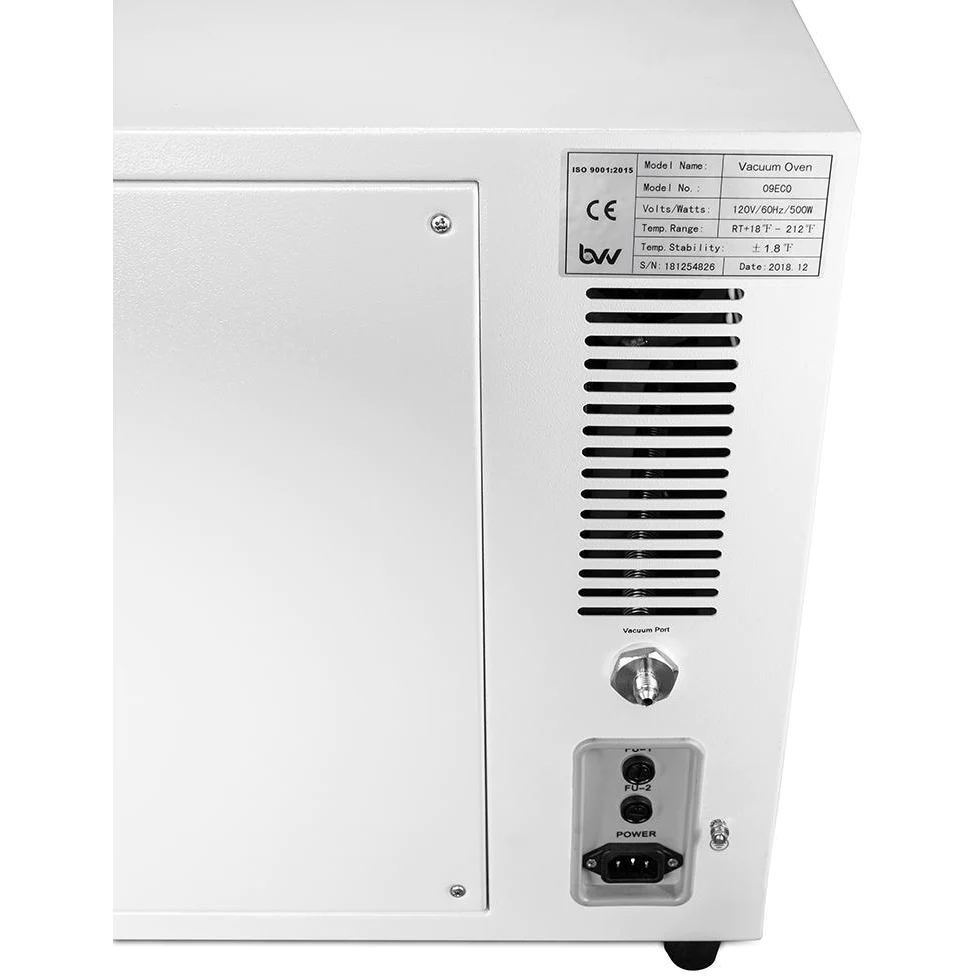

1/4" JIC Vacuum Port with included 5' HVAC Hose
-
Easy Vac-Release Dial allows the release of the vacuum without disconnecting the pump or purge
-

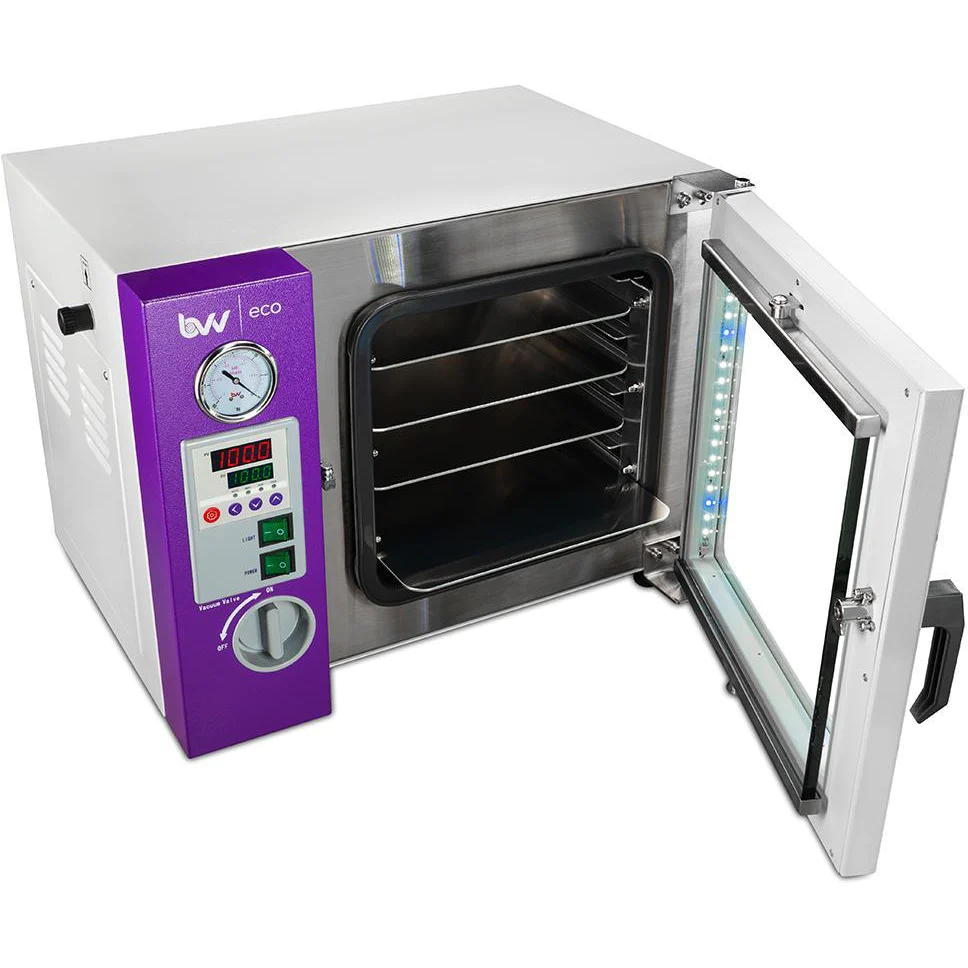

Stainless steel interior for a sanitary, easy-to-clean look
-
Overload circuit breaker for electrical protection
-
Comes standard with 4 (0.9CF Eco models) or 5 shelves (1.9CF Eco models)
Specifications:
Electrical | 10L Solvent Pro Series Rotary Evaporator | Shelves | Up to 8 Sliding Shelves at one Time Reinforced Steel with sides to secure product Shelf Capacity(Area): 129in^2 Total Shelf Capacity: 1034 in^2 or 7.2ft^2 Dimensions (LxW): 11-3/8" x 11-3/16" |
Internal Chamber | Material: Polished Stainless Steel Dimensions (LxWxH): 11.5" x 11.75" x 10.75" |
Door | 1/2" Tempered Glass Window Integrated LED's Window Dimensions (LxH): 11.75" x 11" Replaceable Gasket Material: Silicone |
Temperature Control | Four Wall Heating LED PID Controller Temperature Range - 212F Temperature Stability: +/- 1.8F or 1C Automatic Over Shoot Shut Down Over Temp Alarm |
Weight & Dimensions | Outside Dimensions (LxWxH): 24.5" x 22" x 21" Weight: 115lbs |
Vacuum Gauge | Ranging From -1inHg to -30inHg | Compliance | CE Listing Recognized ISO 9001:2008 ISO 13485" 2003 Manufactured in Acc. w/ Q/TIWY7-2004 IEC68-2-3 |
Maximum Vacuum Level | -29.9inHg / 75.4 cmHg / -1 MPa |
Note: This oven does NOT contain a vacuum pump. An external pump is required to achieve vacuum pressure
Note: This item is a freight ship item and will ship Via UPS ground Freight. Expedited freight can only be calculated by calling customer service 331-281-0154. All orders with expedited freight through the website will not be honored and will need to be re-quoted. A valid Phone Number IS REQUIRED to ship, Otherwise UPS freight Cannot Contact you for a delivery setup window. Freight Time is 2-5 Days. West Coast 5 Days, Midwest 2 days, East Cost 3-4 days.
