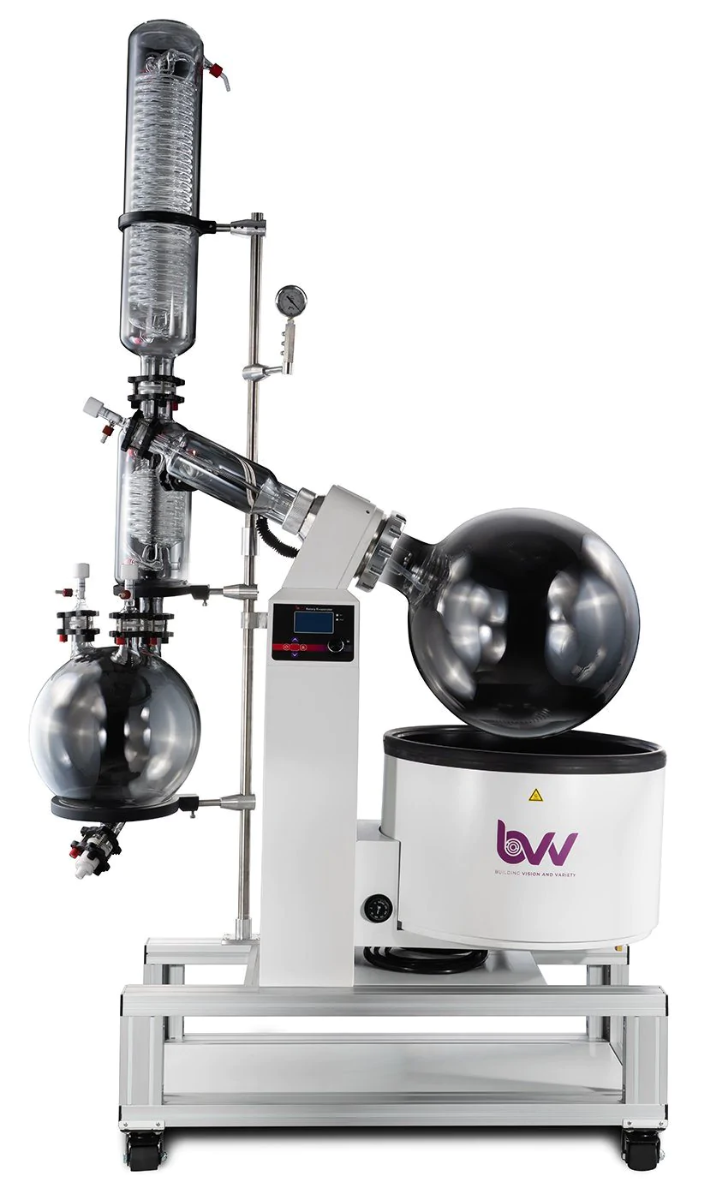

What Sets the 50L Rotary Evaporator Apart
The flask capacities are the reason to choose this machine. The evaporating flask is 50 L and the receiving flask holds twenty litres. That is two and a half times the evaporating volume of the smaller build, with double its receiving capacity. Total power is 4.1 kW, with a 25 A heater draw.
Specifying a Machine for Large Batch Solvent Recovery
Plan the room around the machine before it arrives. A machine of this capacity needs door clearance, ceiling height above the lift travel and known floor loading. It also needs a chiller and a vacuum pump sized to match. The rest of the specification follows the Neocision line. Rotation runs 0 to 120 rpm under digital step-less regulation and set temperature covers 0 to 99 degrees Celsius. Maximum vacuum is minus 29.8 inHg and the condenser is a main plus auxiliary vertical double helix. Vacuum and condenser connections are 10 mm, or 3/8 in barb. The bath is Teflon coated 304 stainless and the lift is electric with a 190 mm stroke. It rolls on locking casters and carries ETL certification. Warranty is one year and excludes both the glassware and the moving parts, which is a wider exclusion than the smaller machine's.
Key Features
- 50 L evaporating flask: Two and a half times the volume of the 20 L build.
- 20 L receiving flask: Double the receiving capacity of the next size down.
- ETL certified: Third party tested, which is what an inspector or insurer asks for.
- 0 to 120 rpm, step-less: Digital regulation, as across the rest of the Neocision line.
- Teflon coated 304 stainless bath: With an electric lift on a 190 mm stroke.
- Double helix condenser: Main plus auxiliary vertical, for a short vapour path.
- One year warranty: Excluding both glassware and moving parts on this model.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | NRE-50L |
| Brand | BVV, Neocision line |
| Model | 50L Solvent Pro Series Rotary Evaporator |
| Evaporating flask | 50 L |
| Receiving flask | 20 L |
| Glass material | GG-17 high borosilicate |
| Water bath material | 304 stainless steel, Teflon coated |
| Power | 220 to 240V, 60 Hz, single phase |
| Heater max current draw | 25 A |
| Rotation speed | 0 to 120 rpm, digital step-less regulation |
| Set temperature | 0 to 99 C, or 0 to 210 F |
| Optimum ambient temperature | 5 to 25 C, or 41 to 77 F |
| Maximum vacuum pressure | Minus 29.8 inHg |
| Vacuum connection | 10 mm, or 3/8 in barb |
| Condenser connection | 10 mm, or 3/8 in barb |
| Condenser style | Main plus auxiliary vertical double helix |
| Lifting function | Electric, 190 mm or 7.5 in stroke |
| Mobility | Locking casters |
| Certification | ETL |
| Warranty | One year, excluding moving parts and glassware |
BVV inspect every unit for broken glass or parts before it ships.
Glassware safety: BVV are not responsible for glassware failure. Glass has to be inspected before and after every use, because it can develop imperfections or damage through normal use, mishandling and thermal stress. If anything is found on inspection, do not use that piece.
