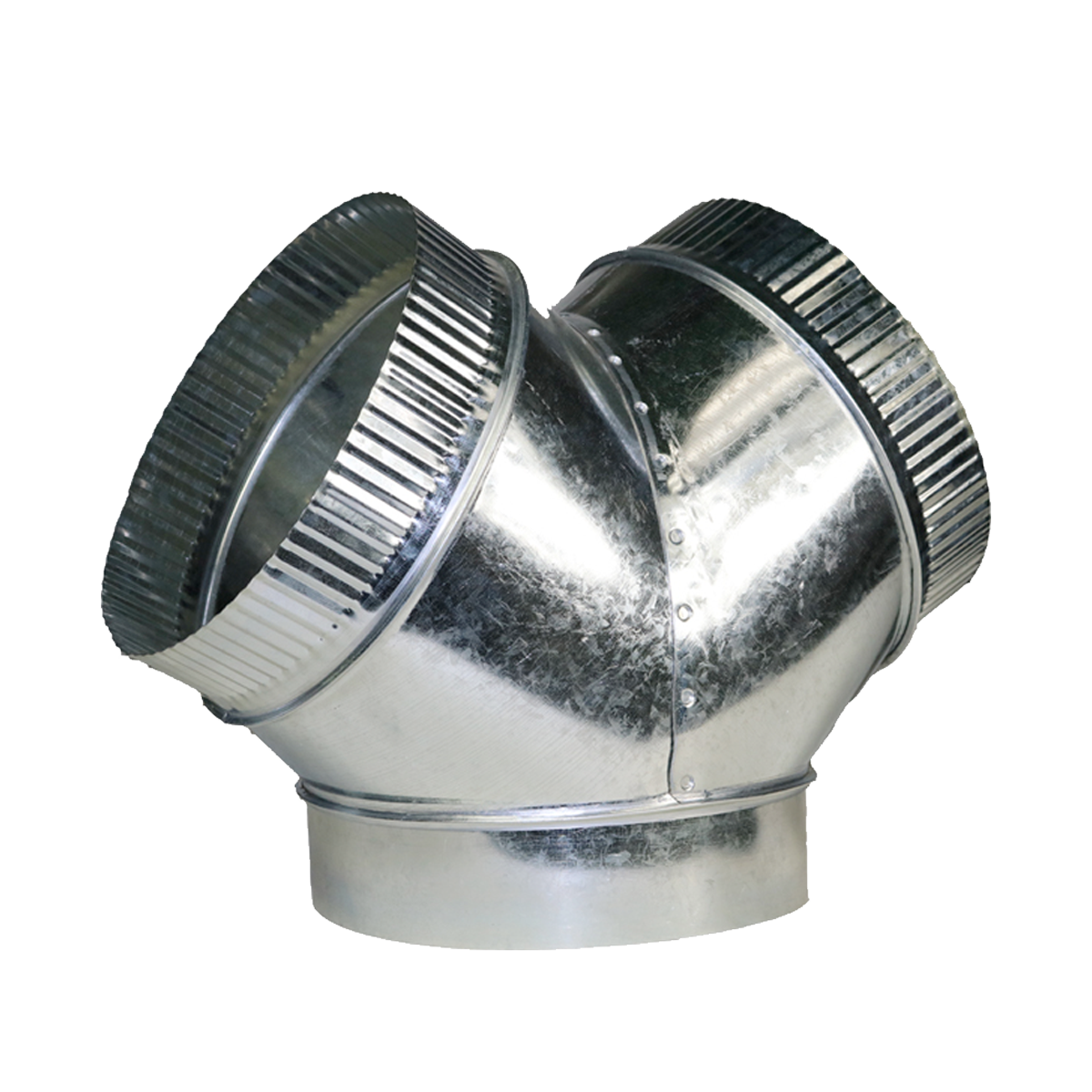

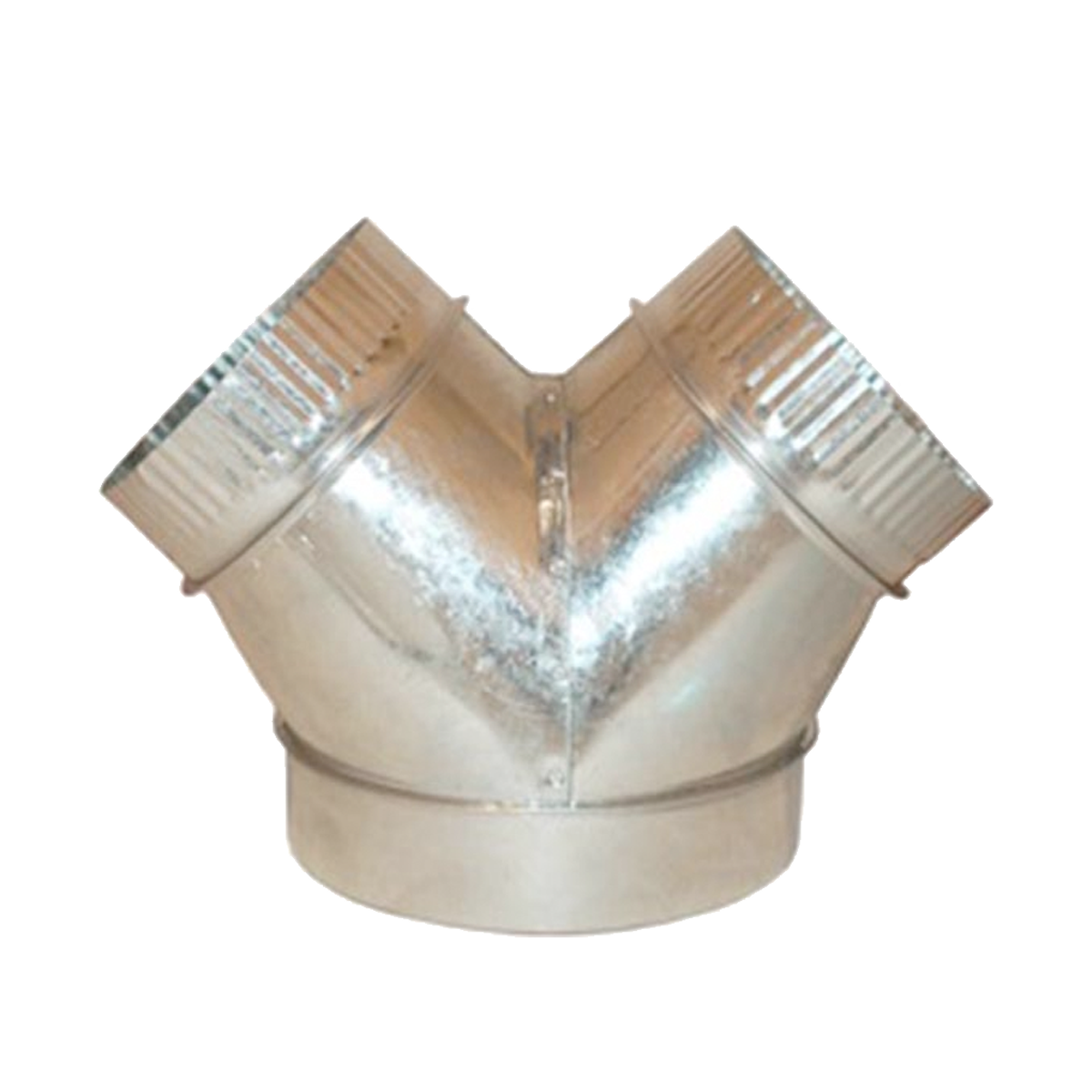

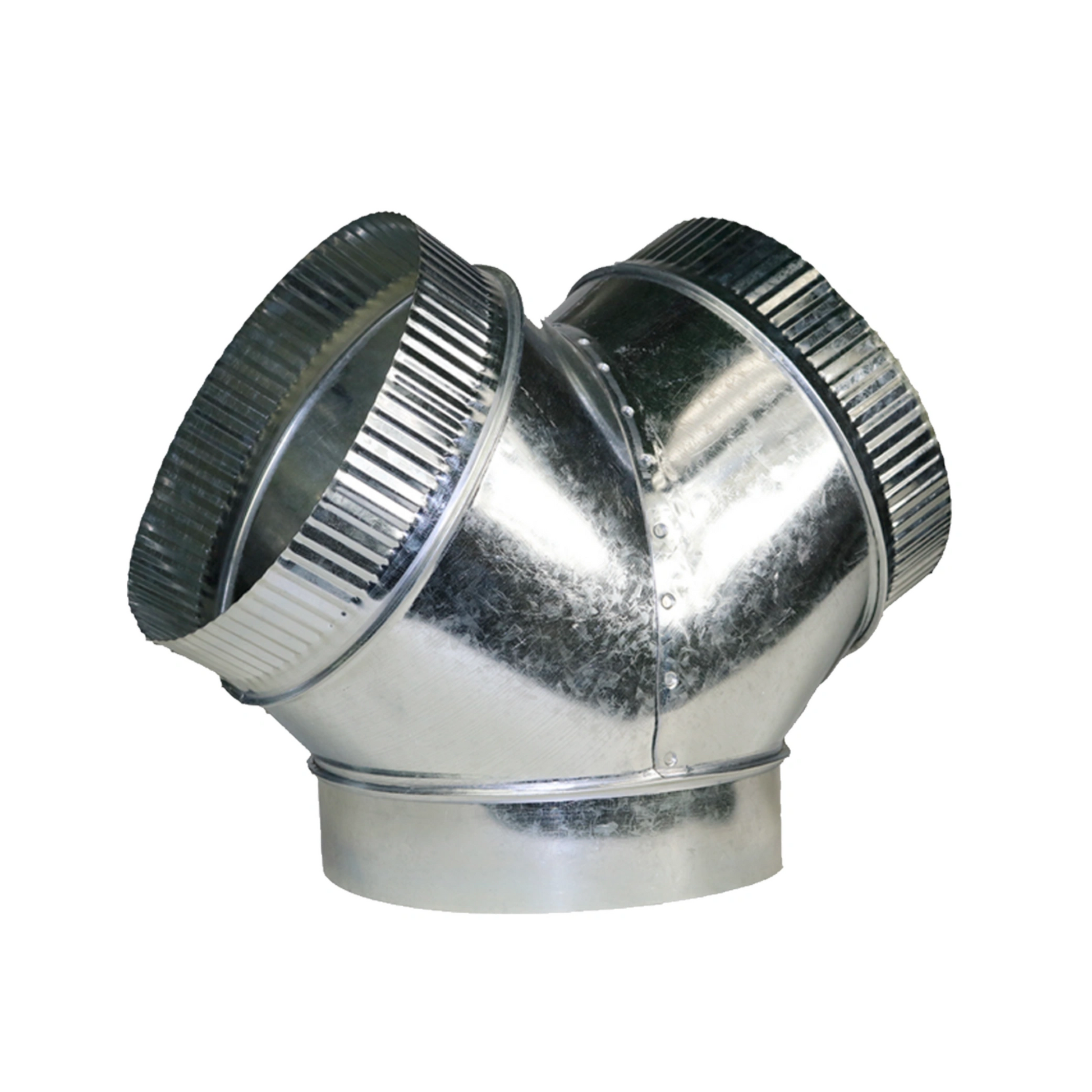

How the 8x6x6 Y Duct Connector Splits Airflow
One large inline fan often needs to serve two spaces, and an improvised joint wastes airflow. This wye fitting handles the split cleanly. Its 8 inch trunk divides into two 6 inch branches. The Y shape guides air into each branch at an angle, rather than forcing it around a sharp turn. Galvanized steel construction stands up to daily use in ventilation and filtration systems. Sealed seams help reduce air loss, so pressure and airflow stay steadier across the duct layout. A precise fit cuts down on rattling and gaps where it meets the ducting. Fewer leaks help an inline fan and carbon filter work more efficiently. It suits grow room ventilation, filtration layouts and multi-zone airflow builds. Common uses include splitting exhaust between two tents or pulling air from two rooms to one fan. It also works on intake lines that feed fresh air to two spaces.
Installing a Duct Wye in Your Ventilation
Plan the layout so the larger trunk side faces the fan or main line. Connect the two smaller branches to the runs that lead to each zone. Slide flexible or rigid ducting over each end so it seats fully. Secure every connection with a duct clamp or zip tie. Wrap the joints with foil tape for an airtight seal. Keep both branch runs similar in length and bends so airflow divides evenly. Add a damper on either branch if one zone needs less air than the other. Support the fitting so its weight does not pull on the ducting. Check the joints after the first run for any whistling that signals a leak. Wipe dust from the inside during routine duct cleaning. Store spare fittings in a dry place to protect the galvanized finish.
Key Features
- 8 to Dual 6 Inch: Splits one line into two.
- Galvanized Steel: Durable for daily use.
- Sealed Seams: Reduce air leaks at the joint.
- Precise Fit: Less rattling and fewer gaps.
- Multi-Zone Airflow: Serve two tents or rooms.
- Fan and Filter Friendly: Helps systems run efficiently.

Technical Specifications
| Specification | Value |
|---|---|
| Brand | DL Wholesale |
| Product | Y duct connector (wye) |
| Inlet | 8 in |
| Outlets | Two 6 in |
| Material | Galvanized steel |
| Seams | Sealed |
| Uses | Ventilation, filtration, multi-zone airflow |
| Item Number | 404866 |
