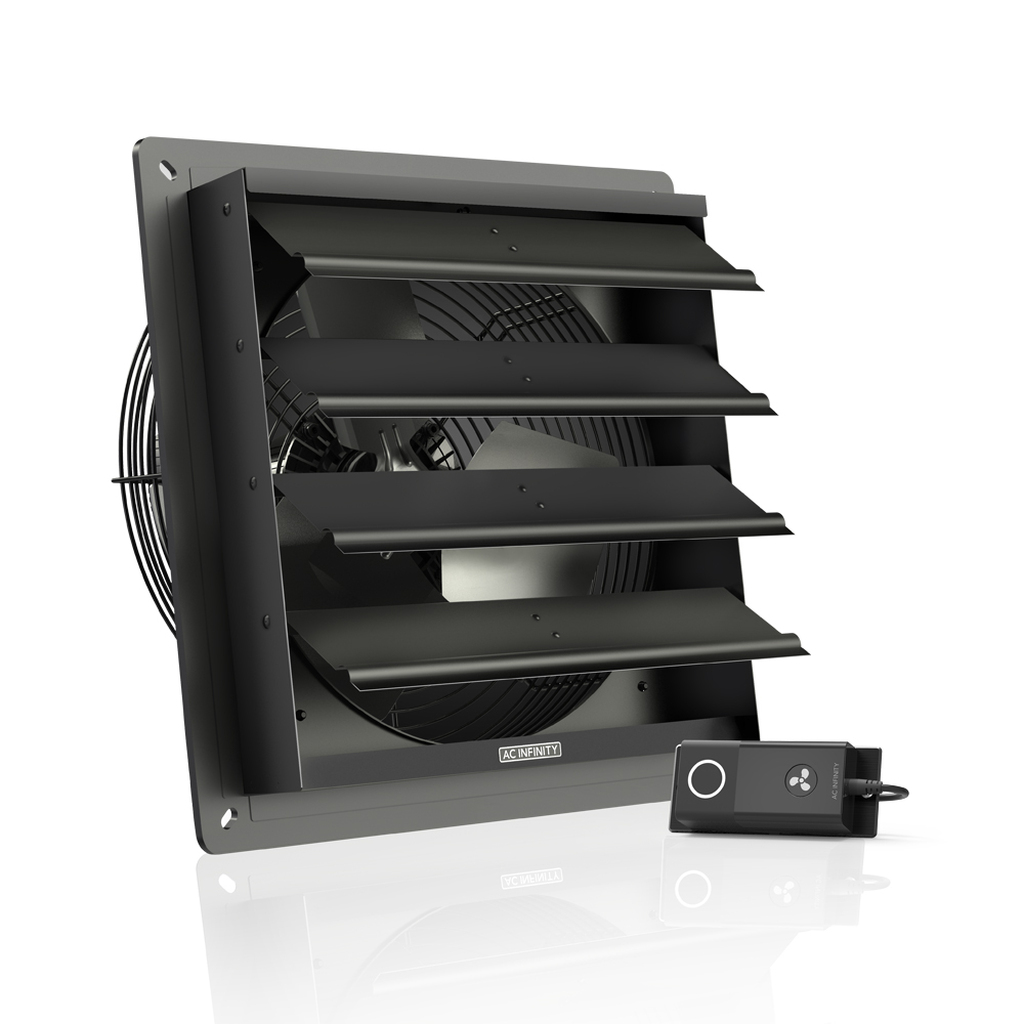

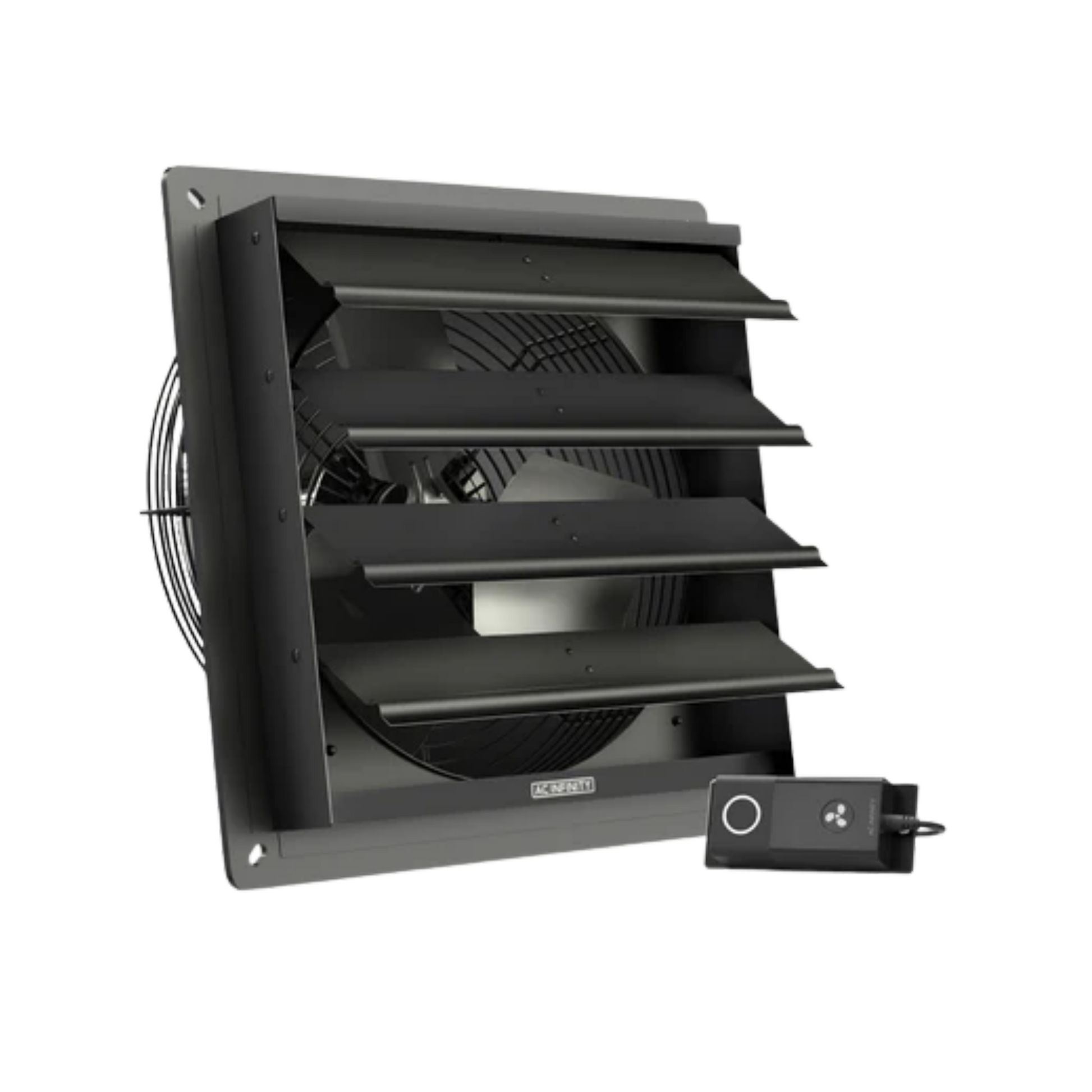

AC Infinity AIRLIFT S-Series shutter exhaust fan with speed control

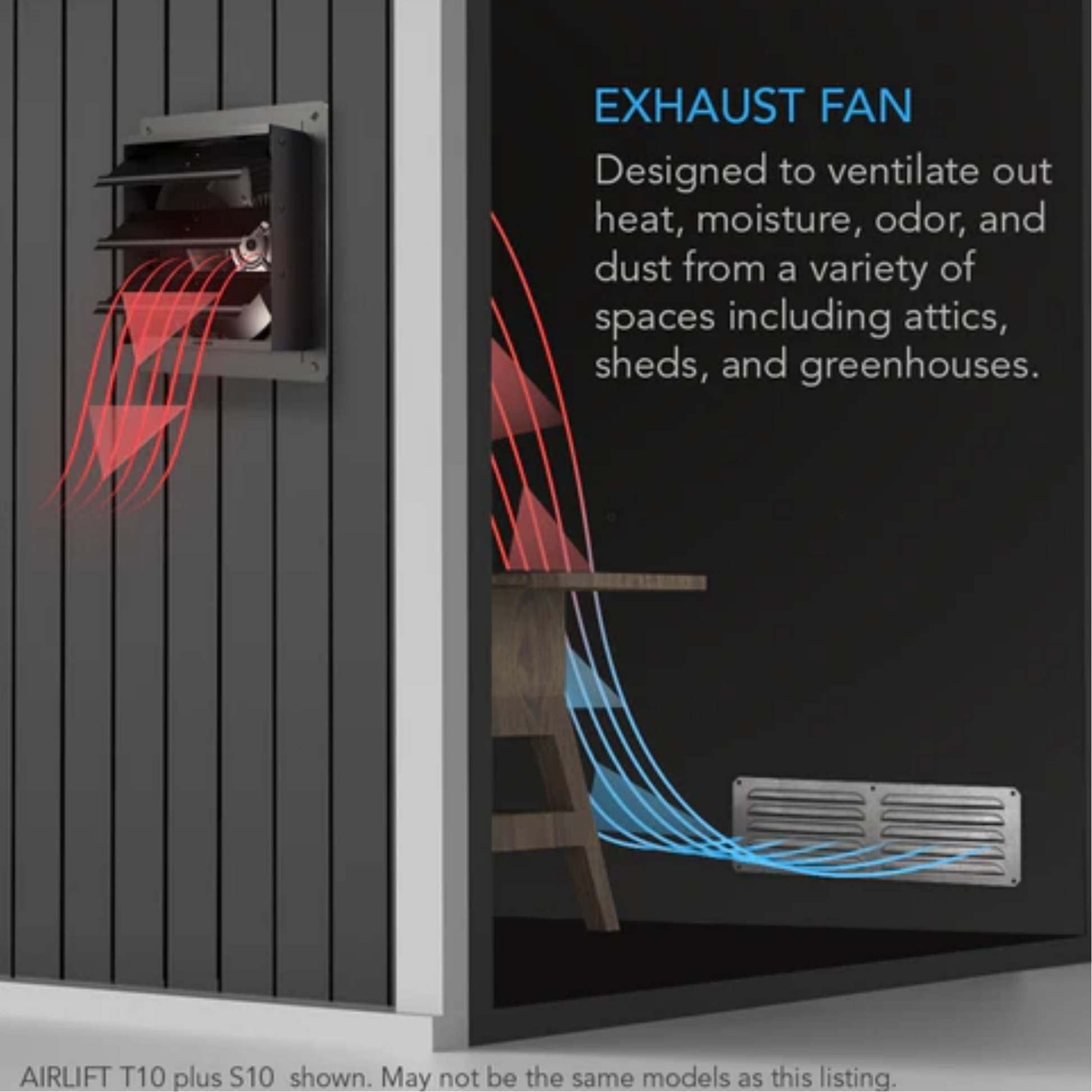

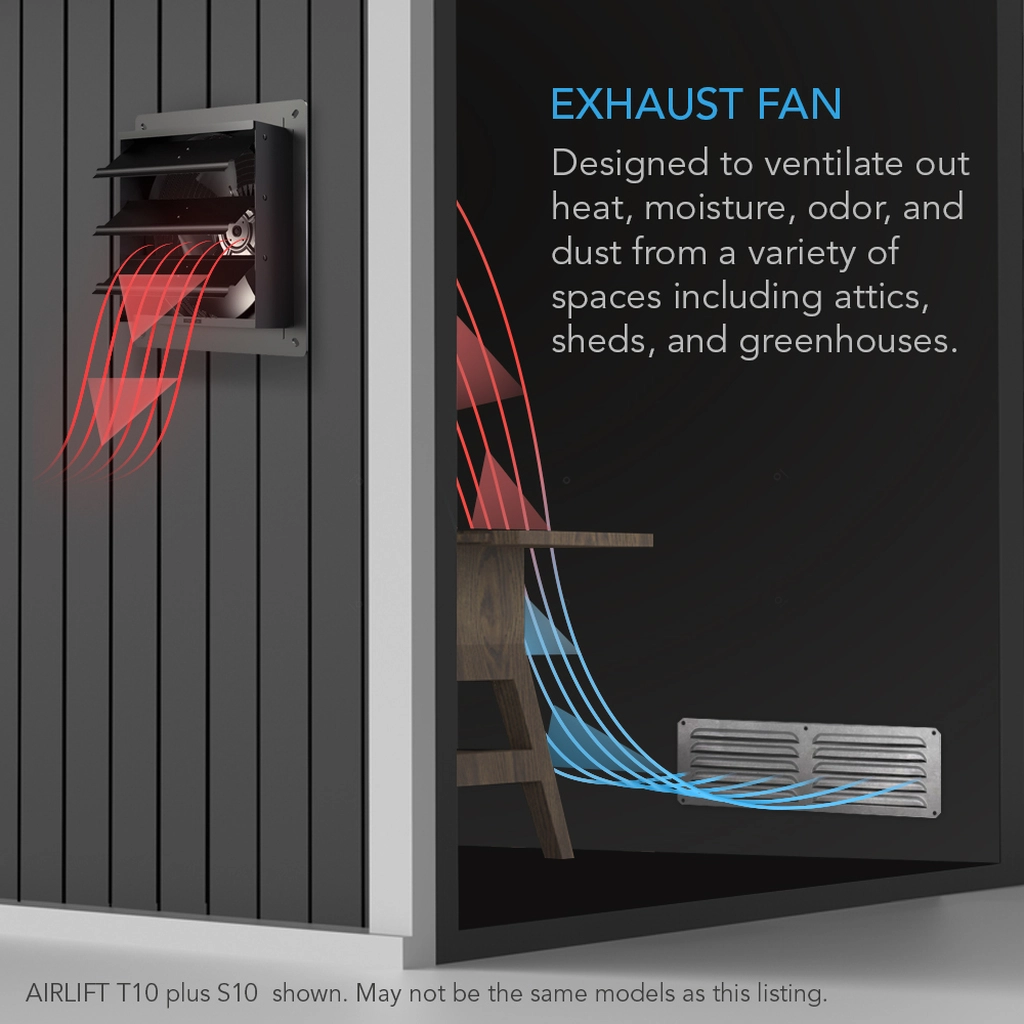

The AIRLIFT S-Series exhausts heat, moisture, odor, and dust out of a room through a weather-sealed shutter. Four sizes cover the range: 631 CFM at 10 inches, 830 at 12, 1513 at 14, and 2560 at 16. A PWM-controlled EC motor pushes that airflow while holding noise and power down. Steel shutters close automatically when the fan stops, sealing out weather and pests.
EC-motor shutter fan with 10-speed manual controller
The included controller sets up to 10 speed steps, so you dial the airflow and noise to the room. Growers mount it high on a wall or gable to pull hot, humid air out of a greenhouse, shed, or flower room. Aluminum blades and steel wire guards ride on dual-ball bearings rated to 67,000 hours. An IP44 frame keeps dust and liquid out in harsh, humid spaces. Backup memory holds the last speed after a power cut. For automatic climate response, the T-Series adds a temperature and humidity controller.
Key Features
- 631-2560 CFM by Size: Four sizes from 10 to 16 inches.
- 10-Speed Controller: Manual PWM control of airflow and noise.

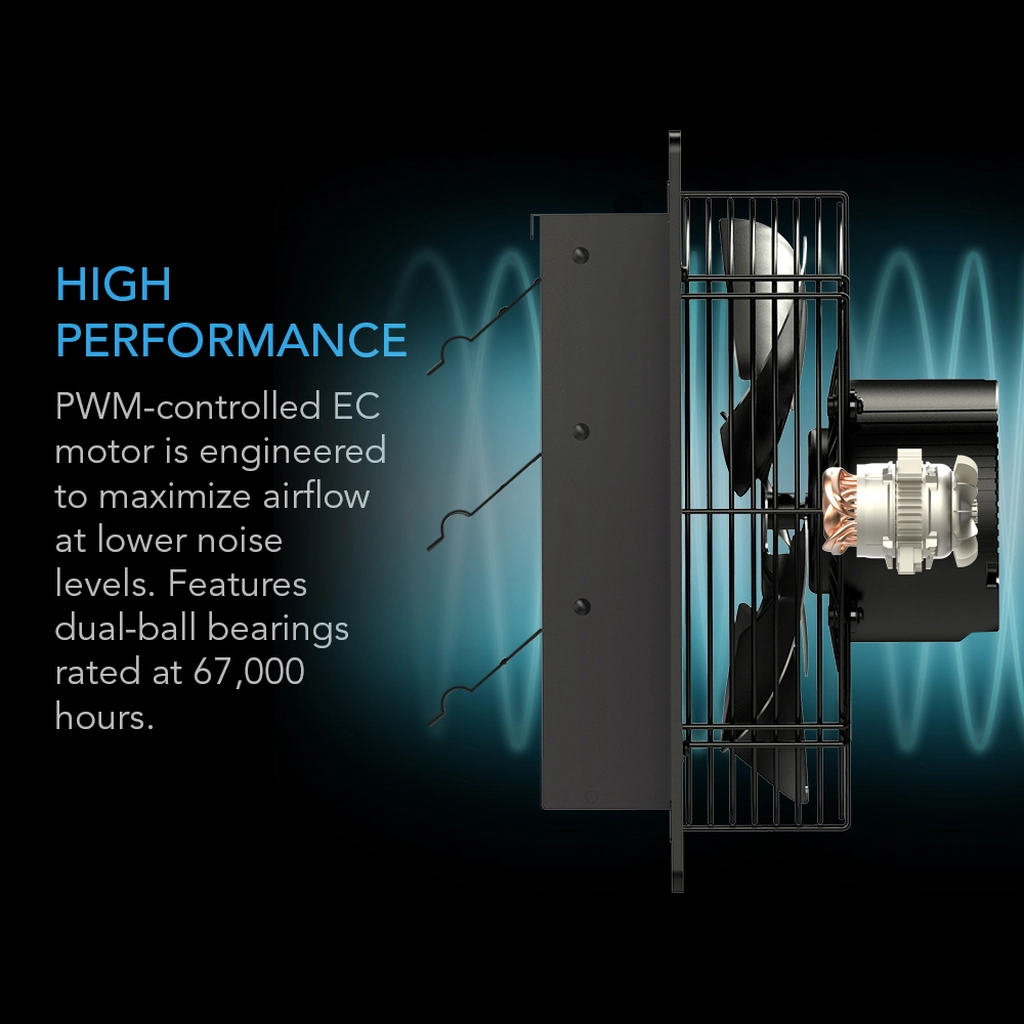

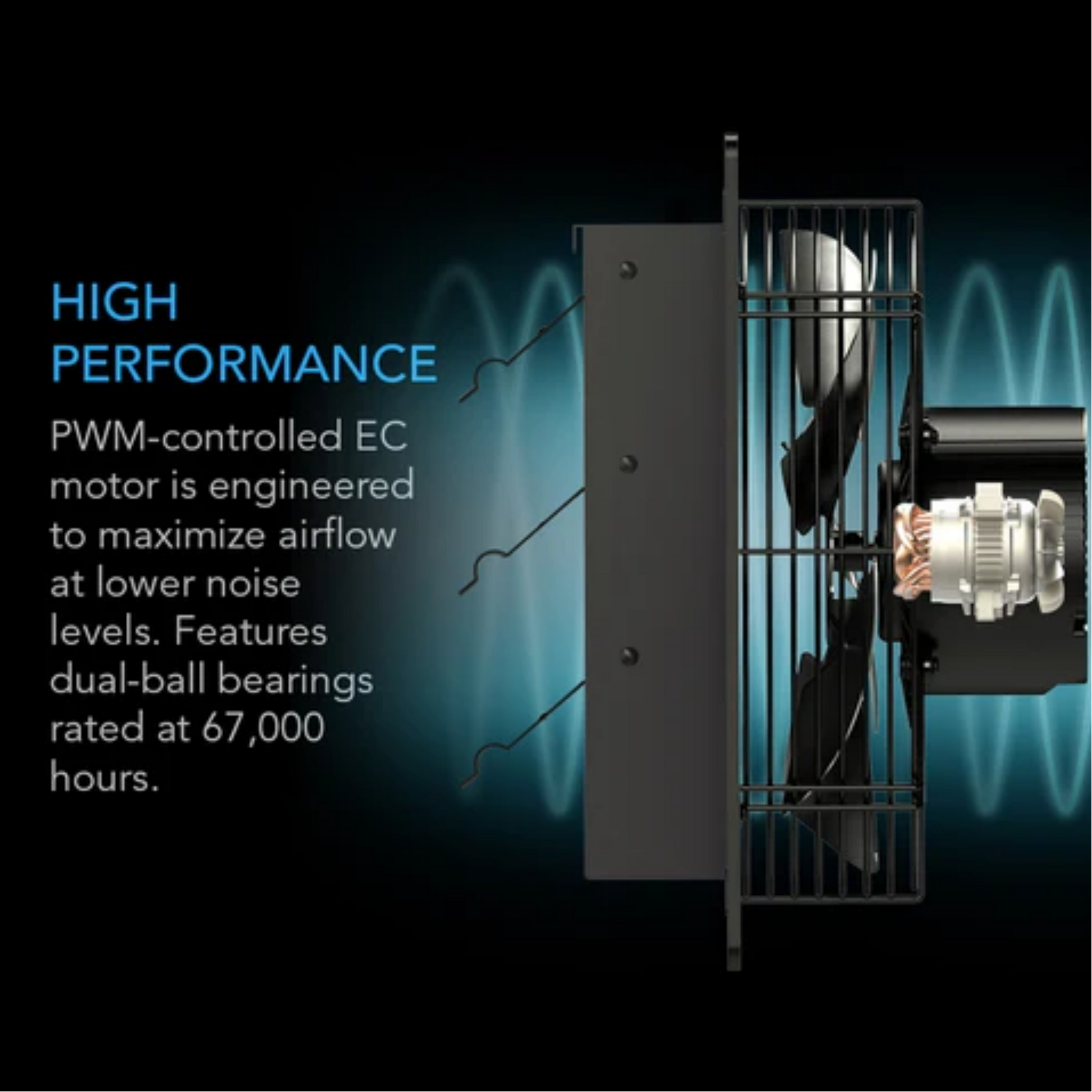

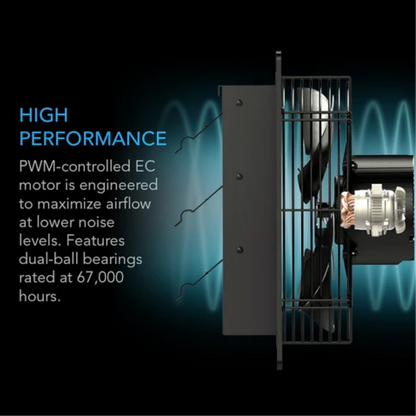

- PWM EC Motor: High airflow with lower noise and power.
- Auto-Closing Steel Shutters: Weather-sealed louvers close when off.
- Aluminum Blades + Steel Guards: Heavy-duty build on 67,000-hour bearings.
- IP44 Rated: Resists dust and liquid in humid rooms.
Technical Specifications
| Specification | Value |
|---|---|
| Type | Shutter exhaust ventilation fan (EC motor) |
| Sizes | 10 / 12 / 14 / 16 in |

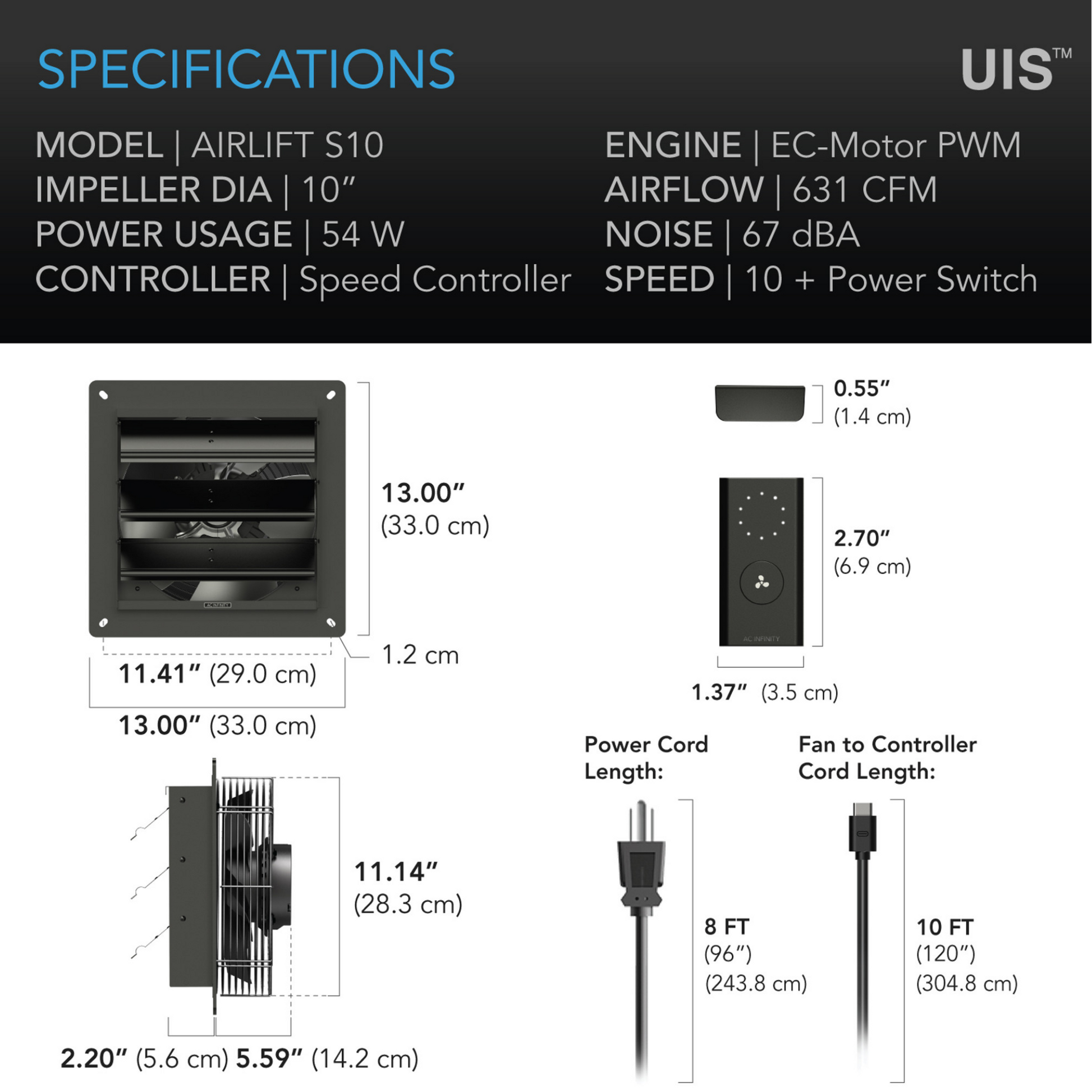

| Airflow (10") | 631 CFM |

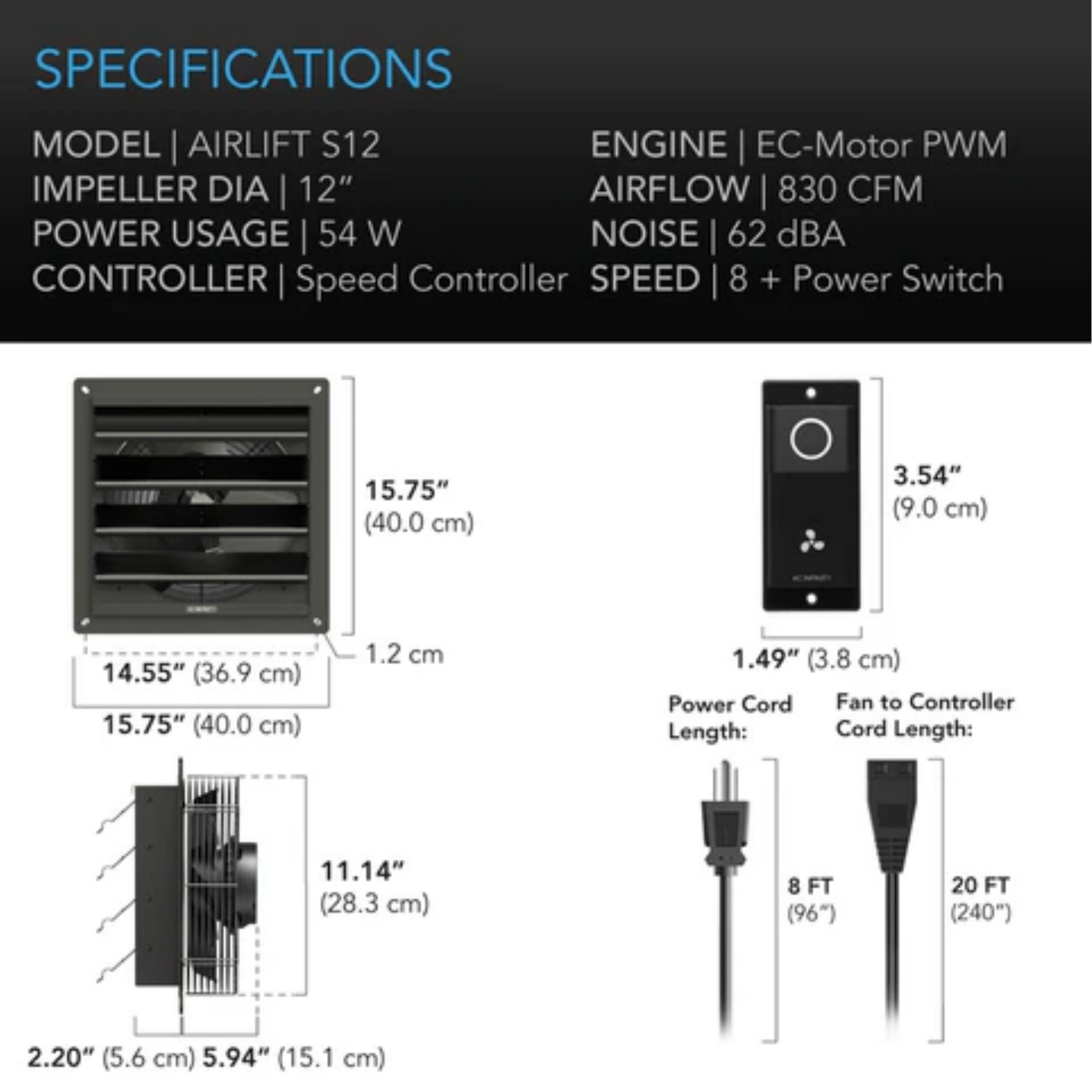

| Airflow (12") | 830 CFM |
| Airflow (14") | 1513 CFM |

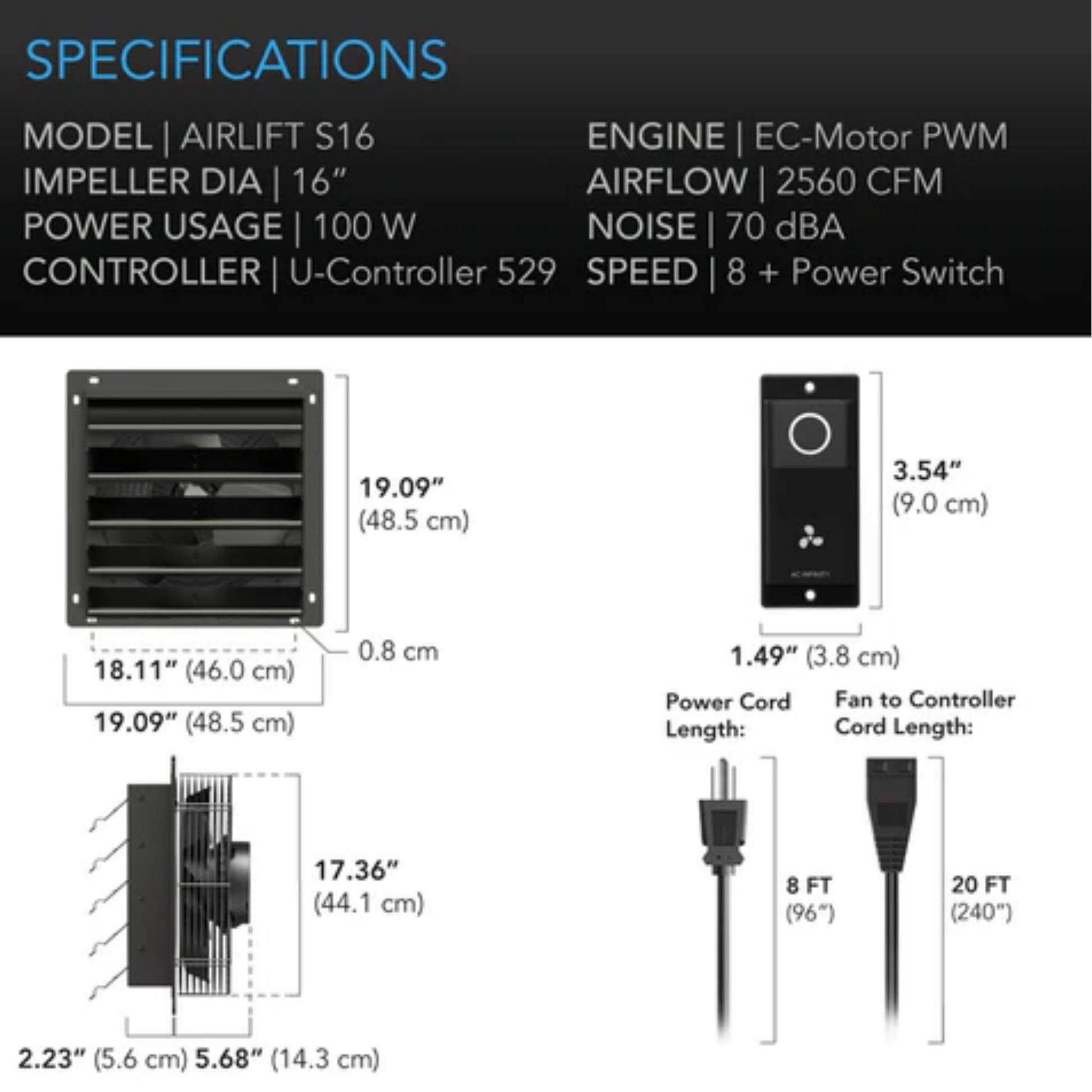

| Airflow (16") | 2560 CFM |
| Noise | 62-68 dBA (by size) |
| Voltage | 100-240V AC |
| Power | 50-100W (by size) |
| Motor | EC with PWM control |

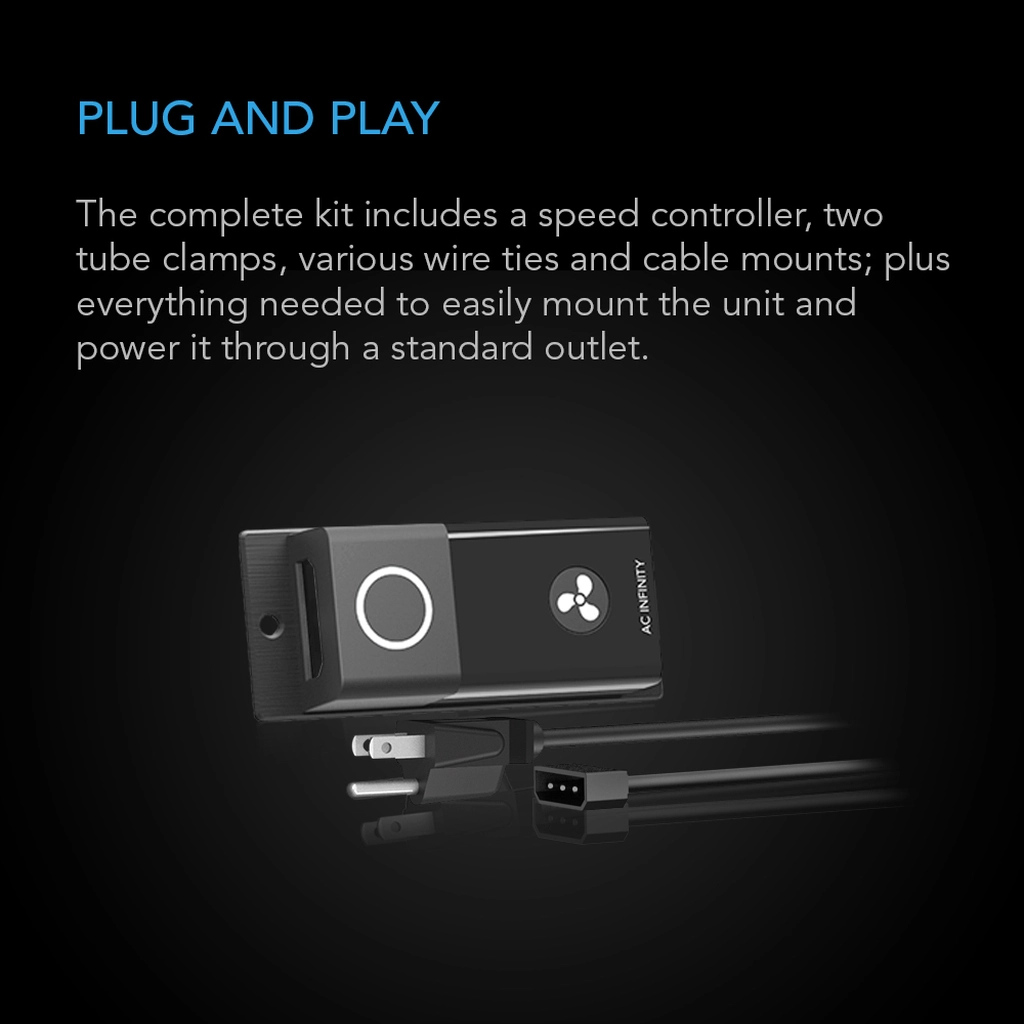

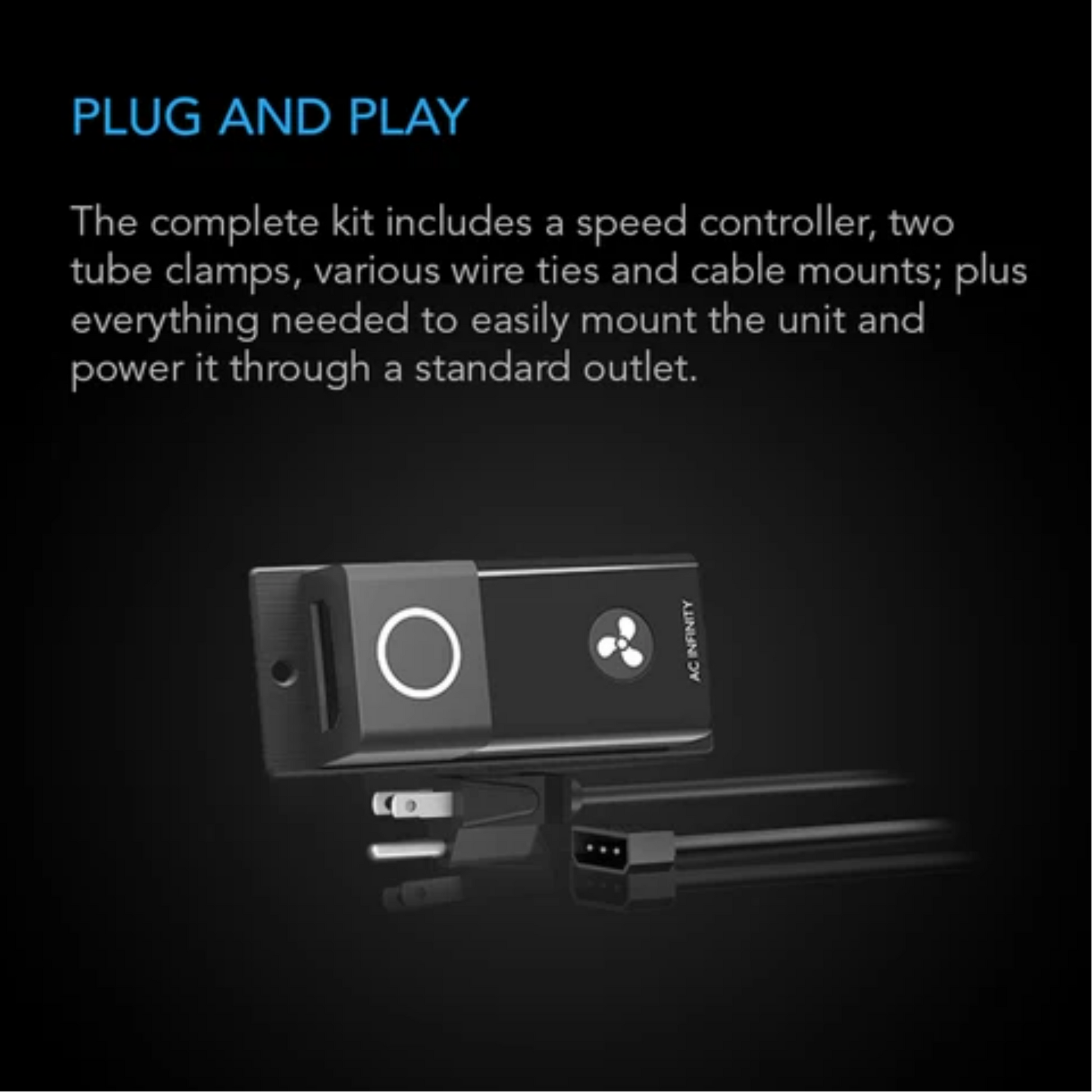

| Controller | 10-speed (included) |
| Shutters | Steel, auto-closing |
| Blades | Aluminum + steel wire guards |
| Bearings | Dual ball (67,000-hr L10) |
| IP Rating | IP44 |
| Mounting | Horizontal or vertical |
