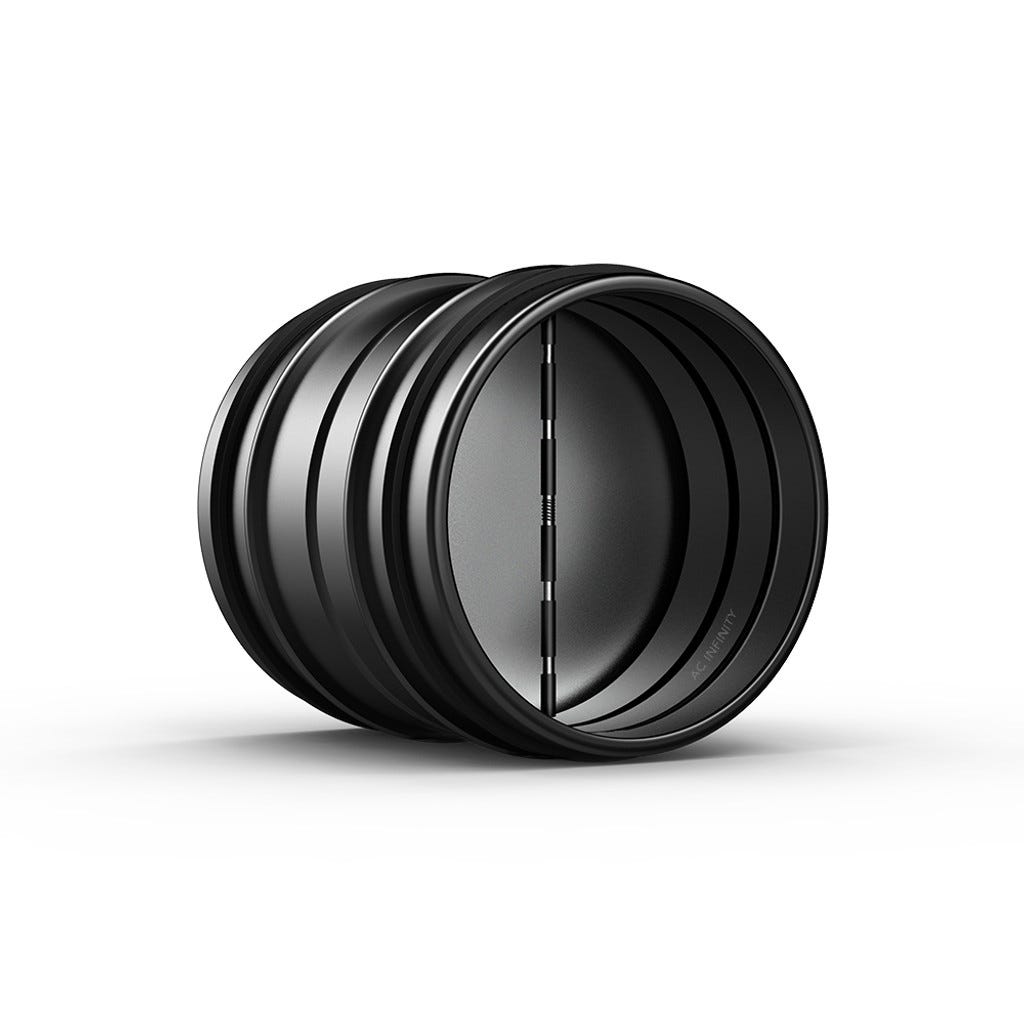

AC Infinity 4-Inch Backdraft Damper Insert

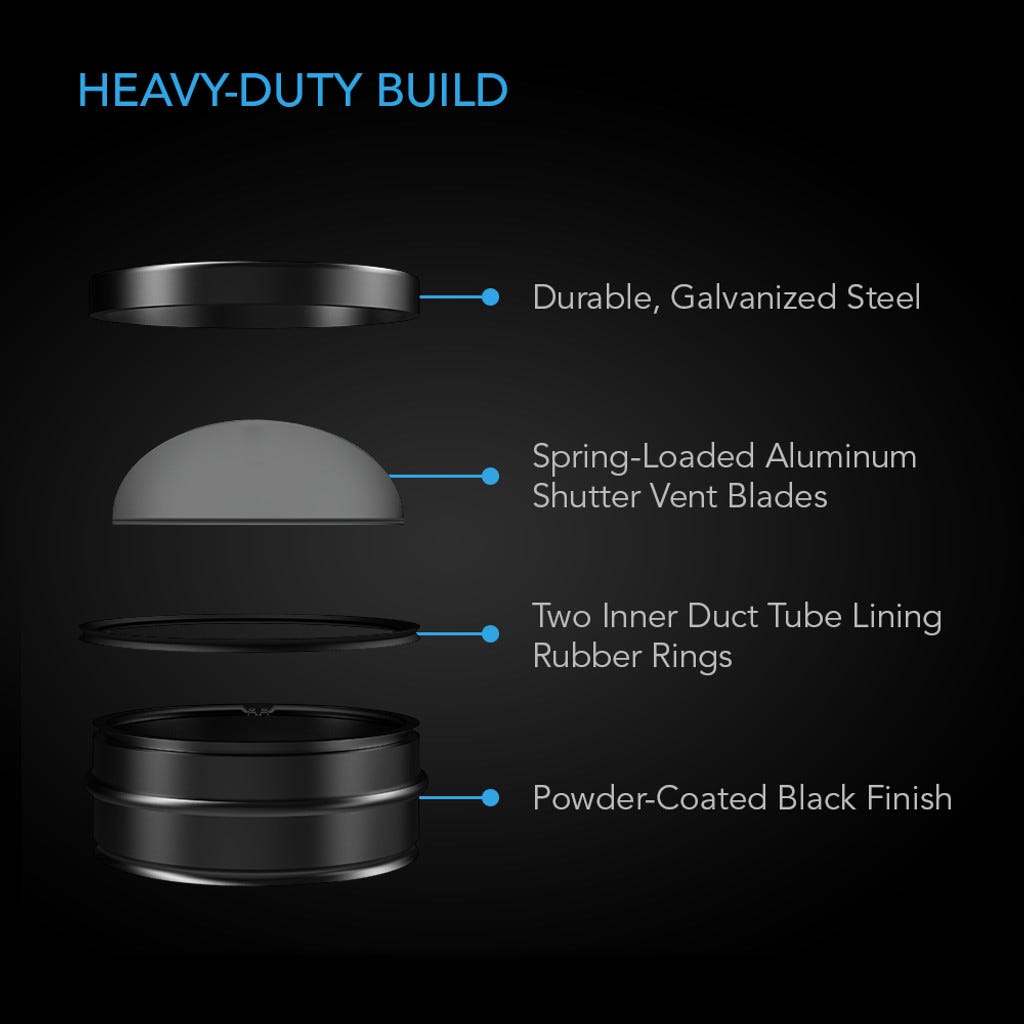

This insert slides into a 4-inch duct and keeps air flowing in one direction only. Inside, a pair of aluminum butterfly blades sits on a light spring. Airflow from the fan pushes the blades open with very little pressure. When the fan stops, the spring folds the blades shut and blocks air from drifting back. That stops cold drafts, outside odors and debris from working their way down the duct. The body is galvanized steel with a black powder-coat finish. Two rings of rubber gasket wrap the outside of the body. They grip the duct wall and form an airtight seal, so the damper stays put without screws. It can sit fully or partly inside the duct, horizontally or vertically. The insert is 5.03 in long, short enough to fit near a fan collar or wall port. In a grow tent, it keeps dust and debris out of an inline duct fan between runs. Around the house, the same insert serves range hoods, bathroom fans and dryer vents. It also helps keep water heater pilot lights from blowing out in a downdraft. AC Infinity covers it with a two-year warranty.
Fitting a 4 Inch Duct Damper on a Tent Exhaust
Decide which way air should travel before installing the damper. The blades open in one direction, so face them to swing open with the fan's airflow. Push the insert into the duct end until both gasket rings are inside. A slight twist while pushing helps the rubber seat evenly against the wall. On a tent, the most common spot is the exhaust line just past the fan. There it stops outside air from pushing back into the tent when the fan cycles off. A second damper on a passive intake keeps tent air from leaking out through that port. Vertical runs work too, with the blades closing under their own spring tension. Leave a little straight duct on either side so the blades can swing freely. Check that nothing in the duct, such as a sagging section, presses on the blades. Every few months, pull the insert and wipe any dust off the blades and hinge. A quick test is to switch the fan on and off and watch the blades open and close. Replace the damper if the spring no longer pulls the blades fully shut.
Key Features
- One-Way Airflow: Spring-loaded blades open with the fan and close when it stops.

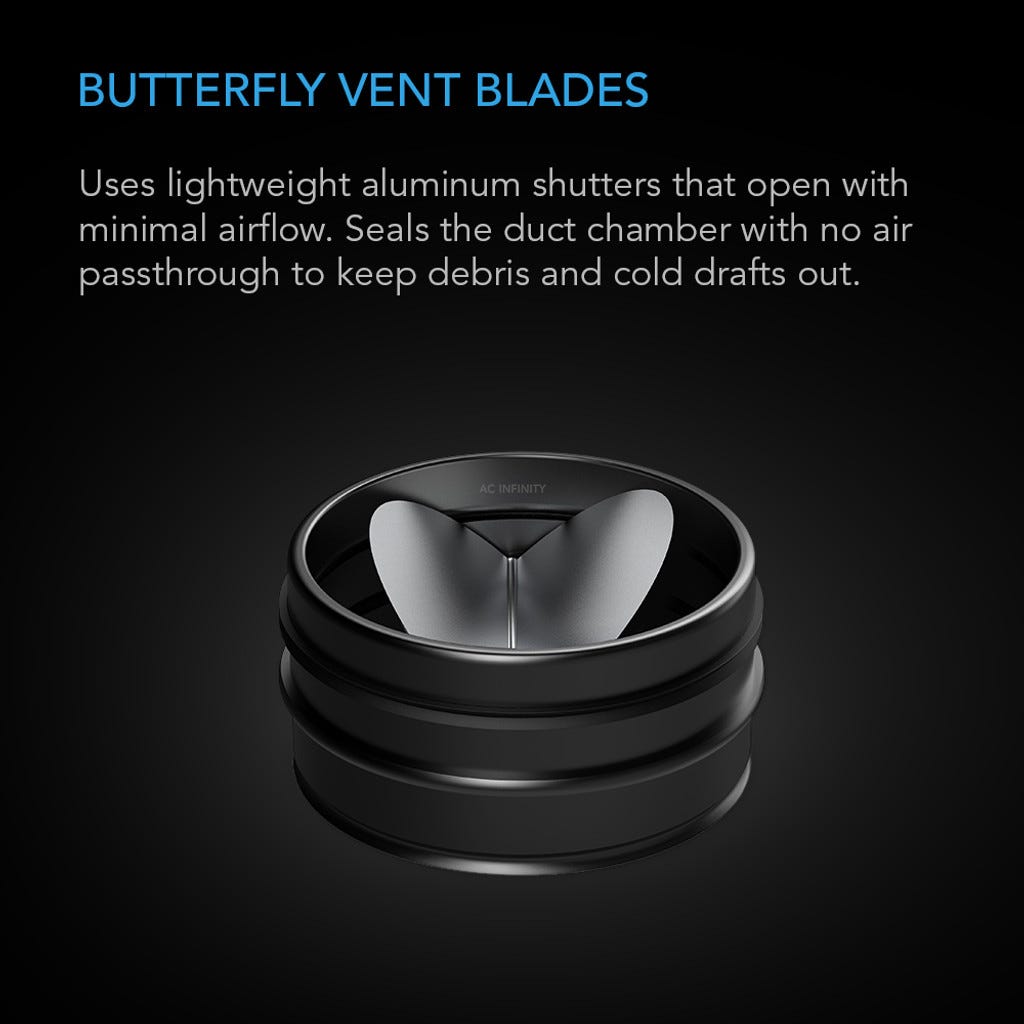

- Aluminum Butterfly Blades: Open with minimal airflow.
- Dual Rubber Gaskets: Grip the duct wall and seal airtight.
- Any Orientation: Mounts horizontally or vertically.
- Galvanized Steel Body: Black powder-coat finish.
- Compact Length: 5.03 in long for tight spaces near fans and ports.

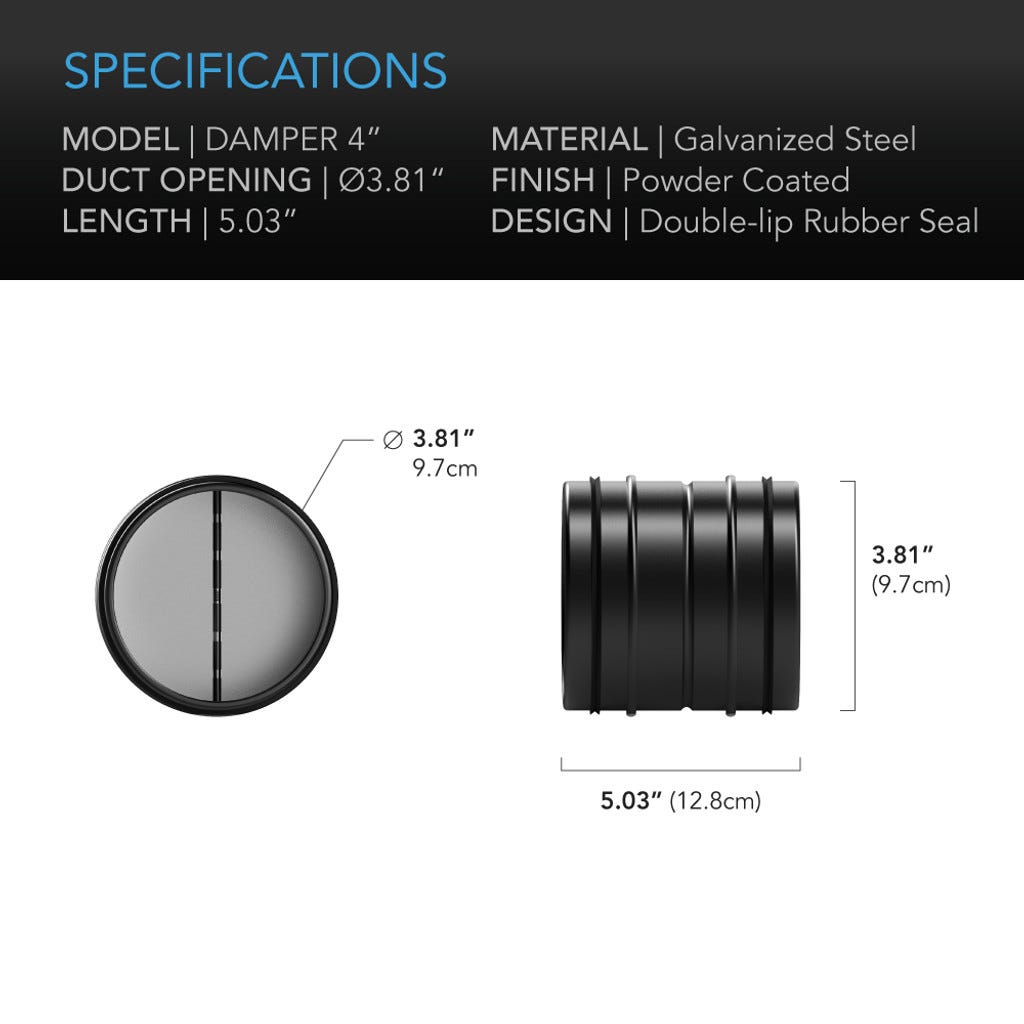

Technical Specifications
| Specification | Value |
|---|---|
| Brand | AC Infinity |
| Model | AC-BDD4-B |
| UPC | 819137021303 |
| Duct opening size | 4 in |
| Product length | 5.03 in (12.8 cm) |
| Body material | Galvanized steel |
| Blade material | Aluminum |
| Blade type | Spring-loaded butterfly |
| Seal | Two outer rubber gasket rings |
| Mounting | Horizontal or vertical, full or partial insertion |
| Color | Black |
| Finish | Powder coat |
| Warranty | 2 years |
