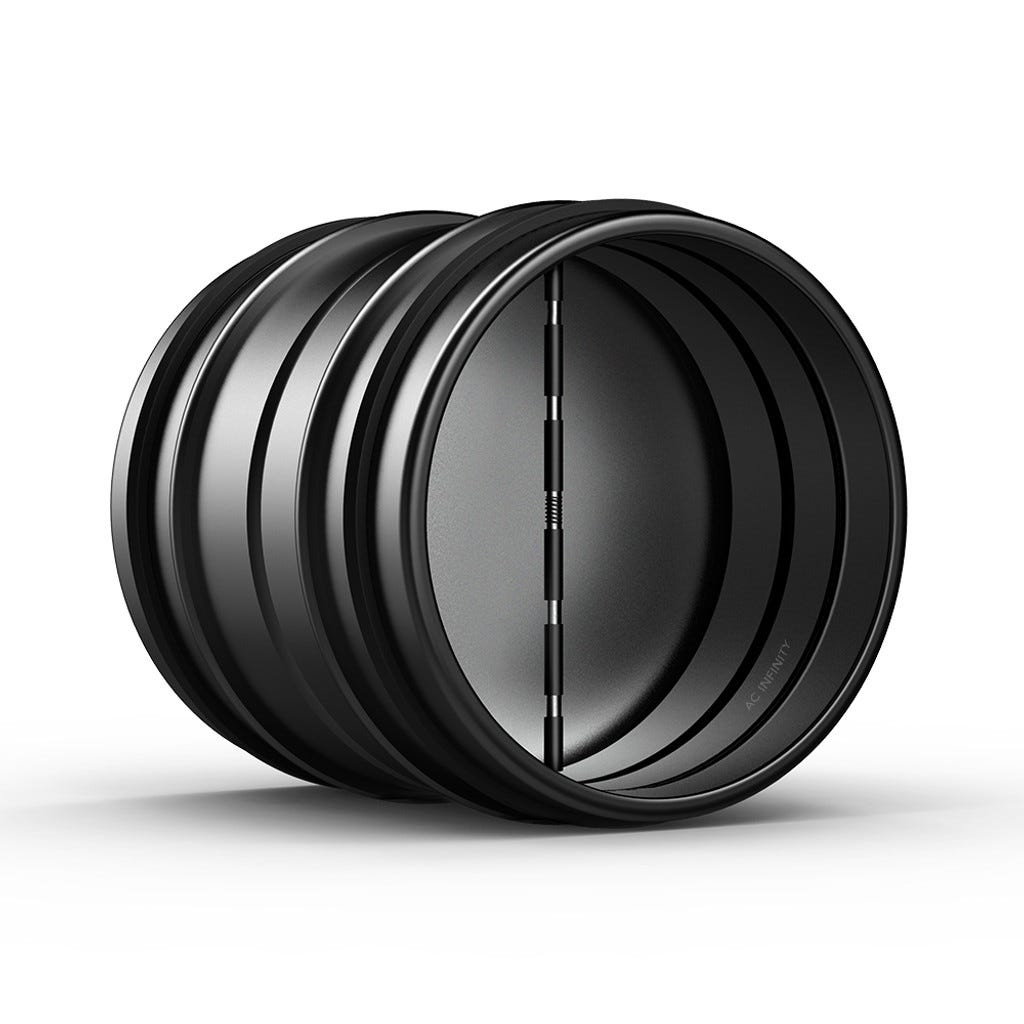

AC Infinity 8-Inch Backdraft Damper Insert

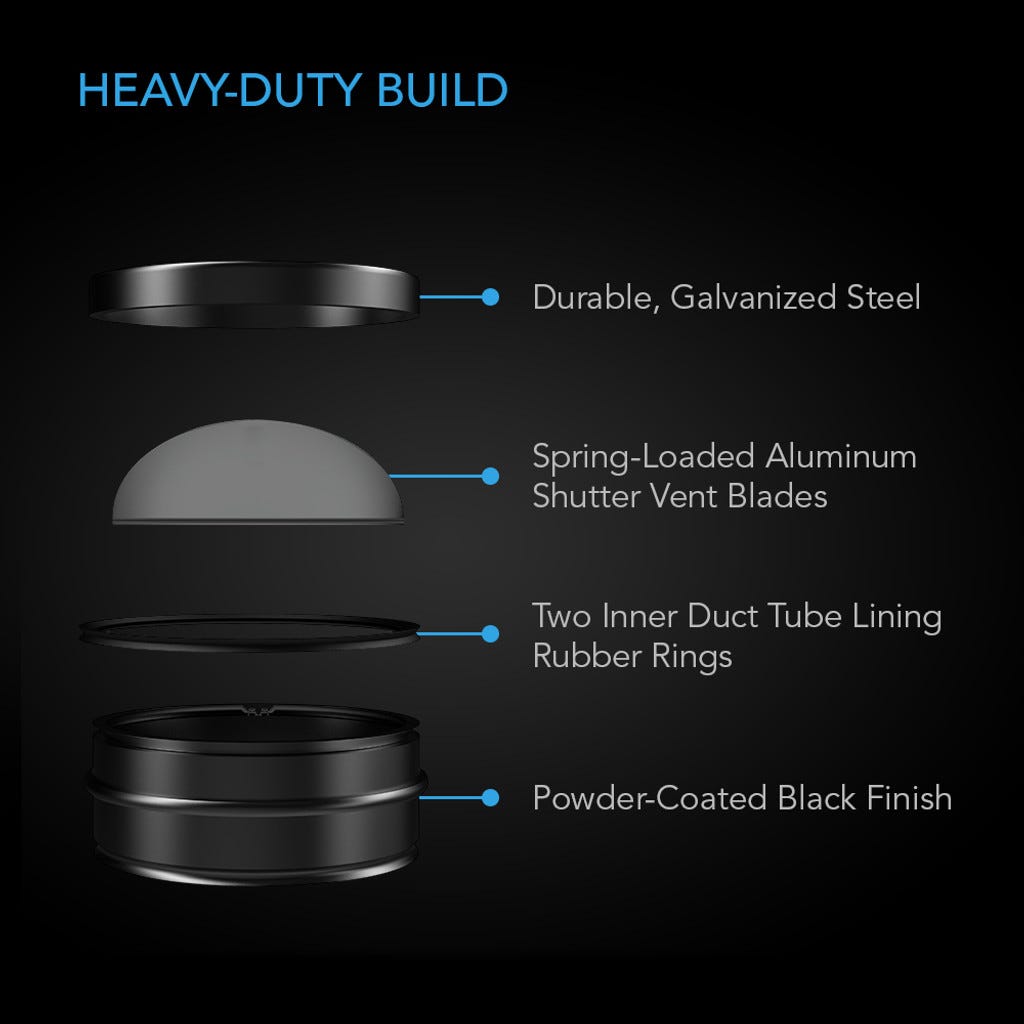

This damper slides into 8-inch ducting and lets air pass in one direction while blocking the reverse. Two aluminum butterfly blades hinge at the center on a light spring. Airflow from the fan opens them easily, even at a low fan speed. When the fan stops, the spring snaps them closed across the duct. Back drafts, outside odors and debris stay out of the line and the room behind it. The body is galvanized steel with a black powder-coat finish. Its length is 7.08 in, giving the blades room to swing. Two rings of rubber gasket wrap the outside of the body. They wedge against the duct wall to hold the damper and seal it airtight. No screws, clamps or tape are needed to keep it in place. Mount it horizontally or vertically, pushed all the way in or only partway. An 8-inch line is common on larger tents and grow rooms with a stronger exhaust fan. The same insert works on range hoods, bathroom fans and dryer vents. AC Infinity covers it with a two-year warranty.
Placing an 8 Inch Duct Damper in a Grow Room Exhaust
Check which way the air will travel before the damper goes in. The blades must swing open with the fan's airflow, so orient the insert to match. Push it into the duct until both gasket rings are fully inside. A slight twist while pushing helps the rubber seat all the way around. In a grow room, the usual position is right after the exhaust fan, before the duct exits the wall. That stops outside air and weather from pushing back through the fan when it idles. On a lights-off fan schedule, it also keeps cold night air from drifting in. A passive intake can take a second damper so room air does not leak out the inlet. Leave straight duct on both sides so the blades open fully without catching. Support long duct runs so their weight does not squeeze the duct around the damper. Every few months, remove the insert and wipe the blades and pivot clean. Run the fan briefly afterward and watch the blades open and close fully. Replace the insert if the spring stops closing the blades all the way.
Key Features
- One-Way Airflow: Spring-loaded blades open with the fan and close when it stops.

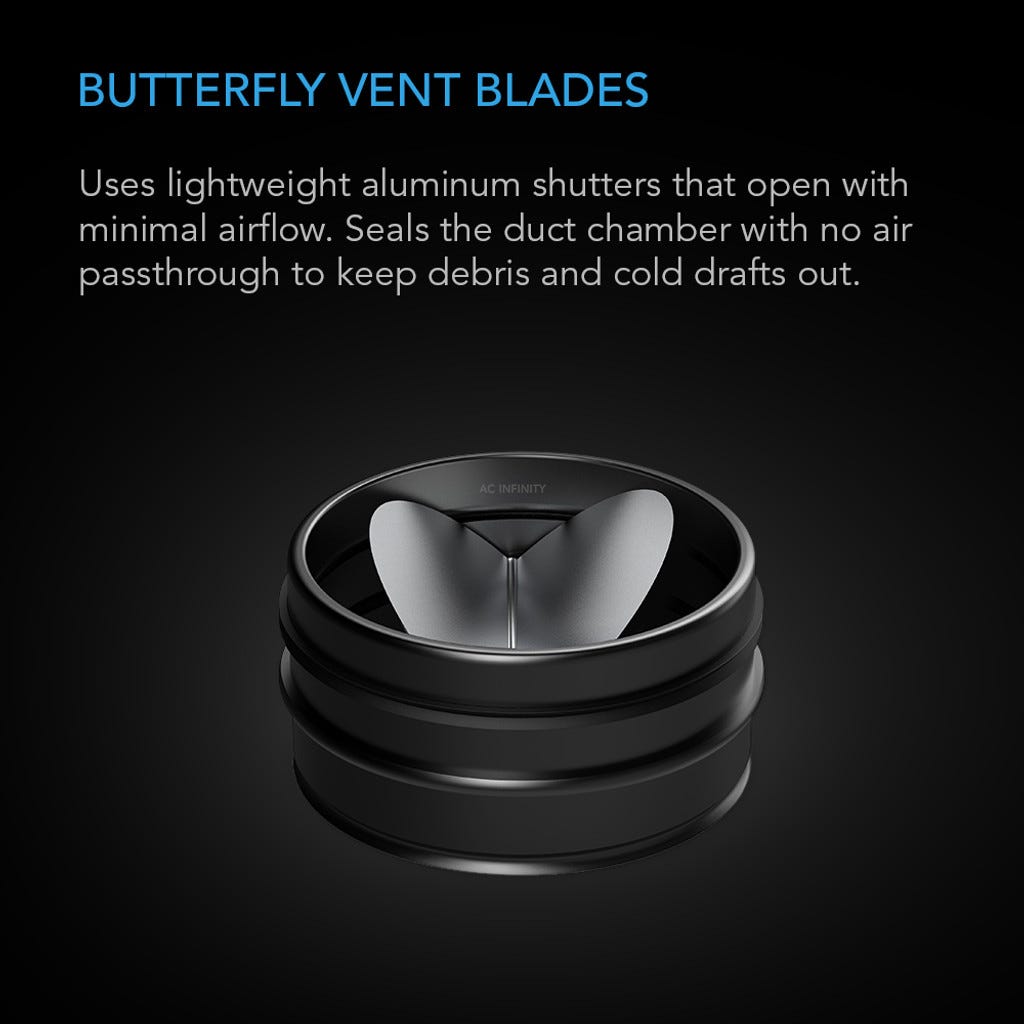

- Aluminum Butterfly Blades: Open easily, even at low fan speed.
- Dual Rubber Gaskets: Hold the insert and seal it airtight with no fasteners.
- Horizontal or Vertical: Works in either orientation.
- Galvanized Steel: Black powder-coat finish.
- 7.08 in Body: Room for the blades to swing fully open.

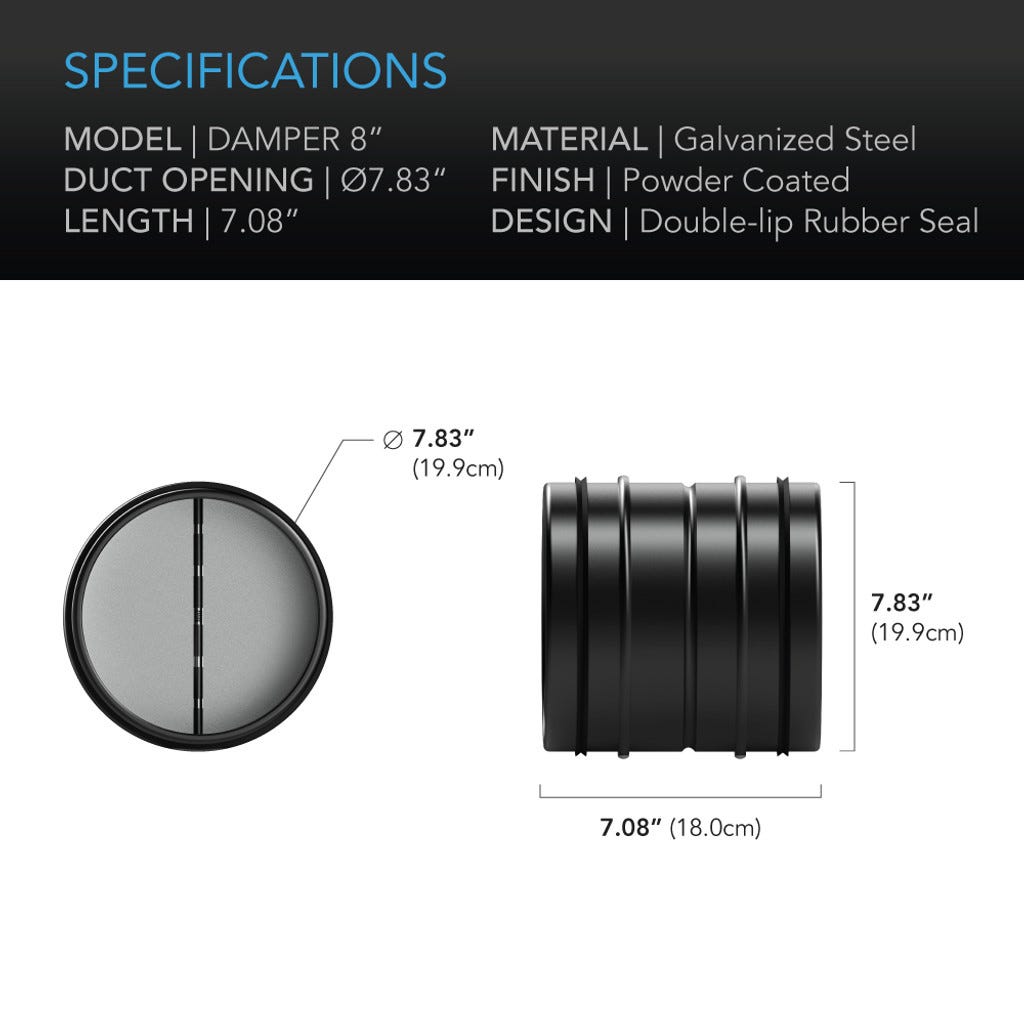

Technical Specifications
| Specification | Value |
|---|---|
| Brand | AC Infinity |
| Model | AC-BDD8-B |
| UPC | 819137021327 |
| Duct opening size | 8 in |
| Product length | 7.08 in (18.0 cm) |
| Body material | Galvanized steel |
| Blade material | Aluminum |
| Blade type | Spring-loaded butterfly |
| Seal | Two outer rubber gasket rings |
| Mounting | Horizontal or vertical, full or partial insertion |
| Color | Black |
| Finish | Powder coat |
| Warranty | 2 years |
