Brand: AC Infinity

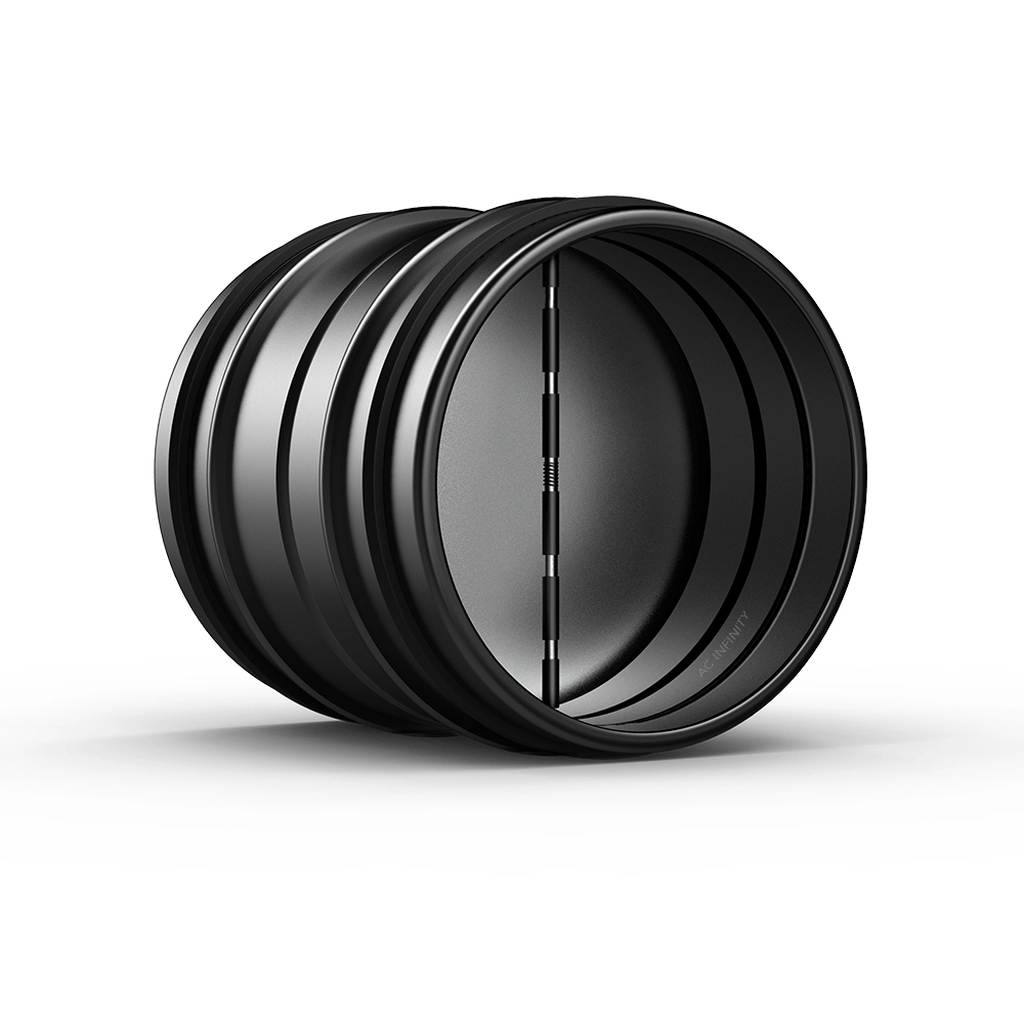

AC Infinity Backdraft Damper Ducting Insert, 6-Inch - Black Galvanized Steel

AC Infinity Backdraft Damper Ducting Insert, 6-Inch - Black Galvanized Steel

SKU: SKU:AC-BDD6-B

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $19.99 USD
Regular price $19.99 USD Sale price $19.99 USD
Sale Sold out
Shipping calculated at checkout.

The AC Infinity backdraft damper for 6-inch ducting lets air pass one way only, then springs shut when the fan stops. This 6 inch duct damper seals with two rubber gasket rings and needs no screws or tape.

View full details

AC Infinity Backdraft Damper for 6-Inch Duct

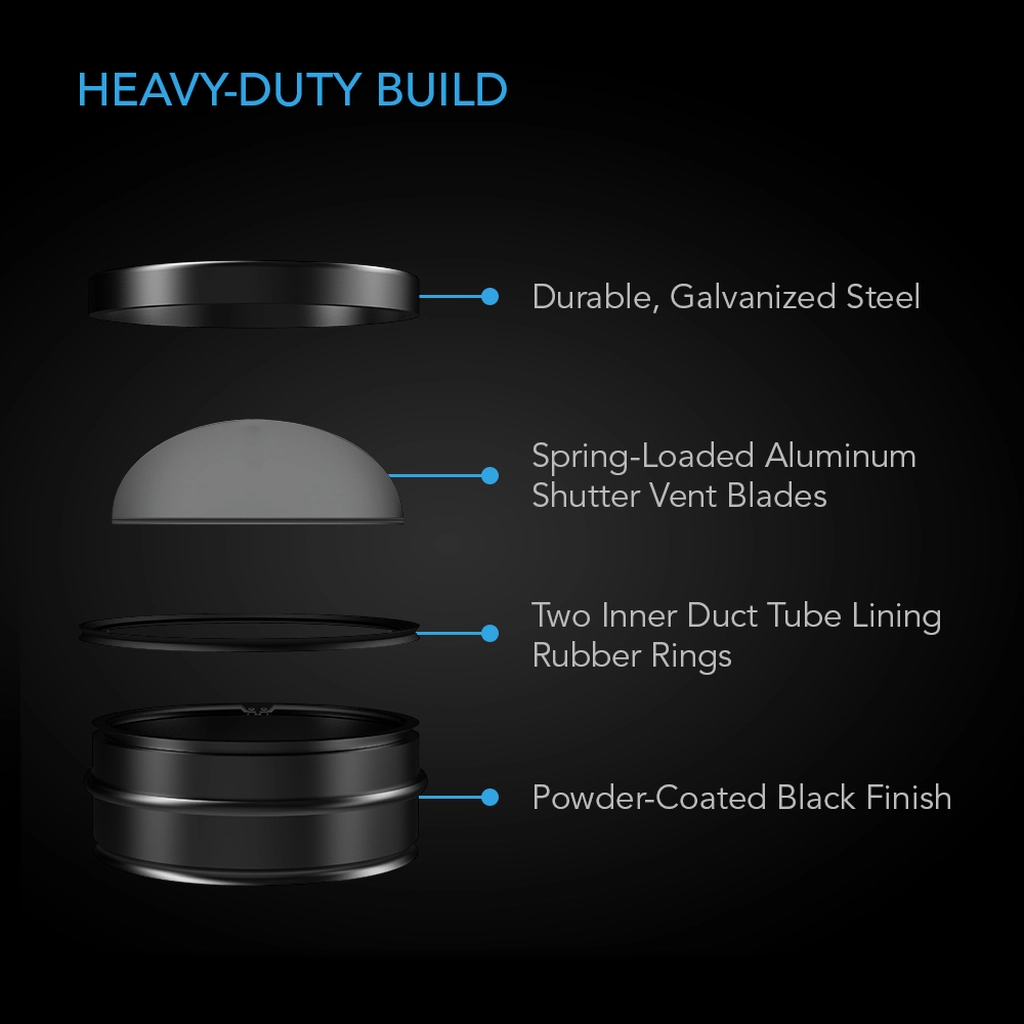

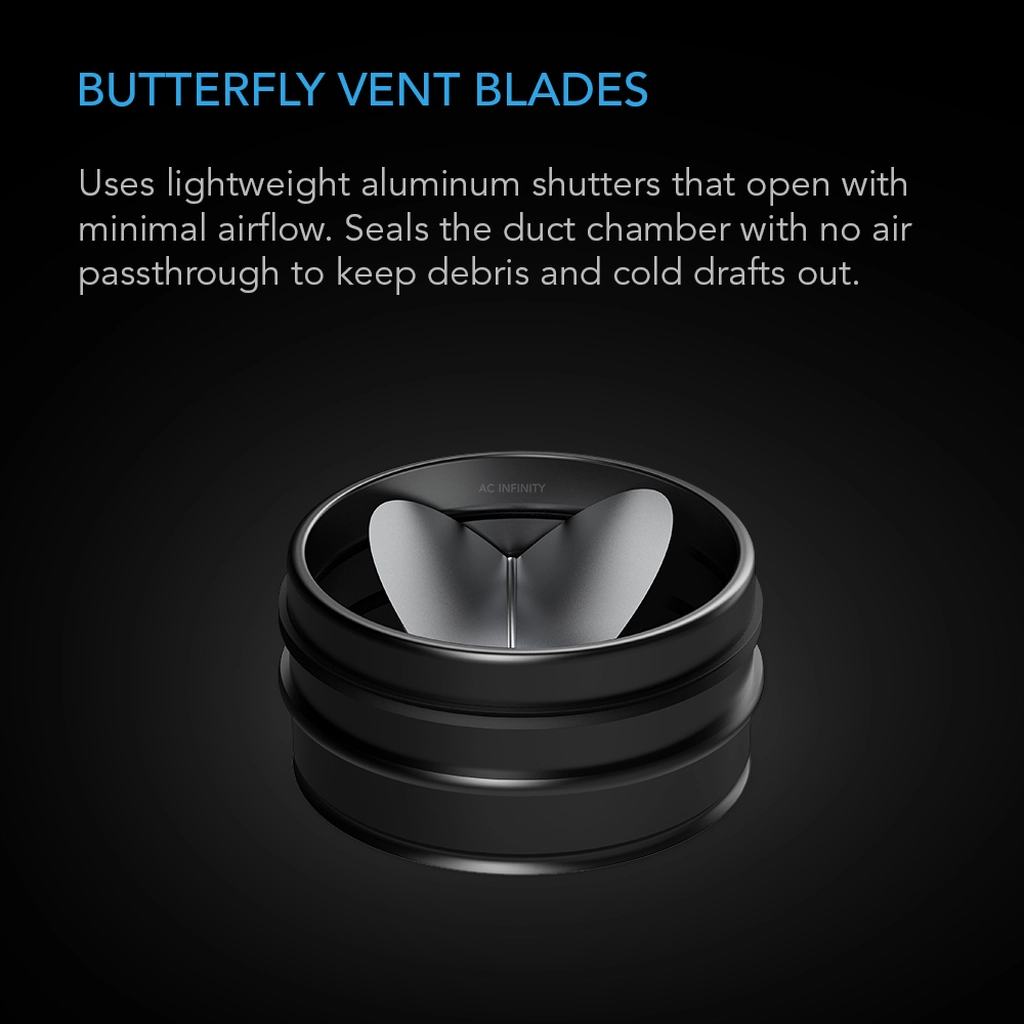

This one-way insert drops into 6-inch ducting and stops air from flowing backward through the line. Two aluminum butterfly blades meet in the middle of the damper on a light spring. Even gentle airflow from a running fan swings the blades open. Once the fan shuts off, the spring closes them and seals the duct. Drafts, outside smells and debris then stay on the far side of the damper. The body is galvanized steel with a black powder-coated finish. Two outer rubber gasket rings press against the inside of the duct. They hold the damper in place and create an airtight seal without fasteners. It works mounted horizontally or vertically, inserted fully or partway. At 5.03 in long, it fits close to a fan outlet or a wall port. Six-inch ducting is the standard size for many tent exhaust fans, and the damper fits straight in. It also suits range hoods, bathroom fans and dryer vents. Water heater flues are another use, where it helps keep the pilot light lit. AC Infinity backs it with a two-year warranty.

Installing a 6 Inch Duct Damper Between Fan and Wall Port

Work out the direction of airflow before pushing the damper into place. Orient the blades so they swing open with the air coming from the fan. Slide the insert into the duct until both gasket rings sit fully inside. Twisting gently as it goes in helps the rubber seat evenly. A good spot is the exhaust run just downstream of the inline fan. When the fan ramps down or turns off, the damper stops outside air from pushing back in. That keeps a tent from pulling in cold air through the exhaust on winter nights. On a passive intake port, a second damper keeps tent air from escaping through it. In a vertical run, the spring closes the blades on its own. Keep a short straight section of duct around the damper so the blades swing freely. Avoid kinks or tight bends right at the damper, which can hold the blades partly open. Pull it out every few months and wipe dust from the blades and pivot. Cycle the fan on and off afterward to confirm the blades still close completely.

Key Features

  • One-Way Airflow: Blades open with the fan and spring shut when it stops.
  • Aluminum Butterfly Blades: Light spring opens with minimal airflow.
  • Two Rubber Gasket Rings: Hold the insert in place with an airtight seal.
  • Horizontal or Vertical: Mounts in either orientation.
  • Galvanized Steel: Black powder-coated body.
  • 5.03 in Long: Fits close to fan outlets and wall ports.

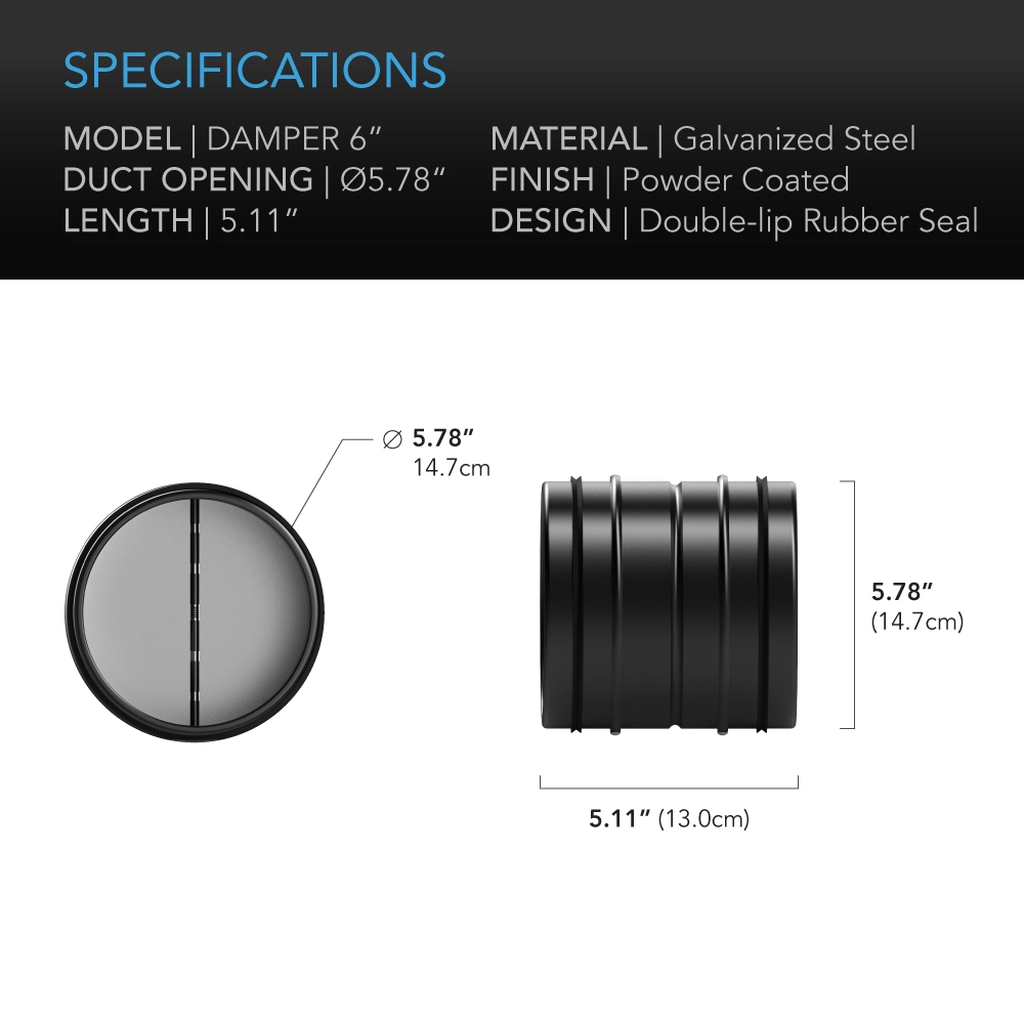

Technical Specifications

Specification Value
Brand AC Infinity
Model AC-BDD6-B
UPC 819137021310
Duct opening size 6 in
Product length 5.03 in (12.8 cm)
Body material Galvanized steel
Blade material Aluminum
Blade type Spring-loaded butterfly
Seal Two outer rubber gasket rings
Mounting Horizontal or vertical, full or partial insertion
Color Black
Finish Powder coat
Warranty 2 years
