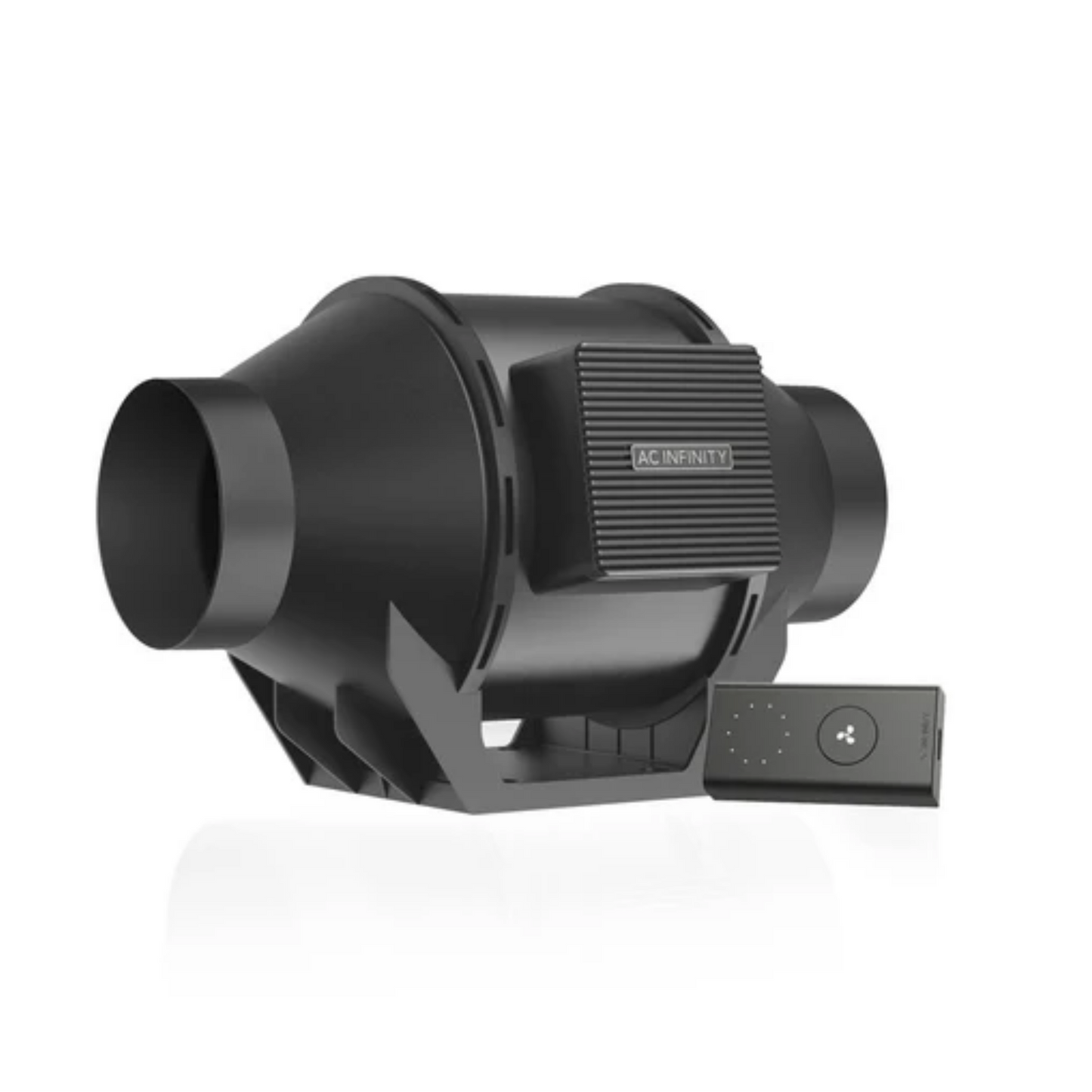

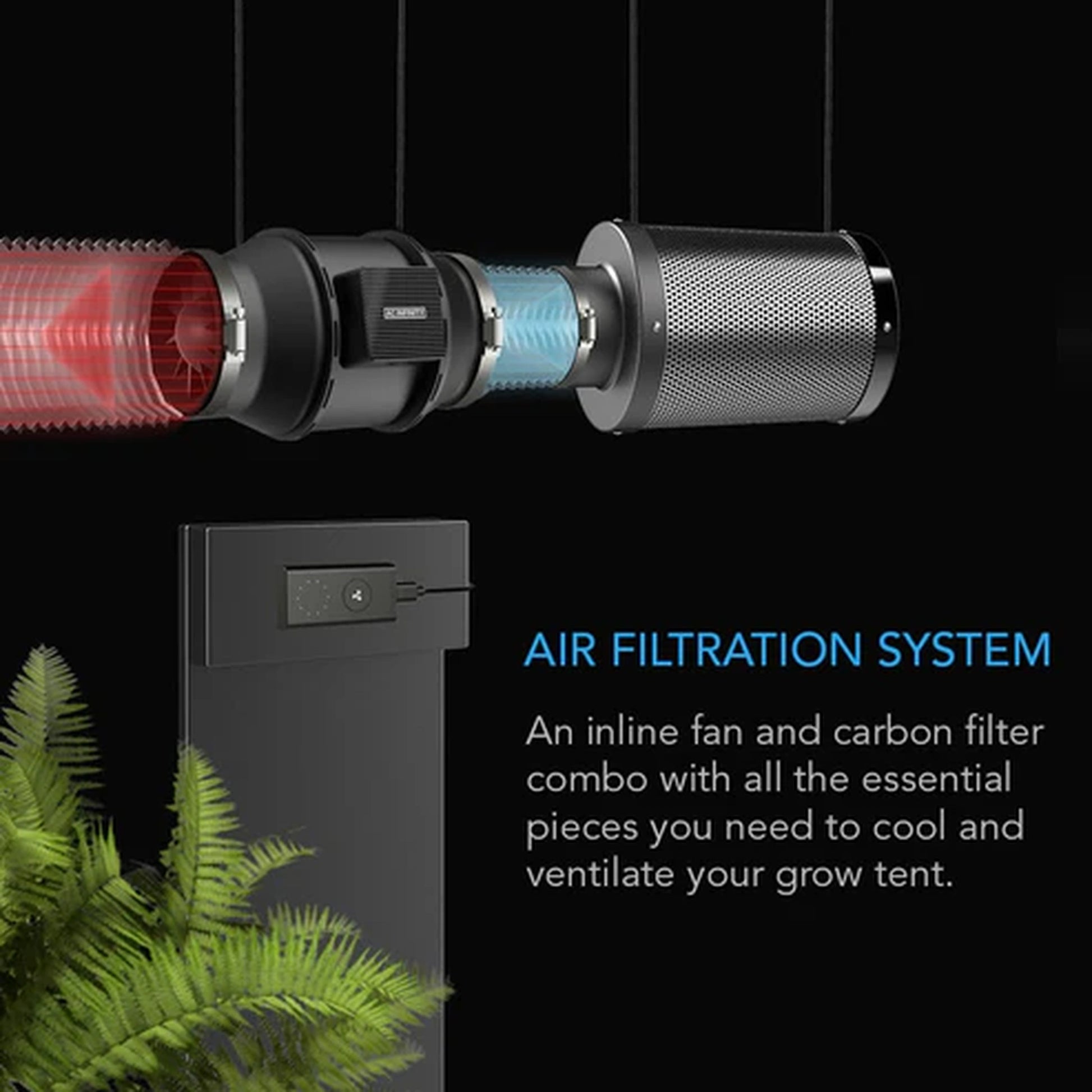

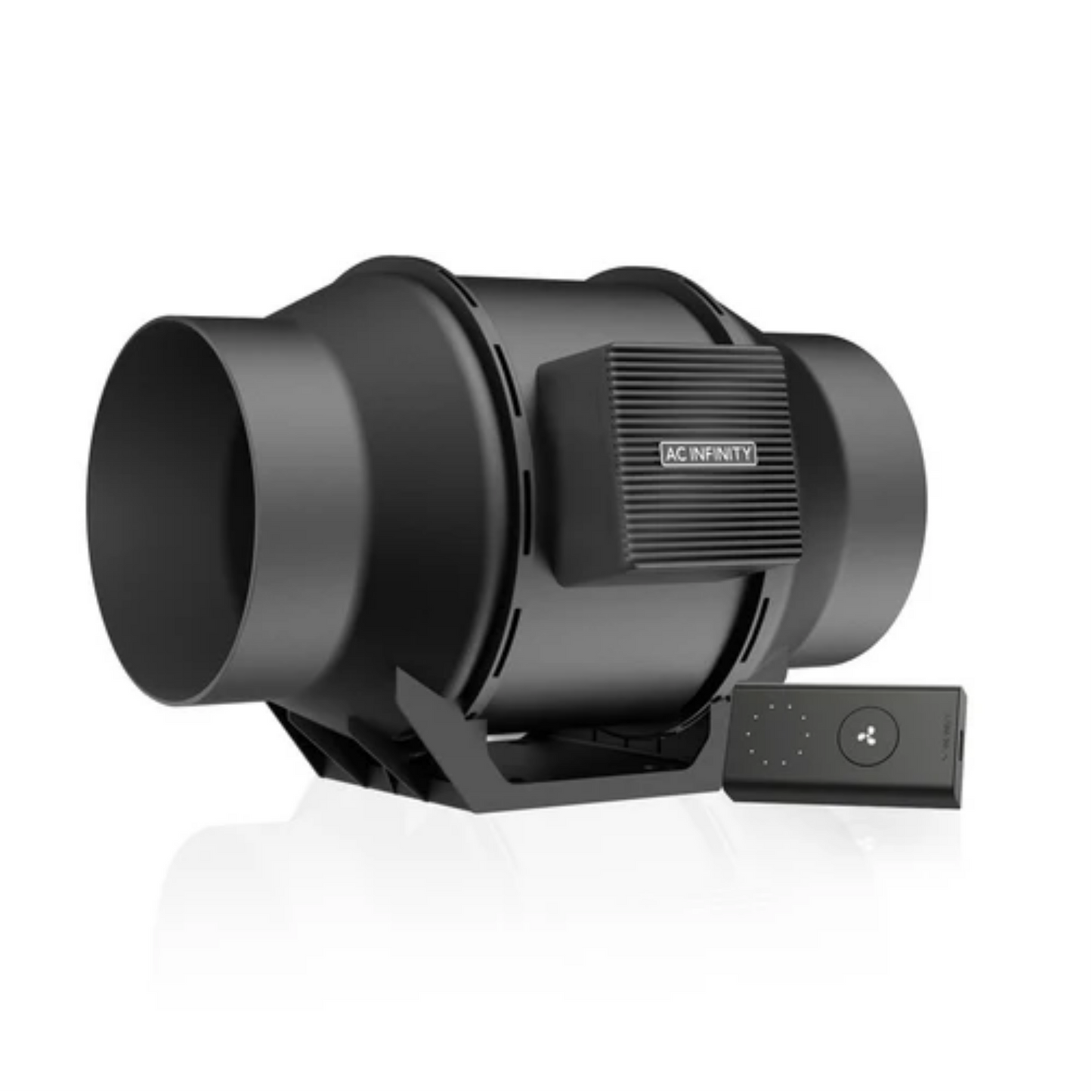

This inline fan system packs the CLOUDLINE's core innovations and premium build quality together to bring you a value package. Designed to quietly cool grow tents, rooms, and closets, and provide ventilation in various air circulation and exhaust projects. Containing an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. The motor box containing the fan's impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. The complete kit includes one inline fan unit, one-speed controller, UIS to 4-pin Molex dongle, installation manual, and all necessary mounting hardware. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

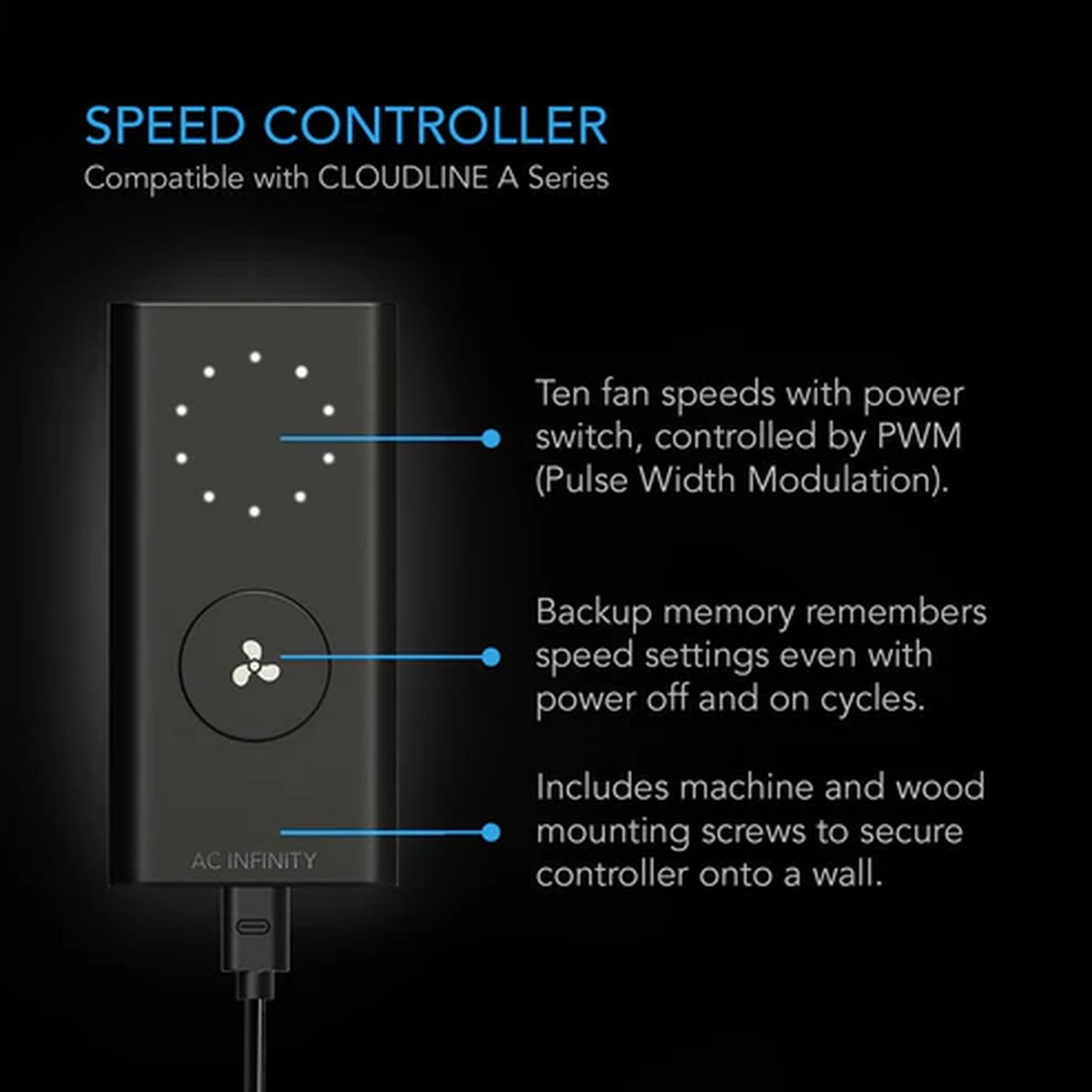

PRECISE SPEED CONTROLLER
The speed controller enables you to set the duct fan's speed to optimal noise and airflow levels for various environments. This inline fan is equipped with the CLOUDLINE Series' same EC-motor that is precisely controlled using PWM (Pulse Width Modulation), which enables it to run smoothly at extremely low RPM speeds without generating motor noise. Ten-speed options are available with a power switch and backup memory. This model can be connected to the following smart controllers to share the same programming and power source as other EC-motor CLOUDLINE fans:
- B-Series Temperature Controller
- T-Series Temperature and Humidity Controller
- CONTROLLER 69
- CONTROLLER 67
Features the core innovations and build quality of the CLOUDLINE Series in a budget-friendly package, designed to ventilate hydroponic grow rooms, transfer heating/cooling, and exhaust odors.
A-Series models include a 10-speed controller and the B-Series comes with temperature and humidity programming, adjustable fan speed control, timer, and alarm system.

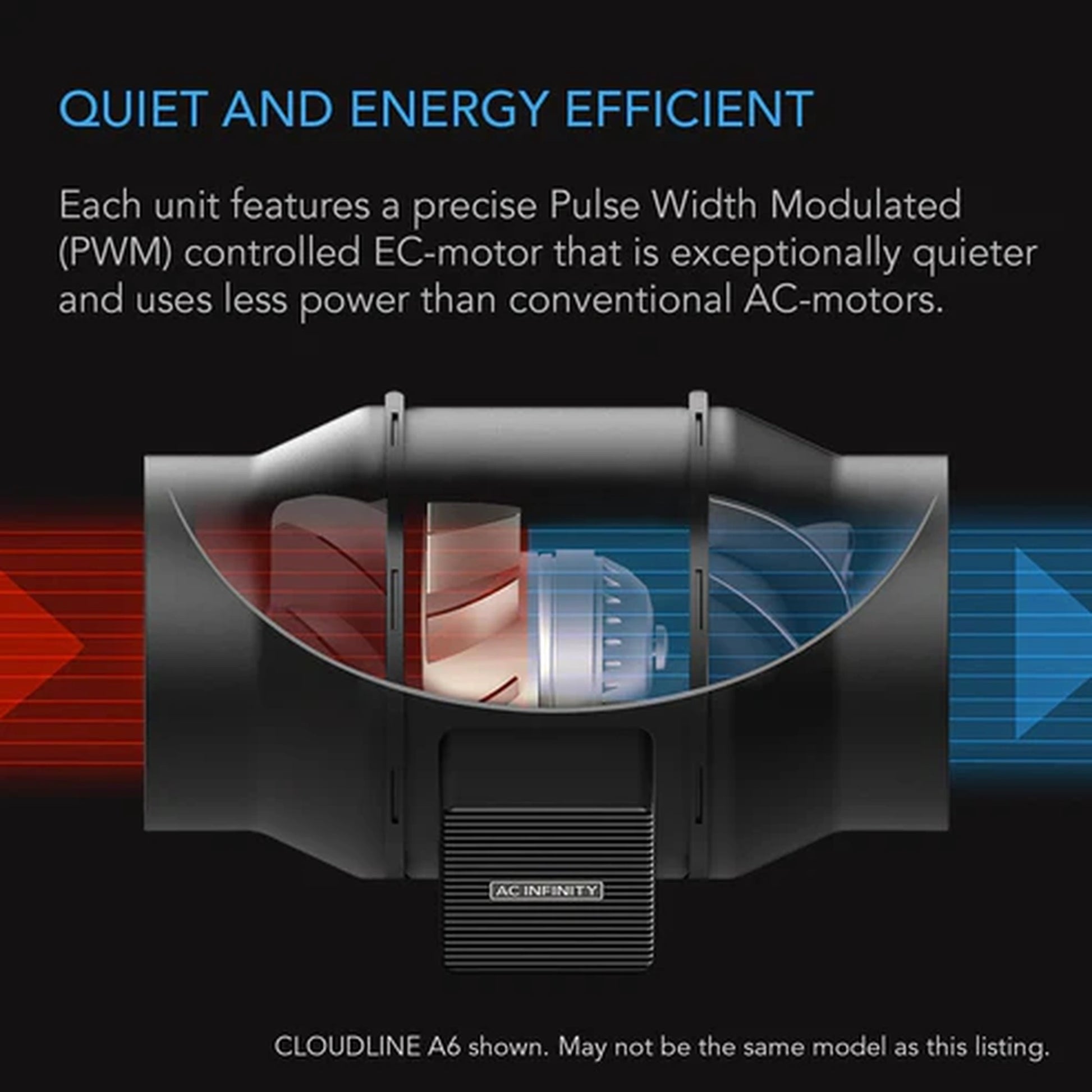

Features a high static pressure mixed flow design, combined with PWM-controlled EC-motors to ensure a quiet and energy-efficient performance.
Product Details
Product Performance And Technical Specs
| Total Airflow | 165 CFM |
| Total Noise | 29 dBA |
| Static Pressure | 324 Pa |
| Operating Voltage | 100-240V AC |
| Power | 25W |
| Current | 0.55 A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140 °F |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
Product Performance And Technical Specs
| Total Airflow | 352 CFM |
| Total Noise | 34 dBA |
| Static Pressure | 394 Pa |
| Operating Voltage | 100-240V AC |
| Power | 35 W |
| Current | 0.75A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140 °F |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
- Designed to quietly ventilate grow tents, exhaust odors, transfer heating/cooling to rooms, and cool AV closets.
- Features the same build quality and innovations as the CLOUDLINE Series delivered in a value package.
- Includes a wired 10-speed fan controller; also compatible with all CLOUDLINE Series smart controllers.
- Mixed flow design combined with an EC-powered motor for truly quiet and energy-efficient performance.

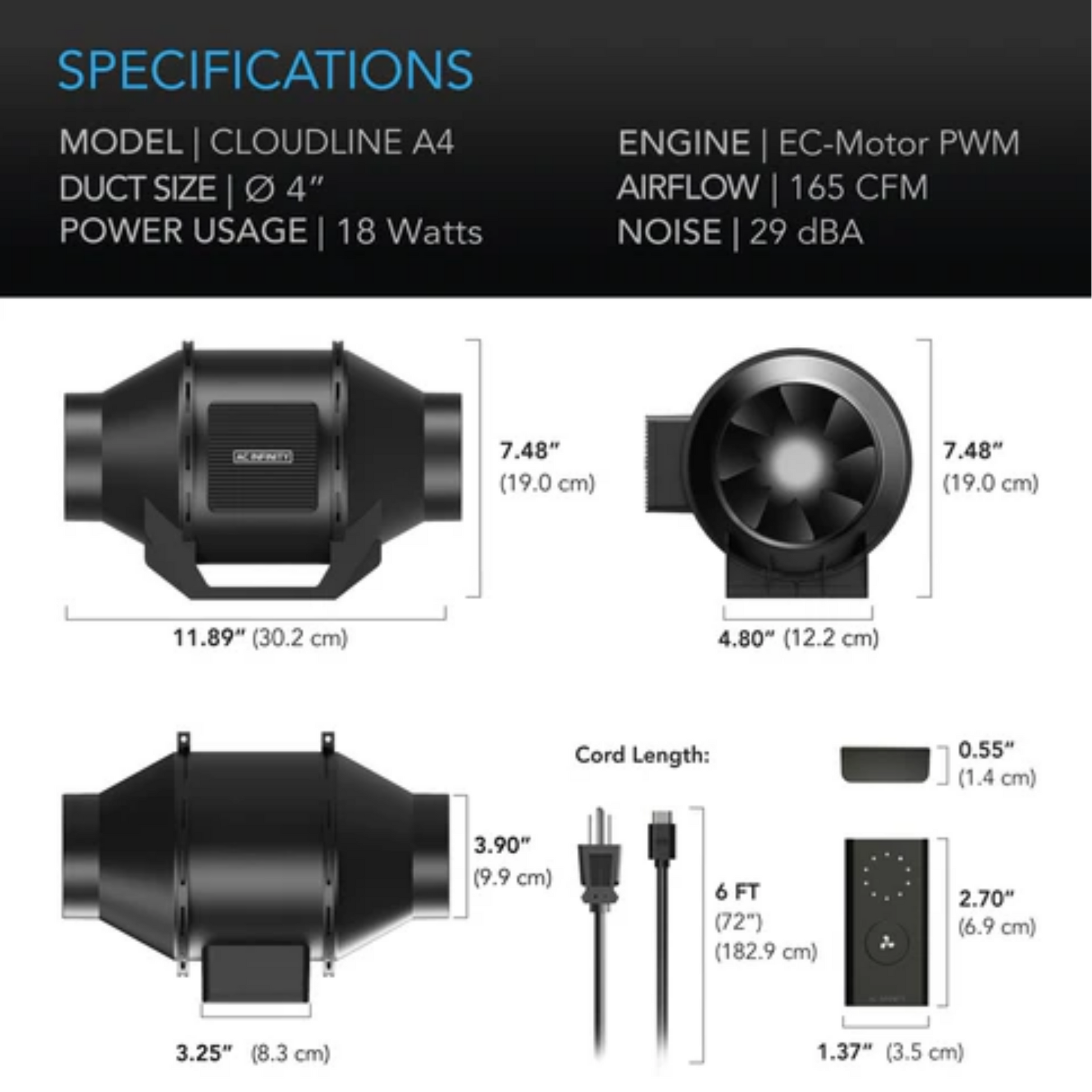

- Duct Size: 4” | Dimensions: 6.9 x 11.9 x 7.4 in. | Airflow: 165 CFM | Noise: 29 dBA | Bearings: Dual Ball

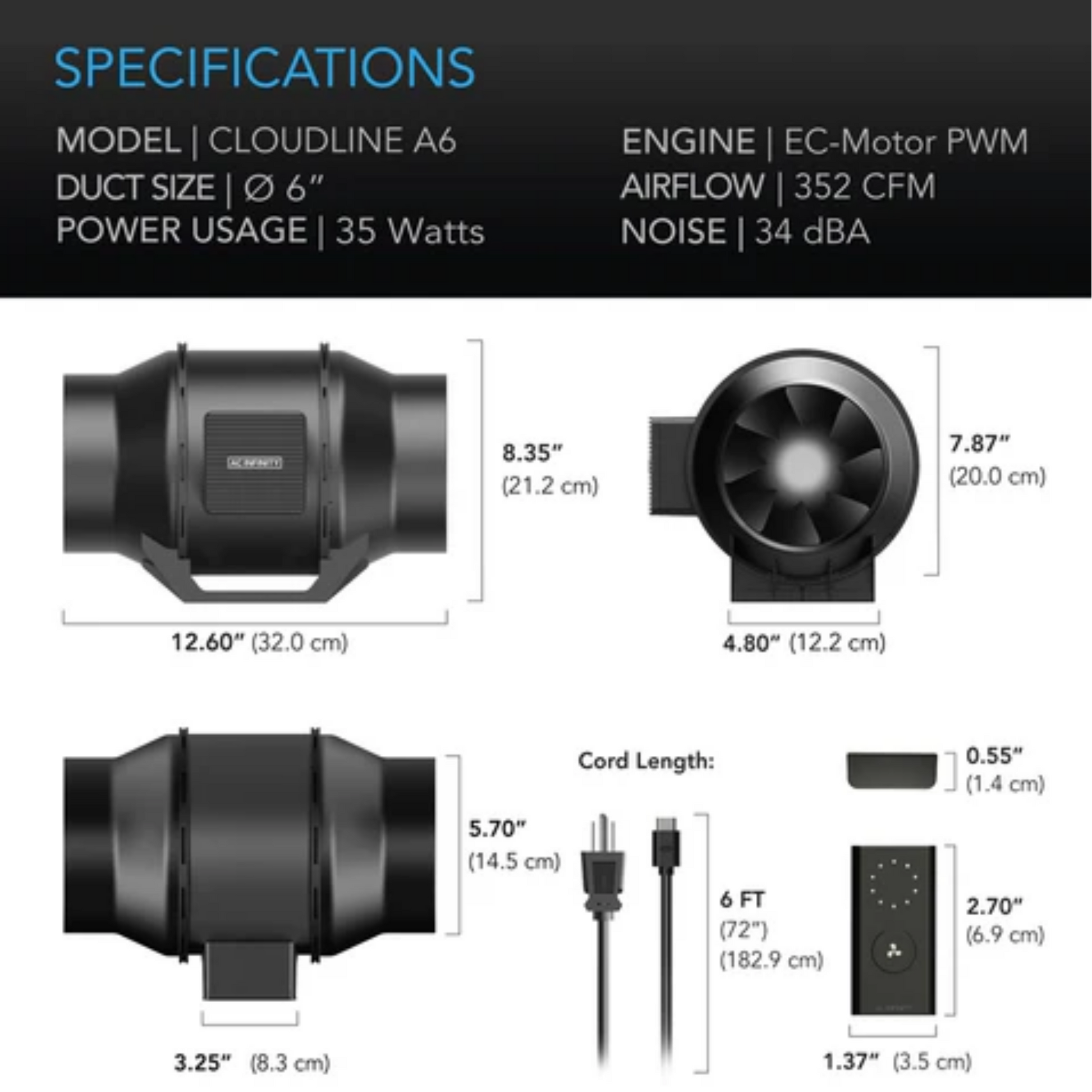

- Duct Size: 6" | Dimensions: 7.9 x 12.6 x 8.4 in. | Airflow: 352 CFM | Noise: 34 dBA | Bearings: Dual Ball
