AC Infinity Controller 63 Wireless Fan Speed Remote

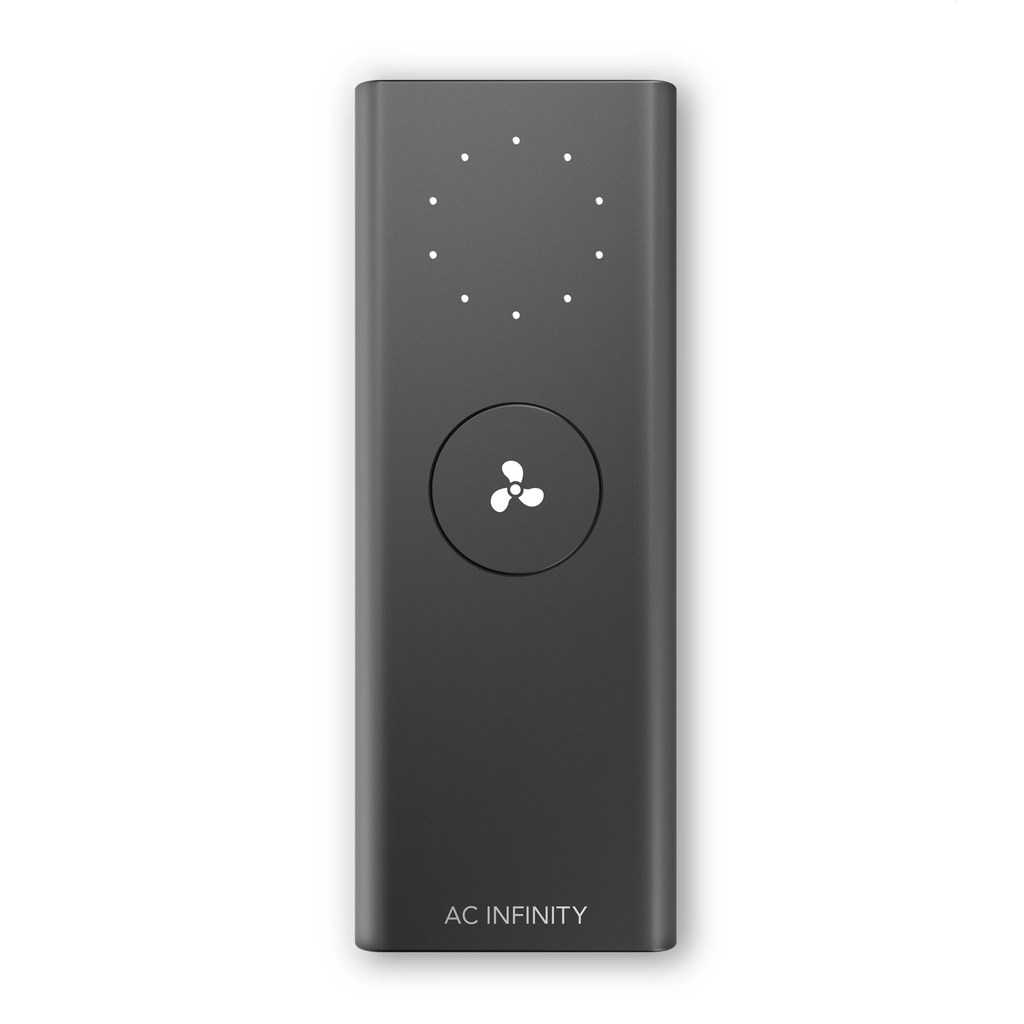

This kit pairs a battery-powered remote with a small receiver that plugs into an AC Infinity fan's UIS connector. The receiver draws its power from the fan, so nothing else needs an outlet. Press the button to step through 10 speeds, shown on a ring of white LEDs that climbs clockwise. Speed is set by PWM, which adjusts airflow while keeping fan noise in check. An onboard memory chip holds the last speed through a power cut and resumes it when the fan comes back on. The pair talks over a 433 MHz signal with a range of up to 130 ft when nothing is in the way. Pairing takes a few seconds: slide the three pins on the remote and the receiver to the same numbers. Match more receivers to the same pins, and one remote sets the speed of several fans at once. Extra receivers are sold separately. It works with CLOUDLINE inline fans, AIRLIFT shutter fans, CLOUDWAY whole house fans and CLOUDLIFT floor fans. Each fan takes one receiver or one wired controller, never both on the same fan. AC Infinity backs the kit with a two-year warranty.

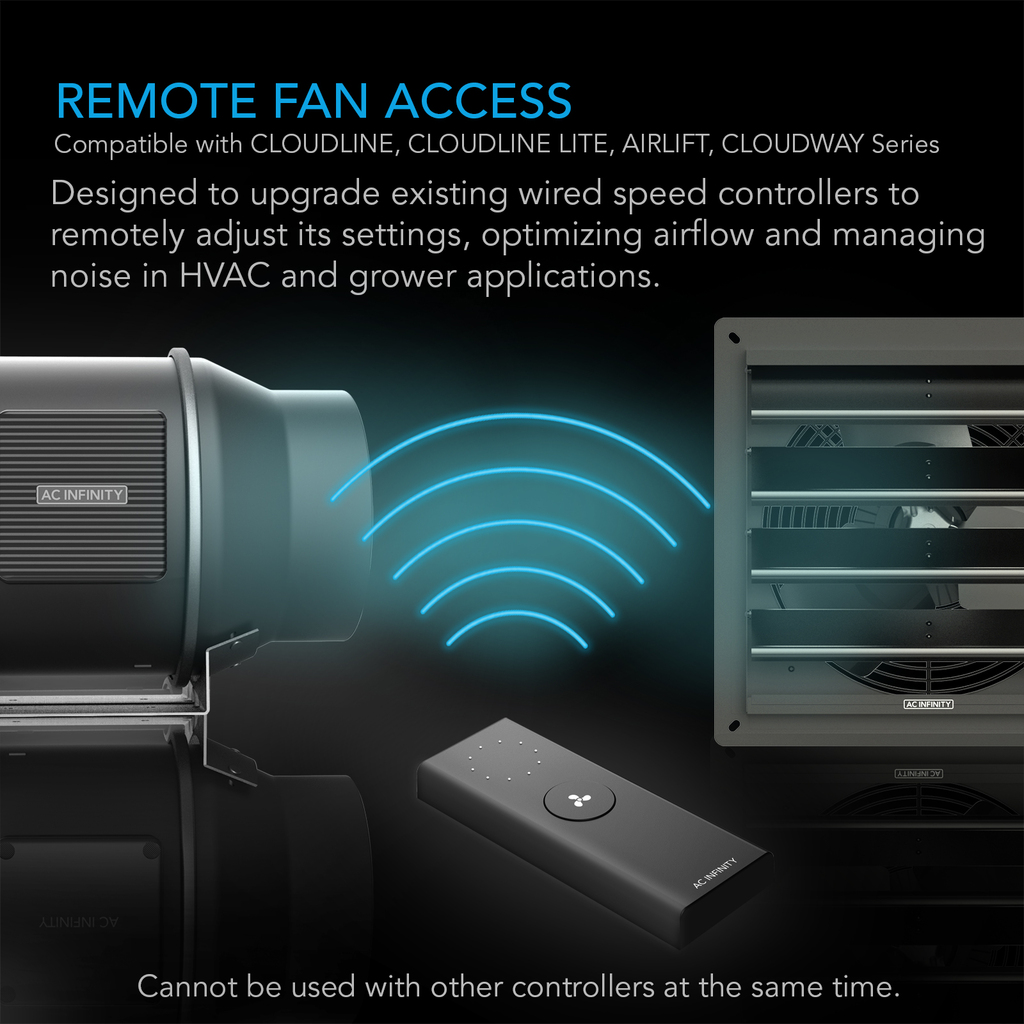

Using a Wireless Remote Fan Controller on Hard-to-Reach Fans

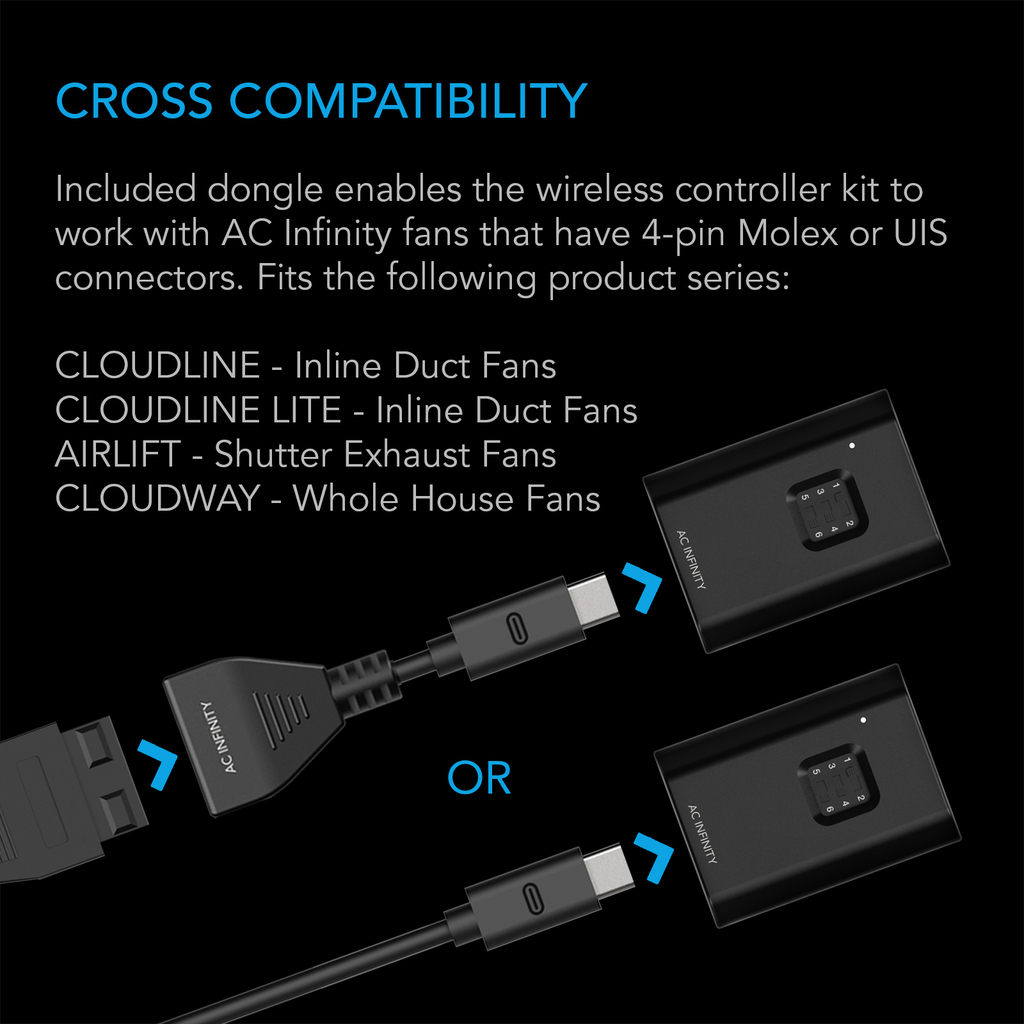

The kit earns its keep on fans hung high in a tent corner, mounted in an attic, or ducted through a wall. Unplug the fan's wired controller, plug the receiver into the fan's UIS lead, and tuck it along the duct. Fans with a 4-pin Molex lead connect to the receiver through a Molex adapter. Load two AAA batteries in the remote and match the pin sliders before testing. The receiver's indicator light flashes once the two are talking. Screw the remote to a wall by the door with the included wood screws, so the speed is set without opening the tent. Lowering exhaust speed at lights-off holds temperature without pulling the room too cold. Raising it during a heat wave takes one press instead of a climb. Walls, metal duct and reflective tent fabric cut into the range, so test the remote from where you plan to use it. Keep spare batteries on hand, since a dead remote leaves the fan at its last speed. The receiver needs a dry spot, as it is rated for 35 to 85% humidity.
Key Features
- 10-Speed PWM Control: Steps airflow up or down while keeping fan noise in check.
- Speed Memory: Holds the last setting through a power cut and resumes it.
- Long Range: Reaches up to 130 ft over 433 MHz when unimpeded.

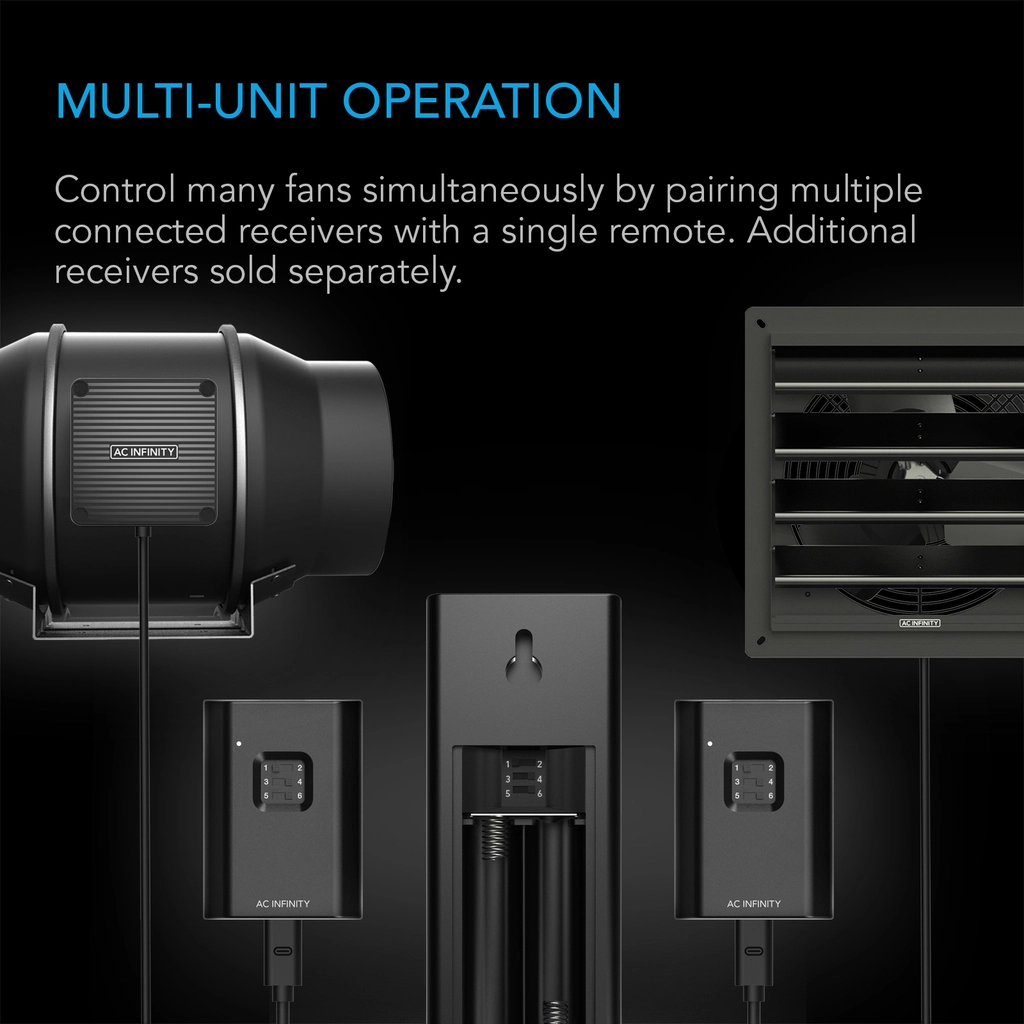

- Multi-Fan Pairing: Add receivers on matching pins to run several fans from one remote.
- Fan-Powered Receiver: Plugs into the UIS connector and draws power from the fan.

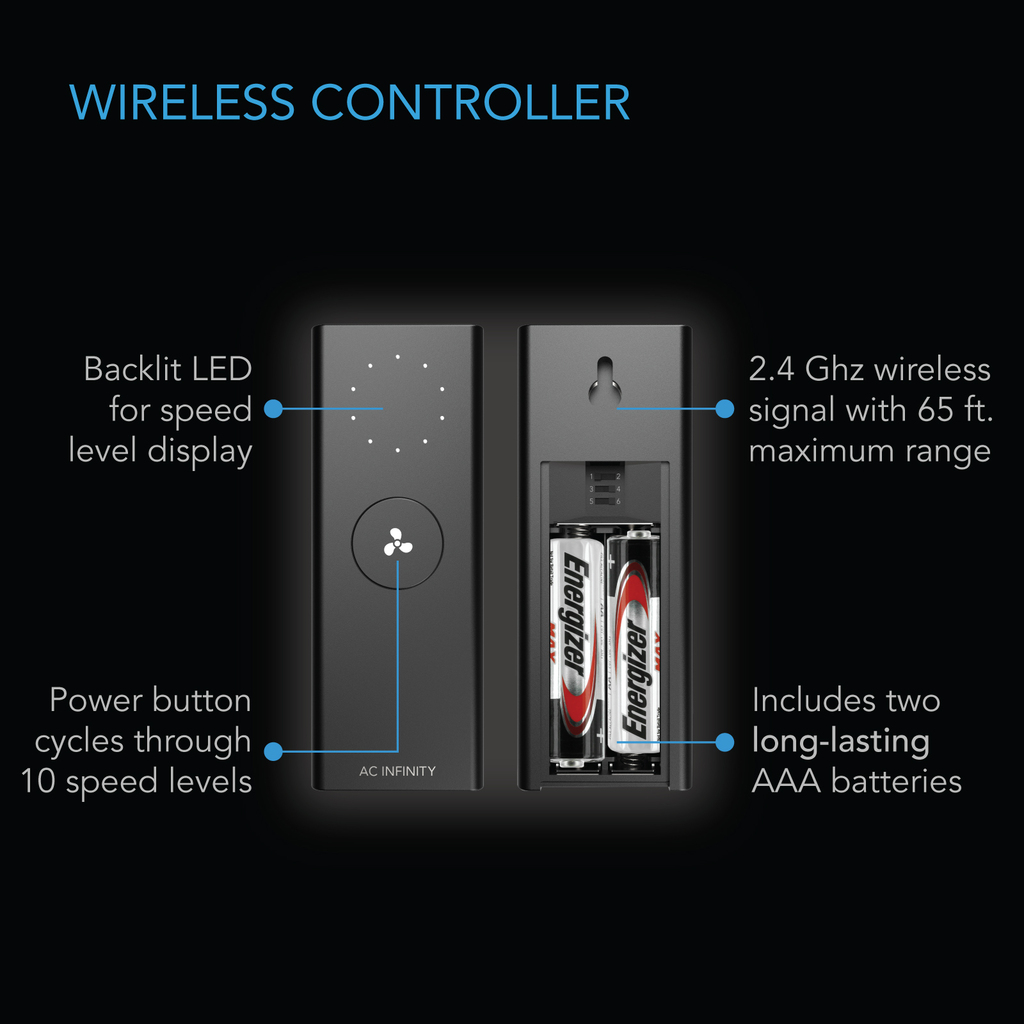

- Wall-Mount Remote: Runs on two AAA batteries and mounts with included screws.

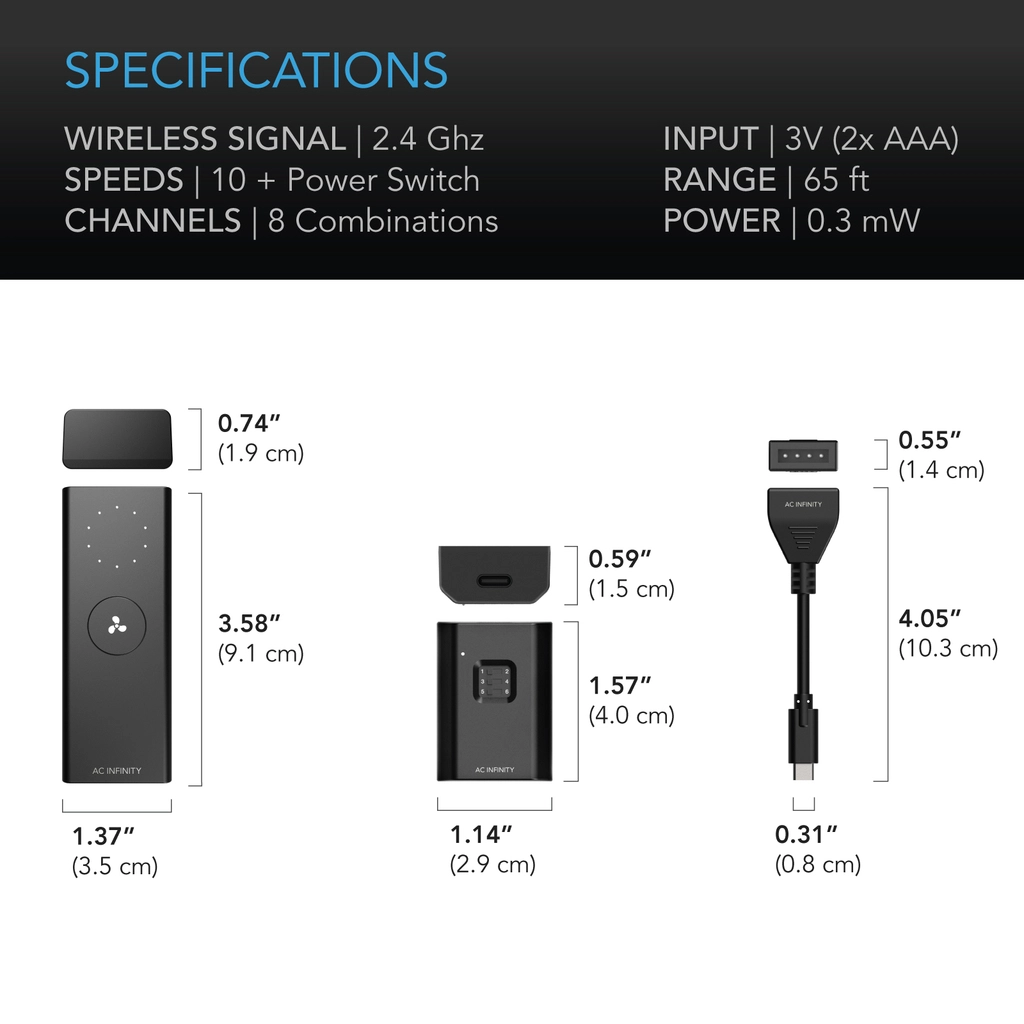

Technical Specifications
| Specification | Value |
|---|---|
| Brand | AC Infinity |
| Model | CTR63A |
| UPC | 819137021730 |
| Speeds | 10, PWM |
| Wireless signal | 433 MHz |
| Signal range | Up to 130 ft (40 m), unimpeded |
| Fans per receiver | 1 |
| Remote power | 2 AAA batteries (included) |
| Receiver power | 8 to 15V from the fan, 10 mA |
| Remote dimensions | 3.59 x 1.37 x 0.75 in |
| Receiver dimensions | 1.14 x 1.57 x 0.59 in |
| Mounting hole | 0.25 in |
| Operating humidity | 35 to 85% RH |
| Compatible fans | AC Infinity CLOUDLINE, AIRLIFT, CLOUDWAY, CLOUDLIFT |
| Warranty | 2 years |
