What a 115 Gallon Reservoir Cover Is Actually Holding Back
Light, mostly. An open tank of nutrient solution under room lighting grows algae within days. On 115 gallons that is a lot of volume to dump and scrub. The cover is 52.75 x 47.25 x 1.25 in in white ABS, seating inside the rim of the matching premium reservoir. Evaporation and airborne debris are the other two things it stops.

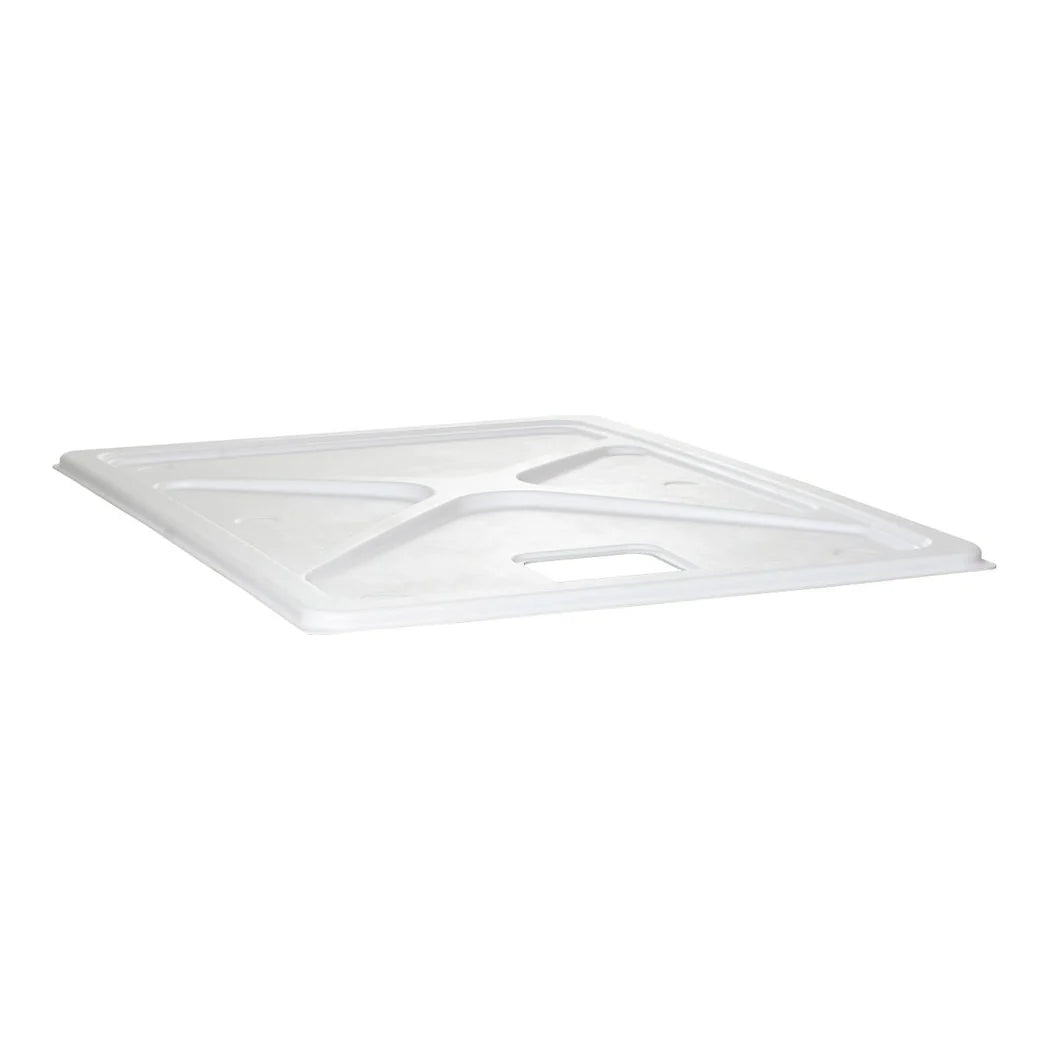

How the Hydroponic Reservoir Lid Is Shaped, and Why
The panel is slightly convex and ribbed rather than flat, which does two jobs at once. Ribbing stiffens a sheet this wide so it does not sag into the solution when something gets set on it. The convex face sheds anything that lands on top. Because the lid sits inside the tank rim rather than over it, condensate and spill run back into the reservoir. Nothing tracks down the outside wall onto the floor. That geometry is the difference between a proper hydroponic reservoir lid and a sheet of coroplast cut to size. There is an access port hole for topping off, dropping in a probe or checking level without lifting the panel. The port hole cover is a separate part. Around it are multiple drill access points, marked spots for running pump cords, float valves or meter leads through without cracking the sheet. The reservoir bottom is sold separately as well. Profile is only 1.25 in, so it still slides under a flood table.
Key Features
- 52.75 x 47.25 x 1.25 in: Sized to the Active Aqua 115 gallon premium white reservoir, sold separately.
- Blocks light, so it blocks algae: An open tank under room lighting greens up fast. 115 gallons is a lot to dump.
- Convex and ribbed: Stiffens the panel against sagging and sheds anything that lands on top.
- Seats inside the rim: Water on the lid runs back into the tank rather than down the outside wall.
- Access port hole: Top off, drop a probe or read level without lifting. Port hole cover is separate.
- Multiple drill access points: Marked spots for pump cords, float valves and meter leads. 1.25 in profile.
Technical Specifications
| Specification | Value |
|---|---|
| Size | 115 gallon |
| Dimensions | 52.75 in x 47.25 in x 1.25 in |
| Colour | White |
| Material | High impact ABS, UV resistant |
| Panel Shape | Slightly convex, ribbed |
| Seating | Inside the reservoir rim |
| Port Hole | Yes; port hole cover sold separately |
| Drill Access Points | Multiple, for cords, valves and meters |

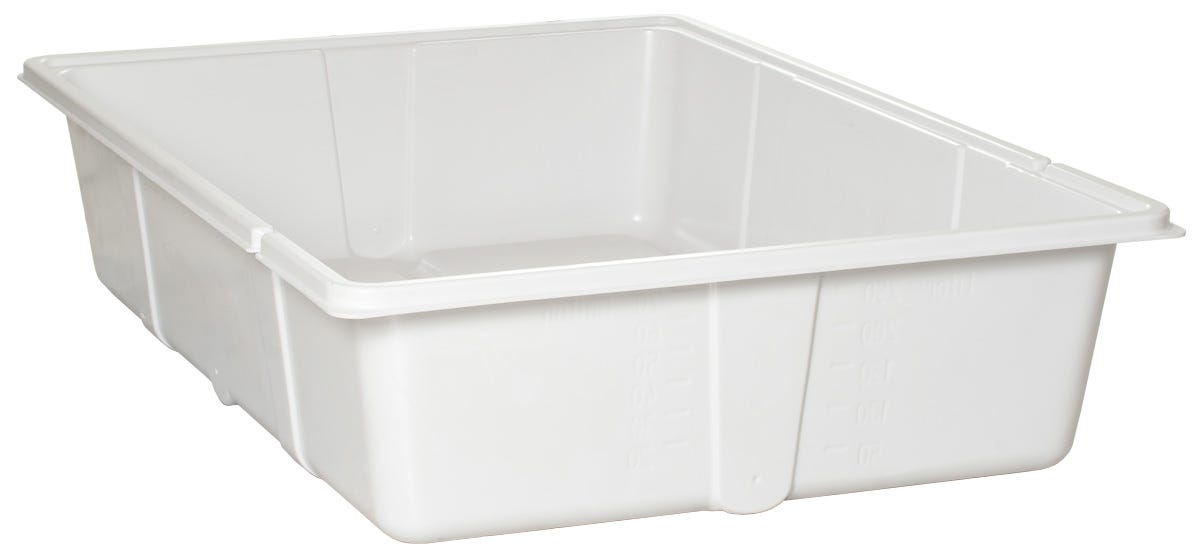

| Reservoir | Sold separately |
| Part Number | HGRES115PWC |
| Other Sizes | 20, 40 and 70 gallon covers |
