AC Infinity Advance Grow Tent System 2x2 | AI+ Controller, 115W LED

AC Infinity Advance Grow Tent System 2x2 With Room to Stretch

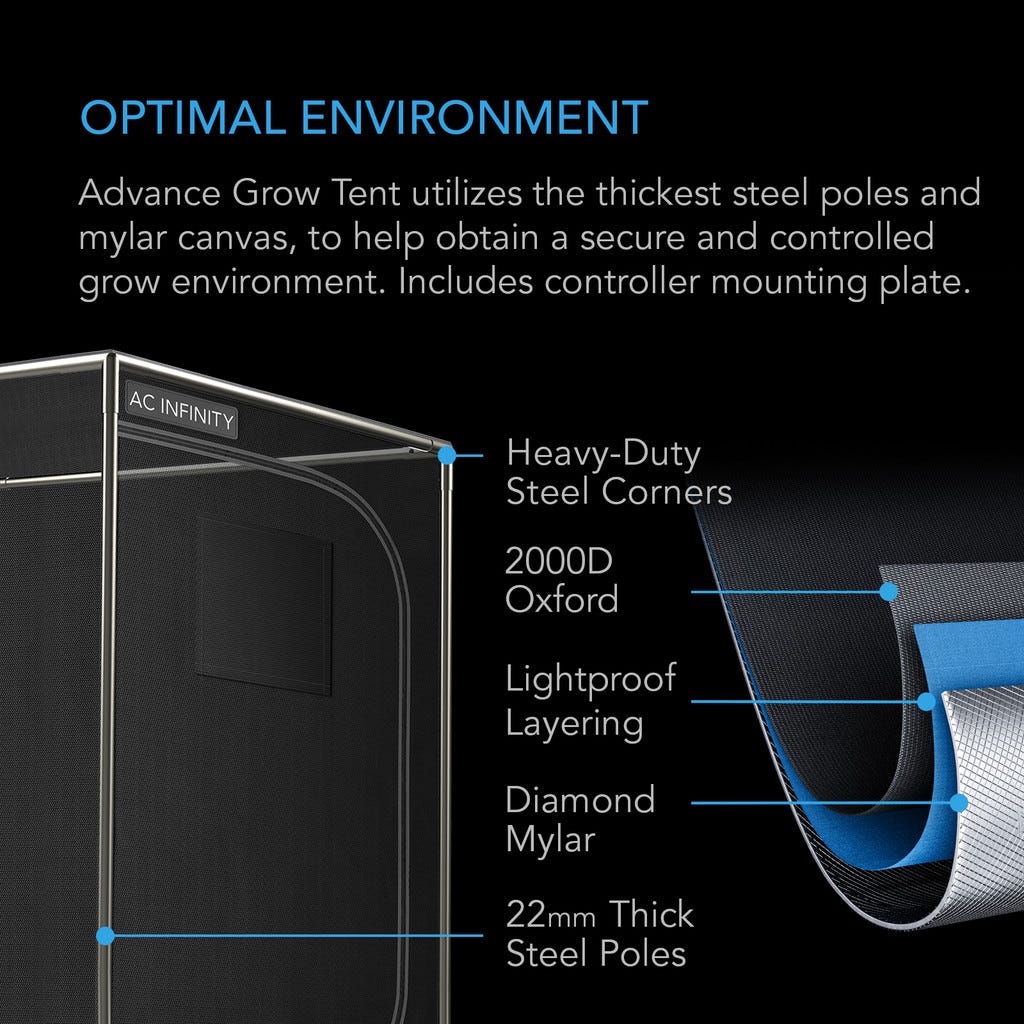

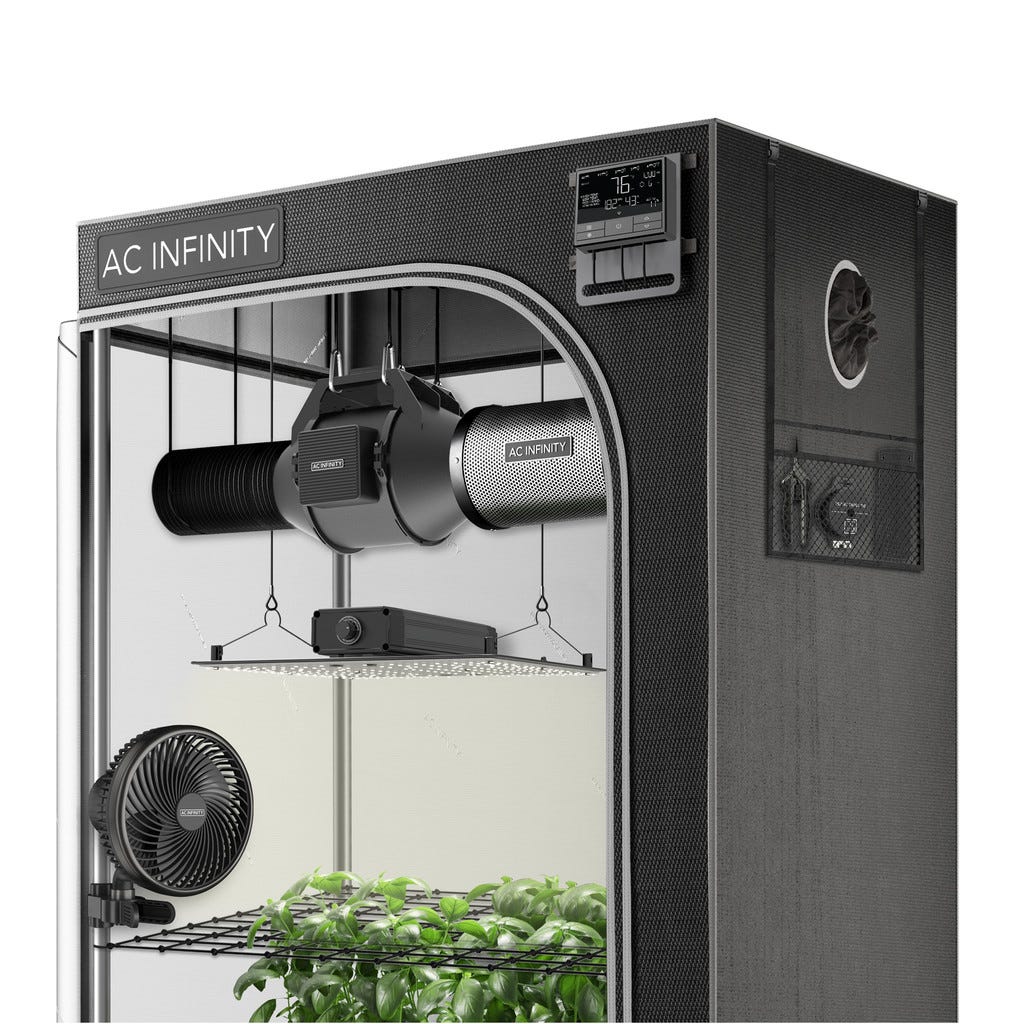

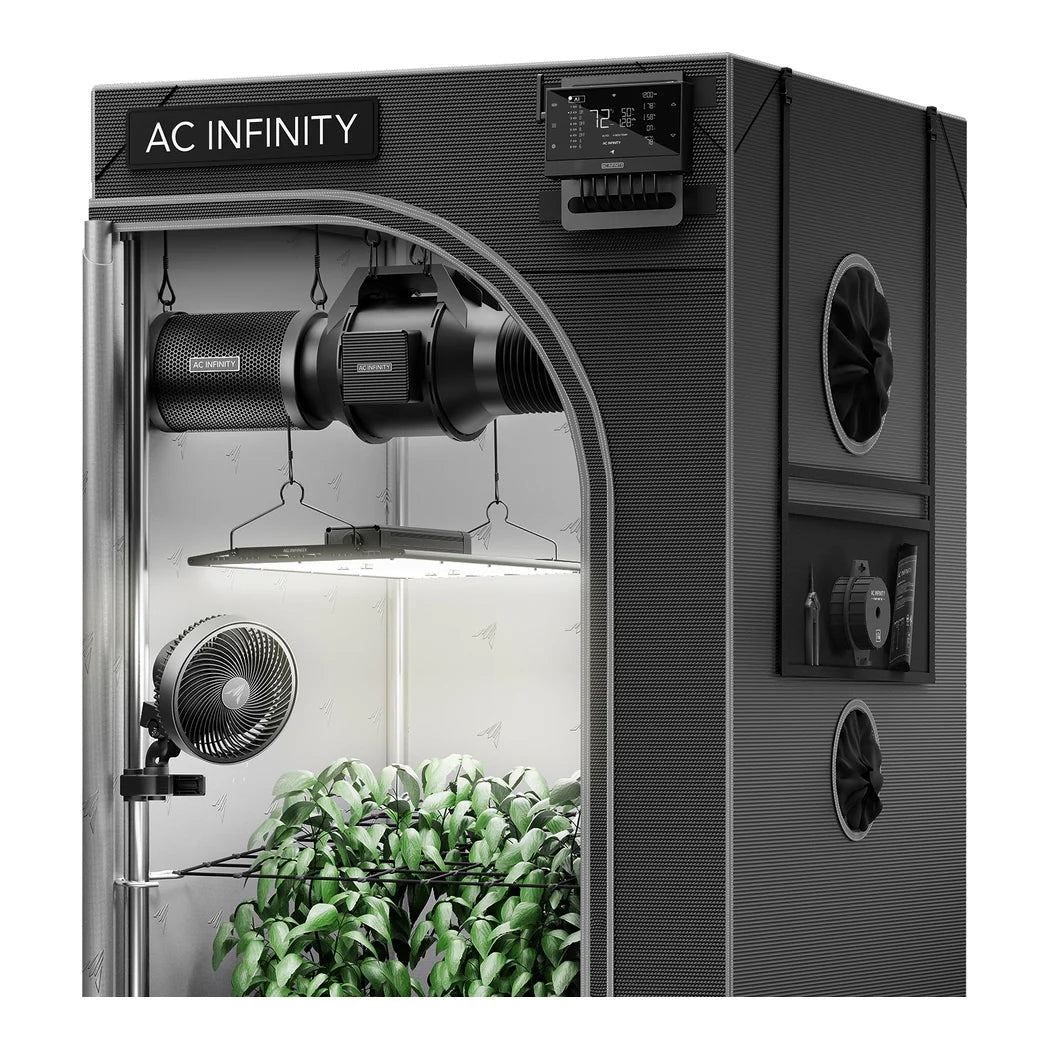

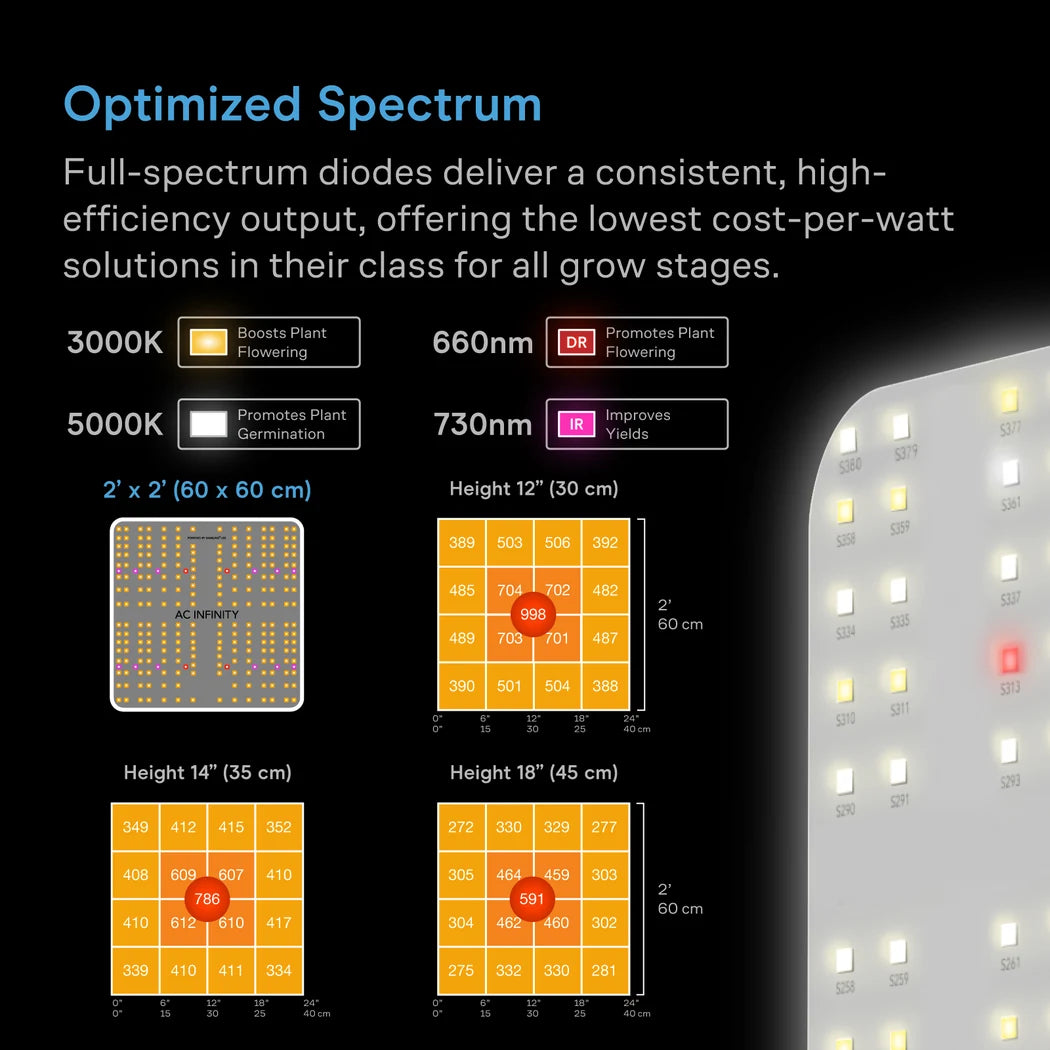

Photoperiod plants stretch in early flower, and this system gives that stretch somewhere to go. The CLOUDLAB 722 tent measures 23.62 x 23.62 x 70.86 inches, so a single plant can reach full size with the board still hanging clear above it. Its 22 mm steel poles carry 250 lb across three hanging bars. The viewing window runs 39.37 inches tall, which makes canopy checks possible without unzipping the door. Four 4-inch and three 6-inch duct ports leave space to reroute the exhaust or add a passive intake later. Lighting is the IONBOARD S22, a 115W board carrying 272 Samsung LM301H diodes rated at 2.7 µmol/J. The spectrum blends 3000K and 5000K white with 660 nm and 730 nm diodes, and the center of the footprint reaches 998 PPFD. The CLOUDLINE A4 exhaust moves 165 CFM at 29 dBA, pulling through a bed of 38 mm Australian RC412 carbon. On the canopy, a CLOUDRAY S6 clip fan pushes 325 CFM and oscillates through a ninety-degree arc. Everything plugs into the CONTROLLER AI+, which handles eight devices and reads a 12 ft temperature and humidity probe. At full output the board pulls 0.94 A on a standard 120V outlet. That leaves plenty of room on one household circuit.

A 2x2 Grow Tent Kit Built Around One Controller

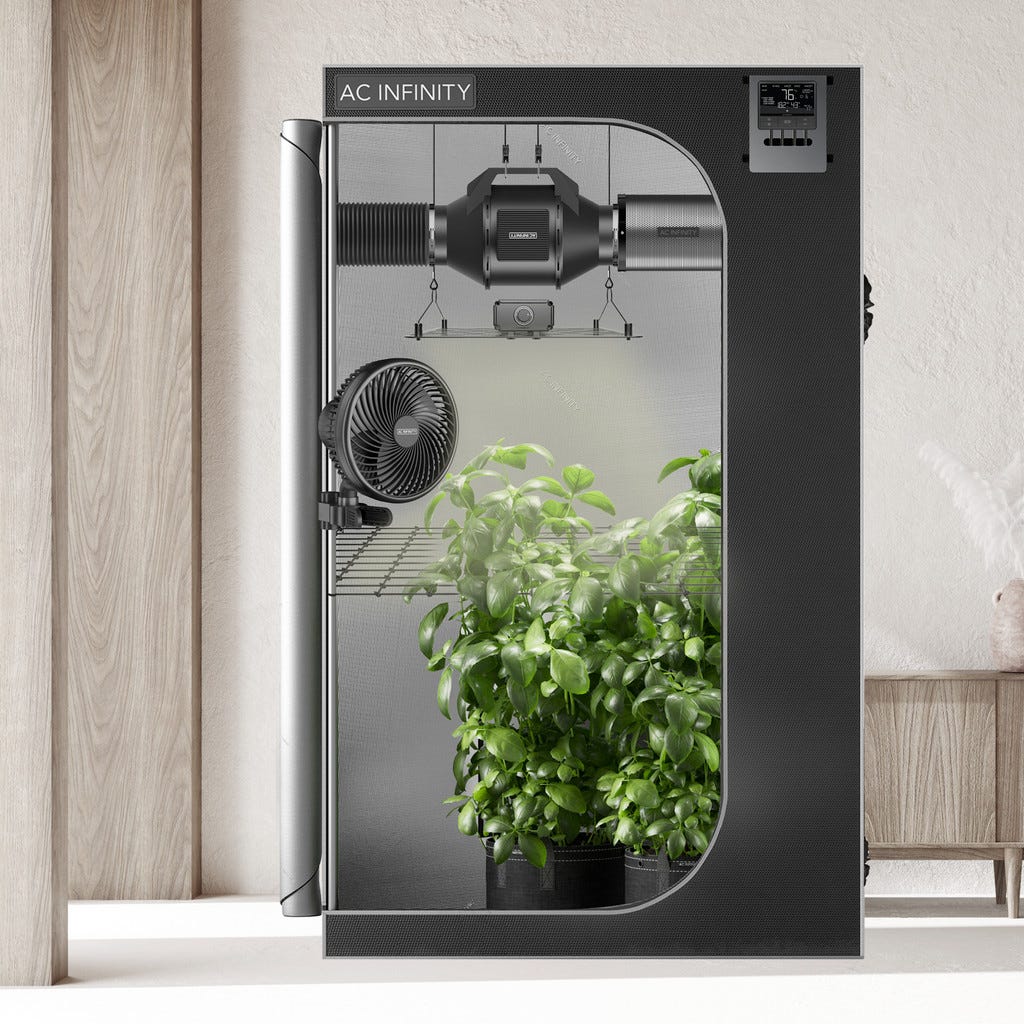

Think of the system as one machine rather than six separate boxes. The controller treats each fan and the light as a device on its own port, each with its own program for speed or brightness. Triggers can follow temperature, humidity or VPD, and AI mode reads how the tent reacts before it pre-adjusts the exhaust. Because programs are stored on the controller, the light schedule keeps running through a Wi-Fi outage. Hang the board from the top bar with the rope clip hangers, and keep it high while the plant is young. Growers usually bring it down toward the 12 to 18 inch band covered by the PPFD maps once the canopy fills the pot. The extra height also changes how heat sits in the tent. Warm air pools near the roof, so the filter and fan go on the top bar while the clip fan works lower down. Two 5-gallon fabric pots, a trellis net, twist ties and micro-tip snips handle the plant side of this 1-plant grow tent. A 2x2 footprint fits one plant comfortably, and a second plant usually costs more in airflow than it returns in yield. Running two means training both hard and accepting a smaller harvest from each. For a first automated grow tent, the learning curve sits in the app rather than the hardware.

Key Features

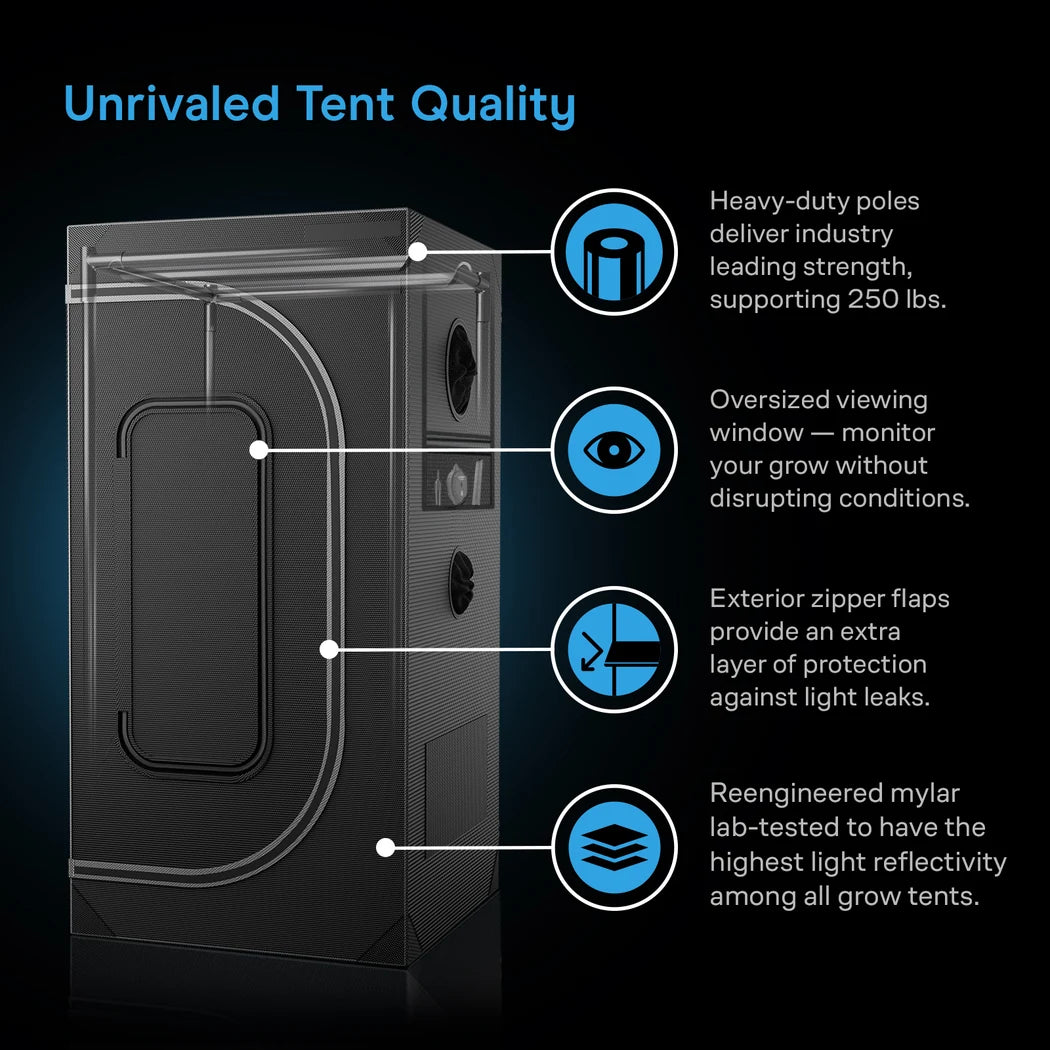

• CLOUDLAB 722 Tent: A six-foot Oxford tent with Mylar lining, a tall window and three hanging bars gives one plant full vertical room.

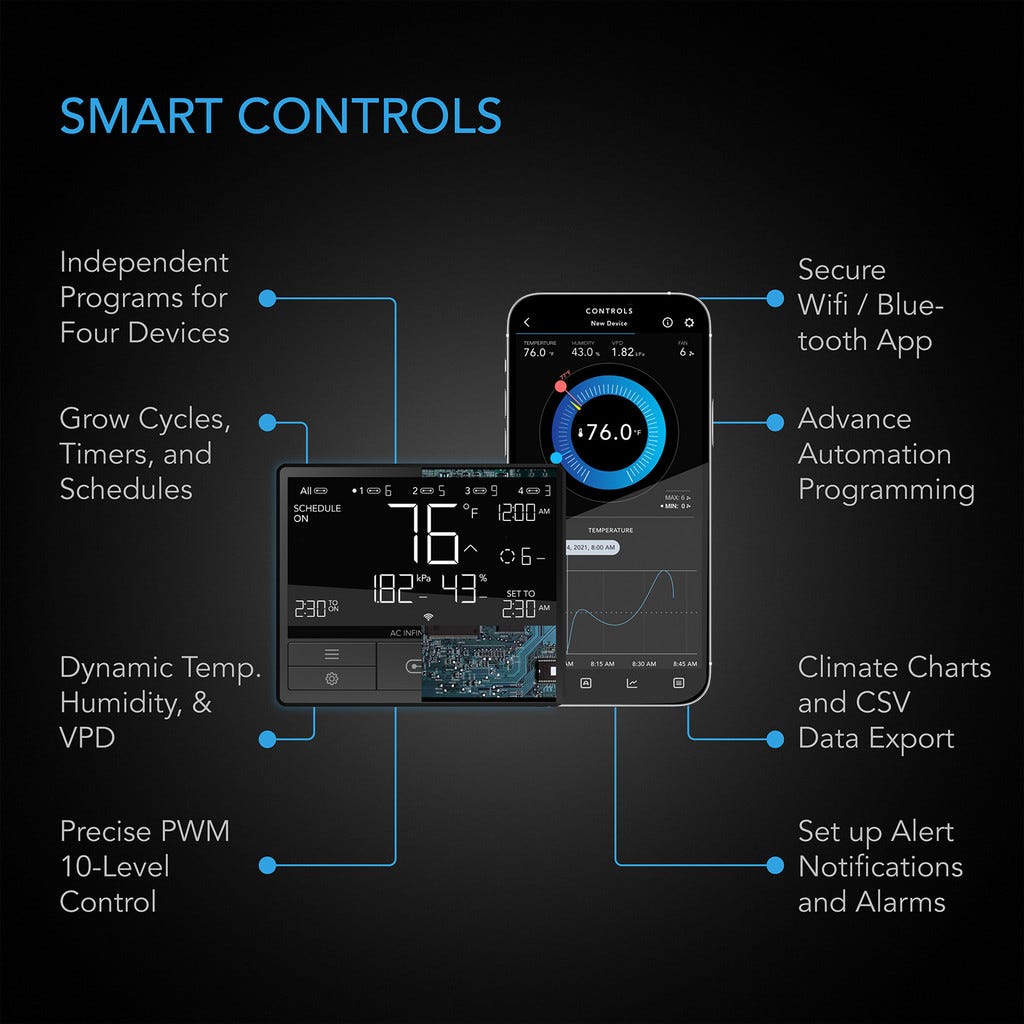

• CONTROLLER AI+: Runs up to eight devices with individual programs for temperature, humidity and VPD, from the touch display or the app.

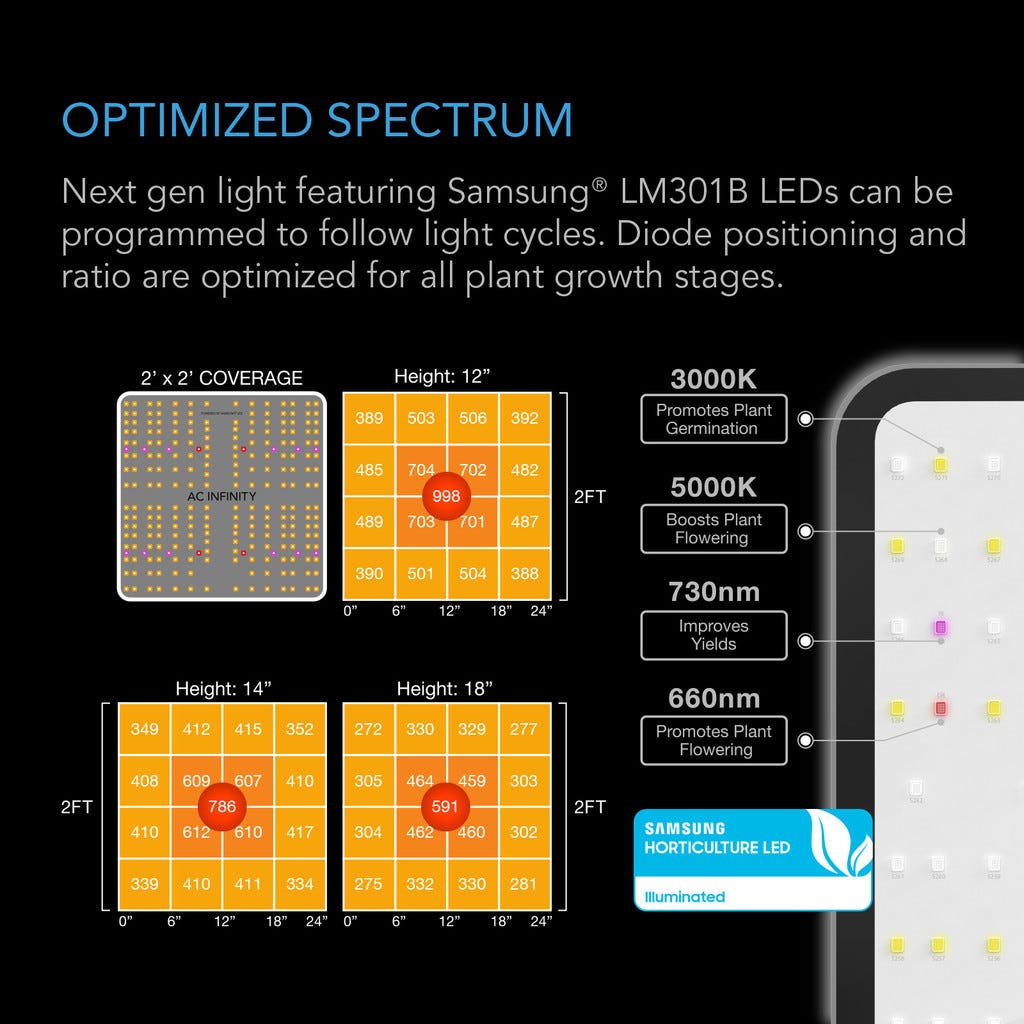

• IONBOARD S22 LED: Samsung LM301H white diodes plus 660 nm red and 730 nm far red, dimmable from the controller, cover the whole tent floor.

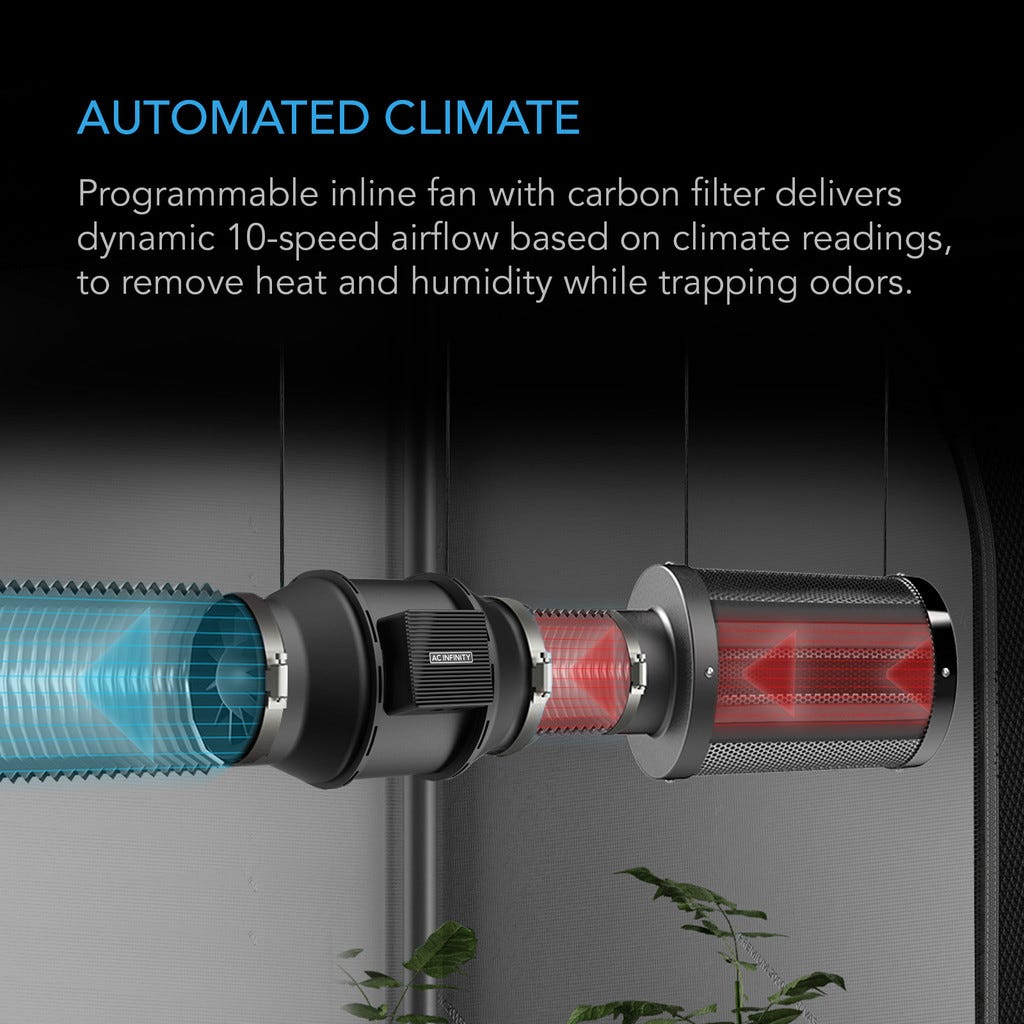

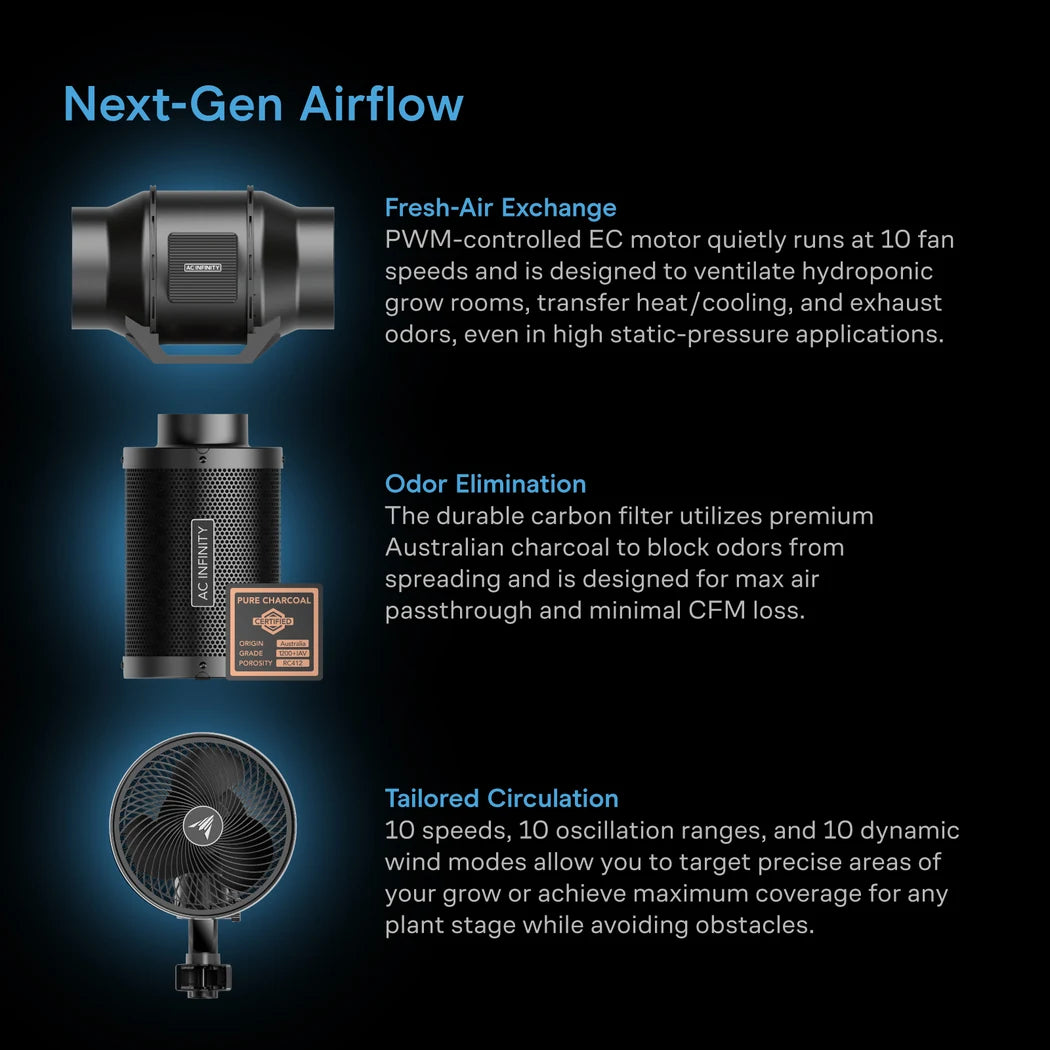

• CLOUDLINE A4 Exhaust: A ten-speed EC fan matched to a 4-inch carbon filter keeps the tent under slight negative pressure and the odor inside.

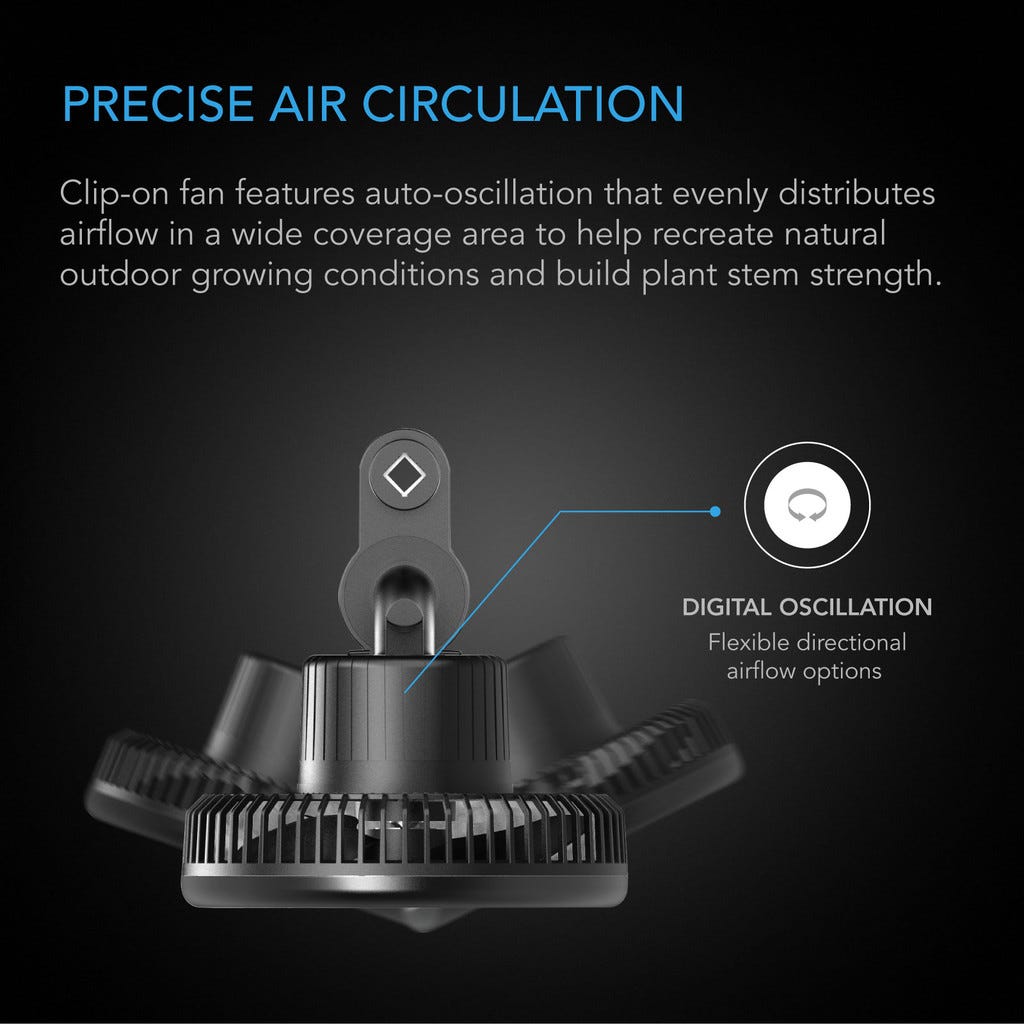

• CLOUDRAY S6 Clip Fan: An oscillating clip fan with ten speeds clamps to a pole and keeps fresh air moving through the canopy.

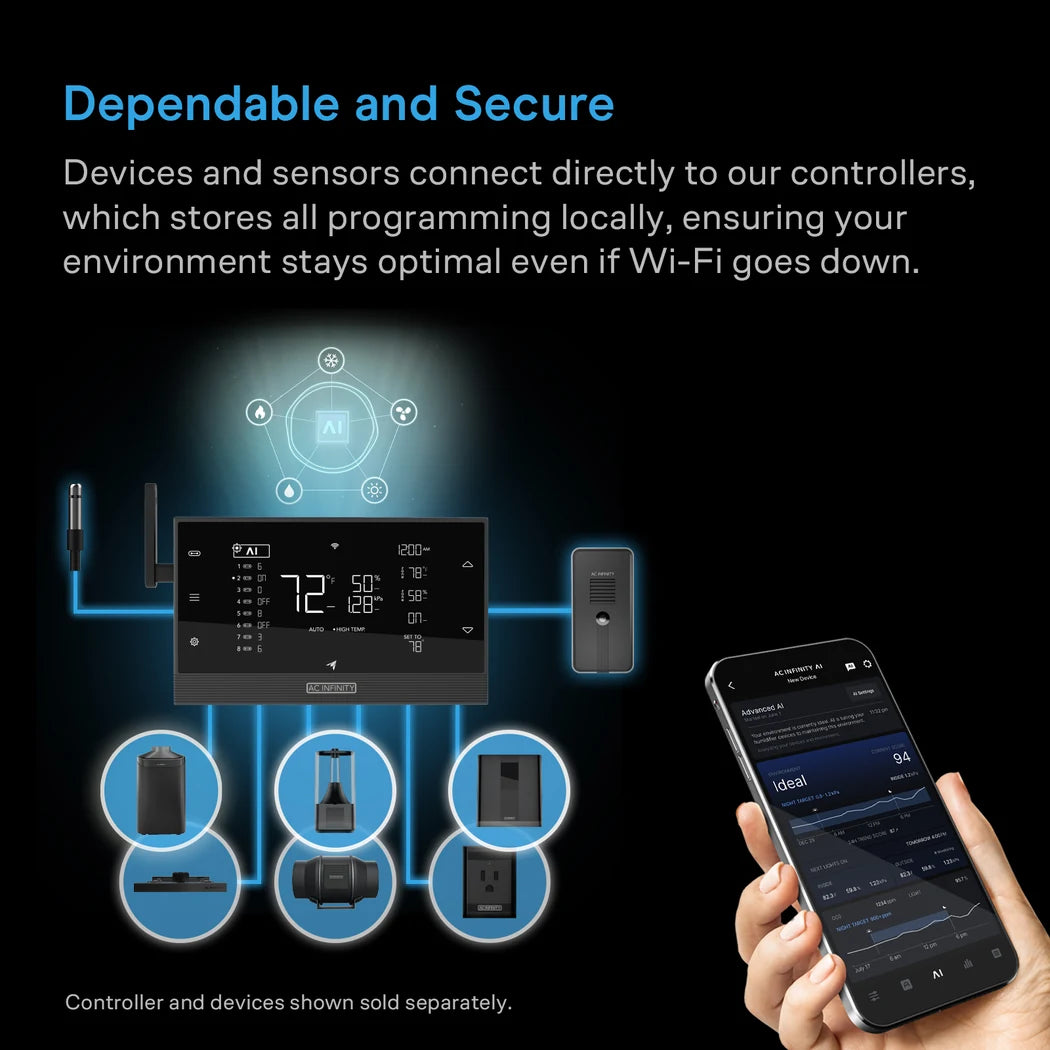

• Local Program Storage: Schedules live on the controller, so lights and fans keep cycling when the home network goes down.

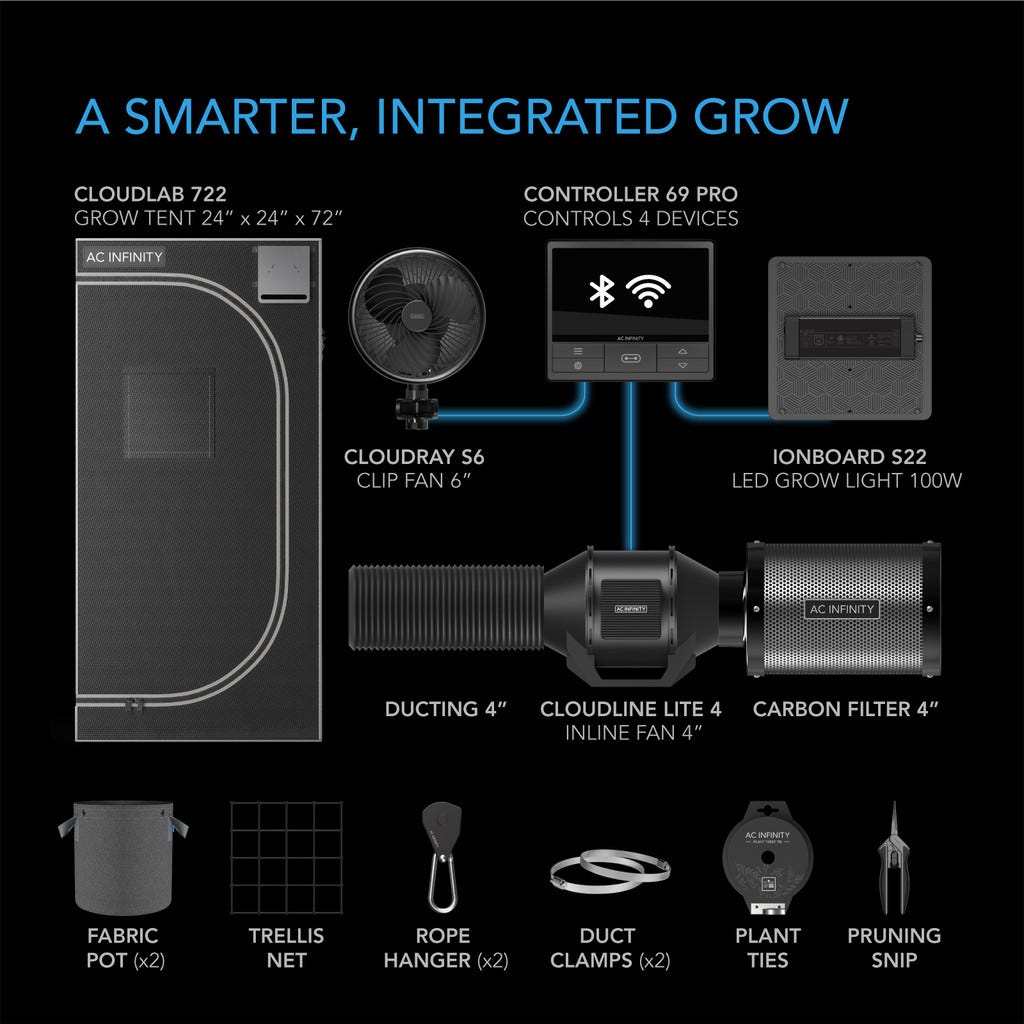

• Hardware Included: Ducting, steel clamps, duct tape, hanging straps, rope hangers, fabric pots, trellis net and pruning snips come in the kit.
