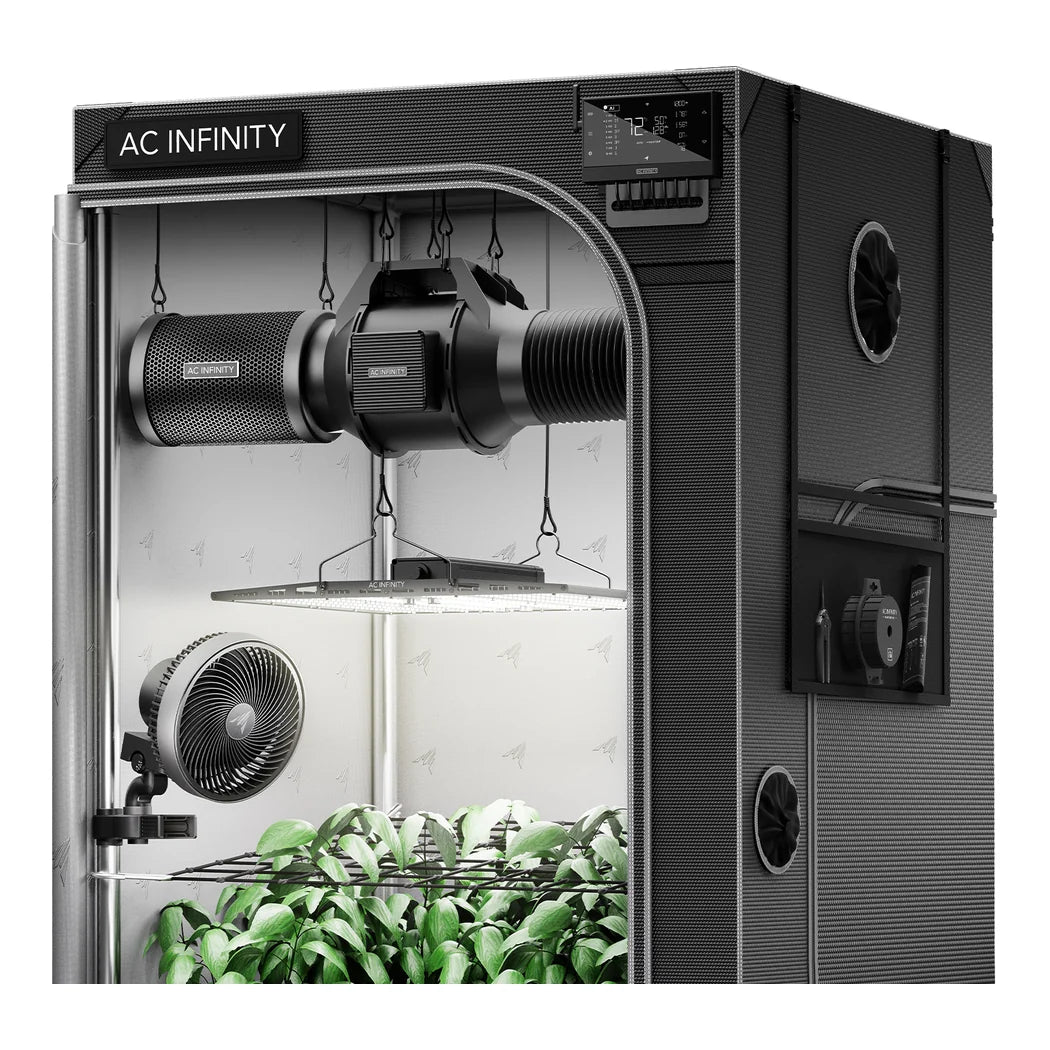

Introducing the Advance Grow Tent System 3x3, a cutting-edge solution for indoor garden enthusiasts looking to manage three plants with precision and ease. This system combines advanced technology and high-quality components, offering an unparalleled indoor growing experience.
Key Features and Components:

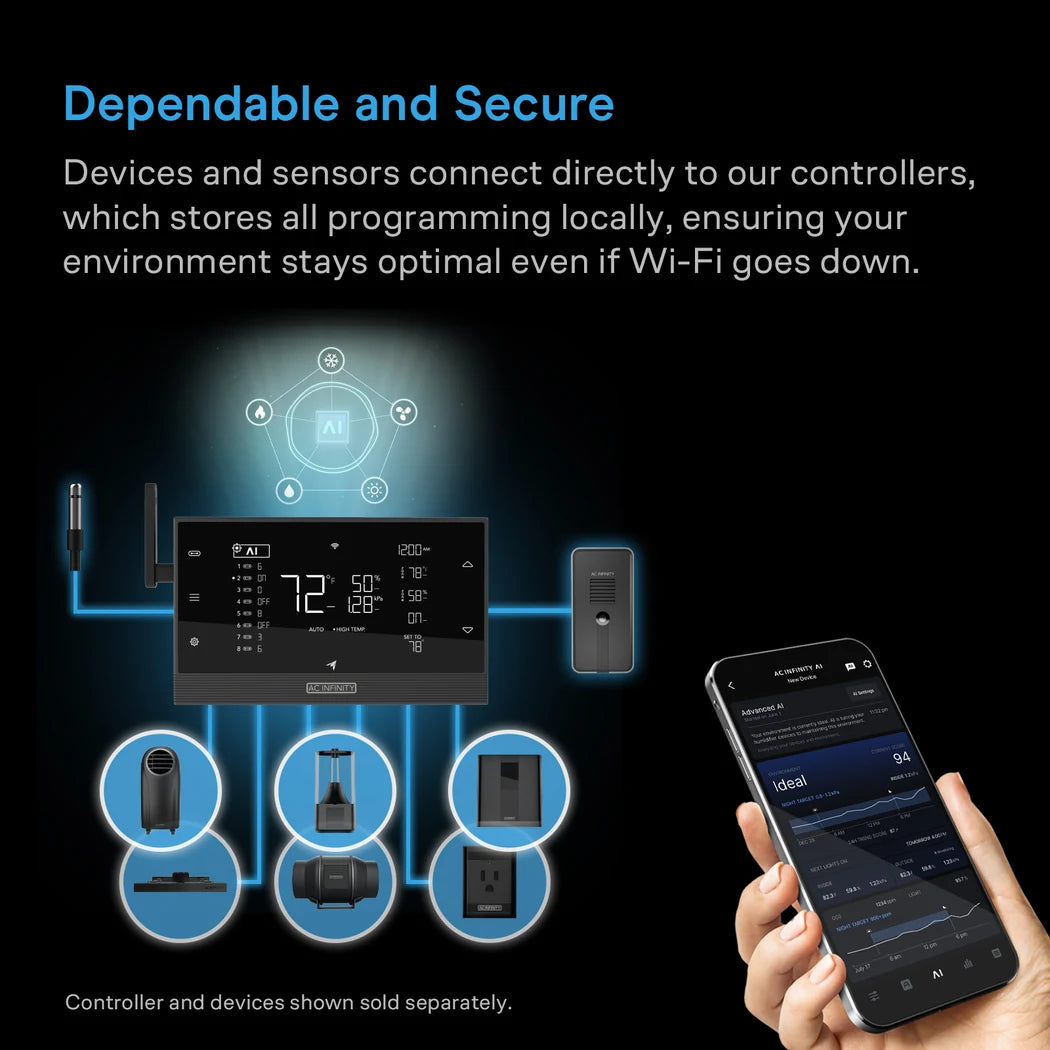

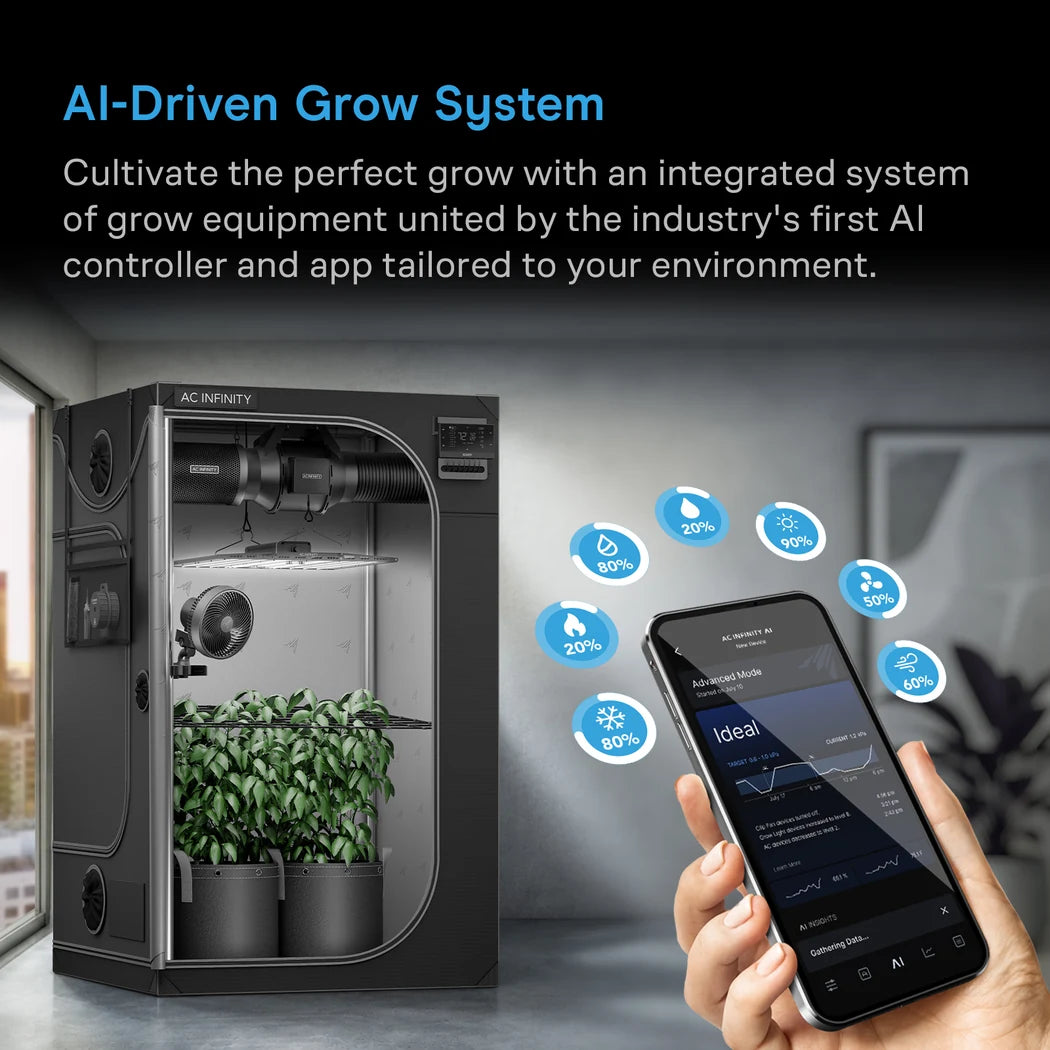

- Smart Control System: Central to this kit is the CONTROLLER 69 PRO, a sophisticated device that automates your grow tent's environment. It allows for individual programming of each fan and light, dynamically adjusting their speed and brightness to suit your plants' requirements. The controller is WiFi-enabled, connecting to the AC Infinity app for remote monitoring and control, providing flexibility and convenience.

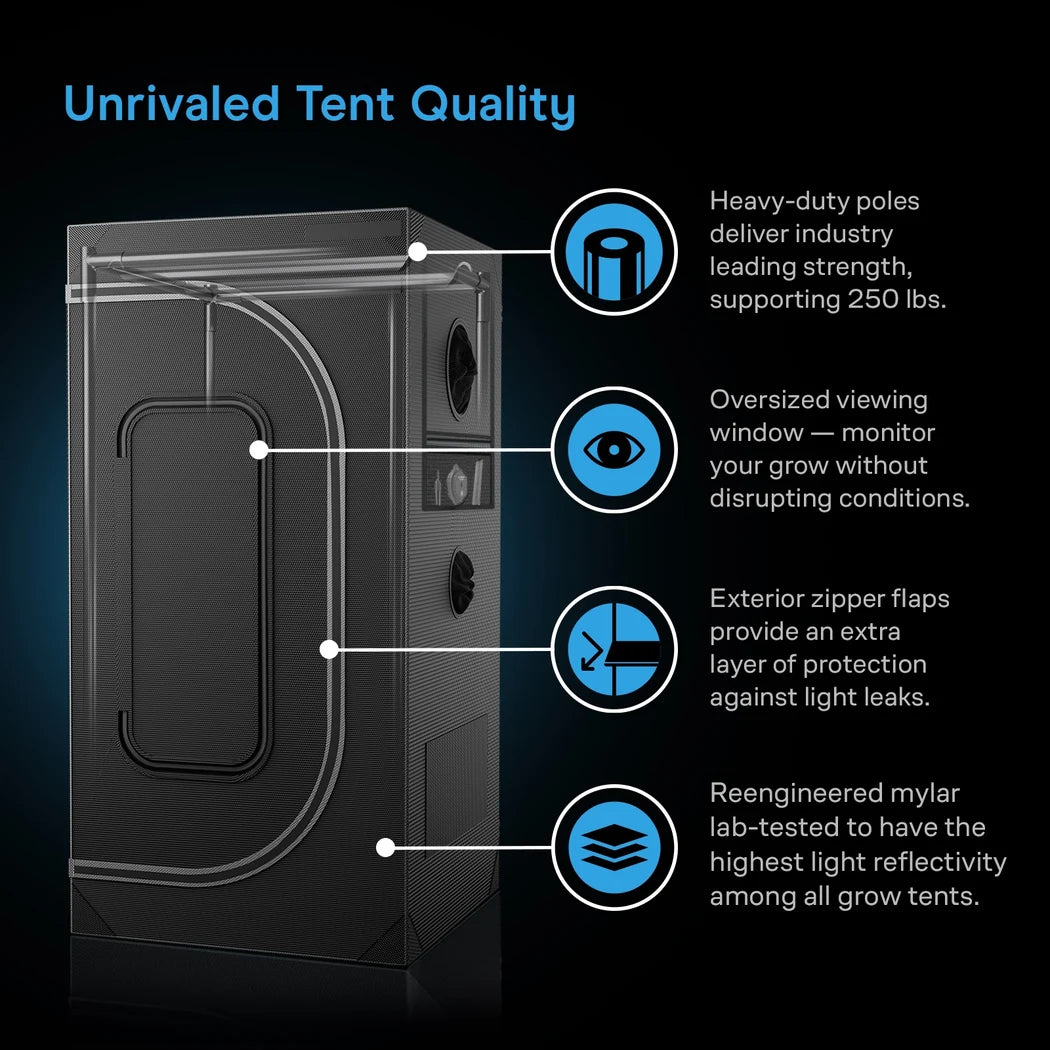

- High-Quality Grow Tent: The kit includes the CLOUDLAB 733 grow tent, measuring 36” x 36” x 72”. Constructed with a 2000D Mylar canvas, this tent ensures durability, excellent light-proofing, and optimal heat retention. The sturdy steel frame is designed to support all your growing equipment safely.

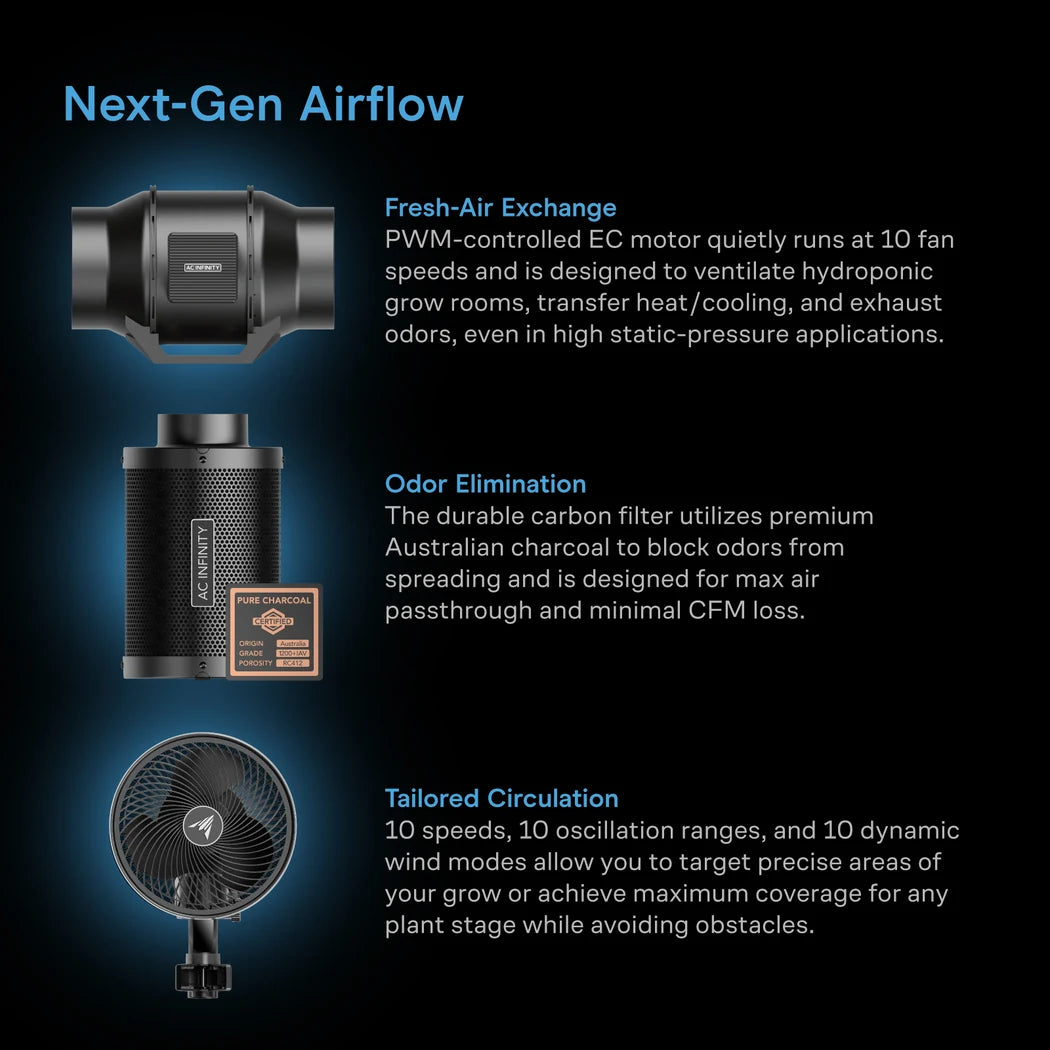

- Efficient Air Management: The system features a 6” EC inline fan and a 6” oscillating clip fan, ensuring effective ventilation and air circulation. This setup maintains the ideal climate by controlling temperature, humidity, and odor, crucial for healthy plant growth.

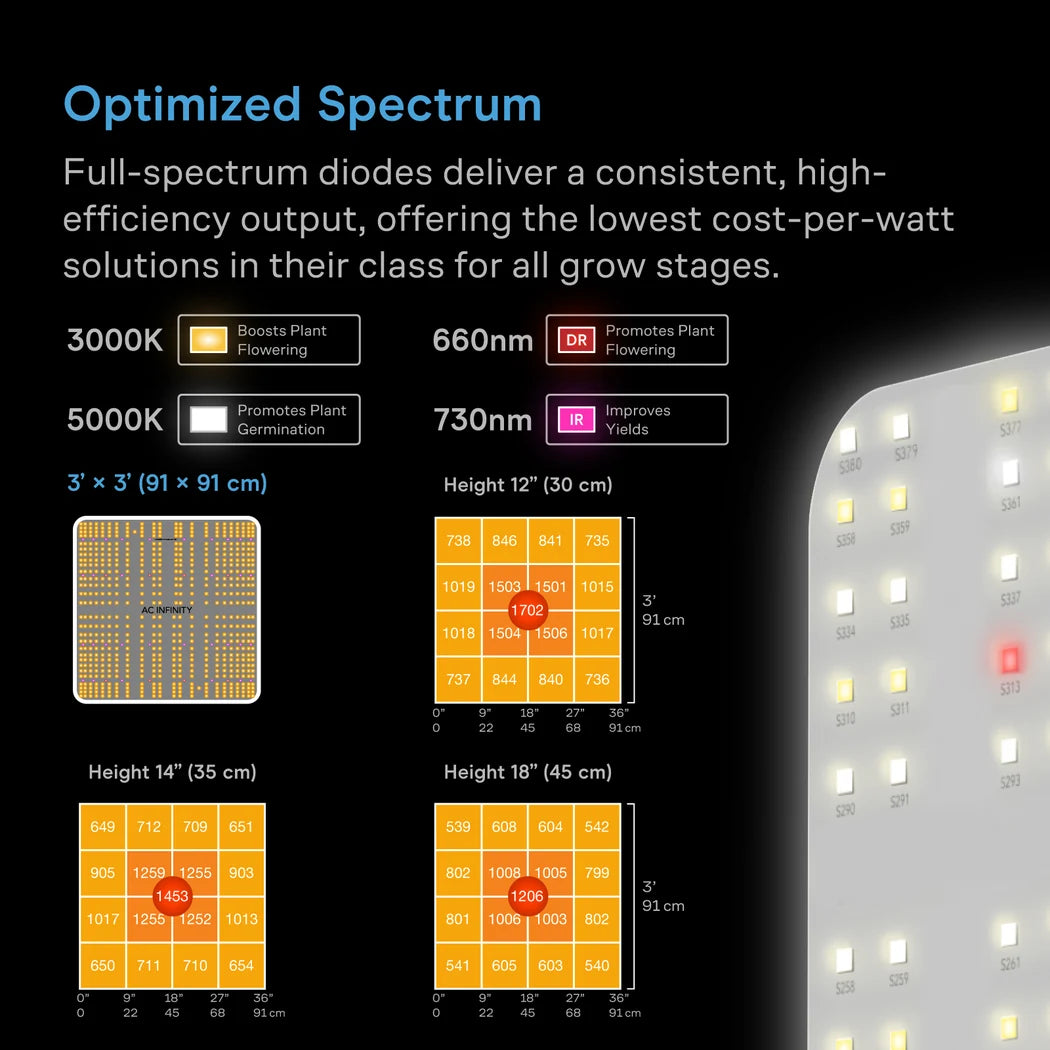

- Optimal Lighting: The IONBOARD S33 LED Grow Light Board, powered by 240W, is equipped with LM301B LEDs, providing a full spectrum of light. This mimics natural sunlight, essential for promoting vigorous plant development, and covers a 3x3 ft area effectively.
- Additional Accessories: Completing the kit are a 6” Australian carbon filter, flexible ducting, fabric pots, pruning snips, and more. These accessories are integral for maintaining a clean, organized, and efficient grow space.
Intelligent Programming:

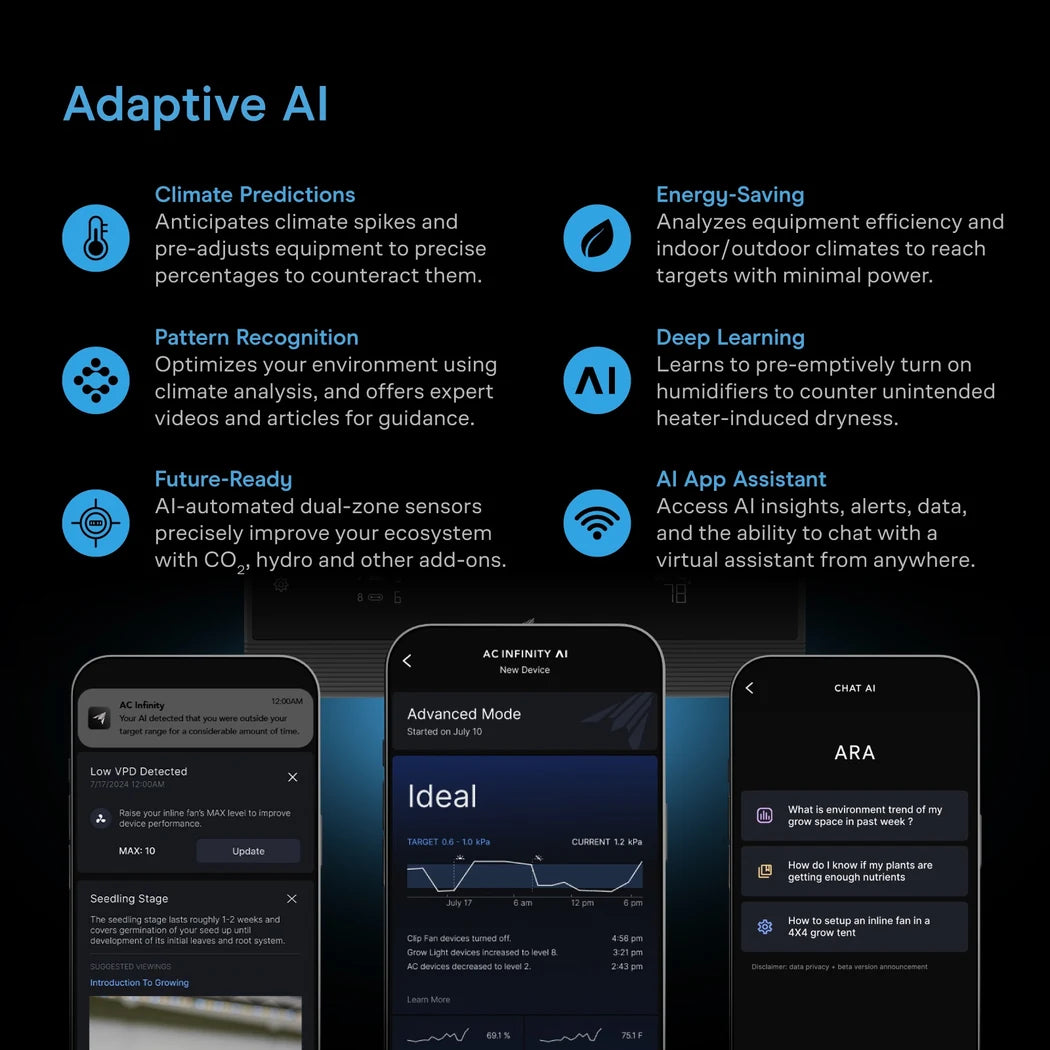

The CONTROLLER 69 PRO facilitates precise programming based on vapor pressure deficit (VPD) levels, temperature, and humidity, ensuring tailor-made growing conditions. It supports various indoor growing applications with timer, cycle, and schedule modes.
Complete Kit for Easy Setup:
This package assembles all the necessary components to start your indoor grow quickly, removing the hassle of individual purchases. Each element is designed to work harmoniously, ensuring a streamlined setup process.

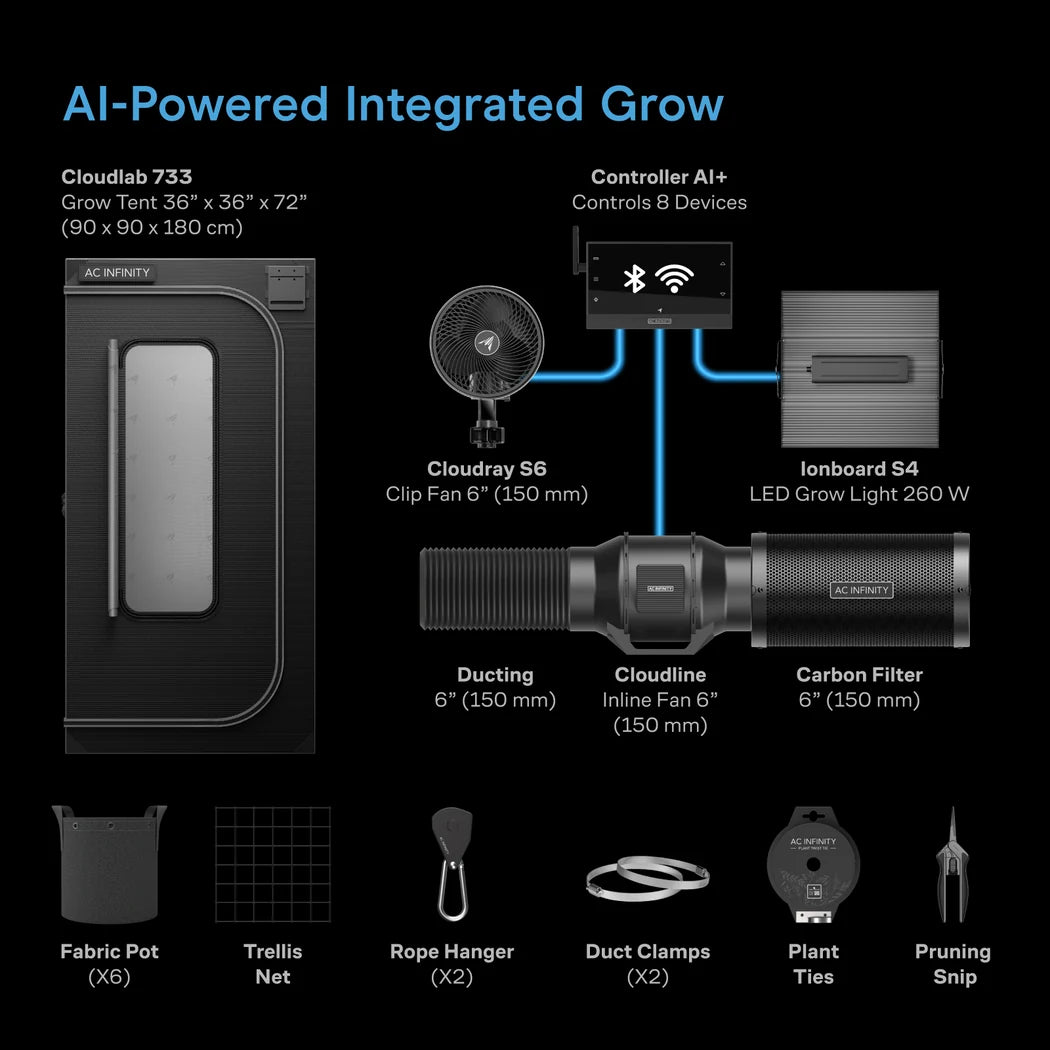

COMPLETE KIT
This package assembles all the essential components to help you quickly start your indoor grow while eliminating the guesswork of purchasing them individually. The full grow tent kit will include the following:
- CLOUDLAB 733 ”“ Advance Grow Tent 36”x36”x72” (x1)
- CONTROLLER 69 PRO ”“ Grow Tent Controller (x1)
- CLOUDLINE LITE 6 - Inline Fan 6" (x1)
- IONBOARD S33 ”“ LED Grow Light Board 240W (x1)
- CLOUDRAY S6 ”“ Oscillating Circulation Clip Fan (x1)
- Carbon Filter 6” (x1)
- 6” Flexible Ducting, 8' Long (x1)
- Hanging Straps (x2)
- Rope Clip Hangers (x2)
- 6” Steel Clamps (x2)
- 5' Duct Tape (x1)
- Hook and Loop Ties (x10)
- 6' UIS Male to Male Controller Cord (x1)
- 6' L-Shaped UIS Male to Male Controller Cord (x1)
- 5-gallon Fabric Pots (x6)
- Elastic Trellis Netting 3x3' (x1)
- Black Wire Twist Ties (x1)
- Micro-tip Pruning Shears (x1)
- Tent Dimensions
36" x 36" x 72" (91.4 x 91.4 x 182.9 cm)
- Duct Opening Sizes
4", 6"
- Viewing Window Size
11.81 x 11.81 in. (30.0 x 30.0 cm)
- Rear Intake Hole Size
5.90 x 13.77 in. (15.0 x 35.0 cm)
- Side Intake Hole Size
5.90 x 13.77 in. (15.0 x 35.0 cm)
- Mounting Strap Length
5.51 in. (14.0 cm)
- 3Outer Tent Material
Oxford
- Inner Tent Material
Mylar
- Pole Material
Steel
- Pole Thickness
22 mm
- Beam Weight Capacity
150 lbs.
- Plant Capacity
3
- Duct Size
6"
- Total Dimensions
7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
- Mounting Hole-To-Hole Distance
3.15 x 2.36 in. (8.0 x 6.0 cm)
- Screw Hole Size
Ø 0.236 in. (Ø 0.6 cm)
- Cord Length to Controller
72 in. (6 feet)
- Cord Length to Plug
72 in. (6 feet) - Total Airflow
352 CFM - Total Noise
34 dBA - Static Pressure
394 Pa - Voltage
100-240V AC - Frequency
50/60 Hz - Max Power Draw
65 W
- Average Power Usage
35 W
- Current
0.95 A
- Power Connector Type
US Plug (NEMA 1-15 Type-A)
- Operating Humidity
35 to 85% RH
- Operating Temperature
32 to 140 °F
- Ingress Protection
IP-44
- Fan Bearings
Dual Ball
- Mounting Positions
Horizontal or Vertical
- L10 Life Expectancy
67,000 Hours
- Fan Quality Approvals
CE, RoHS
- Impeller Size
6.5"
- Total Dimensions
8.74 x 10.47 in. (22.2 x 26.6 cm)
- Cord Length to Plug
96 in. (8 feet) - Maximum Airflow
315 CFM - Total Noise
33 dBA - Static Pressure
25 Pa - Operating Voltage
100-240V AC - Power
8 W - Current
0.14 A - Operating Humidity
35 to 85% RH
- Operating Temperature
32 to 140 °F - Waterproof Rating
IP-44 - Rotation Range
90 ° - Tilt Angle
55 ° - Oscillation
Automatic Oscillation - Fan Bearings
Dual Ball Bearing - Mounting Positions
Horizontal or Vertical - Life Expectancy
67,000 Hours
- Total Dimensions
5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
- Hole-to-Hole Distance
4.71 x 2.64 in. (12.0 x 6.7 cm)
- Screw Hole Size
Ø 0.119 in (Ø 0.3 cm)
- Display Size
3.5 x 1.4 in. (9 x 3.5 cm)
- Sensor Probe Length
144 in. (12 feet) - Maximum Devices Controlled
4 - Max Power Supported
10 W
- Programming Temperatures
32 to 140 °F
- Operating Voltage
9 to 18V
- Power
1 W
- Current
0.1 A
- Power Input
12V from Device
- Operating Humidity
35 to 85% RH
- Light Dimensions
18.50 x 18.50 in. (47.0 x 47.0 cm)
- LED Board Thickness
0.43 in. (1.1 cm)
- Driver Dimensions
9.06 x 1.57 in. (23.0 x 4.0 cm) - Coverage
3 x 3 ft. - Diodes
Samsung LM301B - LED Chip Count
640 - LED Driver
AC Infinity Proprietary Driver, Model GTS-100 - Efficiency
2.7 µmol/j - PPFD
1702 PPFD - Spectrum
660nm, 730nm, 3000K, 5000K
- Wattage
240 W
- Voltage
100-277V AC
- Frequency
50/60 Hz
- Current
2.0 A
- Controller
Digital Dimming Timer
- Power Connector Type
US Plug (NEMA 1-15 Type-A)
- Operating Humidity
35 to 85% RH
- Operating Temperature
32 to 140 °F
- Life Expectancy
50,000 Hours
- Duct Opening Size
6"
- Total Dimensions
15.94 x 8.93 in. (40.5 x 22.7 cm)
- Flange Length
1.57 in. (4.0 cm) - Flange Material
Aluminum - Flange Design
Reversible
- Mesh Material
Galvanized Steel
- Carbon Type
Australian Virgin RC412
- Carbon Grade
1200+ IAV
- Carbon Thickness
38mm
- Maximum Airflow
410 CFM
- Ducting Size
6 in. (15.2 cm)
- Length
96 in. (8 ft)
- Outer Layer
PVC Thermoplastic - Inner Material
Aluminum Foil - Internal Structure
Spiral Steel-Wire
