AC Infinity Advance Grow Tent System PRO 5x5 | 730W EVO8 LED, AI+

AC Infinity Advance Grow Tent System PRO 5x5 With a Bar-Style EVO8

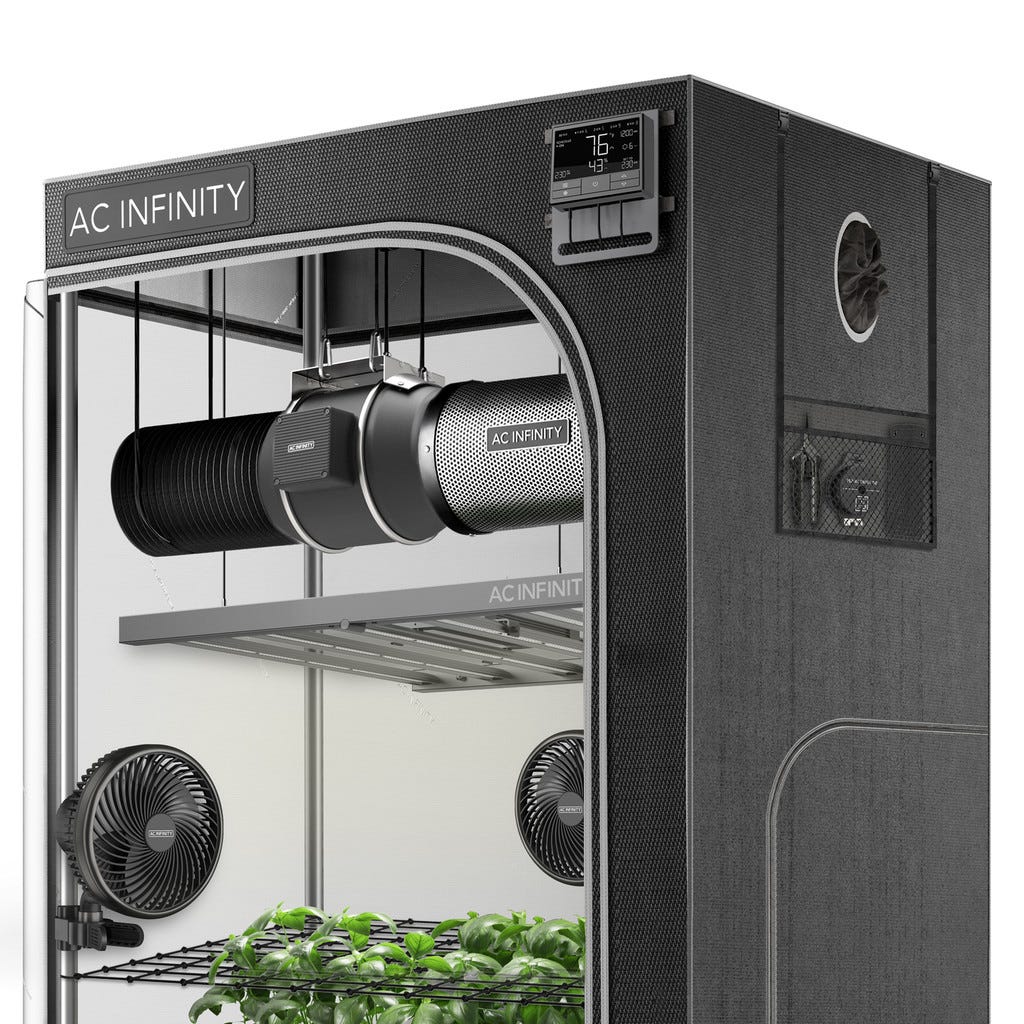

The PRO kit is built around a commercial-style bar fixture, which spreads light across a wide canopy instead of concentrating it under one panel. The IONFRAME EVO8 draws 730W through 2,688 diodes, most of them Samsung LM301H EVO in 3000K and 5000K. Eighty-eight OSRAM 660 nm reds, eight 730 nm far reds and eight Seoul 395 nm UV diodes round out the spectrum. Each diode runs at 3.14 µmol/J, and the fixture reaches 2,013 PPFD at the center of the floor. The frame spans 44.09 x 44.48 inches and carries an IP65 rating. The CLOUDLAB 866 tent measures 59.05 x 59.05 x 78.74 inches on 22 mm steel poles rated for 250 lb. Three hanging bars plus one extra keep the light, filter and fan apart, and a tall viewing window shows the whole canopy. Exhaust is a 6-inch CLOUDLINE PRO fan rated at 402 CFM and 503 Pa of static pressure, quiet at 32 dBA. It pulls through a refillable 6-inch carbon filter packed with 38 mm of Australian RC412 charcoal. Two CLOUDRAY S6 clip fans keep the canopy moving, and the CONTROLLER AI+ runs every device from one screen. Twelve 5-gallon fabric pots come in the kit.

Setting Up an AC Infinity 5x5 Grow Tent for Six Plants

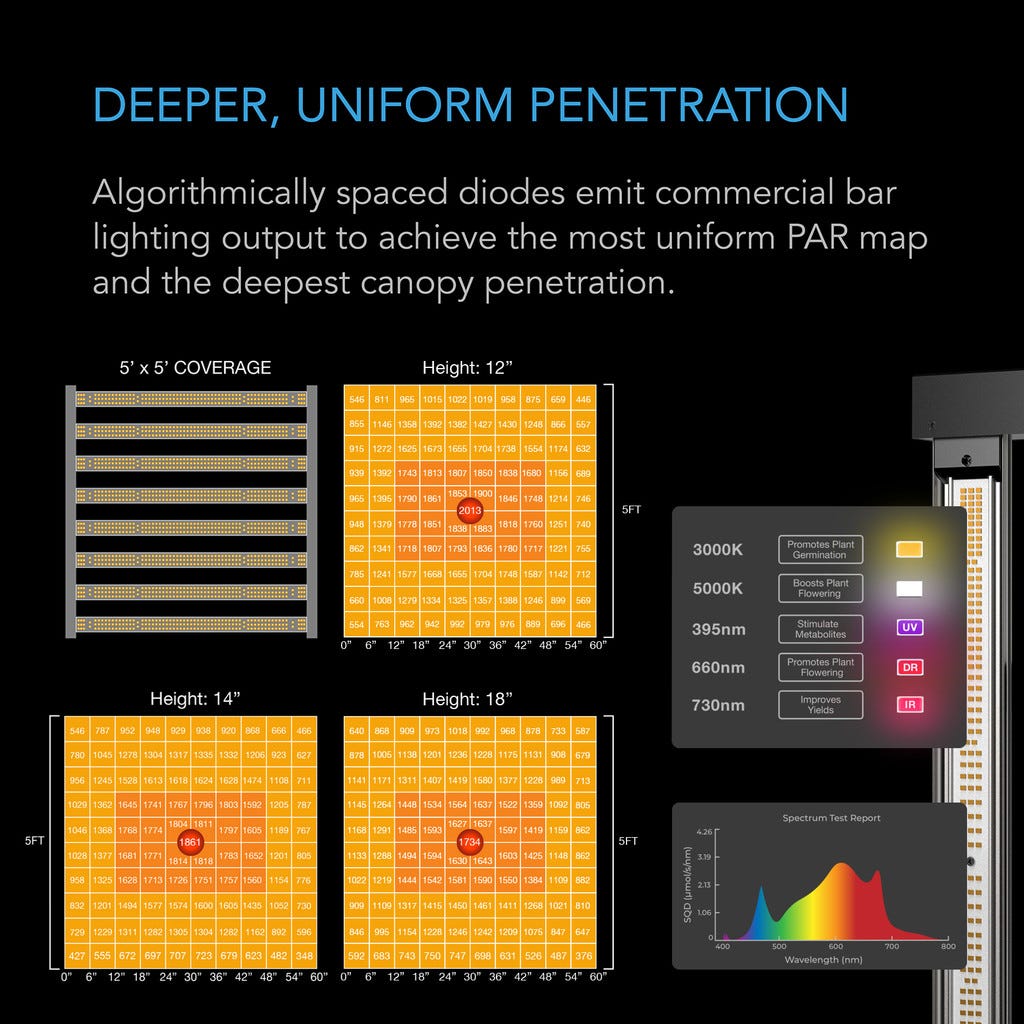

Six plants sit comfortably in two rows of three, which makes this a true 6 plant grow tent with an aisle of air between rows. With twelve pots in the box, a full second round can be potted up before the first one comes down. Hang the EVO8 from the center bars with the rope clip hangers and start it high on a low dimming setting. As the canopy fills, growers usually bring it into the 12 to 18 inch band covered by the PPFD maps. The bar layout helps here, because light lands evenly enough that the outer pots finish closer to the center ones. Mount the filter and fan on the extra bar so the exhaust pulls from the hottest air near the roof. The refillable filter is the long-term saving, since only the charcoal gets replaced when it loads up. In AI mode, the controller learns how the room swings after lights-on and ramps the exhaust before temperature climbs. Programs live on the controller, so the cycle keeps running if Wi-Fi drops overnight. This much light needs a plan for heat. In a warm room, a single 6-inch exhaust can hit its ceiling at full output. Dimming the fixture or adding room cooling may become part of summer runs.

Key Features

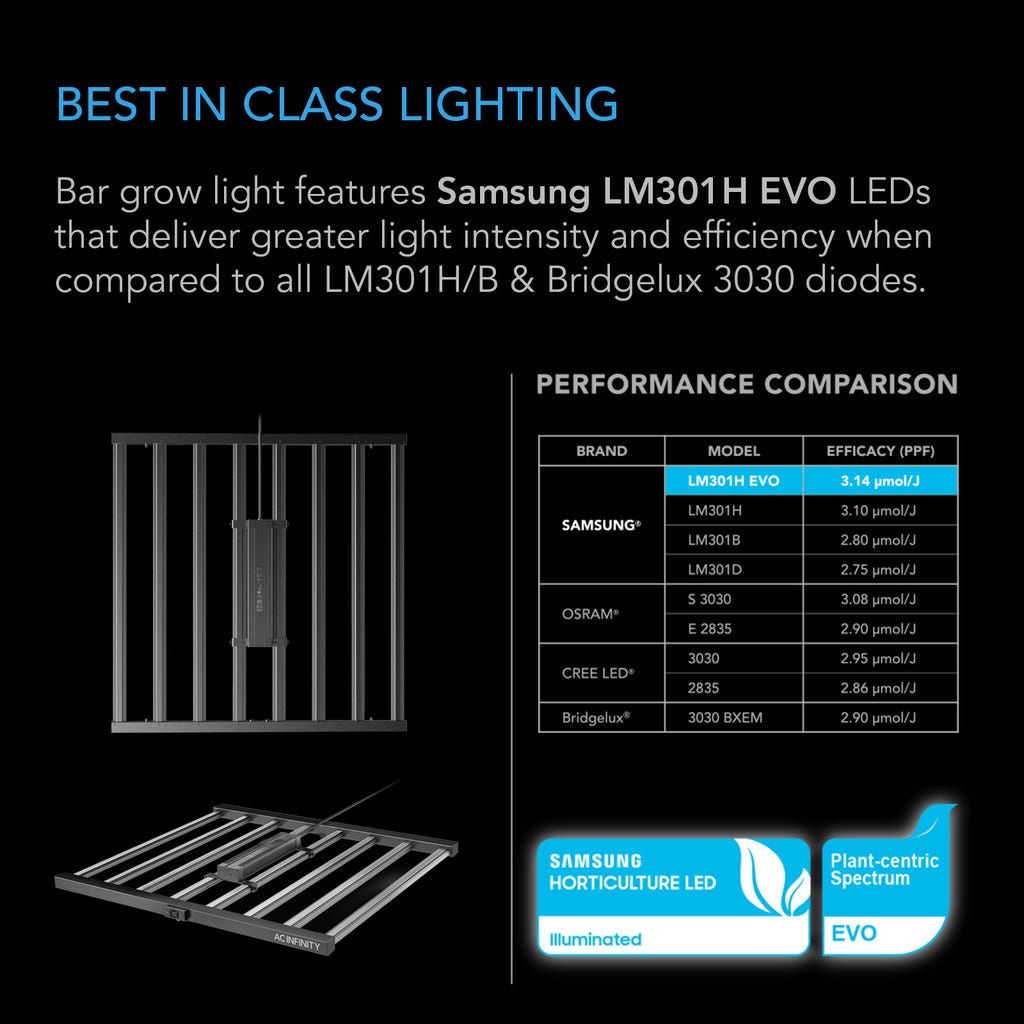

• IONFRAME EVO8 LED: A 730W bar fixture with Samsung LM301H EVO diodes plus 660 nm, 730 nm and 395 nm channels, rated IP65.

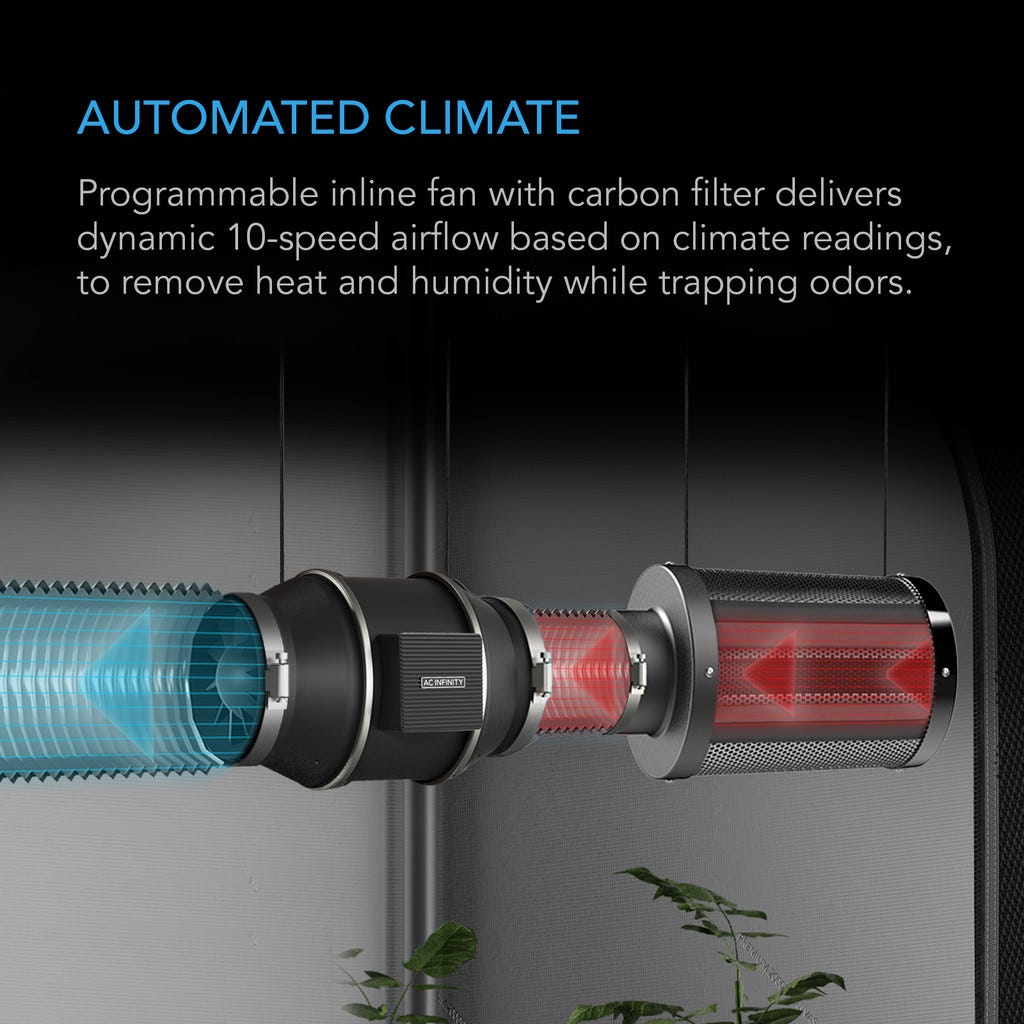

• CLOUDLINE PRO 6 Inline Fan: A 6-inch EC fan with the static pressure to hold airflow through a carbon filter and longer duct runs.
• Refillable Carbon Filter: A 6-inch filter with a refillable bed of Australian virgin RC412 charcoal rated 1200+ IAV.

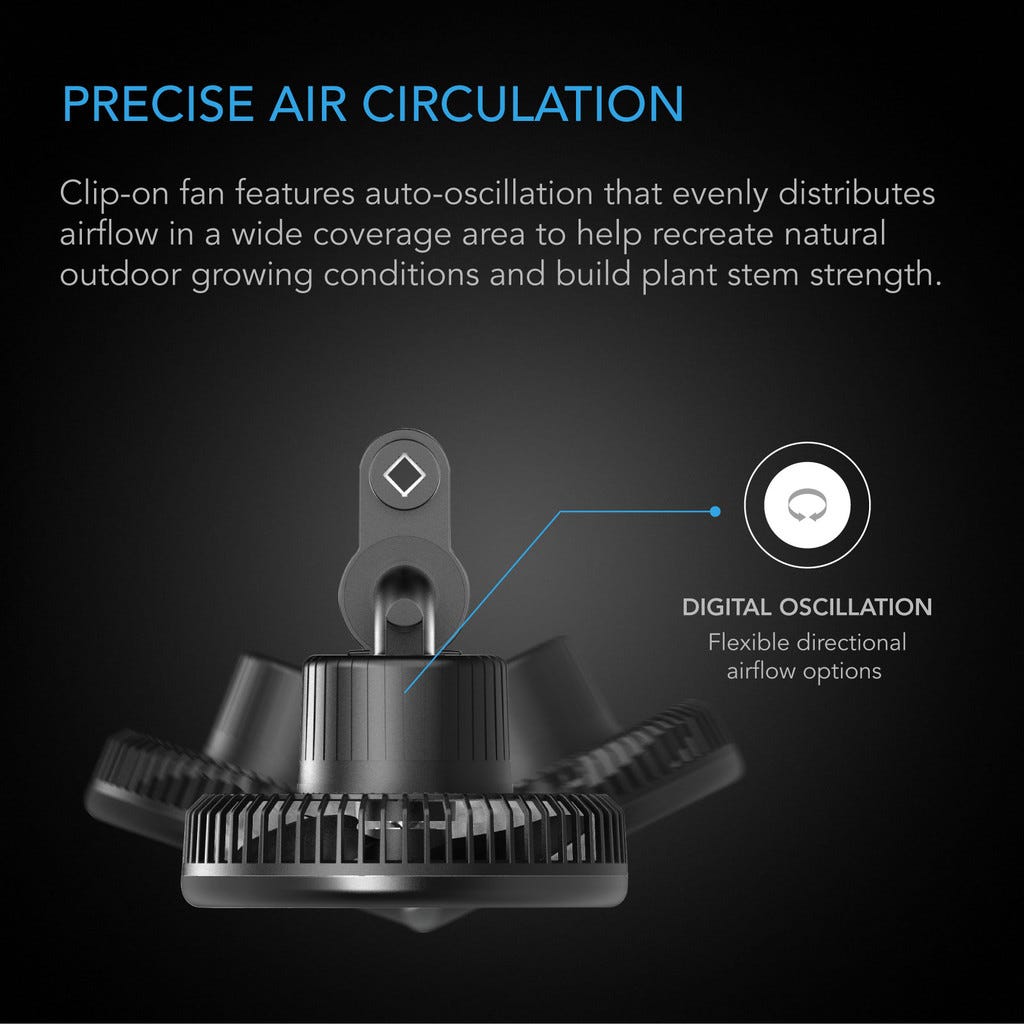

• Two CLOUDRAY S6 Clip Fans: Oscillating fans with ten speeds cover a five-by-five canopy from two sides.

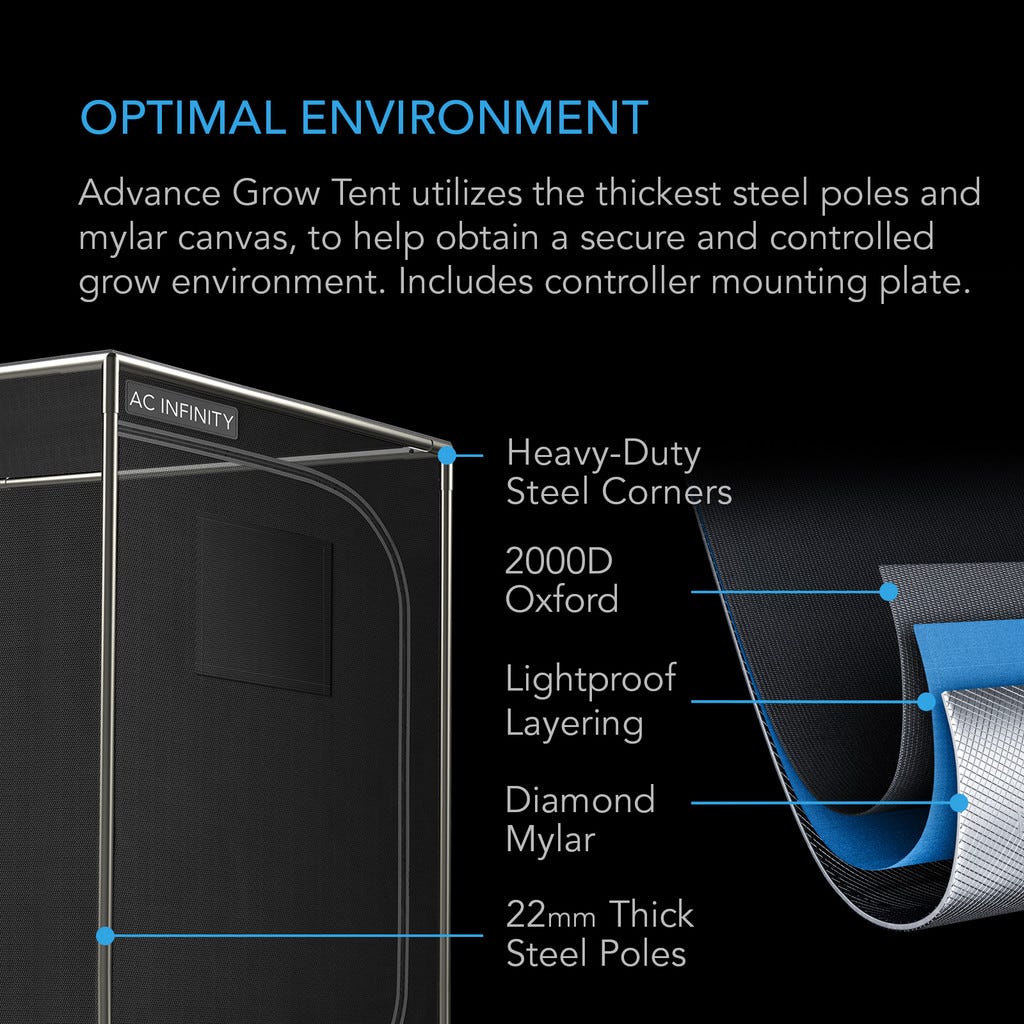

• CLOUDLAB 866 Tent: An Oxford shell with Mylar lining, 22 mm steel poles, three hanging bars plus an extra and a tall viewing window.
• CONTROLLER AI+: Eight device ports, Wi-Fi and Bluetooth, VPD triggers and on-board program storage.
• Kit Accessories: Twelve 5-gallon fabric pots, a 5x5 trellis net, twist ties, pruning snips, 6-inch ducting, clamps and UIS cords.

Technical Specifications
