Growlink Agrowtek Integration Hub - Same Cables, New Brain

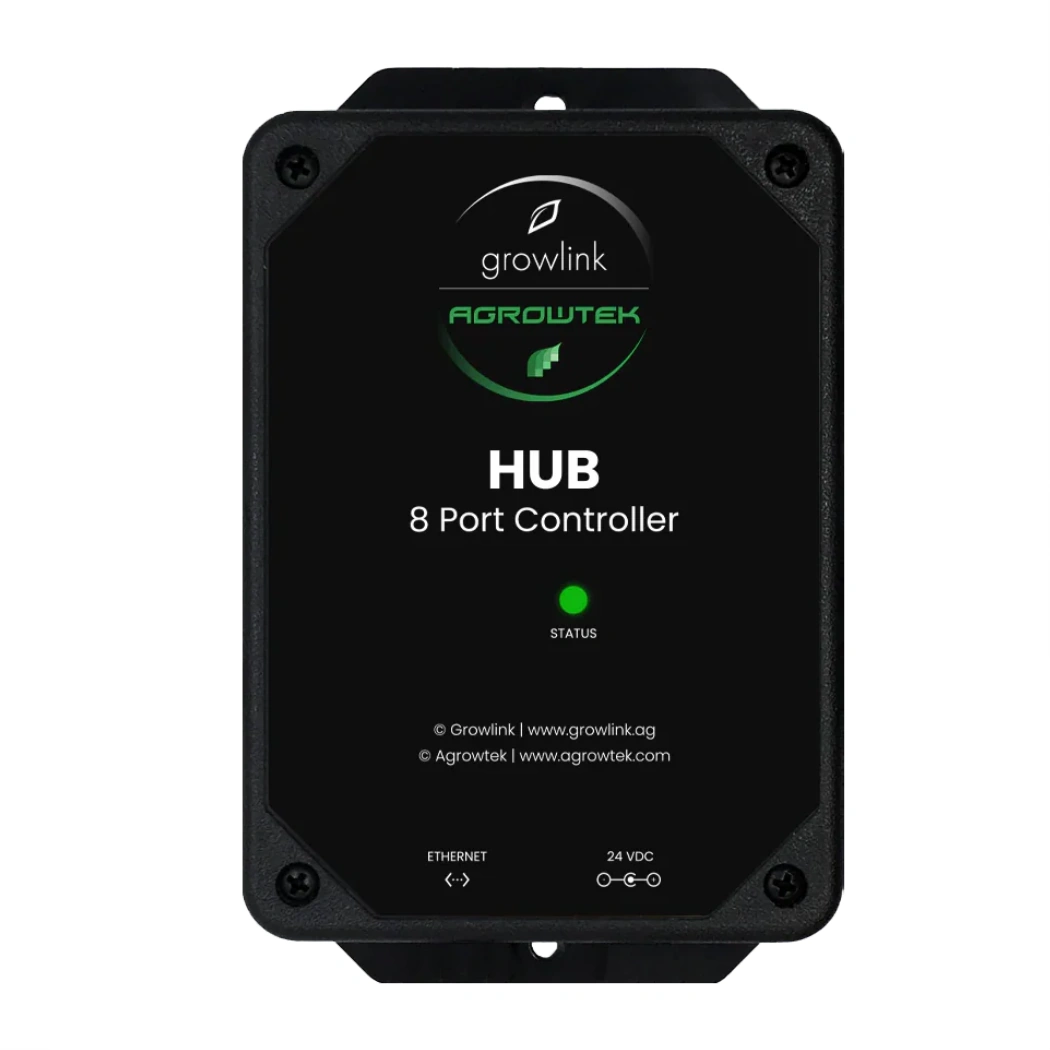

The hub is a drop-in replacement for an Agrowtek GCX controller. It runs on a 24VDC / 2.7A supply and ties into your local network over Ethernet or optional 2.4GHz Wi-Fi. Sensor, device, and line ports keep their original pinout, so existing cables plug back in where they always lived. Migration happens at the brain, not at the wiring chase.
Mixed Agrowtek and LINKS Hardware on One Growlink Dashboard
Once the hub is online, Agrowtek GrowControl GCX modules and Growlink LINKS devices in the same room report into one unified dashboard. Cloud data storage, advanced analytics, and the CoPilot automation engine become available to hardware that previously lived in the Agrowtek ecosystem. Add hubs as the facility grows. One hub bridges a single room, additional hubs scale across multi-room operations without a hardware swap.
Key Features

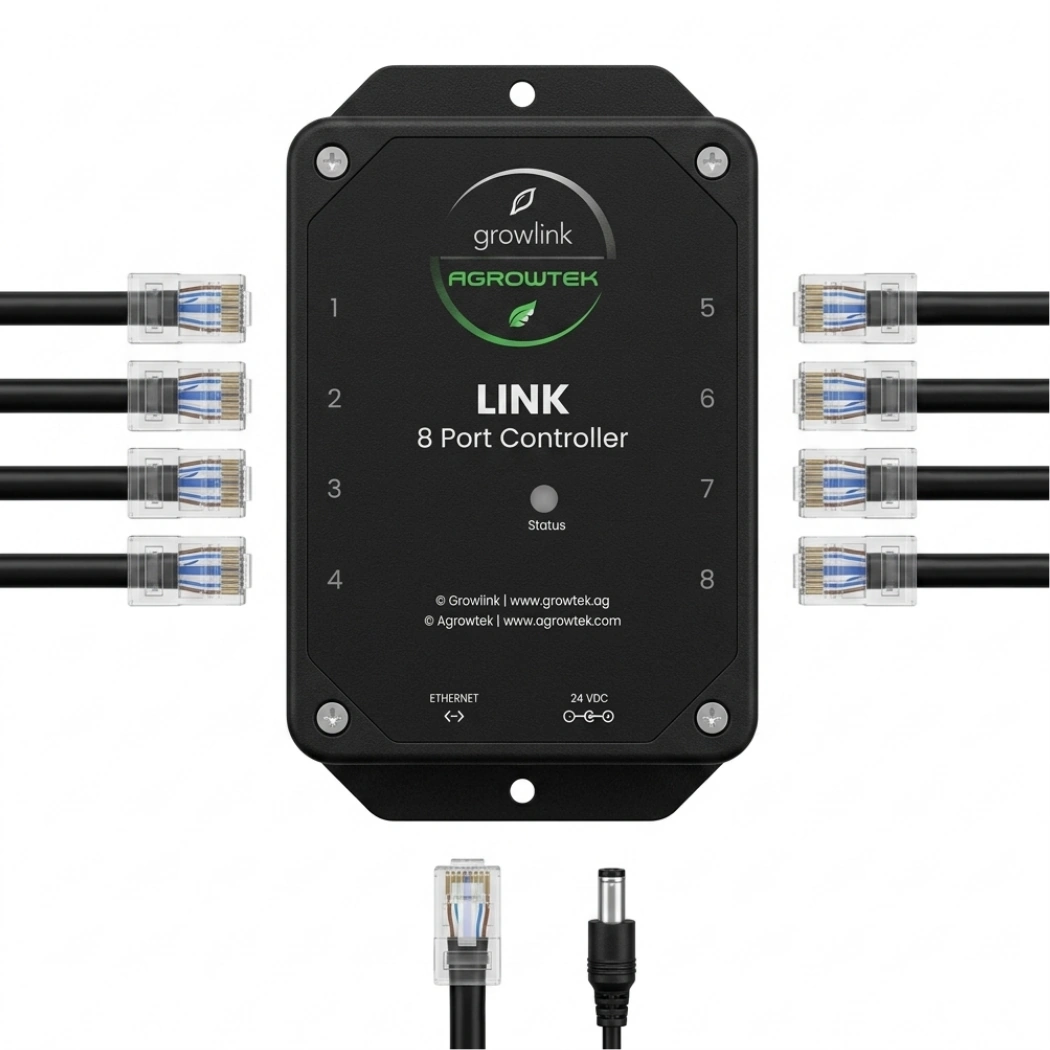

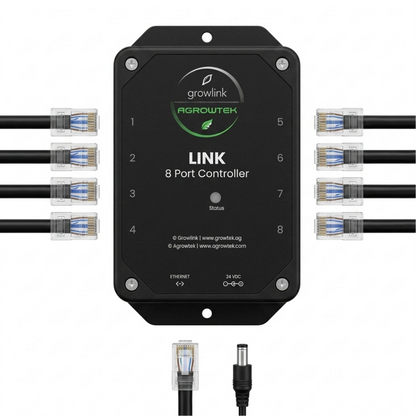

- Drop-In Cable Compatibility: Sensor, device, and line ports keep the Agrowtek pinout, so existing wiring plugs back in without re-running cable.
- 24VDC / 2.7A Low-Voltage Power: A single low-voltage feed runs the hub from the same chase as the network cable.

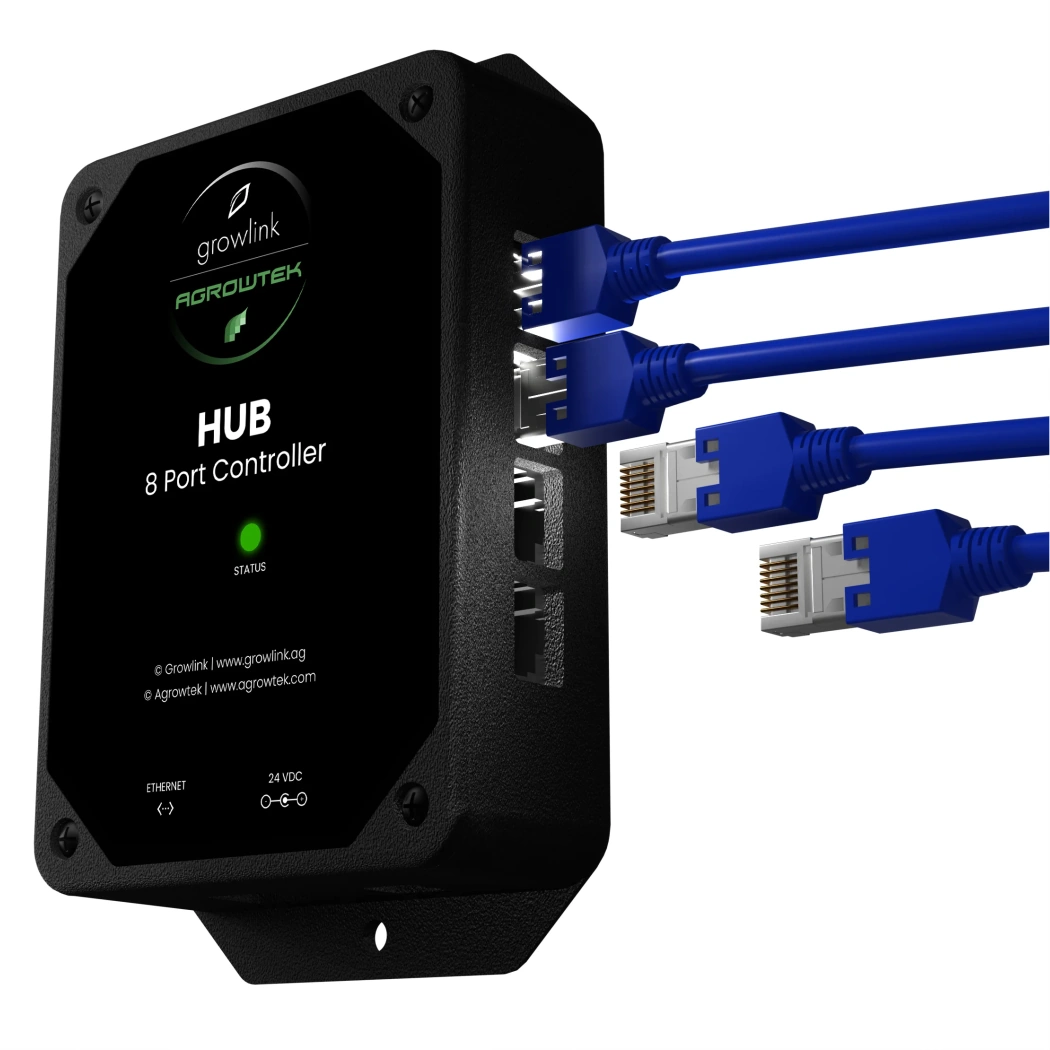

- Ethernet with 2.4GHz Wi-Fi Backup: Wired Ethernet handles primary connectivity; Wi-Fi covers rooms where pulling CAT5 is impractical.
- GCX Migration to Growlink Portal: Registers existing Agrowtek GCX modules into the Growlink Portal with per-module exclude controls during setup.
- CoPilot Automation Across Vendors: Once online, GCX modules and LINKS devices share one dashboard, one automation engine, and one cloud database.
Technical Specifications
| Specification | Value |
|---|---|
| Power Input | 24VDC / 2.7A |
| Network - Primary | Ethernet (RJ45) |
| Network - Backup | 2.4GHz Wi-Fi (optional) |
| Compatible Hardware | Agrowtek GCX modules, sensors, devices; Growlink LINKS controllers |
| Platform Features Unlocked | Cloud data storage, advanced analytics, CoPilot automation |
| Install Environment | Dry location; weatherproof enclosure required if >70% RH continuous |
| Mounting Recommendation | Outside the grow room, cables passed through walls |
| Service Access | Hub must remain accessible for servicing |

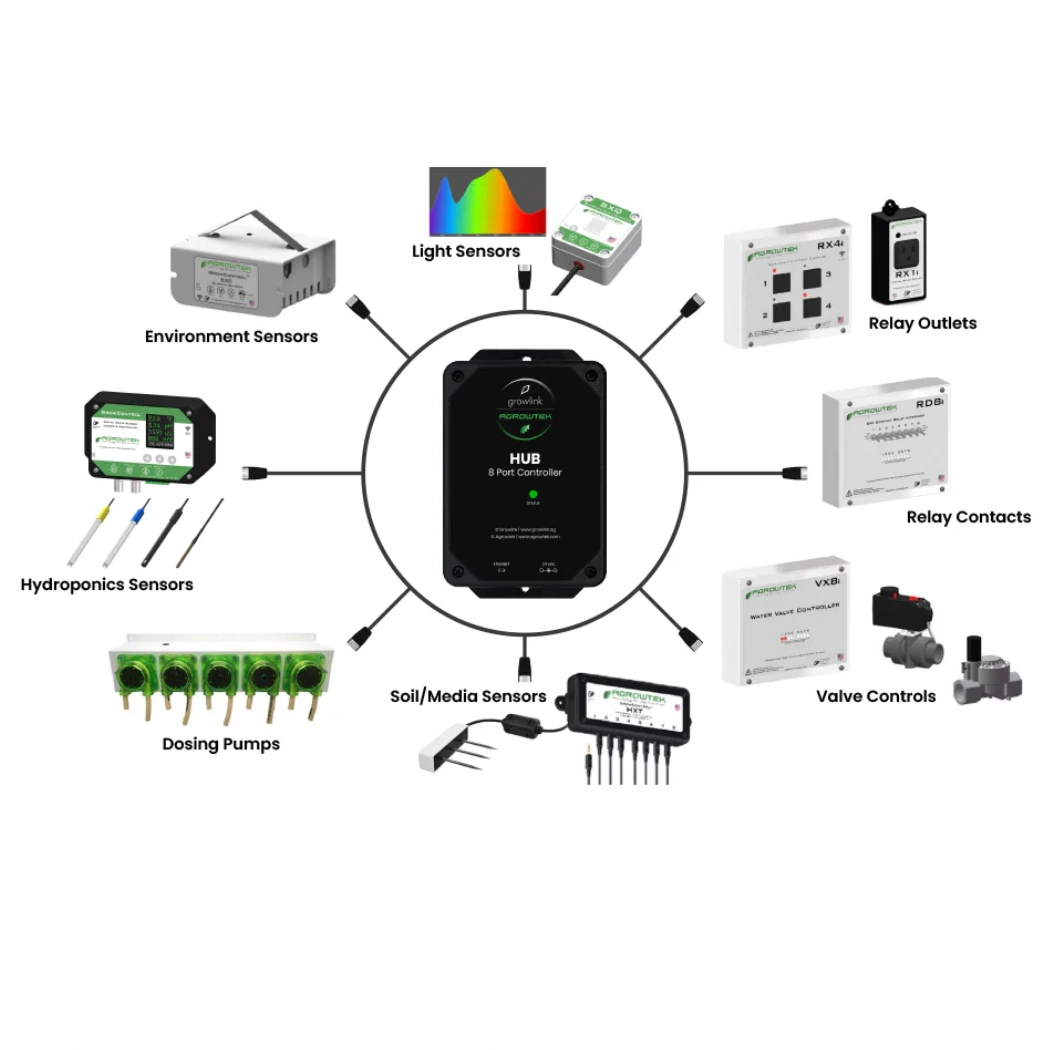

Supported Sensors & Devices
| Device / Sensor | Model | Supported |
|---|---|---|
| Climate Sensors | ||
| Indoor Climate Sensor & Logger | SXC | ✓ |
| Aspirated Climate Sensor — Temp / RH / Light / CO₂ | SXC+ | ✓ |
| Infrared Leaf Temperature Sensor | IR Temp | ✓ |
| Quantum Light Spectrometer — PPFD / DLI | QLS | ✓ |
| Hydroponics Sensors | ||
| Hydroponics Sensor — Temp / pH / EC / ORP | SXHM | ✓ |
| pH Probe — stainless BNC | pH Probe | ✓ |
| EC / Conductivity Probe | EC Probe | ✓ |
| ORP / Redox Probe | ORP Probe | ✓ |
| Dissolved Oxygen (DO) Probe | DO Probe | ✓ |
| Substrate & Liquid Level Sensors | ||
| GrowNET™ Substrate / Moisture Sensors | SXM | ✓ |
| Electronic Optical Liquid Level Sensor | SXL | ✓ |
| Continuous Level Sensors | Level | ✓ |
| Relays, I/O & Controls | ||
| 8-Output Relay Module — dry contact HVAC | RD8i | ✓ |
| 0–10V Lighting Control Output | 0-10V | ✓ |
| DC Output Modules | DC Out | ✓ |
| Discrete & Analog Input Modules | I/O | ✓ |
| GrowControl MX Motor Controllers — vents / curtains | GCX-MX | ✓ |
| HX8 GrowNET™ Device Hub — 8-port expander | HX8 | ✓ |
| Dosing & Irrigation | ||
| AgrowDOSE™ Peristaltic Dosing Pumps (ADi series) | ADi | ✓ |
| MDX Mini Dosing System | MDX | ✓ |
| Motorized Irrigation Valves & Controllers | Valve | ✓ |
| BDX BatchMatic Fertigation System | BDX | ✓ |
