AC Infinity 10-Inch Air Filter Box for High-Volume Intake

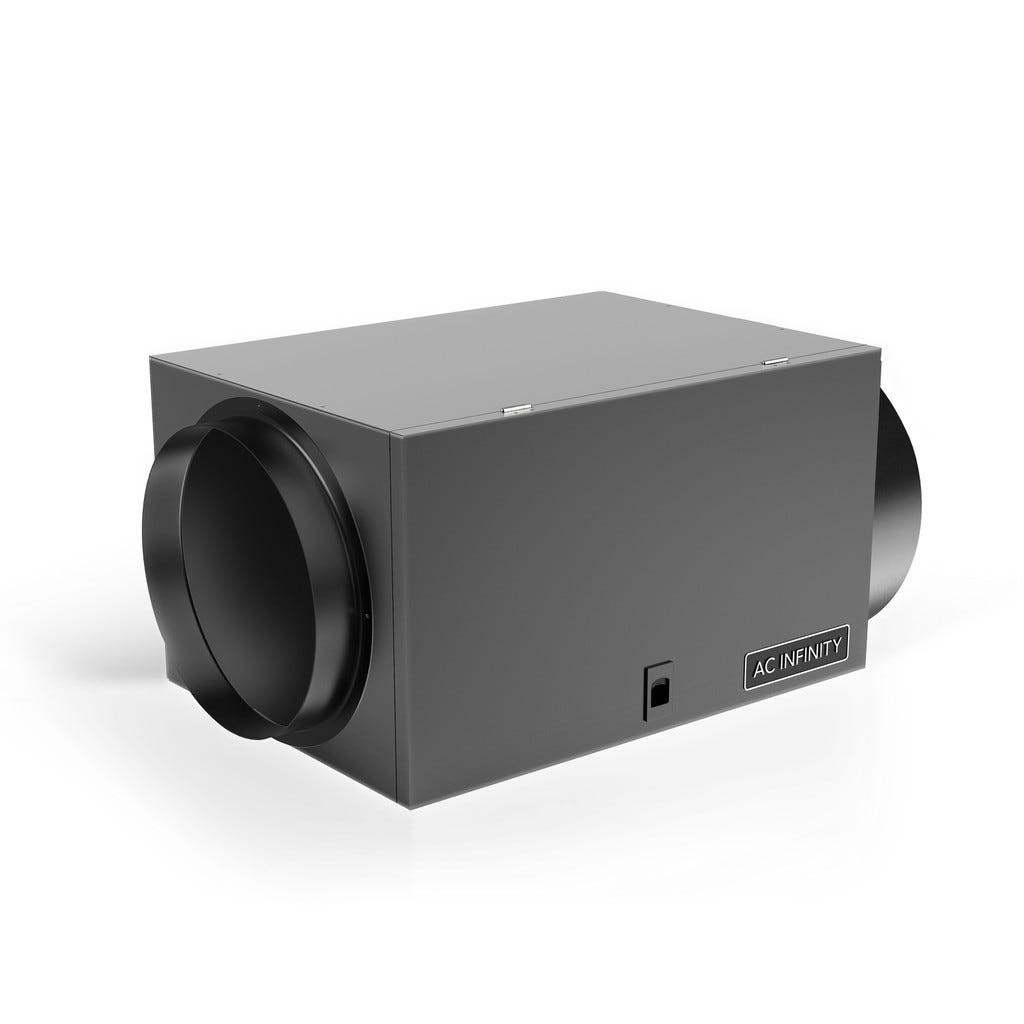

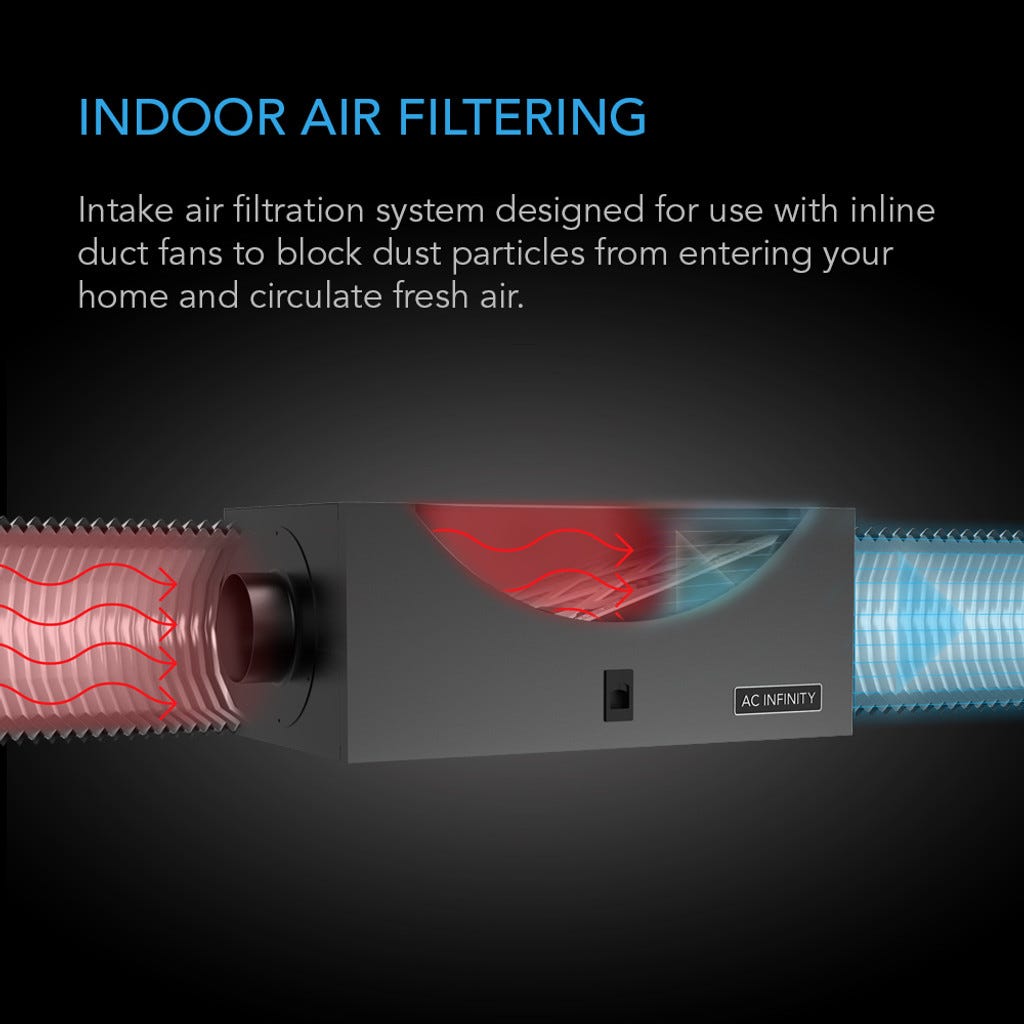

This box filters the intake on a 10-inch duct, the size used to feed large grow rooms and multi-light spaces. Fresh air passes through a flat pleated filter before it reaches the fan and the room. The included filter traps 0.3 to 1.0 micron particles at 90% efficiency. Dust, lint, pollen and fine debris from the supply air stop at the pleats. A 14 x 20 x 1 in filter fits the slot, so standard and MERV-rated replacements are easy to find. The housing is 1 mm cold-rolled steel, powder coated in matte black. Aluminum collars measure 9.72 in across and extend 3.23 in for the duct connection. Overall size is 22.51 x 11.57 x 13.93 in. A hinged, slide-locking door opens onto the filter chamber. Neoprene lines the door to make a dust-tight seal when it is closed. AC Infinity lists a minimum airflow of 532 to 798 CFM and a maximum of 2400 CFM. The box is paired with the CLOUDLINE S10 and T10 inline fans. Their high static pressure holds airflow steady through the filter as it loads.
Setting Up a 10 Inch Inline Filter Box for a Large Room
Disconnect the fan from power before working on the ducting. Fit the box between the intake duct and the inline fan, with the door where it is easy to open. Remove the plastic wrap from the filter and slide it into place. Seal both collar joints with aluminum tape so all intake air passes through the pleats. Large rooms often pull intake from a mechanical space, attic or exterior wall. Filtering that supply keeps fine dust from settling on the canopy and coating light fixtures. When intake air runs much colder or warmer than the surrounding space, condensation can form in the box. Insulating the interior helps keep moisture from collecting on the steel. At this airflow, check the filter weekly during busy stretches of the year. Replace it by unlocking the door, sliding out the old filter, inserting a fresh one and locking up again. A damp cloth wipes the inside walls clean while the door is open. The pleated filter handles particulates, so odor control still needs a carbon filter on the exhaust. The attached manual details every installation step.
Key Features

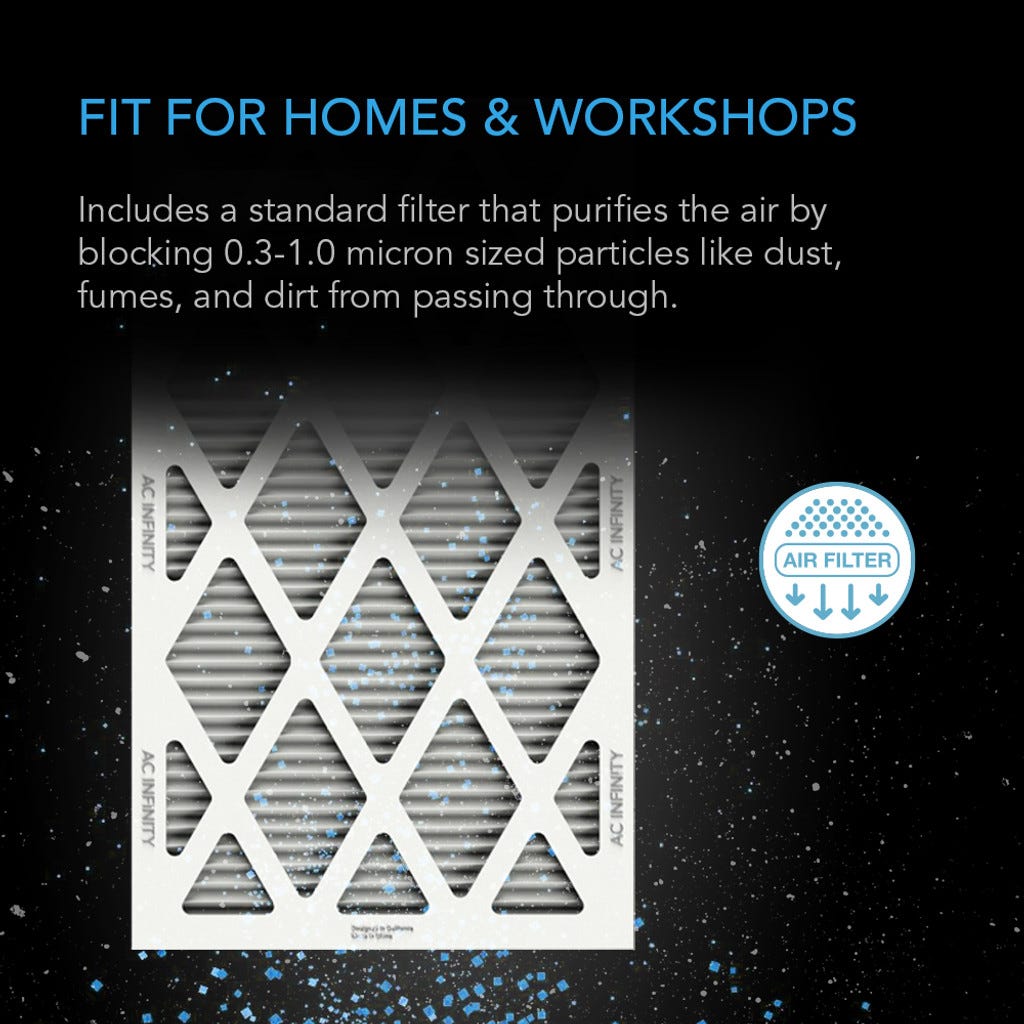

- Pleated Filter Included: 0.3 to 1.0 micron capture at 90% efficiency.
- 14 x 20 x 1 in Slot: Standard and MERV-rated replacements fit.
- Steel Housing: 1 mm cold-rolled steel, matte black powder coat.

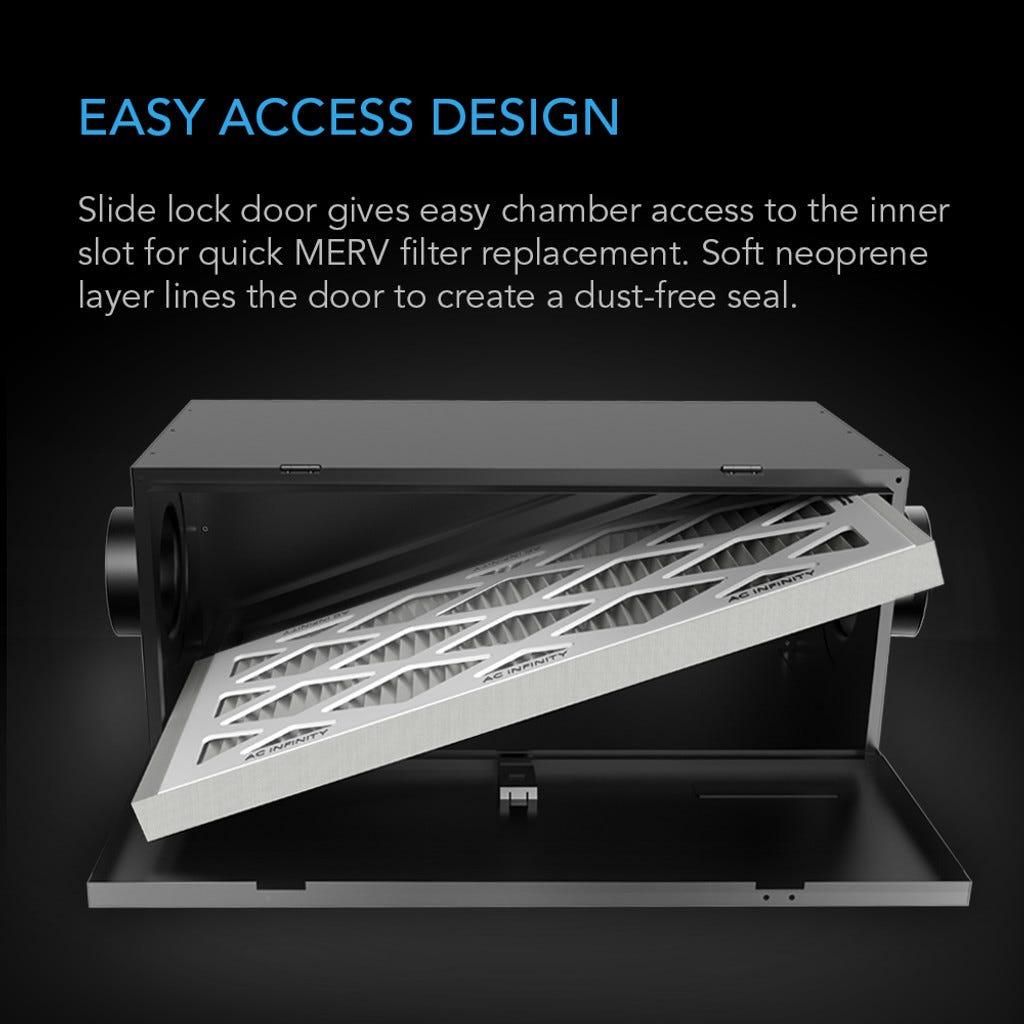

- Dust-Tight Door: Hinged, slide-locked and lined with neoprene.
- 10-Inch Collars: Aluminum, 9.72 in across and 3.23 in long.
- Up to 2400 CFM: Matched to CLOUDLINE S10 and T10 fans.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | AC Infinity |
| Model | AC-AFB10 |
| UPC | 819137021723 |
| Duct size | 10 in |
| Duct opening | 9.72 in (24.7 cm) |
| Collar length | 3.23 in (8.2 cm) |

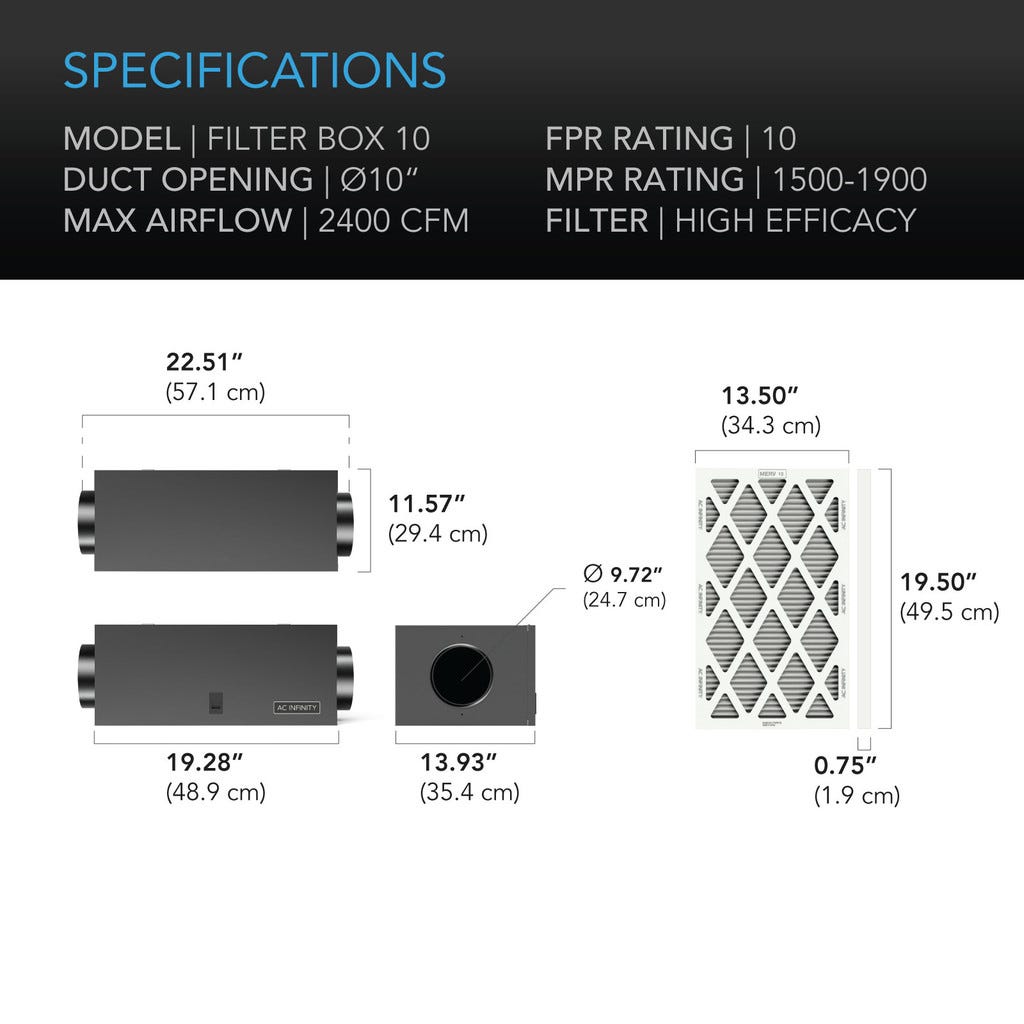

| Total dimensions | 22.51 x 11.57 x 13.93 in (57.1 x 29.4 x 35.4 cm) |
| Box material | 1 mm cold-rolled steel, matte black powder coat |
| Collar material | Aluminum |
| Filter size | 14 x 20 x 1 in |
| Included filter | Pleated, 0.3 to 1.0 micron at 90% efficiency |
| Minimum airflow | 532 to 798 CFM |
| Maximum airflow | 2400 CFM |
| Compatible fans | CLOUDLINE S10, CLOUDLINE T10 |
| Included | Filter box, pleated air filter |
| Warranty | 2 years |
