Brand: AC Infinity

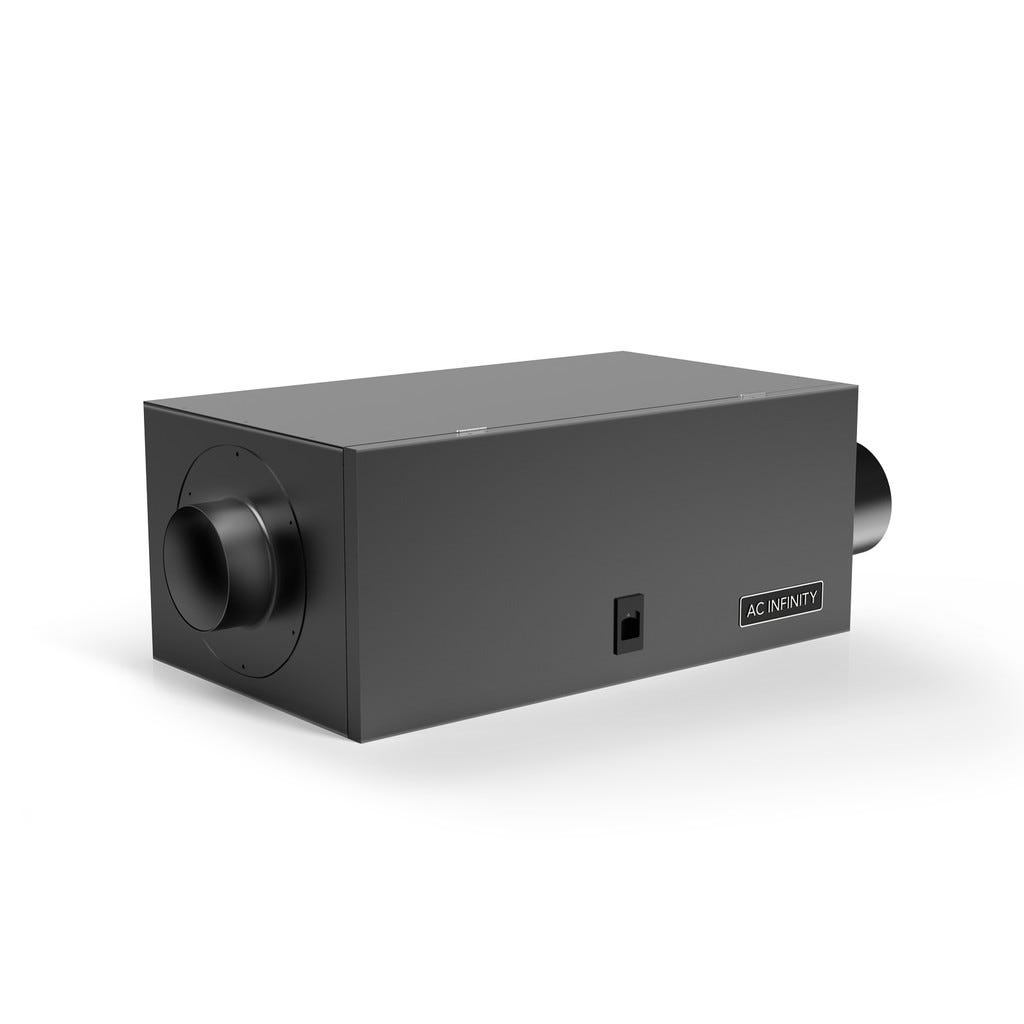

AC Infinity 4-Inch Air Filter Box with Pleated Filter - Steel Inline Intake, 400 CFM

AC Infinity 4-Inch Air Filter Box with Pleated Filter - Steel Inline Intake, 400 CFM

SKU: SKU:AC-AFB4

Ordering a large quantity of this item?
As long as the order total is more than $2K you can:

Regular price $119.00 USD
Regular price $119.00 USD Sale price $119.00 USD
Sale Sold out
Shipping calculated at checkout.

The AC Infinity 4-inch air filter box holds a 12 x 20 x 1 in pleated filter that traps 0.3 to 1.0 micron particles. This inline duct filter box handles up to 400 CFM on a 4-inch intake line.

View full details

AC Infinity 4-Inch Air Filter Box for Intake Lines

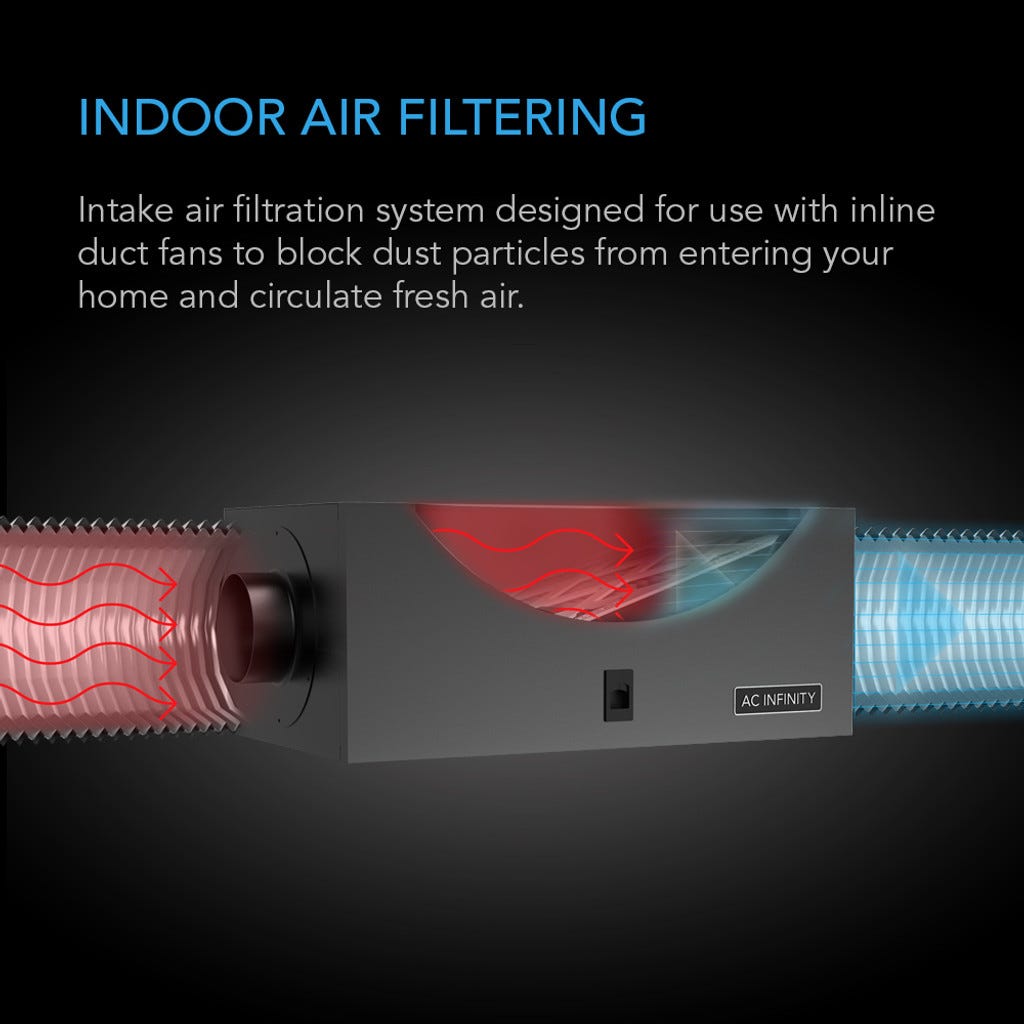

This box sits inline on a 4-inch duct and runs incoming air through a flat pleated filter. It is built for the intake side, at the start of the ductwork, so dust is caught before it enters the room or tent. The included filter traps particles from 0.3 to 1.0 microns at 90% efficiency. That covers fine dust, lint, pollen and other debris carried in from outside the grow space. The housing is 1 mm cold-rolled steel with a matte black powder coat. Aluminum duct collars on each end measure 3.81 in across and extend 3.21 in. Overall, the box measures 23.46 x 8.42 x 11.73 in. A hinged door with a slide lock opens onto the filter chamber. A soft neoprene layer around the door seals it against dust leaks. The slot accepts any standard 12 x 20 x 1 in furnace filter, including common MERV-rated replacements. AC Infinity rates airflow from a minimum of 80 to 120 CFM up to a 400 CFM maximum. It is matched to the CLOUDLINE S4 and T4 inline fans. A high static pressure fan like those keeps air moving through the pleats at full strength.

Installing an Inline Duct Filter Box on a 4-Inch Fan

Switch off power to the fan before connecting anything to it. Place the box between the inline fan and the intake ducting, with the door facing where you can reach it. Pull the plastic wrap off the filter before sliding it into the slot. Seal every duct joint completely with aluminum tape so air cannot bypass the filter. For a tent, run the intake duct from a clean room or hallway into the box and on to the fan. The fan then pushes filtered air through a port in the tent wall. Watch for condensation if the incoming air is much colder or warmer than the room around the box. Insulating the inside of the housing helps in that case. Check the filter face every few weeks and swap it when it turns gray. Unlock the door, slide the old filter out, slide a new one in, then close and lock it again. Wipe the inner walls with a damp cloth whenever dust builds up. The filter handles particles only, so pair the system with a carbon filter on the exhaust side for odor. The attached manual covers installation and maintenance in full.

Key Features

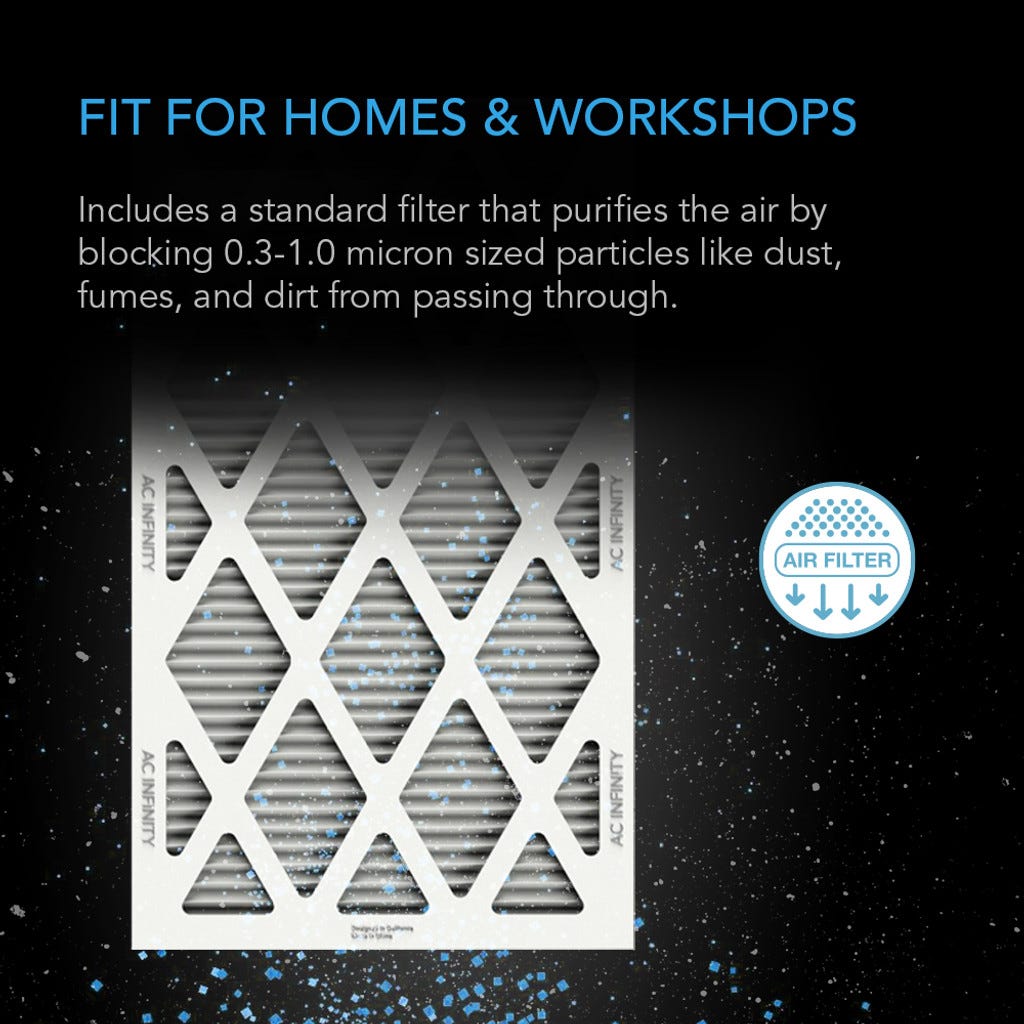

  • Pleated Filter Included: Traps 0.3 to 1.0 micron particles at 90% efficiency.
  • Standard Filter Size: Accepts 12 x 20 x 1 in replacements, including MERV-rated filters.
  • Steel Housing: 1 mm cold-rolled steel with a matte black powder coat.

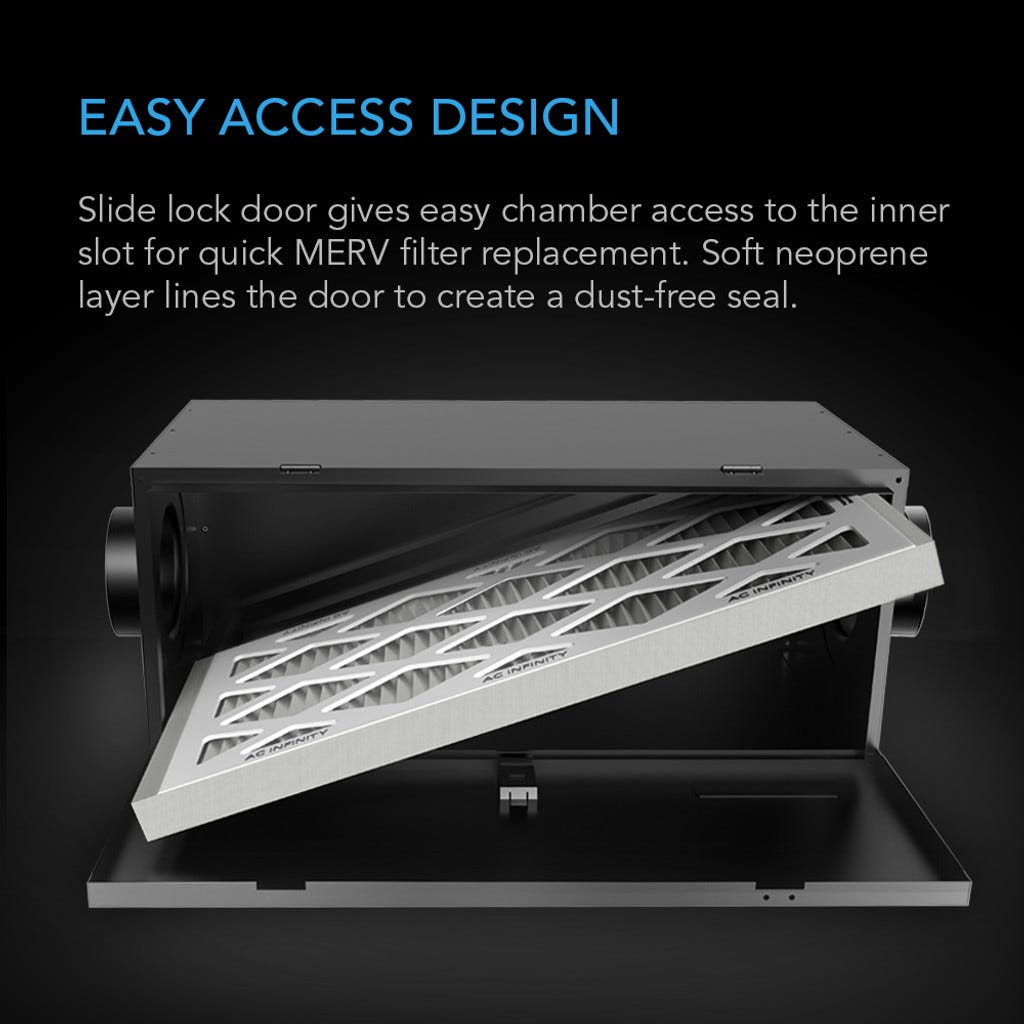

  • Sealed Door: Hinged door, slide lock and neoprene gasket.
  • 4-Inch Collars: Aluminum collars, 3.81 in across and 3.21 in long.
  • Fan Matched: Up to 400 CFM, made for CLOUDLINE S4 and T4.

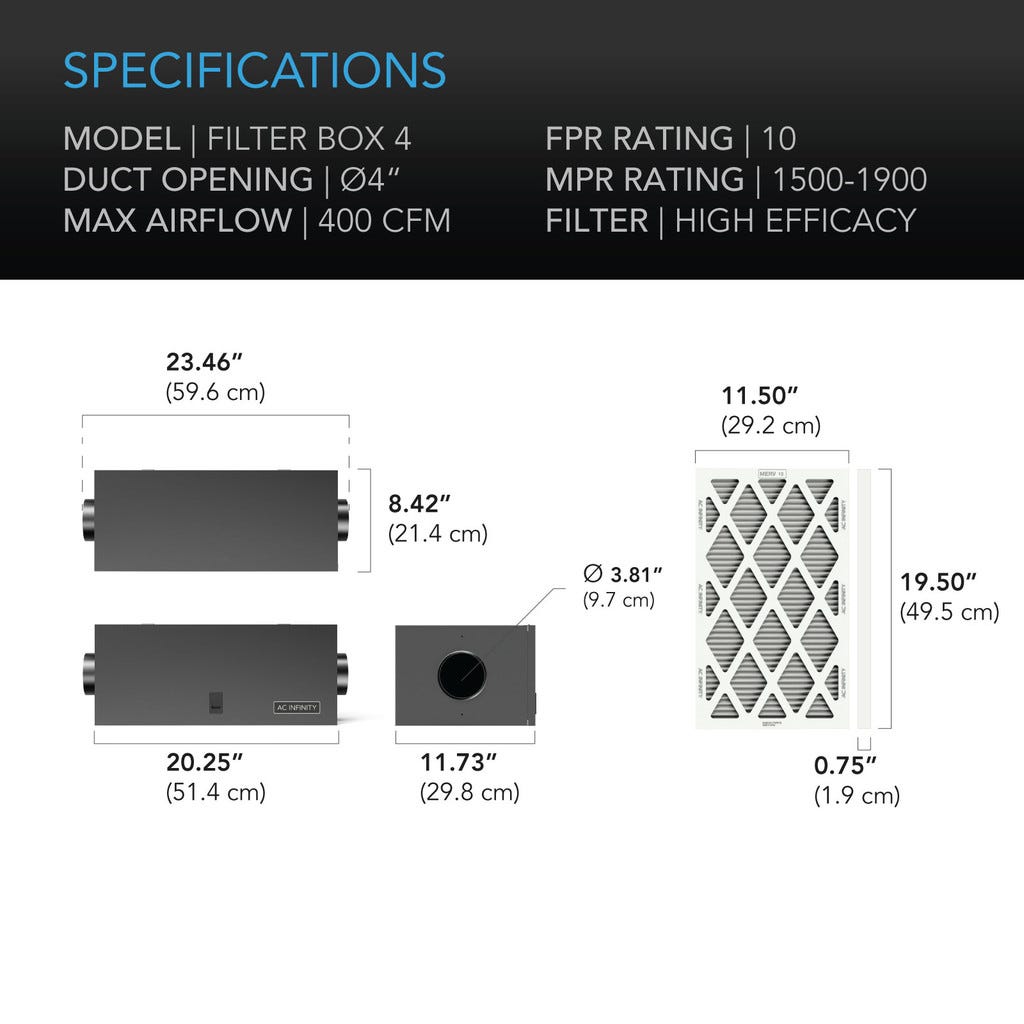

Technical Specifications

Specification Value
Brand AC Infinity
Model AC-AFB4
UPC 819137021693
Duct size 4 in
Duct opening 3.81 in (9.7 cm)
Collar length 3.21 in (8.2 cm)
Total dimensions 23.46 x 8.42 x 11.73 in (59.6 x 21.4 x 29.8 cm)
Box material 1 mm cold-rolled steel, matte black powder coat
Collar material Aluminum
Filter size 12 x 20 x 1 in
Included filter Pleated, 0.3 to 1.0 micron at 90% efficiency
Minimum airflow 80 to 120 CFM
Maximum airflow 400 CFM
Compatible fans CLOUDLINE S4, CLOUDLINE T4
Included Filter box, pleated air filter
Warranty 2 years
