AC Infinity 6-Inch Air Filter Box for Fresh Air Intake

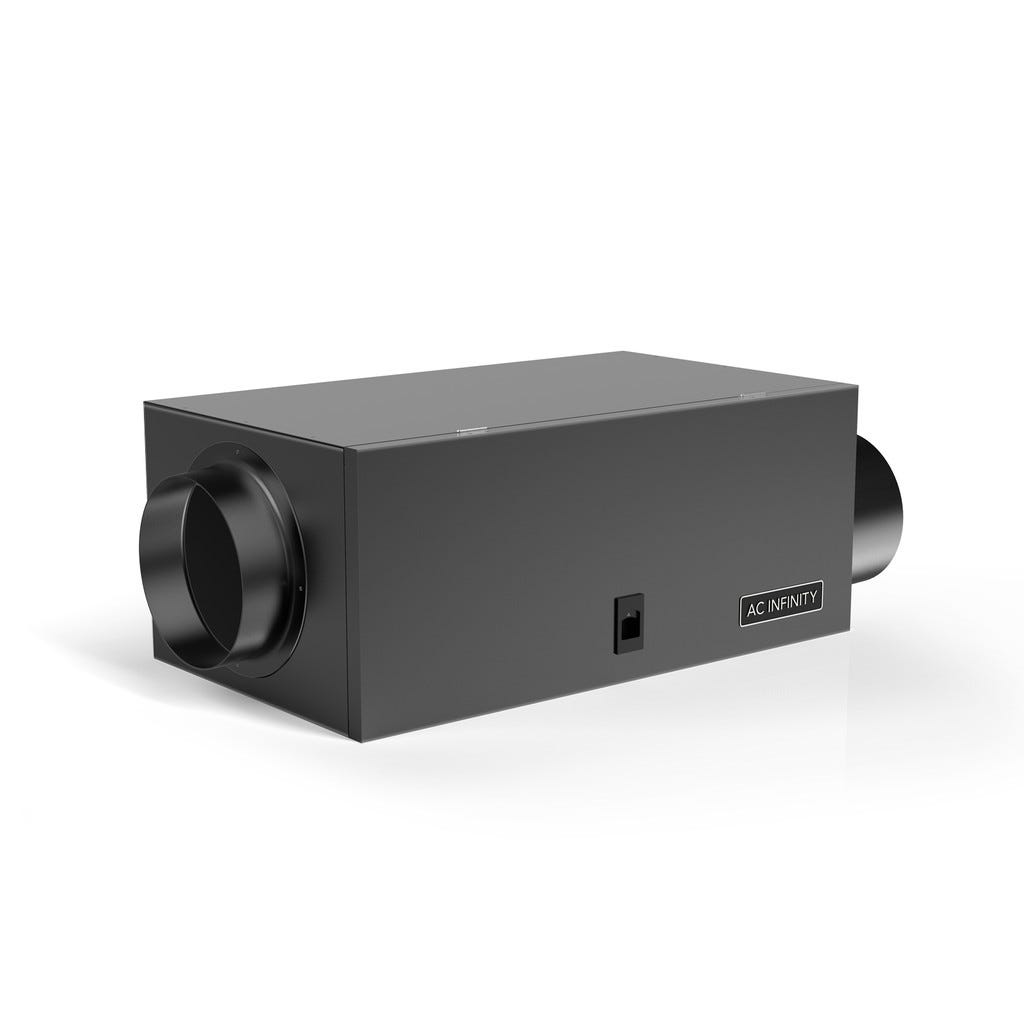

This steel box filters intake air on a 6-inch duct before it reaches the plants. Fresh air pulled into a tent carries dust, pollen and lint, and the box catches it first. Inside sits a flat pleated filter that traps 0.3 to 1.0 micron particles at 90% efficiency. The box belongs at the start of the intake ductwork, ahead of the fan. Its housing is 1 mm cold-rolled steel finished in matte black powder coat. Aluminum collars on both ends measure 5.78 in across and extend 3.21 in for a firm duct connection. The full box measures 23.46 x 8.42 x 11.73 in. A hinged door with a slide lock gives quick access to the filter. A neoprene gasket around the door keeps dust from slipping past the seal. Replacement filters are the standard 12 x 20 x 1 in size, with MERV-rated options widely stocked. AC Infinity lists a minimum airflow of 182 to 272 CFM and a maximum of 800 CFM. The box pairs with the CLOUDLINE S6 and T6 inline fans. Those high static pressure fans hold airflow steady as the pleats load with dust.
Plumbing a 6 Inch Inline Filter Box into a Tent Intake
Turn the fan off at the outlet before making any connections. Mount the box between the intake ducting and the inline fan, door side out. Strip the plastic wrap from the filter and slide it into its slot. Wrap each duct joint fully in aluminum tape, leaving no gaps around the collars. A common layout draws air from a clean hallway, through the box and fan, into a lower port on the tent. Exhaust then leaves through a carbon filter and fan at the top of the tent. That pairing keeps dust out on the way in and odor in check on the way out. Condensation can form inside the box when the intake air and the room differ widely in temperature. Lining the inside of the box with insulation cuts that down. Inspect the filter at each reservoir change and replace it once the pleats look gray. To swap it, unlock the door, pull the used filter, slide in a new one and lock the door. A damp cloth clears dust from the inner walls during each change. Keep the attached manual on hand for the full install sequence.
Key Features
- Pleated Filter Included: 0.3 to 1.0 micron capture at 90% efficiency.
- Standard 12 x 20 x 1 in Filter: Easy-to-find replacements, including MERV-rated filters.
- Powder-Coated Steel: 1 mm cold-rolled steel housing in matte black.
- Gasketed Door: Hinged door with slide lock and neoprene seal.
- 6-Inch Collars: Aluminum, 5.78 in across and 3.21 in long.
- Up to 800 CFM: Matched to CLOUDLINE S6 and T6 fans.

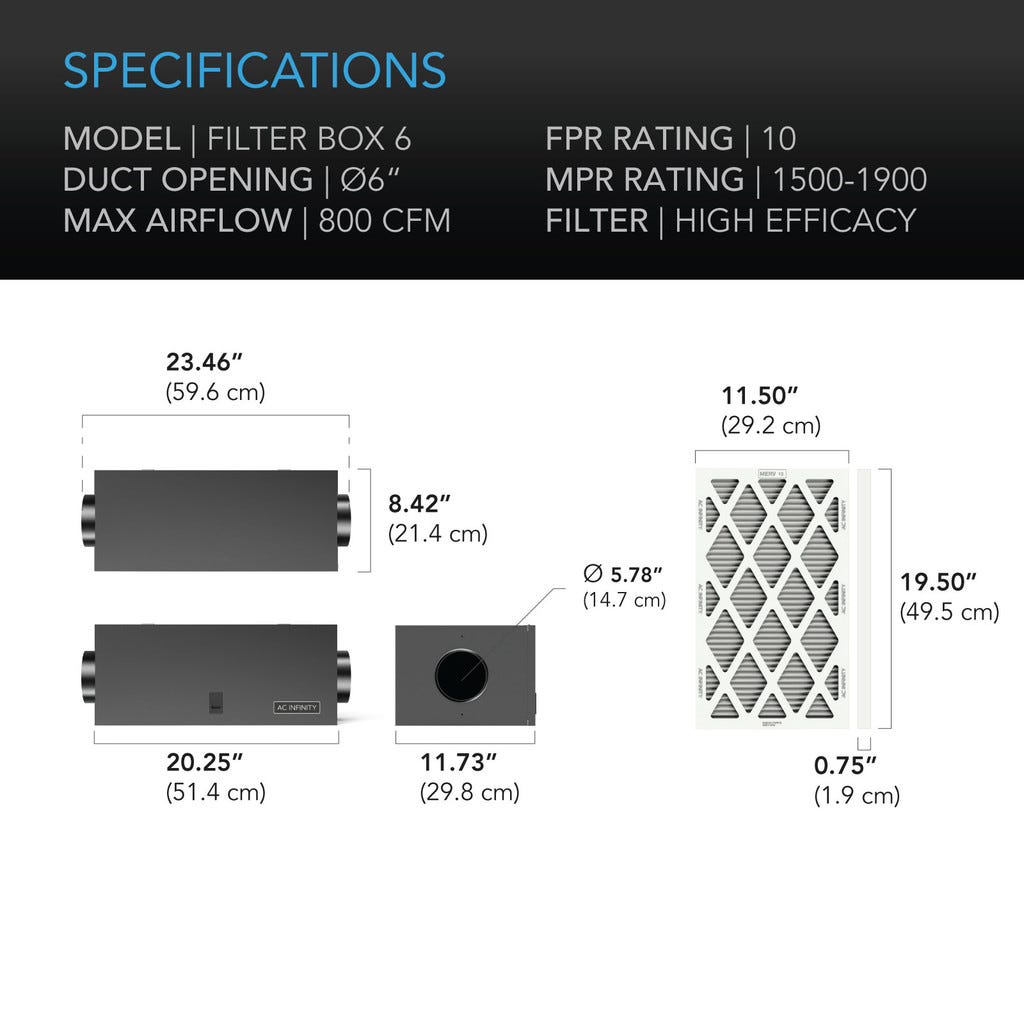

Technical Specifications
| Specification | Value |
|---|---|
| Brand | AC Infinity |
| Model | AC-AFB6 |
| UPC | 819137021709 |
| Duct size | 6 in |
| Duct opening | 5.78 in (14.7 cm) |
| Collar length | 3.21 in (8.2 cm) |
| Total dimensions | 23.46 x 8.42 x 11.73 in (59.6 x 21.4 x 29.8 cm) |
| Box material | 1 mm cold-rolled steel, matte black powder coat |
| Collar material | Aluminum |
| Filter size | 12 x 20 x 1 in |
| Included filter | Pleated, 0.3 to 1.0 micron at 90% efficiency |
| Minimum airflow | 182 to 272 CFM |
| Maximum airflow | 800 CFM |
| Compatible fans | CLOUDLINE S6, CLOUDLINE T6 |
| Included | Filter box, pleated air filter |
| Warranty | 2 years |
