AC Infinity Air Filtration Kit PRO 4 inch inline fan system

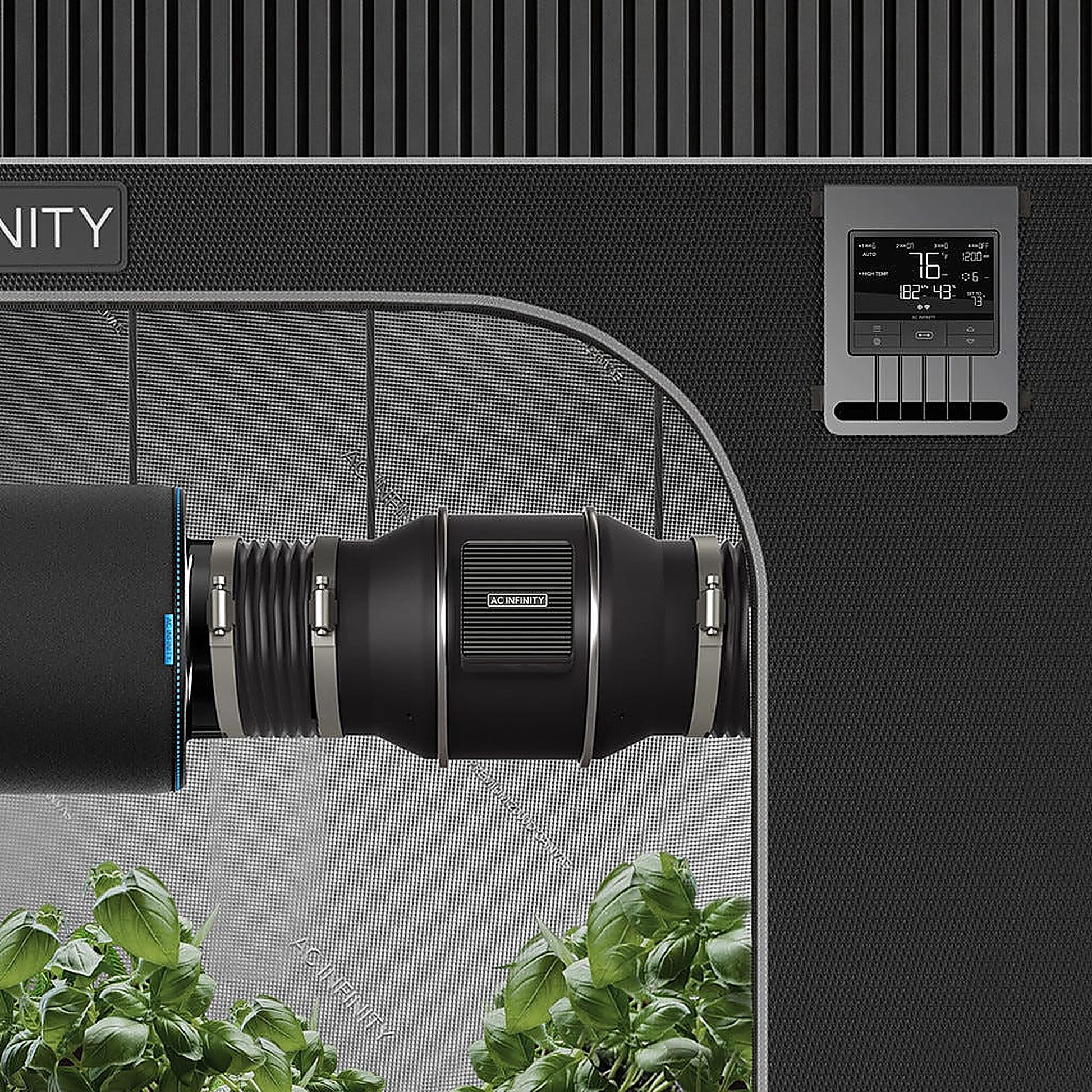

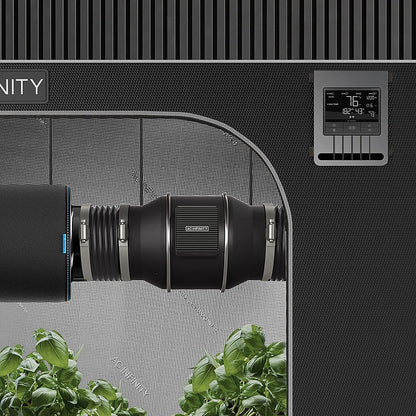

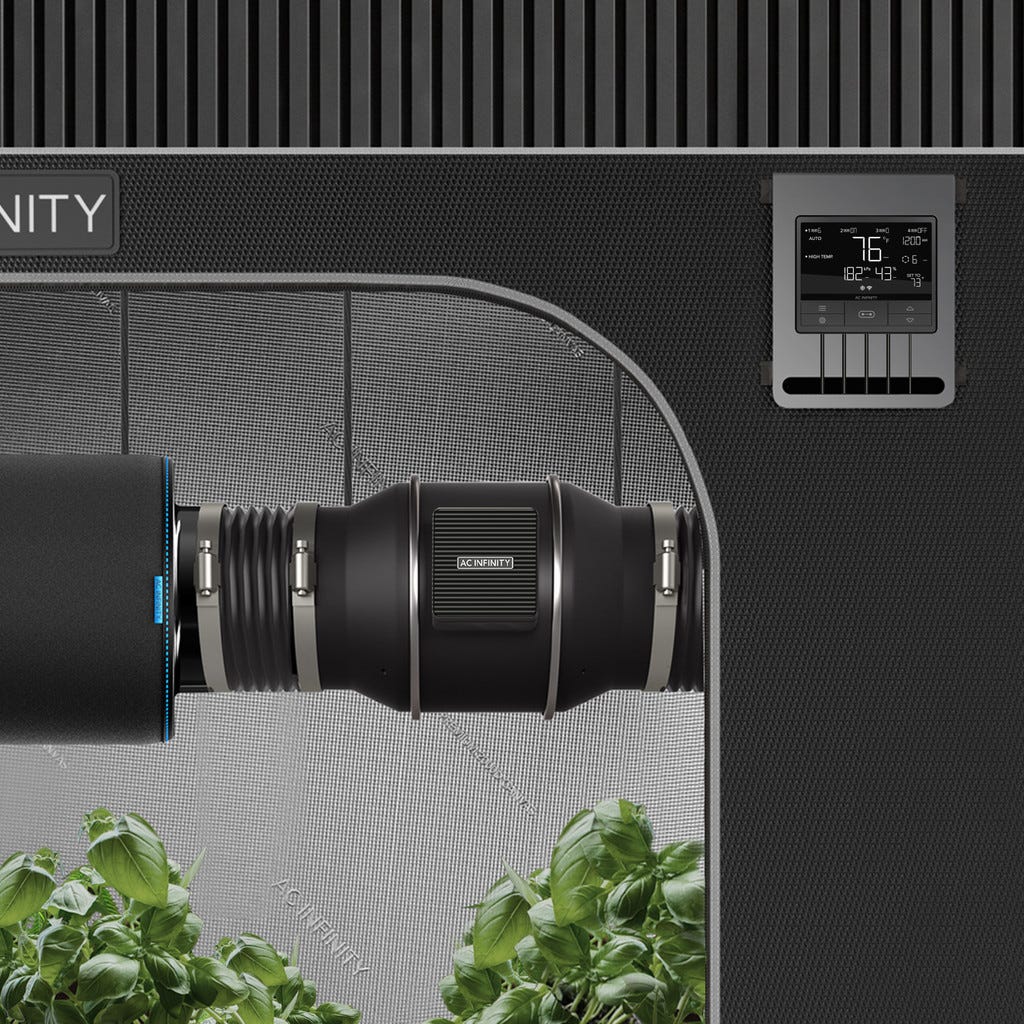

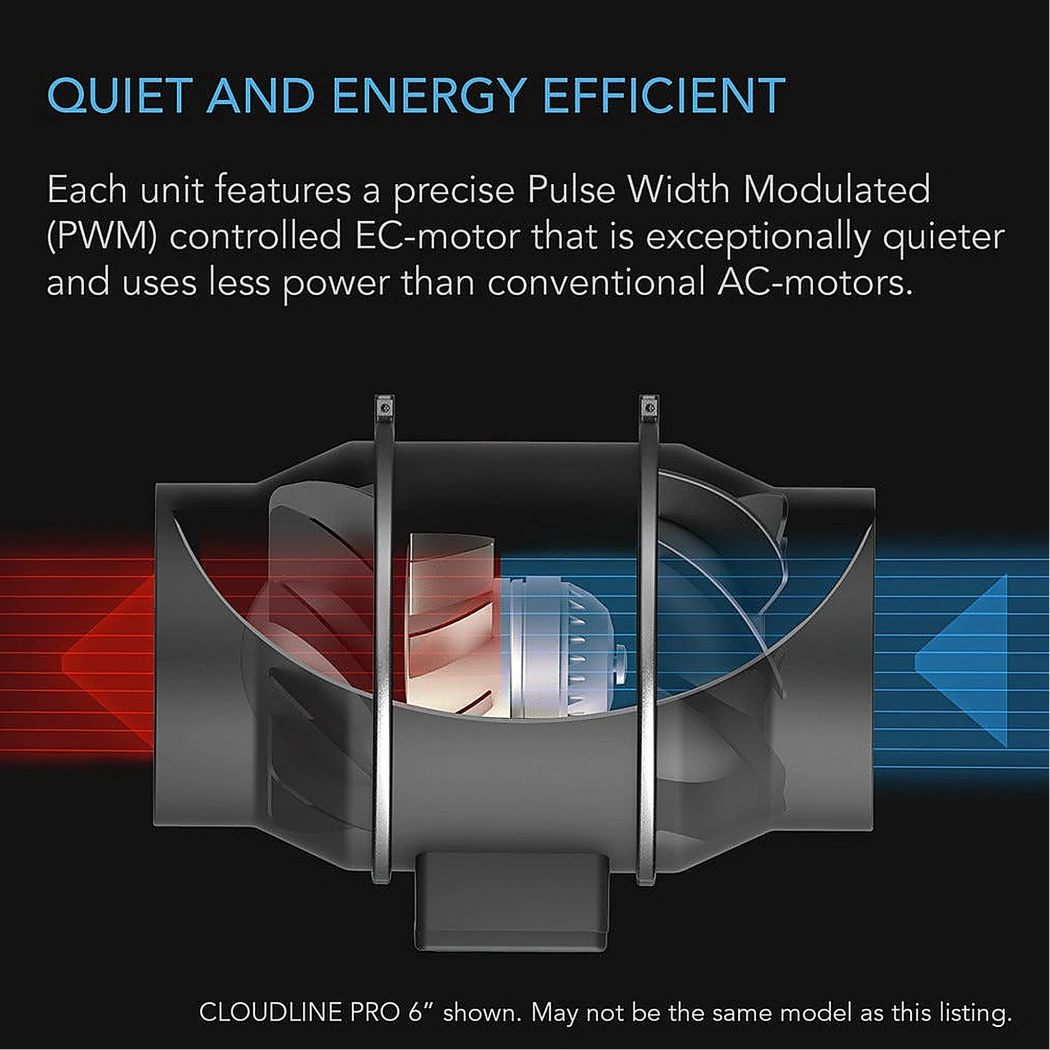

This complete PRO 4 inch system pairs a CLOUDLINE PRO EC inline fan with a smart controller. It adds an Australian carbon filter and 25 ft of ducting. The kit moves up to 205 CFM at just 29 dBA to clear heat, humidity, and odor from a grow tent. The mixed-flow EC motor runs quietly and sips power.

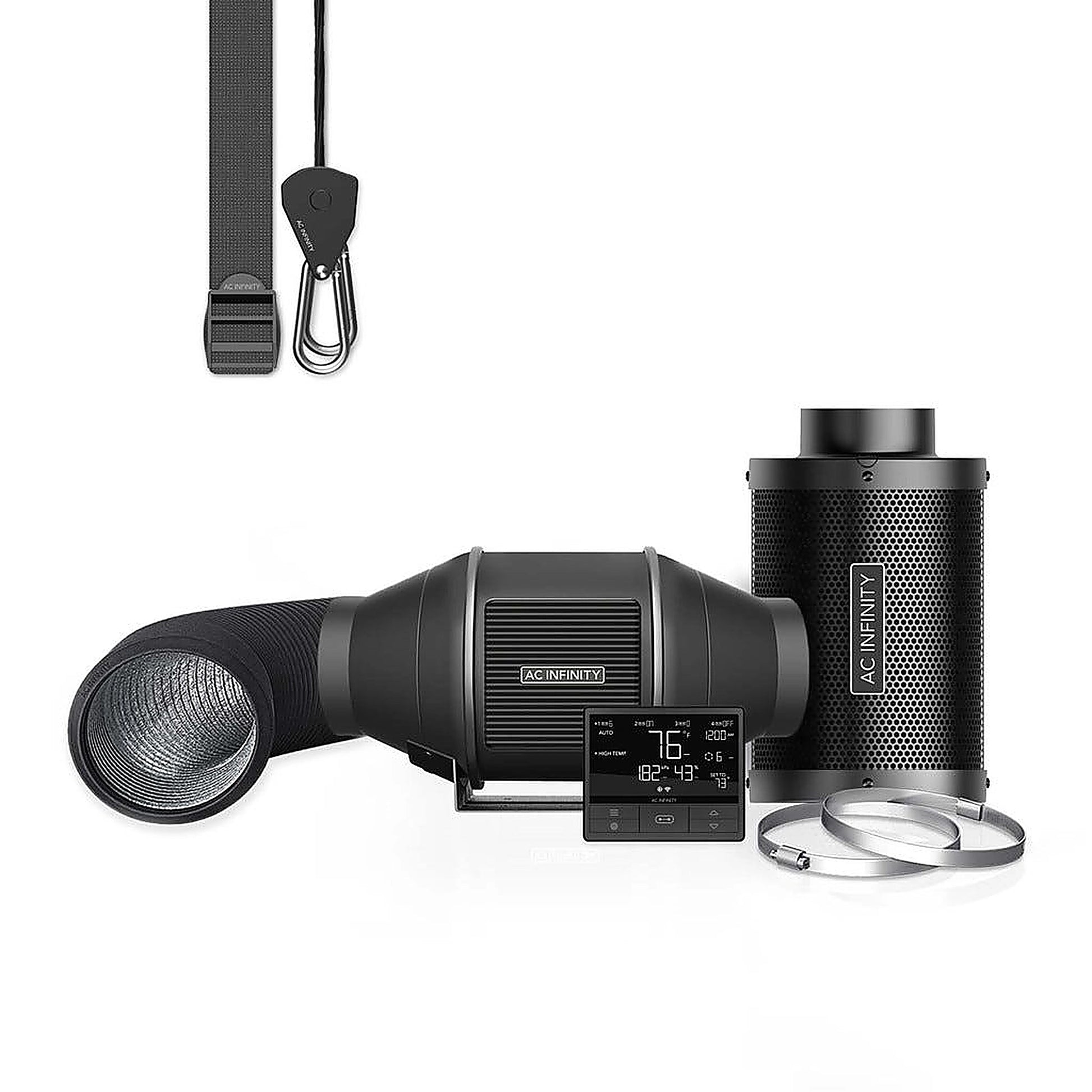

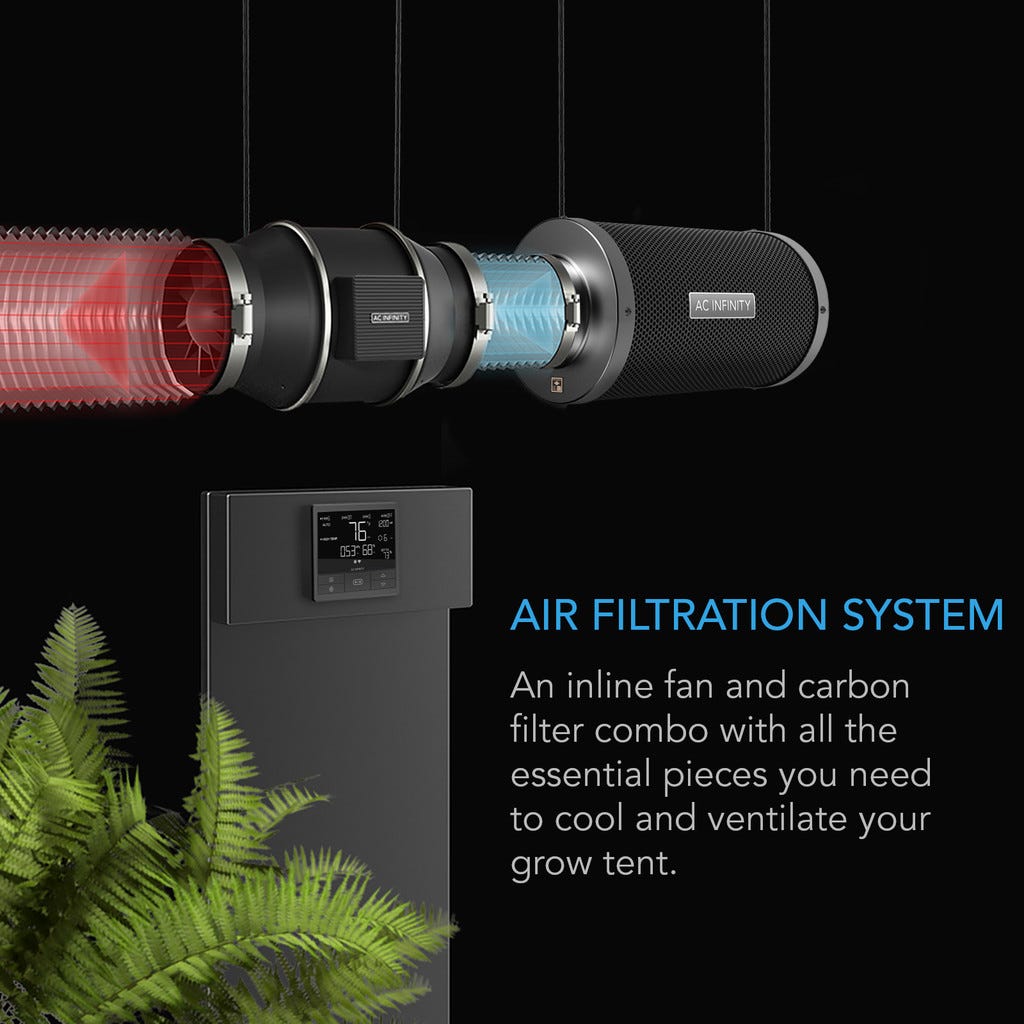

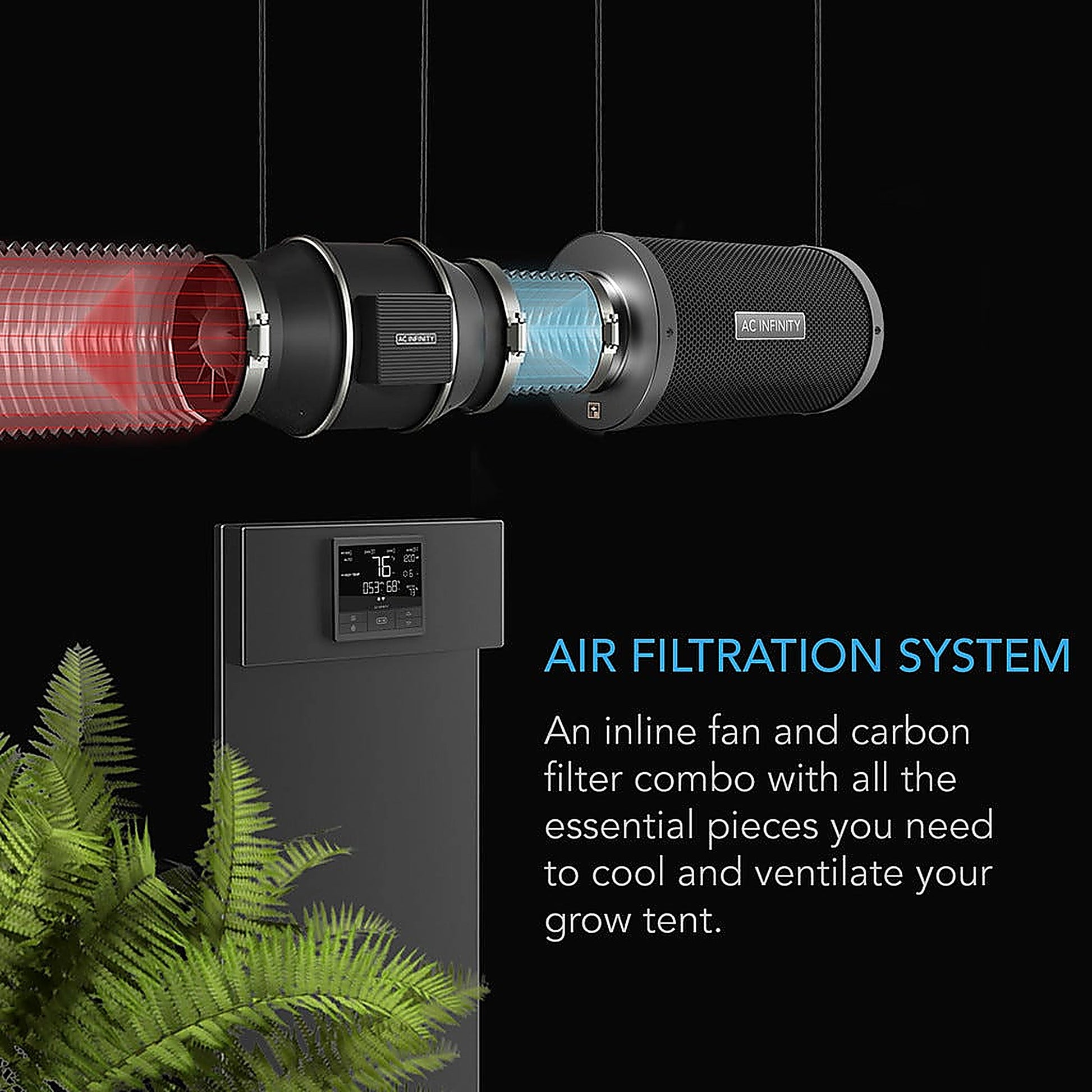

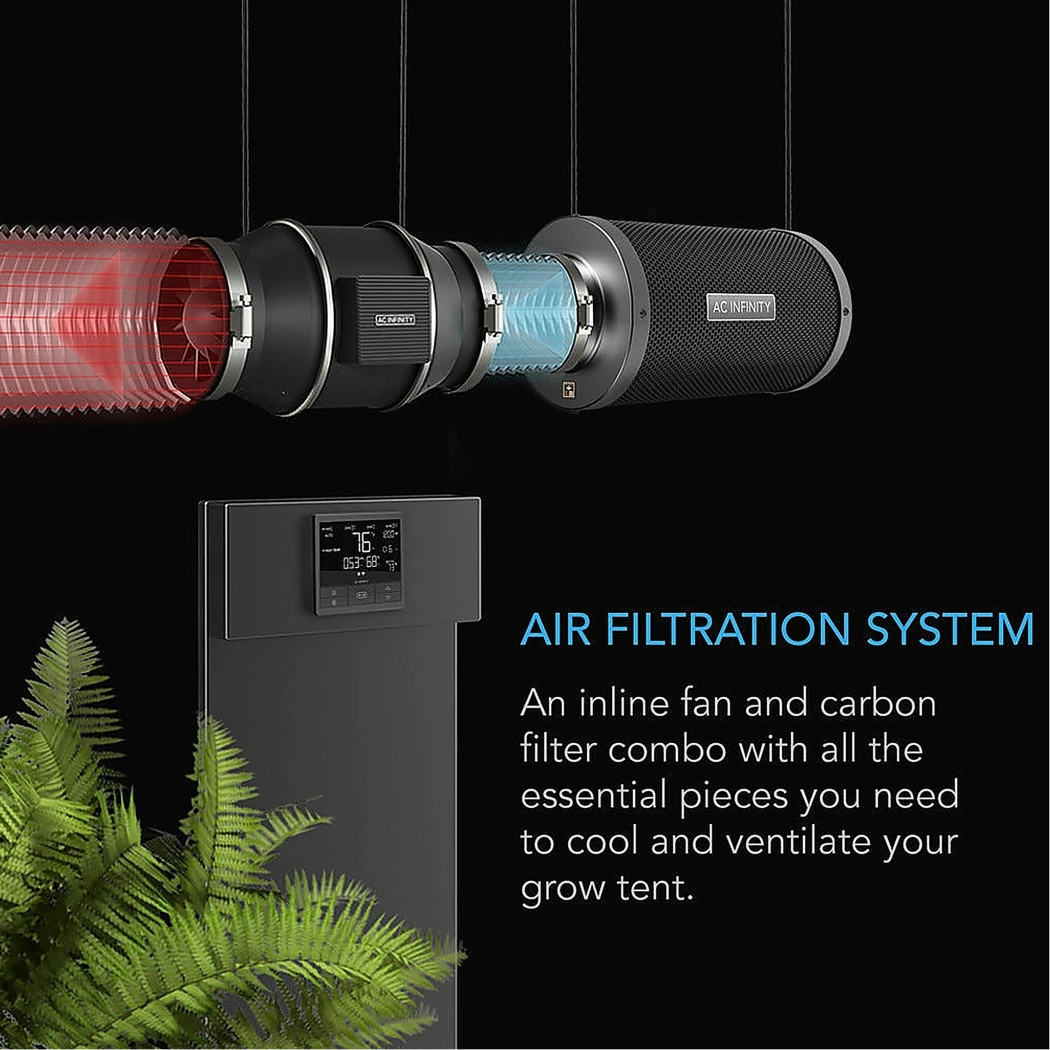

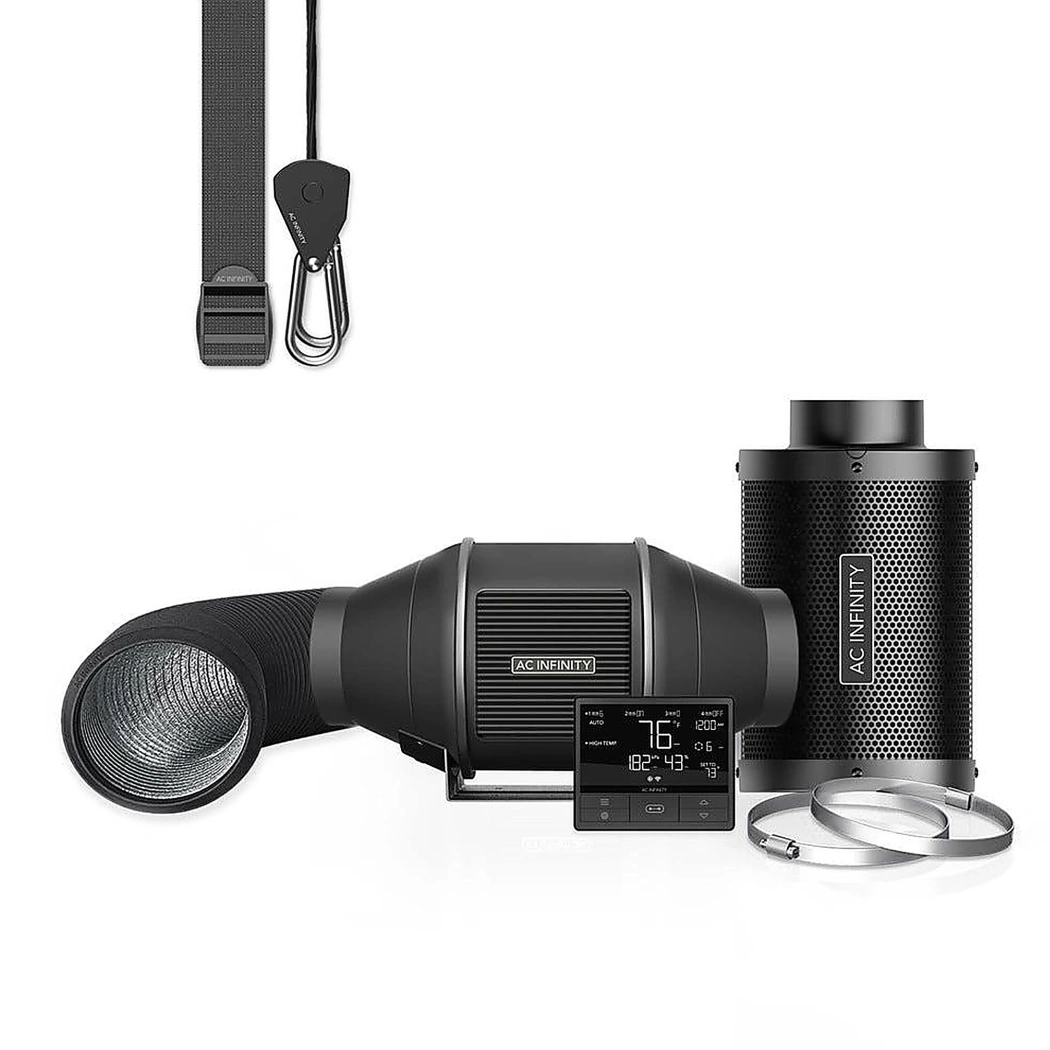

Smart inline fan, carbon filter, and ducting combo
The Controller 69 PRO automates fan speed from temperature, humidity, and VPD, with timer, cycle, and schedule modes set from the AC Infinity app. Growers keep root and canopy conditions steady while the fan holds a target climate on its own. A 38 mm bed of virgin charcoal scrubs odor from reservoirs and flowering plants before air leaves the tent. IP-44 housing, dual ball bearings, and a steel filter body handle humid rooms. The kit includes clamps, a prefilter, and rope-clip hangers for a fast install.
Key Features
- 205 CFM at 29 dBA: CLOUDLINE PRO EC motor delivers strong airflow quietly.

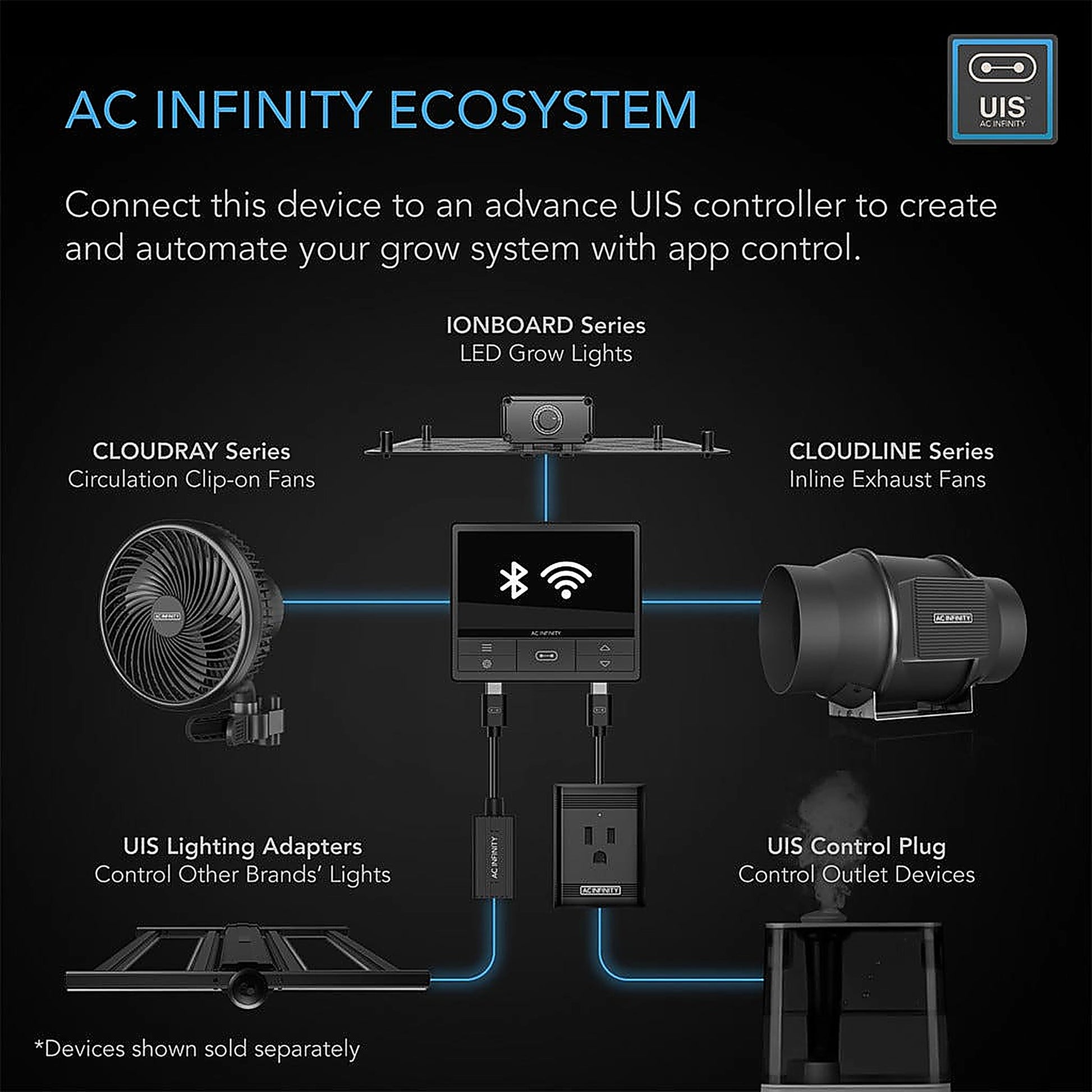

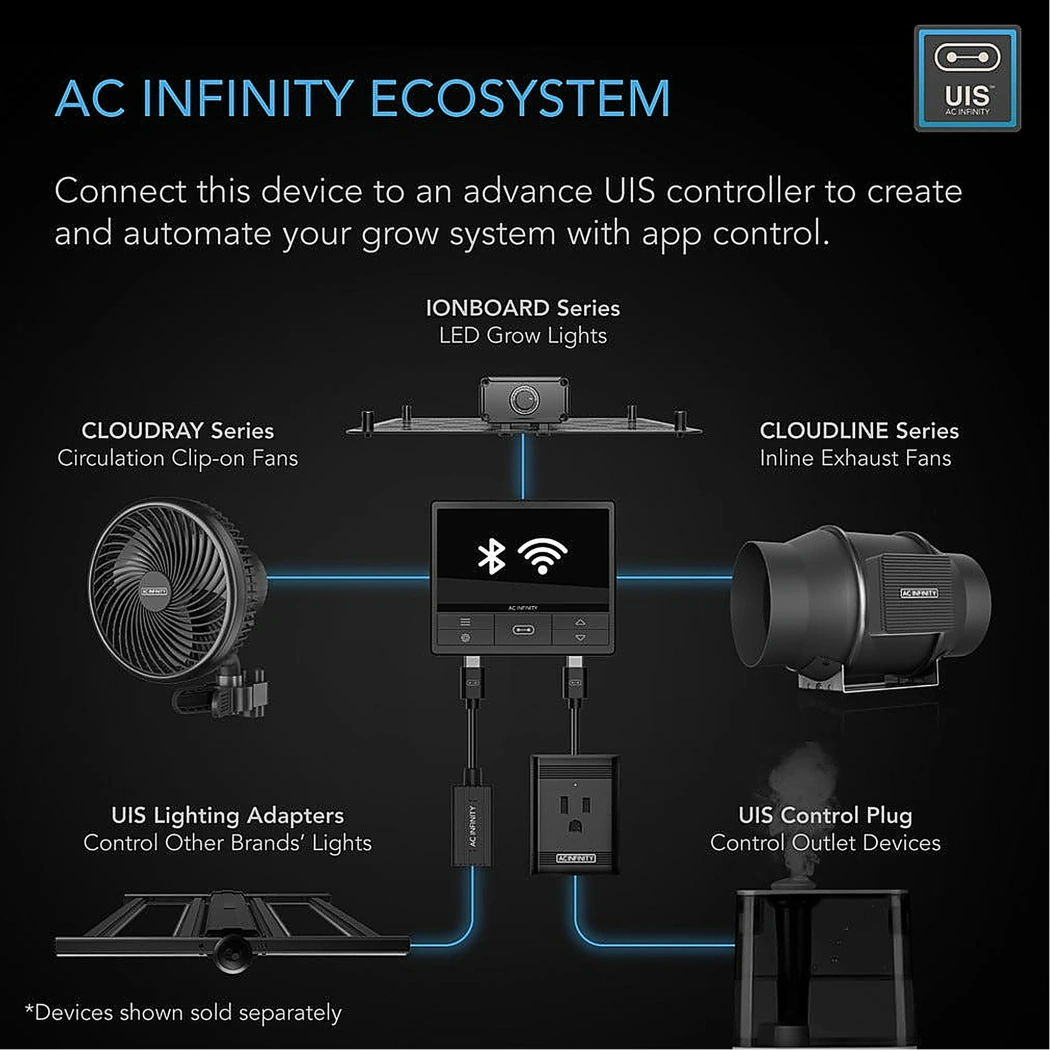

- Controller 69 PRO: Automates by temperature, humidity, and VPD with timer, cycle, schedule, and app control.

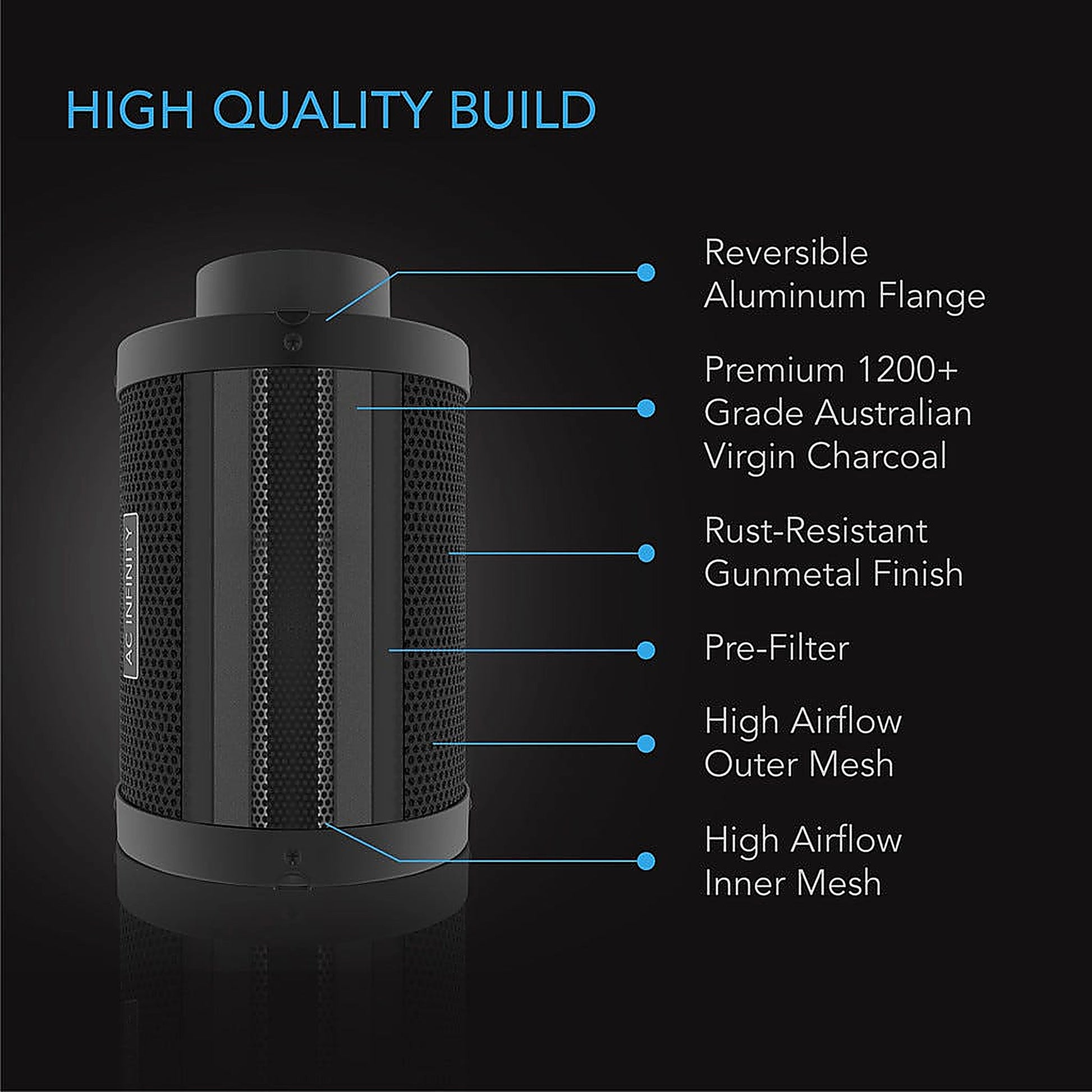

- Australian Virgin Charcoal: 1200+ IAV RC412 carbon, 38 mm bed, scrubs odor and VOCs.

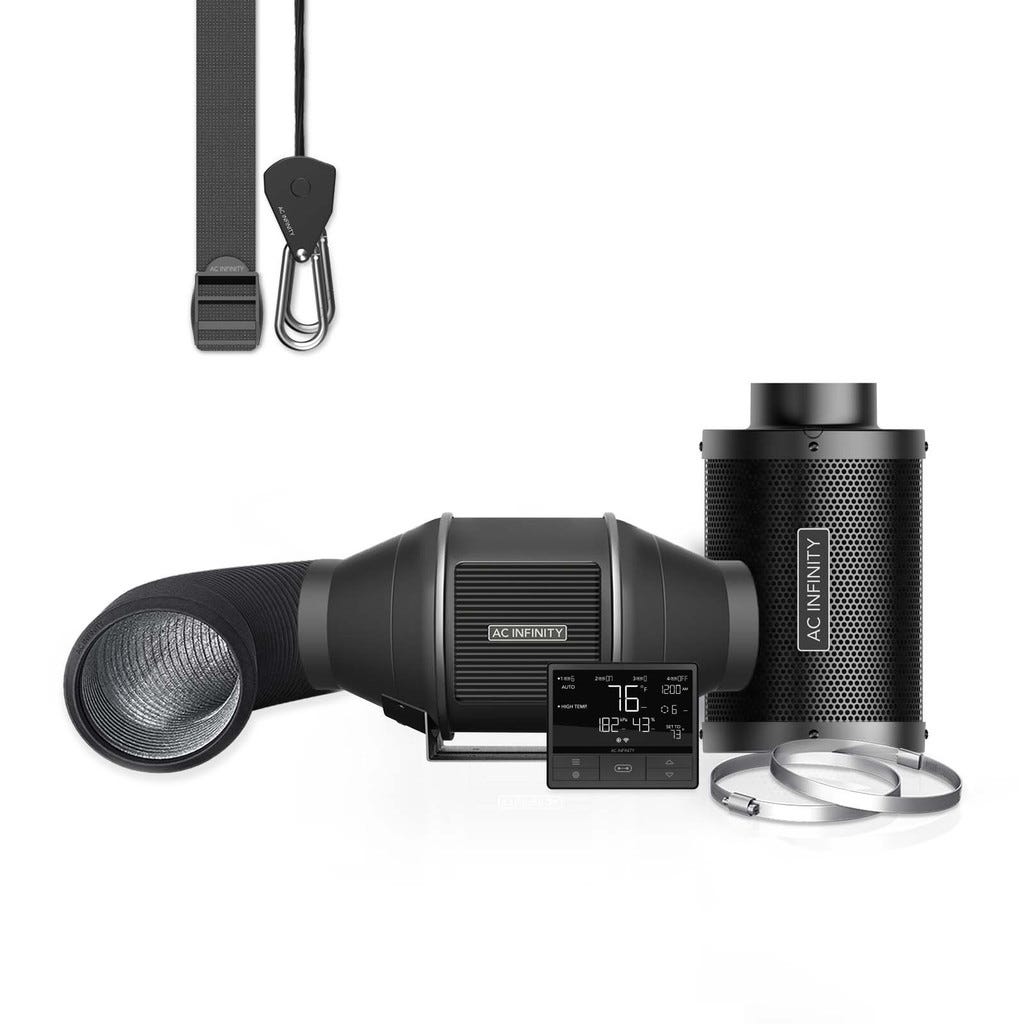

- Complete Kit: 25 ft ducting plus clamps, prefilter, and rope-clip hangers for plug-and-play install.
- Grow-Ready Build: IP-44 housing, dual ball bearings, 67,000-hour L10 life, steel filter body.

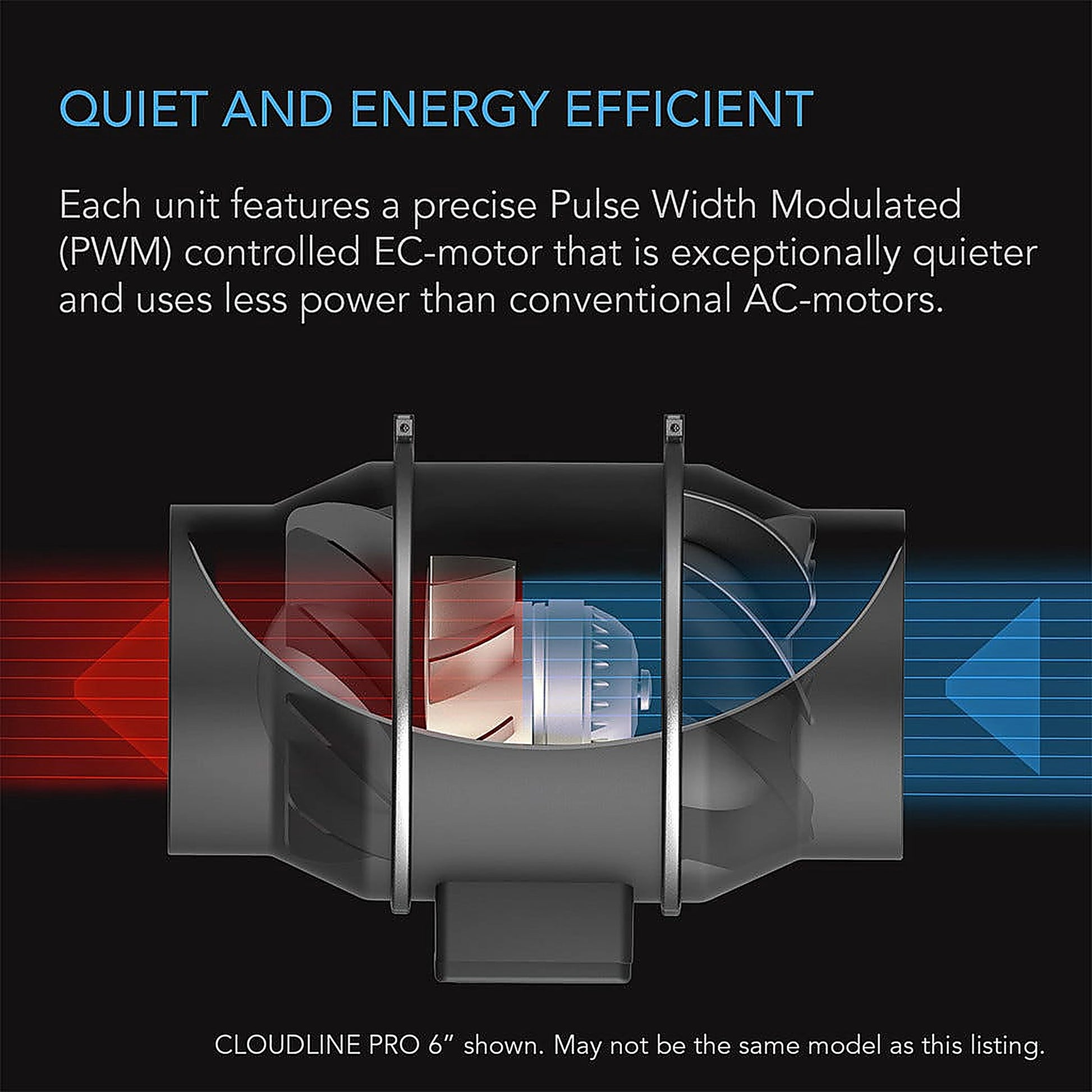

- Mixed-Flow Power: PWM control and 324 Pa static pressure push air through long duct runs.

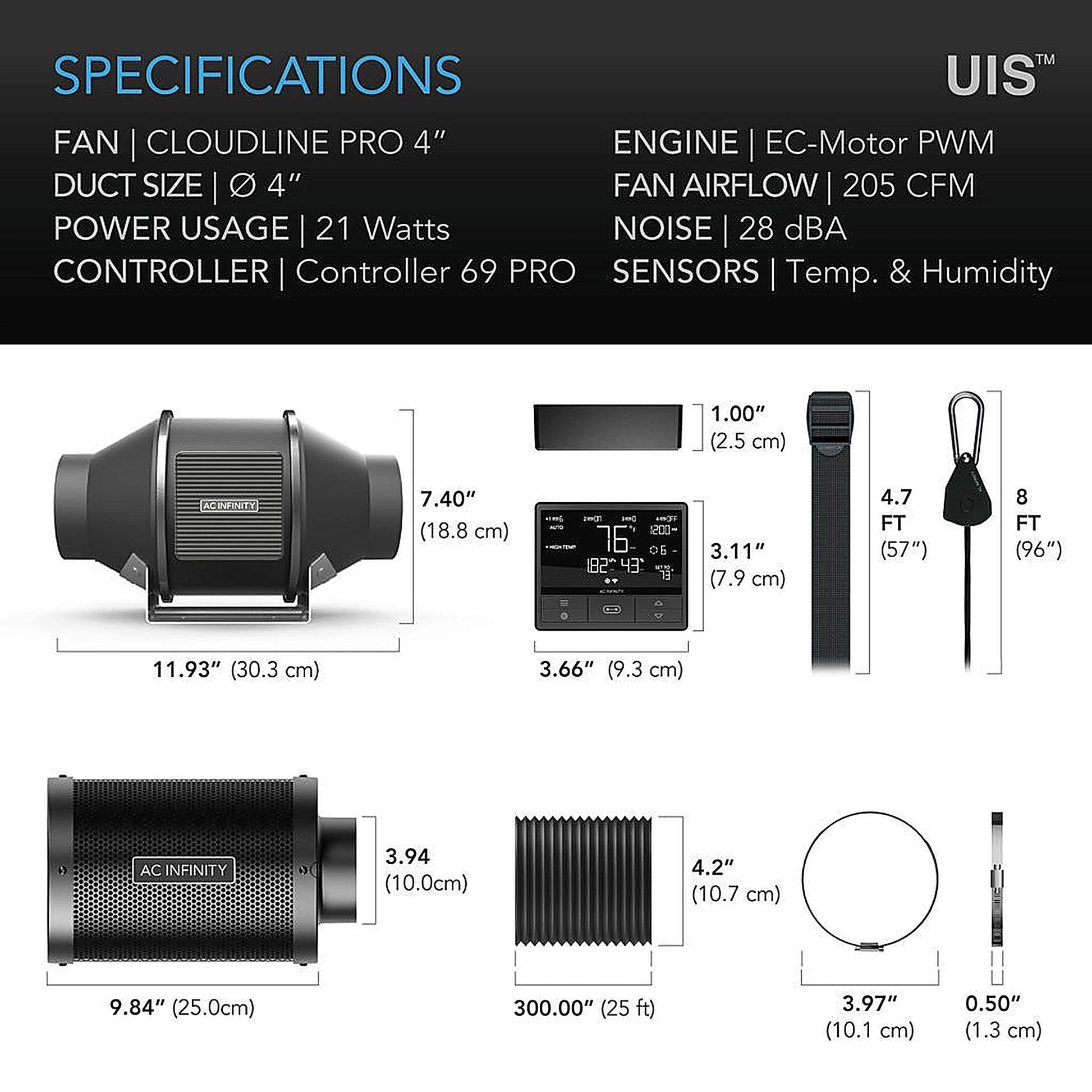

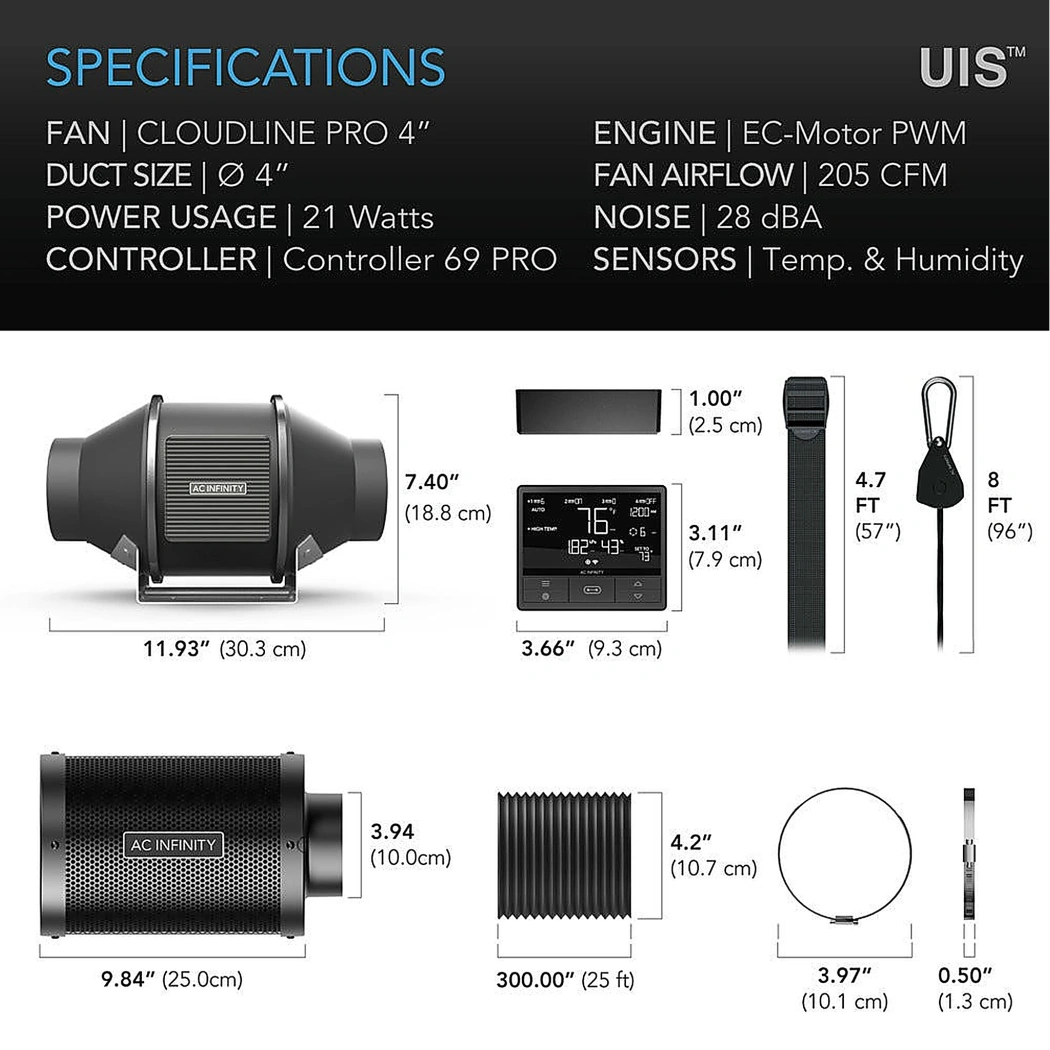

| Component | Specification | Value |
|---|---|---|
| CONTROLLER | ||
| Controller | Total Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |

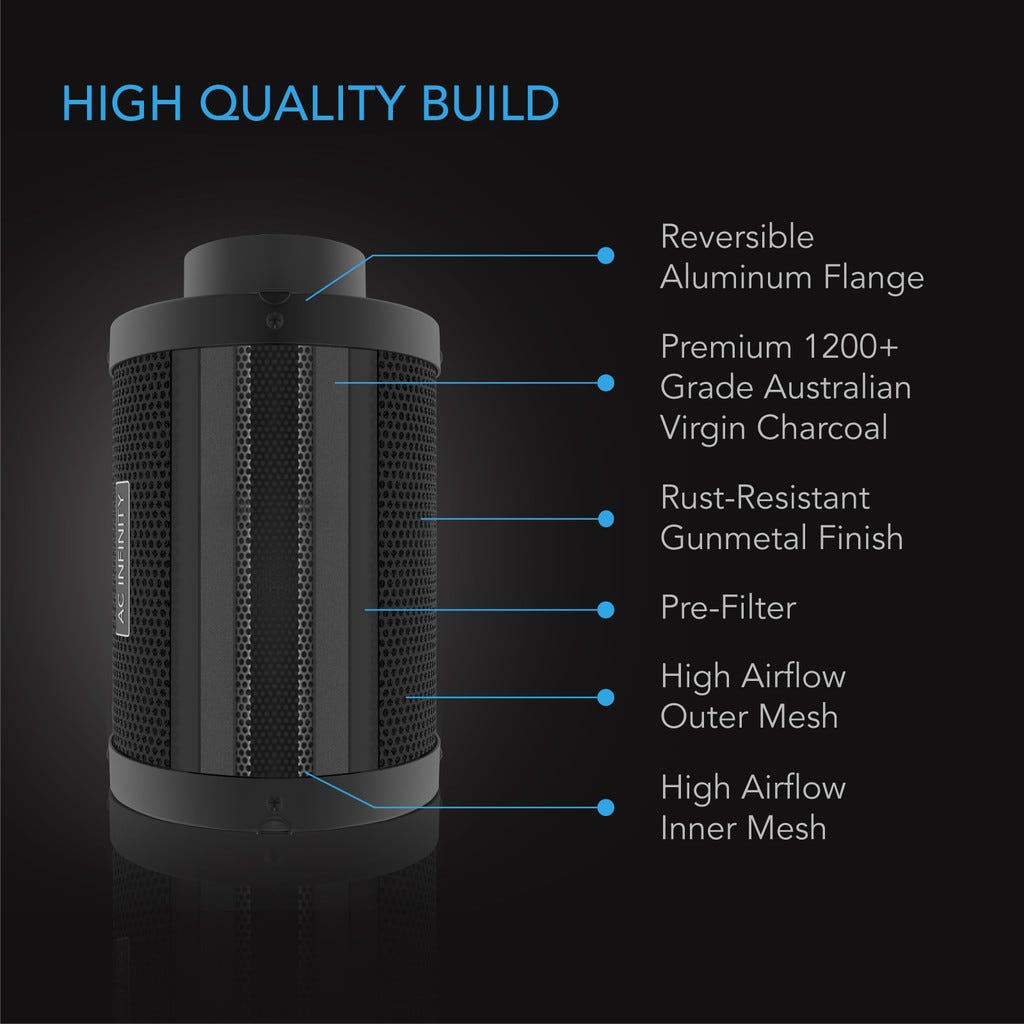

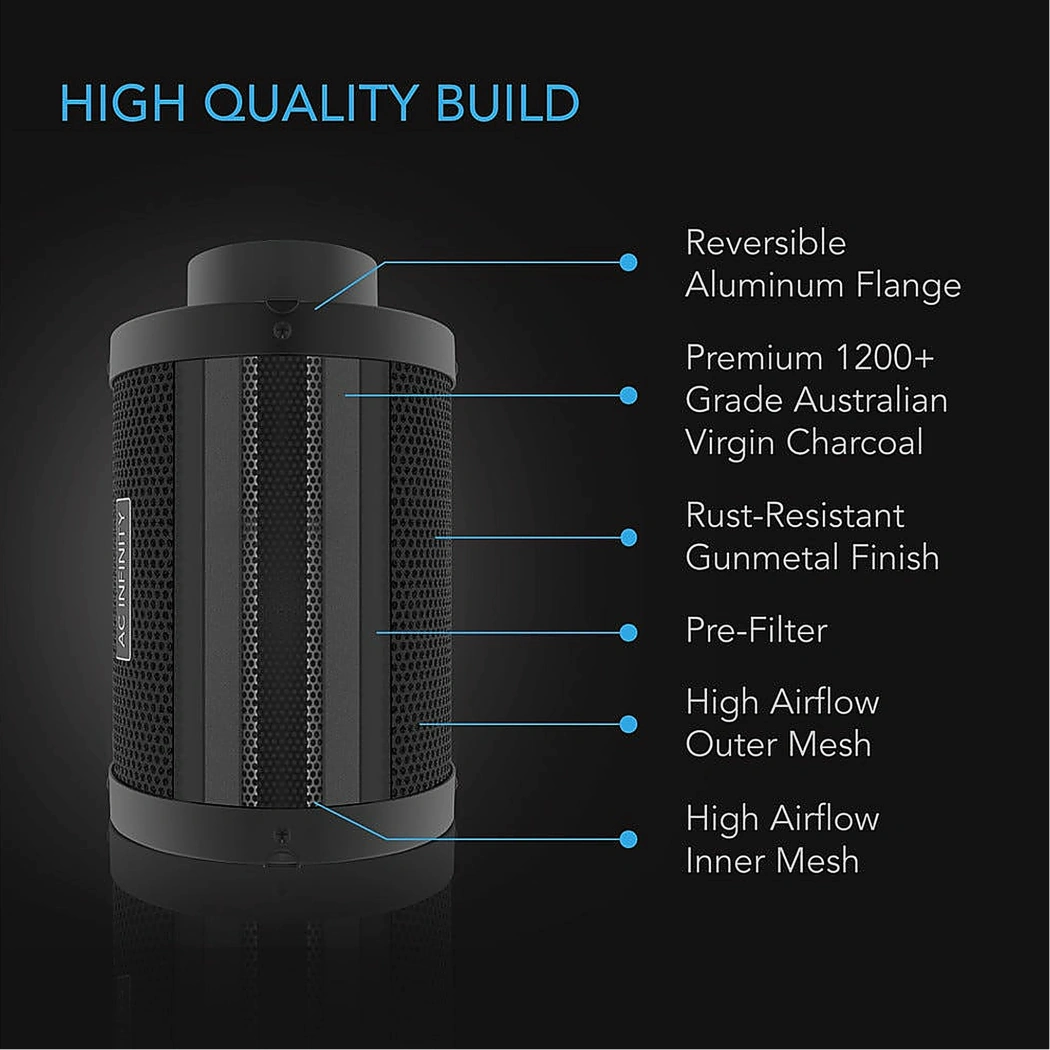

| CARBON FILTER | ||
| Carbon Filter | Duct Opening Size | 4" |
| Carbon Filter | Total Dimensions | 13.35 x 6.97 in. (33.3 x 17.7 cm) |
| Carbon Filter | Flange Length | 1.46 in. (3.7 cm) |
| Carbon Filter | Flange Material | Aluminum |
| Carbon Filter | Flange Design | Reversible |
| Carbon Filter | Mesh Material | Galvanized Steel |
| Carbon Filter | Carbon Type | Australian Virgin RC412 |
| Carbon Filter | Carbon Grade | 1200+ IAV |
| Carbon Filter | Carbon Thickness | 38 mm |
| Carbon Filter | Maximum Airflow | 210 CFM |
| DUCTING | ||
| Ducting | Ducting Size | 4 in. (10.2 cm) |
| Ducting | Length | 300 in. (25 ft) |
| Ducting | Outer Layer | PVC Thermoplastic |
| Ducting | Inner Material | Aluminum Foil |
| Ducting | Internal Structure | Spiral Steel-Wire |
| FAN UNIT | ||
| Fan Unit | Duct Size | 4" |
| Fan Unit | Total Dimensions | 7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm) |
| Fan Unit | Total Airflow | 205 CFM |
| Fan Unit | Total Noise | 29 dBA |
| Fan Unit | Max Speed | 2800 RPM |
| Fan Unit | Static Pressure | 324 Pa |
| Fan Unit | Voltage | 100-240V AC |
| Fan Unit | Frequency | 50/60Hz |
| Fan Unit | Max Power Draw | 28 W |
| Fan Unit | Average Power Usage | 21 W |
| Fan Unit | Current | 0.4 A |
| Fan Unit | Power Connector | US Plug (NEMA 1-15 Type-A) |
| Fan Unit | Operating Humidity | 35 to 85% RH |
| Fan Unit | Operating Temperature | 0 to 140 °F |
| Fan Unit | Ingress Protection | IP 44 |
| Fan Unit | Fan Bearings | Dual Ball |
| Fan Unit | Mounting Positions | Horizontal or Vertical |
| Fan Unit | L10 Life Expectancy | 67,000 Hours |
| Fan Unit | Approvals | CE, RoHS |
