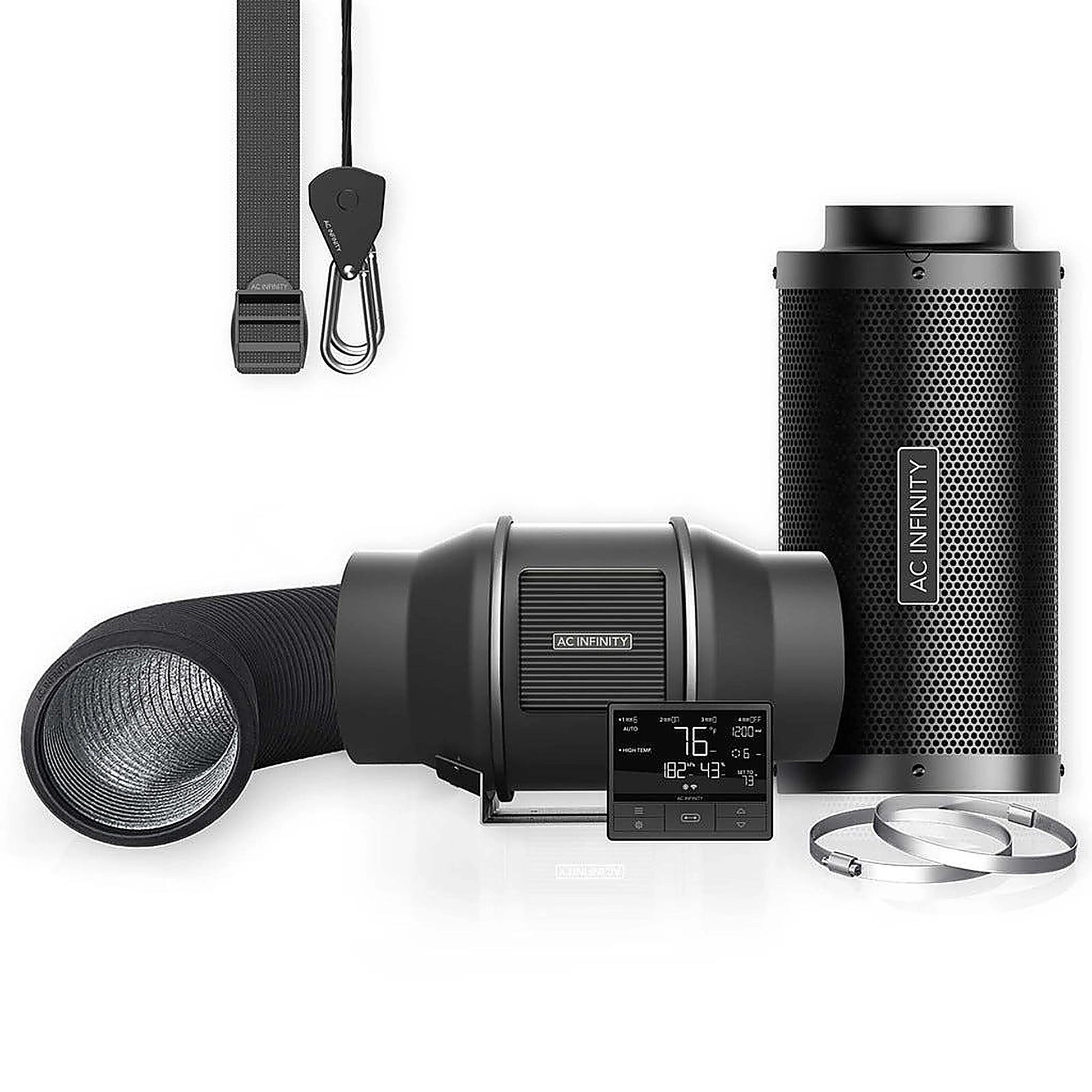

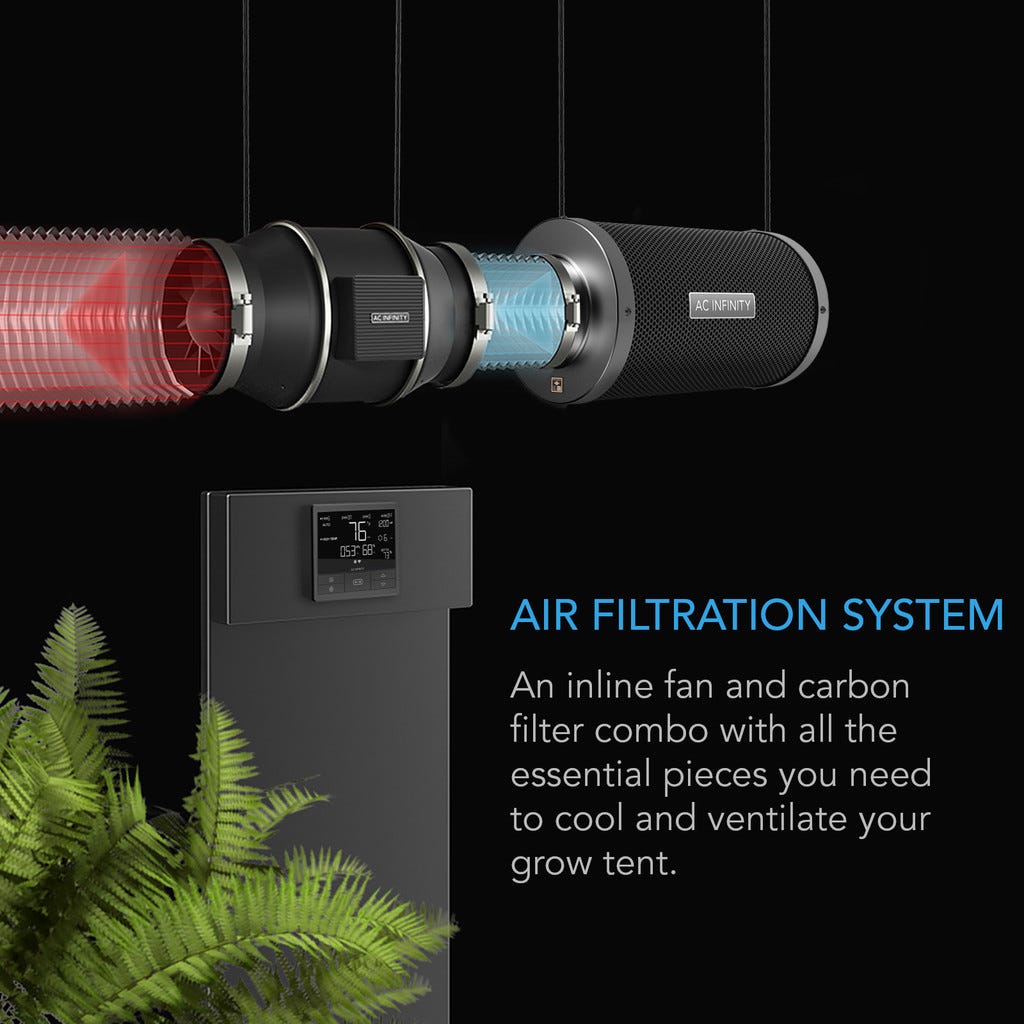

The Air Filtration Kit PRO 6" is an all-in-one solution designed for superior air management in your indoor growing space. This comprehensive kit includes everything needed to effectively control ventilation, temperature, humidity, and odor in larger grow tents or rooms.
High-Capacity Ventilation:

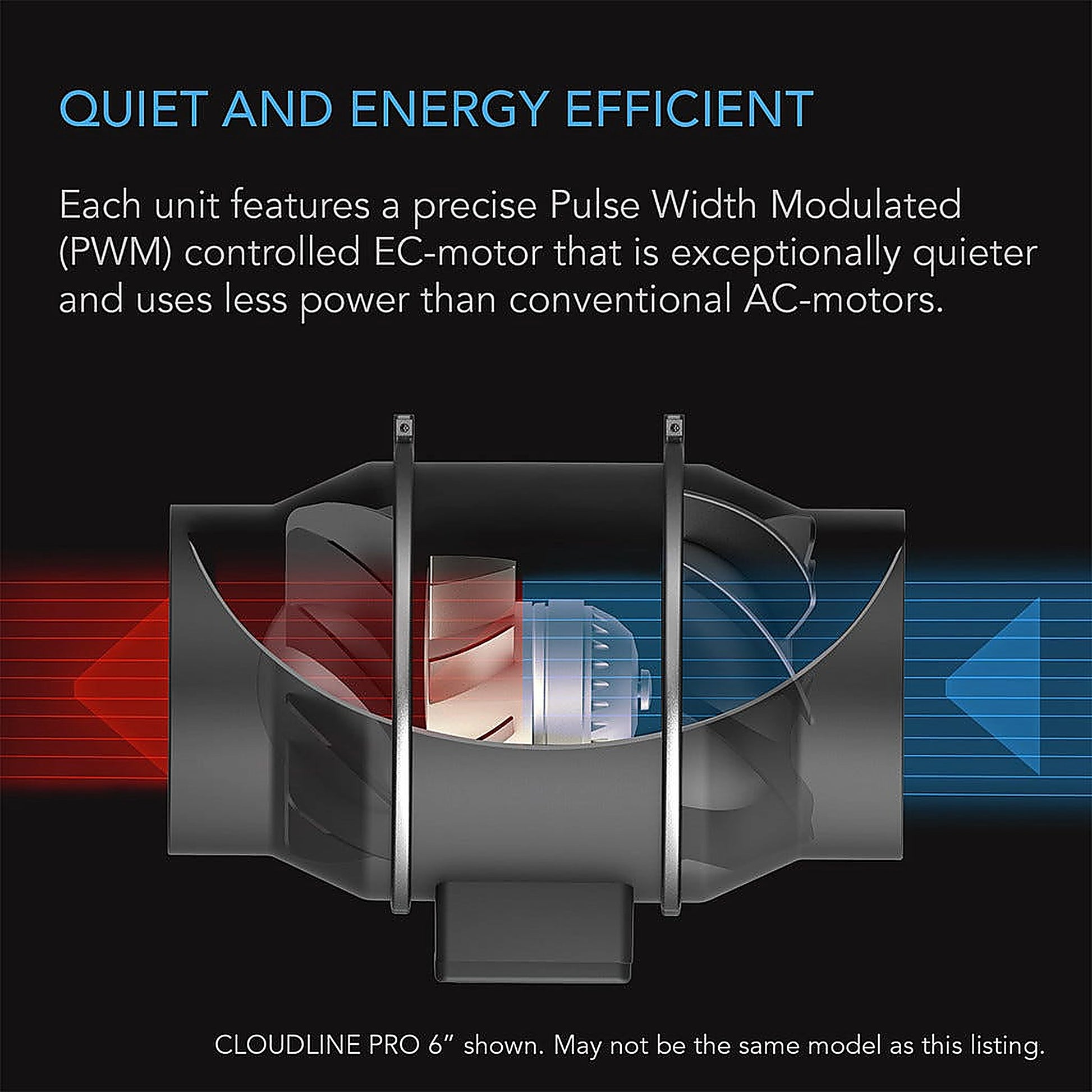

CLOUDLINE PRO Inline Fan: Central to this kit is the high-capacity CLOUDLINE PRO Series inline fan. It boasts a PWM-controlled EC motor, ensuring energy-efficient and quiet operation. This fan is specifically designed to handle the demands of larger grow spaces, delivering an impressive 402 CFM airflow while maintaining a low noise level of 32 dBA. The fan's advanced design, featuring mixed-flow mechanics and hydrodynamic wind circles, ensures optimal air movement with minimal energy usage. Its robust construction includes dual ball bearings, contributing to an exceptional 67,000-hour lifespan and IP-44 sealing for dust and liquid resistance.
Smart Environmental Control:

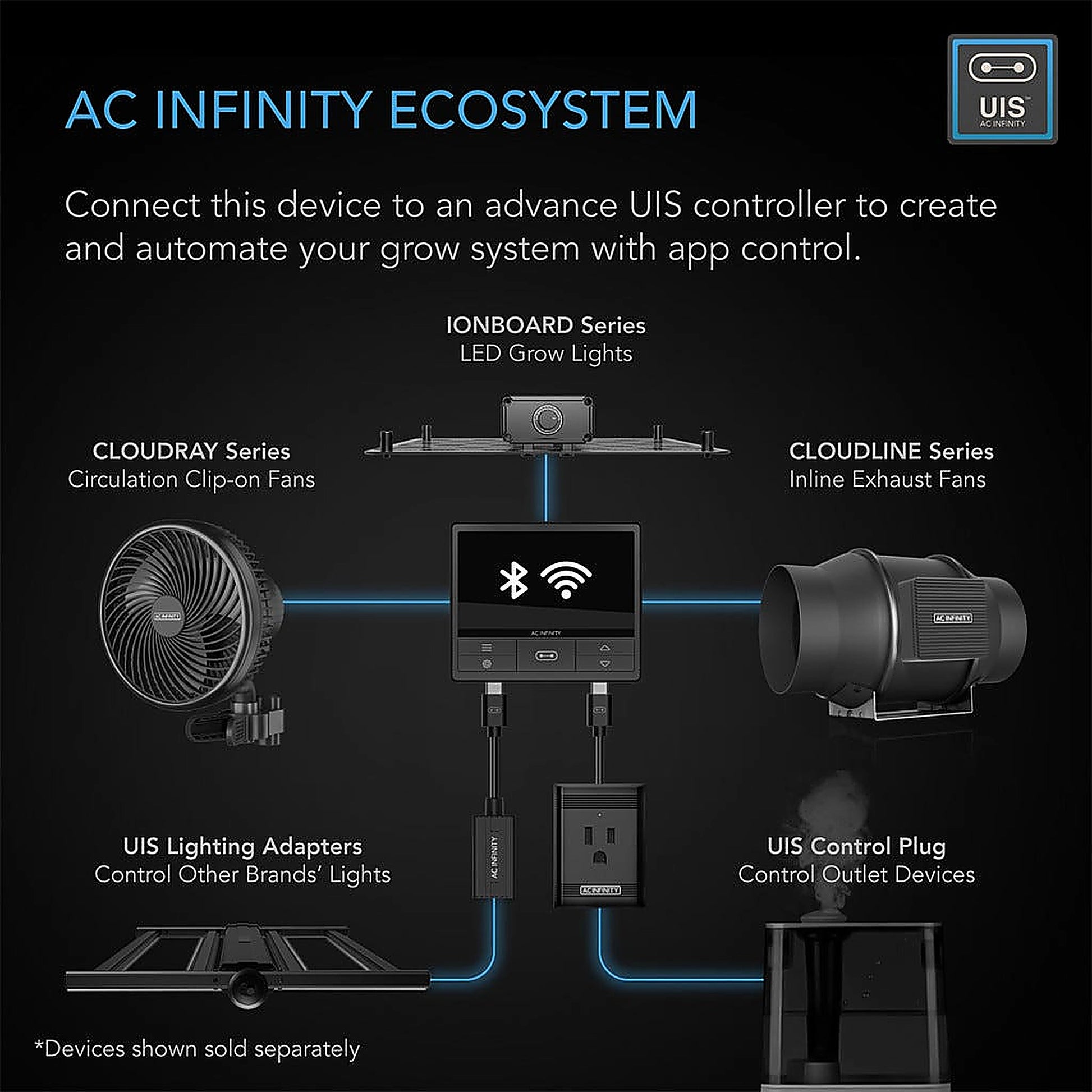

CONTROLLER 69 PRO: This advanced controller empowers growers with smart programming capabilities. It precisely manages the inline fan to maintain ideal environmental conditions, adjusting for temperature, humidity, and vapor pressure deficit (VPD). With the ability to set dynamic programs, including timer, cycle, and schedule modes, the controller offers tailored activation based on the specific needs of your grow space. Additionally, the controller connects to the AC Infinity app via WiFi, enabling remote monitoring and control of your ventilation system.
Effective Odor Management:

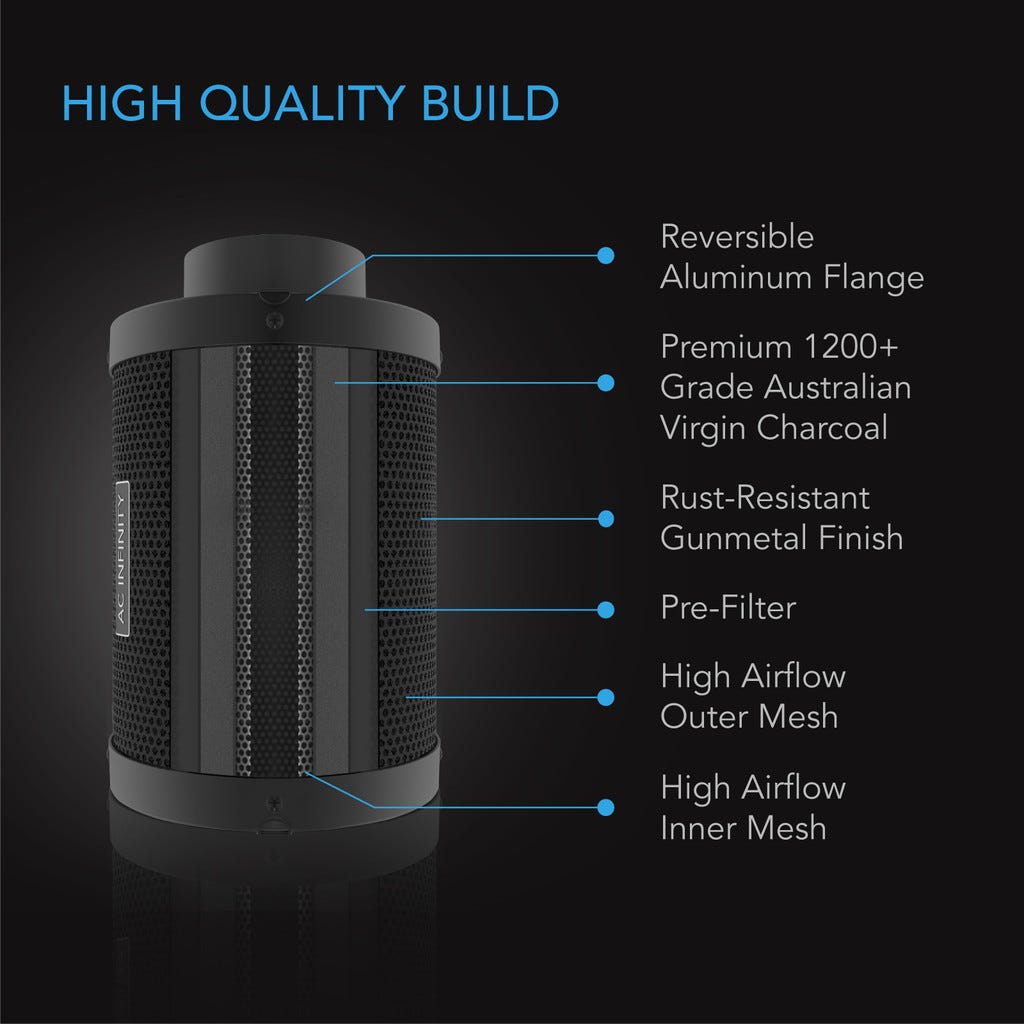

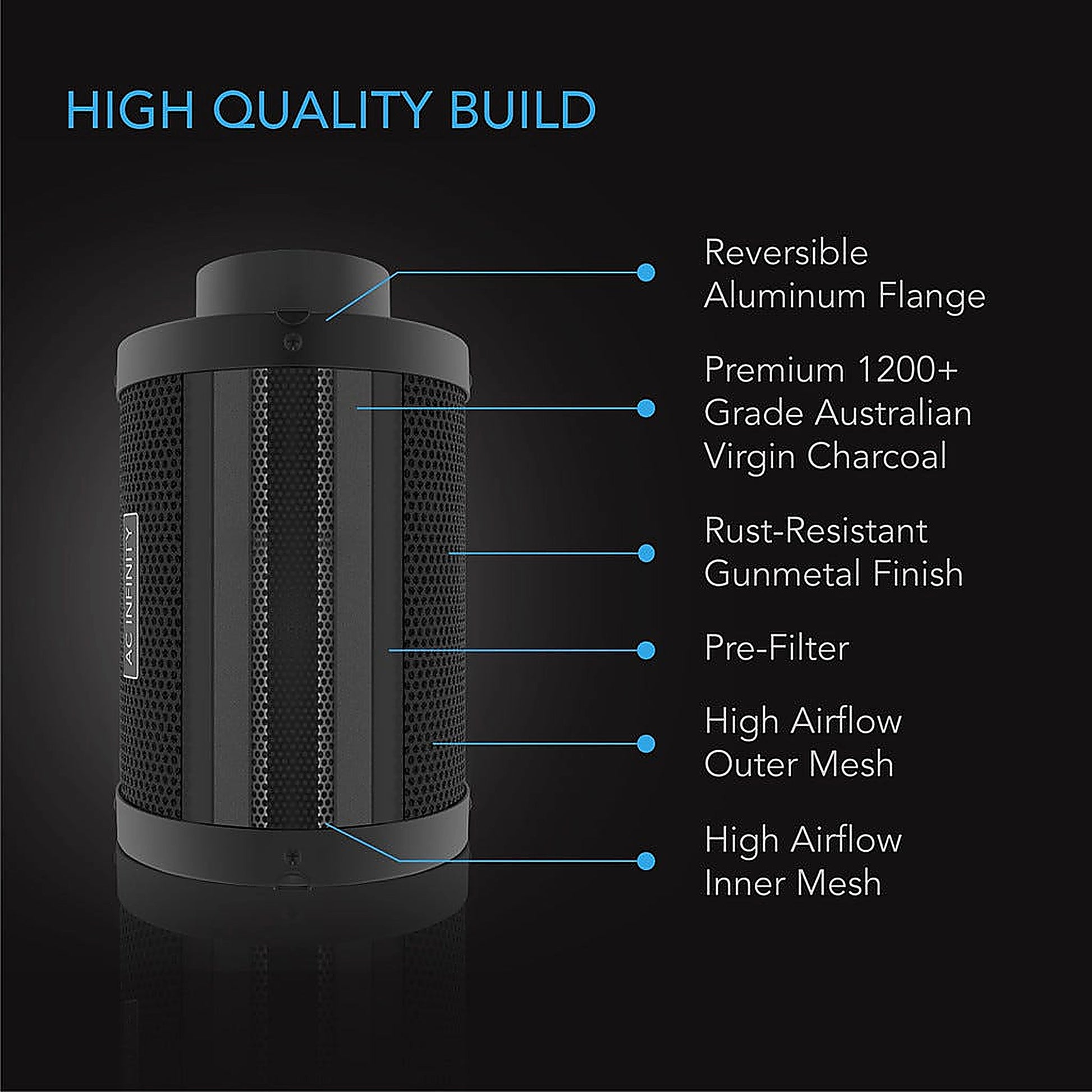

Premium Australian Carbon Filter: To ensure a clean and odor-free growing environment, the kit includes a top-grade carbon filter featuring Australian virgin charcoal. This filter boasts a 1200+ IAV rating, signifying its superior efficiency in odor absorption and air purification. The carbon filter is encased in a durable steel mesh body with a powder-coated gunmetal finish, providing resistance to rust and corrosion in humid conditions.

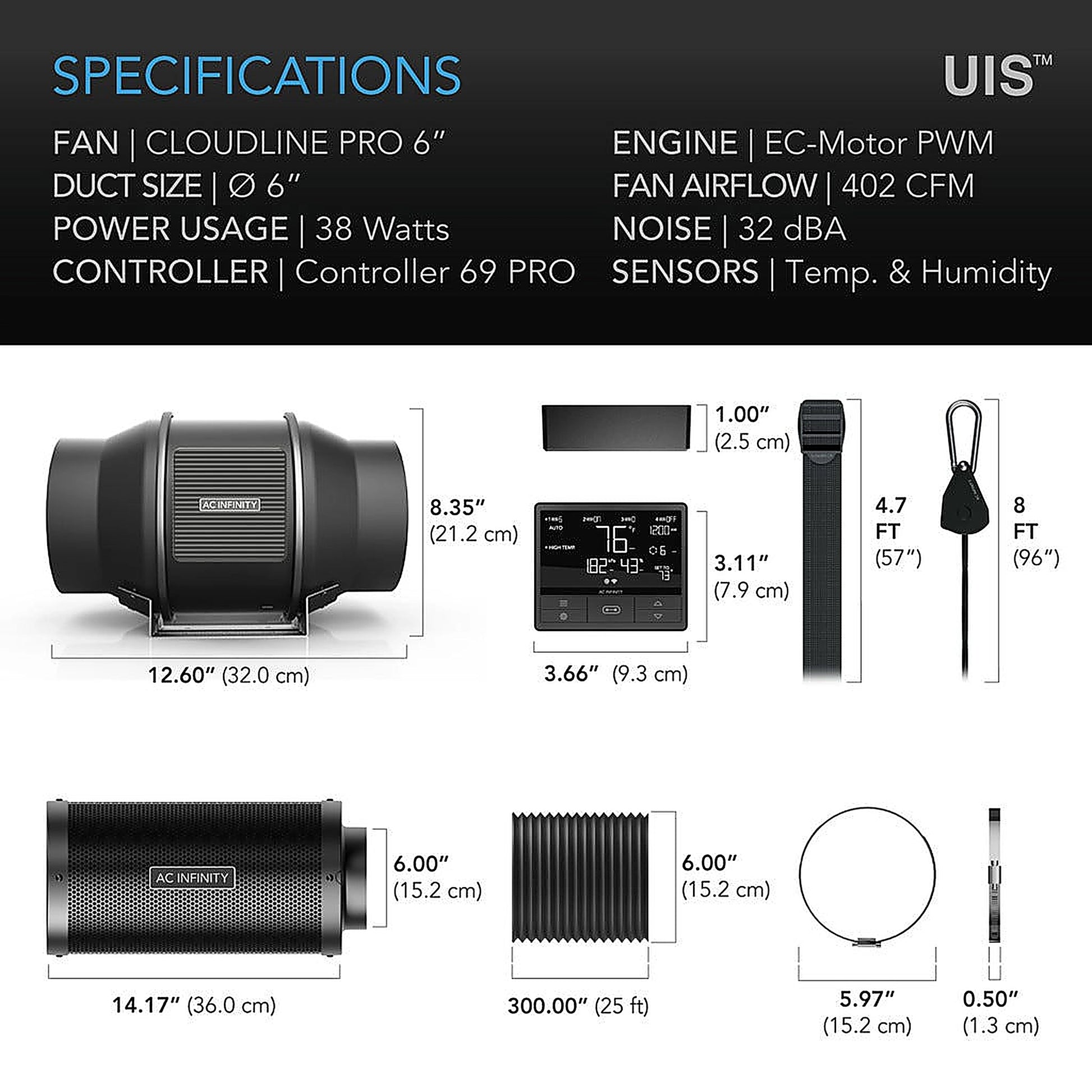

Kit Components and Specifications:
- Fan Unit Dimensions: 7.87 x 12.60 x 8.35 inches
- Controller Dimensions: 5.19 x 2.91 x 1.06 inches
- Fan Performance: 402 CFM airflow, 34 dBA noise level
- Carbon Filter Dimensions: 15.94 x 8.93 inches, 60mm carbon thickness
- Ducting: 6 inches in diameter, 25 feet in length
Installation and Usage:

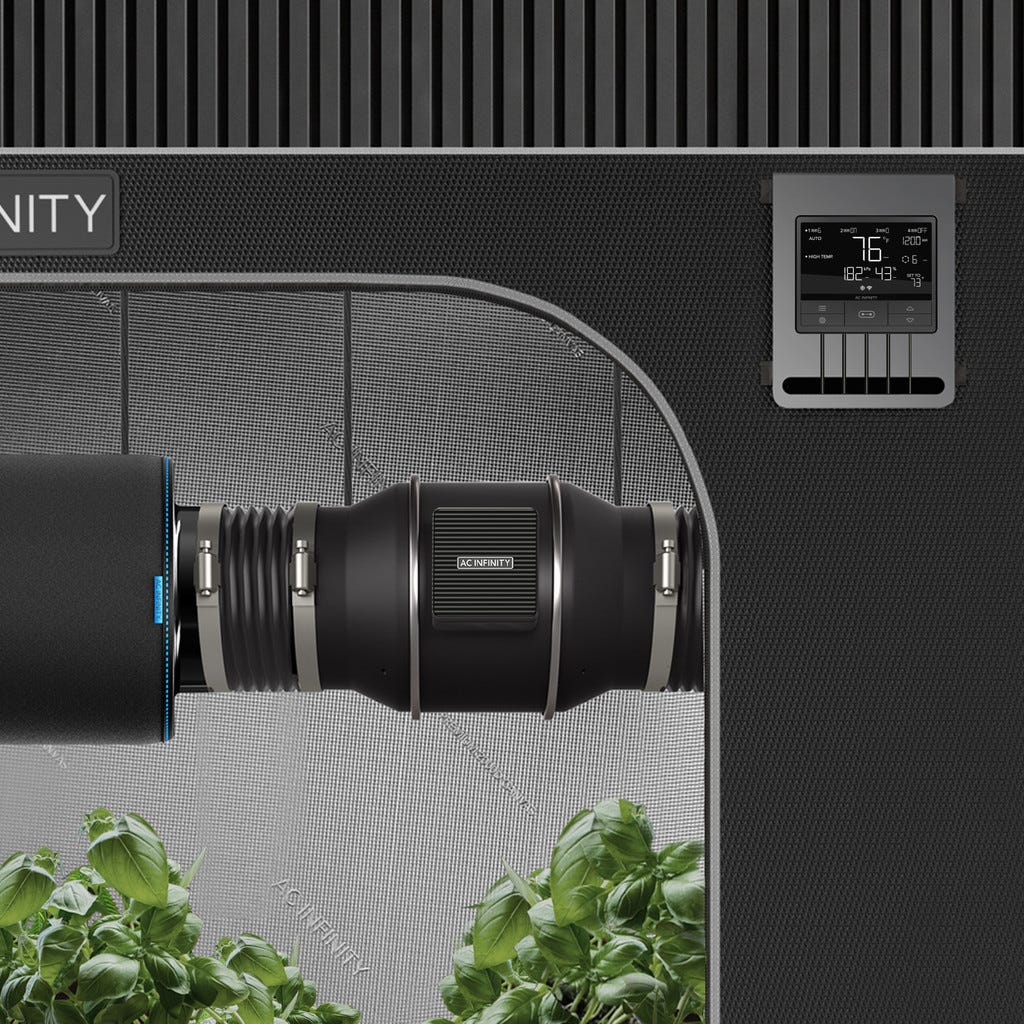

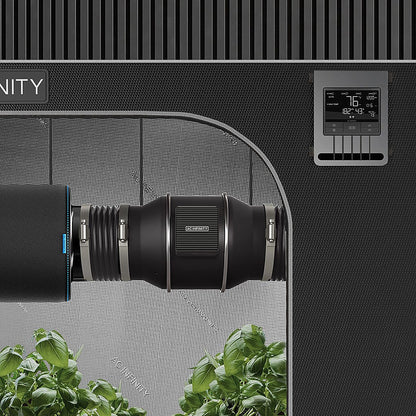

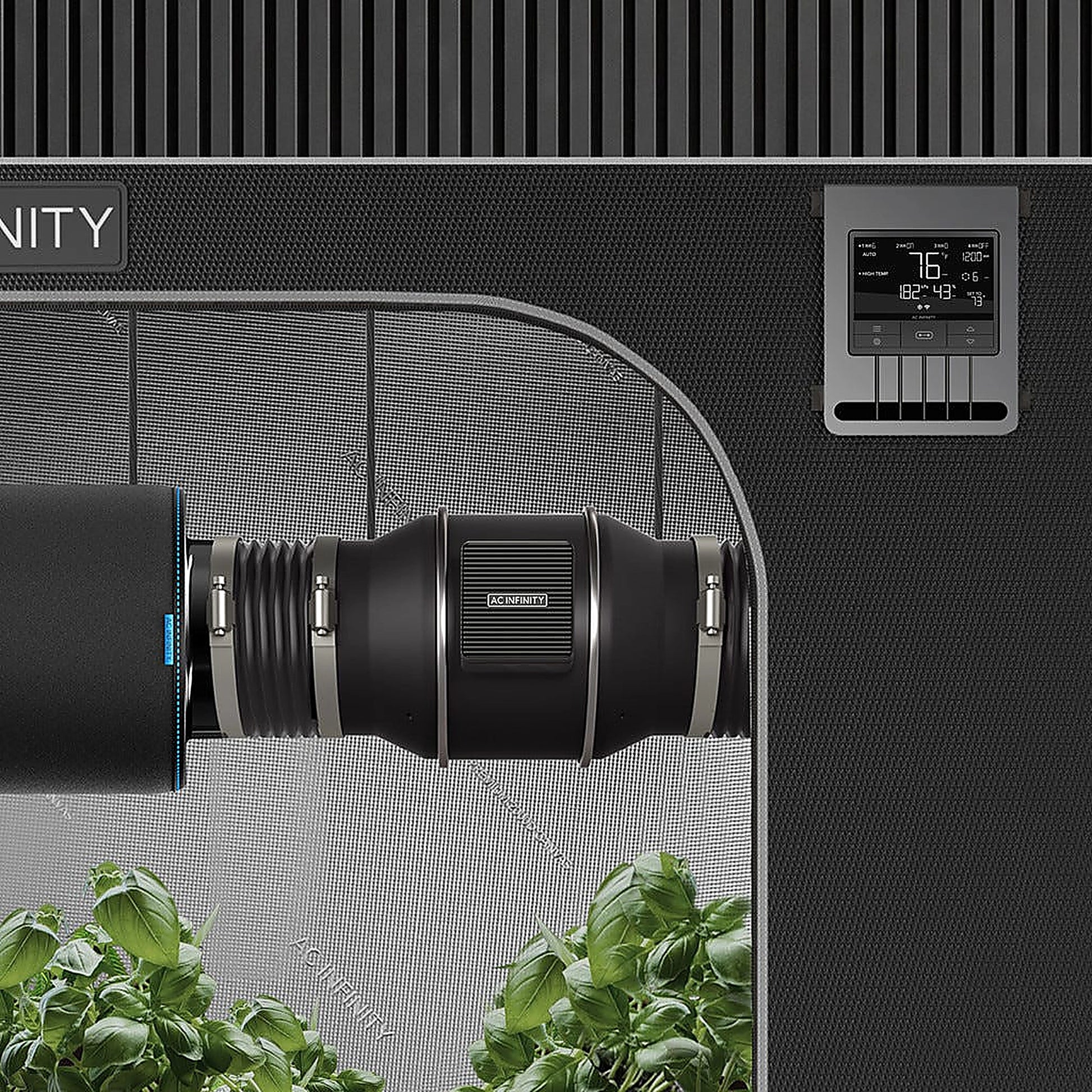

The kit is designed for easy installation and includes duct clamps, prefilter cloth, rope clip hangers, and hanging straps. Whether you are a novice or an experienced grower, setting up the system is straightforward. The controller's intuitive interface makes programming and monitoring your environmental settings simple and efficient.
Benefits of the Air Filtration Kit PRO 6":
- Enhanced Airflow for Larger Spaces: The high-capacity fan efficiently circulates air, preventing hot spots and moisture problems in larger grow areas.
- Advanced Odor Control: The premium carbon filter effectively traps odors, ensuring a clean and pleasant growing environment.
- Energy-Efficient Operation: The fan's EC motor provides powerful airflow with reduced energy consumption.
- Remote Monitoring and Control: With the smart controller and WiFi connectivity, you can manage and adjust settings remotely, ensuring optimal conditions for your plants at all times.

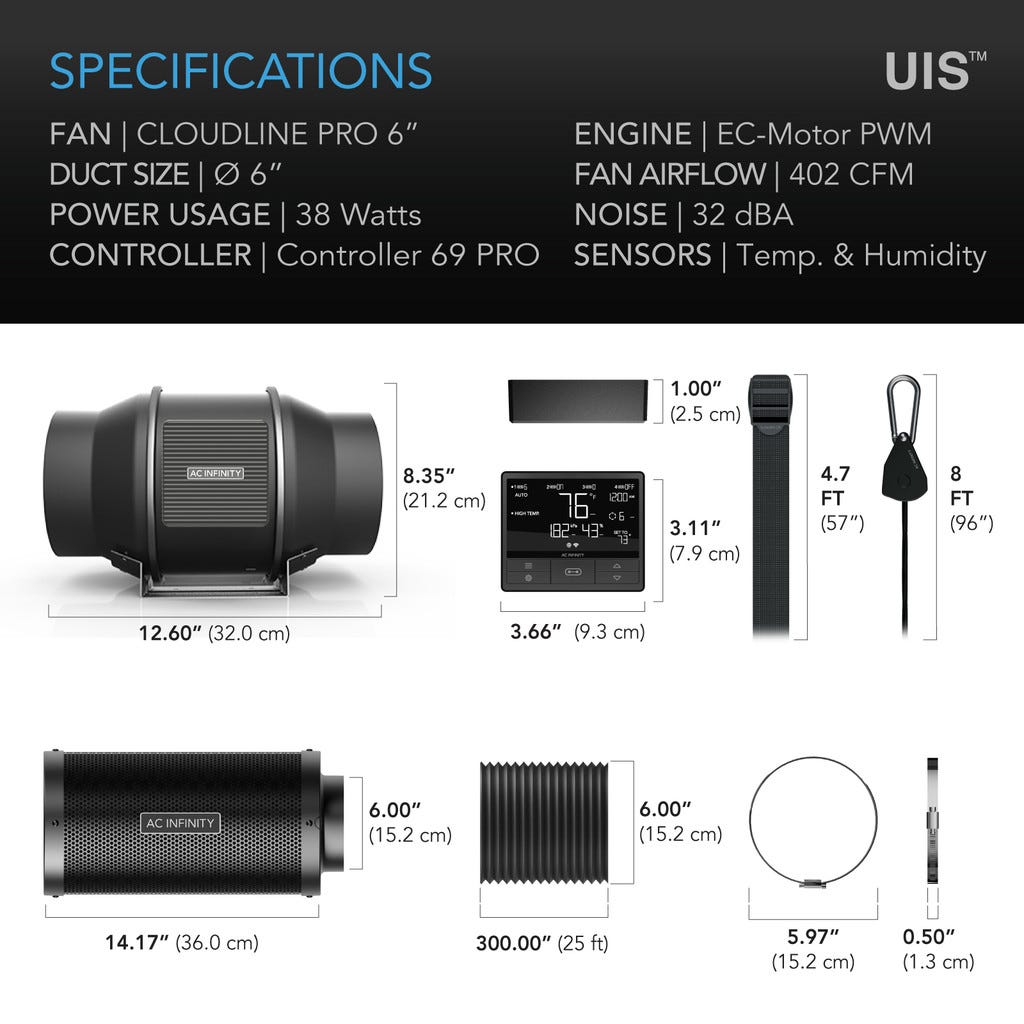

FAN UNIT
- Duct Size
6"
- Total Dimensions
7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
- Mounting Hole-To-Hole Distance
3.15 x 2.36 in. (8.0 x 6.0 cm)
- Screw Hole Size
Ø 0.236 in. (Ø 0.6 cm)
- Cord Length to Controller
72 in. (6 feet)
- Cord Length to Plug
72 in. (6 feet)
CONTROLLER
- Total Dimensions
5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
CARBON FILTER
- Duct Opening Size
6"
- Total Dimensions
15.94 x 8.93 in. (40.5 x 22.7 cm)
- Flange Length
1.57 in. (4.0 cm)
DUCTING
- Ducting Size
6 in. (10.2 cm)
- Length
300 in. (25 ft)
FAN UNIT
- Total Airflow
402 CFM
- Total Noise
34 dBA
- Max Speed
2800 RPM
- Static Pressure
394 Pa
- Voltage
100-240V AC
- Frequency
50/60Hz
- Max Power Draw
70 W
- Average Power Usage
38 W
- Current
0.94 A
- Power Connector Type
US Plug (NEMA 1-15 Type-A)
- Operating Humidity
35 to 85% RH
- Operating Temperature
0 to 140 °F
- Ingress Protection
IP 44
- Fan Bearings
Dual Ball
- Mounting Positions
Horizontal or Vertical
- L10 Life Expectancy
67,000 Hours
- Fan Quality Approvals
CE, RoHS
CARBON FILTER
- Flange Material
Aluminum
- Flange Design
Reversible
- Mesh Material
Galvanized Steel
- Carbon Type
Australian Virgin RC412
- Carbon Grade
1200+ IAV
- Carbon Thickness
60mm
- Maximum Airflow
410 CFM
DUCTING
- Outer Layer
PVC Thermoplastic
- Inner Material
Aluminum Foil
- Internal Structure
Spiral Steel-Wire
