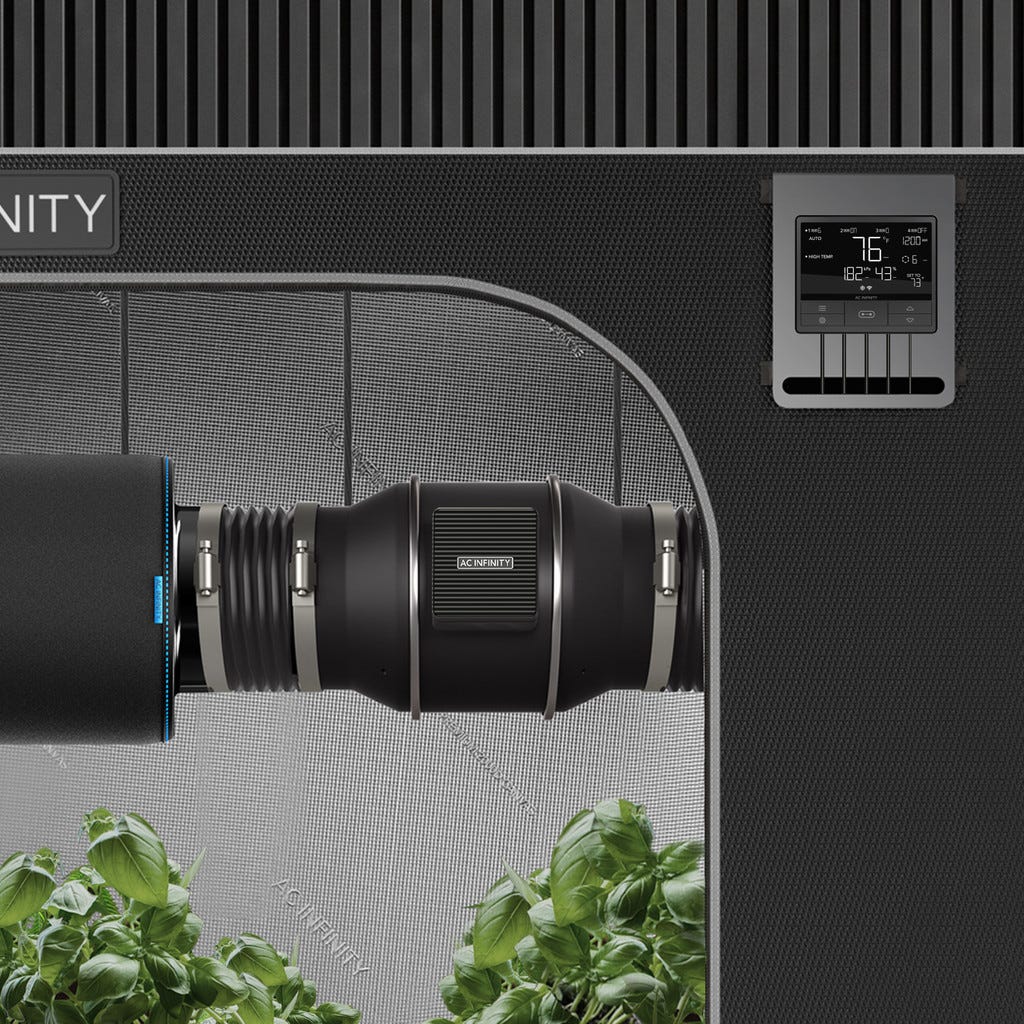

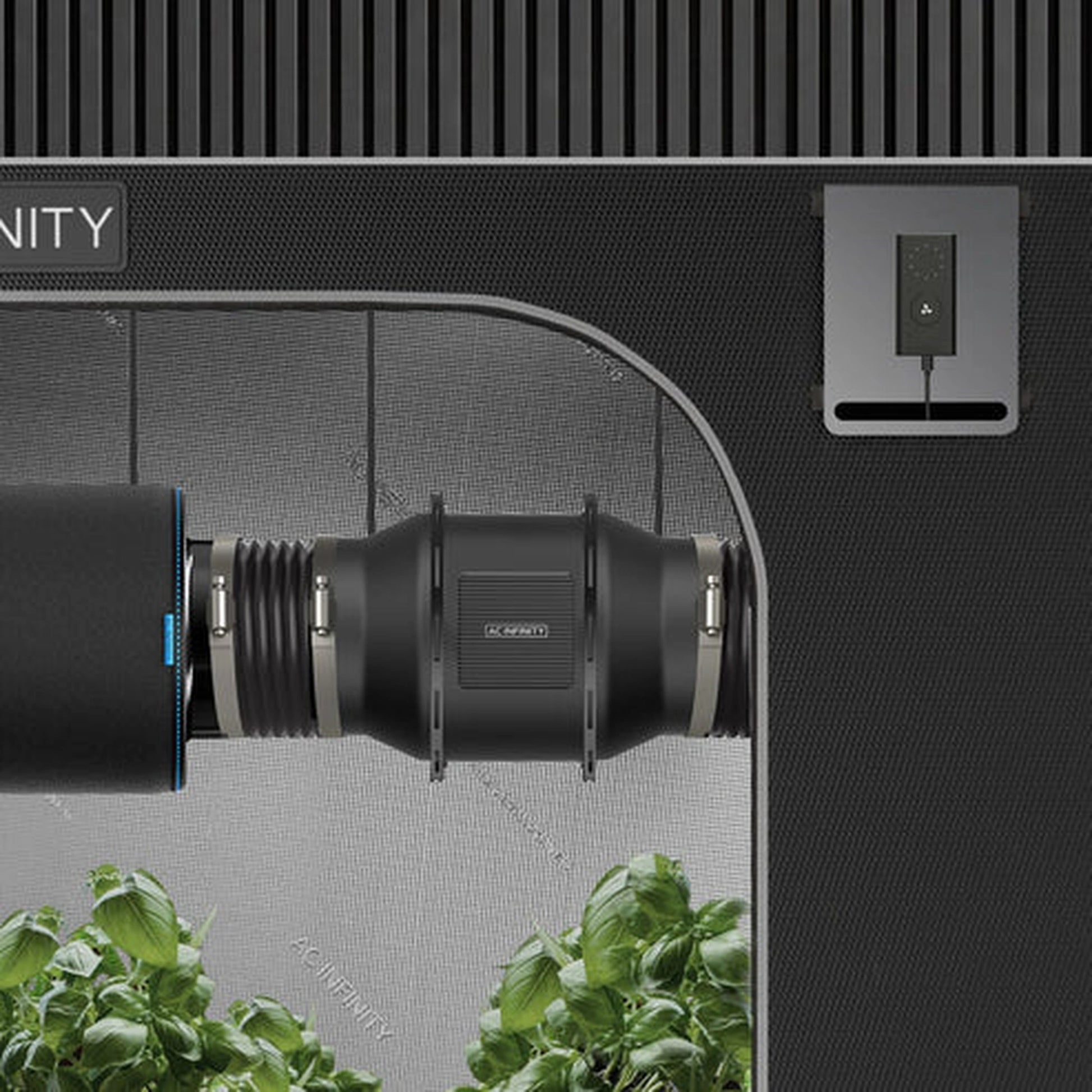

The Air Filtration Kit PRO 8" is a comprehensive air management system designed to cater to the needs of large-scale indoor growing environments. This kit bundles high-performance components to ensure efficient ventilation, precise climate control, and superior odor management.

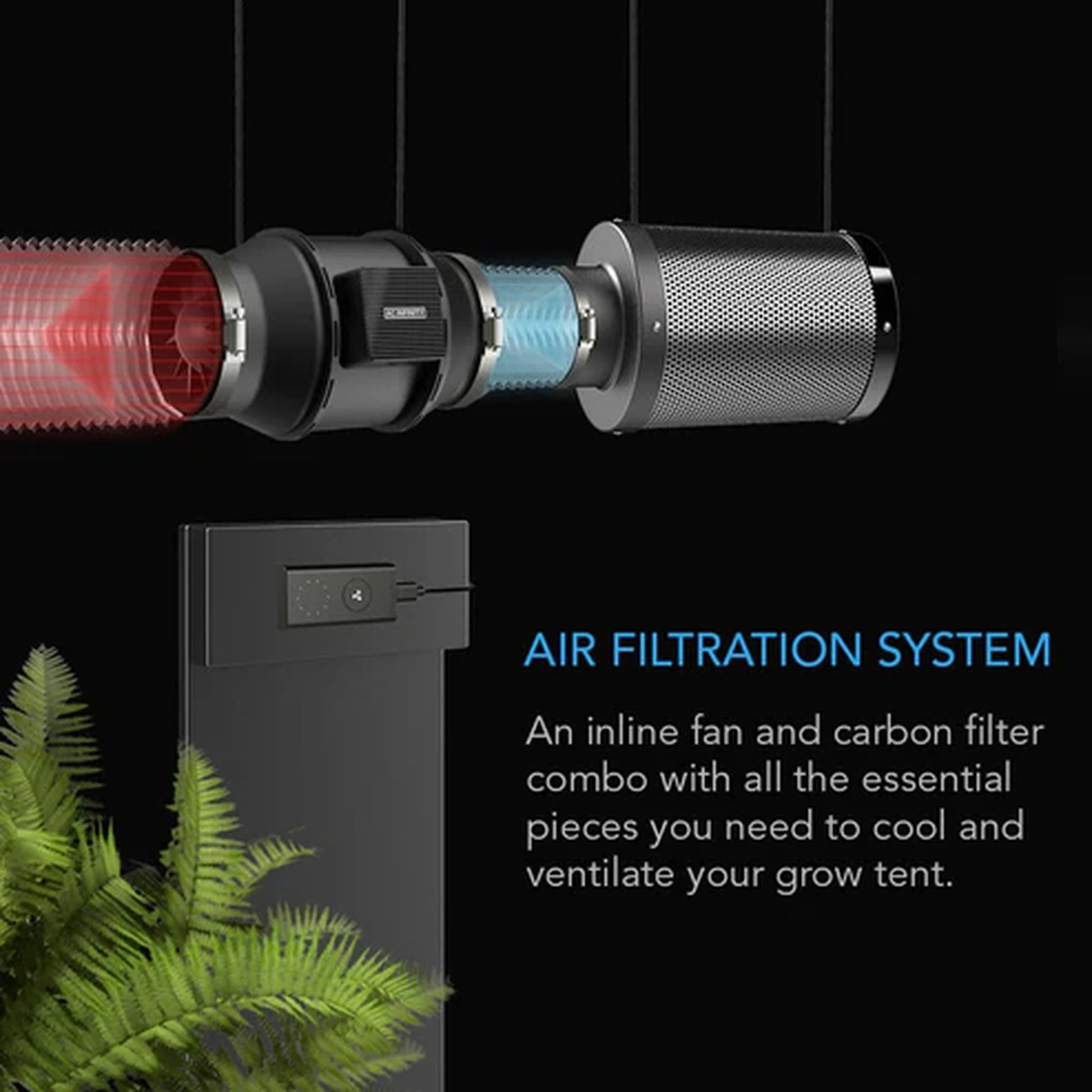

Powerful Ventilation System:
CLOUDLINE PRO Inline Fan: The centerpiece of this kit is the robust CLOUDLINE PRO Series inline fan, boasting a PWM-controlled EC motor for high-efficiency and low-noise operation. With an airflow capacity of 807 CFM, it's specifically engineered to cater to larger grow spaces, ensuring adequate air movement throughout. The fan operates at a quiet 39 dBA, making it an unobtrusive addition to your grow space. Its advanced design incorporates mixed-flow dynamics and hydrodynamic wind circles for optimal performance. Durability is assured with dual ball bearings, contributing to an impressive 67,000-hour lifespan and an IP-44 rating for resistance to dust and moisture.
Intelligent Climate Control:

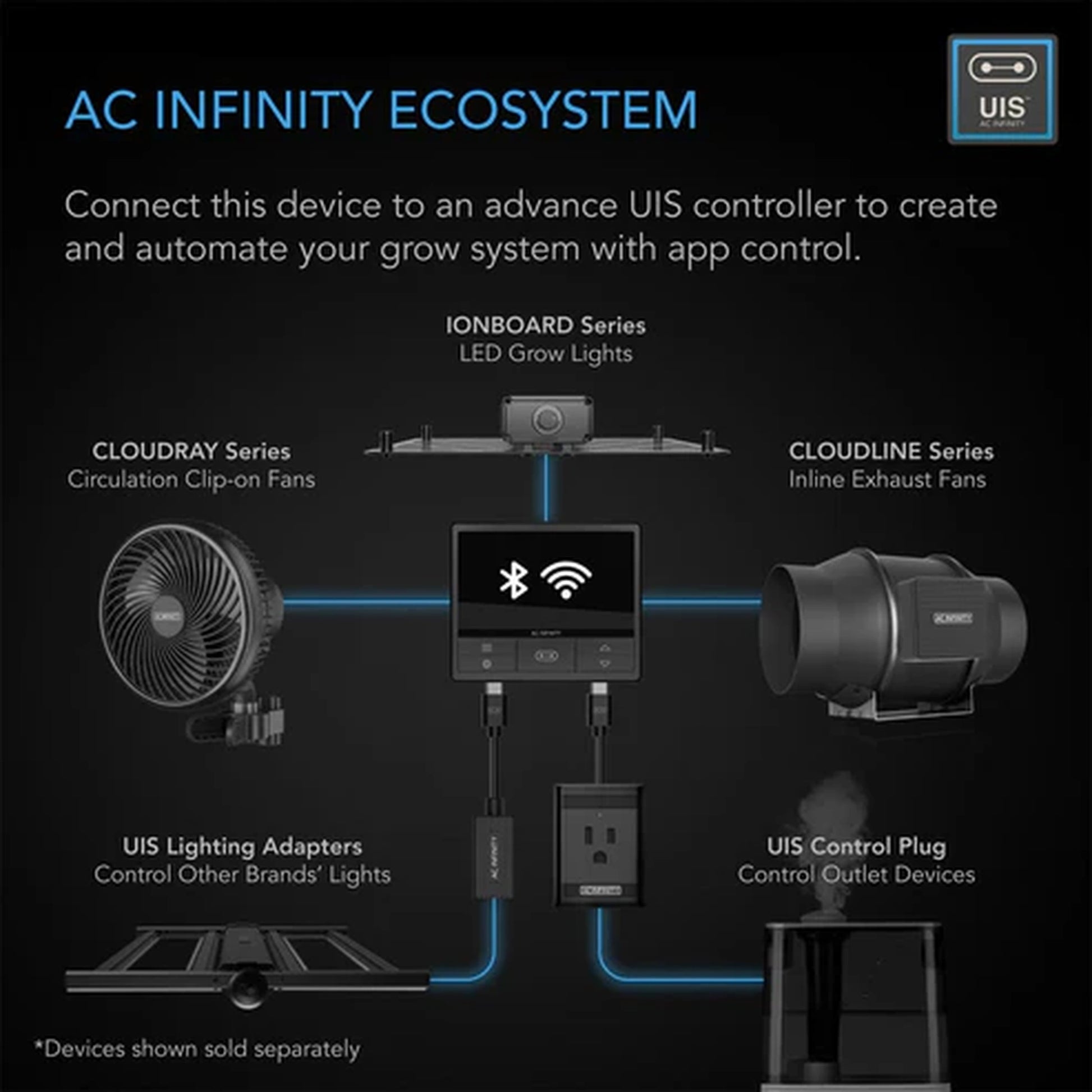

CONTROLLER 69 PRO: This advanced controller is your gateway to smart ventilation management. It enables precise control over the inline fan, maintaining ideal conditions by monitoring temperature, humidity, and vapor pressure deficit (VPD). The controller offers dynamic programming options, including timer, cycle, and schedule modes for customized operation. It also integrates seamlessly with the AC Infinity app via WiFi, allowing remote access and control, ensuring that your grow space's environment is always optimal.
Odor Elimination and Air Purification:

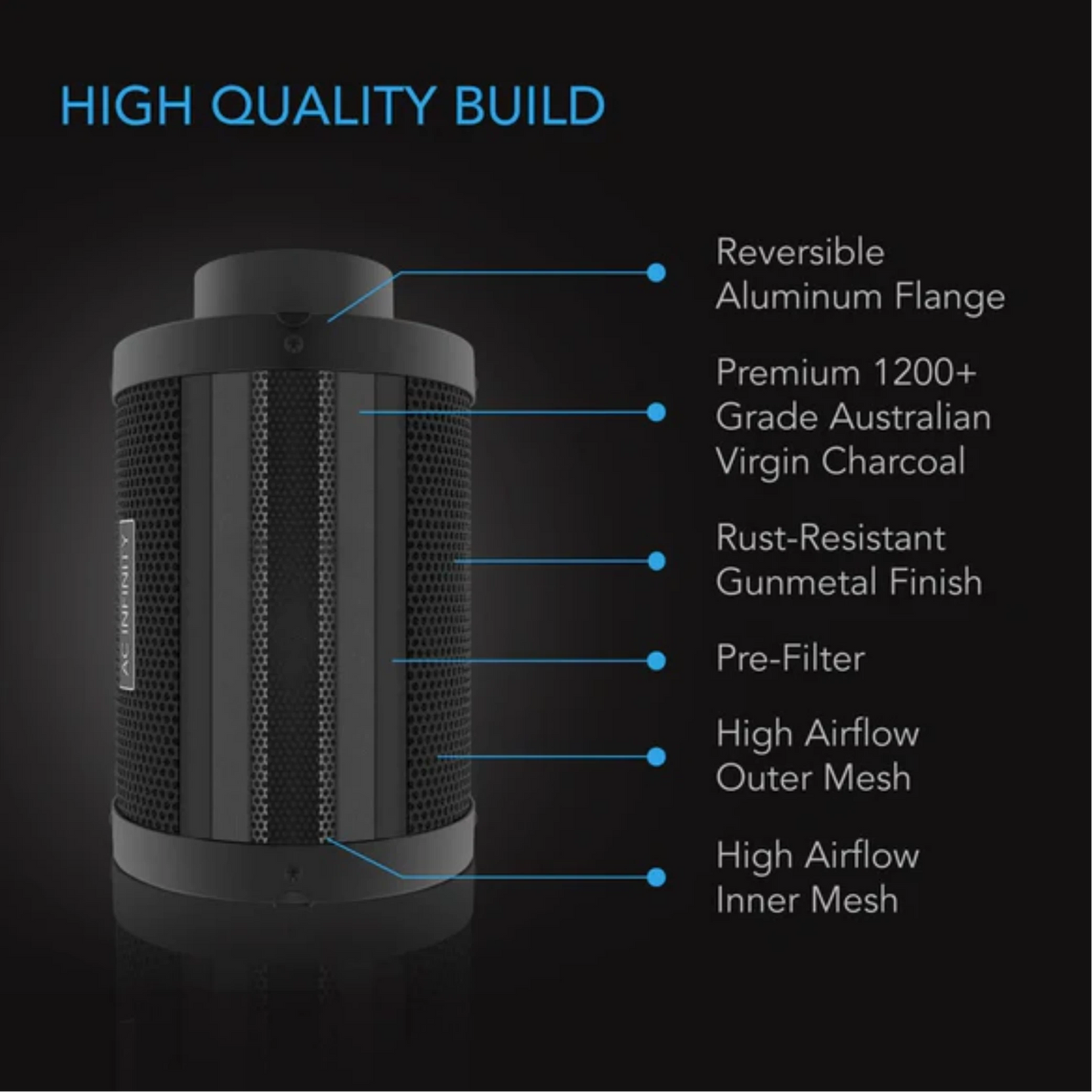

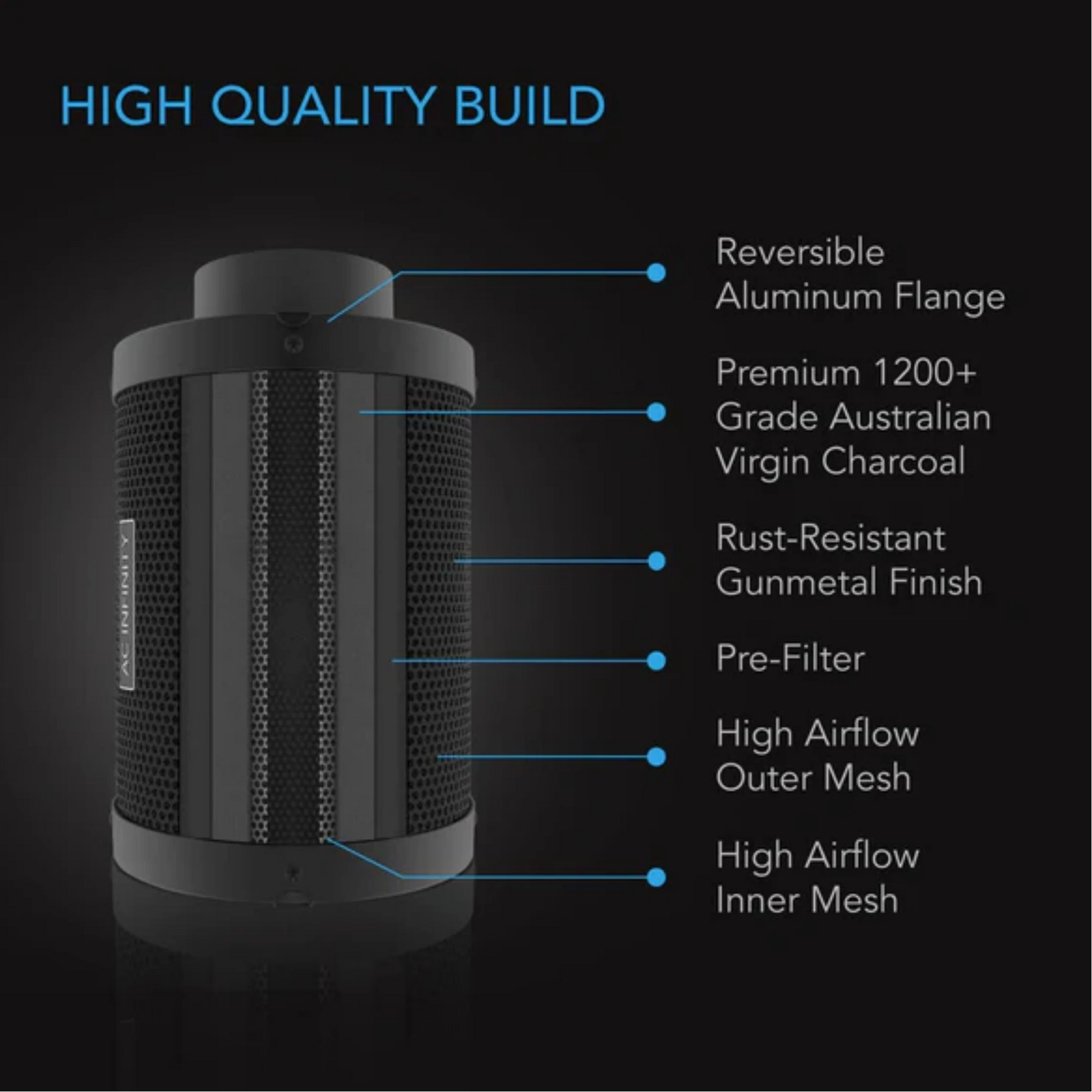

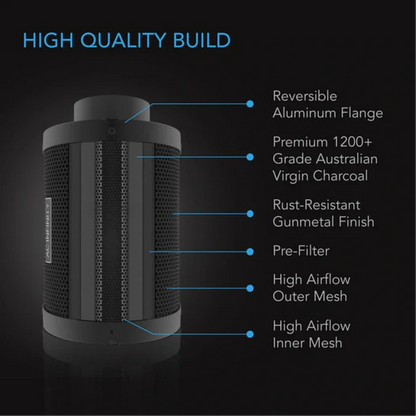

Premium Australian Carbon Filter: This kit includes a high-quality carbon filter made with Australian virgin charcoal, ensuring effective odor control and air purification. With a 1200+ IAV rating, the filter excels in capturing unwanted odors and airborne chemicals. Its steel mesh body is coated with a gunmetal finish for added durability, particularly in high-humidity environments.

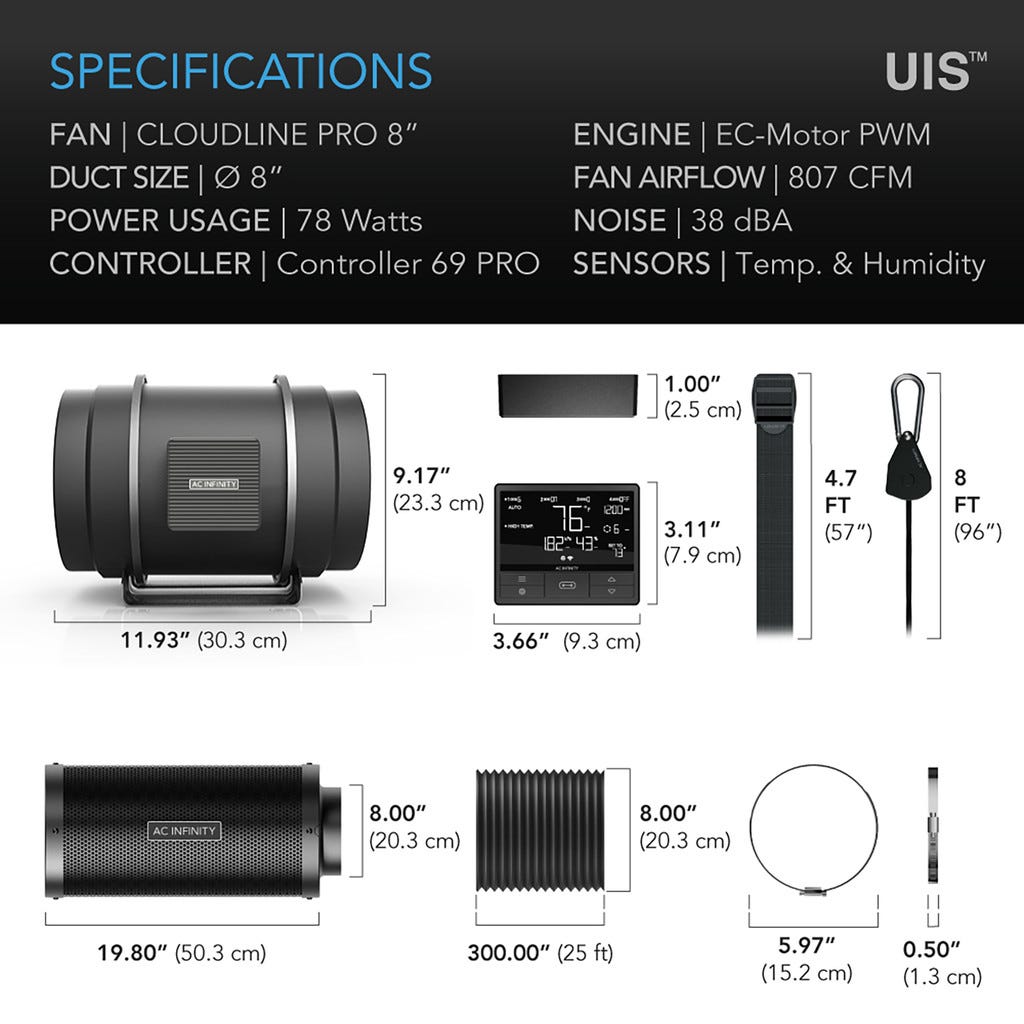

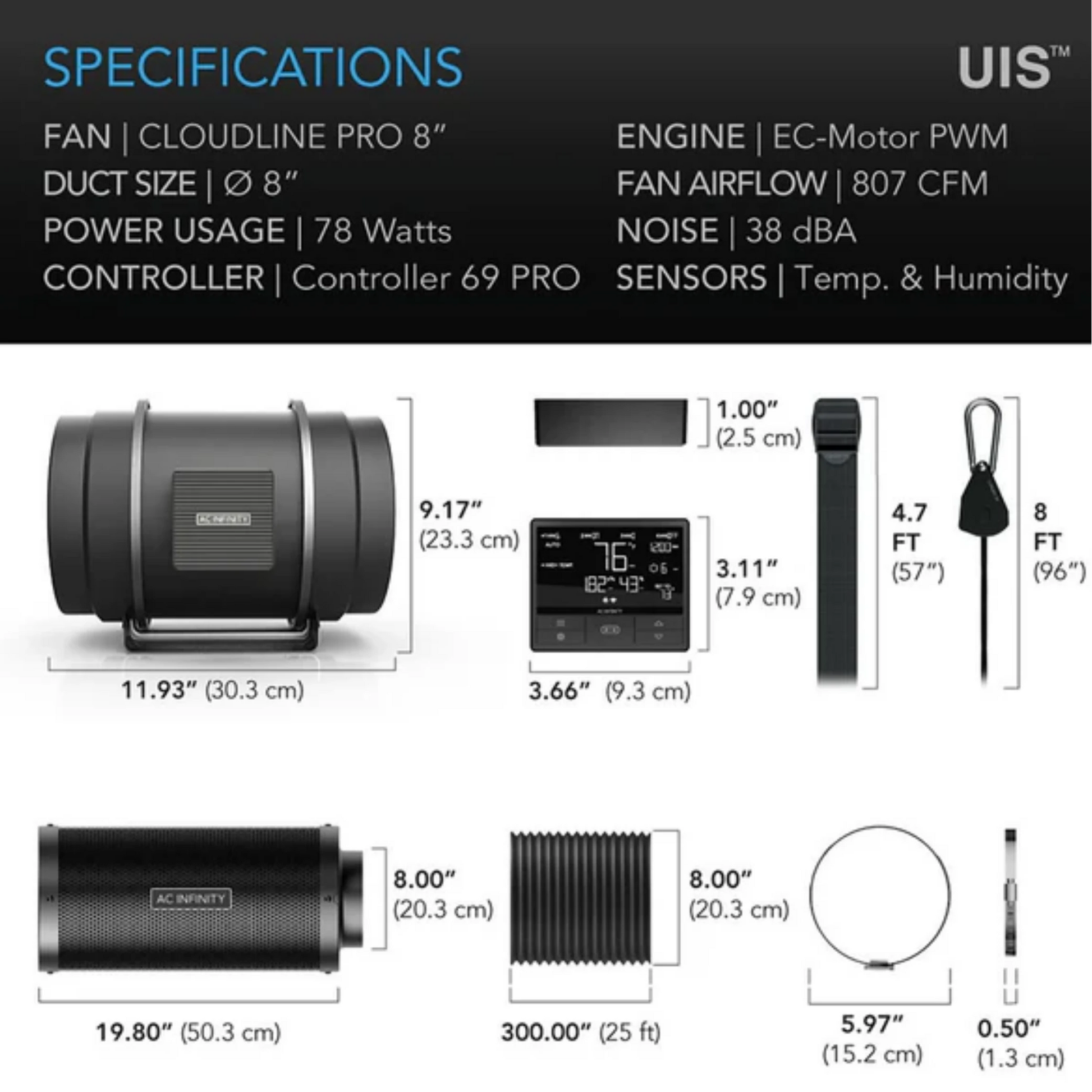

Kit Components and Specifications:
- Fan Unit Dimensions: 8.54 x 11.89 x 9.17 inches
- Controller Dimensions: 5.19 x 2.91 x 1.06 inches
- Fan Performance: 807 CFM airflow, 39 dBA noise level
- Carbon Filter Dimensions: 19.8 x 10.94 inches, 38mm carbon thickness
- Ducting Size: 8 inches in diameter, 25 feet in length
Easy Installation and Usage:

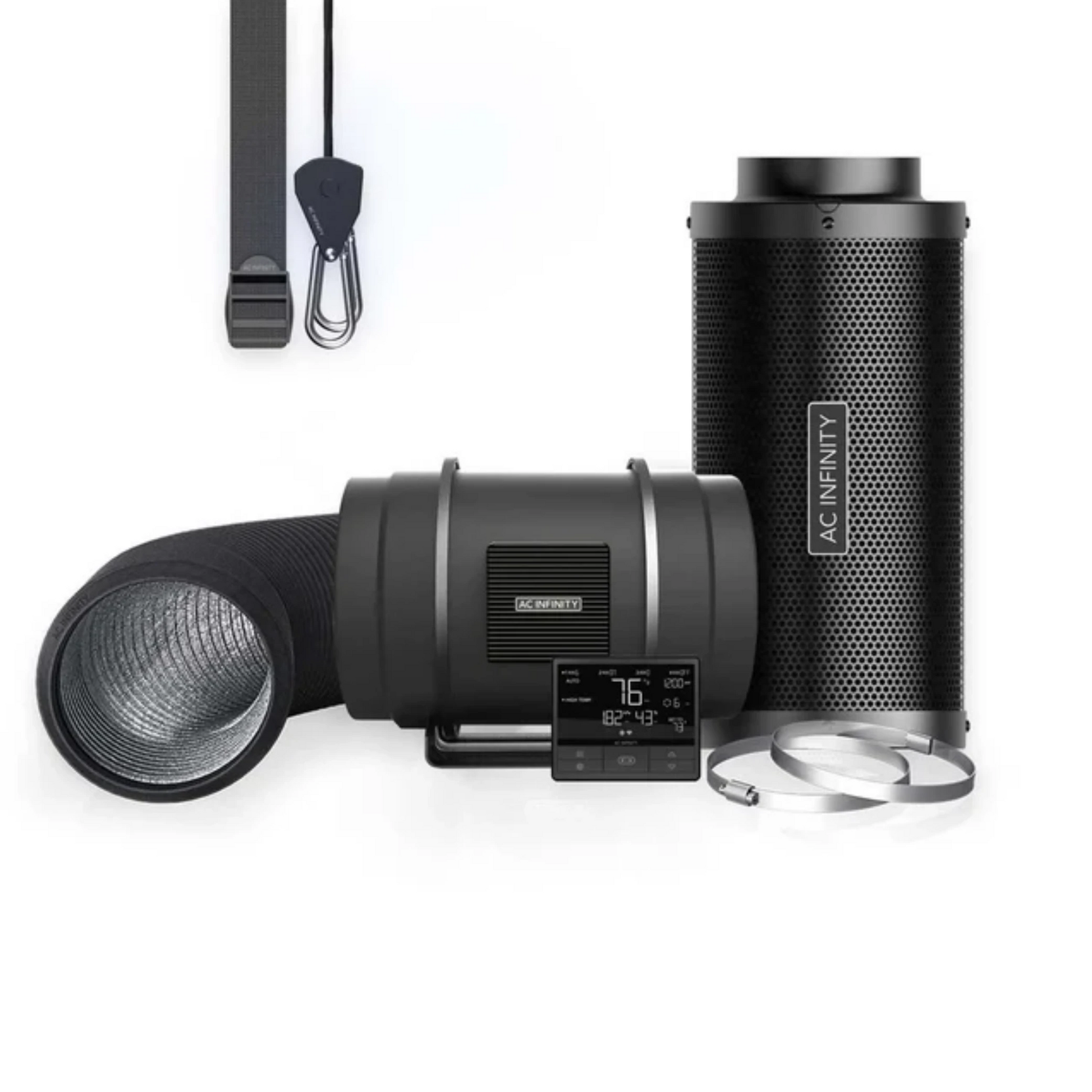

This kit comes with all necessary installation accessories, including duct clamps, prefilter cloth, rope clip hangers, and hanging straps. It's designed for a straightforward setup, suitable for both beginners and experienced growers. The intuitive controller interface simplifies the task of programming and managing your grow space's climate.
Benefits of the Air Filtration Kit PRO 8":
- High-Capacity Airflow: Designed for large grow areas, ensuring effective air circulation and climate stability.
- Advanced Odor Management: The premium carbon filter effectively neutralizes odors, maintaining a fresh growing environment.
- Energy-Efficient Operation: The fan's EC motor delivers powerful airflow with minimal energy consumption.
- Remote Monitoring and Control: The smart controller and WiFi connectivity allow for convenient remote management of your grow space's climate.
FAN UNIT
- Duct Size
8"
- Total Dimensions
8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm)
- Mounting Hole-To-Hole Distance
3.94 x 3.70 in. (10.0 x 9.4 cm)
- Screw Hole Size
Ø 0.217 in. (Ø 0.55 cm)
- Cord Length to Controller
72 in. (6 feet)
- Cord Length to Plug
72 in. (6 feet)
CONTROLLER
- Total Dimensions
5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
CARBON FILTER
- Duct Opening Size
8"
- Total Dimensions
19.8 x 10.94 in. (50.3 x 27.8 cm)
- Flange Length
3.39 in. (8.6 cm)
DUCTING
- Ducting Size
8 in. (20.3 cm)
- Length
300 in. (25 ft)
FAN UNIT
- Total Airflow
807 CFM
- Total Noise
39 dBA
- Static Pressure
746 Pa
- Voltage
100-240V AC
- Frequency
50/60Hz
- Max Power Draw
180 W
- Average Power Usage
78 W
- Current
2.3 A
- Power Connector Type
US Plug (NEMA 1-15 Type-A)
- Operating Humidity
35 to 85% RH
- Operating Temperature
32 to 140 °F
- Ingress Protection
IP 44
- Fan Bearings
Dual Ball
- Mounting Positions
Horizontal or Vertical
- L10 Life Expectancy
67,000 Hours
- Fan Quality Approvals
CE, RoHS
CARBON FILTER
- Flange Material
Aluminum
- Flange Design
Reversible
- Mesh Material
Galvanized Steel
- Carbon Type
Australian Virgin RC412
- Carbon Grade
1200+ IAV
- Carbon Thickness
38mm
- Maximum Airflow
770 CFM
DUCTING
- Outer Layer
PVC Thermoplastic
- Inner Material
Aluminum Foil
- Internal Structure
Spiral Steel-Wire
