Anden 5769 MERV 11 Replacement Filter for Anden A130F - 16 x 19 x 1

Anden A130F Filter Size: 16 x 19 x 1, and the A130 Is Different

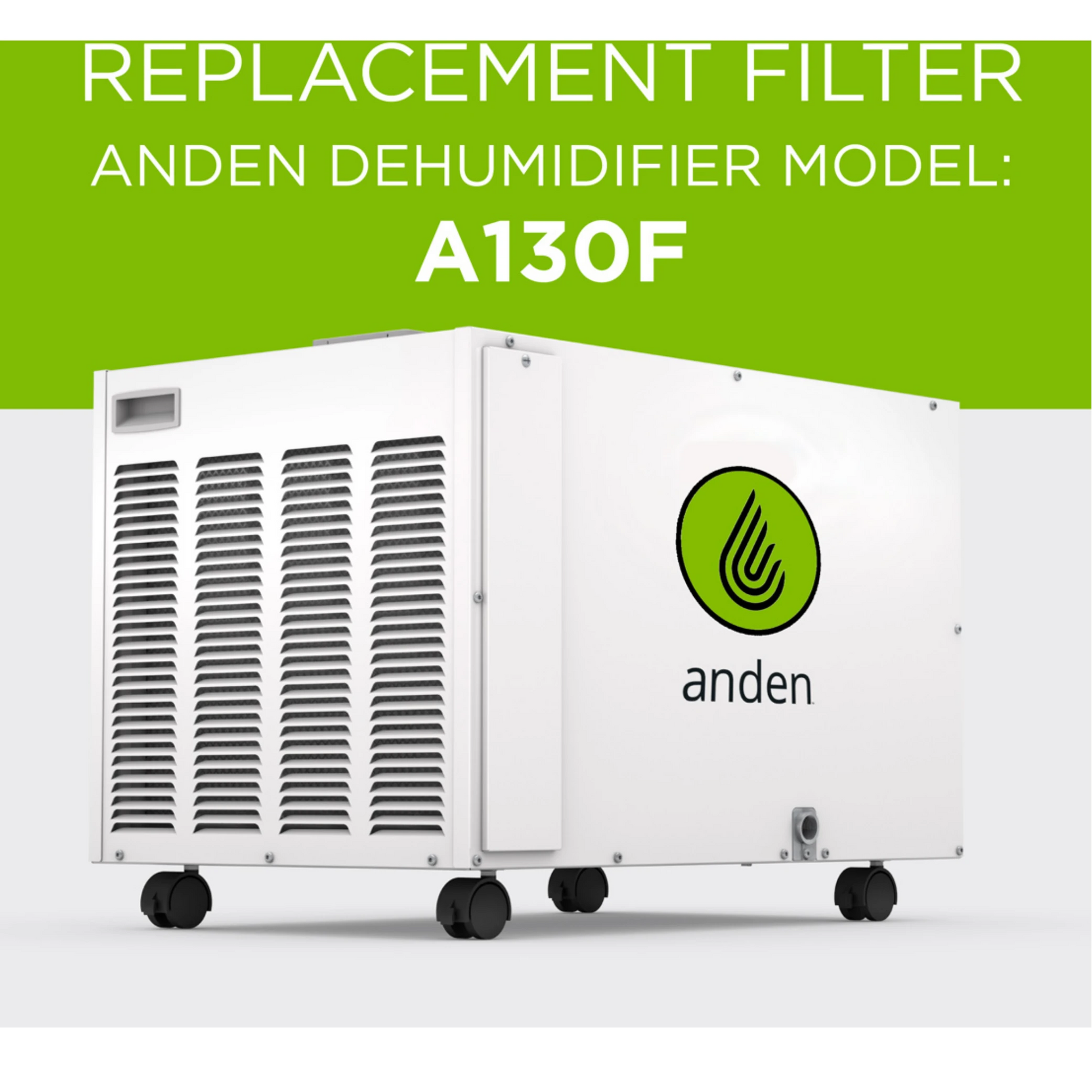

Anden lists this panel at 16 x 19 x 1 inches, part number 5769, for the movable A130F. The fixed A130 takes part 5701 at 14 x 19 x 1. Two inches on one edge separates them. That is more than enough to matter in the frame and not nearly enough to notice on a shelf. The letter on the data plate settles it. If the machine is on castors it is the F, and this is the panel it takes.

Why a Movable Dehumidifier Loads Its Filter Differently

A ceiling-mounted unit lives in one room and sees a fairly steady dust profile. A movable one gets wheeled into whichever room needs it. That is usually the room being turned over, which is the dustiest moment in the whole cycle. So it is worth a glance at the panel when you move the machine, rather than only when the calendar says so. The media is MERV 11. The EPA holds that grade to 65 percent or better capture from 1 to 3 microns, and 85 percent from 3 to 10. Anden builds it as a multi-pleat, so more surface is folded into the frame than a flat panel would carry. Behind it is the evaporator coil, and keeping that face clean is what keeps the machine pulling its rated pints. Anden's published interval is every 12 weeks or at the end of a harvest. On a machine that travels, the harvest half of that sentence is the one to go by.

Key Features

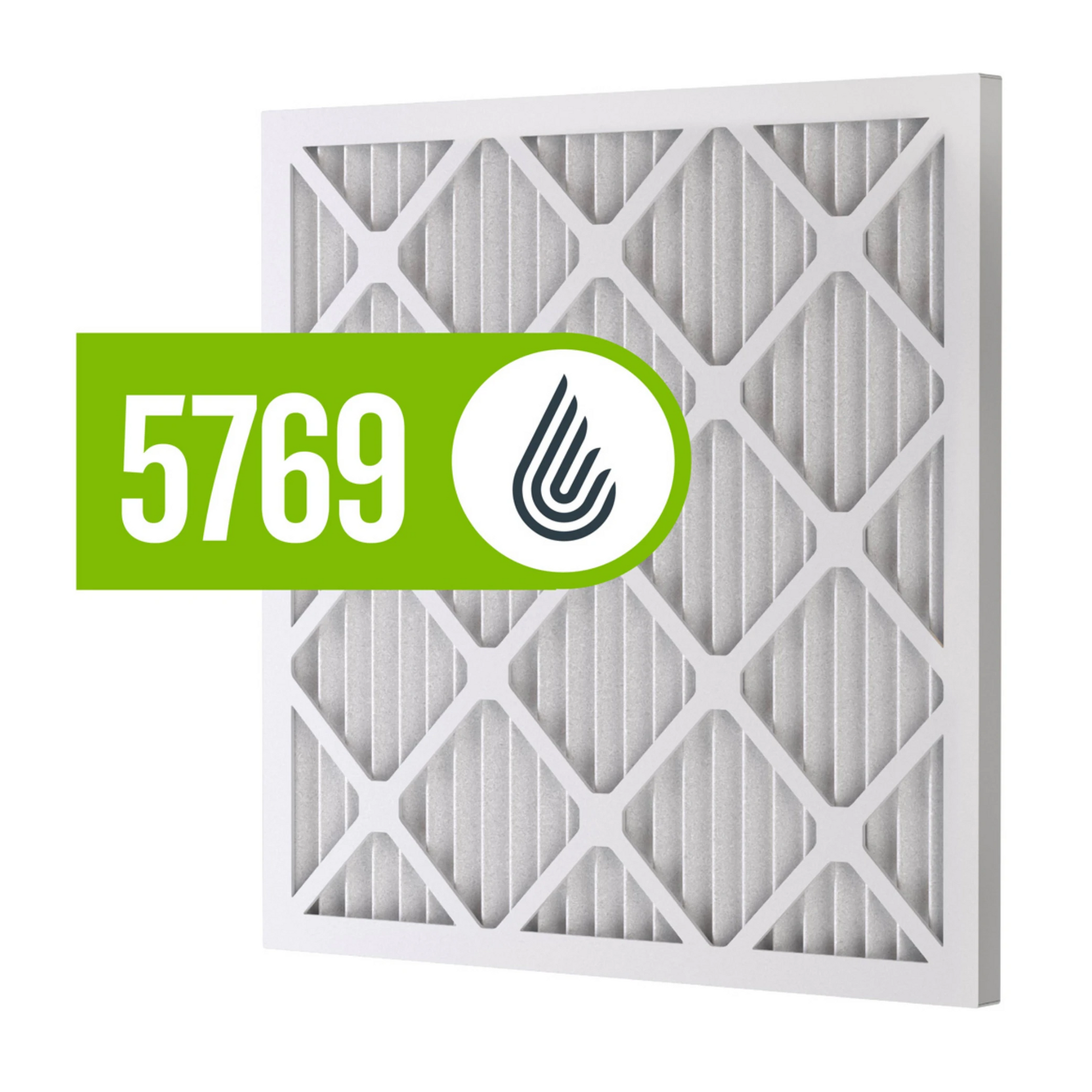

• Anden part 5769: The number to match for a single panel, which is how these are stocked

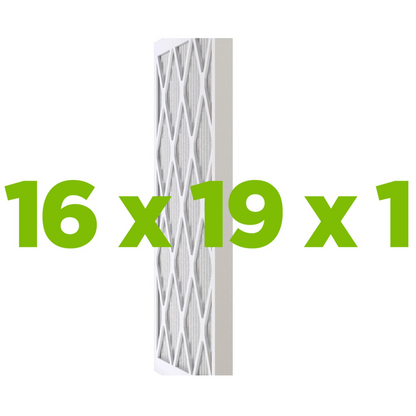

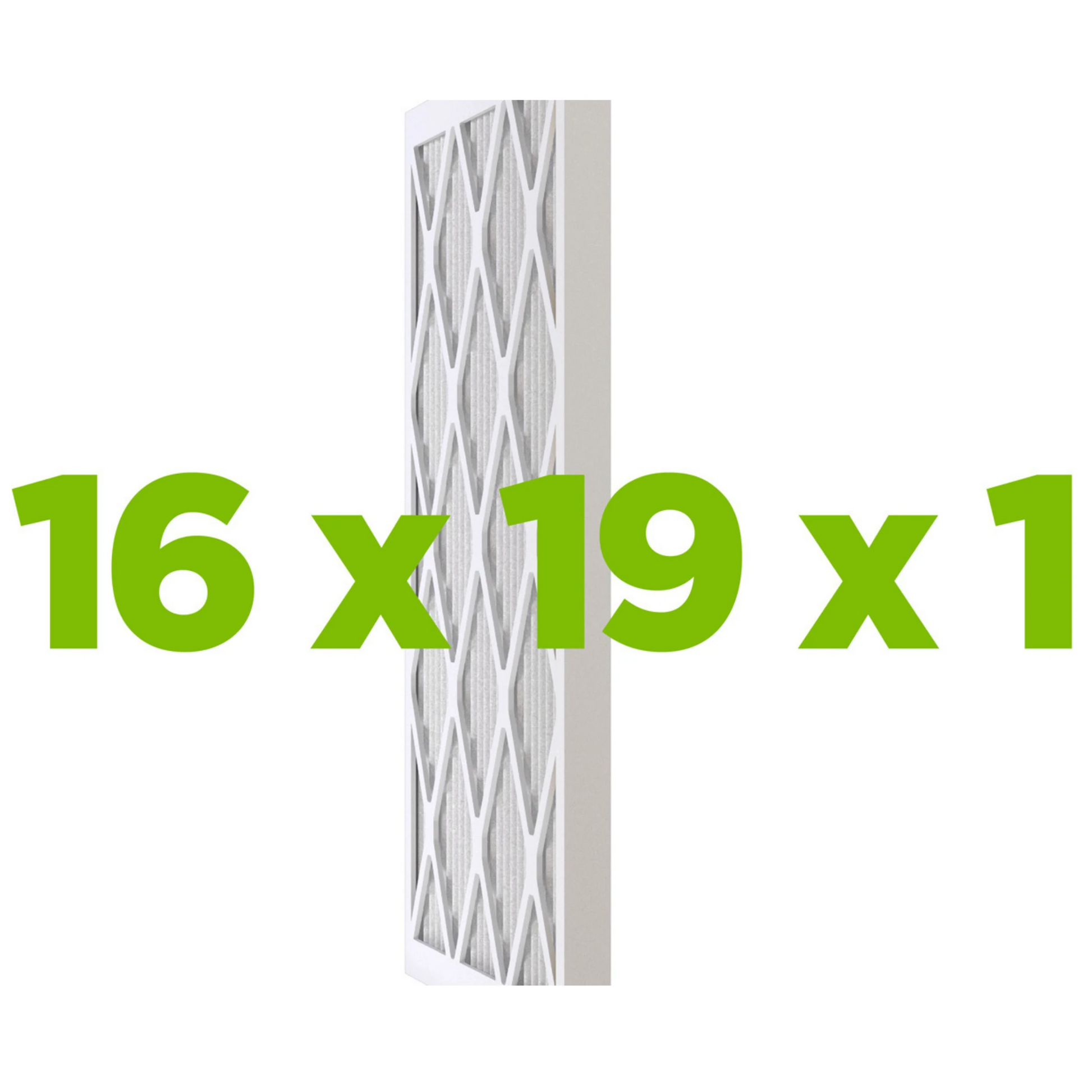

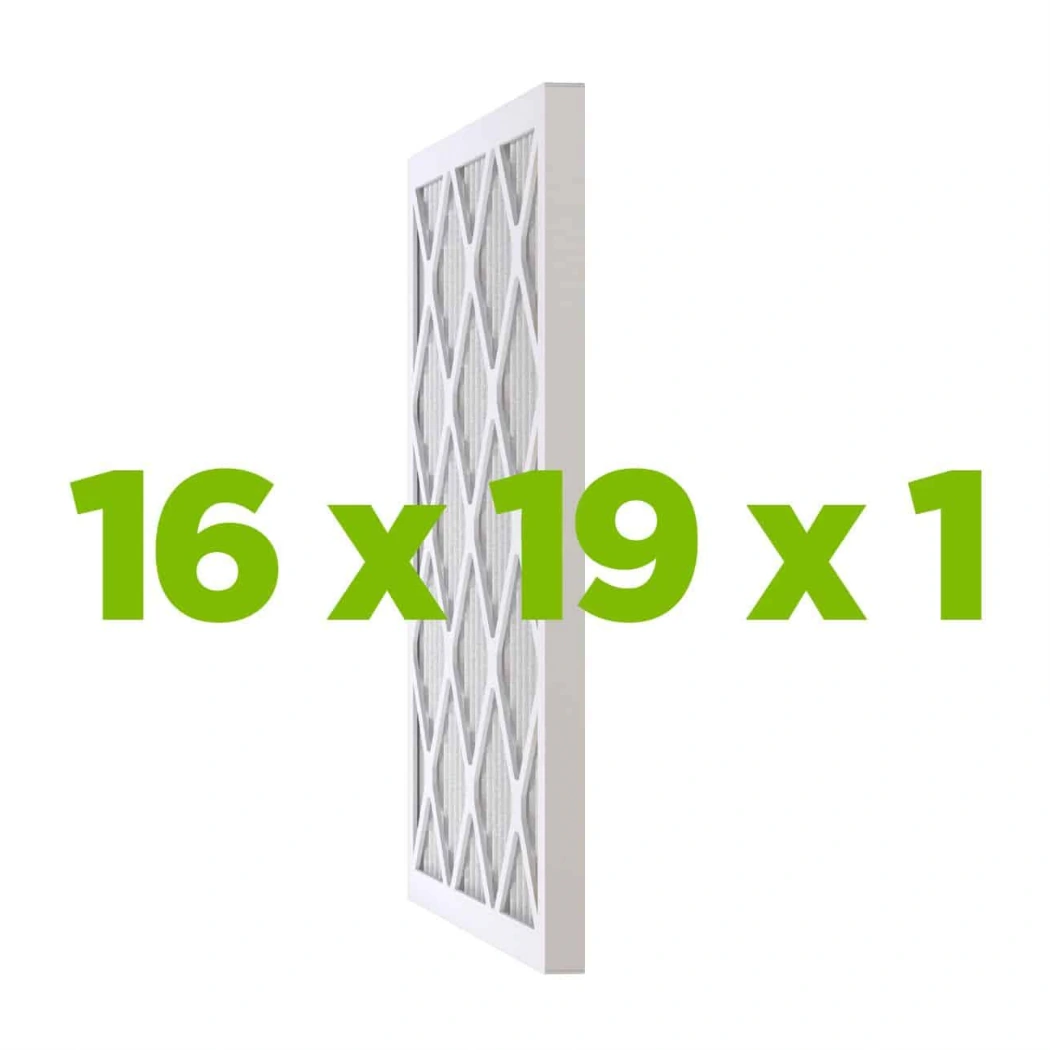

• 16 x 19 x 1 as Anden publishes it: Their own figure for the A130F panel, with no rounding gap to reconcile

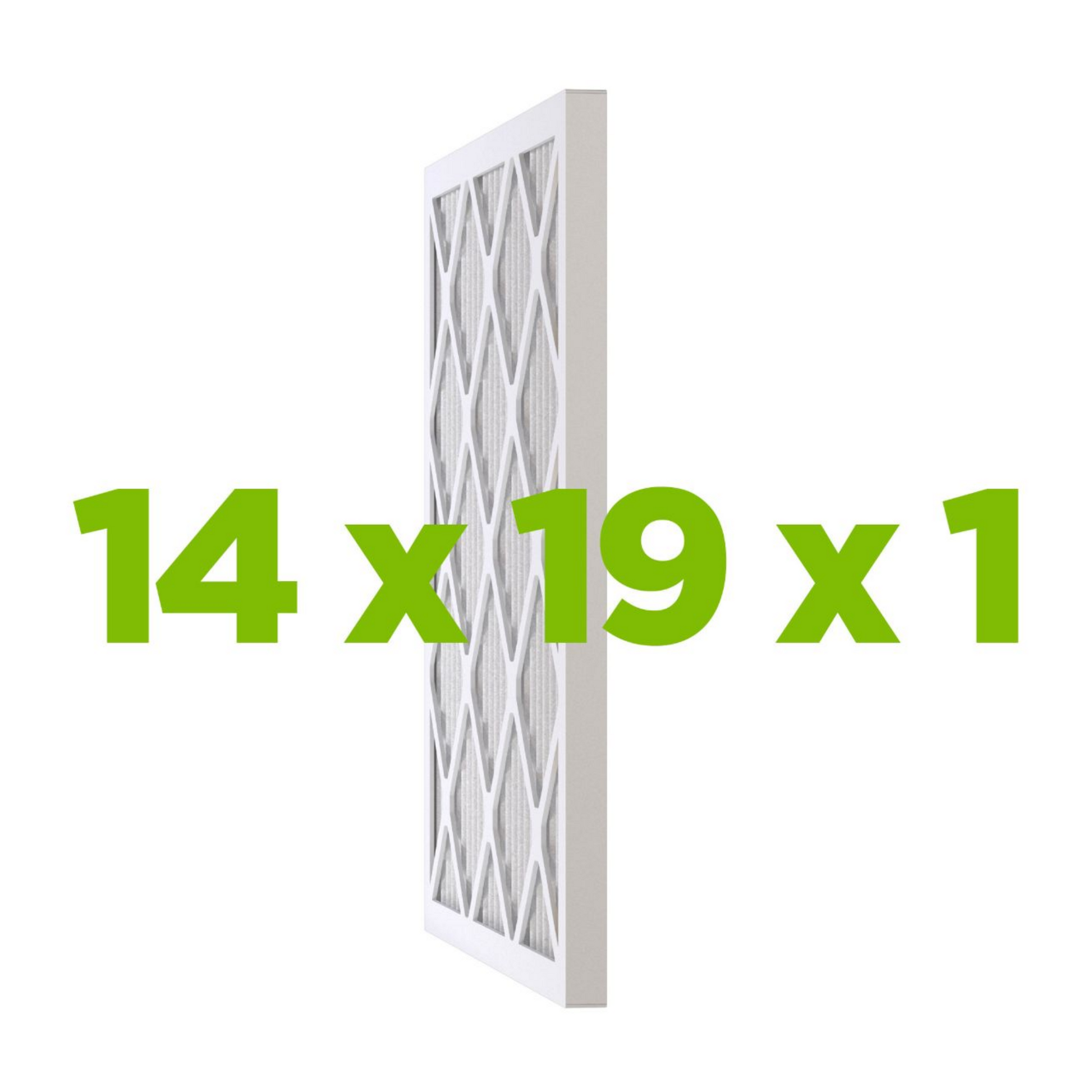

• Not the fixed A130 panel: The A130 takes part 5701 at 14 x 19 x 1, so the letter on the data plate decides which one you need
• MERV 11 multi-pleat media: EPA holds the grade to 65 percent or better from 1 to 3 microns and 85 percent from 3 to 10
• Built for a machine that travels: A movable unit meets its dustiest air during a room turnover, so check the panel on the way in rather than on a date
• Keeps the coil clean: A loaded face makes the unit draw full power for fewer pints, so fresh media is the simplest way to hold output
• Every 12 weeks or every harvest: Anden's published interval; on a movable machine the harvest is the more useful half

Technical Specifications

More on how Quest and Anden size their filters, what the MERV numbers mean and when each brand says to change them: Quest and Anden Filters: Sizes, Ratings and Replacement Timing.
