Anden A320V1 Dehumidifier: 320 Pints a Day From a 208-240V Unit

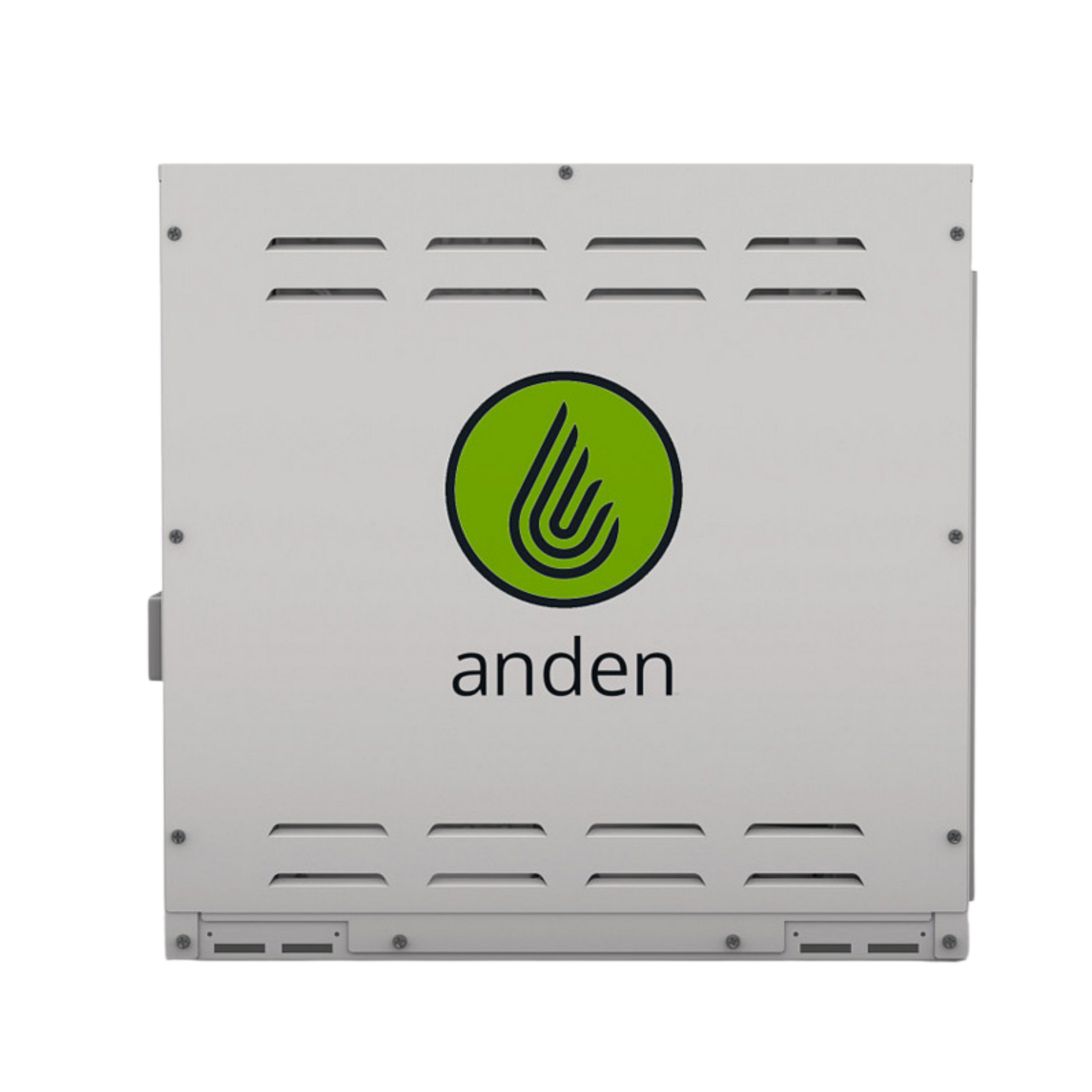

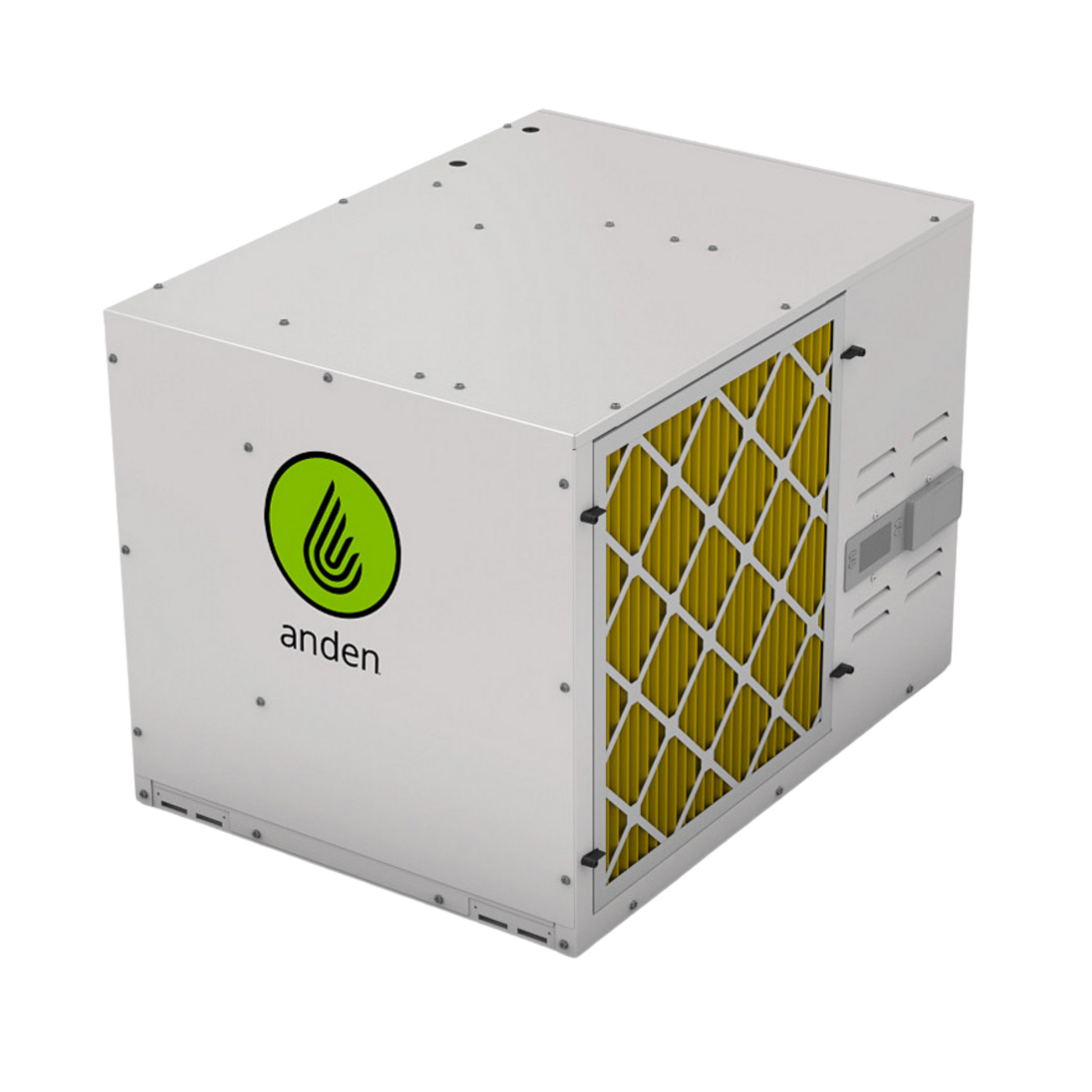

The Anden A320V1 dehumidifier is a high-capacity refrigerant unit built for indoor growing rooms. At 80°F and 60 percent RH it removes 320 pints of water a day. Efficiency is rated at 2.9 L/kWh, which is 6.0 pints per kWh. An evaporator coil chills incoming air below its dew point, and the condensed water drains away. The condenser coil then reheats the dry air before discharge. Anden builds that coil from copper tube and aluminum fins with an ElectroFin E-coat. The blower moves 830 CFM in free flow and discharges horizontally. Power is 208-240V single phase, drawing 11.1 A and 2,310 W. The 10 ft cord carries a NEMA 6-20P plug for a 6-20R receptacle on a 20 A breaker. The plug can be removed for a hard-wired connection. The unit adds 7,900 Btu/h of total heat to the room. A 20 x 22 x 2 in MERV 11 filter sits on the inlet. The cabinet is 32.625 in wide, 24 in high and 24.25 in long, and it weighs 180 lb. The box includes four hanging brackets, a P-trap with fittings, 10 ft of clear drain hose and a MERV 11 filter. It also holds the Model A77 control, 30 ft of thermostat cable and a terminal screwdriver. Anden backs all parts, including the refrigeration system, for five years.

Setting Up a Commercial Grow Room Dehumidifier With a P-Trap

The blower pulls air through the cabinet, which puts the drain pan under negative pressure. That is why this unit needs the included P-trap to drain properly. Thread the supplied fittings into the 3/4 in FNPT drain with PTFE tape, hand tight only. Use PVC primer and cement on any slip joints so they stay leak free. After the trap and tubing are in place, pour about 2 pints of water into the drain pan to prime it. Floor mounting requires the 5789 leveling feet kit, sold separately. Block the unit up enough to clear the P-trap and keep the drain hose sloping down. For overhead installs, slot the four brackets into the base and fasten them with the #12 screws provided. The brackets take threaded rod up to half an inch in diameter. Hang a condensate pan with a float switch underneath when the unit sits over product. Duct kit 5807 adds ducting, with a maximum external static pressure of 0.2 in w.c. Keep at least 6 in clear in front of the inlet so the filter can come out. Wire the A77 with 18-22 AWG cable and mount it near canopy height. After power is restored, the compressor waits three minutes before it responds to a call. Anden lists the operating range as 65 to 85°F, with dew points from 40 to 75°F.

Key Features

• 320 pints per day: At 80°F and 60% RH, 2.9 L/kWh.
• 20 A circuit: 208-240V, 11.1 A, NEMA 6-20P cord or hard-wire.
• 830 CFM blower: Horizontal discharge through a MERV 11 filter.
• E-coated coil: Copper tube and aluminum fin with ElectroFin E-coat.
• P-trap kit included: Trap, fittings and 10 ft of clear drain hose.
• Model A77 included: Remote RH control with 30 ft of cable.
• Hang or duct: Brackets included; duct kit 5807 sold separately.
• Five-year warranty: All parts, including the refrigeration system.
