Apache Tech AT200 Build, Draw and Optics

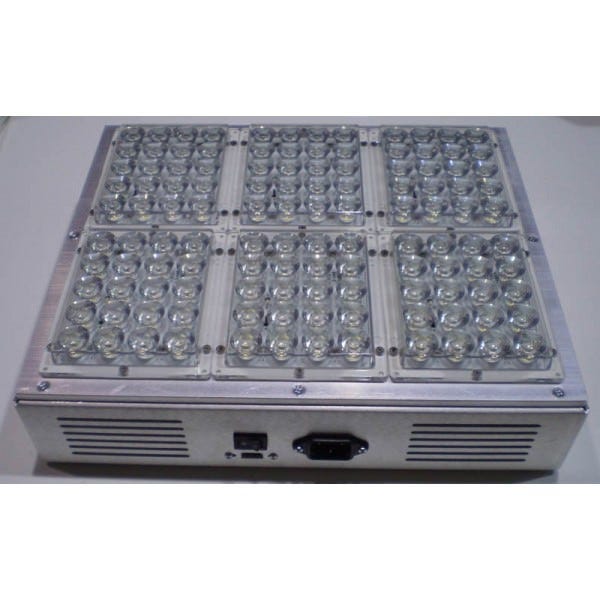

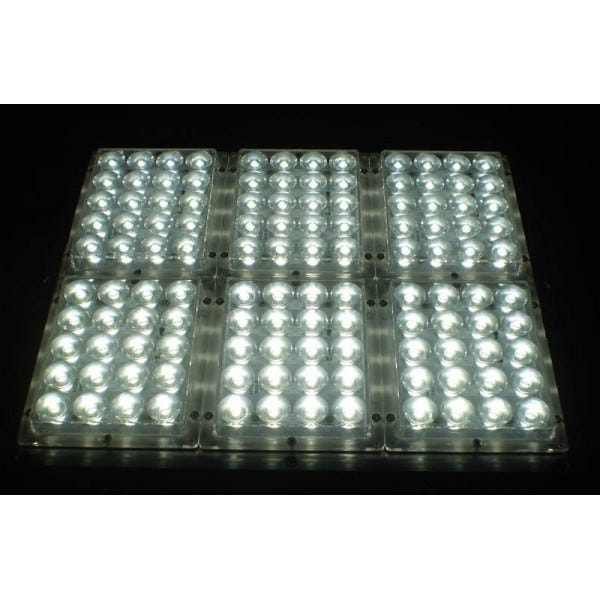

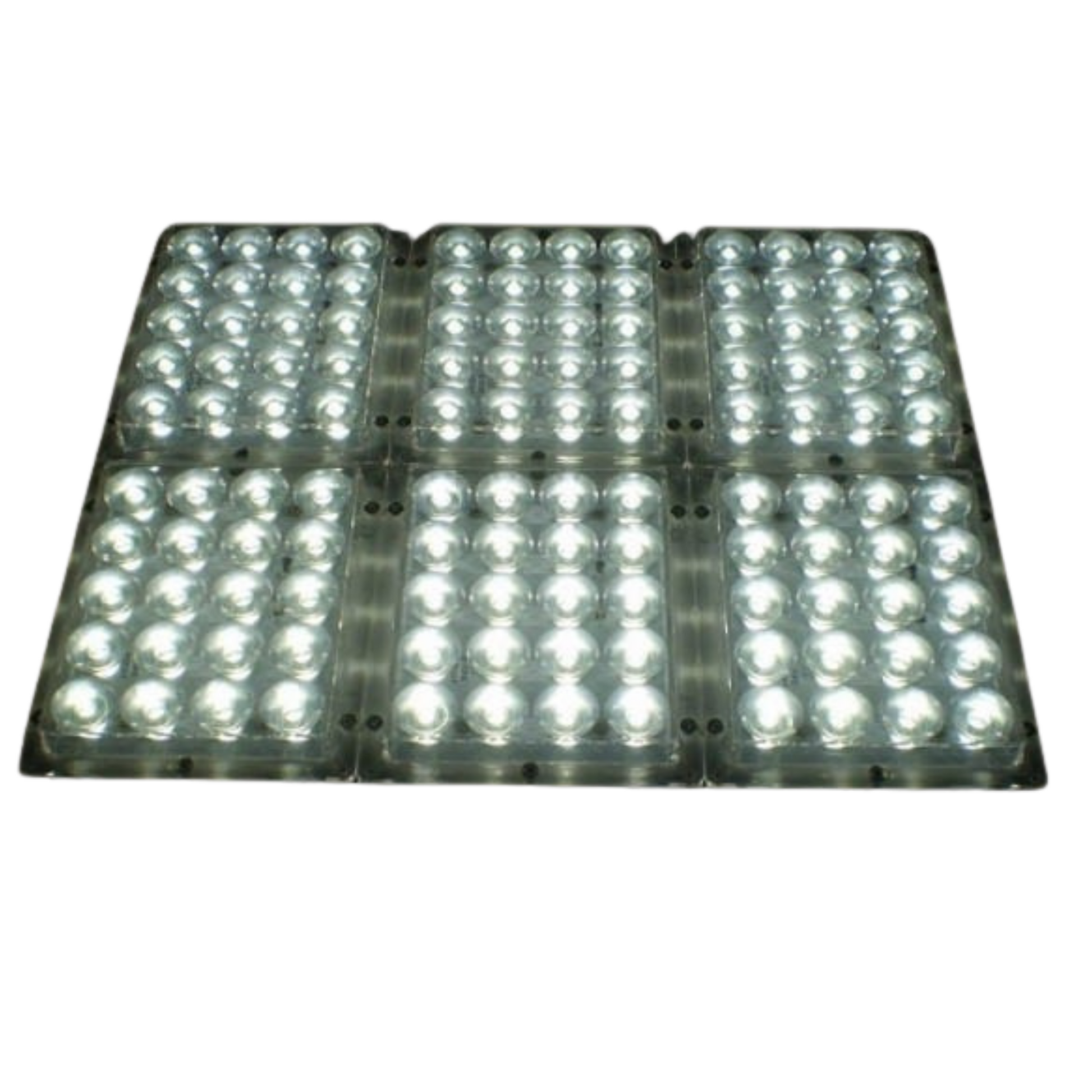

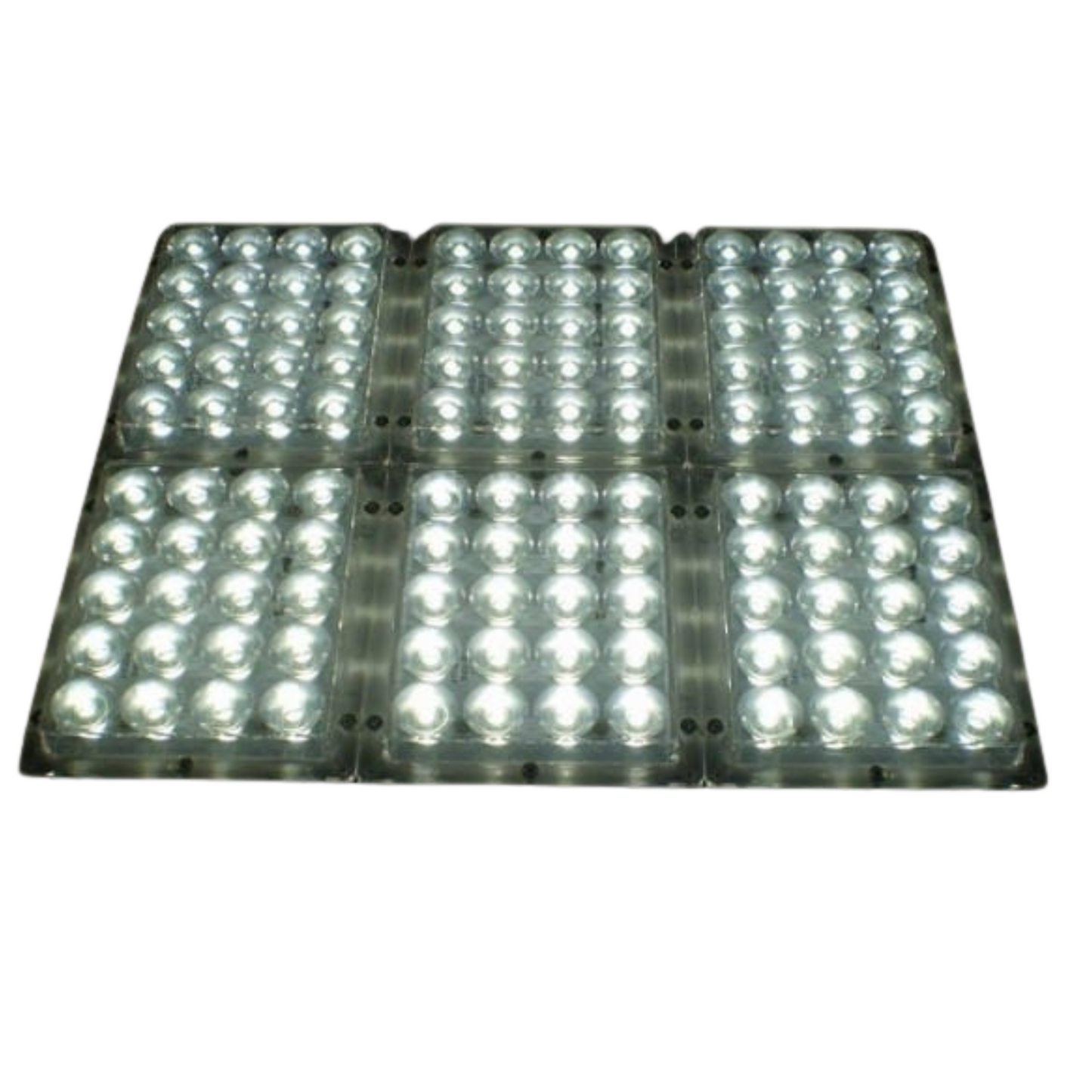

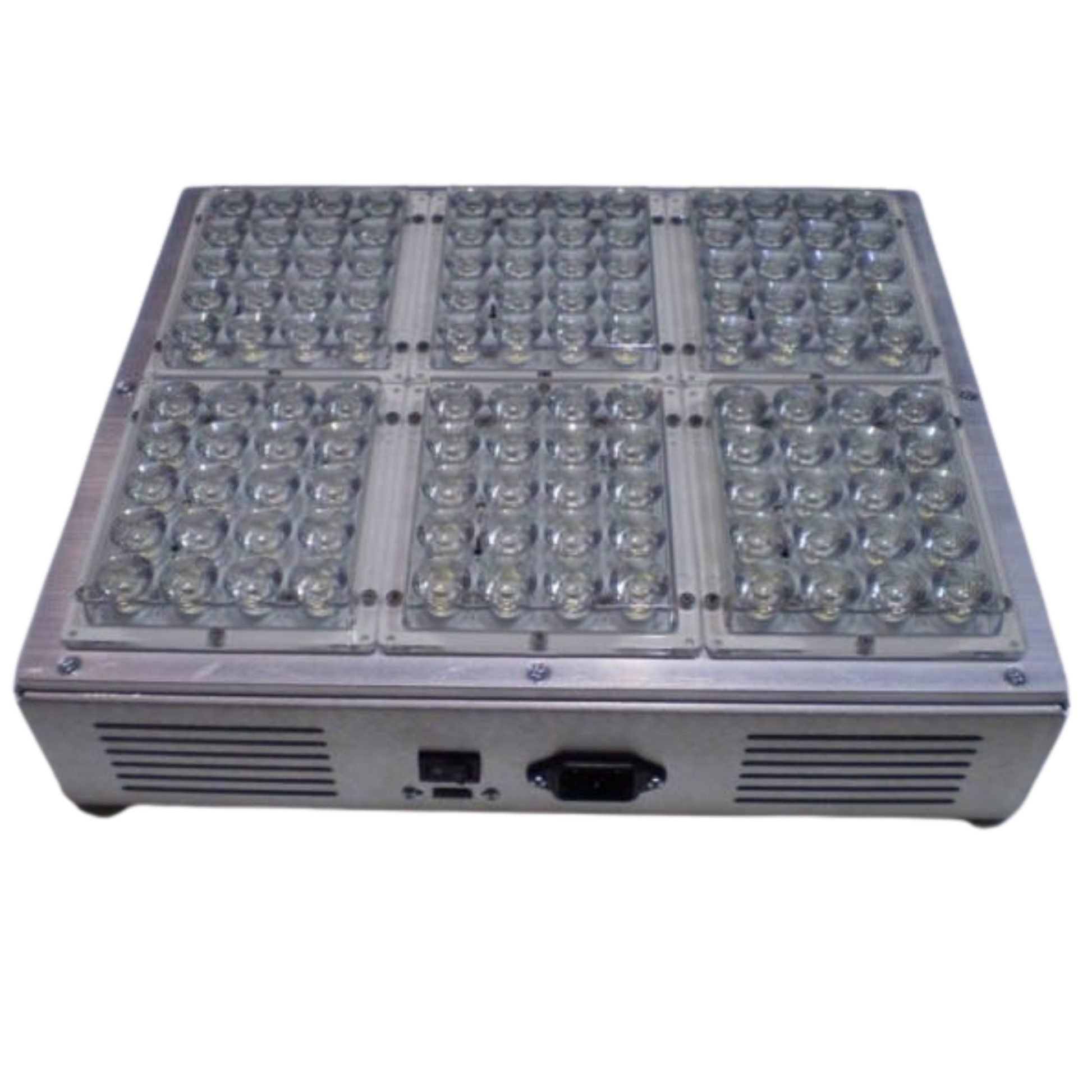

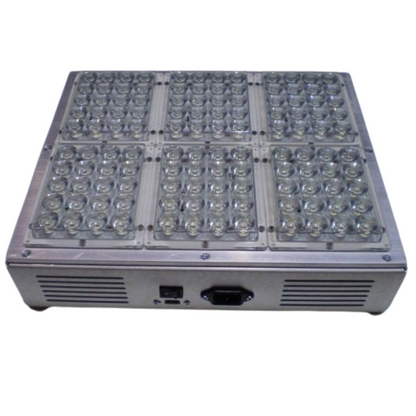

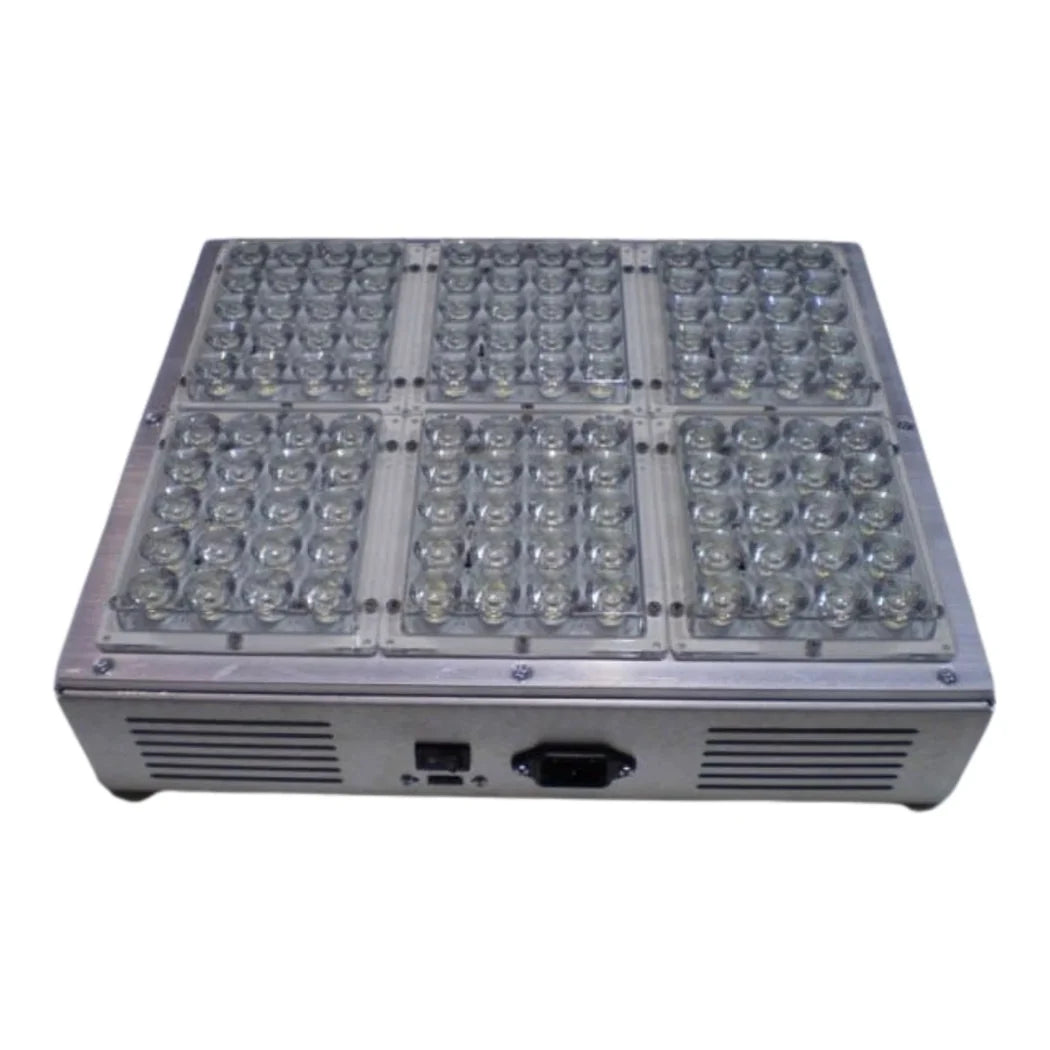

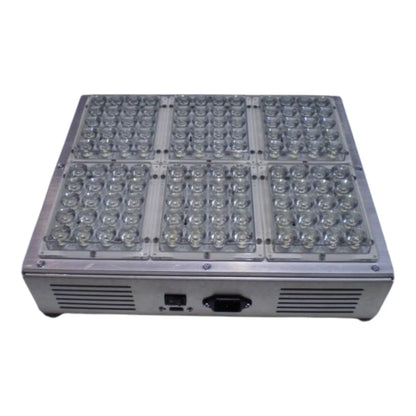

The AT200 is the larger step up in Apache Tech's lineup, using higher-output chips than the smaller 120-series panels. It carries 120 x 3W diodes and draws 226W actual, about 2.1A at 110V. Input is listed as 120–240V AC, so it runs from a normal household outlet. The diodes are split roughly three white to two red, a 3:2 blend that reads as warm white light. That keeps the canopy easy to scout, while the red share supports flowering. Acrylic lenses direct the light at either 14° or 50°, depending on the version you choose. The body measures 13.5 x 11.0 x 5.0 in and weighs about 14.1 lb. Cooling comes from thick finned aluminum heat sinks backed by fans. Retail listings rate the diodes at 50,000 hours and carry CE, RoHS and UL marks with a 5-year limited warranty. Coverage is listed as 3 x 3 ft, the footprint a single 600W HID lamp usually lights.
How Growers Run an Apache Tech LED Panel Like This

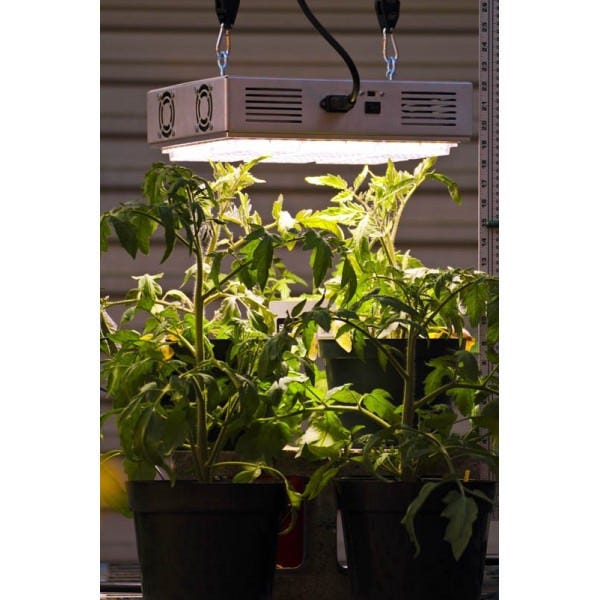

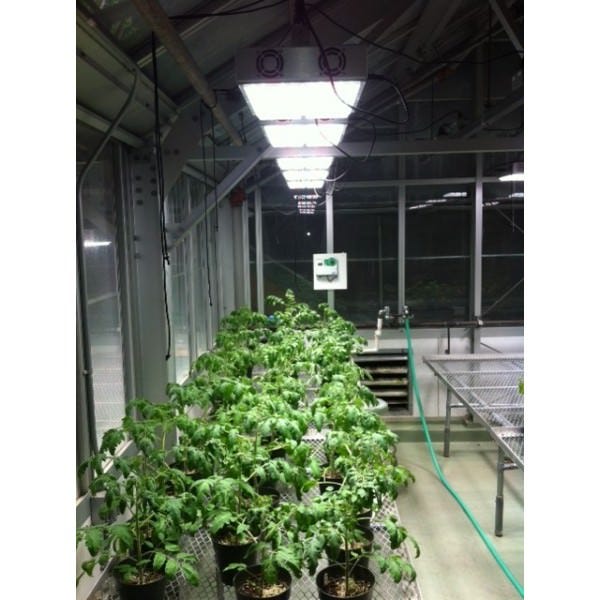

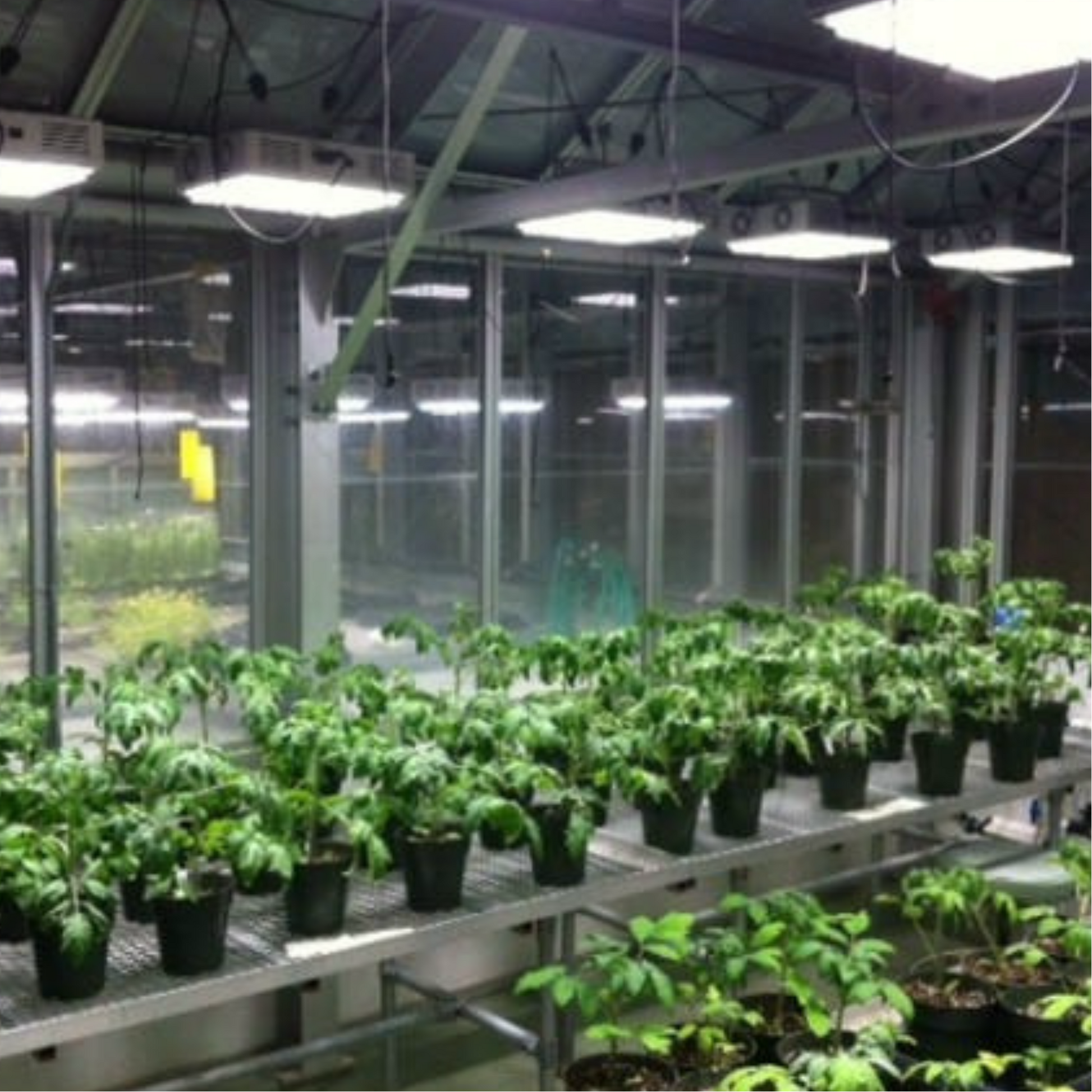

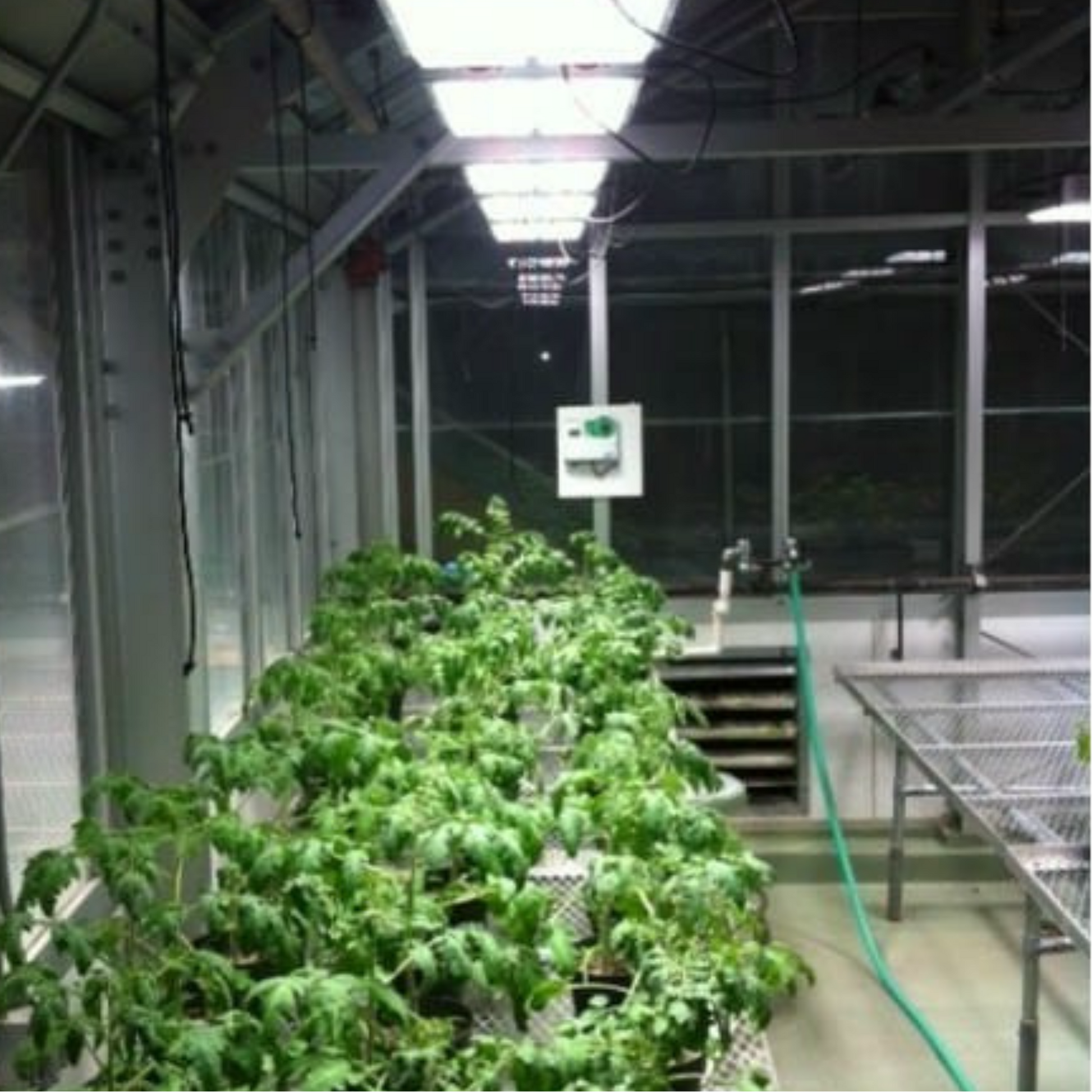

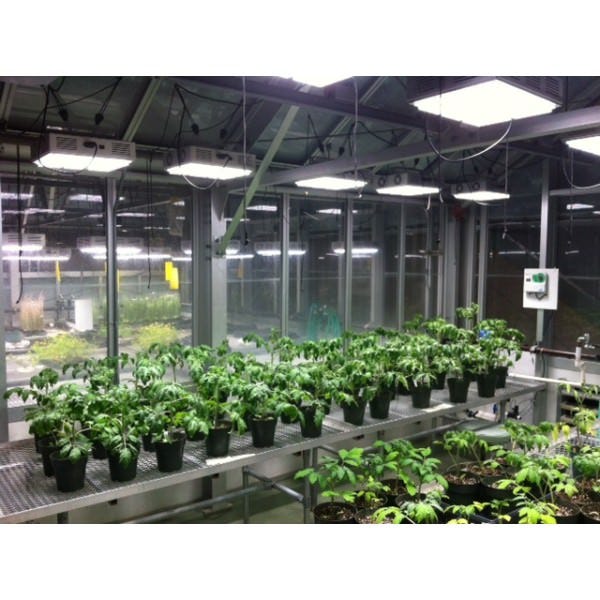

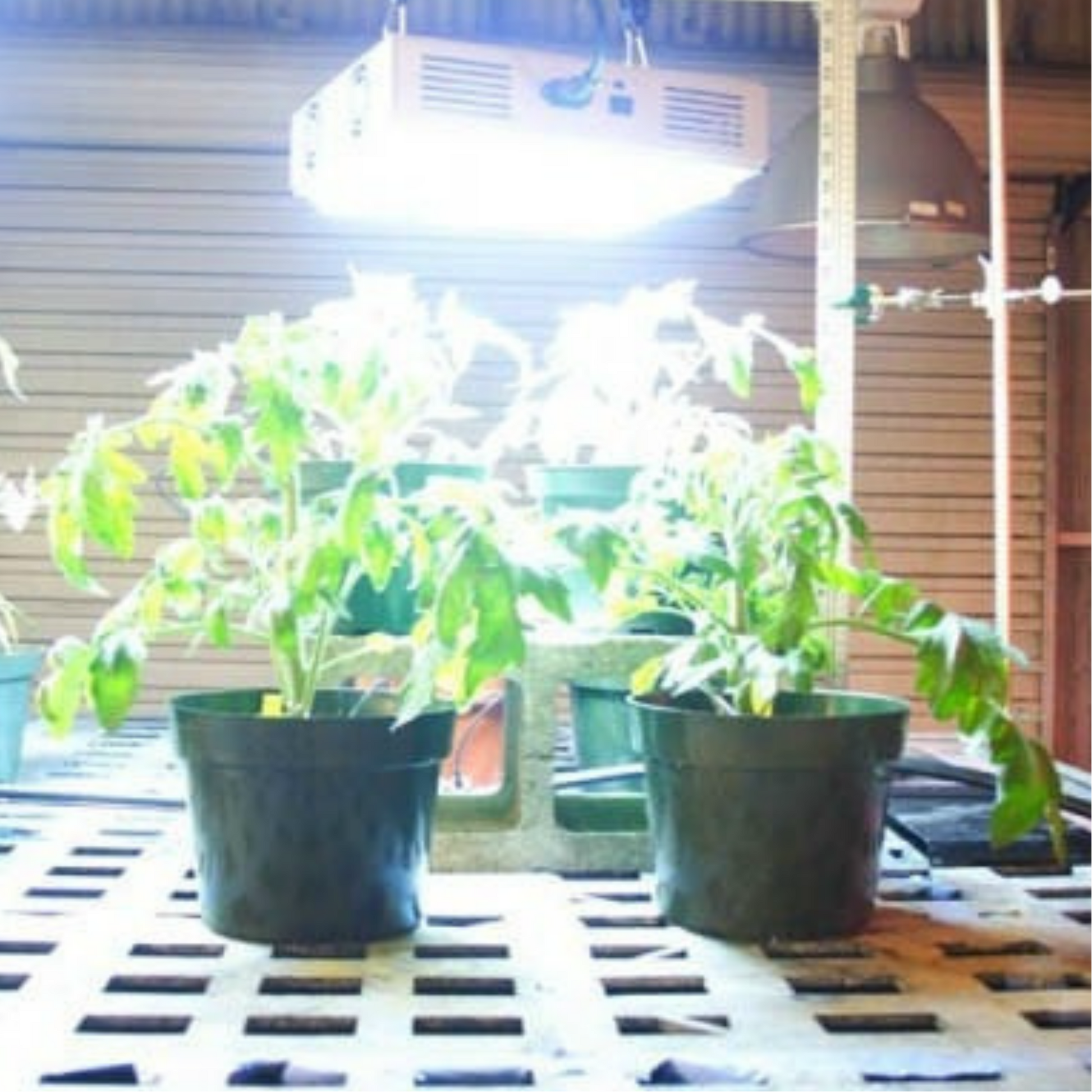

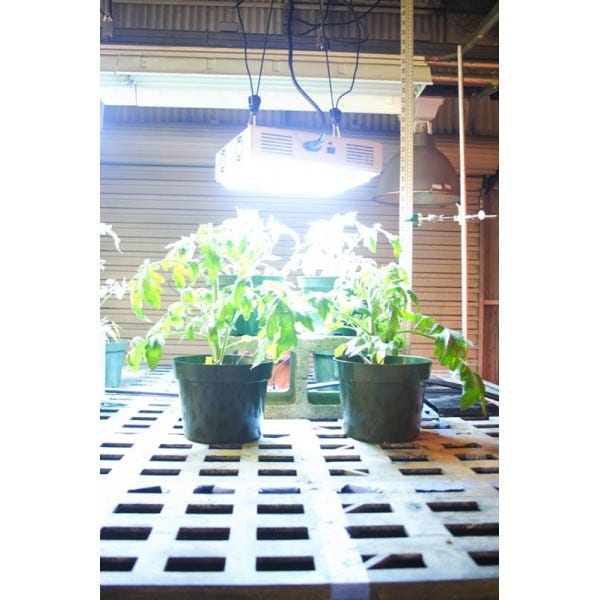

Most people who search for Apache Tech LED gear land on this model, because it is the one sized for a full tent. Hang it between eighteen and thirty inches above the tops, starting high over young plants. Drop it gradually through veg, and watch the upper leaves for bleaching or cupping. The narrow lens pushes light deeper into tall plants, while the wide lens suits trained, flat canopies. It works as the only light in a small tent or as a supplement beside an older HID fixture. Swapping an HID for it cuts heat noticeably, which often lets a small tent drop an exhaust speed. A common forum question is whether it can cover a 4x4 on a light rail. A mover spreads the footprint, but the corners will still run dimmer than a fixture sized for that tent. The fans are a small trade-off against a fully passive board, since they add a little noise and a part that can wear. Several figures here come from a retail spec listing, so confirm fine details with Apache Tech before planning a room.
Key Features
- 120 high-output 3W chips: Dense chip count concentrates output under a compact panel.

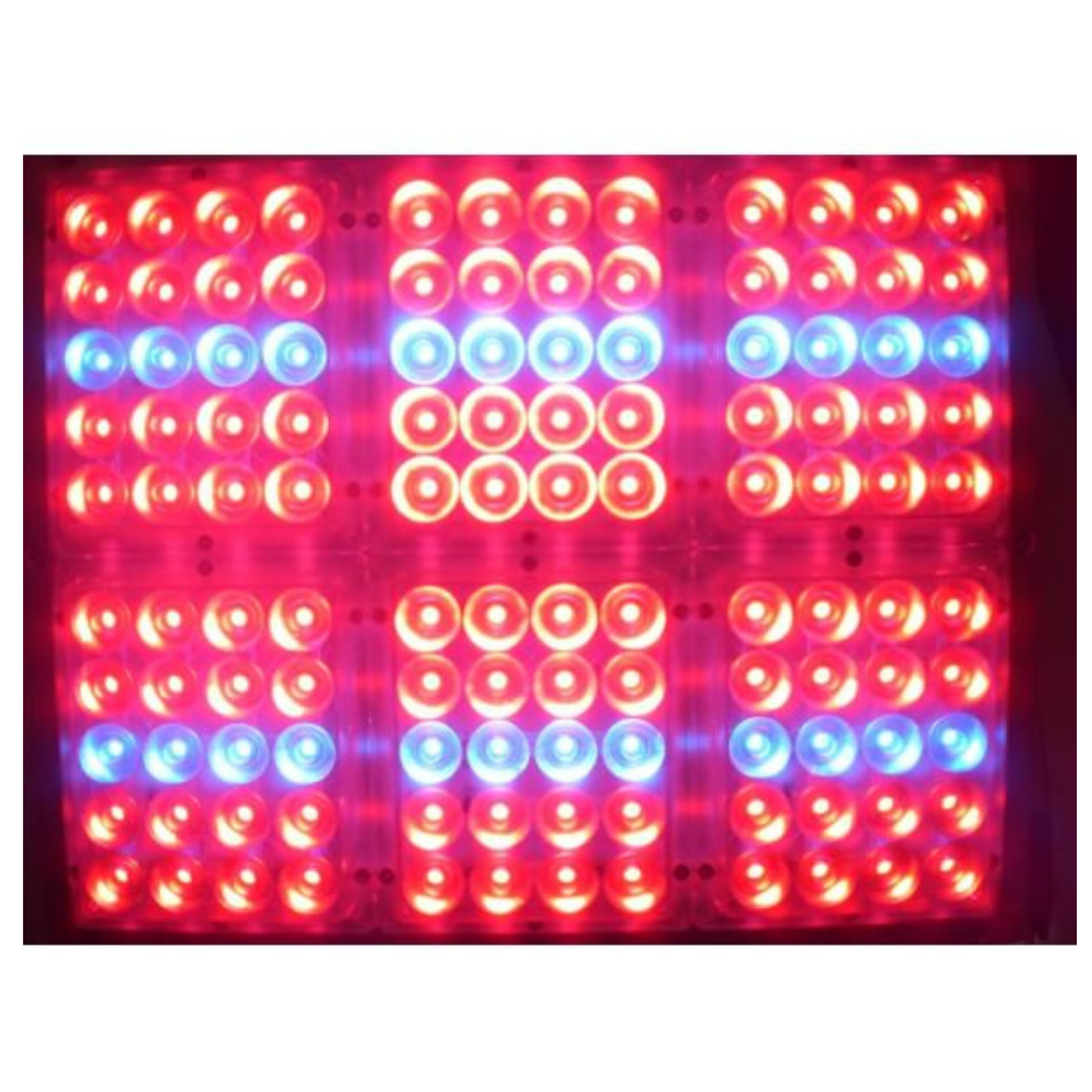

- 3:2 white-to-red spectrum: White keeps the canopy easy to read while red supports bloom.

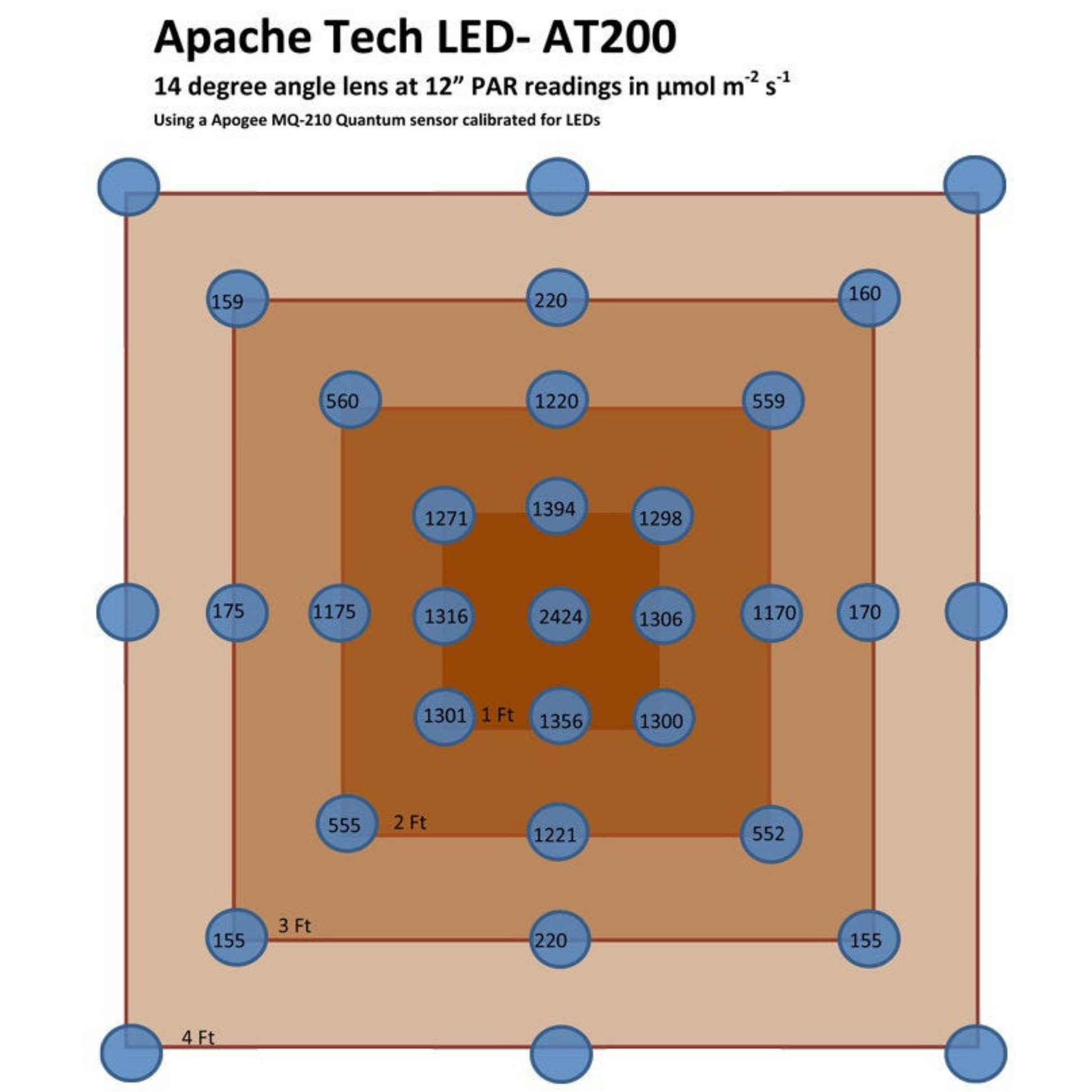

- 14° or 50° acrylic lenses: Pick deep penetration for tall plants or wide spread for flat canopies.
- Finned heatsink with fans: Keeps the housing cool enough to hang close in a small tent.
- Household current draw: About two amps on a standard outlet leaves room for fans and filters.
- CE, RoHS and UL marks: Listed certifications and a limited warranty for long-term use.
Technical Specifications
| Specification | Value |
|---|---|
| Model | AT200 |

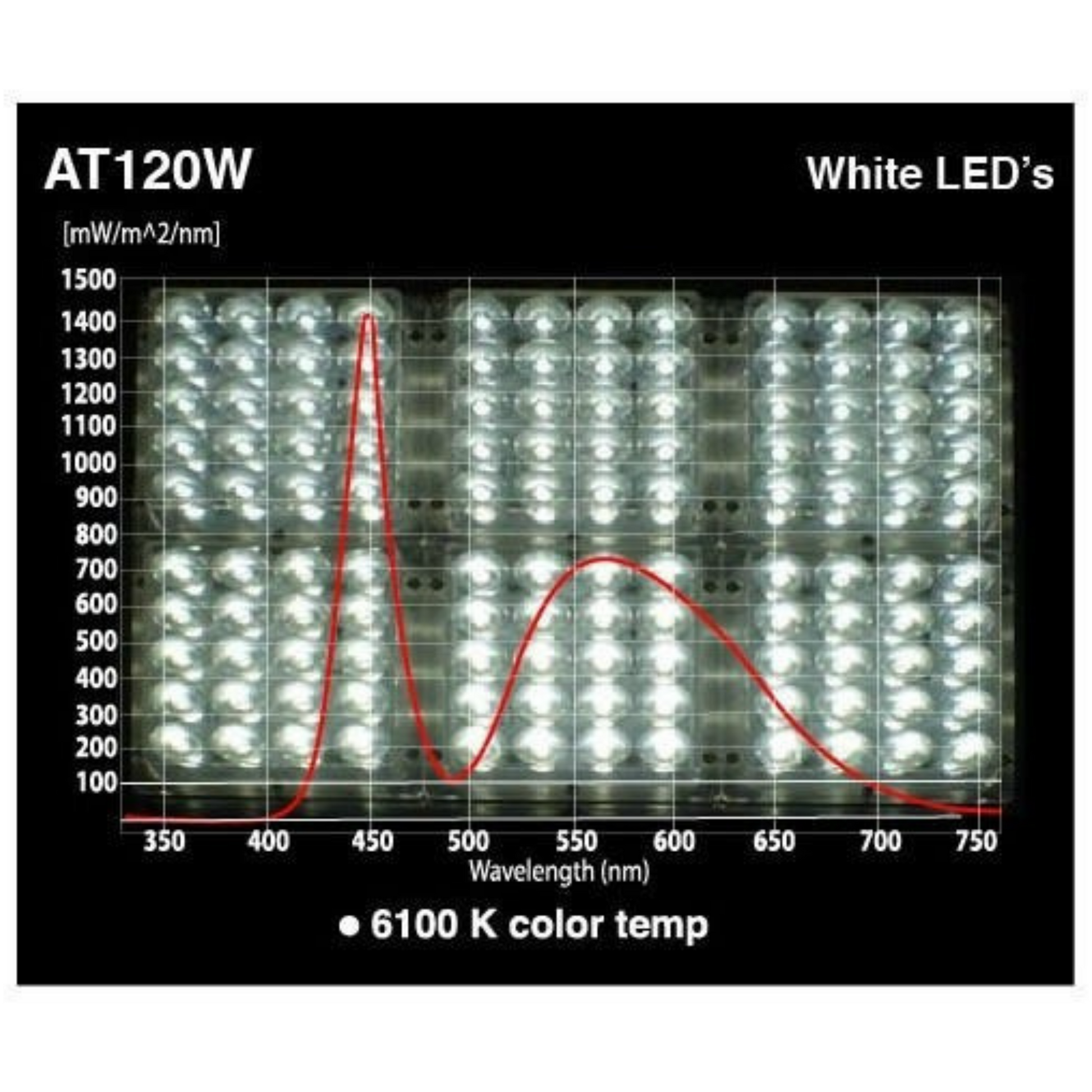

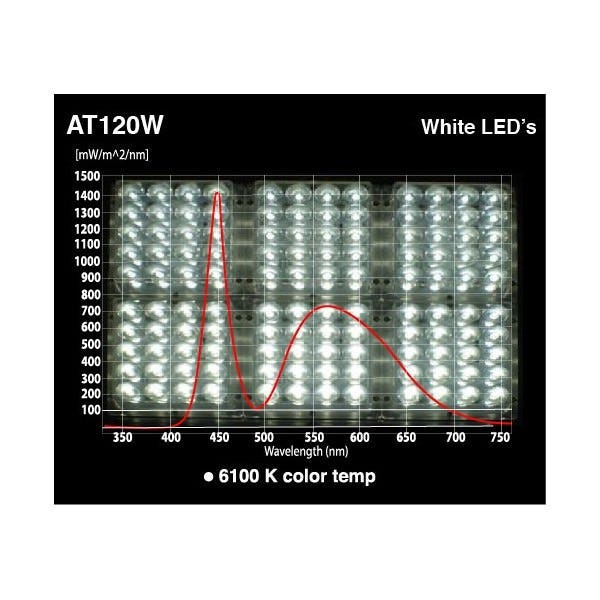

| Spectrum | White/Red 3:2 |
| Growth Phase | Full-cycle (cutting to harvest) |
| Chips | 120 x 3W high-output LEDs |
| Actual Draw | 226W |
| Input | 120–240V AC; 2.1A at 110V |
| Optics | Acrylic lenses, 14° or 50° |

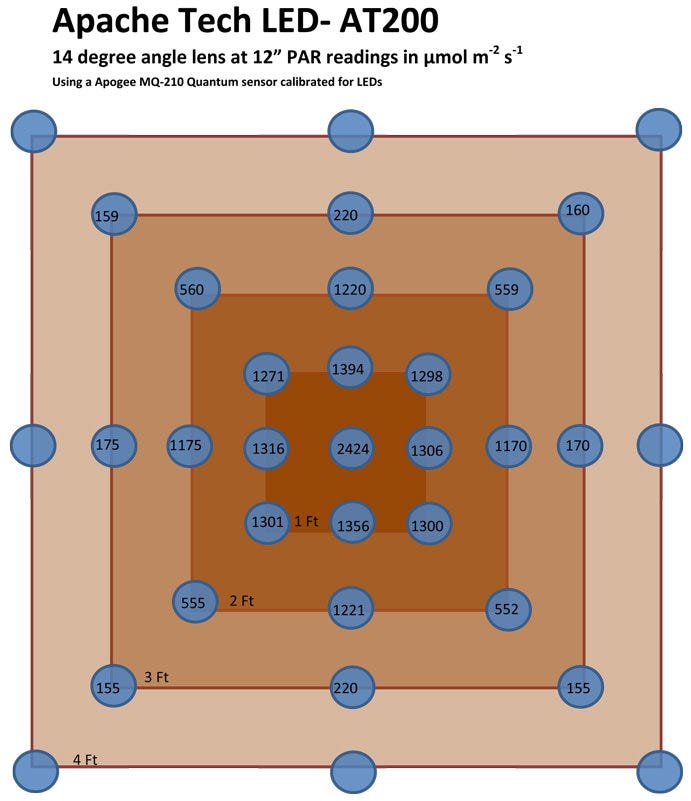

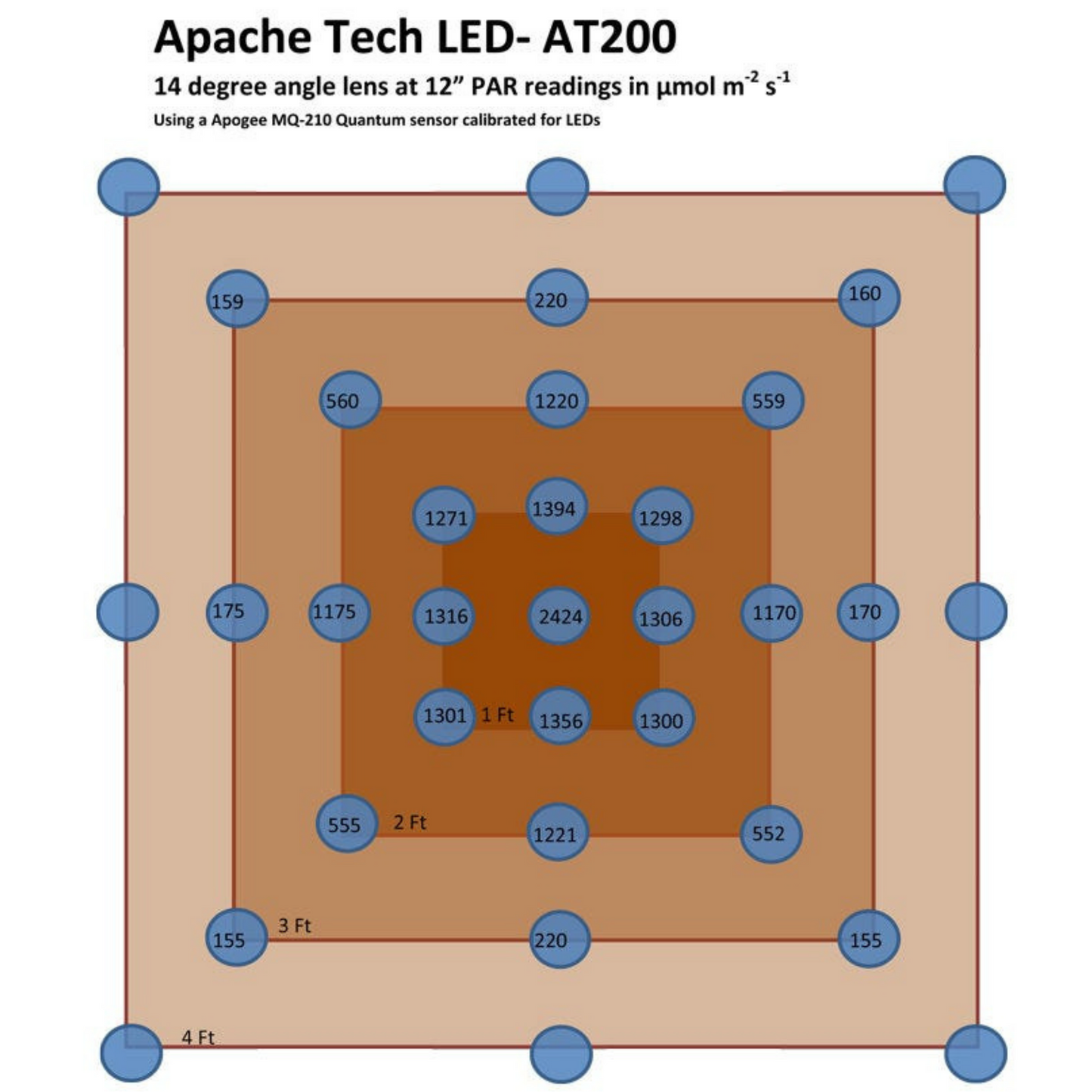

| Coverage | 3 x 3 ft (9 sq ft) |
| Hang Height | 18–30 in above plants |
| Dimensions | 13.5 x 11.0 x 5.0 in |
| Weight | 14.1 lb |
| Cooling | Finned aluminum heat sinks with fans |
| Rated Lifespan | 50,000 hours |
| Certifications | CE, RoHS, UL (retail listing) |
| Warranty | 5-year limited (retail listing) |
