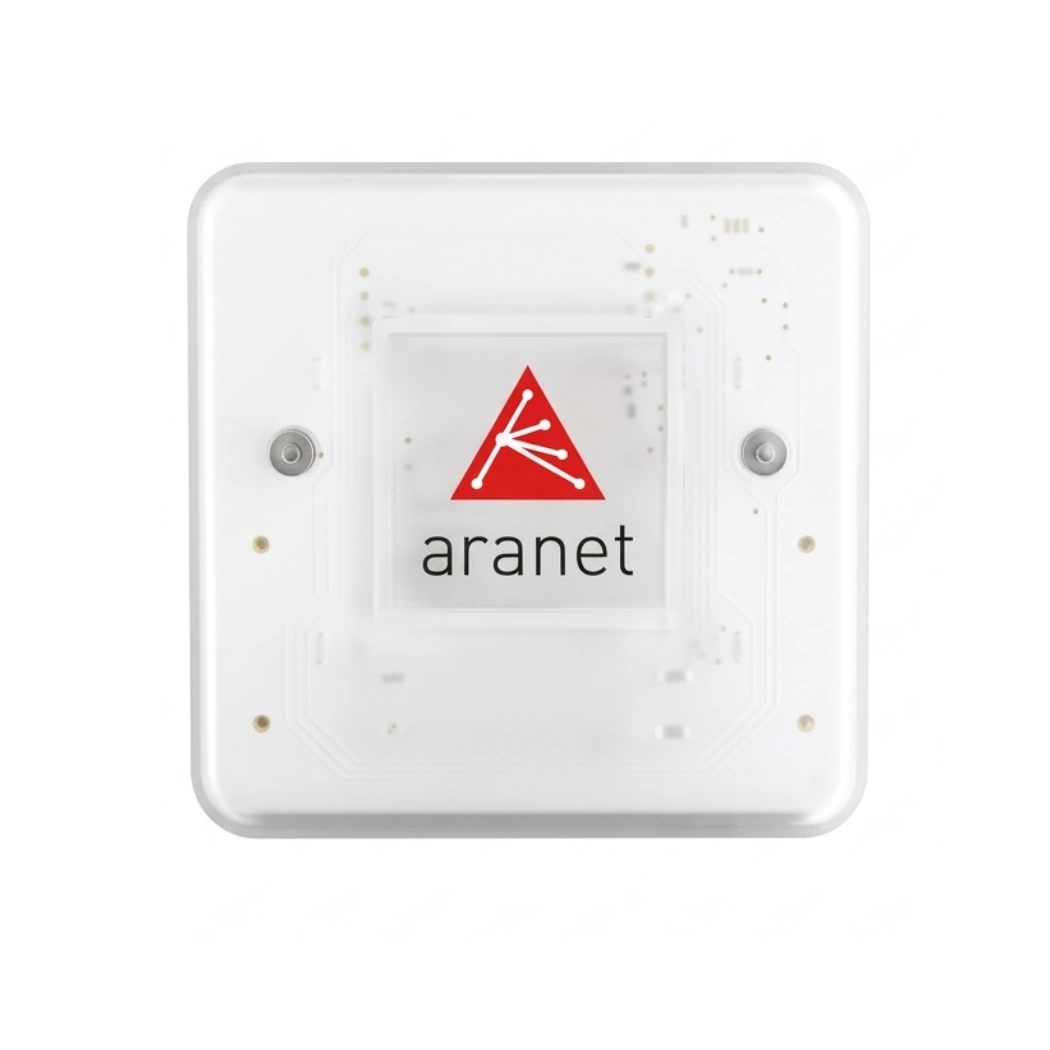

Aranet Wireless Transmitter for SDI-12 Substrate Sensors
The transmitter joins any SDI-12 substrate sensor — TerraLINK, Acclima TDR-310/315, or Meter TEROS-12 — to the Aranet PRO network. Sensor readings move over the proprietary Aranet LPWAN built on the 920 MHz LoRa physical layer with XXTEA encryption. Line-of-sight range reaches roughly 3 km, with several hundred feet of penetration through greenhouse walls and metal racks.
TerraLINK Wireless Sensor Architecture with Years of Battery Life
A single 1.5 V AA lithium cell powers the radio for up to ten years on a normal monitoring schedule. The transmitter wakes briefly, polls the SDI-12 probe, sends the VWC, EC, and substrate-temperature payload to the base station, and goes back to sleep. Aranet PRO 12, PRO 50, PRO 100, and PRO Plus base stations all accept the node. Pick the version that matches your row count and IP rating. Field swaps stay simple: pull the probe cable from the head, drop in the replacement transmitter, re-pair through the SensorHUB web server.
Key Features
- SDI-12 input for substrate sensors: Plug a TerraLINK, Acclima TDR-310/315, or Meter TEROS-12 head and start streaming VWC, EC, and substrate temperature.
- 920 MHz Aranet LPWAN: Proprietary LoRa-based protocol with XXTEA encryption — 3 km line-of-sight, hundreds of feet through greenhouse structure.
- 10-year AA battery life: One 1.5 V lithium AA (Energizer L91) on a standard reporting interval — no panel wiring, no PoE.
- Pairs with Aranet PRO 12 / 50 / 100 / PRO Plus: Capacity scales with the base station; the transmitter is the same.
- Aranet SensorHUB web server: Built into every PRO base station — pair, configure, and read data through any browser on the LAN.
- Substrate-anywhere placement: Wireless link removes the conduit run from the canopy to the panel, so probes go wherever the roots ask for them.
- Compatible with rockwool, coco, peat, and field soil: SDI-12 plumbing is independent of media, so the same transmitter works across crops.
Technical Specifications
| Specification | Value |
|---|---|
| Function | Wireless transmitter for SDI-12 substrate sensors |
| Compatible sensors | Growlink TerraLINK, Acclima TDR-310/315, Meter TEROS-12 (any SDI-12 v1.3) |
| Compatible base stations | Aranet PRO 12 / 50 / 100 / PRO Plus |
| Wireless protocol | Aranet proprietary LPWAN on LoRa physical layer |
| Frequency (US) | 920 MHz |
| Encryption | XXTEA |
| Line-of-sight range | Up to 3 km |
| Indoor range | Several hundred feet through greenhouse structure |
| Battery | 1 × 1.5 V AA Lithium (Energizer L91 recommended) |
| Battery life | Up to 10 years on standard reporting interval |
| Configuration | Aranet SensorHUB web server (LAN browser) |
| Data reported | VWC, EC, substrate temperature (from connected probe) |
