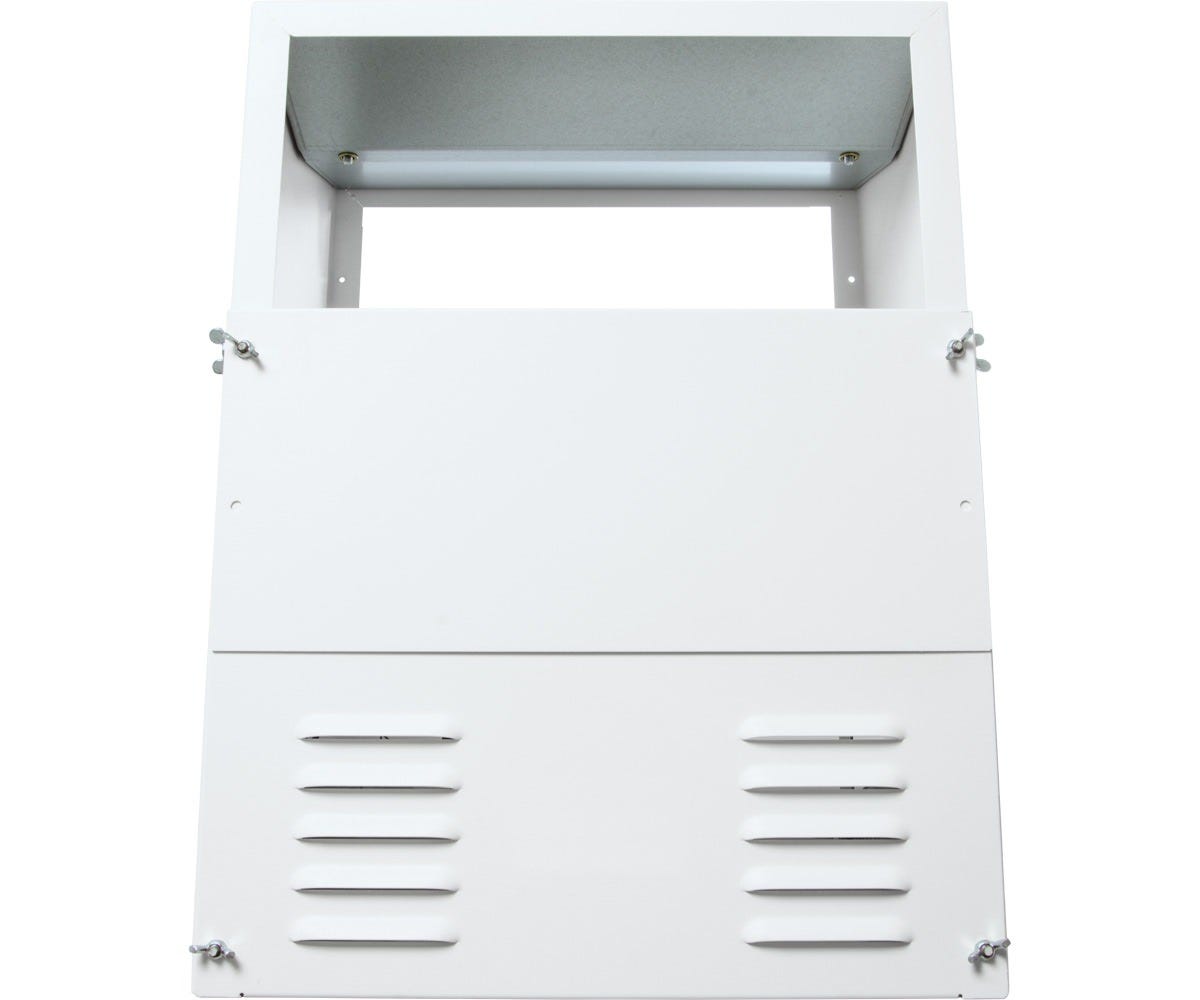

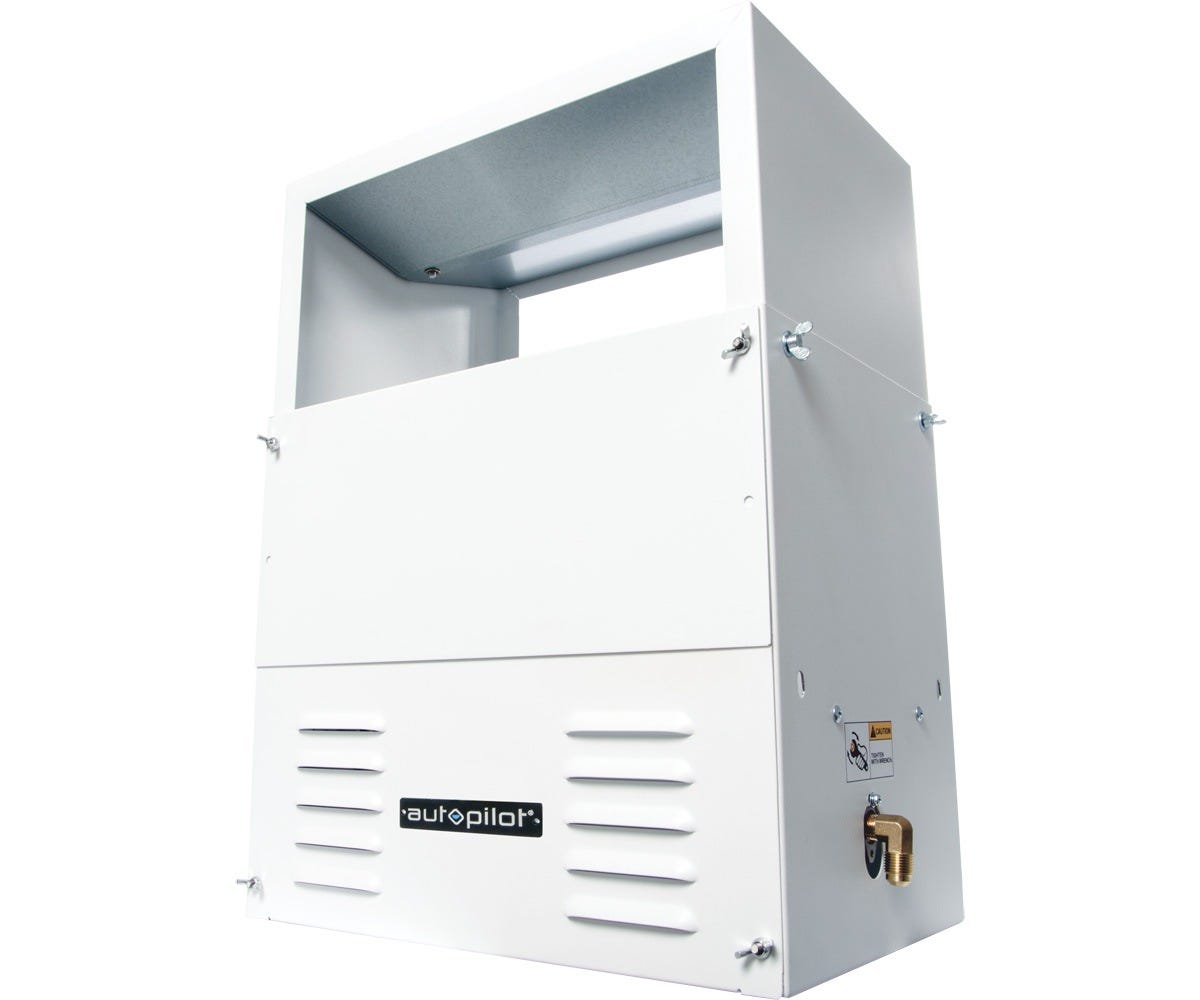

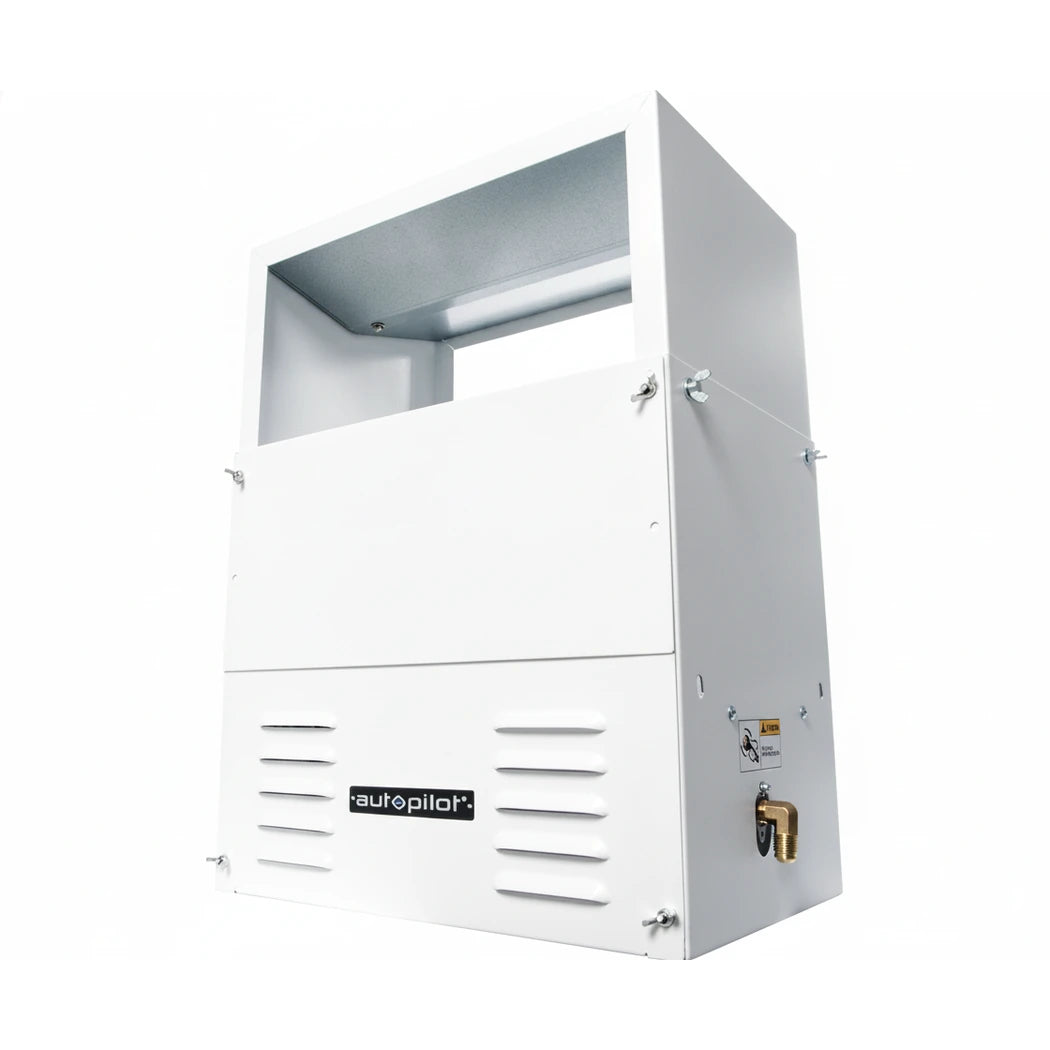

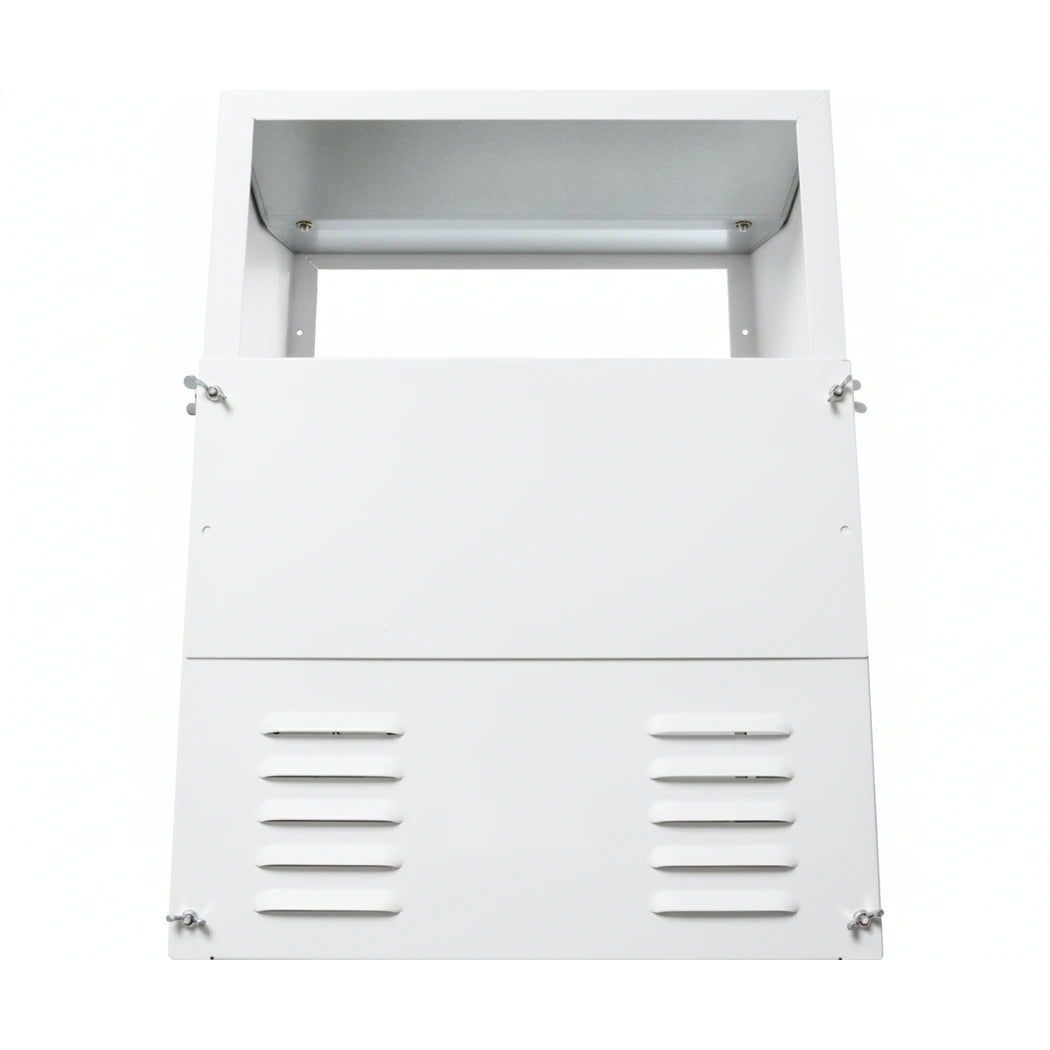

Autopilot CO2 Generator 10-Burner LP | 22630 BTU | 26.5 cu ft/hr

10-Burner LP CO2 Generator Output and Coverage

This 10-burner Liquid Propane unit produces 26.5 cu ft/hr of CO2 at 22,630 BTU on LP. An adjustable output switch steps it down to 2, 5, or 7 burners, bottoming out near 5.3 cu ft/hr. The manufacturer rates it for enclosed spaces up to 10,000 cu ft, roughly a 35' x 35' room. Each brass burner makes about 3 cu ft of CO2 per hour.

Running an Autopilot Generator in a Sealed Room

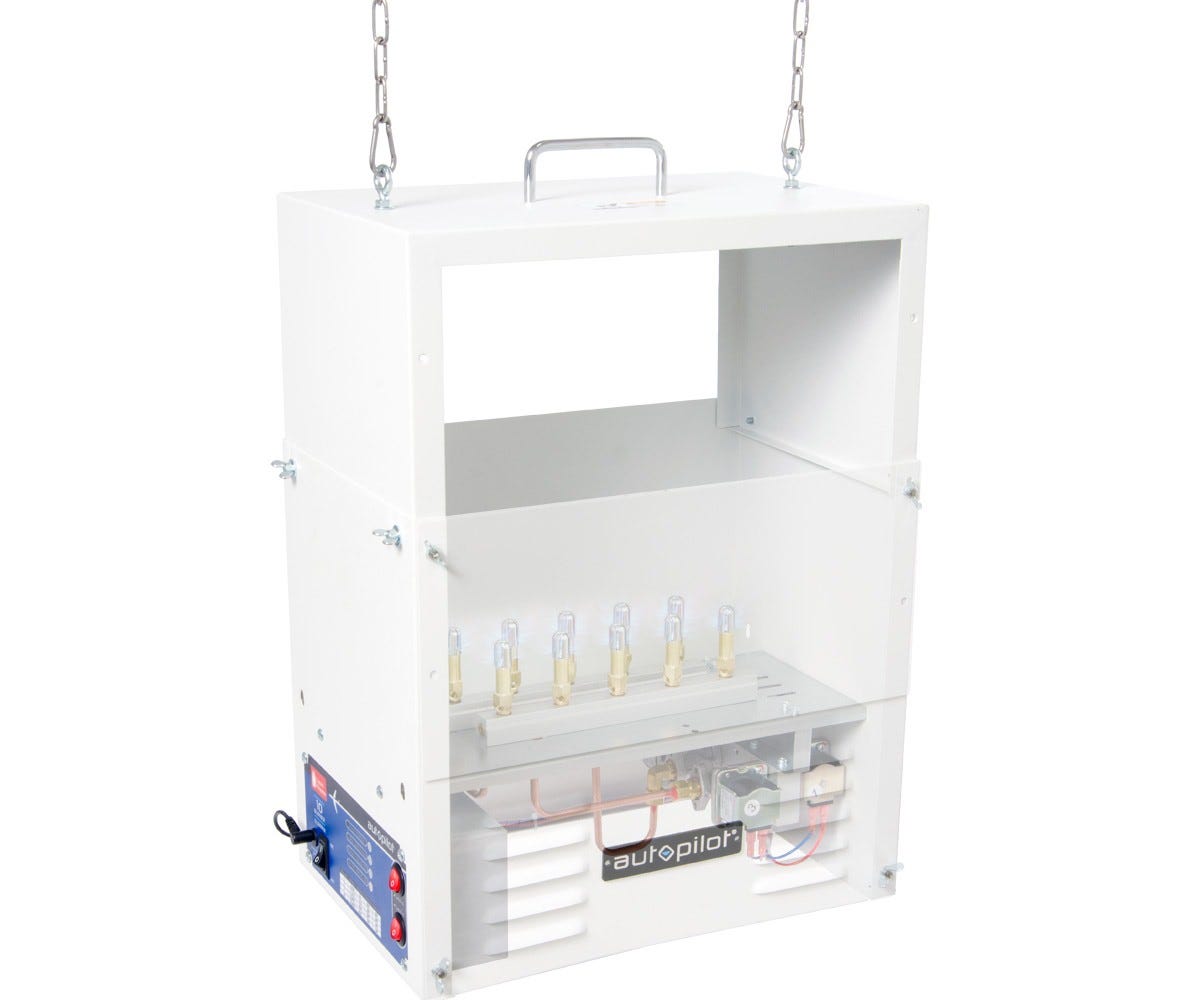

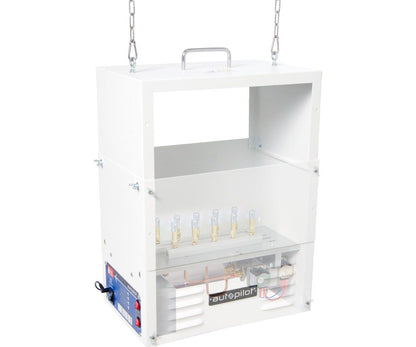

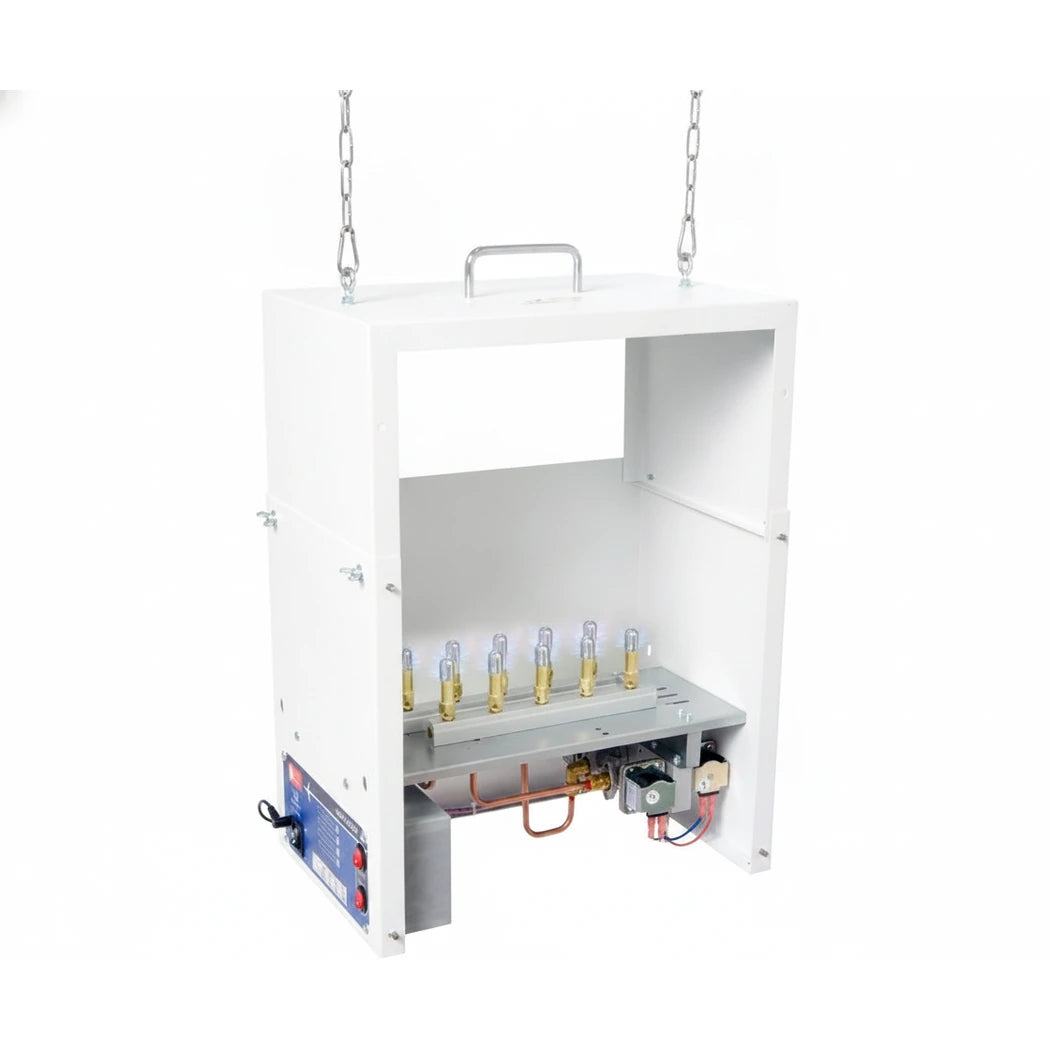

The unit hangs from the ceiling and needs 20 in of clearance on every side for airflow. A solid-state ignition module sparks the burners, so there is no standing pilot to babysit. A tip-over switch cuts the gas if it swings or falls, and four LED lights flag power, ignition, and lockout faults. Pair it with a CO2 controller and a ppm monitor, and vent fans should stay off while it runs. Feed it LP through the supplied regulator at 11" WC.

Key Features

• 26.5 cu ft/hr CO2 output: Puts out 26.5 cubic feet of CO2 per hour at 22,630 BTU on LP.
• Adjustable burner output: Switch selects 2, 5, 7, or 10 burners to match room size and target ppm.

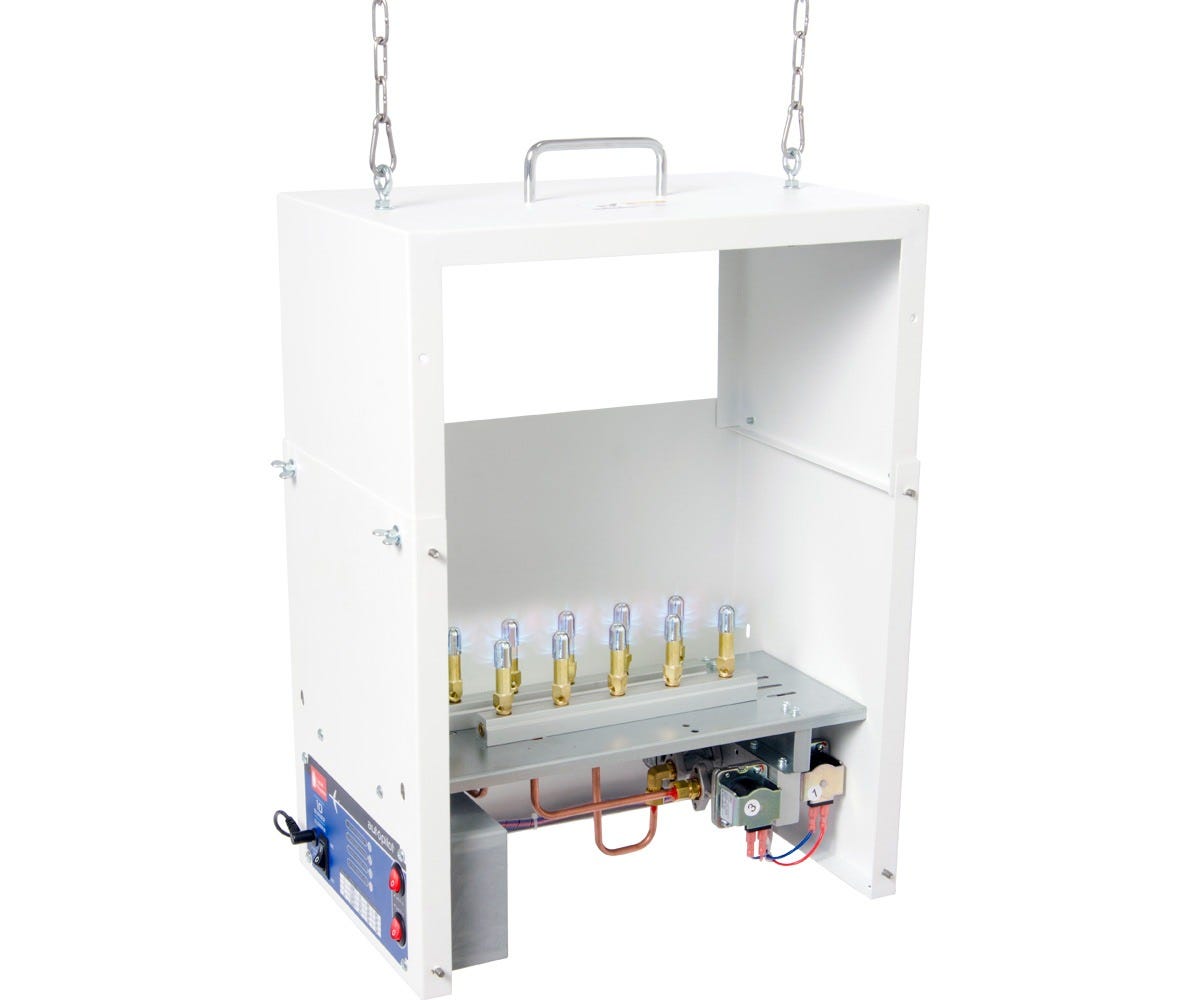

• Brass burners: Precision brass burners each make roughly 3 cu ft of CO2 per hour.
• Electronic ignition: Solid-state module sparks the burners with no standing pilot flame.
• Tip-over shutoff: Safety switch cuts the gas supply if the unit tips or falls.
• Powder-coated steel: Sealed steel housing resists moisture, rust, and discoloration in humid rooms.
