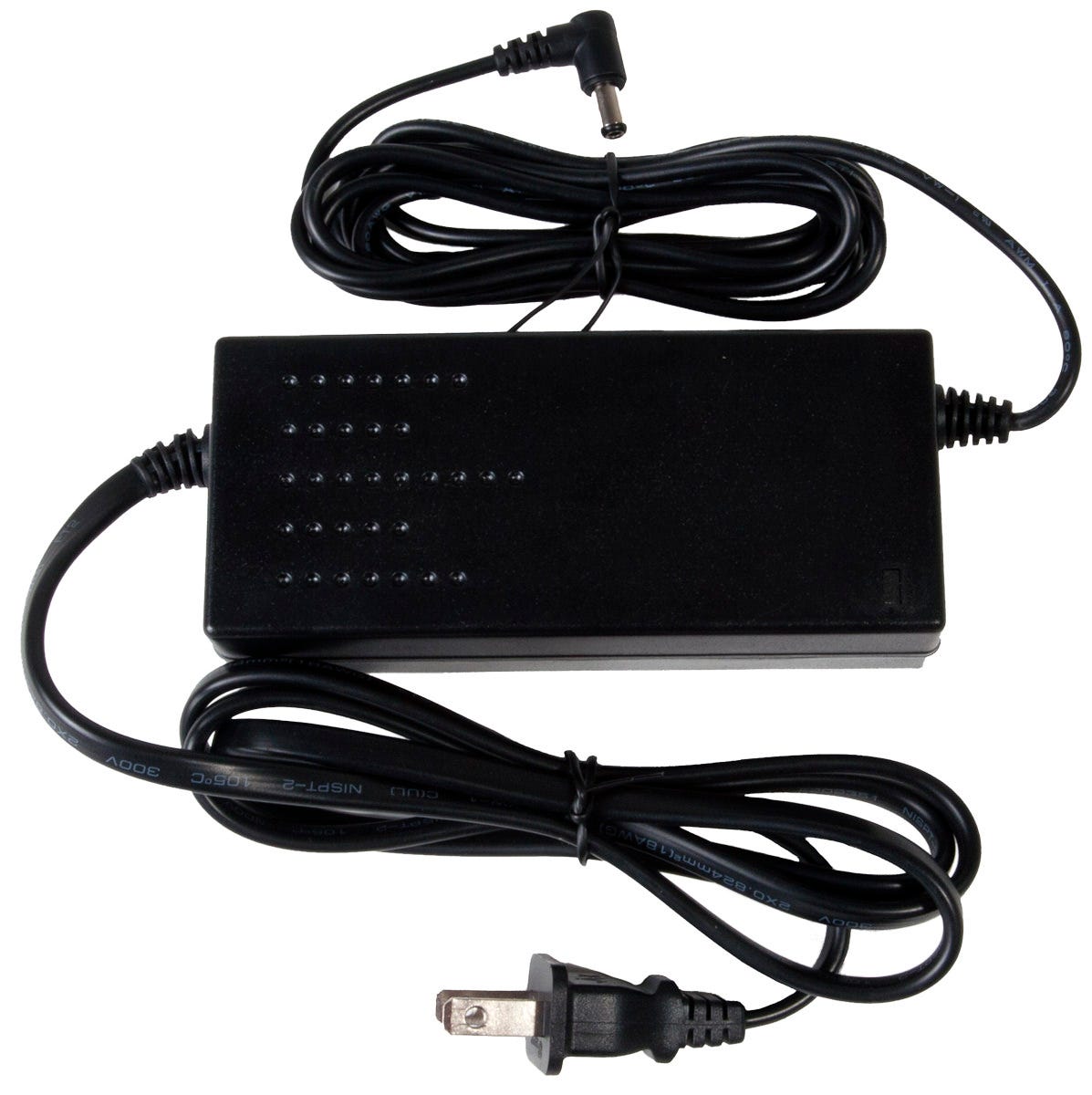

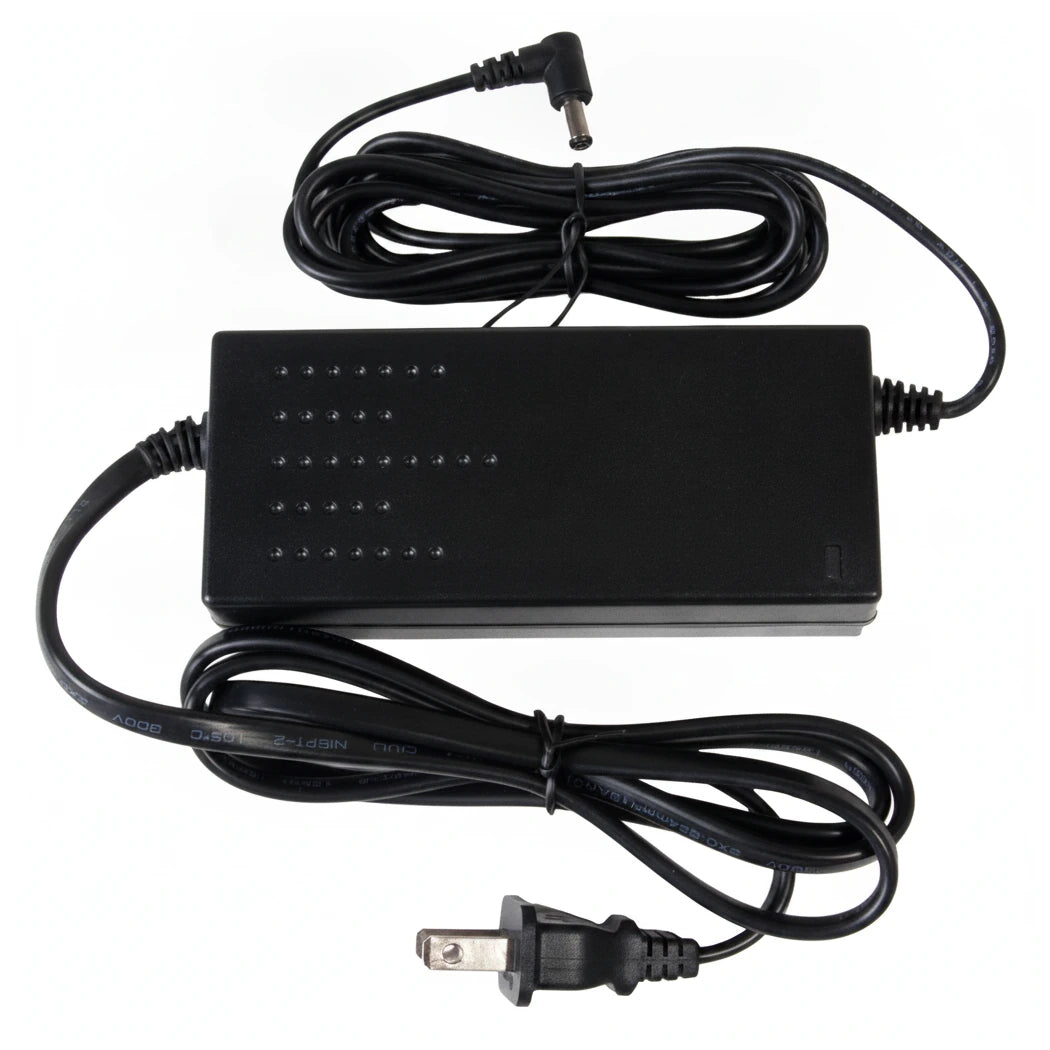

Autopilot CO2 Generator AC Power Adapter
This is the replacement AC power adapter for Autopilot 4-, 8-, and 10-burner CO2 generators. It takes 120-240V input and outputs 24V to run the generator's electronic ignition and control board. The barrel plug drops into the power inlet jack on the side of the generator. It carries a UL listing for the low-voltage supply.
When to Replace the CO2 Generator Power Supply
If the generator's main power LED never lights and the tip-over switch checks out, the adapter is the usual culprit. Swap in this 24V supply and the ignition sequence should fire on the next power-on. Keep a spare on the shelf so a dead brick doesn't idle a room mid-cycle. It matches the original spec, so no rewiring is needed.
Key Features
- 120-240V input: Runs on standard wall power in North America and abroad.
- 24V DC output: Matches the Autopilot generator's ignition and control-board requirement.
- UL-listed supply: Certified low-voltage adapter for safe indoor use.
- Direct-fit barrel plug: Seats in the generator's factory power inlet with no rewiring.
- Fits 4/8/10-burner units: One adapter covers the full Autopilot CO2 generator line.
Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage | 120-240V |
| Output Voltage | 24V DC |
| Certification | UL listed |
| Connector | Barrel plug (generator power inlet) |
| Compatibility | Autopilot 4 / 8 / 10-burner CO2 generators |
