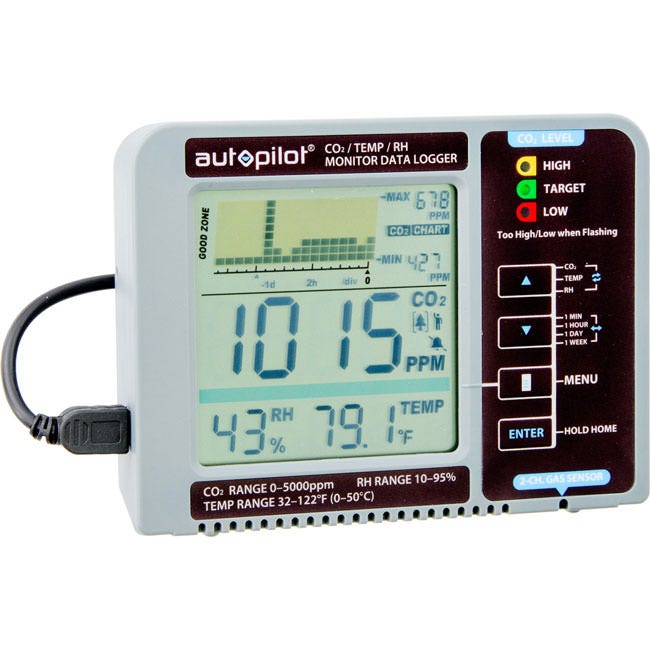

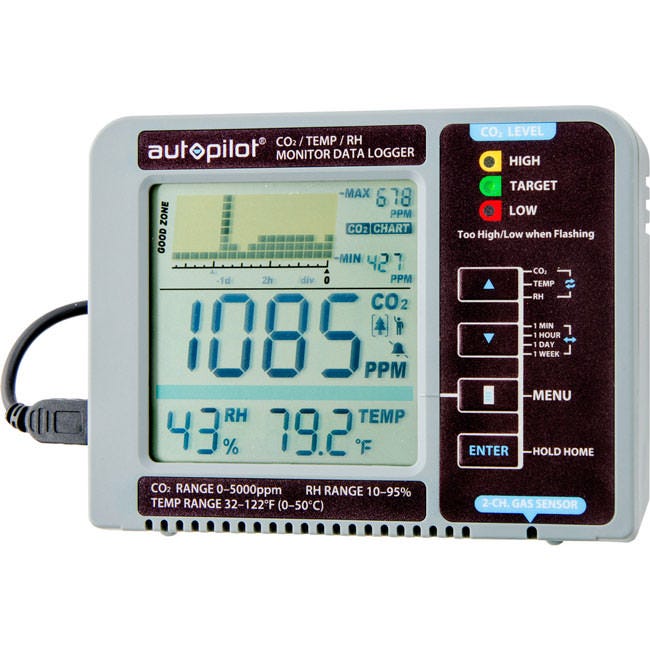

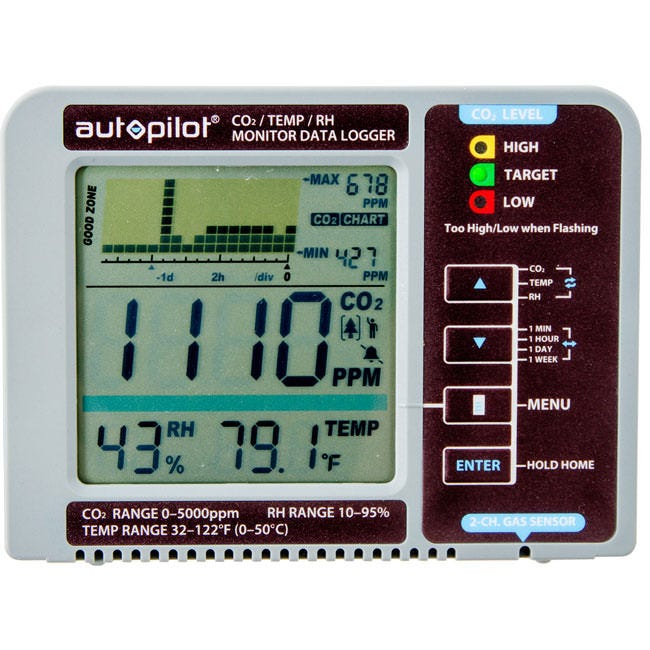

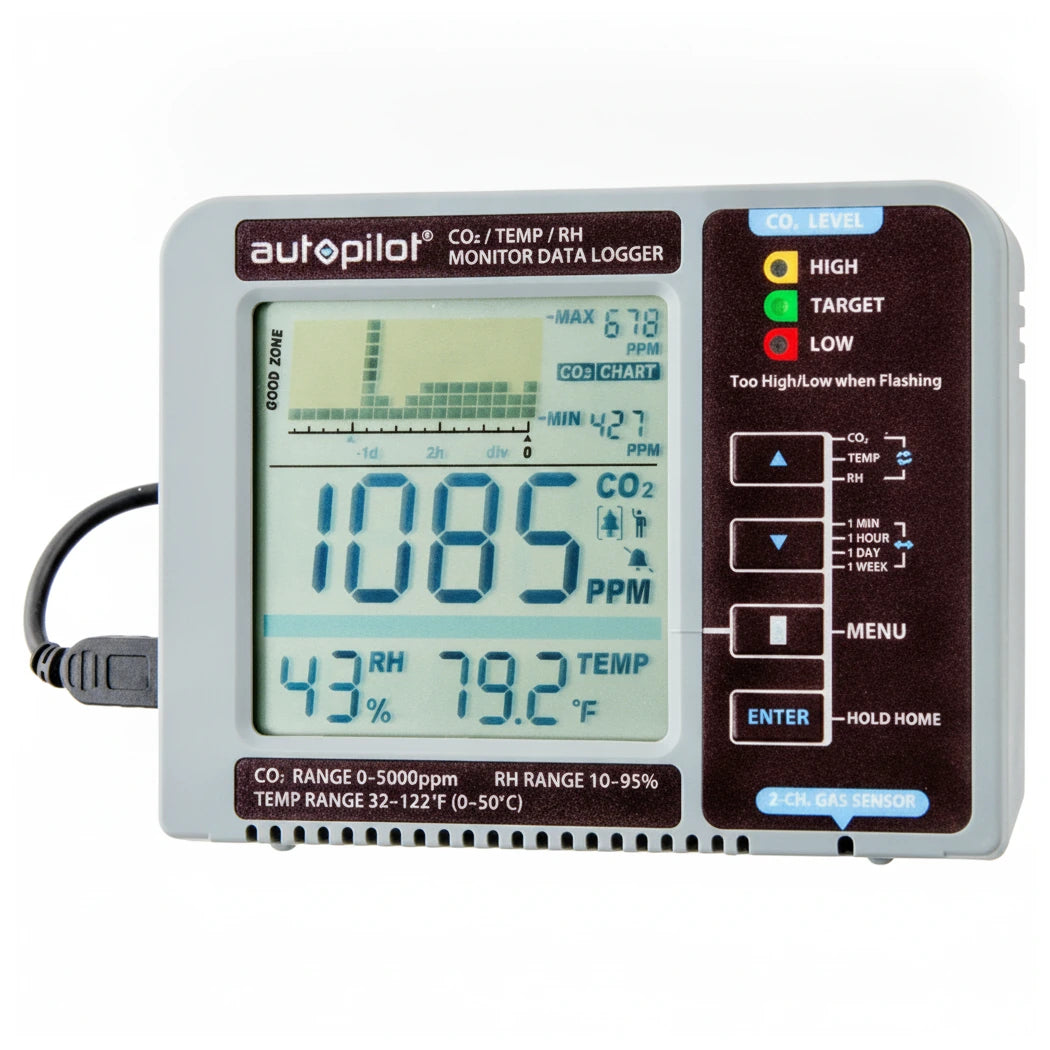

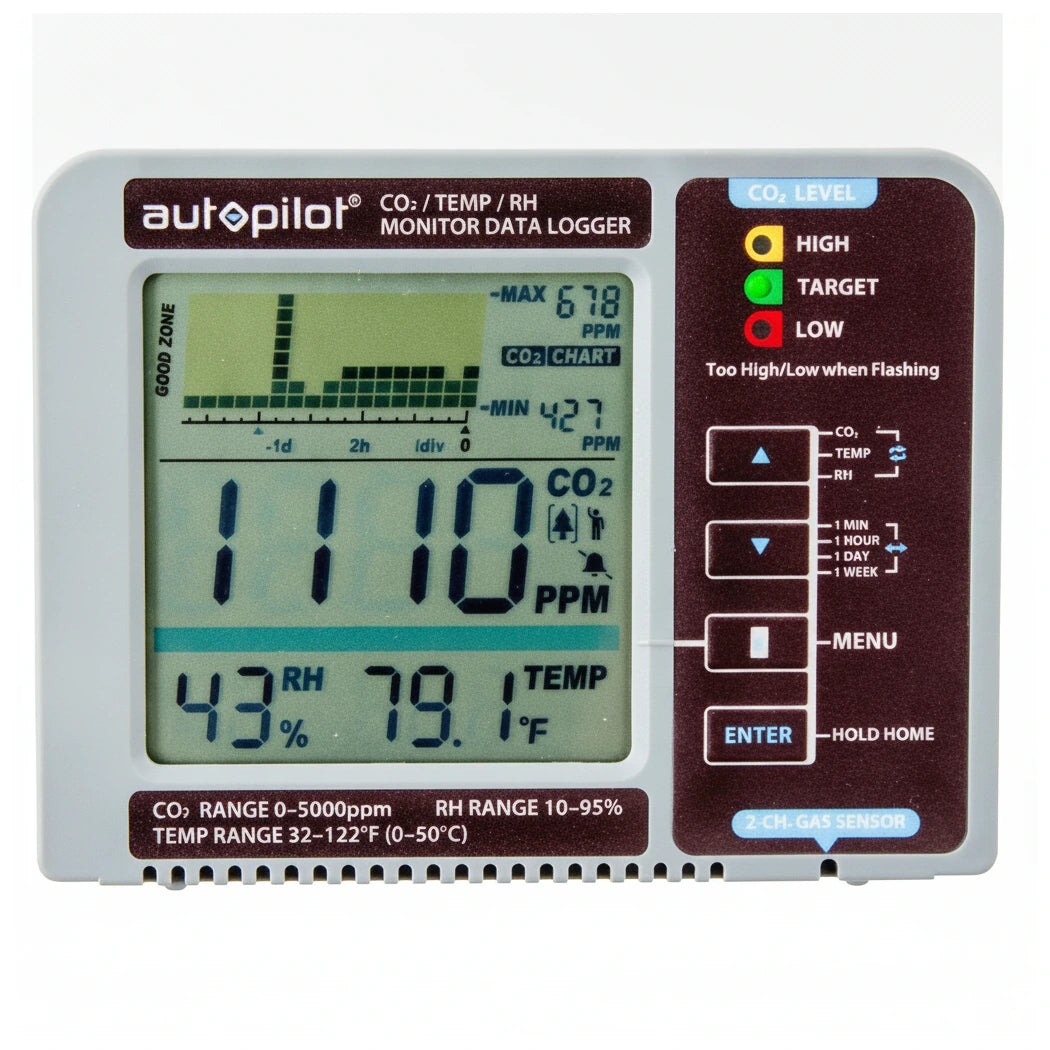

Autopilot Desktop CO2 Monitor and Data Logger
This desktop unit tracks CO2, relative humidity, and temperature on one display and logs them to a built-in trend chart. A 2-channel low-drift NDIR sensor reads CO2 to ±50 ppm or ±5% across 0-3000 ppm. The Trend Chart plots the last minutes, hours, or up to 7 days so you see how the room drifts. An audible alarm and three color LEDs flag high or low CO2 at a glance.
Logging Grow Room CO2 Without a Wired Controller
Power it from any USB source: a wall adapter, a laptop, or a battery pack. It operates from 32 to 122°F and 0-95% RH, so it holds up in a working grow room. A built-in plant directory carries CO2 targets for common crops, with two slots for custom setpoints. Set it on a bench, hang it, or wall-mount it.
Key Features
- 2-channel NDIR sensor: Reads CO2 to ±50 ppm or ±5% across 0-3000 ppm.
- CO2/RH/temp display: Tracks all three environment values on one clear screen.
- 7-day Trend Chart: Plots readings over minutes, hours, or up to 7 days.
- Audible and LED alarms: Flags high or low CO2 with sound and three color LEDs.

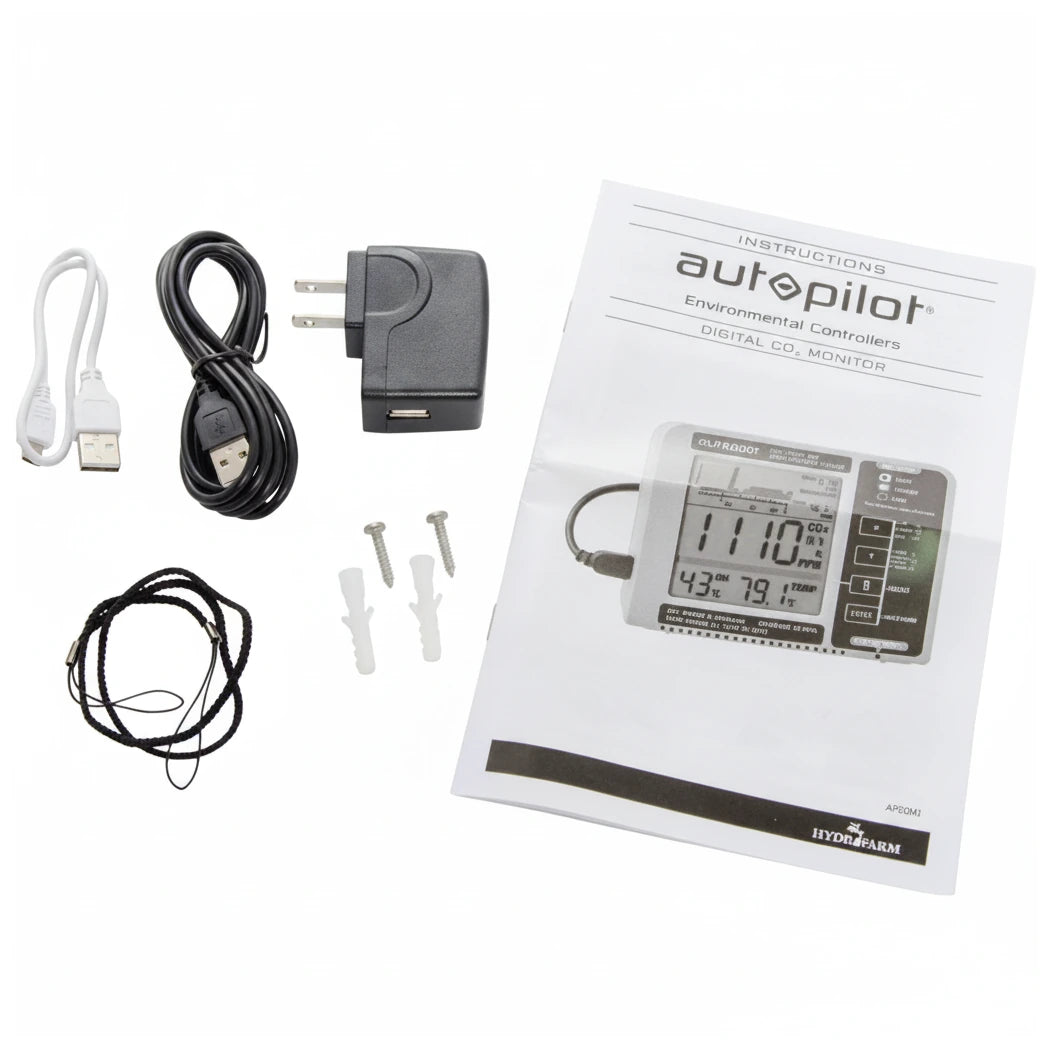

- USB power: Runs off a wall adapter, laptop, or power bank; two cables and an adapter included.
- Plant CO2 directory: Built-in setpoints for common crops plus two custom slots.
- Replenish reminder: Estimates CO2 refill timing from the last five days of use.
- Flexible mounting: Sits on a desktop, hangs, or mounts to a wall.
Technical Specifications
| Specification | Value |
|---|---|
| Measurements | CO2, relative humidity, temperature |
| CO2 Sensor | 2-channel low-drift NDIR |
| CO2 Accuracy | ±50 ppm or ±5% (0-3000 ppm); ±7% above 3000 ppm |
| Data Logging | Trend chart, 24-hour or 7-day |
| Alarms | Audible + 3 color LEDs (high/low CO2) |
| Operating Temperature | 32-122°F |
| Operating Humidity | 0-95% RH (non-condensing) |
| Power | USB (AC adapter 100-240V; 2 cables + adapter included) |
| Mounting | Desktop, hanging, or wall |
